Mounting a Winch( not wench)

Discussion in '1st Gen. Tacomas (1995-2004)' started by BRP27, Jul 2, 2010.

  1. Jul 2, 2010 at 3:56 PM
    #1
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    421
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    Got the winch mounted. The mount is hidden which made it a little harder.

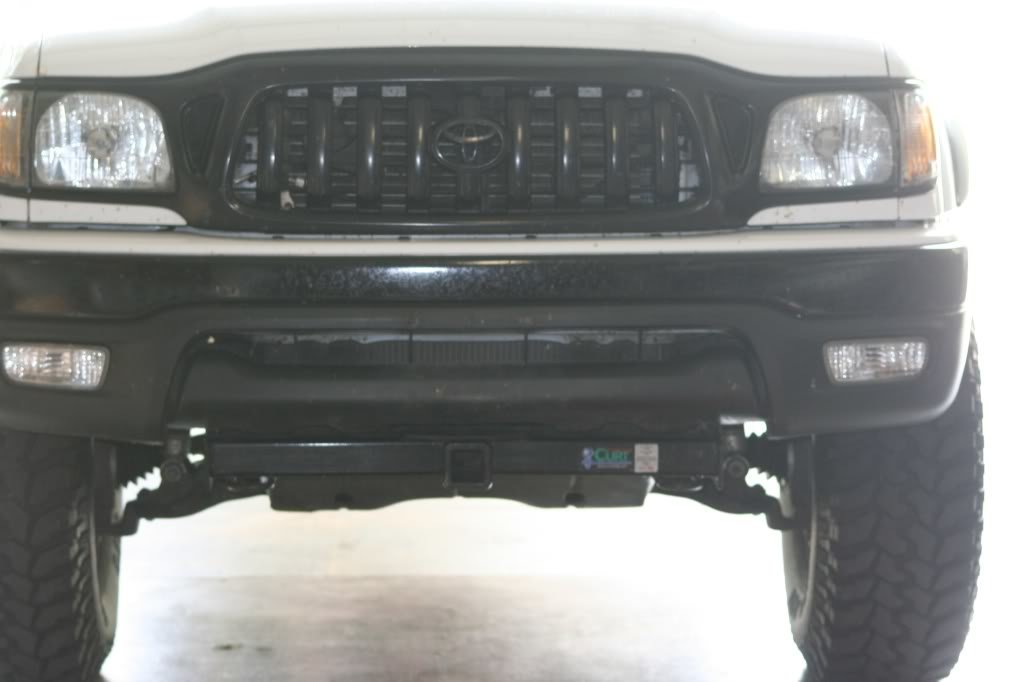

    Before

    [​IMG]

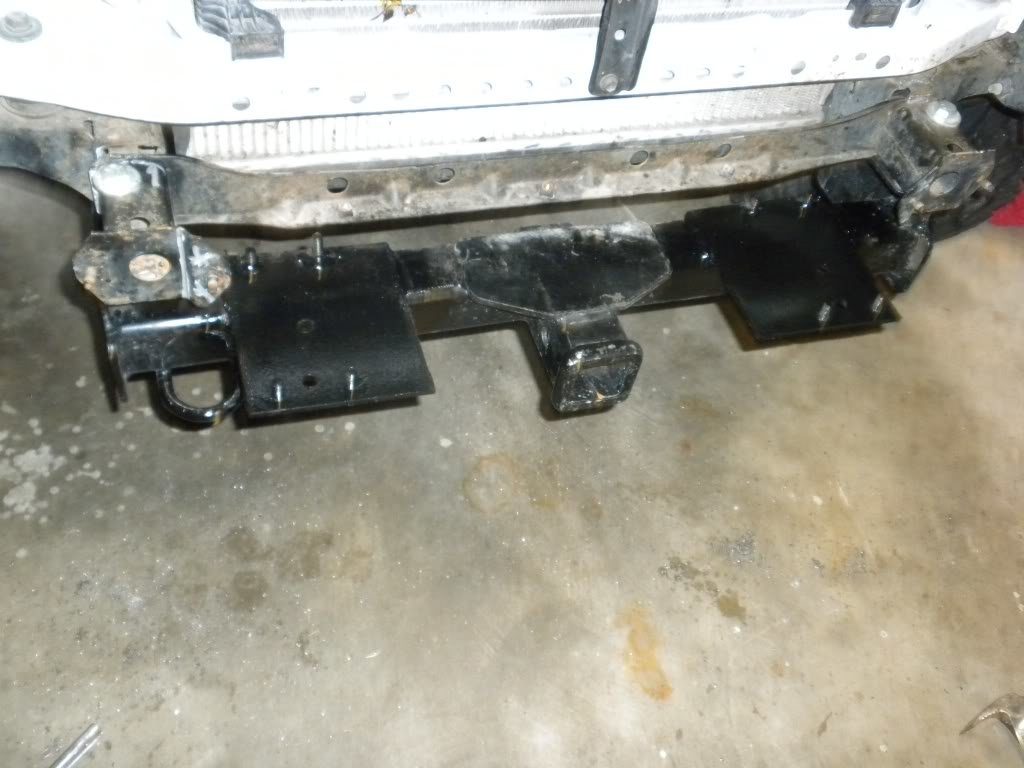

    welded up a frt reciever bar with plates, mounting studs, gussets and 4 1/2 inch dia. through bolts
    [​IMG]

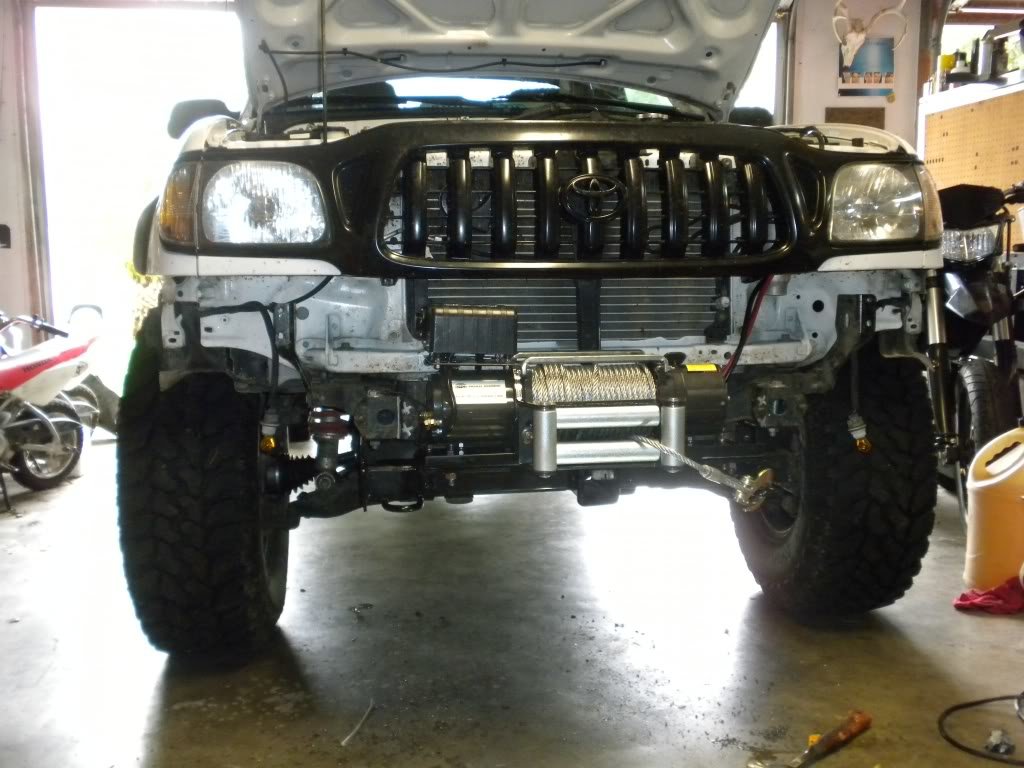

    Bolted the winch on
    [​IMG]

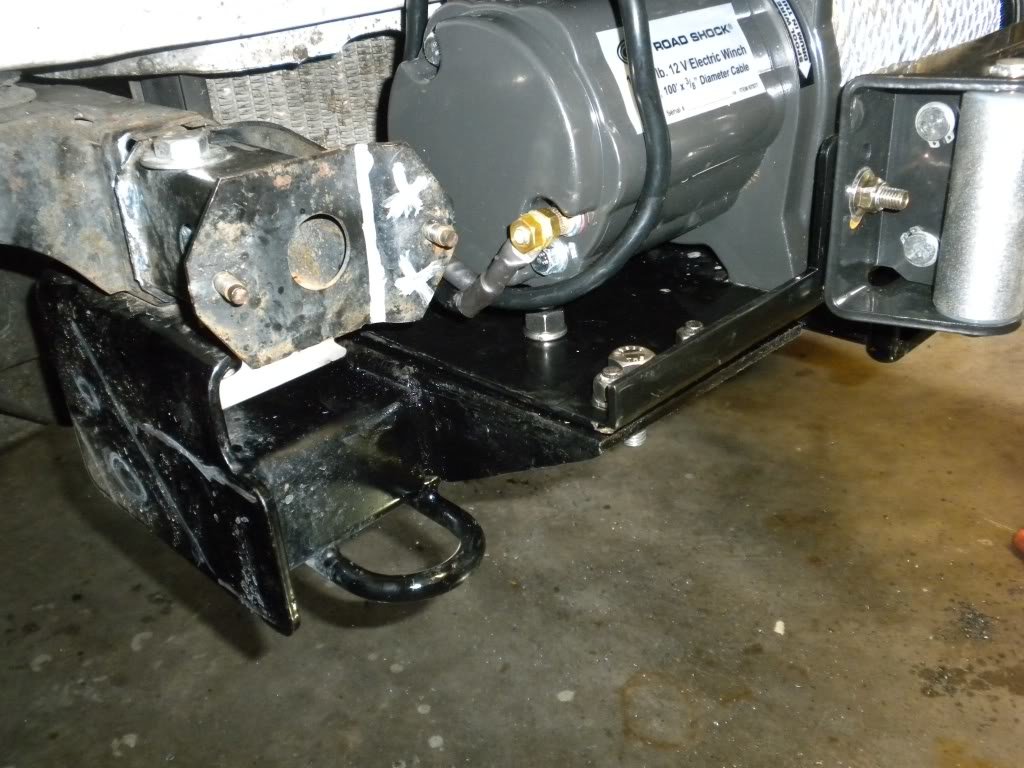

    Side view
    [​IMG]

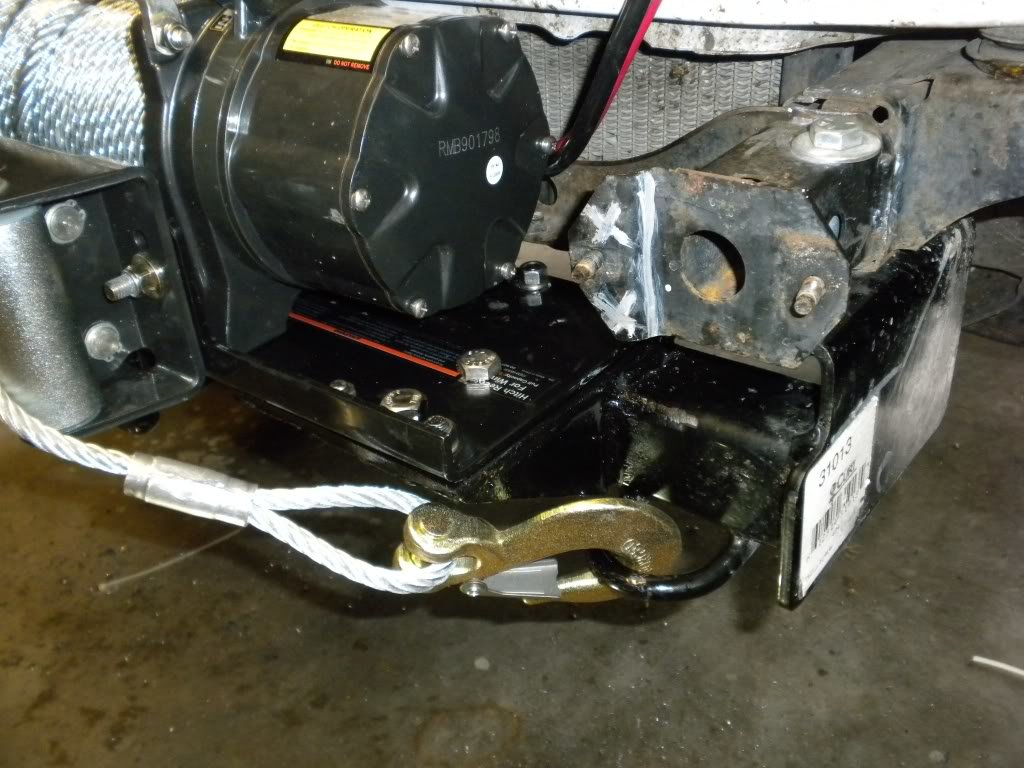

    Other side
    [​IMG]

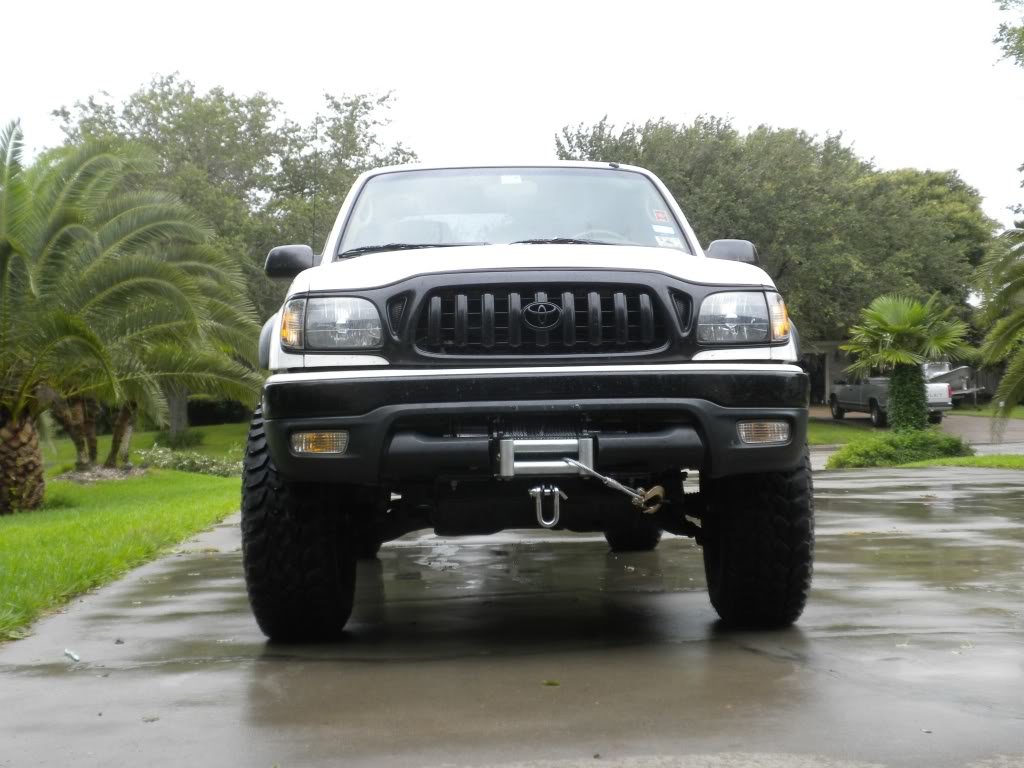

    Finished ( note the trimmed tupperware)
    [​IMG]

  2. Jul 2, 2010 at 4:01 PM
    #2
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Nice...That looks AWESOME for a stock bumper...

  3. Jul 2, 2010 at 4:01 PM
    #3
    stroM-

    stroM- Well-Known Member

    Joined:
    Jul 9, 2009
    Member:
    #19479
    Messages:
    2,402
    Gender:
    Male
    First Name:
    Jason
    Santa Rosa, California
    Vehicle:
    2006 4X4 TRD OR
    Nice, looks just like a guys up here in norcal! He also made a front license plate holder the clips to those fairfield rollers. GJ :thumbsup:

  4. Jul 2, 2010 at 4:10 PM
    #4
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    421
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off

  5. Jul 2, 2010 at 4:41 PM
    #5
    Wreckless_71

    Wreckless_71 WRECKLESS for Life...

    Joined:
    Jul 13, 2009
    Member:
    #19616
    Messages:
    397
    Gender:
    Male
    First Name:
    Justin
    Pullman, WA.
    Vehicle:
    98 ext cab Tacoma
    3" Lift via OME 881's, Bilstein 5100's, Dakar OME 3" leaf packs, MBRP custom exhaust, HID headlights, CB, Canopy, aluminum wheels, upgraded sound system, full set of studded snow tires and wheels, auxilary lighting, more to come.

    *Fairlead....

  6. Jul 2, 2010 at 4:45 PM
    #6
    stroM-

    stroM- Well-Known Member

    Joined:
    Jul 9, 2009
    Member:
    #19479
    Messages:
    2,402
    Gender:
    Male
    First Name:
    Jason
    Santa Rosa, California
    Vehicle:
    2006 4X4 TRD OR
    hey, you know what i meant :p

  7. Jul 2, 2010 at 4:47 PM
    #7
    BSPDX

    BSPDX Well-Known Member

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,074
    Gender:
    Male
    Nice! Looks realy good!

  8. Jul 4, 2010 at 10:17 AM
    #8
    98fourbangertaco

    98fourbangertaco Well-Known Member

    Joined:
    May 7, 2010
    Member:
    #36703
    Messages:
    564
    Gender:
    Male
    First Name:
    Ryan
    Taylorsville, NC
    Vehicle:
    98 toyota tacoma, 4wd, SR5, 2.7L, 5-speed
    daystar 2.5in suspension lift kit, detroit truetrac in rear, custom transfer case skidplate, deckplate mod, green high-performance drop in filter, Huskyliner floor mats, 31x10.50 wild country radial mtx tires, yakima roof rack, load warrior basket, stubbs welding rock sliders, arb front bumper with warn 9,000lb winch and procomp black series 100w offroad lights, trail-gear rear bumper, borla exhaust, blacked out factory wheels, shovel mounted on roof rack, de-mudflaped
    Nice, that's sort of the look I'm planin to go with for mine except I'm just using .25 in steel to make a plate that goes between the frame rails instead of a hitch, yours looks sweet

  9. Jul 4, 2010 at 11:38 AM
    #9
    quattrokiwi

    quattrokiwi Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24518
    Messages:
    422
    Gender:
    Male
    First Name:
    Bruce
    Nor Cal
    Vehicle:
    04 Tacoma, Limited, TRD, Locked, Geared, 4x4
    that would be me, I didn't make it. But i know people that have with the mag light clips for D cell lights.
    I can't remember where i got mine but it looks like this

    http://www.amazon.com/Rugged-Ridge-11238-05-Mounting-Fairlead/dp/B002QSHIC2

    except mine has 4 clips instead of 2, and they are metal. This is why I didn't do the mag light thing, they are plastic.

  10. Jul 4, 2010 at 11:39 AM
    #10
    eordonez

    eordonez Living vicariously through mjp2

    Joined:
    Mar 17, 2008
    Member:
    #5340
    Messages:
    8,341
    Gender:
    Male
    First Name:
    Ed
    Chihuahua, Mexico
    Vehicle:
    TRD Sport Dcab 4x2 Black Sand Pearl
    OEM All Weather Mats, wheel locks, Toyota Silver Tube steps.....
    you should have mounted that wench also.... lol

  11. Jul 4, 2010 at 11:49 AM
    #11
    SaltySteve

    SaltySteve SMO

    Joined:
    Apr 22, 2009
    Member:
    #16293
    Messages:
    903
    Gender:
    Male
    First Name:
    Steve
    Denver
    Vehicle:
    2011 Quicksand FJC
    X2. I'm really diggin' it.

  12. Jul 4, 2010 at 12:00 PM
    #12
    Monkeysuncle

    Monkeysuncle My Cat's breath Smells like Cat Food

    Joined:
    Aug 27, 2008
    Member:
    #8809
    Messages:
    1,248
    Gender:
    Male
    First Name:
    Kevin
    Florida
    Vehicle:
    99 Tacoma SR5 4x4 5 speed Manual Hubs
    Diff Breather,CB thingy,GPS,Cop Shocks,Cop Breaks, old Man Emu 881's Dakar Leaf Springs and Nitro sport shocks. Deck Plate mod
    BRP27- I like that system, I have a 1999 and want to so something just like that, can you post some more details on that set up? I see you have a curt hitch on the front, I have one on the rear of mine and it's a snap to install on rear, is that made for the front or did you make one fit? ALSO Post more pictures and info if you can , thanks. Kevin

  13. Jul 4, 2010 at 12:15 PM
    #13
    shitroc

    shitroc Master of War

    Joined:
    Oct 14, 2009
    Member:
    #24315
    Messages:
    1,406
    Gender:
    Male
    First Name:
    Ant
    New Brunswick, Canada
    Vehicle:
    2002 Tacoma TRD 4X4
    Listed in sig.......
    nice man thats sweet, props on the install.:D

  14. Jul 4, 2010 at 12:30 PM
    #14
    SPORT

    SPORT Well-Known Member

    Joined:
    Jun 30, 2010
    Member:
    #39641
    Messages:
    273
    Gender:
    Male
    First Name:
    Rick
    CA bred, currently living in York, PA
    Vehicle:
    TRD Off Road 4x4 V6
    3" level lift 1.25" Wheel Spacers
    Very Clean Install!

  15. Jul 4, 2010 at 3:26 PM
    #15
    veg hed

    veg hed Well-Known Member

    Joined:
    Mar 14, 2010
    Member:
    #33217
    Messages:
    247
    Gender:
    Male
    Grand Teton, WY
    Vehicle:
    04 Toyota TRD SR5 V6 Access Cab
    Bilstein 5100s, Toytec 620 springs, OME Dakar Leafs, ARB Bumper, Warn 8000 Winch, Grey Wire Mod.
    I'm interested in the front hitch install as well. Can you give some details on how you did this? Thanks.

  16. Jul 4, 2010 at 4:34 PM
    #16
    dylandercole

    dylandercole Well-Known Member

    Joined:
    Aug 2, 2009
    Member:
    #20547
    Messages:
    1,372
    Gender:
    Male
    First Name:
    Dylan
    Santa Cruz Mountains, CA
    Vehicle:
    03 SR5 TRD 4x4 5-speed
    sway-a-way 2.0 coilovers, 1.5'' AAL, 1'' toytec shackle lift, Go-Rhino 3000 Grille Guard, Kicker KS6502 speakers, JVC KD-S24 Head unit, billstein 5125 rear shocks, Deck Plate mod, K&N air filter, Wheelers offroad front and rear braided brake lines, diff breather mod, power slot rotors, ebc yellow stuff pads
    thats legit. I want

  17. Jul 4, 2010 at 4:41 PM
    #17
    SaltySteve

    SaltySteve SMO

    Joined:
    Apr 22, 2009
    Member:
    #16293
    Messages:
    903
    Gender:
    Male
    First Name:
    Steve
    Denver
    Vehicle:
    2011 Quicksand FJC
    Time for a write-up. :D

  18. Jul 5, 2010 at 12:29 PM
    #18
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    421
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    The bumper hitch is a Curt made for the Frt of a Tacoma, fit up pretty easy, got it off of E-bay, they sell them other places on the web also.

    I started by buying a 10000lbs winch and receiver mounting plate from Harbor Freight. Here is link to a test of a harbor freight 9000lbs winch
    http://www.moabjeeper.com/articles/general/listing.cfm?articleID=353

    Pictures/ other peoples work
    http://s30.photobucket.com/albums/c320/ua_taco/winch plate and winch and lights/

    http://ttora.com/forum/showthread.php?t=125282

    http://www.landroverworld.org/forums/showthread.php?t=17328#post91632

    So I cut the tube off the receiver plate and mounted the winch to the receiver plate. I took my bumper and tupperware off and set it on top of the Curt receiver. I measured and studied waited a few days and decided on two plates with gussets welded to the receiver. There are 4 studs welded to the two plates. The studs were drilled and welded to the two plates from the bottom. Then the plates were welded to the receiver. This was a problem area compromise since the 4 bolts on the back of the two plates on the reciever could not be thru bolted because of the skid plate clearance.

    There is not a lot more to tell, the plate is the same thickness as the gusset or brace on the Curt (3/16). The Curt was made to be used on the front. The plate for the winch mount is a reciever mount that I cut the tube off of. The 8 studs on the plate I would use larger ones if I was making this again, I thru drilled 4 1/2 in dia bolts to beef up the mount and to make up for the 8 studs. The welded plate is 3/16 over hang off the back of the Curt to keep from interferring with the skid plate and still get the winch as far back as possible. The solenoid fit on top of motor. You can access the clutch and plug the remote thru the tupperware.

    Before you do any welding set the winch in place and study the interferences. Put the Bumper and tupperware on and test fit before welding. When I assembled it after welding I mounted the tupperware to the bumper and mounted the bumper and tupper assembled. There is not much clearance to assemble the tupperware after you mount the bumper. If you need to work on the winch it is 6 bolts to remove the bumper and tupper together.

  19. Nov 17, 2010 at 3:22 PM
    #19
    01GREENTACO

    01GREENTACO Not all who wander are lost

    Joined:
    Aug 21, 2008
    Member:
    #8672
    Messages:
    1,268
    Gender:
    Male
    Germantown, TN
    Vehicle:
    01 4WD
    Lost track many, many mods ago.
    That's the coolest, stock bumper set up I've ever seen!
