    10/14/13

    One can never have enough bed space (especially when a tire carrier takes up half of it).

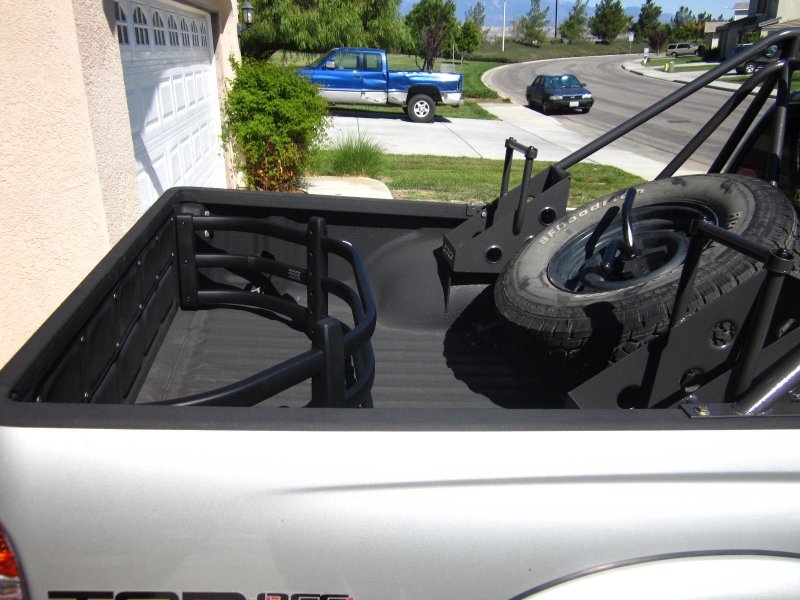

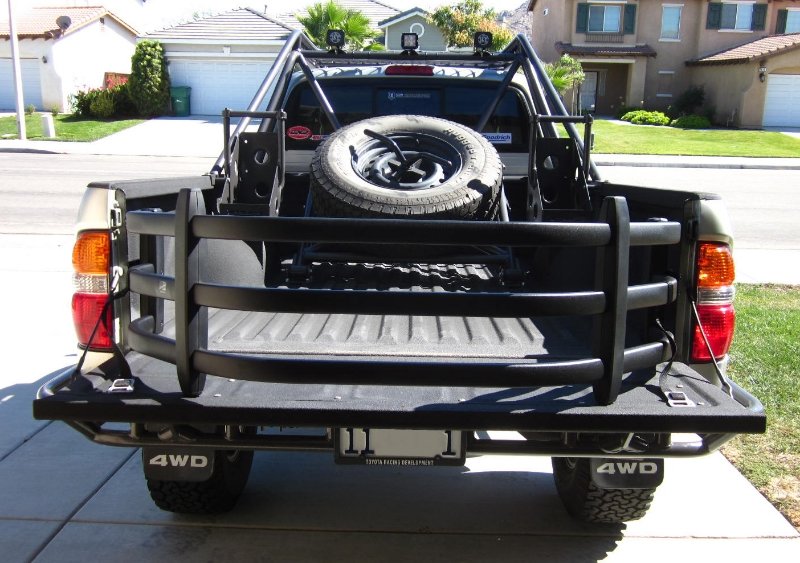

    Amp Research BedXTender HD installed today.

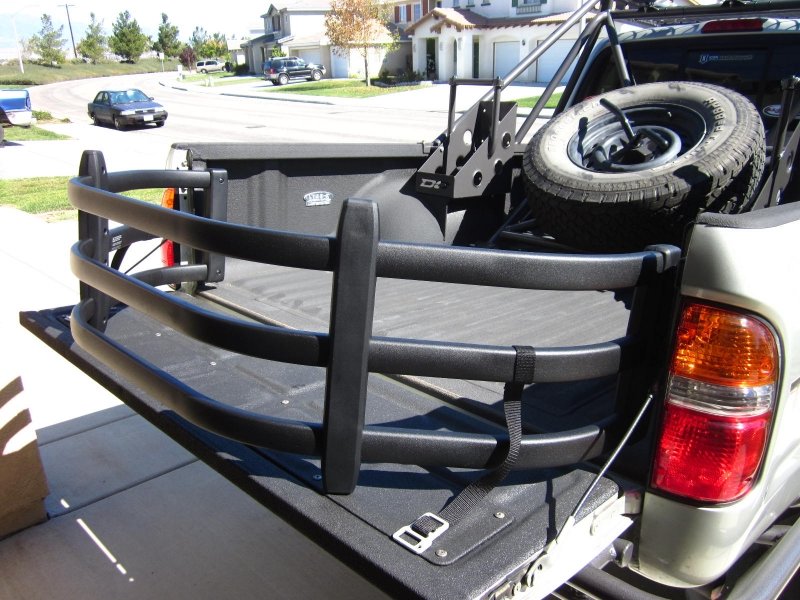

    Some drilling was involved; but the provided template made it an easy install.

    Last edited: Oct 24, 2013
  2. Oct 15, 2013 at 6:12 PM
    #102
    CelsisTaco

    CelsisTaco Well-Known Member

    Joined:
    Jul 22, 2013
    Member:
    #108805
    Messages:
    995
    Gender:
    Male
    First Name:
    Anthony
    Des Monies, IA
    Vehicle:
    2011 DCSB
    2 inch lift. LED fog lights (Cali fab) Alpine head unit. Kicker door speakers. Skar subwoofer.
    YOUR TRUCK IS AMAZING. holy shit, haha one of your pictures is my wallpaper :)

  3. Oct 19, 2013 at 7:14 AM
    #103
    MedicMutt

    MedicMutt Purveyor of Useless Information

    Joined:
    Oct 2, 2013
    Member:
    #113680
    Messages:
    792
    Gender:
    Male
    First Name:
    Josh
    Baton Rouge, LA
    Vehicle:
    '03 DC PreRunner TRD OR
    OME suspension, Whiteline bushings, Line-X'd Jason topper, GoRhino "Grille Guard", many more...
    Pristine ride, man. I'm very impressed with your attention to detail. Those little nit-pick things (i.e. the coax drip loop) really set your work apart. Sub'd.

  4. Oct 19, 2013 at 7:35 AM
    #104
    somethinboutayota

    somethinboutayota Dorthy left Kansas for a reason

    Joined:
    Apr 2, 2013
    Member:
    #101146
    Messages:
    4,255
    Gender:
    Male
    First Name:
    Parker
    Dodge City, Kansas
    Vehicle:
    Go to get alignment- replace whole front end
    Debadged and painted, plasti-dip bumper , Sock monkey decals, tool box, K&N cold air intake, flag holder/fishing pole holder, Satoshi, magnaflow 40 series, spidertrax wheel spacers, map lights, led reverse lights, led dash assembly lights, roof top LED bar
  5. Oct 19, 2013 at 8:16 AM
    #105
    99TacoDriver

    99TacoDriver Well-Known Member

    Joined:
    Jul 8, 2011
    Member:
    #59531
    Messages:
    6,698
    Gender:
    Male
    South Louisiana
    OME 885x/5100s/LR UCA/3 leaf AAL/275/70/17 Terra Trac X-Venture
    you and boxrocket are running a pretty close race in my book....awesome build man

  6. Oct 19, 2013 at 9:54 AM
    #106
    02goldie

    02goldie Well-Known Member

    Joined:
    Feb 11, 2013
    Member:
    #97296
    Messages:
    367
    Gender:
    Male
    First Name:
    Brock
    Lenoir, NC
    Vehicle:
    2016 Sport DCSB 4x4
    OME lift, spidertrax, 285 duratracs
    such a sick truck! wish i had the materials and knowledge to build/fab stuff like you made. also where do you run your wiring for the roof lights?

    Last edited: Oct 19, 2013
  7. Oct 19, 2013 at 9:12 PM
    #107
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Haha thanks, CelsisTaco! No problem, be my guest! I'm both honored and humbled to grace your desktop :)

    Is that your real age? A 15 y.o. with a Tacoma? That's pretty amazing. At that age, I was still riding a bike or walking. I didn't get a car until I was 21.

    Thanks, MedicMutt! Just some tricks I learned from an old job. The little things can mean big things later on, especially with wiring.


    Wow, I take that as a huge compliment. There are so many nice builds on TW, and his is my #1 fave (along with his trailer). Thanks, 99TacoDriver!


    Thanks, 02goldie! Just some tricks I learned from an old job. If you have any questions, I'd be glad to help.

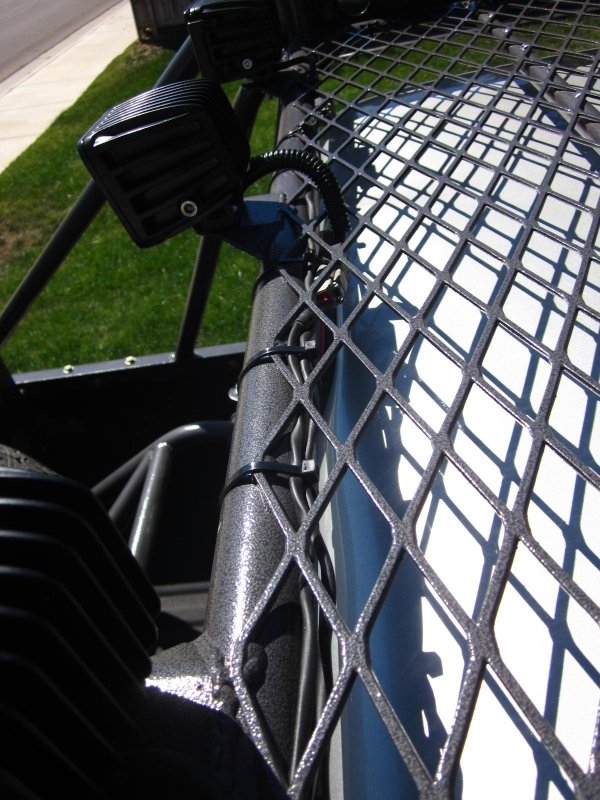

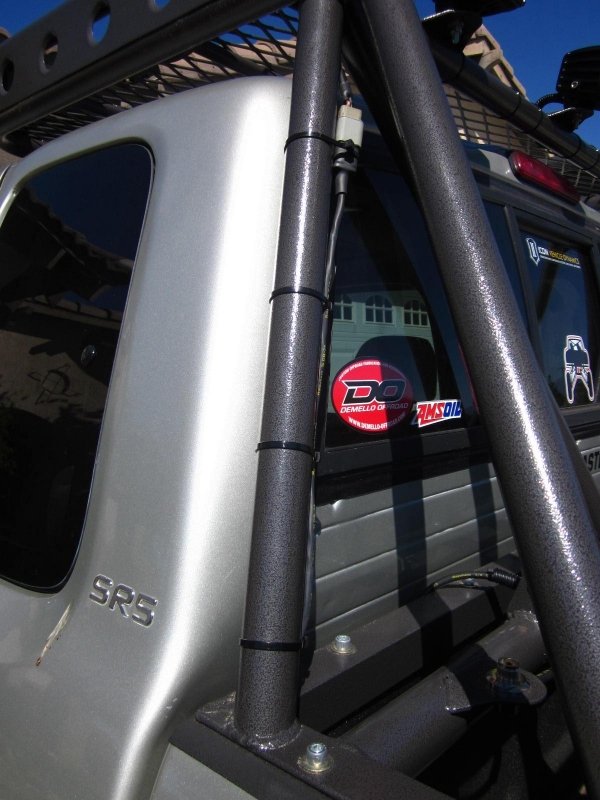

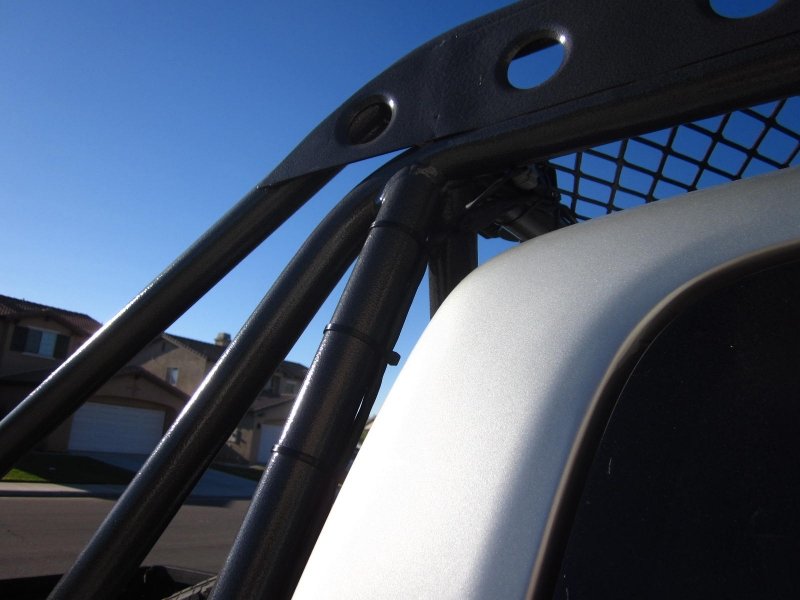

    The roof light wiring runs across the roof rack and down the rack pillars into the rear of the cab. The past few days have been devoted to finishing up the roof lights in fact, so an update and some photos will soon follow.

    Last edited: Oct 19, 2013
  8. Oct 19, 2013 at 9:52 PM
    #108
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    10/17/13

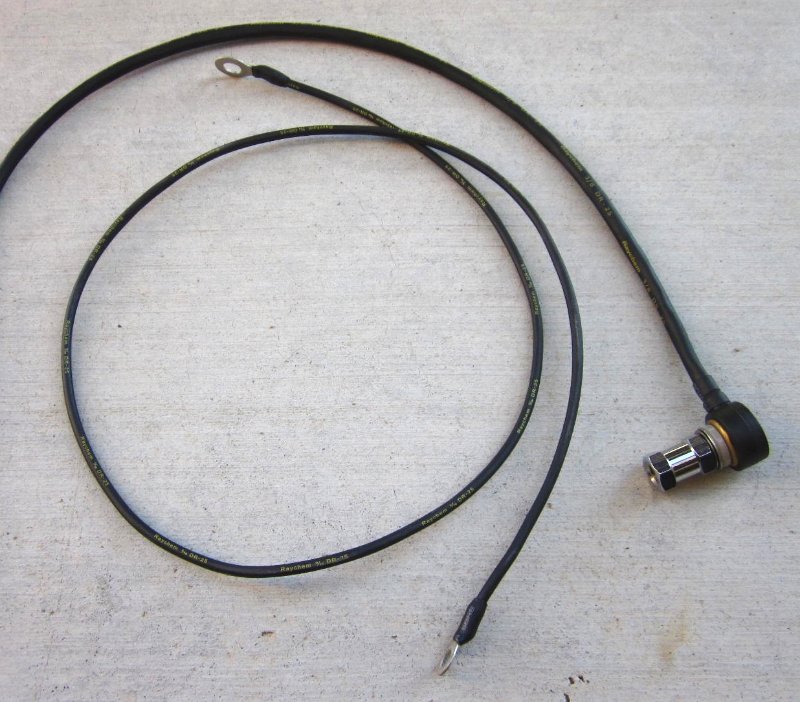

    To protect the CB coax to exposure from outside elements, Raychem DR-25 sleeving and marine heat-shrink were heat shrunk over the section that will remain outside the cab (~44").

    A separate ground wire was also made.

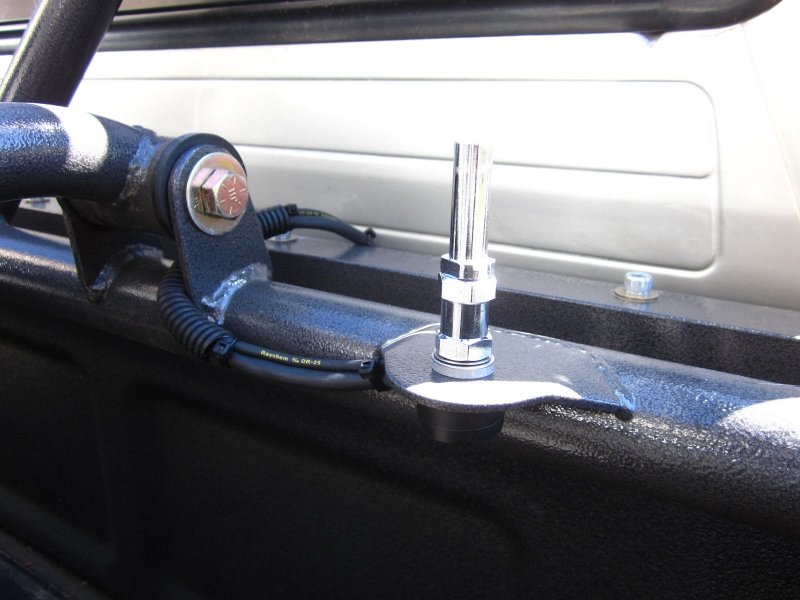

    Unlike the MLJ connector, the 3/8" x 24 antenna stud connector on the ProComm coax fit into the antenna tab perfectly. Firestik QD connector installed.

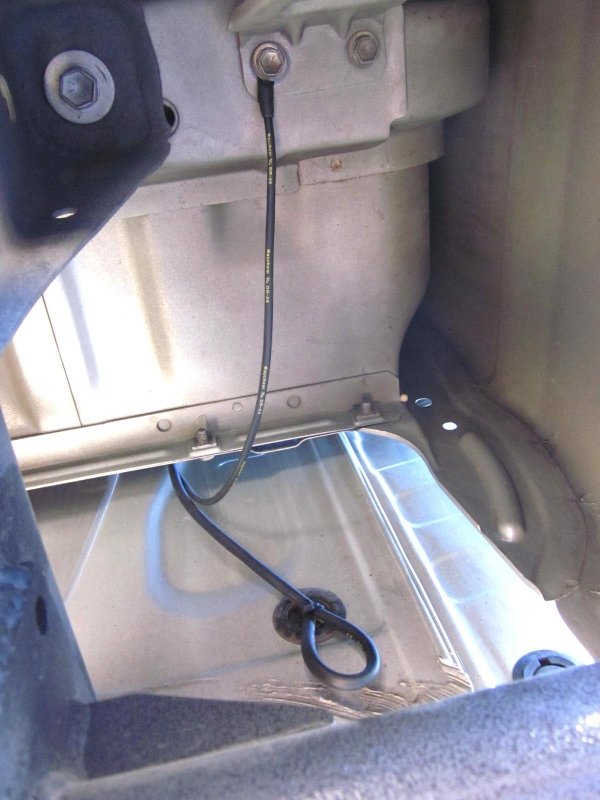

    Coax routed through rubber grommet into the rear of cab (passenger-side). Drip loop to help prevent water from dripping into the cab through the grommet.

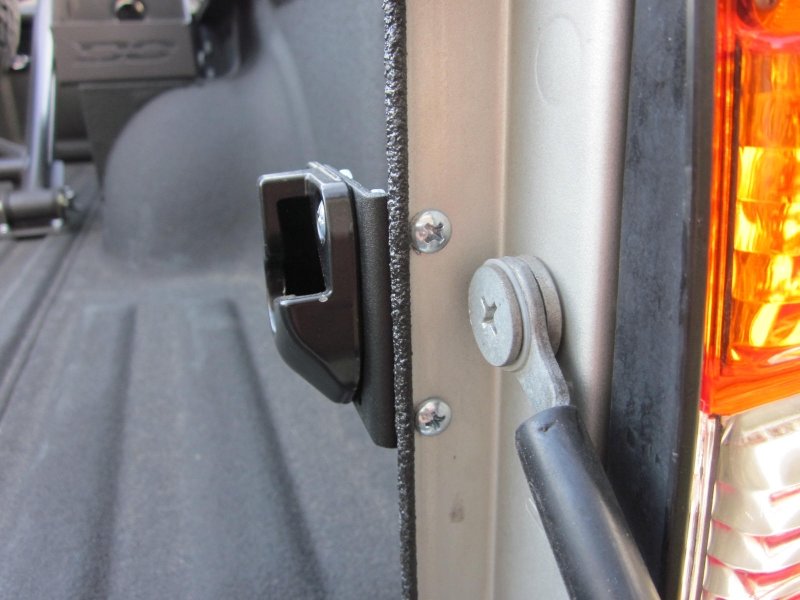

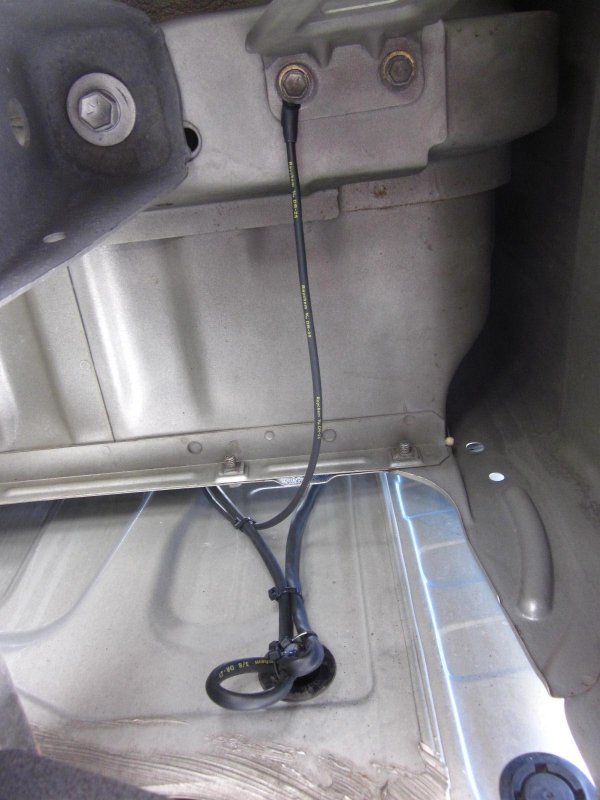

    Ground wire attached to underside of bed.


    CB coax routed to center console via rear/side trim and passenger seat. CB coax storage area is in between center console and passenger seat (not shown).

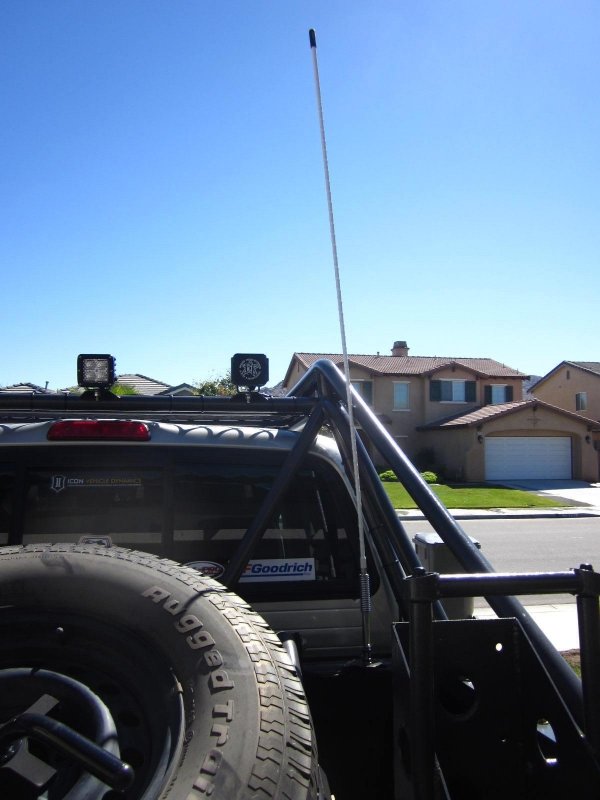

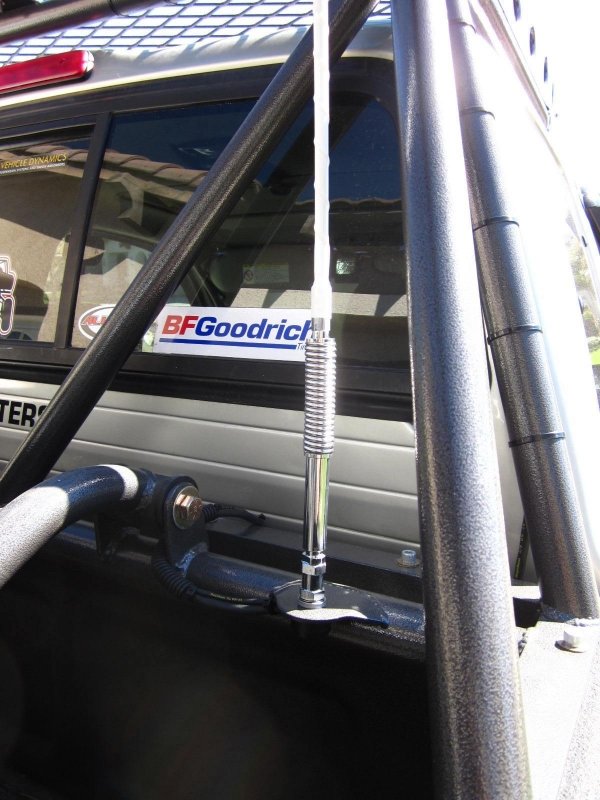

    Firestik FL4 with medium spring installed.


    Just like the Comet antenna, the Firestik makes contact with the tubing.


    However, the medium spring makes it easy to bend/zip-tie the Firestik out of the way, if necessary.

    I still need to tune the Firestik tip with my SWR meter to finish.

    Last edited: Oct 24, 2013
  9. Oct 19, 2013 at 10:47 PM
    #109
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    10/18/13

    With my new order of DR-25 sleeving, I was able to finish my roof light wiring harnesses and install them.

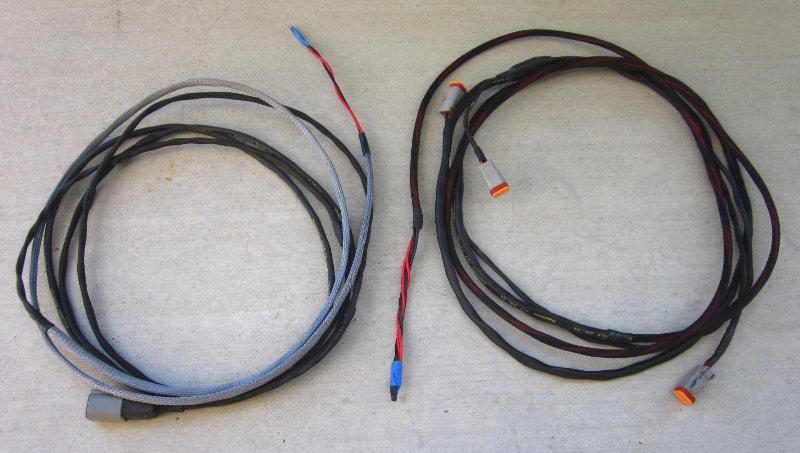

    ELS Atlas LED (left) and Rigid Dually harnesses (right).

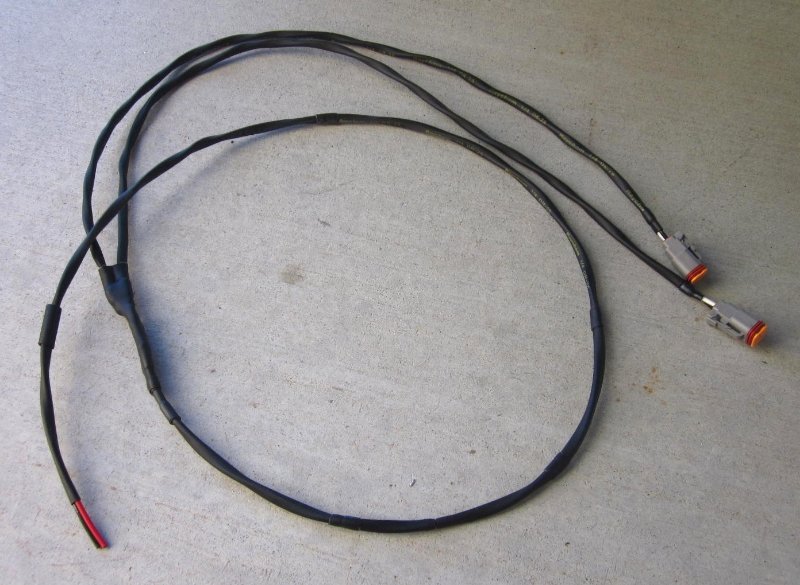

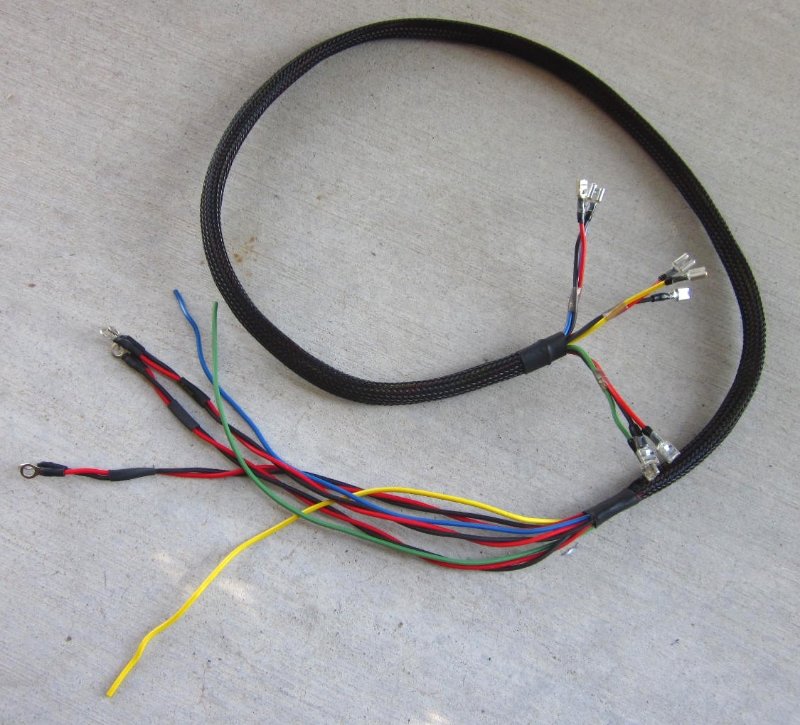

    Roof light switch harness.


    ELS Atlas wiring harness routed to back of the roof rack and down...

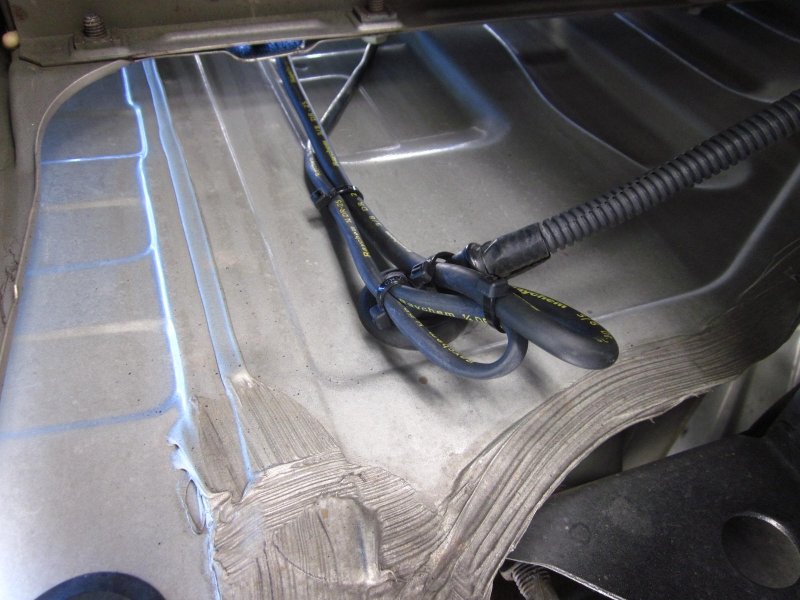

    ...through rubber grommet into the rear of cab (driver-side). Drip loop to help prevent water from dripping into the cab through the grommet.


    Rigid Dually wiring harness routed across the roof rack and down...



    ...through rubber grommet into the rear of cab (passenger-side). Drip loop to help prevent water from dripping into the cab through the grommet.

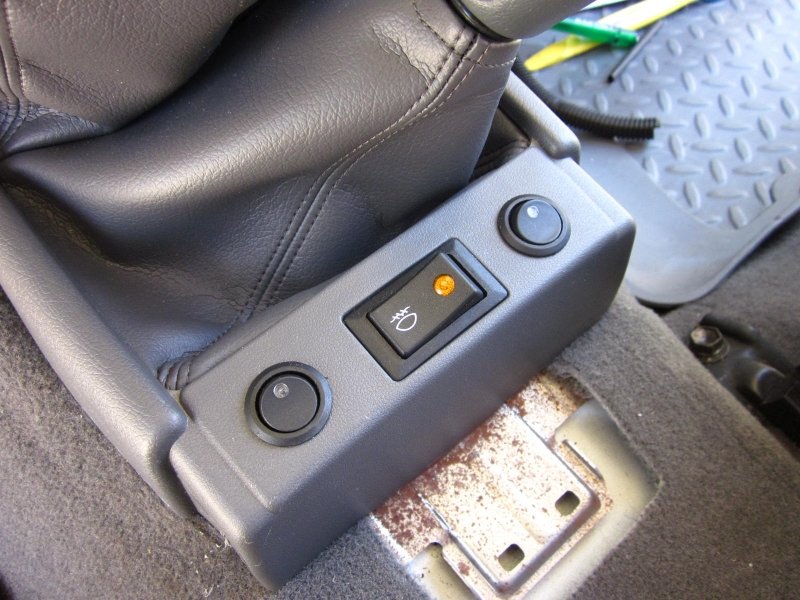

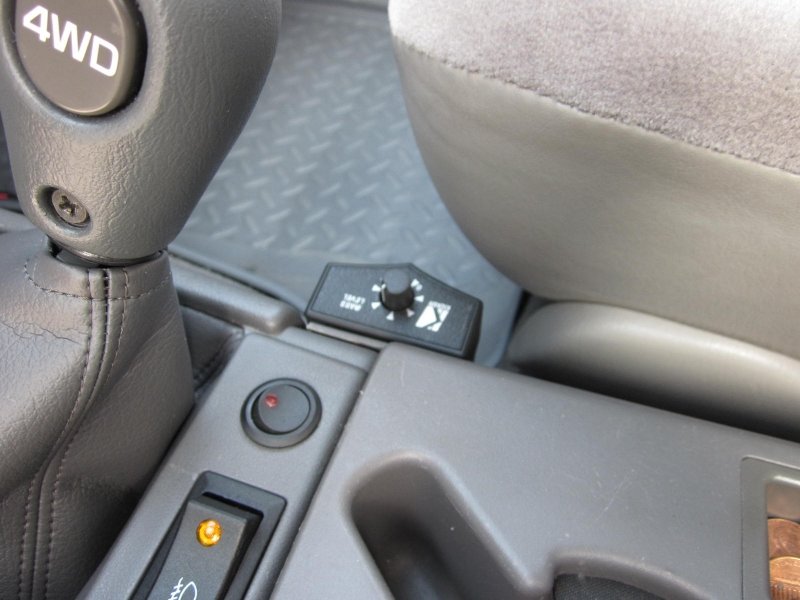

    Switches installed into the shifter console (from L-R).

    - Blue LED rocker switch = Rigid Dually flood LEDs
    - OEM Tacoma rocker switch = ELS Atlas LED
    - Red LED rocker switch = Rigid Dually diffused LED

    Note: OEM switch is rated for 21A. Round rocker switches are 10A each.

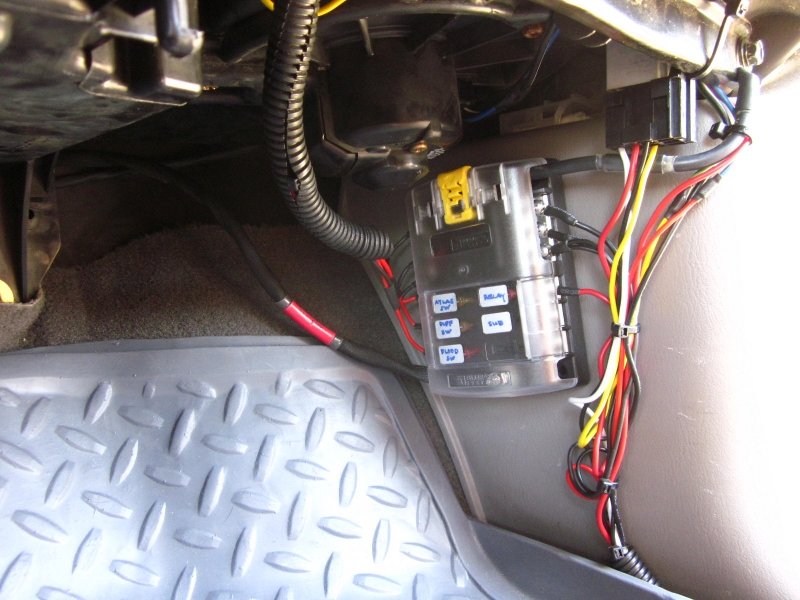

    Wiring connected to Blue Sea Systems 5025 and 20A TE micro relay.

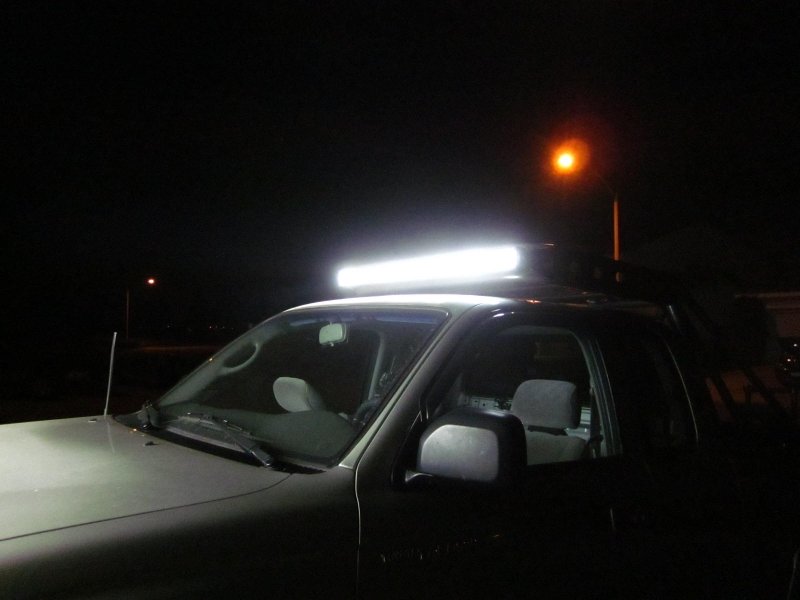

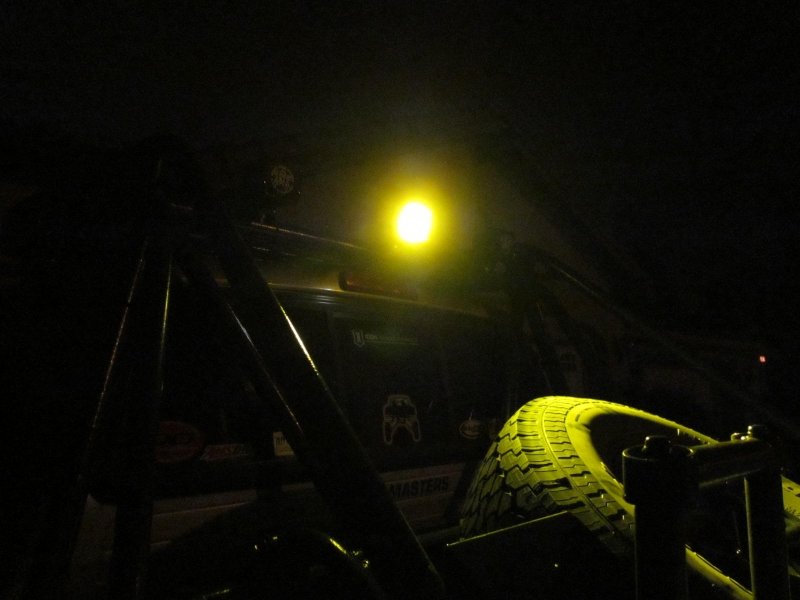

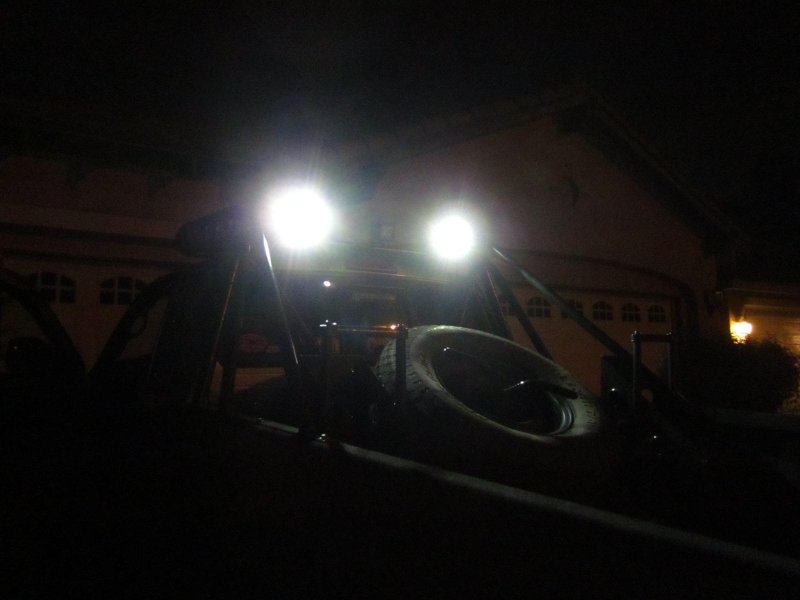

    ELS Atlas LED on.

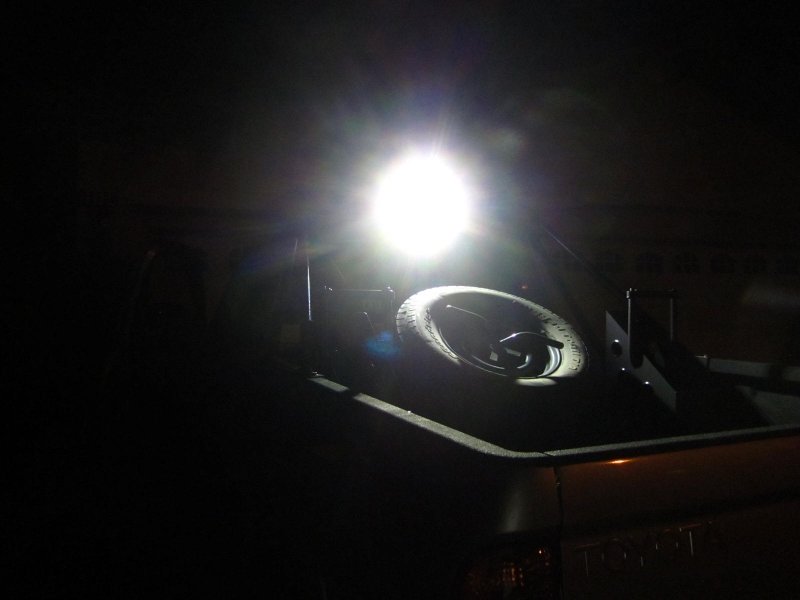

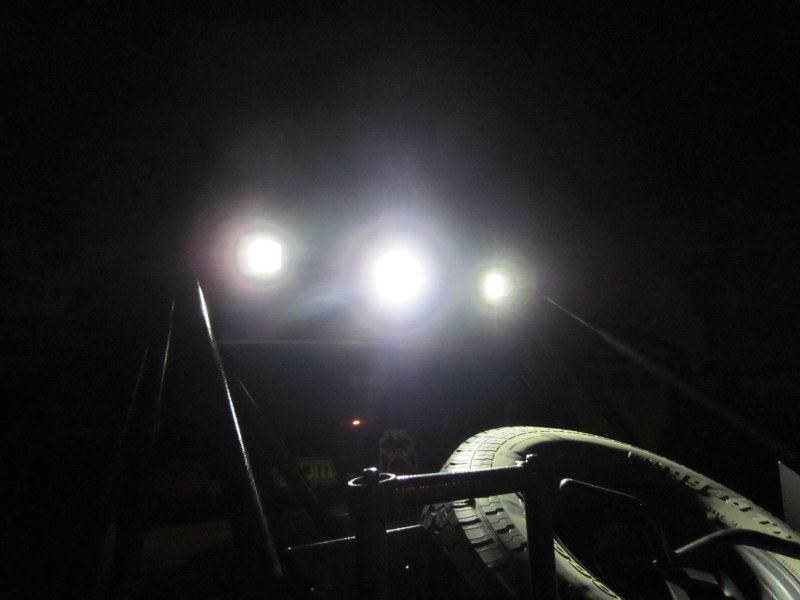

    All Rigid Duallys on.


    Rigid Dually flood LEDs on.


    Rigid Dually diffused LED on.


    With amber cover on.


    Roof lights finally done[​IMG]

    Last edited: Oct 26, 2013
  10. Oct 19, 2013 at 11:19 PM
    #110
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    10/19/13

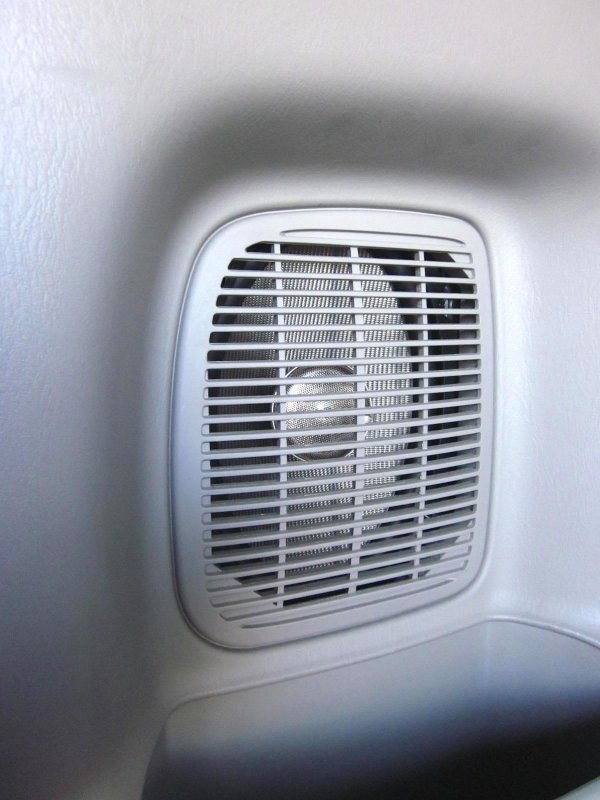

    Swapped out my rear speakers today with Infinity Kappa 6x8"s.

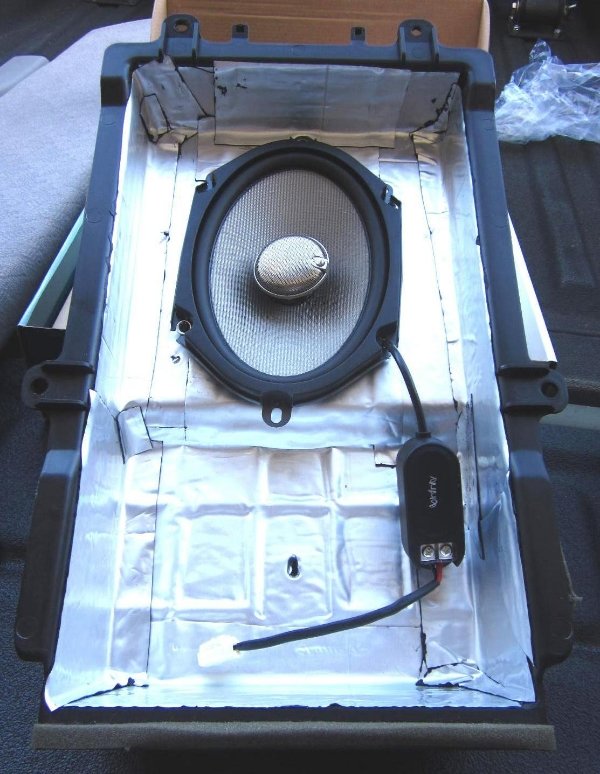

    Also added some Elemental Designs eDead 45 sound deadening around each Infinity.


    Driver-side.


    Looking good behind the grill.


    System sounds pretty clean for a budget build. All I need now is a sub.

    Last edited: Oct 22, 2013
  11. Oct 20, 2013 at 9:42 AM
    #111
    MedicMutt

    MedicMutt Purveyor of Useless Information

    Joined:
    Oct 2, 2013
    Member:
    #113680
    Messages:
    792
    Gender:
    Male
    First Name:
    Josh
    Baton Rouge, LA
    Vehicle:
    '03 DC PreRunner TRD OR
    OME suspension, Whiteline bushings, Line-X'd Jason topper, GoRhino "Grille Guard", many more...
    Yeah, I used to work in a shop that outfitted emergency vehicles. My mentor was a radio man that worked off shore, where things absolutely must work. The boss usually wanted us to hurry up and knock things out, but my mentor always insisted on doing it right. Loved that crazy old man.

  12. Oct 21, 2013 at 12:14 PM
    #112
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Your mentor is a wise man!

  13. Oct 21, 2013 at 12:44 PM
    #113
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    10/21/13

    Wiring harness for Acro 55W lights done and installed.

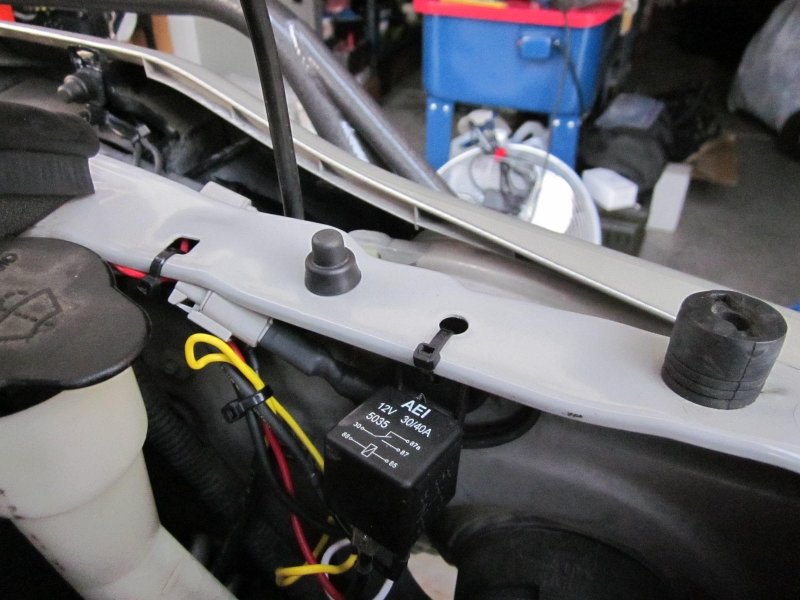

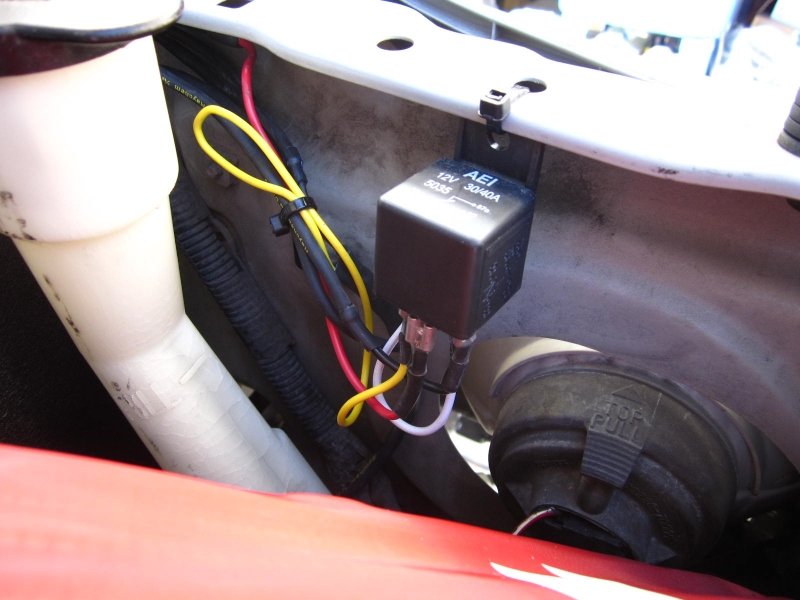

    40A relay installed inside the air intake chamber.



    Unlike the ELS Atlas and Rigid LEDs, Acros can only be turned on with ignition power on.

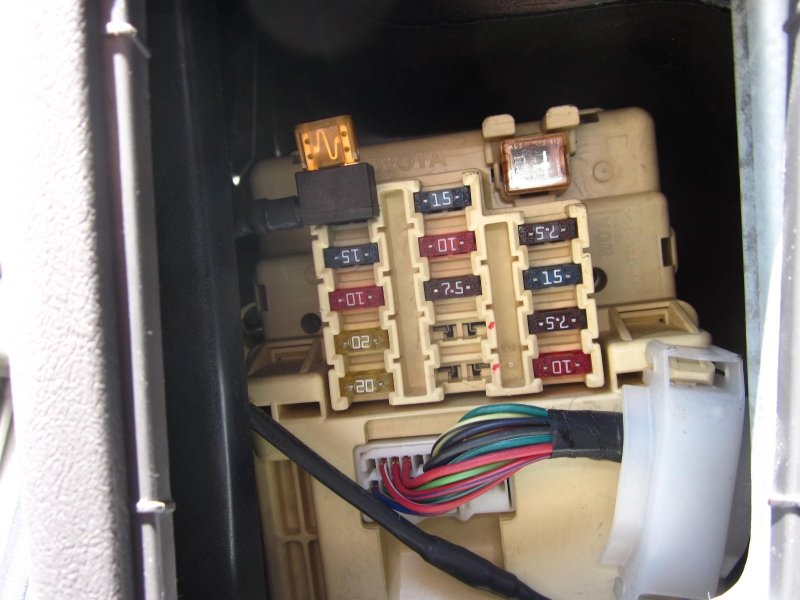

    Add-A-Circuit (5A fuse) added to the only open Ignition 12V slot inside the dash fuse panel.

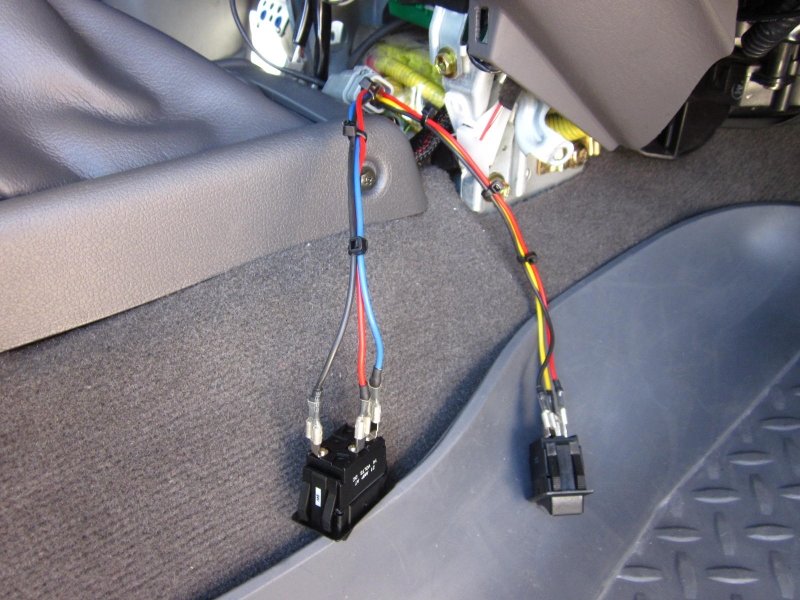

    OEM Tacoma rocker switches connected to y-adapter for testing. One is for the Acros, the other one will be for the future Ironman4x4 LED.

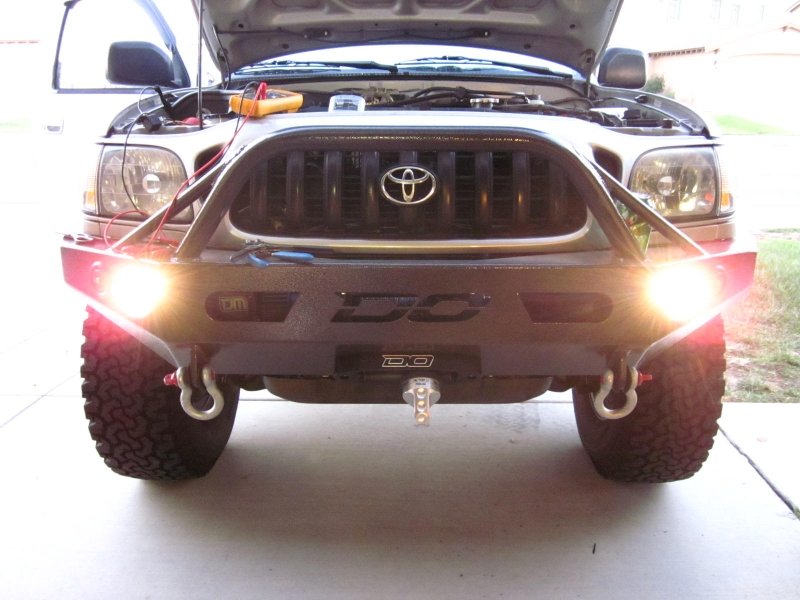

    Acros on.


    Last edited: Oct 24, 2013
  14. Oct 22, 2013 at 7:40 PM
    #114
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Thanks, TimmyB!

  15. Oct 22, 2013 at 7:42 PM
    #115
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    10/22/13

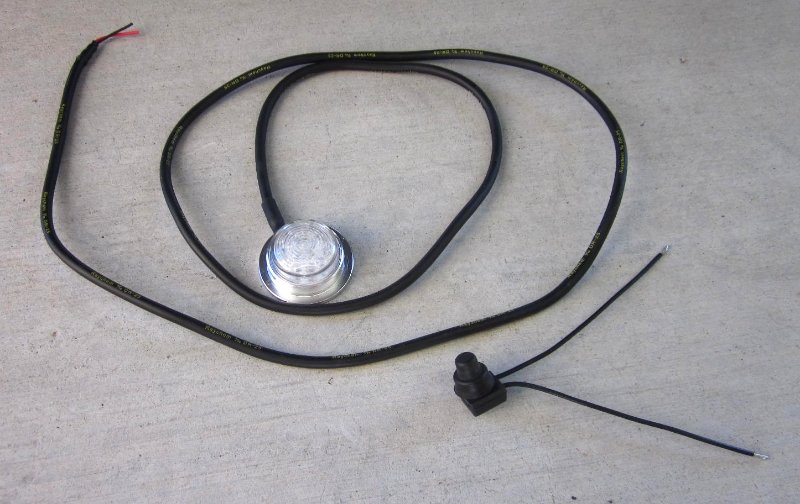

    Some VisionX 1W LED pods were added underneath the hood and inside the front bumper today. I have these same mods on my FJ and they work great and are easy to do.

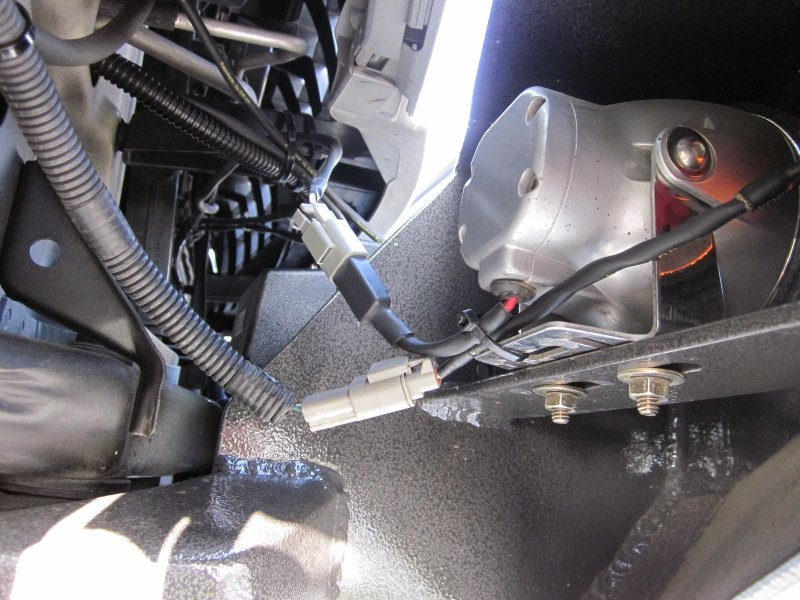

    To protect the wiring from exposure to engine heat and grime, VisionX LED wiring was upgraded with Raychem DR-25 sleeving and marine heat shrink.


    To save on wiring and sleeving, both switches are located close to the (engine bay) Blue Sea Systems 5025.

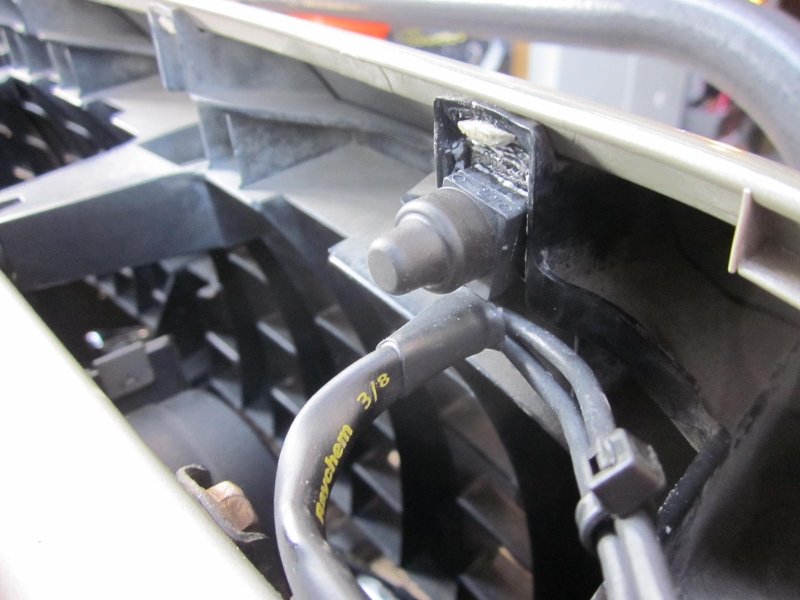

    Switch for the winch LED was glued to the front grill.


    Switch for the under hood LEDs fit perfectly in the OEM hole with no modification. The rubber bumper prevents activation of the switch when hood is shut.

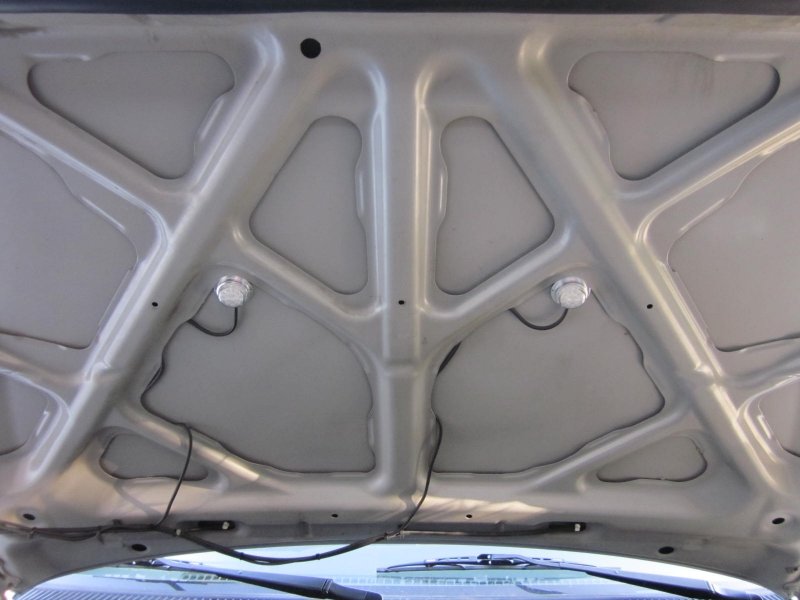

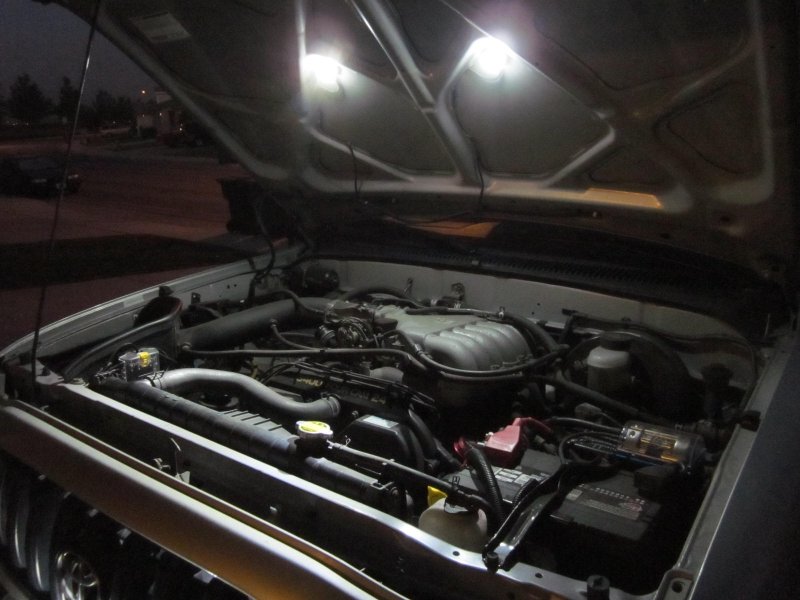

    Two (2) VisionX 1W LED pods spliced together and installed underneath the hood.

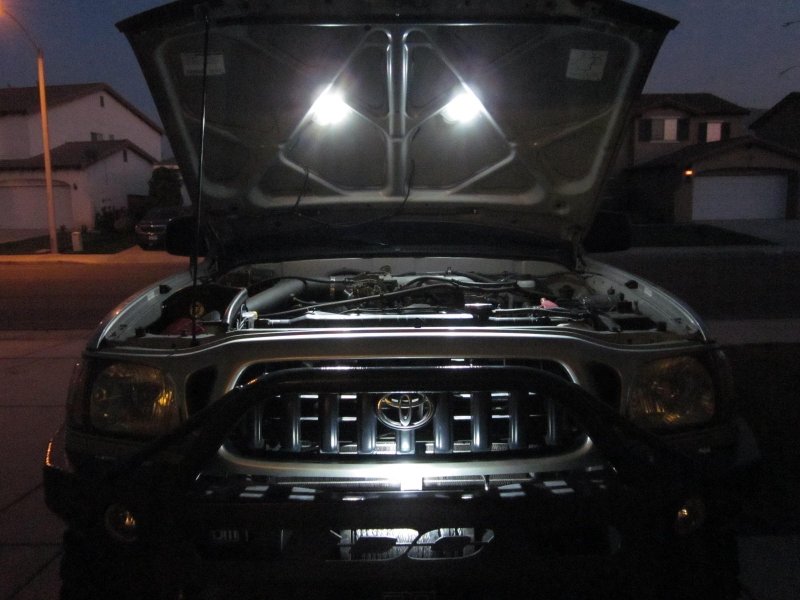

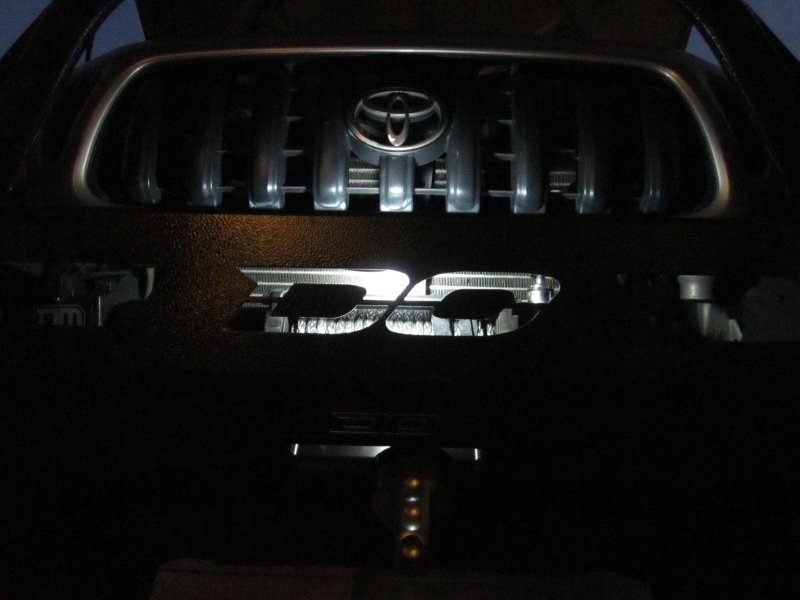

    Under hood LEDs on.

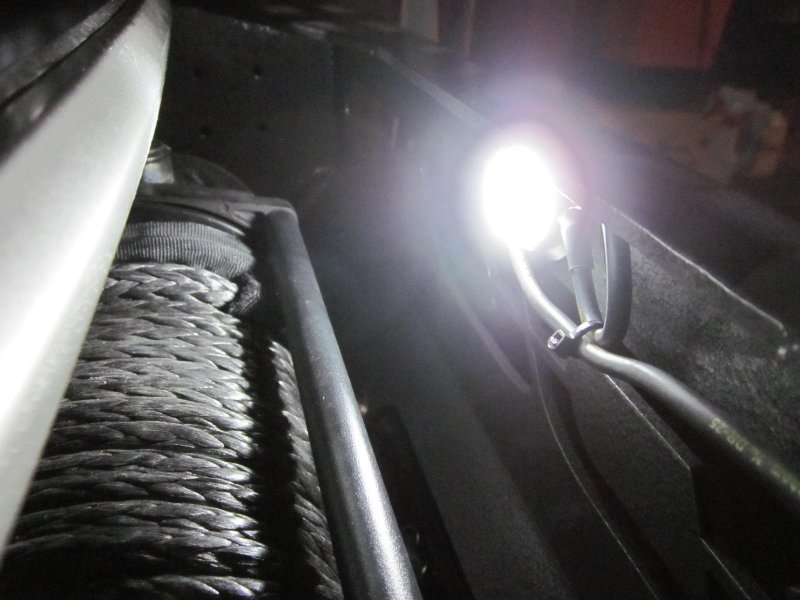

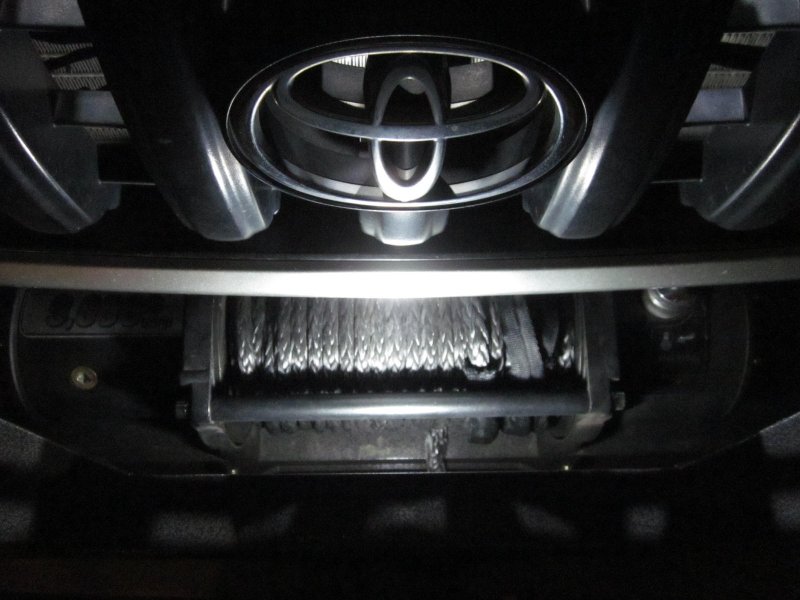

    Winch LED on.





    Last edited: Oct 23, 2013
  16. Oct 23, 2013 at 3:45 PM
    #116
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    10/23/13

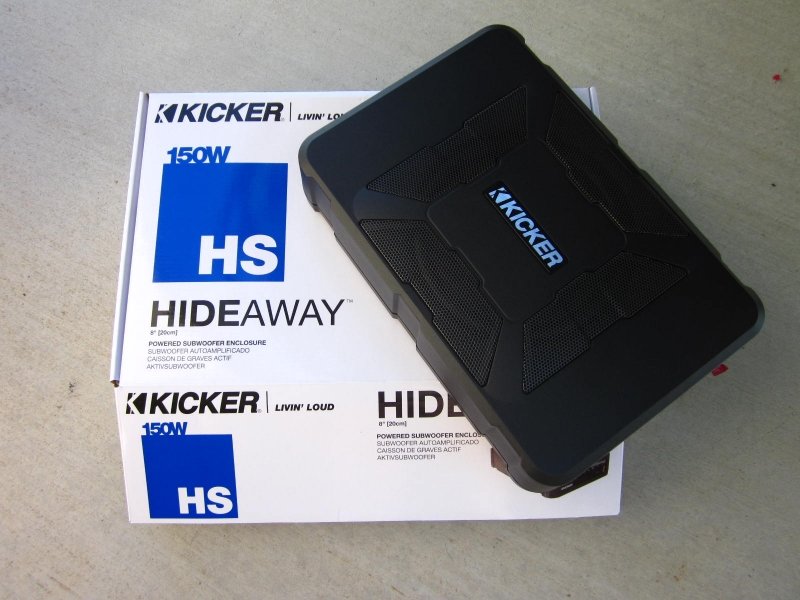

    Shopping for a sub to finish my "budget" audio system was quite a challenge. Because of the already limited rear cab space, I wasn't willing to sacrifice any of it for a sub box. I still wanted the ability to carry 2 passengers in the rear.

    One viable solution is the JL Audio StealthBox, but it's way out of budget. The other solution is a compact powered sub - pricey, but still half the cost of a StealthBox. And unlike the StealthBox, this Kicker hides away underneath most car seats. Sounded like a perfect solution to my needs (even though it cost as much as the rest of my system).

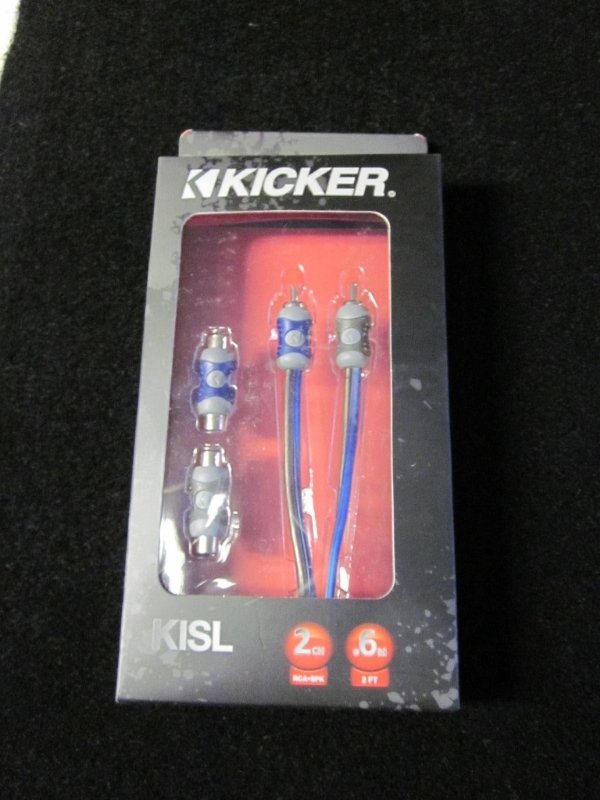

    Of course, this adapter is required, but not included (sold separately).

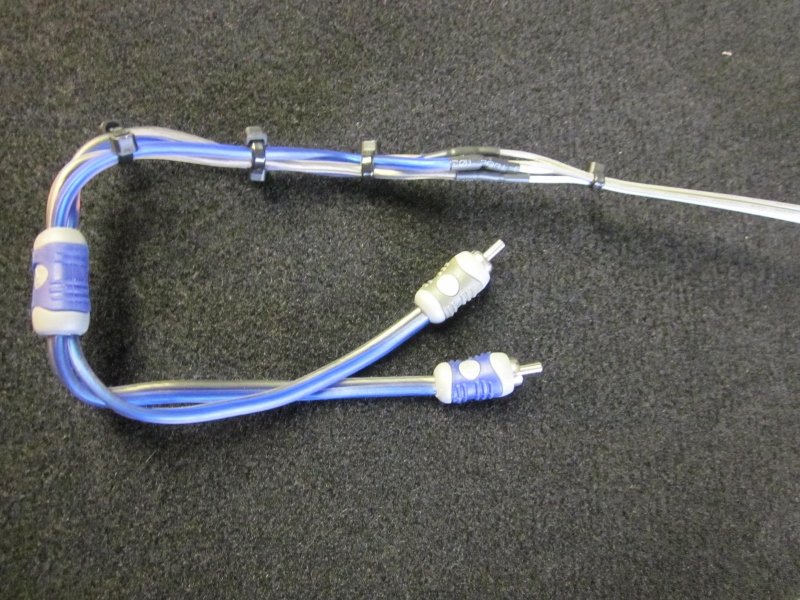

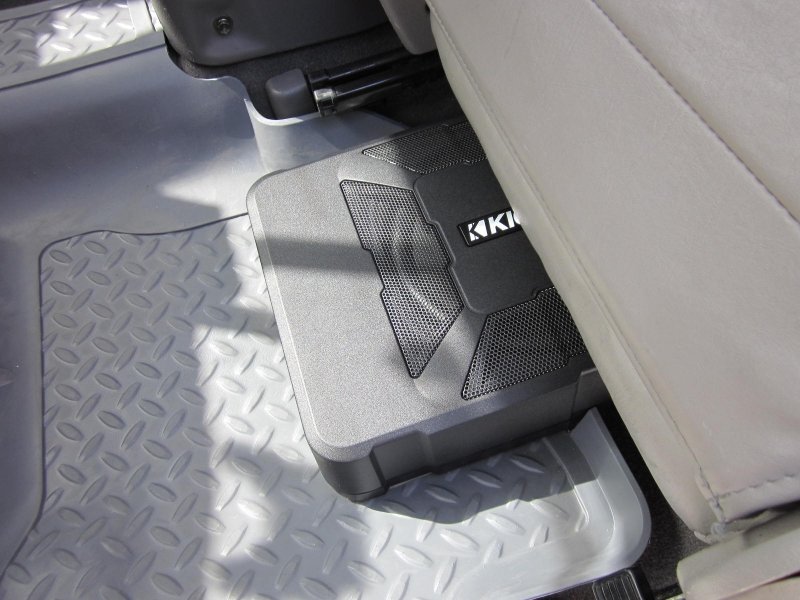

    KISL adapter spliced onto the Kicker Hideaway harness.

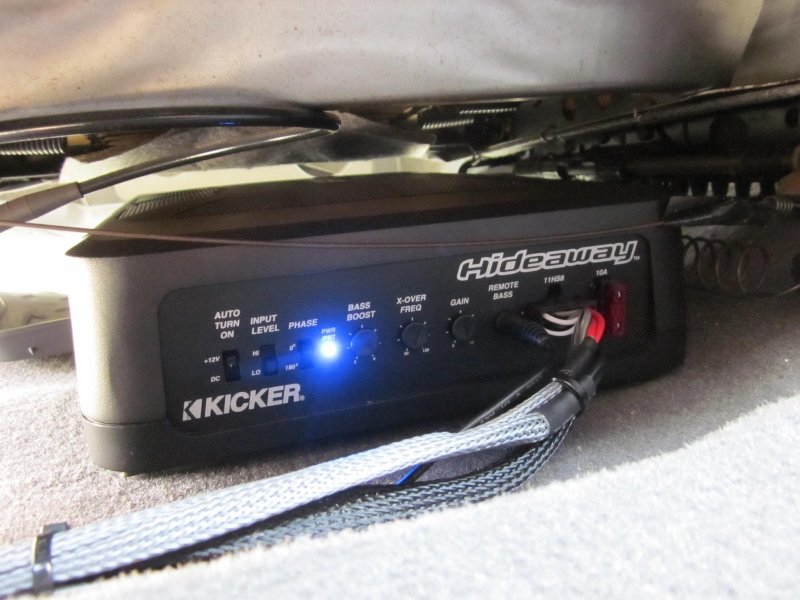

    Kicker Hideaway underneath passenger seat. Unit fits with just enough room to spare.


    And leaves just enough room for someone's feet sitting in back.

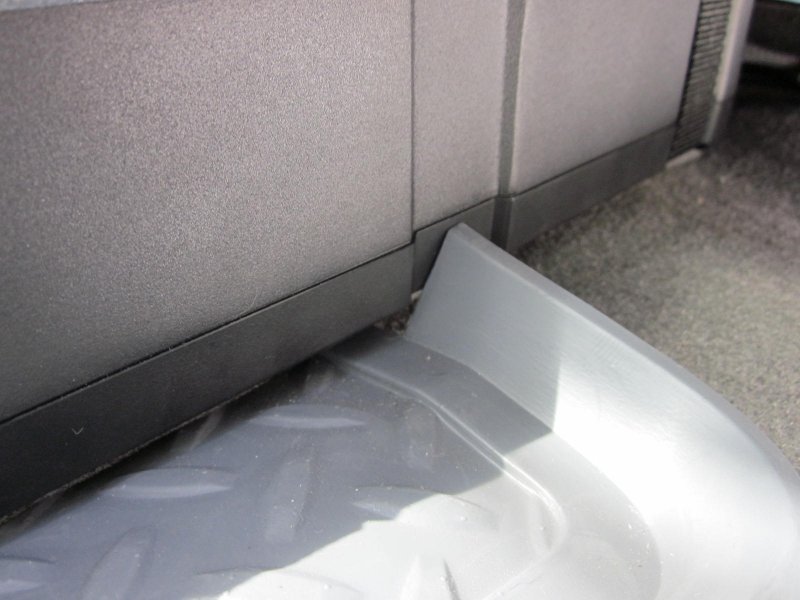

    The lip of the Husky liner had to be trimmed to accommodate the Kicker.


    Kicker bass remote installed with 3M VHB tape.


    Sub sounds pretty good for its size (8"). Definitely icing on the cake to my system and one more thing off the list :yay:

    Last edited: Oct 23, 2013
  17. Oct 23, 2013 at 8:04 PM
    #117
    pathyxd9

    pathyxd9 Member

    Joined:
    Jan 10, 2010
    Member:
    #29086
    Messages:
    19
    Gender:
    Male
    First Name:
    Robert
    OC, Kommiefornia
    Vehicle:
    2006 Nissan Pathfinder-lil moded
    KMA winch bumper, 265/75R16 Wrangler Authority A/T's, Bilstein 5100 lift shocks, AC 2in lift Rear Coils, Hella 500ff, Stealth Rims, Grille, Rear Trim
    This is a beast, cant wait to see it in person, keep it up.

  18. Oct 23, 2013 at 9:08 PM
    #118
    Box Rocket

    Box Rocket Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    7,188
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    1995 FZJ80 Land Cruiser
    3xLocked, lifted, well used
    Great work on the electricals! That area is by far my biggest weakness.

  19. Oct 24, 2013 at 6:34 PM
    #119
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Thanks, Robert! I'll have to plan another trip to the OC soon.


    Thanks, Box Rocket! I was fortunate to have worked in the field for a few years.

  20. Oct 24, 2013 at 6:34 PM
    #120
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    221
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    10/24/13

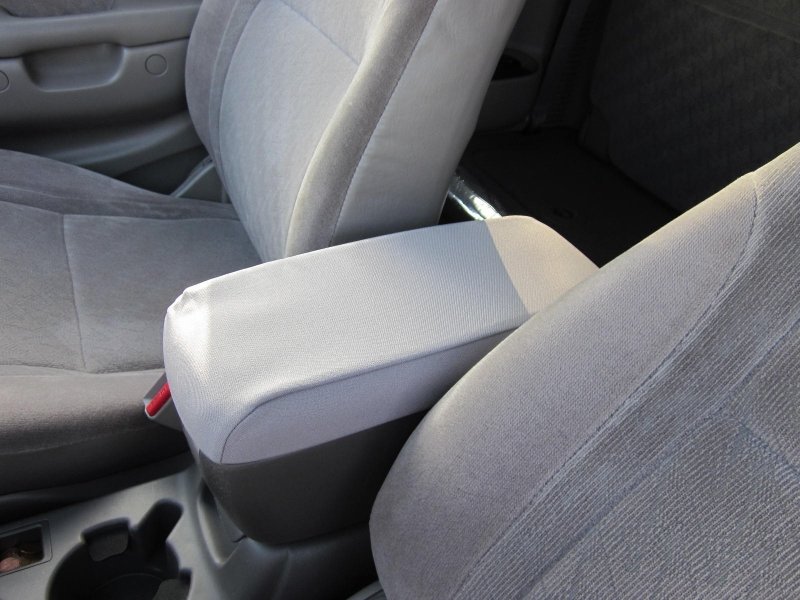

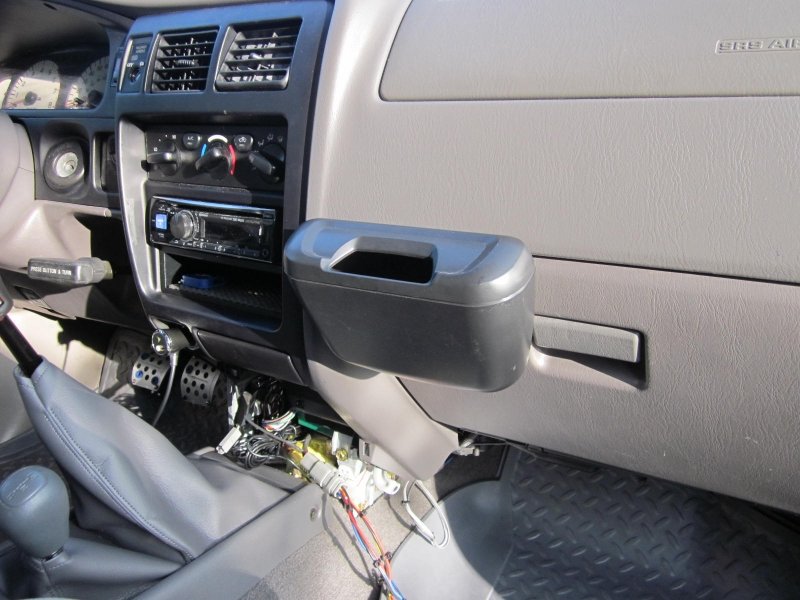

    Received and installed my center console cover from TW member Blueinstinct today. I probably could've done a better job at putting it on, but it's good enough for now. It'll probably stretch out a little and conform after a few days.

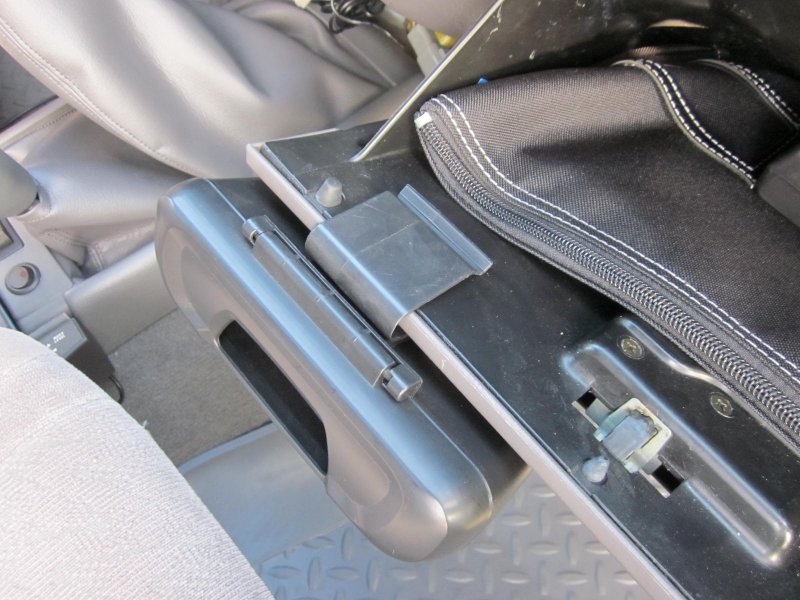

    I also had this trash can that I had bought off eBay a few months ago. It was originally intended for the FJ; but as it turns out, it's a perfect fit for the Tacoma. A bargain mod at $4 shipped (from Hong Kong).


    The opening of the clip is just large enough to fit over the lip of the glove box. Closing the glove box then creates just enough tension on the clip to hold the trash can snugly in place (without rattling or shifting).


    Belle needs some more protection, so I placed an order with TW member isu2014 for a RAT Products IFS skid plate with steering rack coverage and custom cut-outs.

    http://www.tacomaworld.com/forum/1s...-3-16-steel-ifs-transmission-skid-plates.html

    To save on weight, I went with 1/8" steel instead.

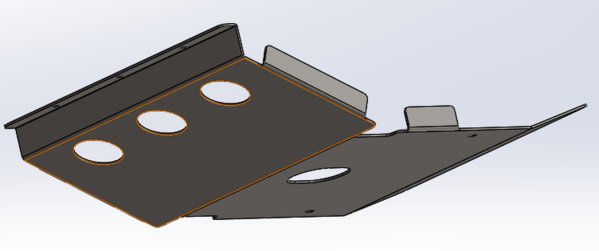

    isu2014 sent me a rendering of my skid. ETA = 2 wks from now

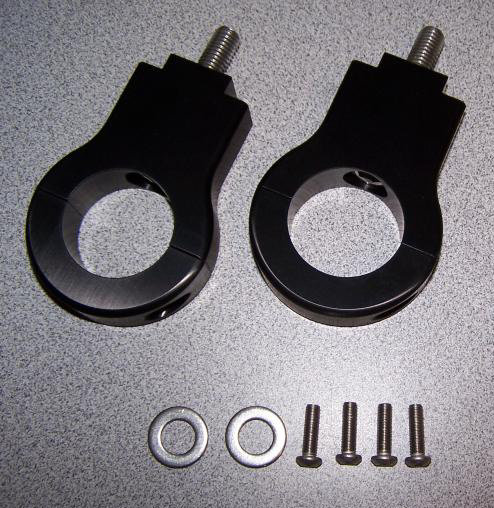

    Also ordered a pair of Ellis Precision billet Hi-Lift mounts (1.75") through fjcruiserforums.com. These will go on the front bumper, exactly like the Hi-Lift set-up on my FJ.

    (Image courtesy of Ellis Precision)

    Pricey, but the best looking Hi-Lift mounts out there IMO.

    Last edited: Nov 24, 2013
    This site contains affiliate links for which the site may be compensated.

Products Discussed in

To Top
