My Auxiliary Backup Lights

Discussion in '2nd Gen. Tacomas (2005-2015)' started by griffin407c, Dec 1, 2009.

  1. Dec 1, 2009 at 6:10 PM
    #1
    griffin407c

    griffin407c [OP] Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    581
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    3" Revtek Lift
    So, I've had a couple ppl ask me bout my backup lights so I figured I would make a little write-up.

    I decided to use the Hella FF50 Fog Lights (55watt). I wanted a short, wide beam so I opted for the fog lights. I also used the FF50 because they are stylish and the lights are exposed because they are mounted to the OEM trailer hitch. The lights came with black wire, but no colored wire. So, I went to Napa and bought a bunch of different colored wire. I always have relays on hand so I used one of my 30/40amp relays and wired it all up.

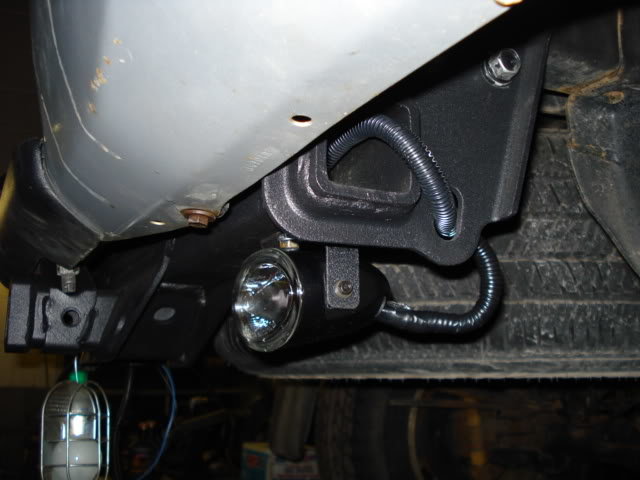

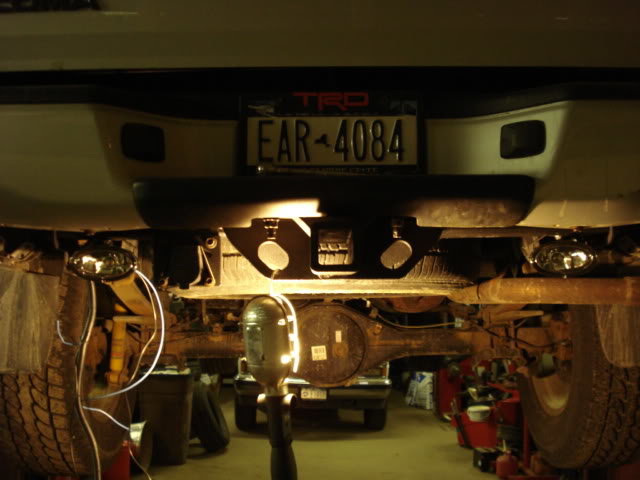

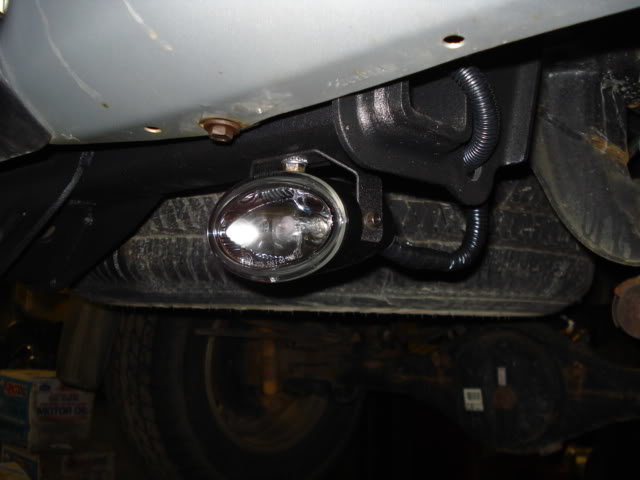

    Before mounting the lights, I had removed the trailer hitch and sanded, prepped, and undercoated the entire thing. I mounted the lights to the trailer hitch using the supplied brackets and using self-tapping screws. (Don't mind the horrible upstate ny rusted frame. it's being taken care off.)
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

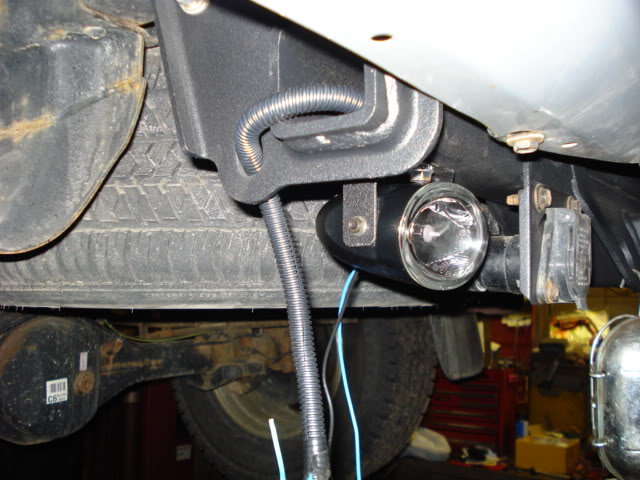

    I ran the right-side wires through the trailer hitch main tube and then connected them to the wires on the left-side. All wires were ran in wire loom. The wires were then ran up the frame. The ground wire was grounded to the frame and the power wire was ran up into the truck through one of the rubber grommets, along the driver-side kick panel, through the firewall, and into the engine bay.

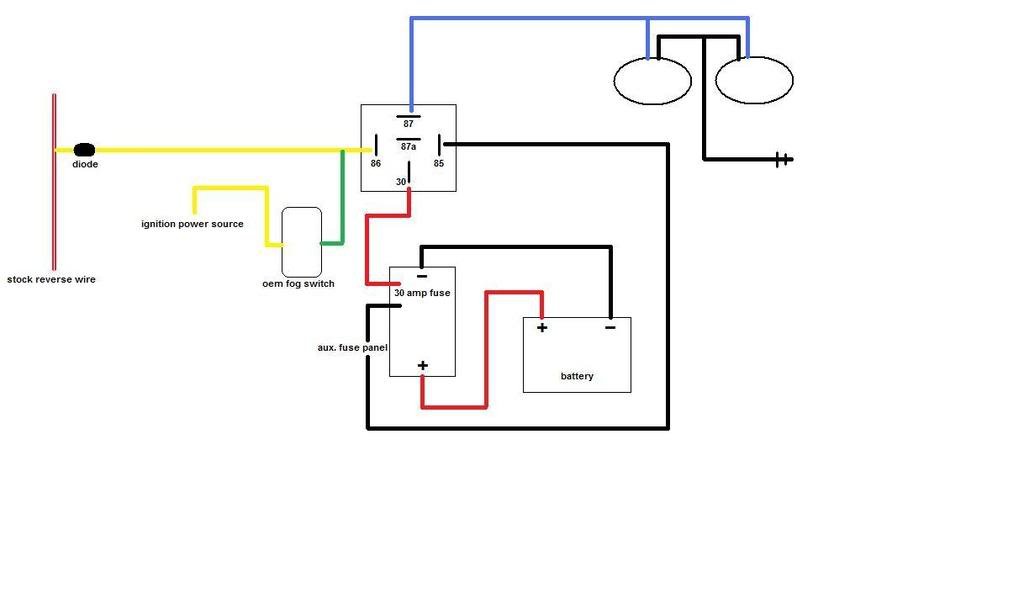

    Here's a rough idea for the wiring.
    [​IMG]

    I wanted to use an OEM fog light switch to keep the install clean and wanted the lights to come on in reverse and independently when I pushed the switch to the ON position. The diode is inline to prevent the ignition source power from turning the OEM reverse lights on when I want to independently turn the Auxiliary backup lights on.

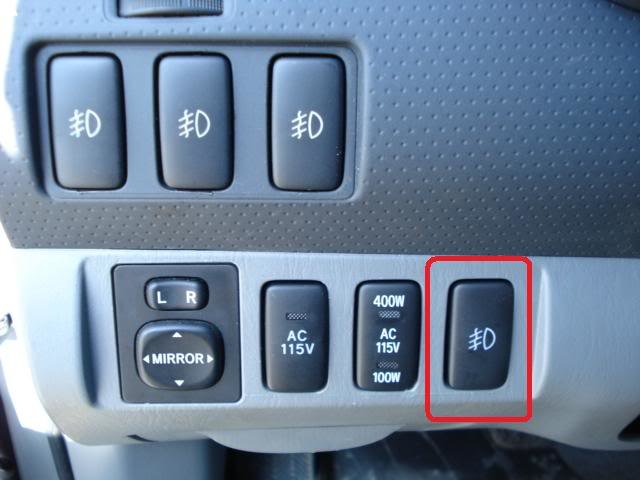

    Here's a pic of the OEM fog light switch and it's placement.
    [​IMG]

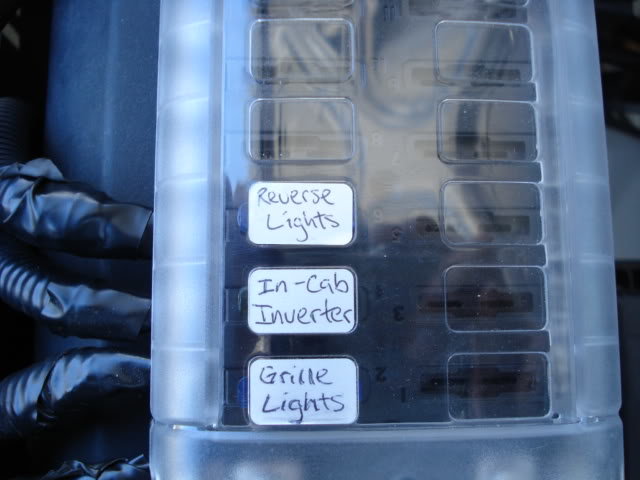

    Here's a pic of the auxiliary fuse panel that I wired the relay to.
    [​IMG]

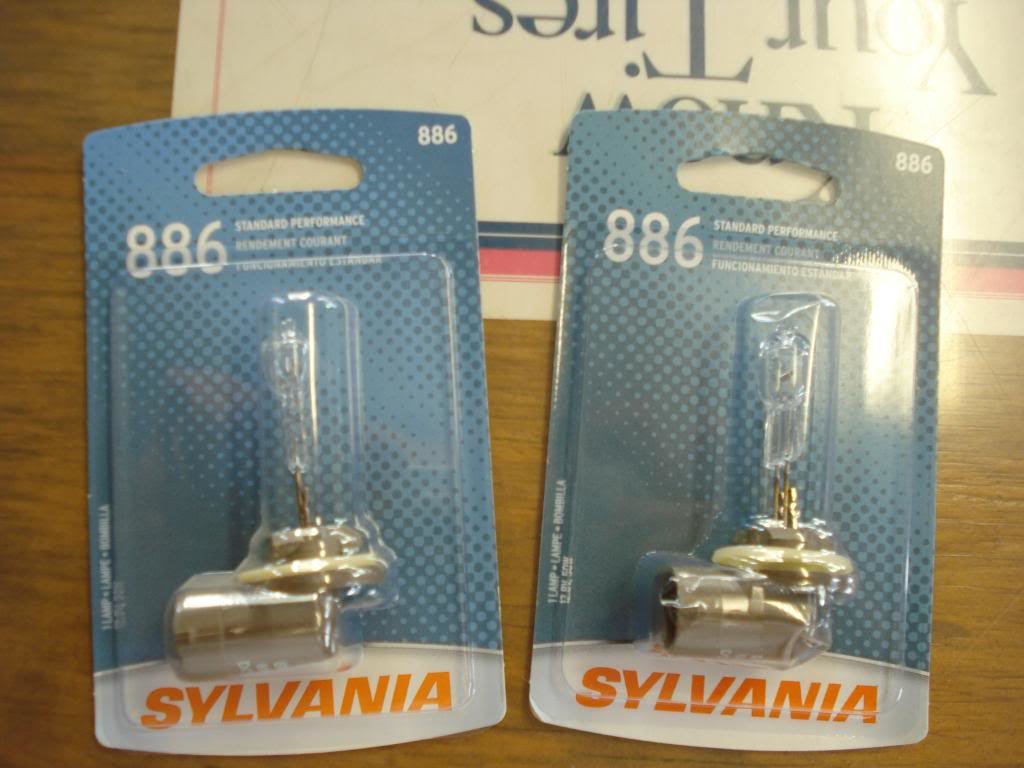

    While I was at it, I modified the OEM backup lights and replaced the bulb with a 55watt 886 bulb. I have had no issues with this bulb getting to hot and it has helped greatly, especially because of my tinted tails.

    [​IMG]

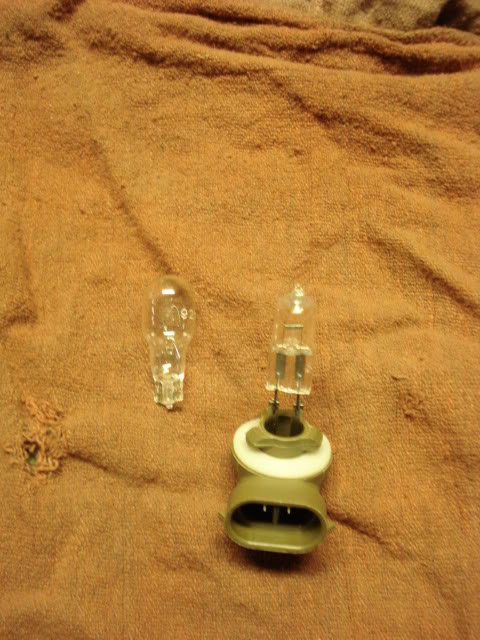

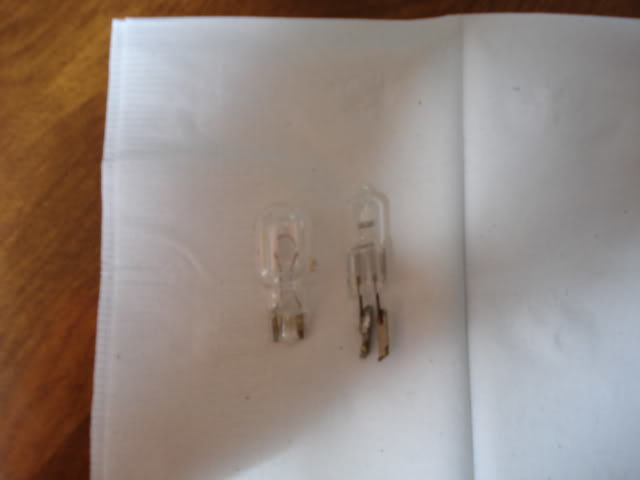

    Comparison between stock and 886 bulb (886 on right).
    [​IMG]

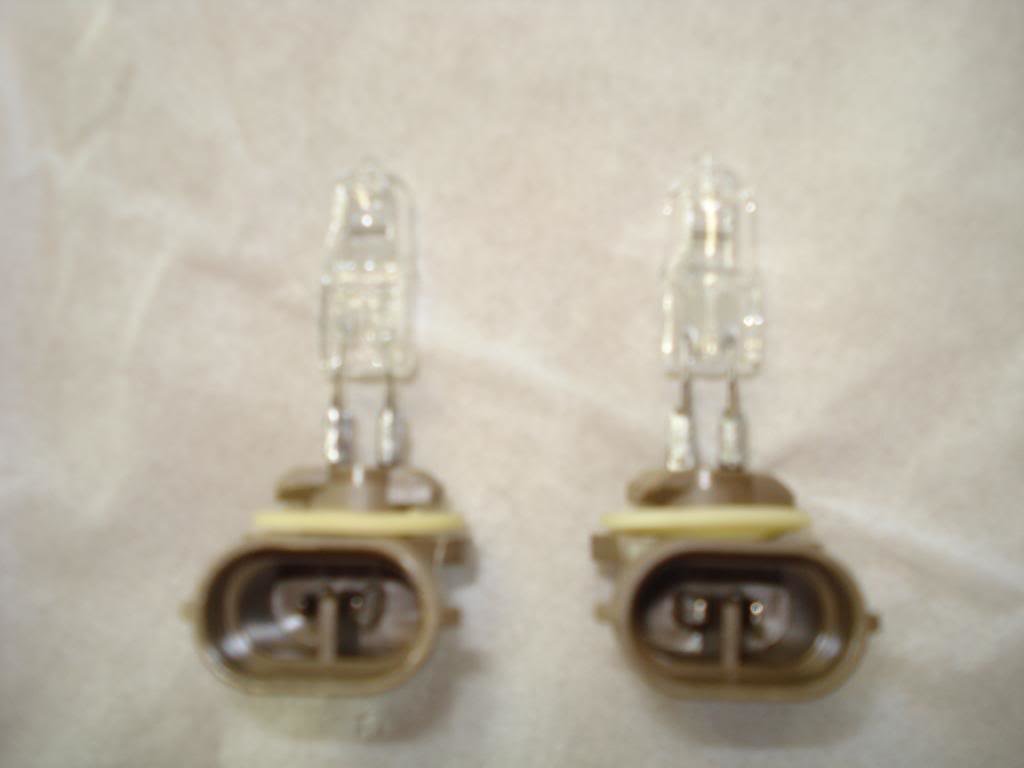

    Cut just above the brown plastic, with a dremel. DO NOT touch the bulb (it's a halogen bulb).
    [​IMG]

    [​IMG]

    When placing the bulb into the socket, I wore rubber gloves and used several tissues to hold the bulb and press it into the socket. I have had absolutely no problem with these bulbs for months now.

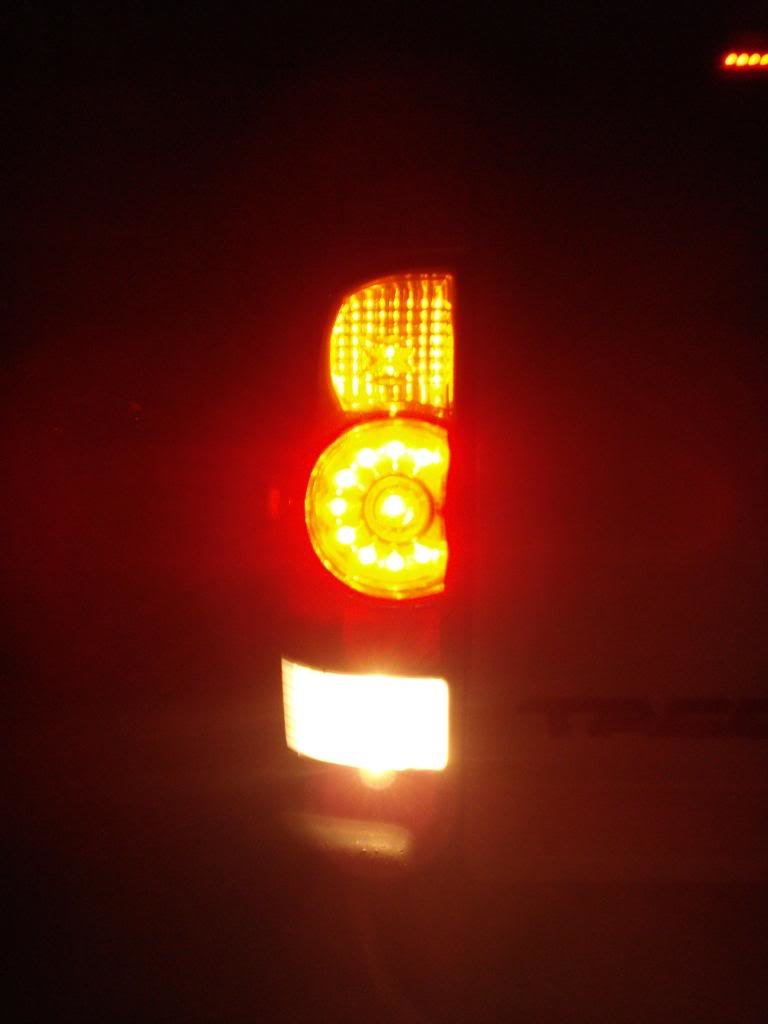

    Here's a pic of the tinted tail with the 886 bulb.
    [​IMG]

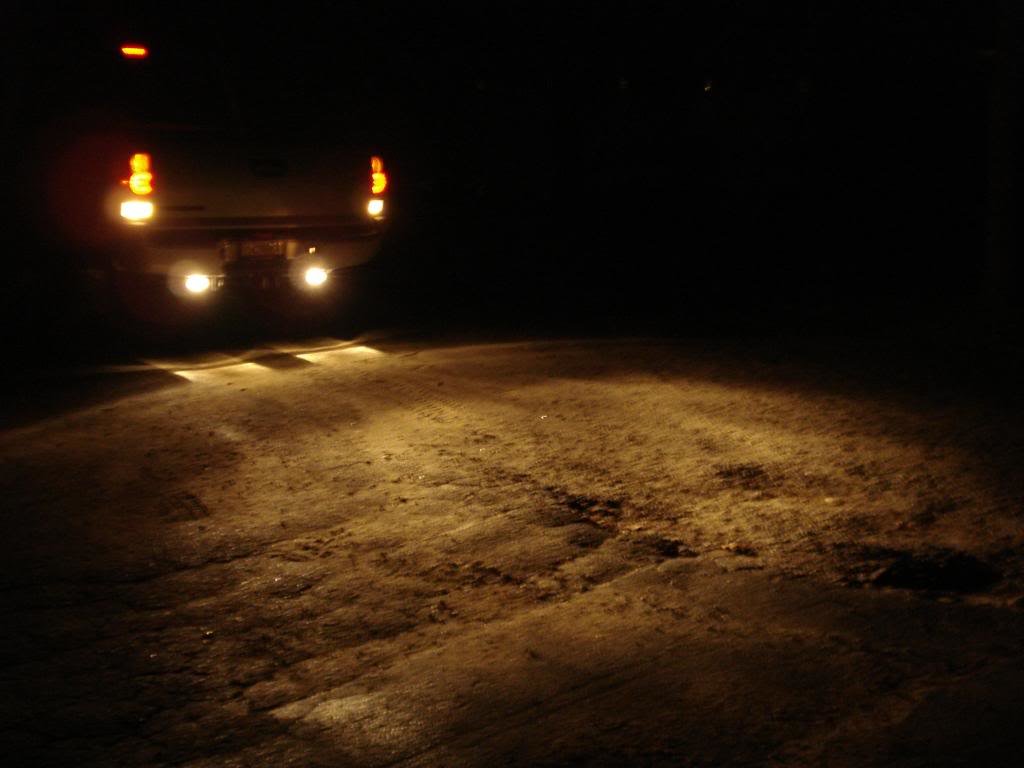

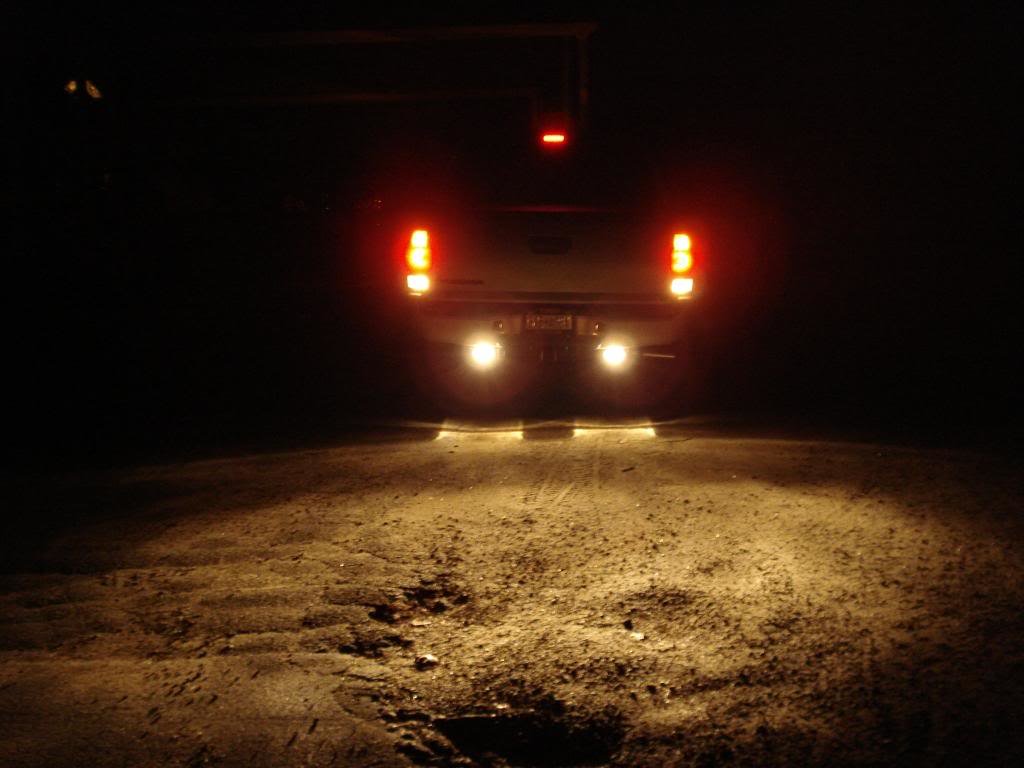

    Here's pics of the 886 bulb, the 55watt auxiliary backup lights and their pattern.
    [​IMG]

    [​IMG]

    [​IMG]

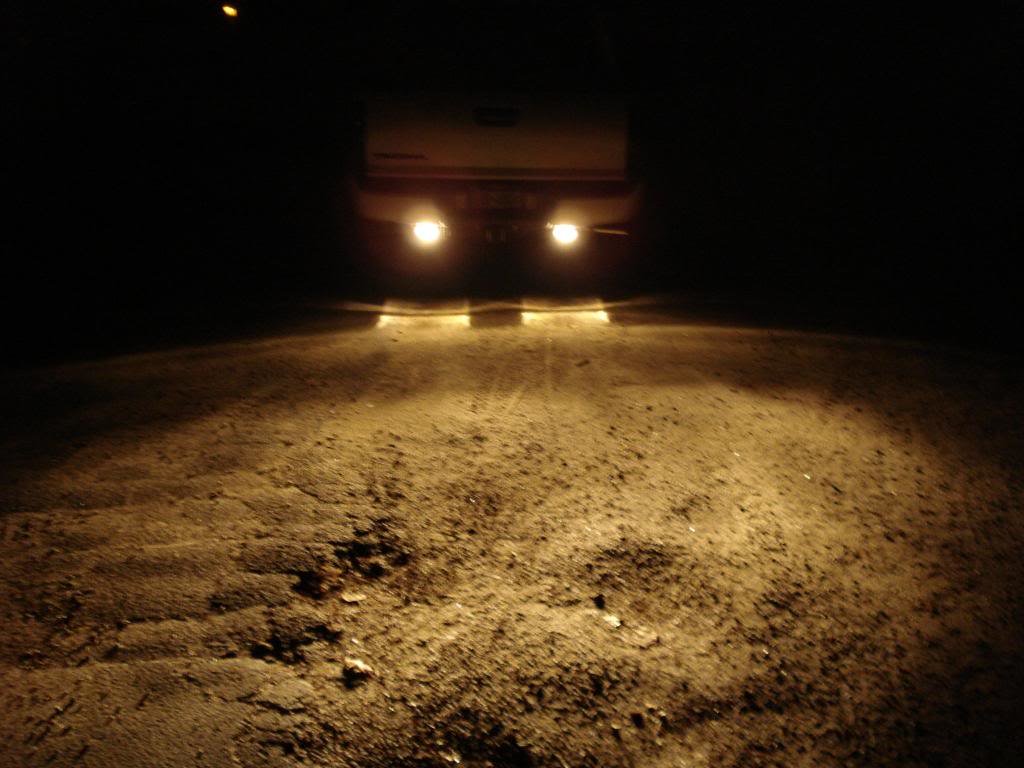

    Here's a pic of just the auxiliary lights.
    [​IMG]

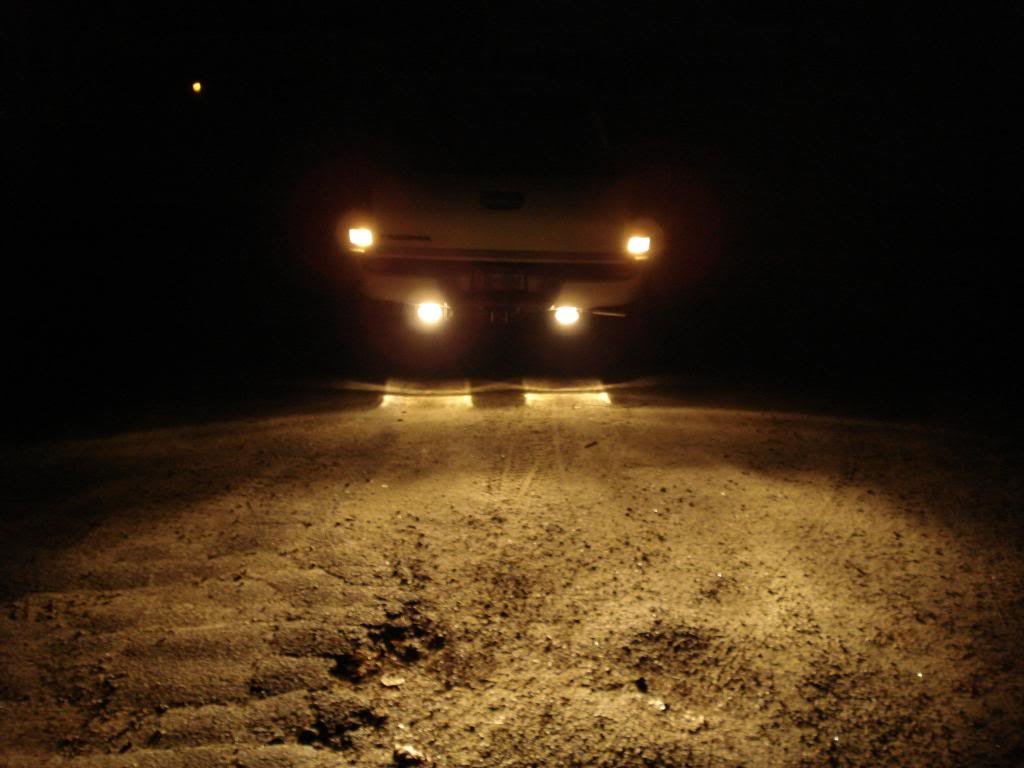

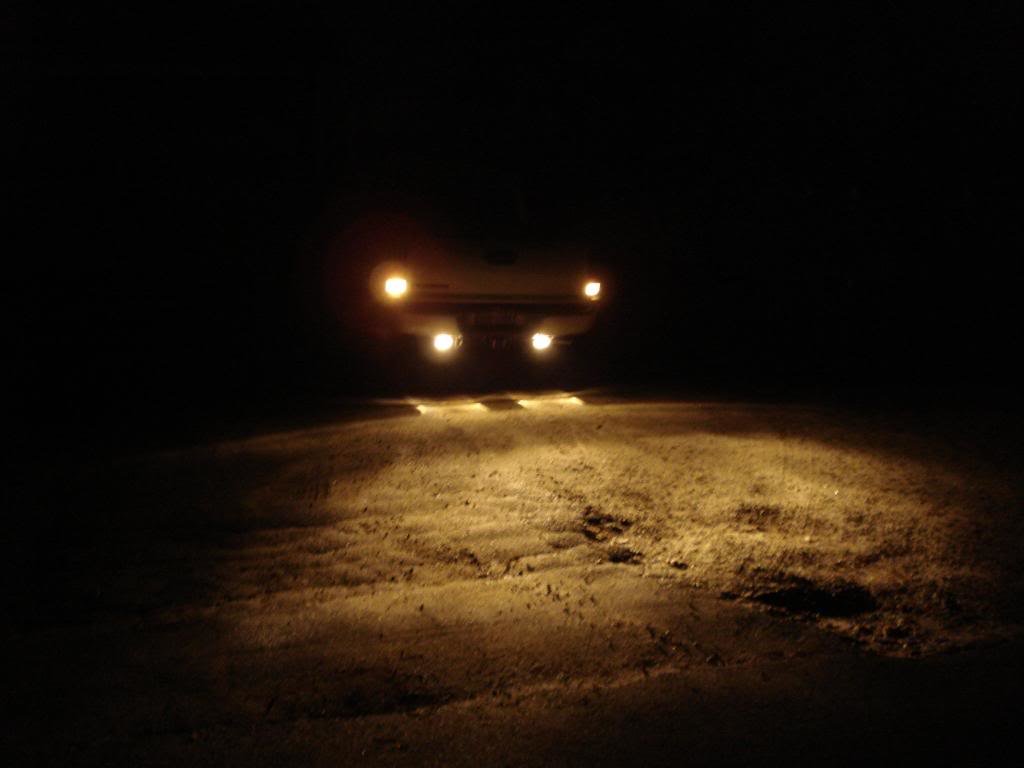

    A few more shots.
    [​IMG]

    [​IMG]


    I know that night shots and lighting shots are hard to depict in pictures, but adding both sets off lights has helped me out greatly. The lights also help with the image for my back up camera. I've used the auxiliary lights for hooking up to a trailer at night, when in park. I like to turn the auxiliary lights on when someone is driving on my ass at night. I know, I know, it's wrong to do, but you should see how quickly they back off and stay back.

    I plan on adding another set of these lights in the neat future. Similar to Pb's backup lights that are mounted underneath the front doors. These lights will be wired to turn on with reverse gear, independently from ignition power, and wired to the dome light so when the key fob is pressed (or the doors are open), the lights will come on with the dome light and illuminate below the doors at night.

  2. Dec 1, 2009 at 6:49 PM
    #2
    gavonder

    gavonder She's Kickass!

    Joined:
    Dec 13, 2007
    Member:
    #3825
    Messages:
    390
    Gender:
    Male
    Bethel, Ct
    Vehicle:
    08 TRD Sport Access Cab
    Sunroof, Leer Cap w/ Thule rack, Factory Running Boards, Fog Light Mod, Hood Struts, Scangauge, w/homemade mirror mount, AC/Defrost mod, Rear Spring TSB, TRD Center Caps
    Very cool. Looks great.

    GA

  3. Dec 1, 2009 at 7:02 PM
    #3
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,038
    Gender:
    Male
    F.U> GUYZ
    broken mods
    dude sweet i just did something just like that... i will post pics soon

  4. Dec 1, 2009 at 7:24 PM
    #4
    HondaGM

    HondaGM Roll Tide

    Joined:
    Oct 28, 2009
    Member:
    #25056
    Messages:
    5,769
    Gender:
    Male
    First Name:
    James
    South-Pole
    Vehicle:
    09 DC 4x4 Blown Honda VTEC V8
    trd exhaust,step bars,vent visors,bed lights,tailgate mod
    sweet!

  5. Dec 2, 2009 at 3:49 PM
    #5
    dalesrn

    dalesrn Tacoma TSS

    Joined:
    Dec 10, 2007
    Member:
    #3784
    Messages:
    469
    Gender:
    Male
    First Name:
    Dale
    Southeast Louisiana
    Vehicle:
    2008 Tacoma PreRunner DC with TSS Package
    Borla exhaust system, Sirius Satellite Radio, Chrome package, Trailer Hitch, Clazzio Leather seat covers, TSS badging, Anytime on fog lights mod, Daytime driving lights mod, Dual backseat DVD players w/monitors, 3rd Brake Light "TSS" mod, Bed pocket lights mod, Seat belt chime mod, Bed storage compartment auxillary outlet mod, Shorty antenna, Armor Lid Tonneau Cover, Line of Fire tailgate light
    That looks great.

  6. Dec 2, 2009 at 3:50 PM
    #6
    Capita

    Capita Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18096
    Messages:
    2,673
    Gender:
    Male
    Corner Brook, Newfoundland, Canada
    Vehicle:
    09 TRD Sport Double Cab
    very nice! I will be copying this in the Spring

  7. Dec 2, 2009 at 7:25 PM
    #7
    Taco Ron

    Taco Ron Male Member

    Joined:
    Aug 28, 2009
    Member:
    #21924
    Messages:
    255
    Gender:
    Male
    Very nice man. I think I'm going to need to do something similar. I can't see out of the back of mine at all with the camper shell (dark tint) and tinted tail lights.

  8. Dec 2, 2009 at 7:29 PM
    #8
    tacomaman06

    tacomaman06 Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,258
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
    awesome mod, man!!! i gotta do rock lights and backup lights before too long.

  9. Dec 2, 2009 at 9:39 PM
    #9
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,330
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Superb! +1 Reps sent. :thumbsup:

    In your fuseblock photo, I see a label for a power inverter. That's an aftermarket inverter right? I ask this b'cause I was considering relanding my factory inverter ( I have on '09) onto a aux fuse block / aux battery.

    What kind of fuse block did you use?

    Also when you use your digital camera for very close up photos, activate the "macro" feature on the camera, its the icon that looks like a flower.

  10. Dec 2, 2009 at 11:15 PM
    #10
    griffin407c

    griffin407c [OP] Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    581
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    3" Revtek Lift
    yes, it's an aftermarket 800 watt power inverter. i would recommend buying an aftermarket inverter if you want to run something that requires more juice than the stock inverter (which isn't a lot). If you're not looking to run much, but want AC power in the cab, follow these two threads.

    http://www.tacomaworld.com/forum/2nd-gen-tacomas/25944-110v-factory-inverter-always-400w.html

    http://www.tacomaworld.com/forum/2nd-gen-tacomas/25900-cab-110-ac-outlets-option-2-a.html

    The auxiliary fuse panel is blue sea systems fuse panel with negative buses. They offer the panel in a 6 slot or 12 slot configuration with or without negative buses. I recommend buying the panel with negative buses, but each to his own.

  11. Dec 2, 2009 at 11:19 PM
    #11
    griffin407c

    griffin407c [OP] Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    581
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    3" Revtek Lift
    thanks for all the comments guys!

  12. Feb 4, 2010 at 1:09 PM
    #12
    camiliosalomanda

    camiliosalomanda Well-Known Member

    Joined:
    May 9, 2008
    Member:
    #6503
    Messages:
    199
    Gender:
    Male
    McKinney, Texas
    Vehicle:
    Super White
    Grill Craft Hella 500 Bed Aux Wet Okole Wet Okole Arm Rests Weather Tech Magnaflow OS Ram Night Breakers Rocky Mounts Custom IPOD Dock Pioneer AVH P4100 Relentless Sliders AnBCustomFab Bed Rack 3 Inch Icon Lift with leaf pack
    I did the same thing you did minus the diode and used my Hella 500ff from behind my grill.

    Also bought the rectangular Hella550FF and mounted them to the side of the frame underneath the passenger and driver side for side viewing while wheeling in the dark.

    I offroad a lot and the hellas didnt help behind my grill at all so they went to the back.

    Also i dont know if you guys can get OSRAM Nightbreakers in the states but they are by far the best bulb i have used. I run them in my Hellas and also my headlamps.

    I will post pics soon

    Good stuff man I love lights.

  13. Feb 4, 2010 at 1:19 PM
    #13
    Capita

    Capita Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18096
    Messages:
    2,673
    Gender:
    Male
    Corner Brook, Newfoundland, Canada
    Vehicle:
    09 TRD Sport Double Cab
    Thats for the awesome post and pics. I'll be doing this when the weather gets better.

    positive Reputation added

  14. Feb 4, 2010 at 1:29 PM
    #14
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,036
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    Nice write up with lots of pics! pics are always nice:D

    But just be careful with those new lights. I have busted 2 diferent sets of aux backup lights that i had mounted under my bumper in that same area. Thats why I built a bed bar with lights on it..

  15. Feb 4, 2010 at 9:08 PM
    #15
    griffin407c

    griffin407c [OP] Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    581
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    3" Revtek Lift
    i don't off-road or anything so i'm sure i'll be alright. i've had them i think for almost a year now. no problems

  16. Feb 5, 2010 at 5:02 AM
    #16
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,036
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    they should A okay then! :thumbsup:

  17. Feb 5, 2010 at 5:15 AM
    #17
    schiz94

    schiz94 Thread Jacker

    Joined:
    May 26, 2009
    Member:
    #17674
    Messages:
    4,234
    Gender:
    Male
    First Name:
    Caleb
    Bellingham,WA
    Vehicle:
    08 Tacoma Reg Cab
    Morimoto Projector Retrofit, alpine cda-105,Wheelskins leather wheel cover, wet okoles,5% tint on back and 24% on front two windows,Debadged tailgate,custom sockmonkey centercap decals, xr rims pced gloss black.
    those are sweet. nice job. they look hella useful

  18. Feb 5, 2010 at 5:21 AM
    #18
    saf023

    saf023 Well-Known Member

    Joined:
    Aug 13, 2009
    Member:
    #21124
    Messages:
    734
    Gender:
    Male
    East Coast
    Vehicle:
    2nd Gen TRD Sport DCSB 4X4
    Great job and very cool.

    Can you point them up a bit so that when some smarta$$ decides to ride your bumper you can aim them right into their face? Just kidding...

  19. Feb 22, 2010 at 10:36 AM
    #19
    SMOKED DC TACO

    SMOKED DC TACO Active Member

    Joined:
    Feb 8, 2010
    Member:
    #30960
    Messages:
    35
    Gender:
    Male
    First Name:
    Brad
    North Carolina
    Vehicle:
    2006 taco tinted smoke lights lift
    smoke tail lights, jdm fog lights, hids, 3 in lift, 20% front tint 1.3 % rear, 33" bfg km2
    do you know of any aux. backup lights that have a blue tint when turned on?

  20. Jan 25, 2014 at 2:33 PM
    #20
    Poolstick

    Poolstick Well-Known Member

    Joined:
    Apr 27, 2013
    Member:
    #102980
    Messages:
    227
    Gender:
    Male
    What size diode did you use for this? Having a hard time figuring out how diodes are rated.
