My CB Install almost complete

Discussion in '2nd Gen. Tacomas (2005-2015)' started by bendbolden, Oct 15, 2011.

  1. Oct 15, 2011 at 6:03 AM
    #1
    bendbolden

    bendbolden [OP] Come and take them.

    Joined:
    Aug 21, 2010
    Member:
    #42009
    Messages:
    611
    Gender:
    Male
    First Name:
    Ben
    Moscow, TN
    Vehicle:
    07 FJ Cruiser
    None but soon......

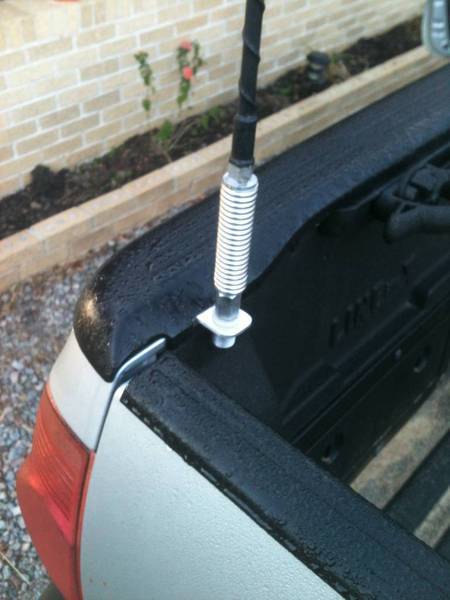

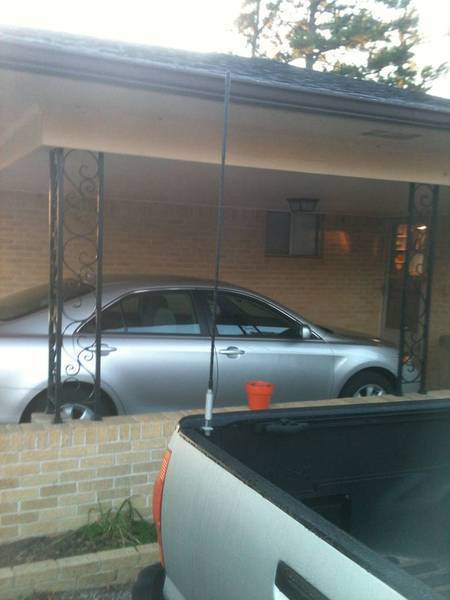

    I haven't ran the coax yet as I ordered a better one than what came with the kit I bought but we tested it last night and I got it down to 1.5:1 SWR through channel 23. After that it starts to rise but never over 2:1. I figure it may get a little better once I run the good coax and get out in a good open spot to test it. I bought the Midland 1001Z and a 3ft top loaded antenna. I made the mount out of some stock aluminum and bolted it to the metal under the bed rail. I may end up going with a 4' after all though if it doesn't look too tall. Let me know what you think!

    [​IMG]

    [​IMG]

    [​IMG]

  2. Oct 15, 2011 at 6:51 AM
    #2
    MT Madman

    MT Madman Senior Citizen

    Joined:
    Feb 6, 2010
    Member:
    #30831
    Messages:
    478
    Gender:
    Male
    Hawk Point MO
    Vehicle:
    MGM Tundra CrewMax Limited TRD Off Road
    My Kenwood TM-V708 Dual-Bander Westin Step Bars Line X Bedliner ReTrax Pro MX Tonnaeu Cover
    I'm thinking the antenna might need to be shortened, did you add the spring? The lower the frequency the longer the antenna.

  3. Oct 15, 2011 at 7:18 AM
    #3
    bendbolden

    bendbolden [OP] Come and take them.

    Joined:
    Aug 21, 2010
    Member:
    #42009
    Messages:
    611
    Gender:
    Male
    First Name:
    Ben
    Moscow, TN
    Vehicle:
    07 FJ Cruiser
    None but soon......
    Yeah I had to shorten it a little to get it there. It was less than 1.5:1 right off the bat on channel 1 but 2.5:1 at channel 23. If I go any shorter I think the SWR will be higher than I want in the lower channels. I was thinking of going with the 4ft firestik for two reasons; one foot longer antenna and the adjustable tip. The one I have isn't adjustable. I had to saw it off.

  4. Oct 15, 2011 at 7:50 AM
    #4
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.
    Why is it that everyone here just fabs their own brackets. I need one soon and want to mount the antenna behind the cab but I dont have scrap metal laying around. </rant>

    Good looking setup. Well done.

  5. Oct 15, 2011 at 7:56 AM
    #5
    bendbolden

    bendbolden [OP] Come and take them.

    Joined:
    Aug 21, 2010
    Member:
    #42009
    Messages:
    611
    Gender:
    Male
    First Name:
    Ben
    Moscow, TN
    Vehicle:
    07 FJ Cruiser
    None but soon......
    I had originally used a pre made bracket and had it mounted right behind the cab. I know that alot of members have that setup and have good swr readings but I was advised it would throw off the "direction" of the antenna having it that close to the metal cab. That's why I moved mine. Don't know if that's true or not.

  6. Oct 15, 2011 at 8:28 AM
    #6
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.
    If memory serves me right an antenna transmits through its tip (as a beacon, unless you have a directional antenna), and receives through its entire length.
    If that is correct all you would need is to ensure the tip of the antenna clears your roof.
    At any rate, if I ever find a good bracket I will put mine there for convenience and aesthetics. I'll reconsider it if I can't get a proper SWR.

  7. Oct 15, 2011 at 8:32 AM
    #7
    bendbolden

    bendbolden [OP] Come and take them.

    Joined:
    Aug 21, 2010
    Member:
    #42009
    Messages:
    611
    Gender:
    Male
    First Name:
    Ben
    Moscow, TN
    Vehicle:
    07 FJ Cruiser
    None but soon......
    Yeah mine is a top loaded antenna so I believe that is right. I don't think it necessarily effects SWR as that is just the efficiency to my knowledge. I think it is more of which direction your signal will be strongest. I don't want to spread false info so take that for what it's worth haha. Alot of guys are using the pre made brackets and using a square nut or any other hardware you can find and mounting it to the bed rail system. I prefer screwing the mount into metal rather than having to run a ground wire to the frame. You could always get a non ground plane antenna setup though.

  8. Oct 15, 2011 at 11:24 AM
    #8
    PerfectTekniq

    PerfectTekniq I'm undefeated in the UFC.

    Joined:
    Feb 22, 2011
    Member:
    #51683
    Messages:
    8,630
    Gender:
    Male
    First Name:
    Pepe Silvia
    Claremont, CA
    Vehicle:
    2009 Super White 4x4 DC SB Sport
    AllPro Front, AllPro Rear w/ wraps, AllPro IFS Skid, 5100 w/ 885's upfront, Duratracs, Front Superbumps, BuiltRight UCAs, Dakar Leaf Pack, Extended 5100's, AllPro Flip Kit, Rear Superbumps, Extended SS brake lines WeatherTech Floormats, TRD Intake, ScanGaugeII, TRD SoCal, Grillcraft, Wet Okoles, Cobra 75 w/ 4' whip
    Search the user W8N4MUD, I just bought 2 brackets from him for $20. They mount to the bed rails.

  9. Oct 16, 2011 at 3:33 AM
    #9
    MT Madman

    MT Madman Senior Citizen

    Joined:
    Feb 6, 2010
    Member:
    #30831
    Messages:
    478
    Gender:
    Male
    Hawk Point MO
    Vehicle:
    MGM Tundra CrewMax Limited TRD Off Road
    My Kenwood TM-V708 Dual-Bander Westin Step Bars Line X Bedliner ReTrax Pro MX Tonnaeu Cover
    The whole antenna radiates and is totally dependent on the length vs. the frequency.

  10. Oct 27, 2011 at 10:16 AM
    #10
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.
    How did you route the coax into the cab?

  11. Oct 27, 2011 at 10:48 AM
    #11
    bendbolden

    bendbolden [OP] Come and take them.

    Joined:
    Aug 21, 2010
    Member:
    #42009
    Messages:
    611
    Gender:
    Male
    First Name:
    Ben
    Moscow, TN
    Vehicle:
    07 FJ Cruiser
    None but soon......
    I drilled a hole right under the bracket into the tail light cavity; went all the way to the front and went through front firewall on the passenger side. There is a little drain tube coming out of the firewall through a grommet. I just pulled it out;ran the coax through and pushed the hose back in. I did have to cut the end off and use one of the non solder type ends radio shack has. I used almost all of a 20ft cable. I think right at 19ft.

  12. Oct 27, 2011 at 2:14 PM
    #12
    Paczowski123

    Paczowski123 Well-Known Member

    Joined:
    Aug 12, 2011
    Member:
    #61578
    Messages:
    146
    Gender:
    Male
    First Name:
    David
    Kennesaw
    Vehicle:
    05 prerunner trd off road
    OME 3" Lift, Kennesaw Mountain Off Road Wincher Front Bumper w/ 5" Integrated off road lights, Kennesaw Mountain Off Road Multi Carrier Rear Bumper w/ swingout tire carrier, Jerry can, and hi-lift mount, Sof-topper rear cargo cover. Galaxy DX44V CB Radio W/ 4' FireStikII, Rock Sliders
    how did you ground the bracket? did you sand down to bare metal this could be causing a HIGHER not BAD swr reading. I have mine mounted on my front bumper, with 1:1:1 on 1 and 1:3:1 on 40. Im running a Galaxy dx44v with 30 watts. High SWR readings are more commonly cause by a shorted antenna/bad ground plane/improper isolator ring installment. Also, make sure the AT LEAST 1/3 the antenna is above the cab for best results.

    [​IMG]

  13. Oct 27, 2011 at 2:32 PM
    #13
    bendbolden

    bendbolden [OP] Come and take them.

    Joined:
    Aug 21, 2010
    Member:
    #42009
    Messages:
    611
    Gender:
    Male
    First Name:
    Ben
    Moscow, TN
    Vehicle:
    07 FJ Cruiser
    None but soon......
    I did ground it down to bare metal. I have since got it down to lower numbers which I can't remember. Thanks for the tip though! When I took these pictures I had not sanded it though.

  14. Oct 27, 2011 at 2:42 PM
    #14
    Paczowski123

    Paczowski123 Well-Known Member

    Joined:
    Aug 12, 2011
    Member:
    #61578
    Messages:
    146
    Gender:
    Male
    First Name:
    David
    Kennesaw
    Vehicle:
    05 prerunner trd off road
    OME 3" Lift, Kennesaw Mountain Off Road Wincher Front Bumper w/ 5" Integrated off road lights, Kennesaw Mountain Off Road Multi Carrier Rear Bumper w/ swingout tire carrier, Jerry can, and hi-lift mount, Sof-topper rear cargo cover. Galaxy DX44V CB Radio W/ 4' FireStikII, Rock Sliders
    yeah, i had the same problem on my old jeep, it drove me nuts, then after learning more about CB's i figured out the grounding issue, and realized my antenna had an internal short even though it was only a month old. (last time i wil ever buy a wilson antenna)
