My Experience with Raptor Lining My Bed

Discussion in '2nd Gen. Tacomas (2005-2015)' started by hoffengineering, Sep 14, 2020.

  1. Sep 14, 2020 at 4:43 PM
    #1
    hoffengineering

    hoffengineering [OP] Well-Known Member

    Joined:
    Mar 9, 2020
    Member:
    #321727
    Messages:
    184
    Gender:
    Male
    First Name:
    Taylor
    Orange County, California
    Vehicle:
    2015 DCLB 4X4
    I recently Raptor Lined the bed on my 2015 DCLB and thought it was worth sharing my experience.

    When I bought my Tacoma earlier this year, the bed wasn't in terrible shape, but it had definitely been heavily used by the PO and was showing some wear and tear. I'm not the kind of person who worries about every little ding and scratch--but I am the kind of person who likes to "start fresh" and to "erase" the wear and tear from the PO, so that I can impart my own wear and tear! :)

    So after a lot of research, reading, and inspiration from seeing the results others had achieved with Raptor Liner (@jeffmort, in particular), I decided to pull the trigger.

    I also replaced the bed rail and tailgate caps with KB Voodoo parts at the same time.


    Which kit?
    The approximate inside surface area of the DCLB bed is ~60 ft^2. I calculated ~54 ft^2 per the overall dimensions of the bed, +5 ft^2 margin for all of the "features" in the bed, such as the wheel well protrusions and bed floor corrugation. So it came to approximately ~120 ft^2 required total for two coats.

    According to U-pol, the 6-quart kit should cover ~126 ft^2 (~21 ft^2 per bottle) with 0.018" thickness. Therefore the 6-quart kit should be sufficient for 2 coats for a DCLB.

    I found this to be pretty accurate. When all was said and done I was left over with ~1/3 bottle. 5 & 2/3 bottles, per U-Pol, equates to ~119 ft^2.

    Kit used (with included gun): https://smile.amazon.com/gp/product/B074KPWNZD/


    Prep
    First, I removed all of the bed rails, bed bolts, D-ring bolts, and bed cubbies.

    I then prepped all of the surfaces to be coated by first washing, then sanding with 180-220 grit, then washing again, and then finally de-greasing.

    I masked everything off with frog tape, blue painters tape, and plastic sheeting. I installed the stock fasteners into all the threaded inserts in the bed to protect them from overspray. I masked the heads of the bolts to make sure they could be removed easily after application, but that probably wasn't necessary as I replaced all of the bed fasteners with new stainless steel bolts.

    Lastly, I used the Raptor Liner Adhesion Promoter: https://smile.amazon.com/U-Pol-Raptor-Adhesion-Promoter-Aerosol/dp/B07DGP6T45/


    Application
    I used the gun included with the kit which seemed to work just fine. I used an inexpensive pancake air compressor regulated to 50-60 psi at the gun.

    I followed the recommended application instructions and started with the corners of the bed. Next came the floor of the bed, and then the vertical surfaces last.

    I cleaned the gun with acetone-based de-greaser between each bottle.

    I waited 90 minutes between coats. I also did one "final" spray at the end of the 2nd coat with the gun much further from the surface to achieve some texture.

    I removed all of the masking immediately adjacent to the coated surfaces (and partially unscrewed all the bolts) within 30 minutes of the final coat.


    Results
    The bed definitely looks much better than before and I am pleased with the results so far. It's only been about a month since application, so time will tell WRT durability. So far, no complaints and I'm definitely glad I did it.

    Onto the pictures...

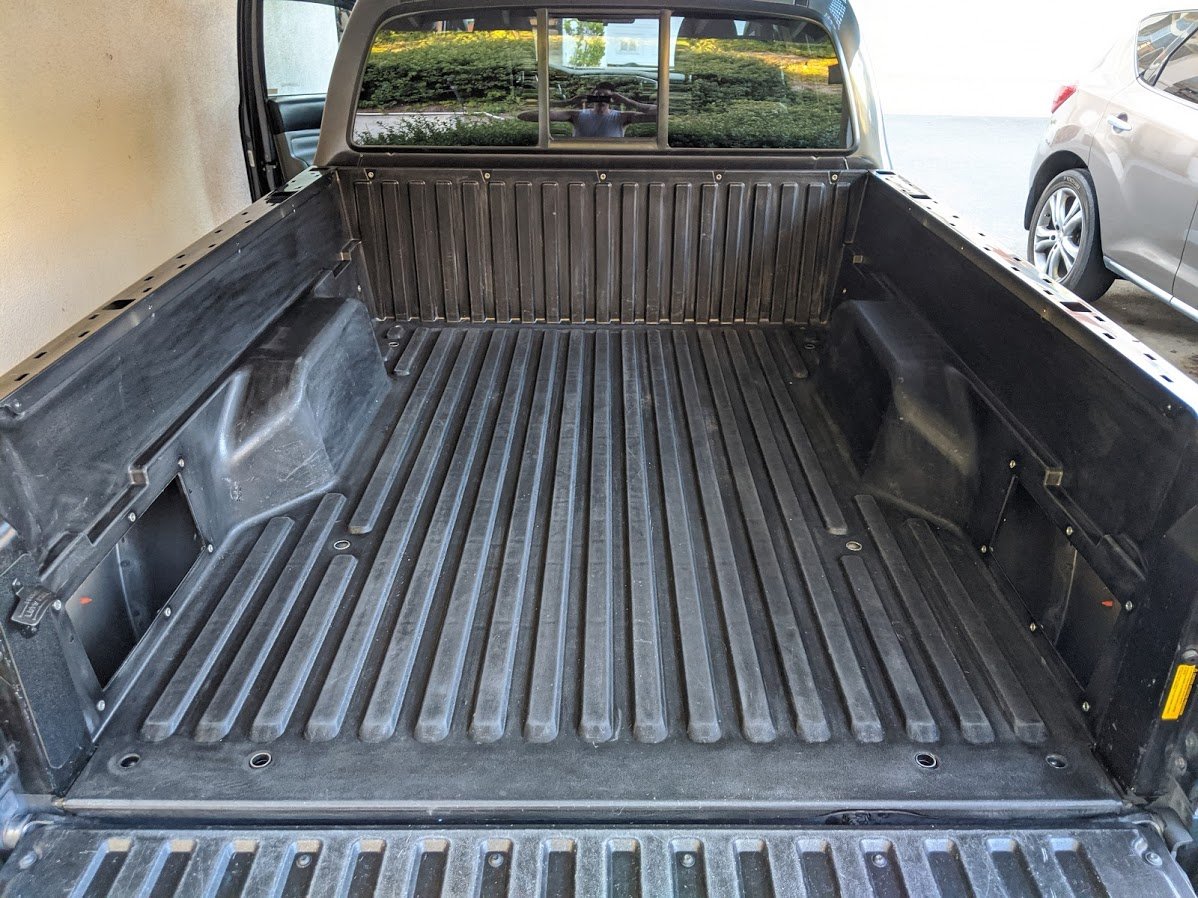

    Sanded:

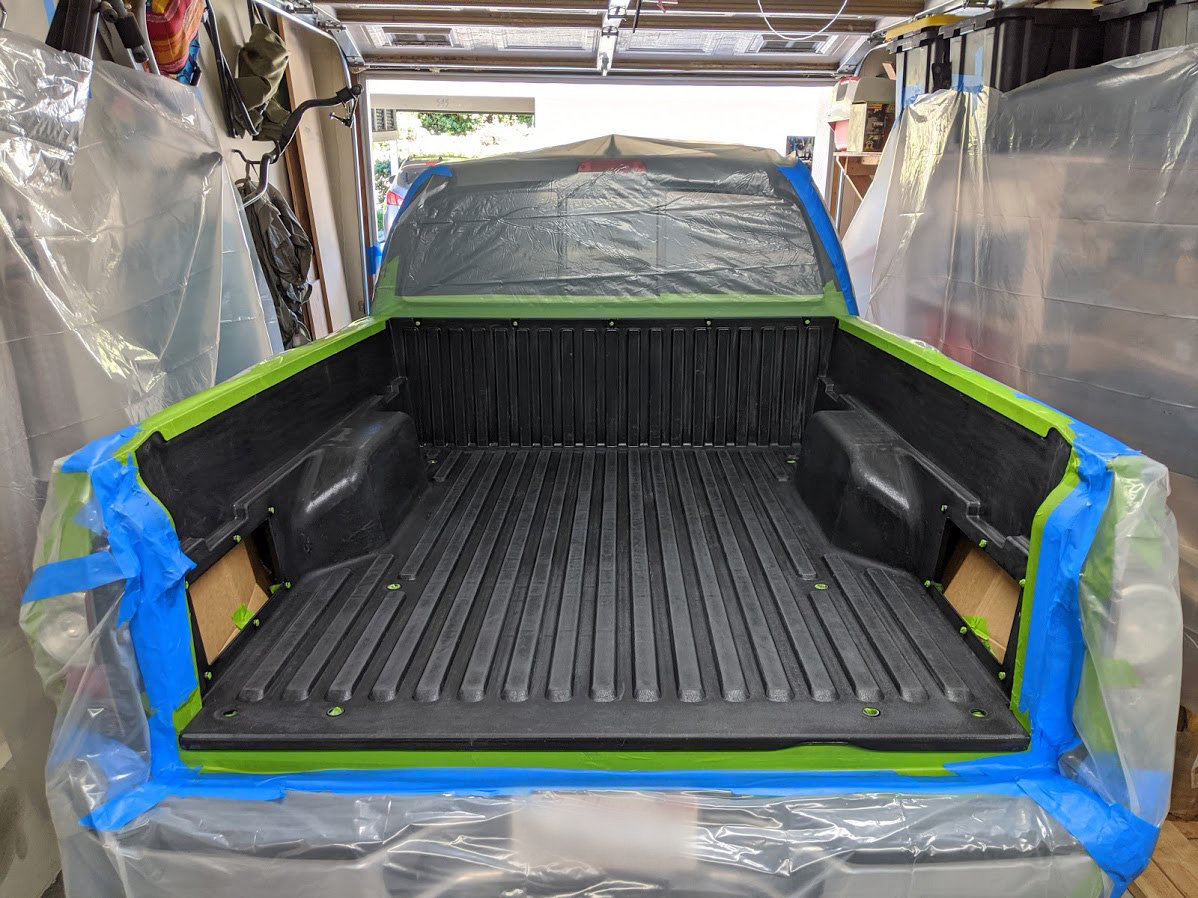

    Fully prepped and masked (in my incredibly small garage):

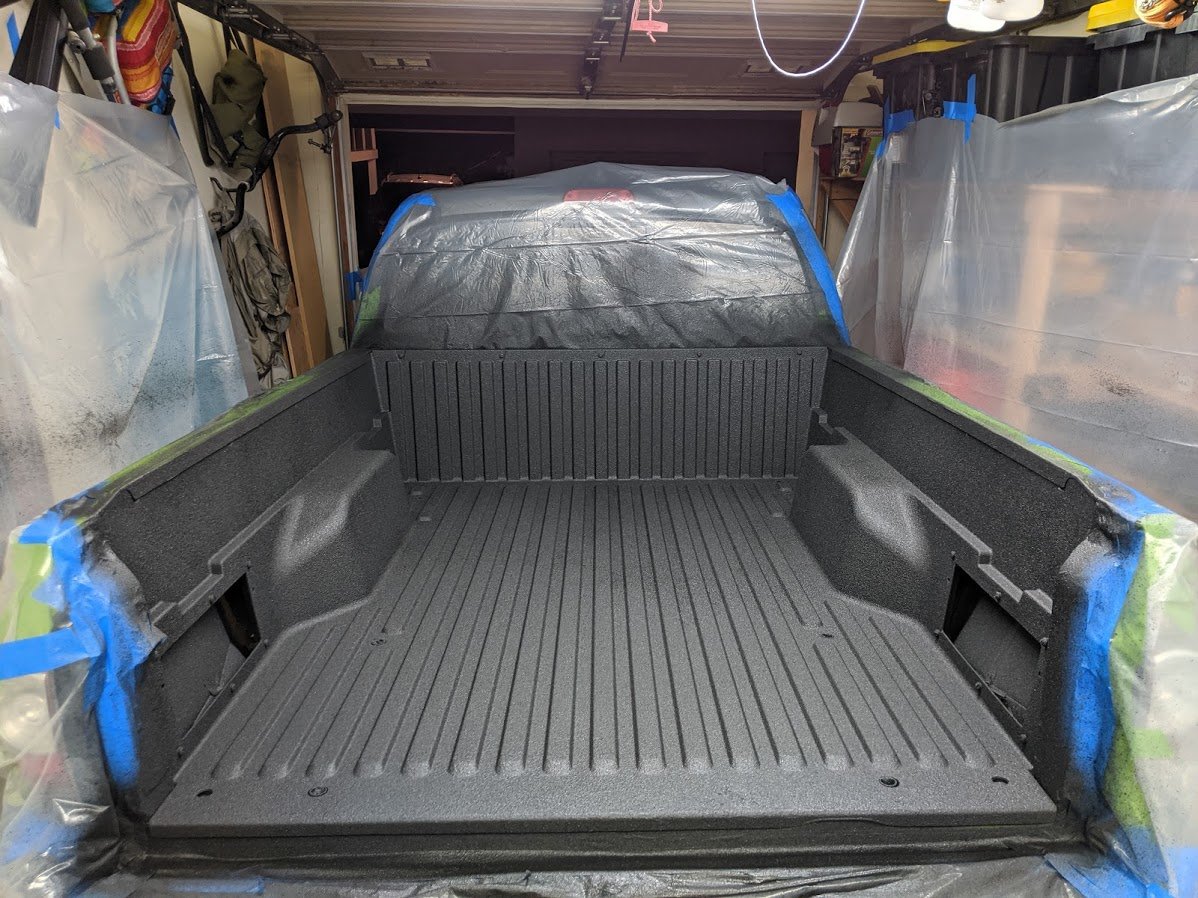

    Immediately post-coat:

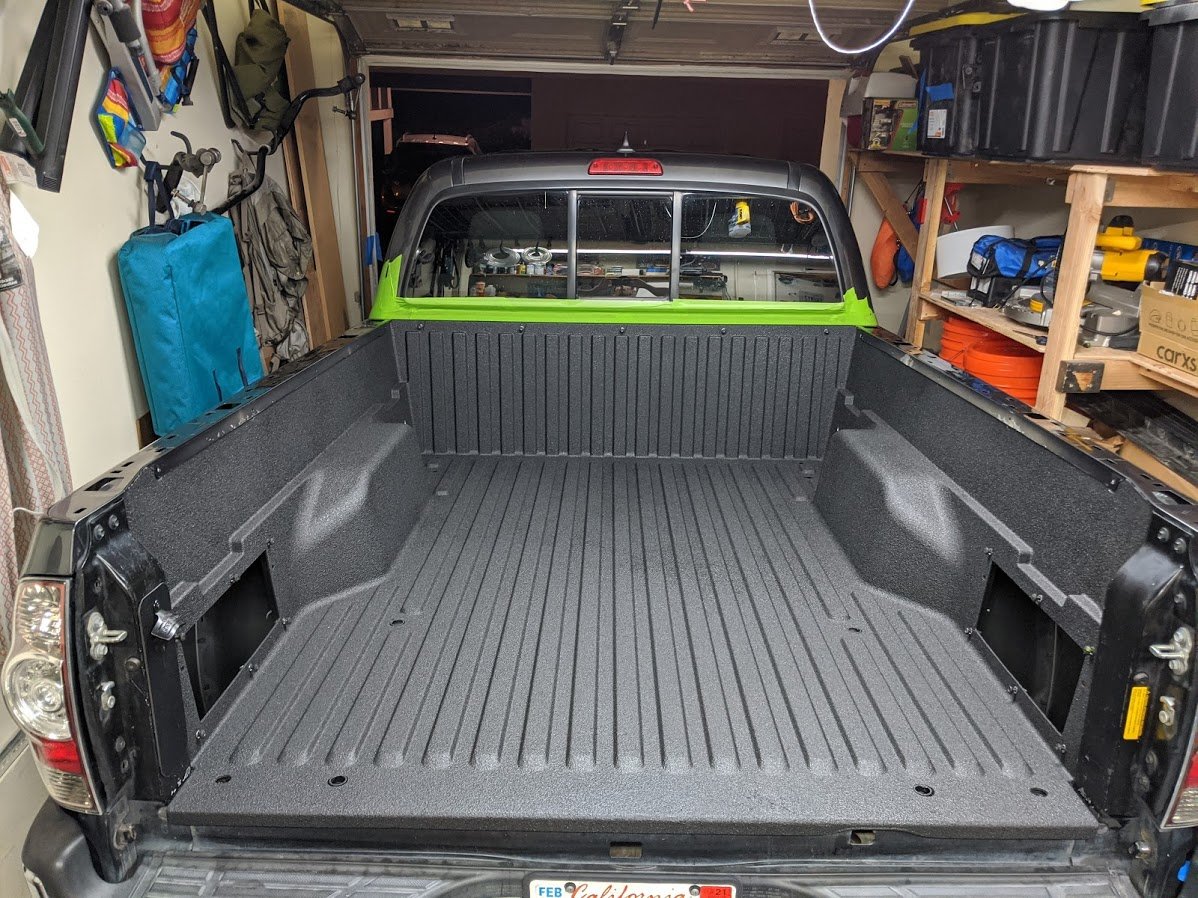

    Masking removed:

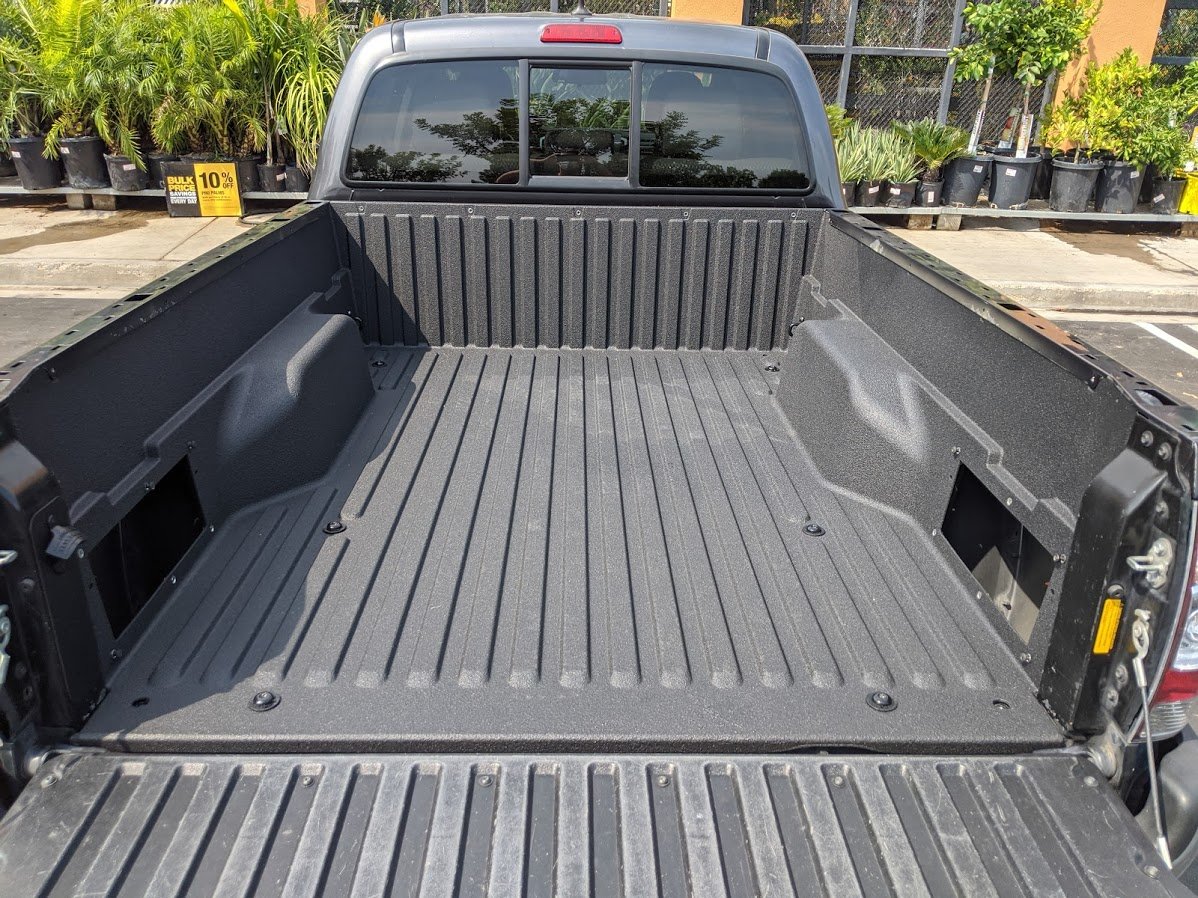

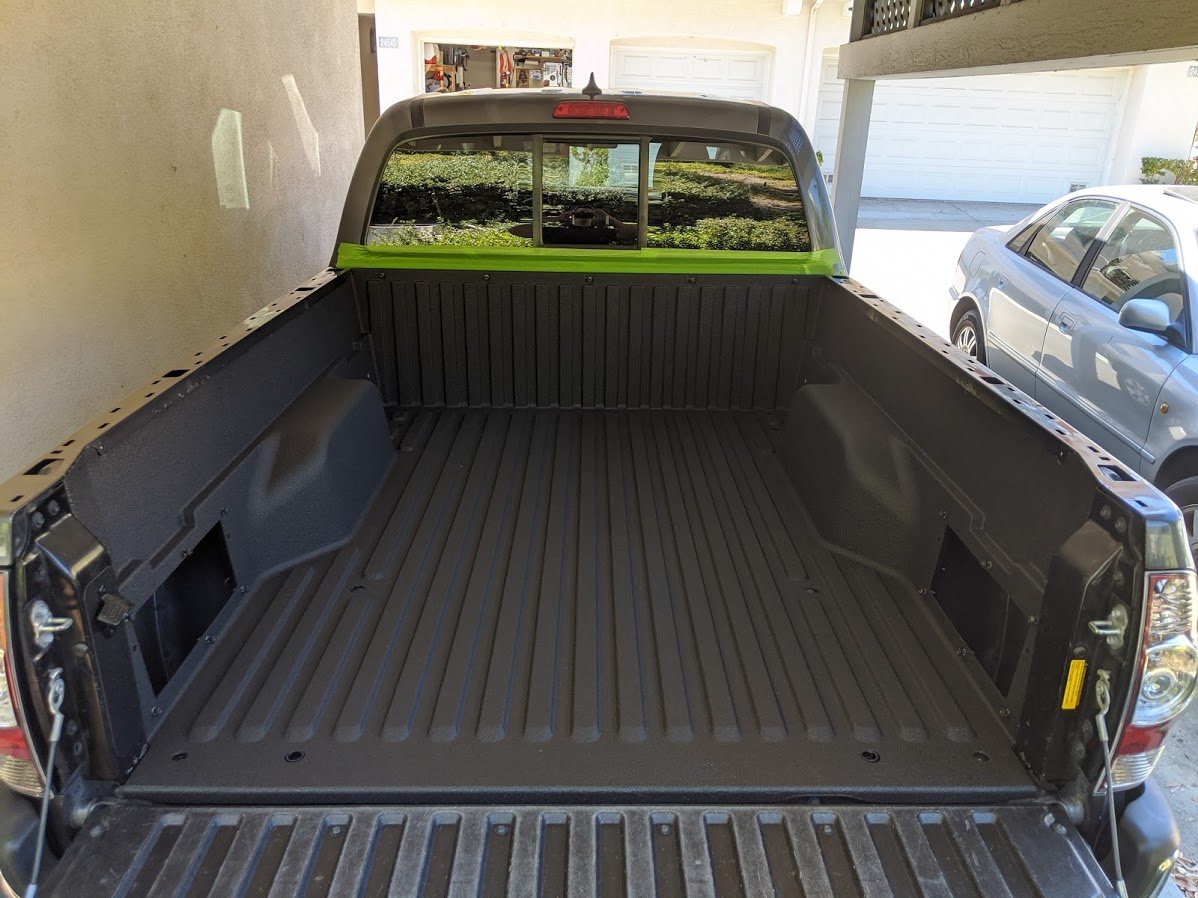

    Next day:

    Several days later (with new bed bolts installed):

    KB Voodoo side rail caps installed and bed tie-down rails re-installed (all with new stainless fasteners). I don't have a good "before" picture of the bed, but the tailgate cover shows a good comparison between the condition of "before" and "after":

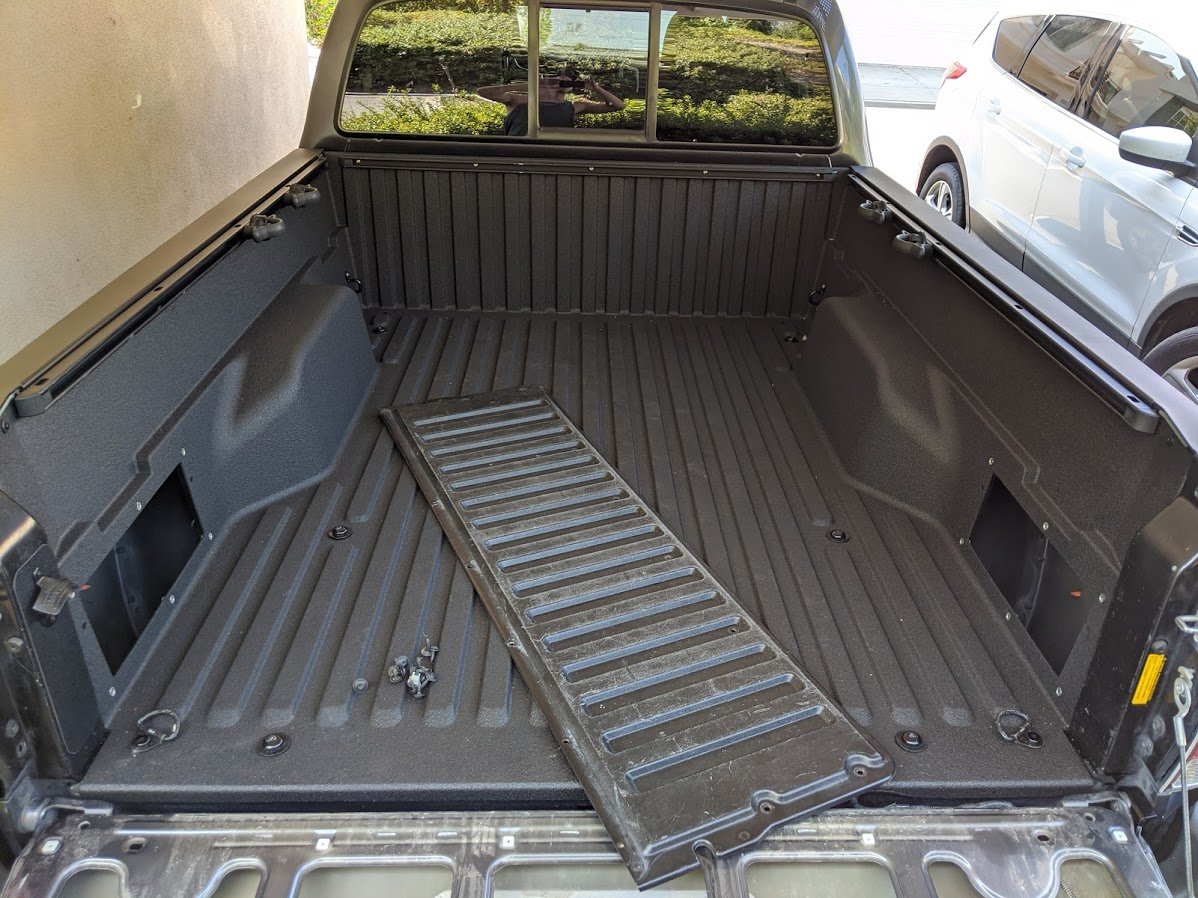

    Bed cubbies reinstalled (also Raptor Lined, with new stainless fasteners as well):

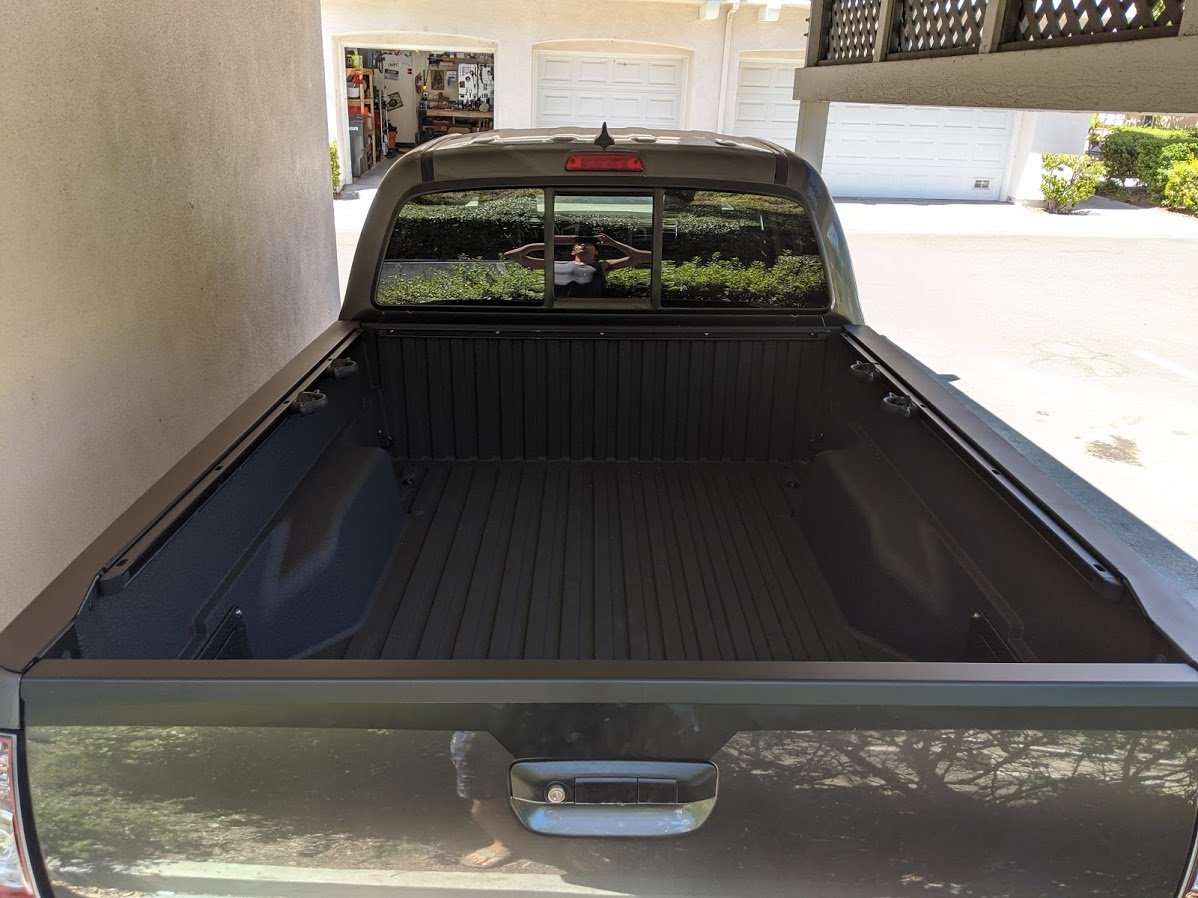

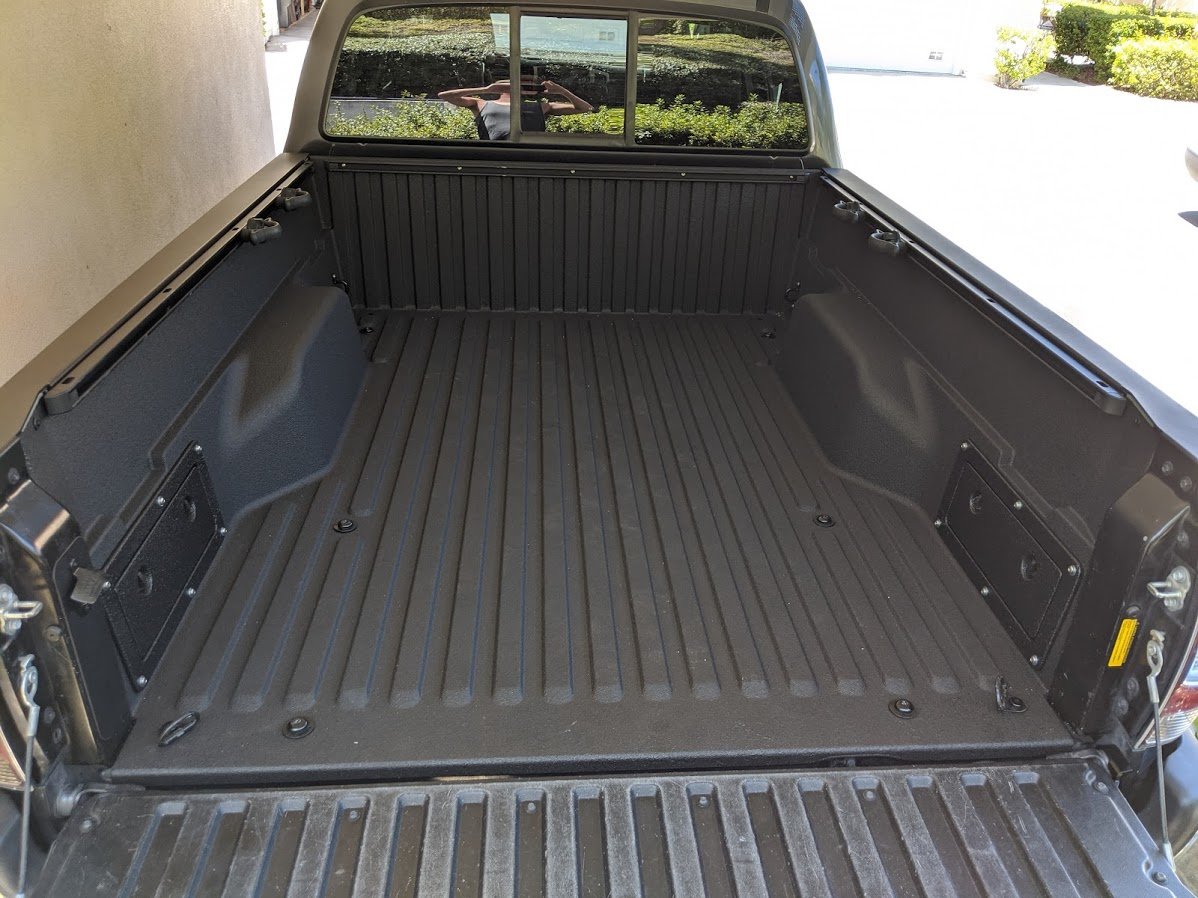

    All KB Voodoo caps installed:

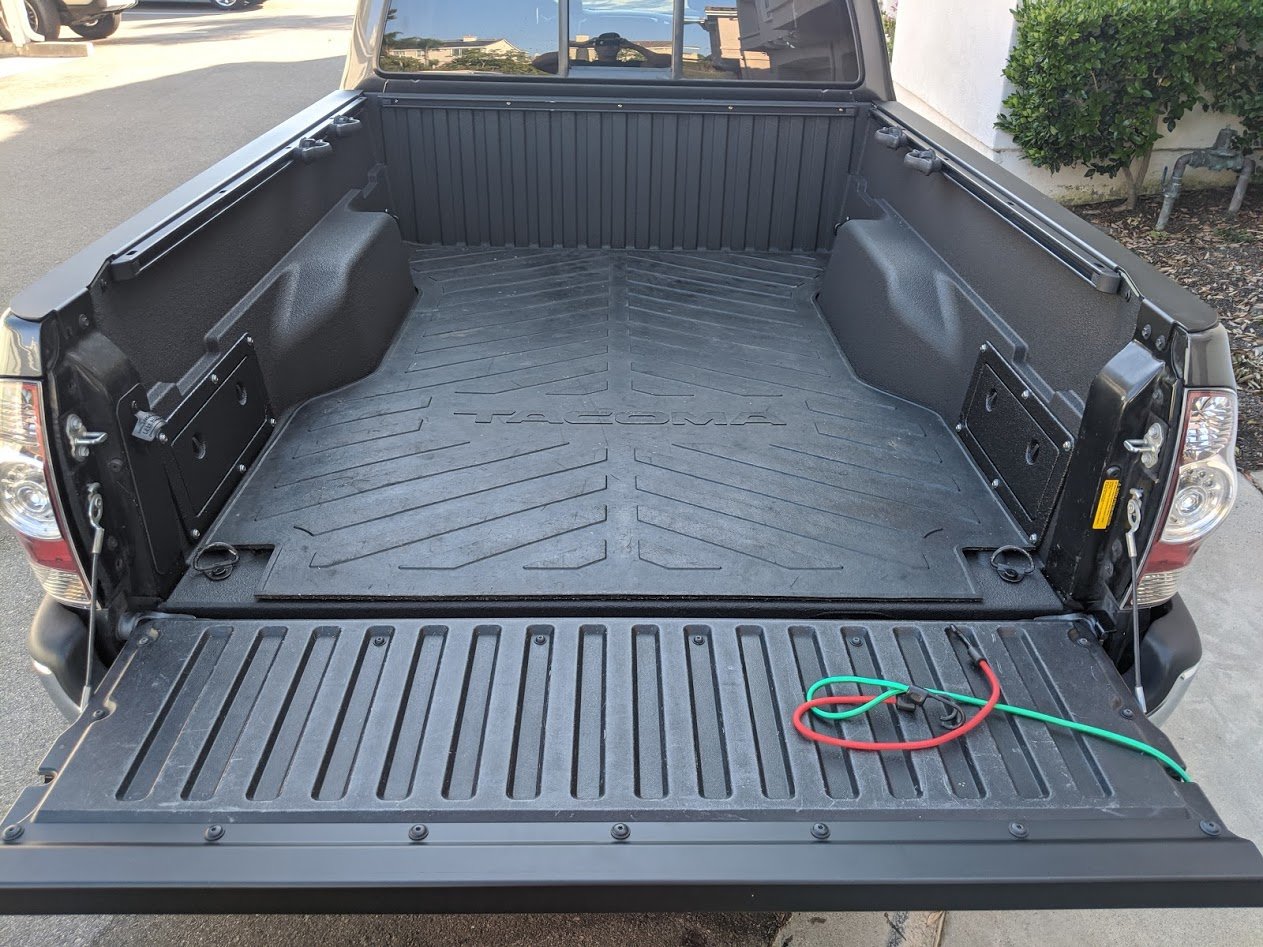

    And finally, covering up all my hard work with my bed mat:
