my first attempt at rust repair

Discussion in '1st Gen. Tacomas (1995-2004)' started by megalodon, Dec 3, 2019.

  1. Dec 3, 2019 at 10:01 AM
    #1
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    Hey everyone,
    Typically, I am a lurker. I'll have to put together a build thread… not having much luck finding threads about rust repair on 1st gen beds this thread will be about the rust repair and paint of a bed.

    This is my first attempt at rust repair. I’m by no means an expert on this and am just reading / learning as I go (I do have a buddy who used to work at a body shop so he has given me some tips, and will help me with the paint, or so he says.)

    Over the last year or so I’ve noticed that my bed was bubbling the paint up under the fender flares, I bought a cap for the truck (which I want to paint.)

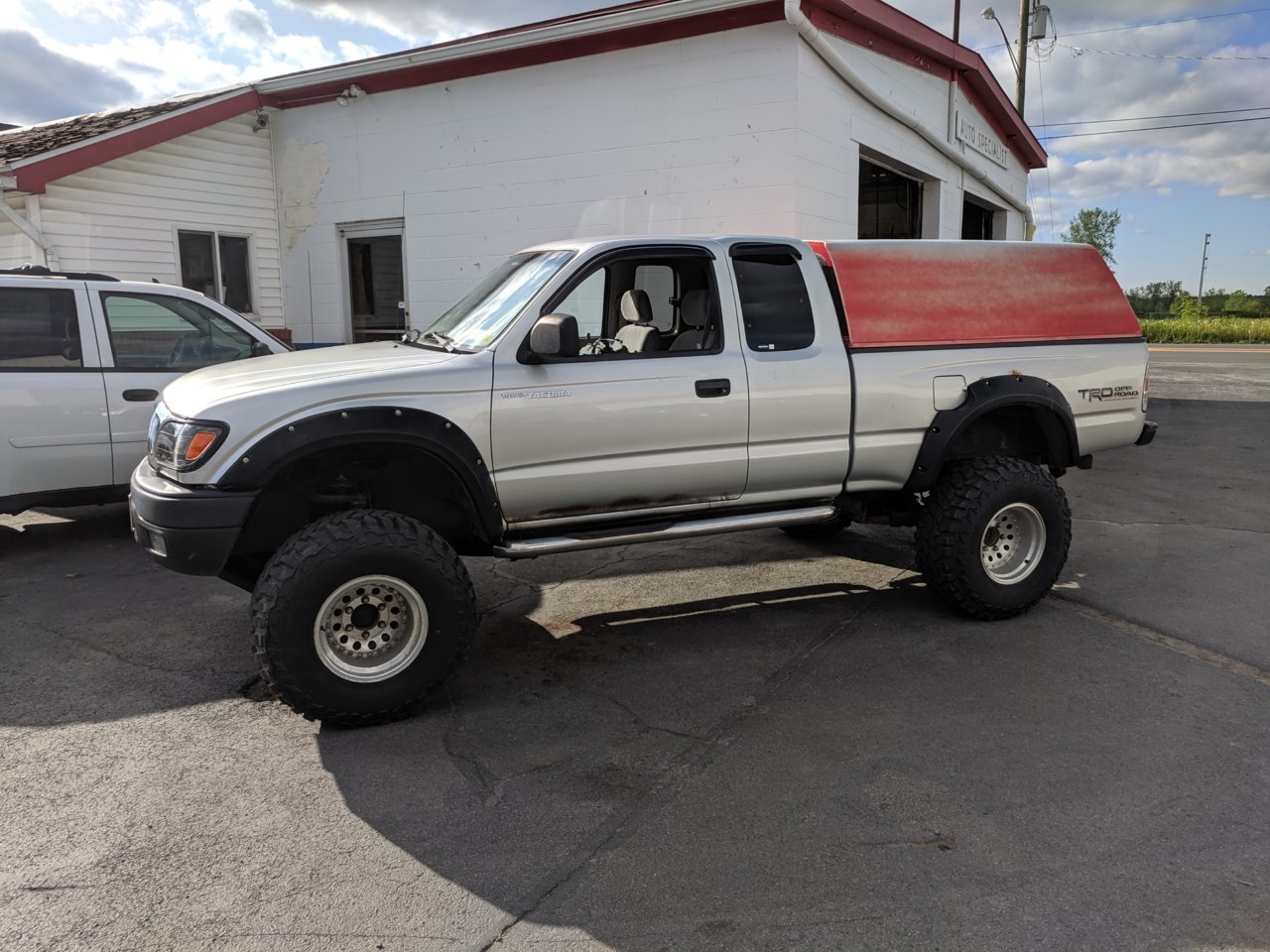

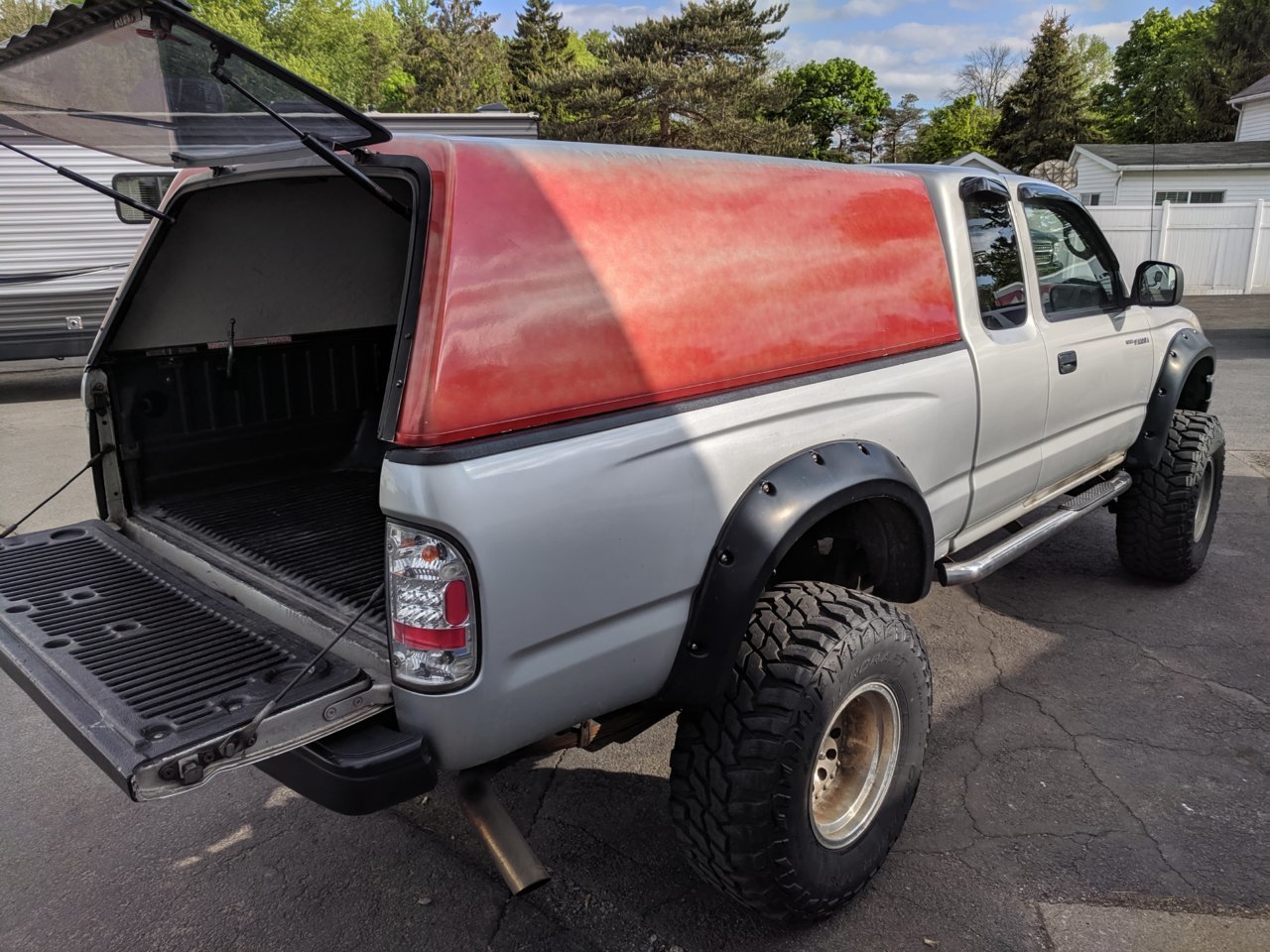

    drivers-side.jpg pass-side.jpg
    I wanted to try and fix both at the same time. I’ve had the truck awhile, living in upstate New York where salt is heavily used most vehicles rust out, this one is no different. I had the frame replaced under warranty. when I priced out a new truck I decided I can’t afford one (well, at least, not the one I want) and I like my truck so may as well keep mine longer (or as long as I can)

    After pulling the fender flares and picking around at the paint it became apparent I would need to do some major body work of the cut out and weld in new metal… not just a sand down and paint.
    rust-1.jpg rust-2.jpg

    I briefly Looked around for a bed locally, but I didn’t find one that wasn’t in as bad or worse shape. I look at it as an opportunity to learn some new skills, use some tools I have acquired but never put to use (and it turns out… buy some new ones.) I also have some outstanding maintenance issues which have been bugging me (evap leak, exhaust gaskets leaking, etc) so I pulled the bed to make it easier to see how badly rusted things are and give me access to the other problem pieces.

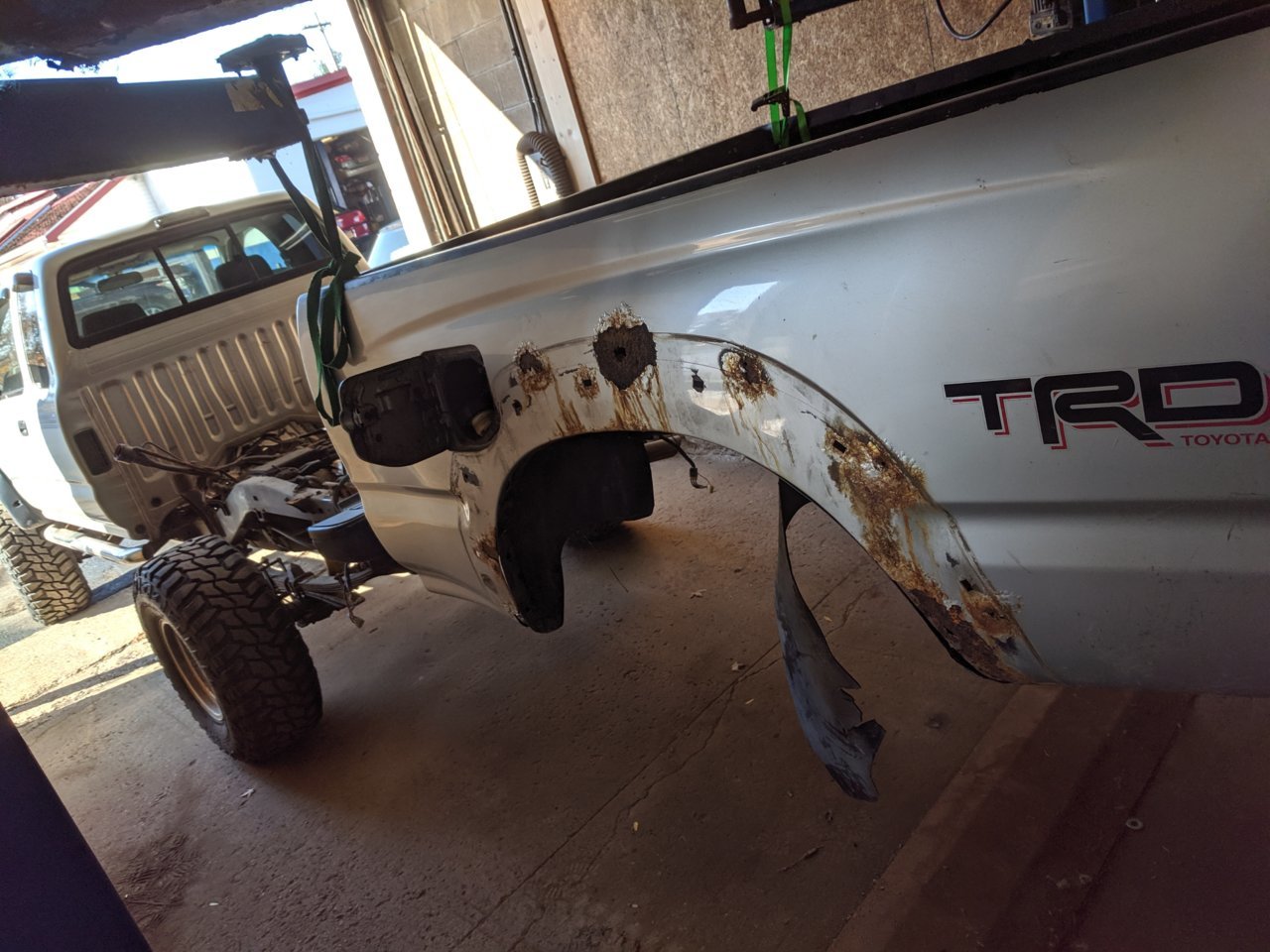

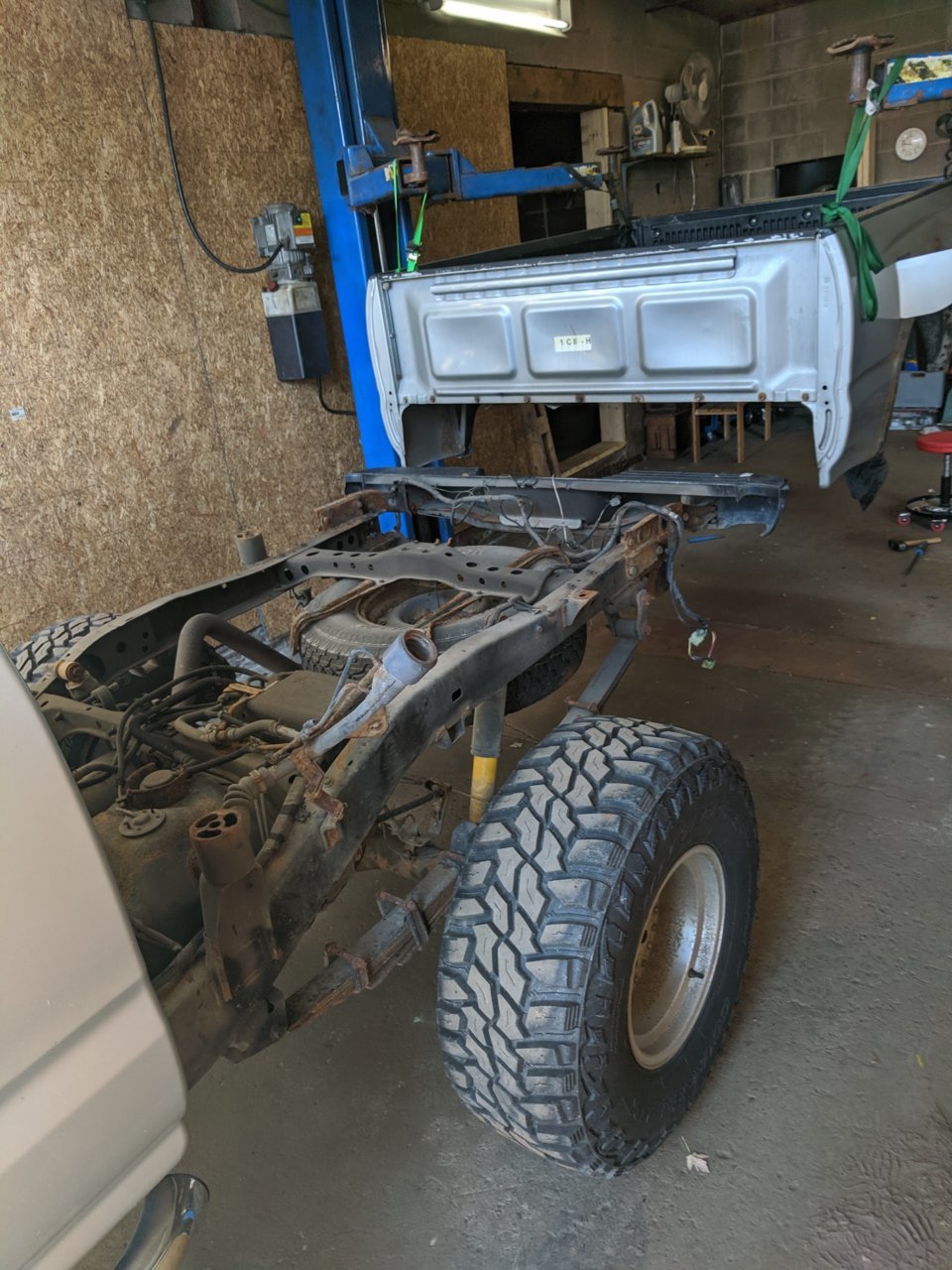

    bed-off.jpg bed-off2.jpg
    The evap leak was around the filler neck, I’ve ordered a new one to put in. also I snapped bolts (all over on this effort so far) but specifically the fuel inlet box (part number: 61709-04020) removing the bolts that hold that together, instead of trying to save the piece which rusted pretty badly I ordered a new one.


    sadly it’s not possible to get a full bed side and just drill out the spot welds, so I sourced a patch panel and after a bit of debate (and reading about how best to do this) finally have gotten a chance to trace it out. I sanded the area in question to see how bad the rust was, and decided to just go all in on the patch panel.

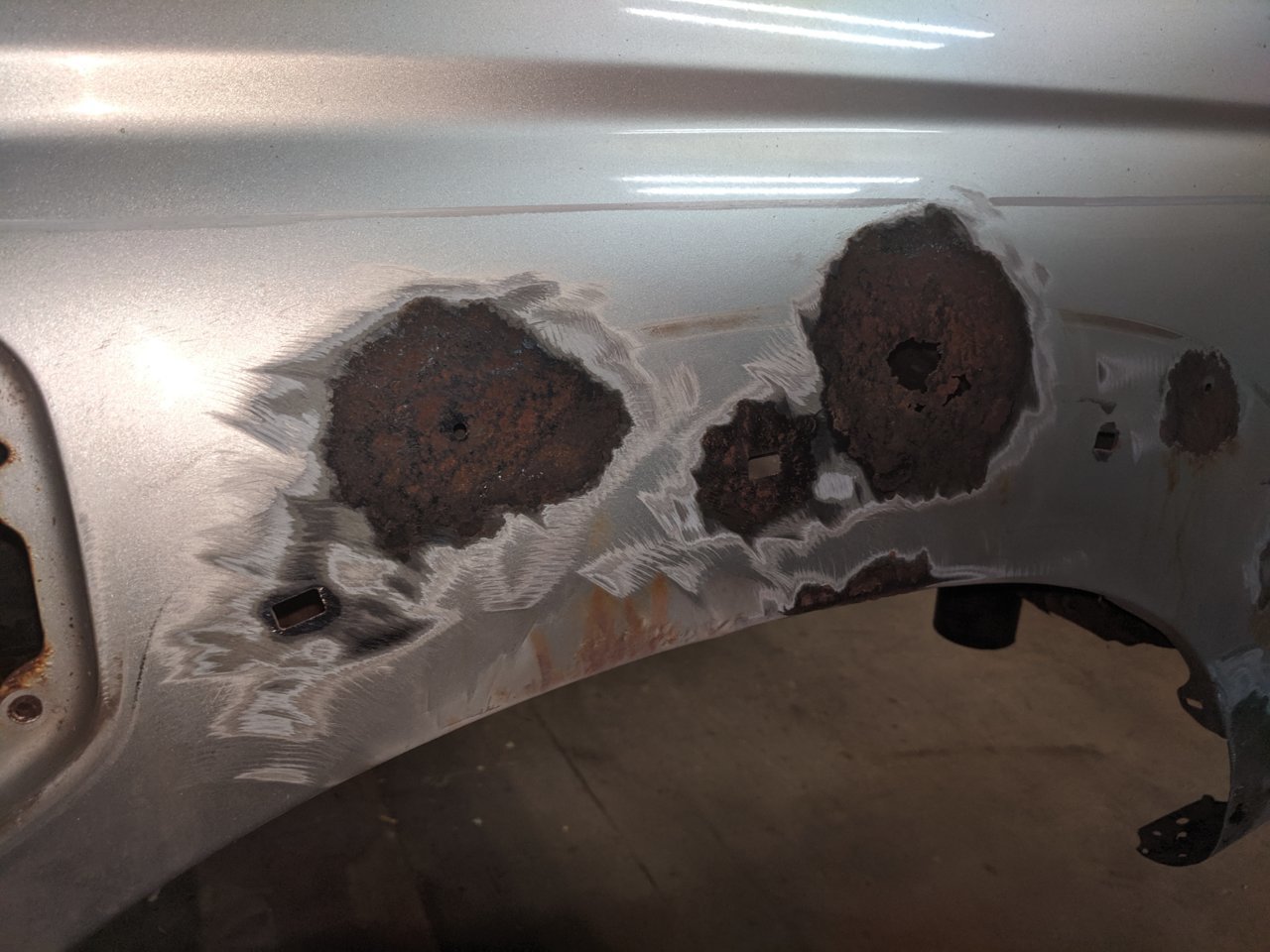

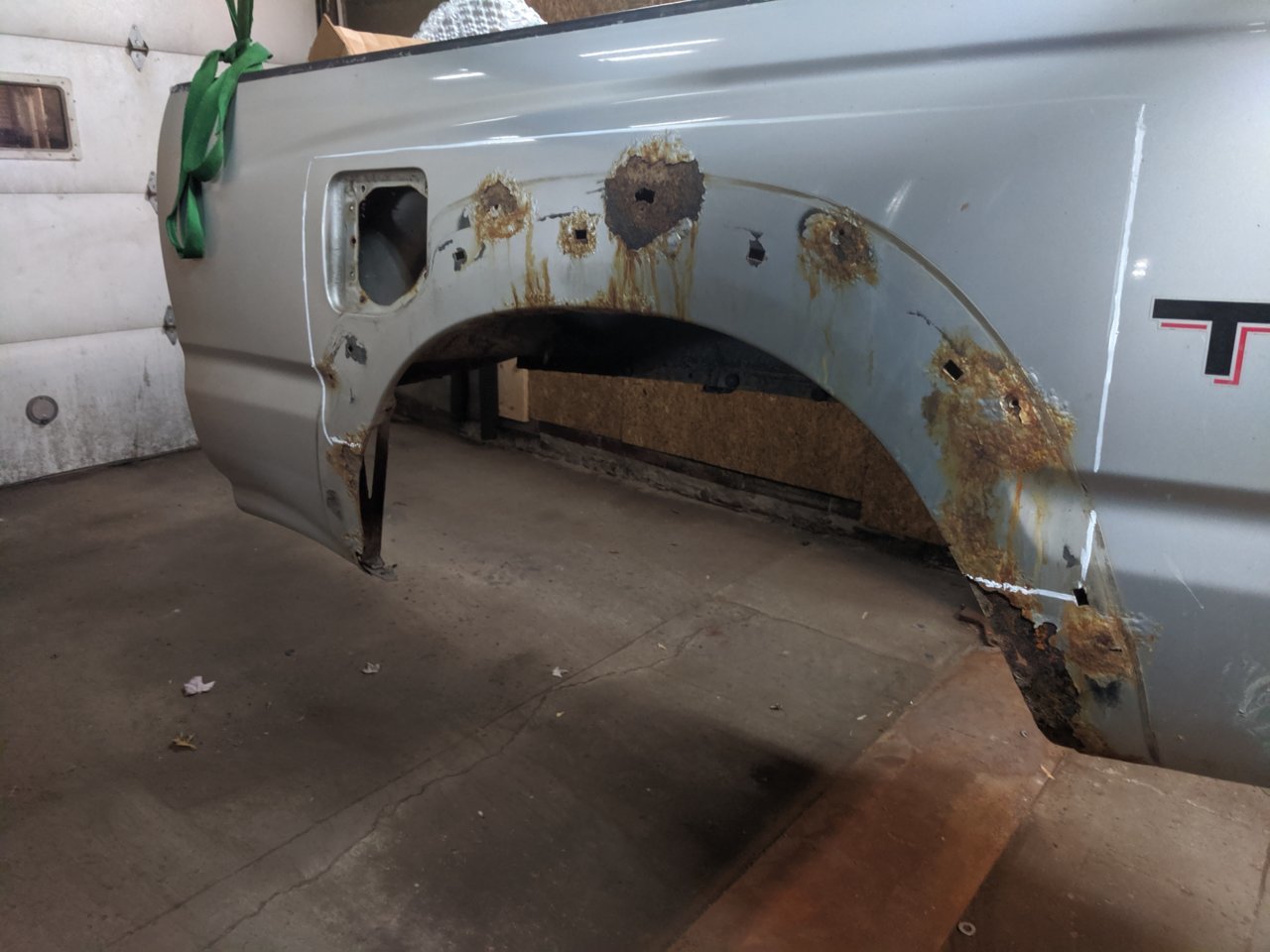

    patch-panel.jpg trace-1.jpgsanded-1.jpg

    A tip from a welding friend was to use a scribe to trace and the patch panel size as close as possible to the cut. I cut it out with a cut off wheel and test fit the panel (tried to get it as close as I could, not bad for my first try.)

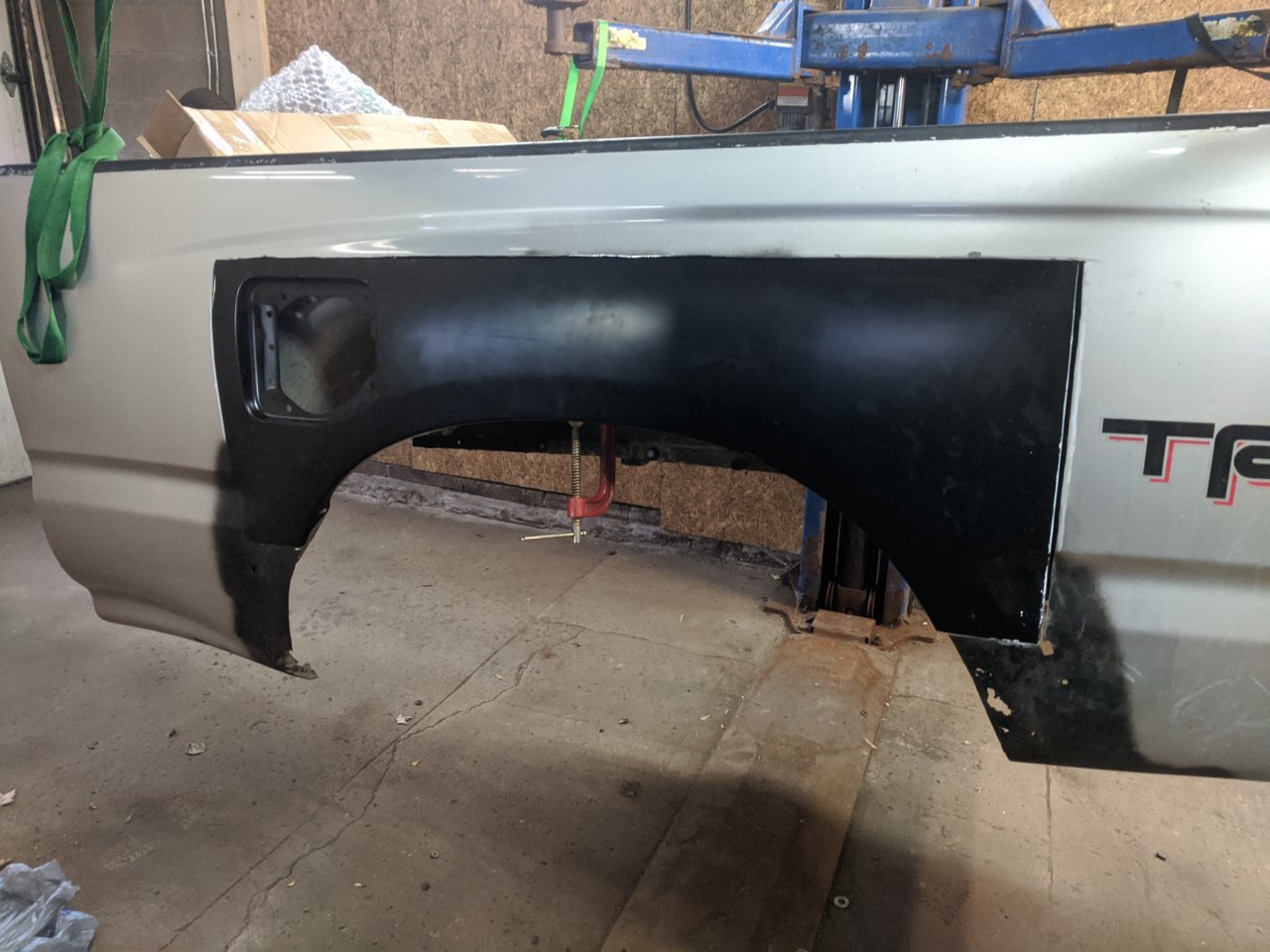

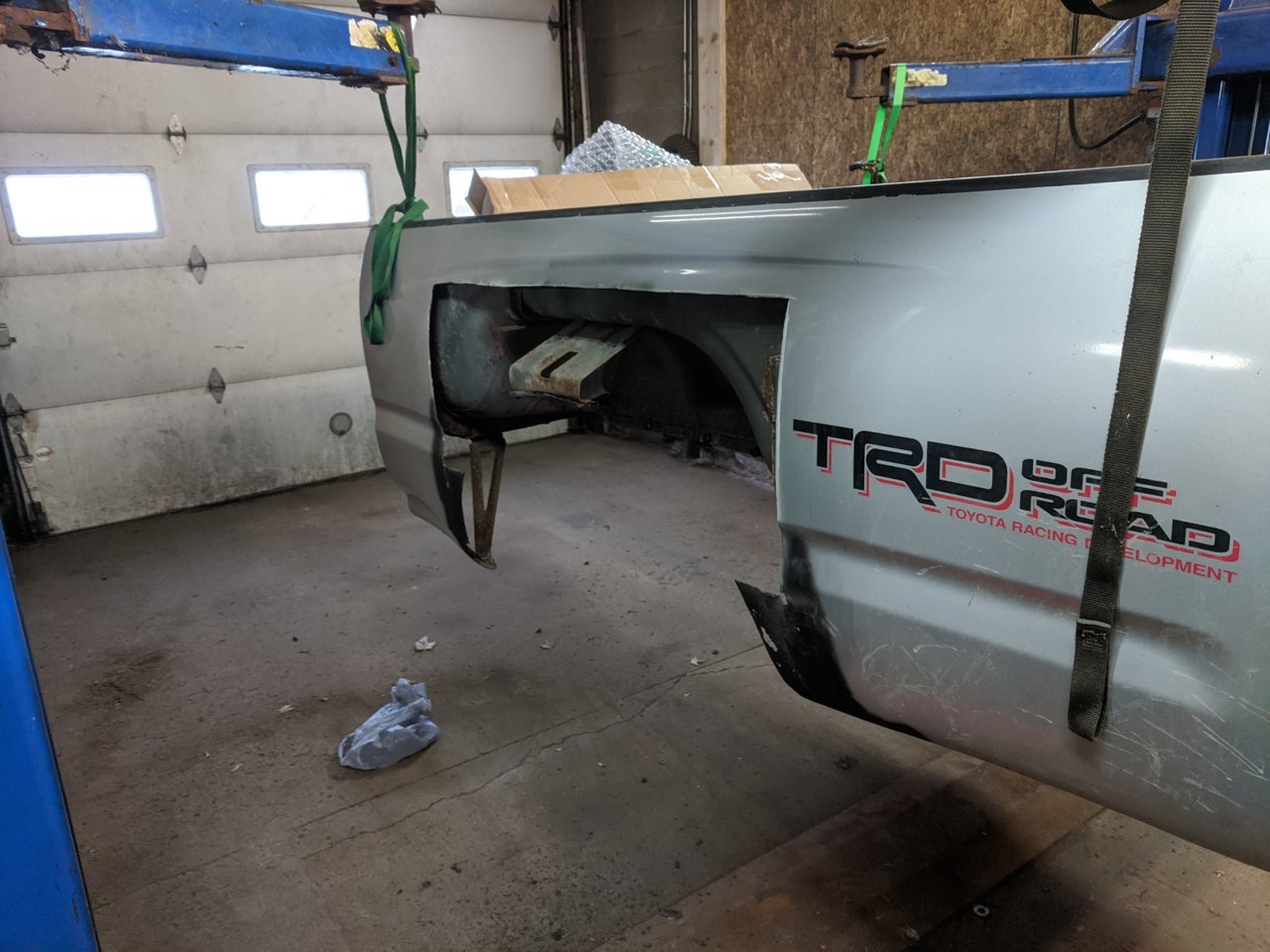

    cut-out.jpg test-fit1.jpg

    and then tried my hand at welding it back in. (badly in spots) I picked up a new roll of .23 welding wire for this off of Amazon, some magnets and clamps from tractor supply and went to town. from what I've read you want to tack weld, then move to another area of the metal that is cool so you don't warp things.

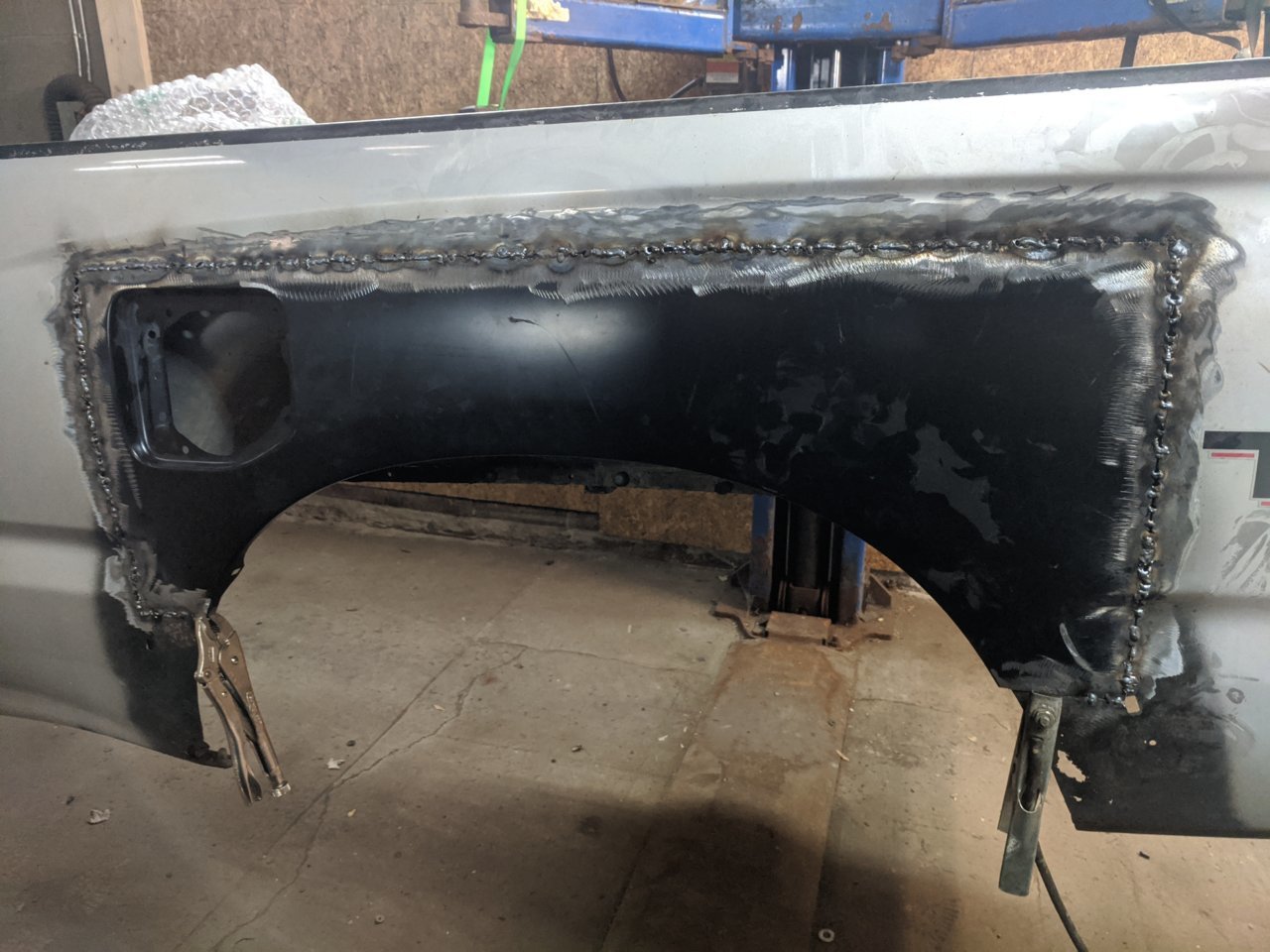

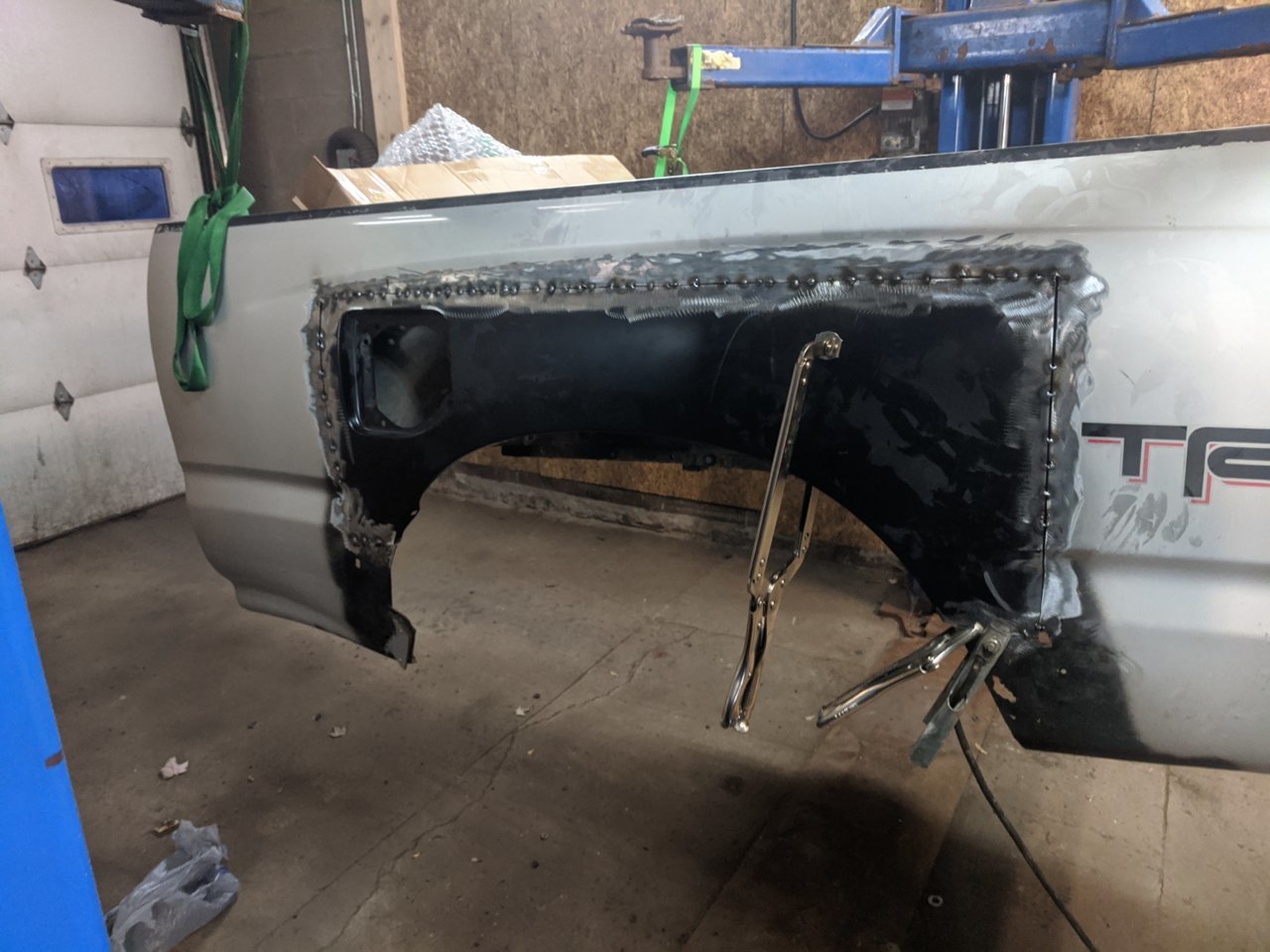

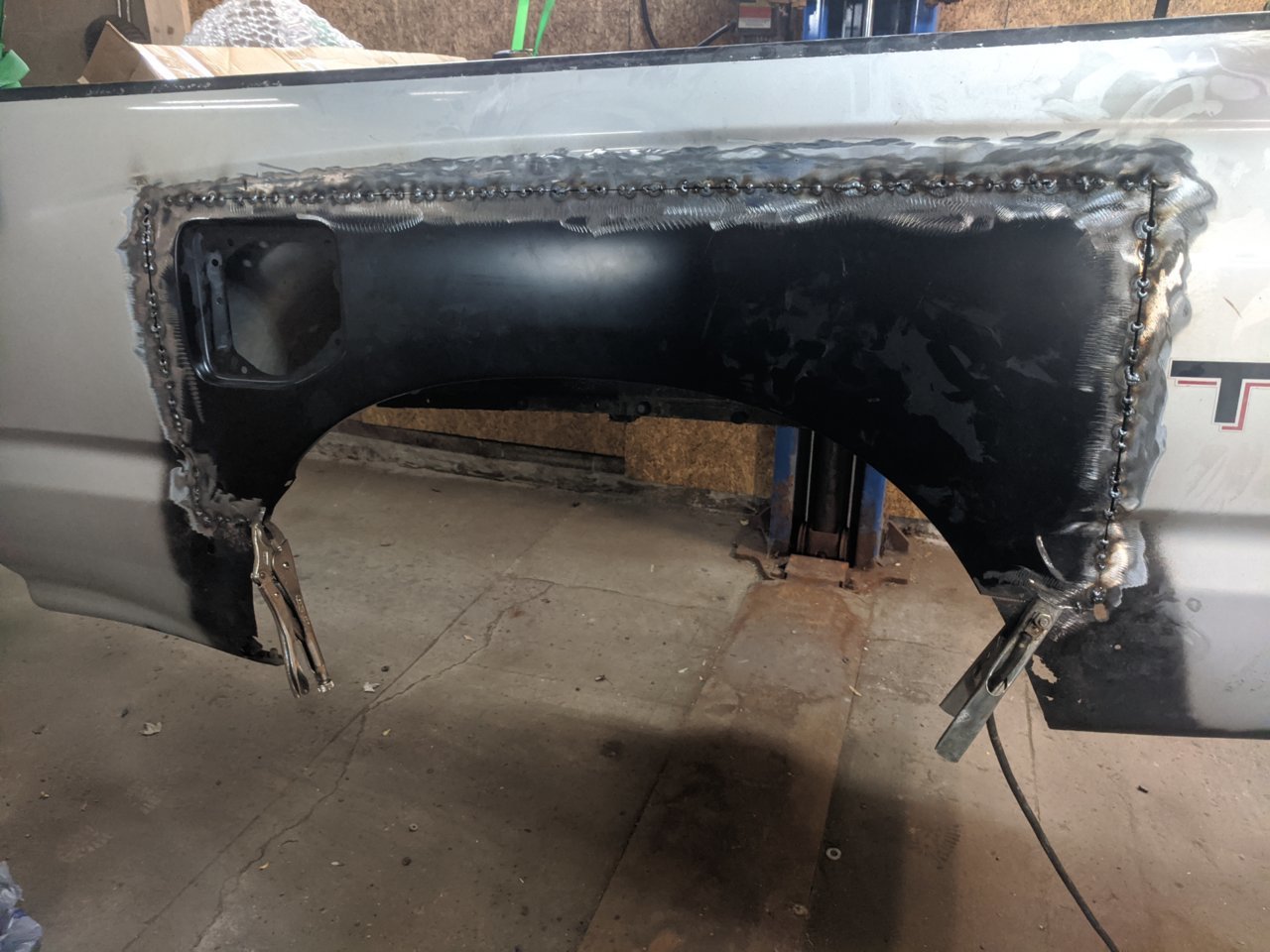

    tack-1.jpg tack-2.jpg tack-3.jpg

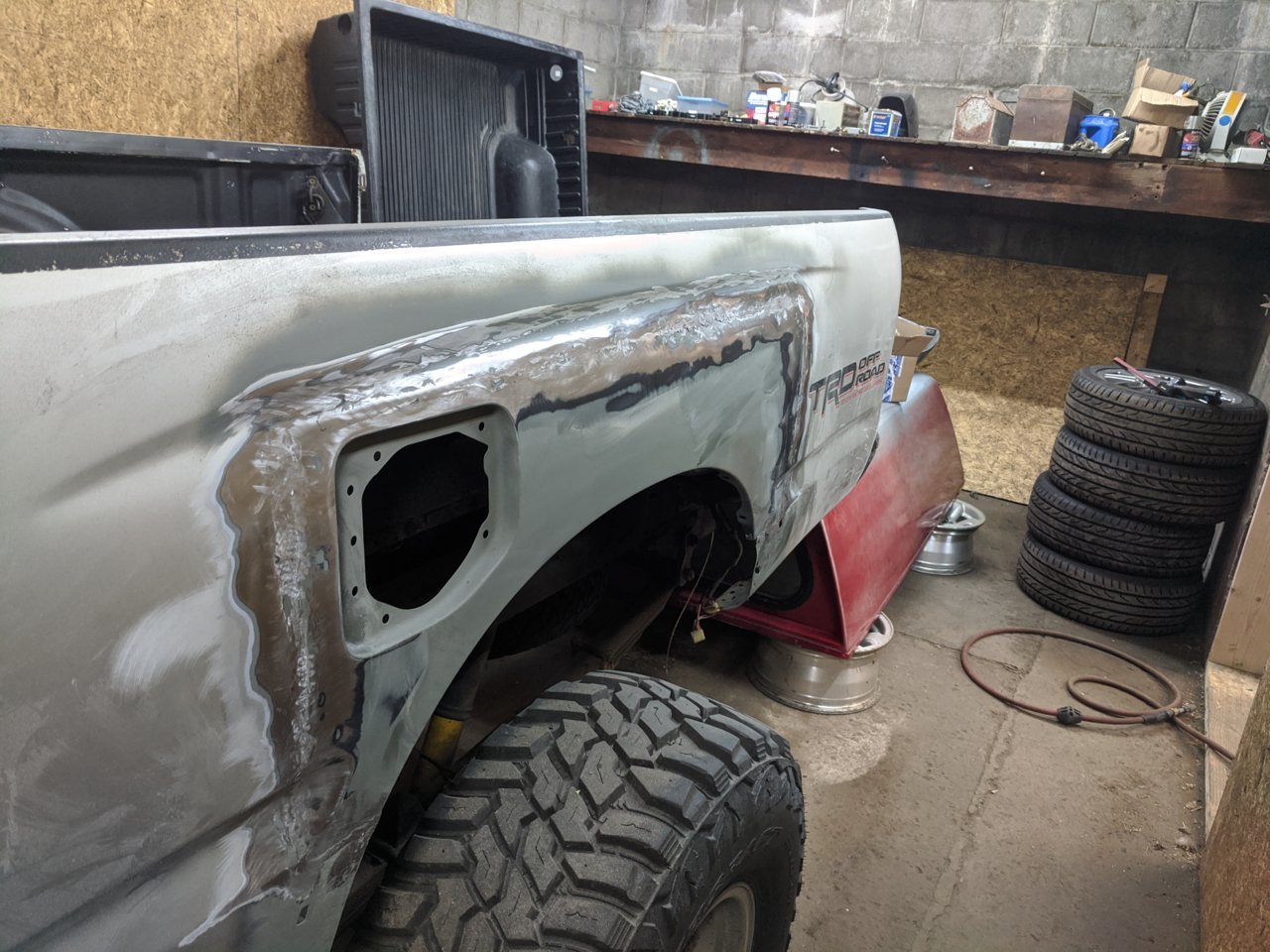

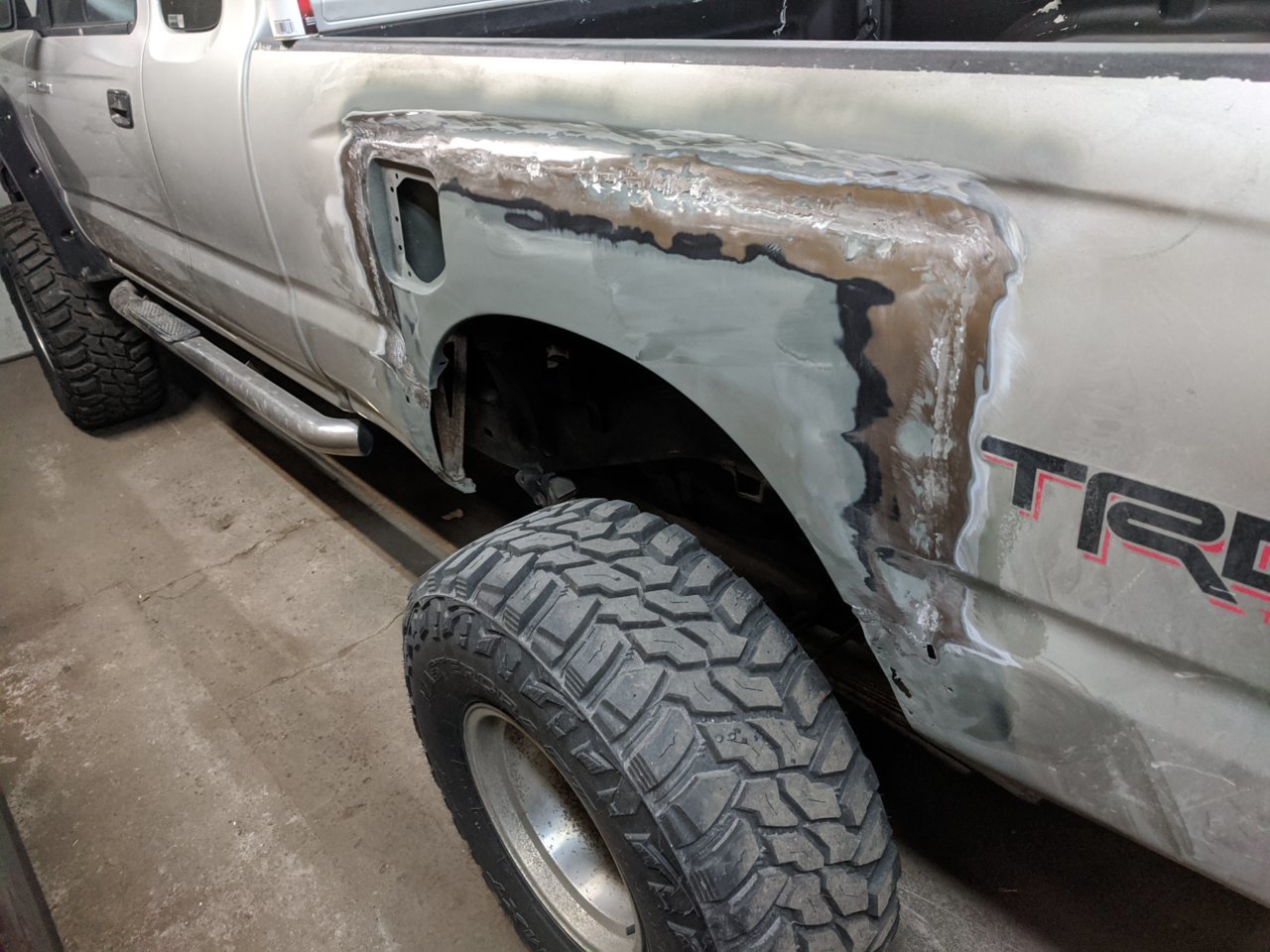

    Then I connected the welds, and sanded down with a 36 grit disk sander (which I haven't used until this project) I found that I had areas of weld which blew through or didn't connect 100%, but had decent penetration.

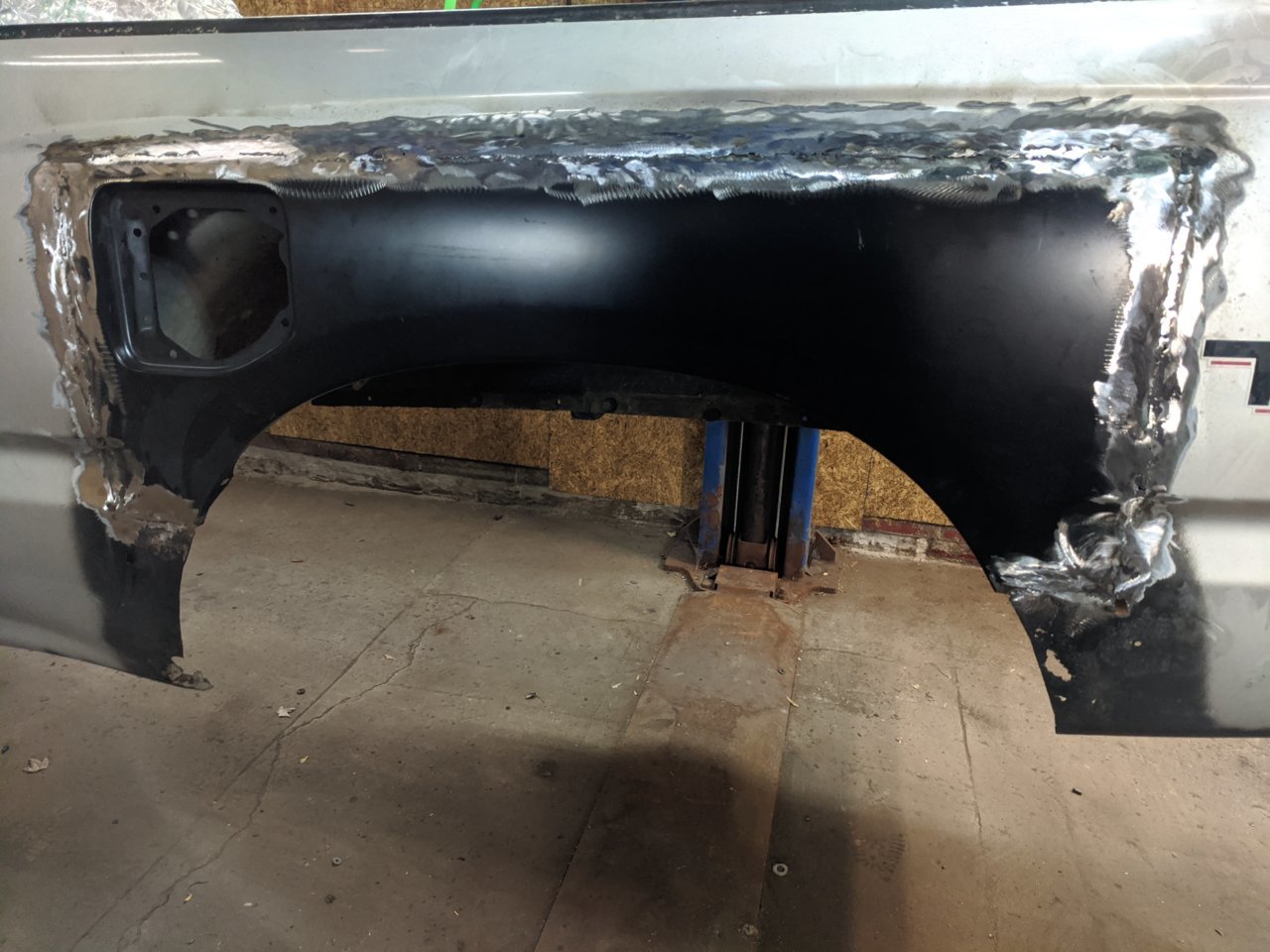

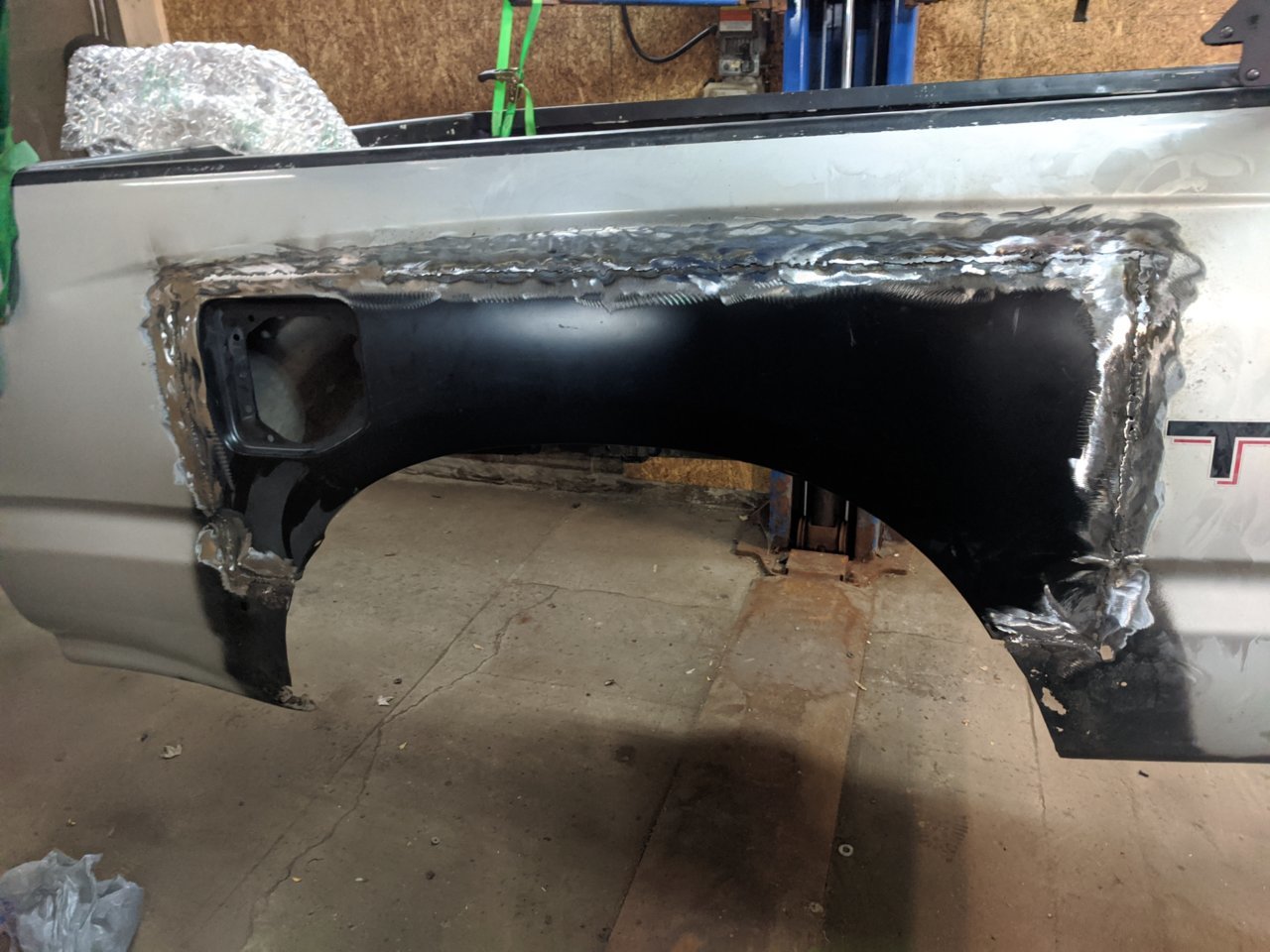

    tack-4.jpg tack-5.jpg

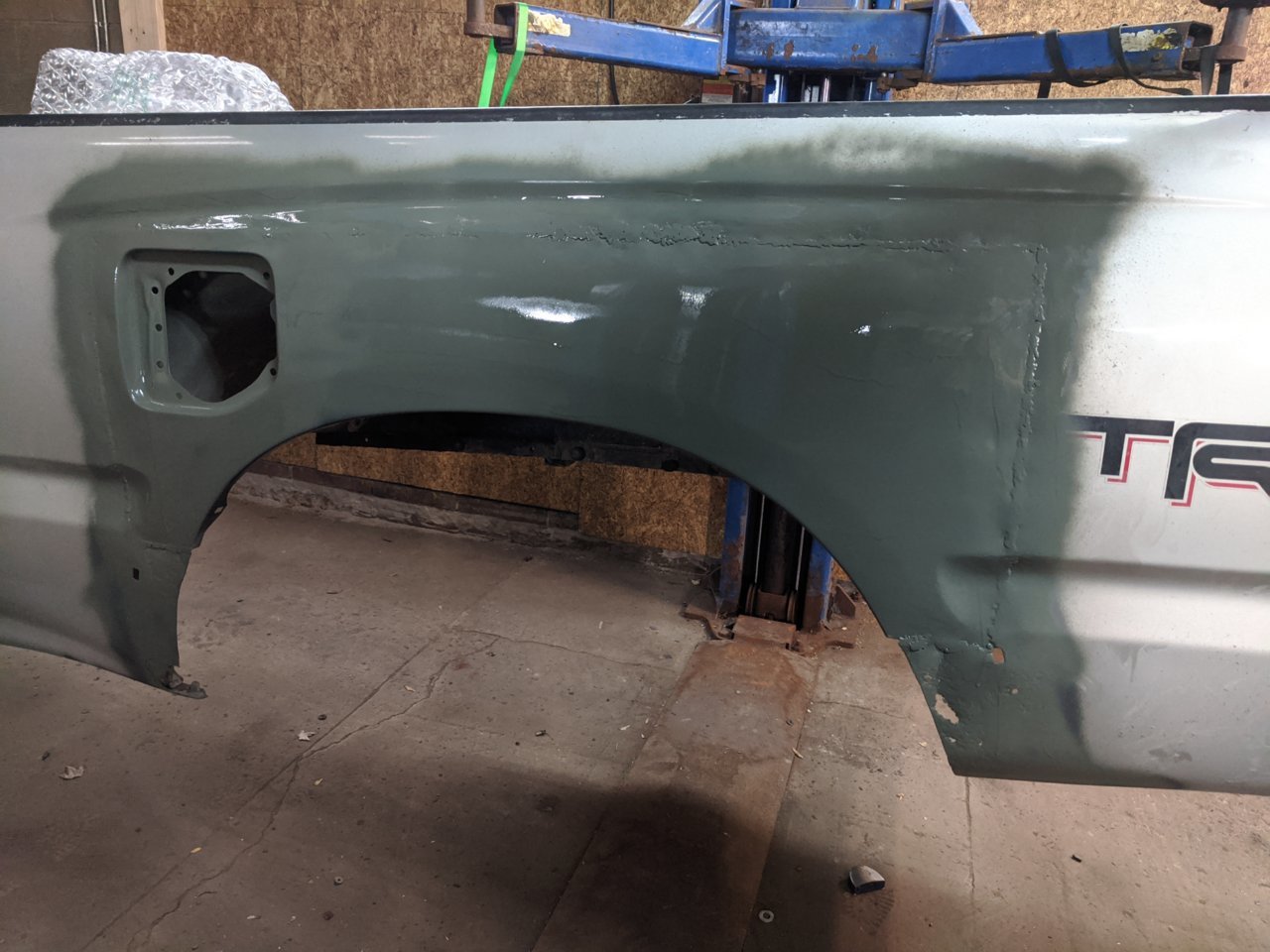

    Then I tried to fill in the pin holes after sanding down (this was probably a mistake, I blew through the thin metal and was not as successful. At this point I had done as much damage as I could this round and hit everything with some self etching primer.

    Checking the lines of the bed they more or less flow still, so overall not bad for my first attempt. I figure most of this will be covered with the fender flare (so I have a bit of leeway) and my buddy who does body work has given me some tips of what type of body filler to look into for the next steps.

    I'll post up as I make more progress, thanks for reading.

  2. Dec 3, 2019 at 10:15 AM
    #2
    04taccoo

    04taccoo Well-Known Member

    Joined:
    Jul 27, 2019
    Member:
    #300434
    Messages:
    292
    Gender:
    Male
    First Name:
    Cyrus
    San Diego
    Vehicle:
    2004 Tacoma double cab
    Bilstein 5100s Icon 3 leaf pack 17in Pro Comp steelies 33s Toyo OC AT2
    Looks good man:thumbsup: I definitely don’t have the balls to cut up my bed:rofl:

    pwgarcia likes this.
  3. Dec 3, 2019 at 11:32 AM
    #3
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    Hah, thanks. I spent a few days between when I got the patch panel to when I went ahead and cut things up, despite my newbie welding skills I think it's better than it was. we'll see how things turn out.

    04taccoo and pwgarcia like this.
  4. Dec 3, 2019 at 11:37 AM
    #4
    Hobbs

    Hobbs McRib: Champion of Justice, Protector of Dogs!

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    16,126
    Vehicle:
    Rock Bangen', Desert Tamin', Gold Findin' Machine!
    That looks great!

    Good for you for jumping in and getting after it!

    Subbed!

    pwgarcia likes this.
  5. Dec 3, 2019 at 11:41 AM
    #5
    whatstcp

    whatstcp Professional incoherent spammer

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    8,209
    Gender:
    Male
    First Name:
    Ed
    Fontana, CA
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    King + Archive Relocation Wheeler's bumps +hydros
    looks solid to me!

    GQ7227 likes this.
  6. Dec 3, 2019 at 12:30 PM
    #6
    pwgarcia

    pwgarcia Active Member

    Joined:
    Jun 25, 2017
    Member:
    #222350
    Messages:
    32
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    2004 Toyota Tacoma 4x4 Double Cab
    I look forward to seeing how your finished product looks. I'd say you're doing an awesome job (...especially for a rookie (like me)).

  7. Dec 4, 2019 at 5:33 AM
    #7
    Wsidr1

    Wsidr1 Well-Known Member

    Joined:
    Jul 11, 2018
    Member:
    #259004
    Messages:
    1,815
    Gender:
    Male
    Indiana
    Vehicle:
    2 x 95.5 Ext 2.7L & 3.4L A/T 4x4
  8. Dec 4, 2019 at 6:29 AM
    #8
    otis24

    otis24 Hard Shell Taco

    Joined:
    Dec 3, 2012
    Member:
    #92402
    Messages:
    5,369
    Gender:
    Male
    First Name:
    Mark
    California
    Vehicle:
    03 Access Cab V6 4X4 TRD Off Road
    Stuff
    Nice work!
    Where are you located?

    If anyone else needs I have a bed that’s slightly damaged in Northern CA and no tail gate.

    IEsurfer likes this.
  9. Dec 4, 2019 at 9:45 AM
    #9
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    Nice! thanks for the tool tip, I'll check it out! after my experience of sanding down the welds and not being happy with the results I've read through couple more forums on body work and I think i'll be investing in a 1/2 belt sander which would have made my weld cleanup a bit more precise (e.g. https://www.harborfreight.com/53-Amp-12-in-Heavy-Duty-Bandfile-Belt-Sander-62863.html )

    upstate NY (fingerlakes region)

    Hope to get a chance to dig back into things tomorrow night.

    otis24 likes this.
  10. Dec 4, 2019 at 12:53 PM
    #10
    TWJLee

    TWJLee Well-Known Member

    Joined:
    Dec 7, 2018
    Member:
    #275158
    Messages:
    248
    Gender:
    Male
    First Name:
    Jay
    Midwest
    Vehicle:
    2003 Tacoma AC 3.4 4x4 auto TRD 2004 Tacoma DC TRD 103k. 2002 4Runner Limited 235k 2020 Tundra DC LmTD 2020 F150 5.0
    2003 Bilsteins 5100’s 17”s off gen3. New frame, sweet deal truck. 2004 new frame low mile deal 2002 T4R exceptionalism Tundra GFC 33’s Borla Pro XS F150 33’s Magnaflow 2” RC level
    A lot of work!
    Curious-What do you suppose this would cost at a typical shop?

  11. Dec 5, 2019 at 3:24 AM
    #11
    Wsidr1

    Wsidr1 Well-Known Member

    Joined:
    Jul 11, 2018
    Member:
    #259004
    Messages:
    1,815
    Gender:
    Male
    Indiana
    Vehicle:
    2 x 95.5 Ext 2.7L & 3.4L A/T 4x4
    If you use one of those tools, you don't need near as much sanding on the welds. They can be pretty close to even with the body panel surface, so you can just clean them up and use body filler over them.

    You can see if you cut you patch piece slightly smaller than the width of the ledge, your spot weld ends up being down in the trough.

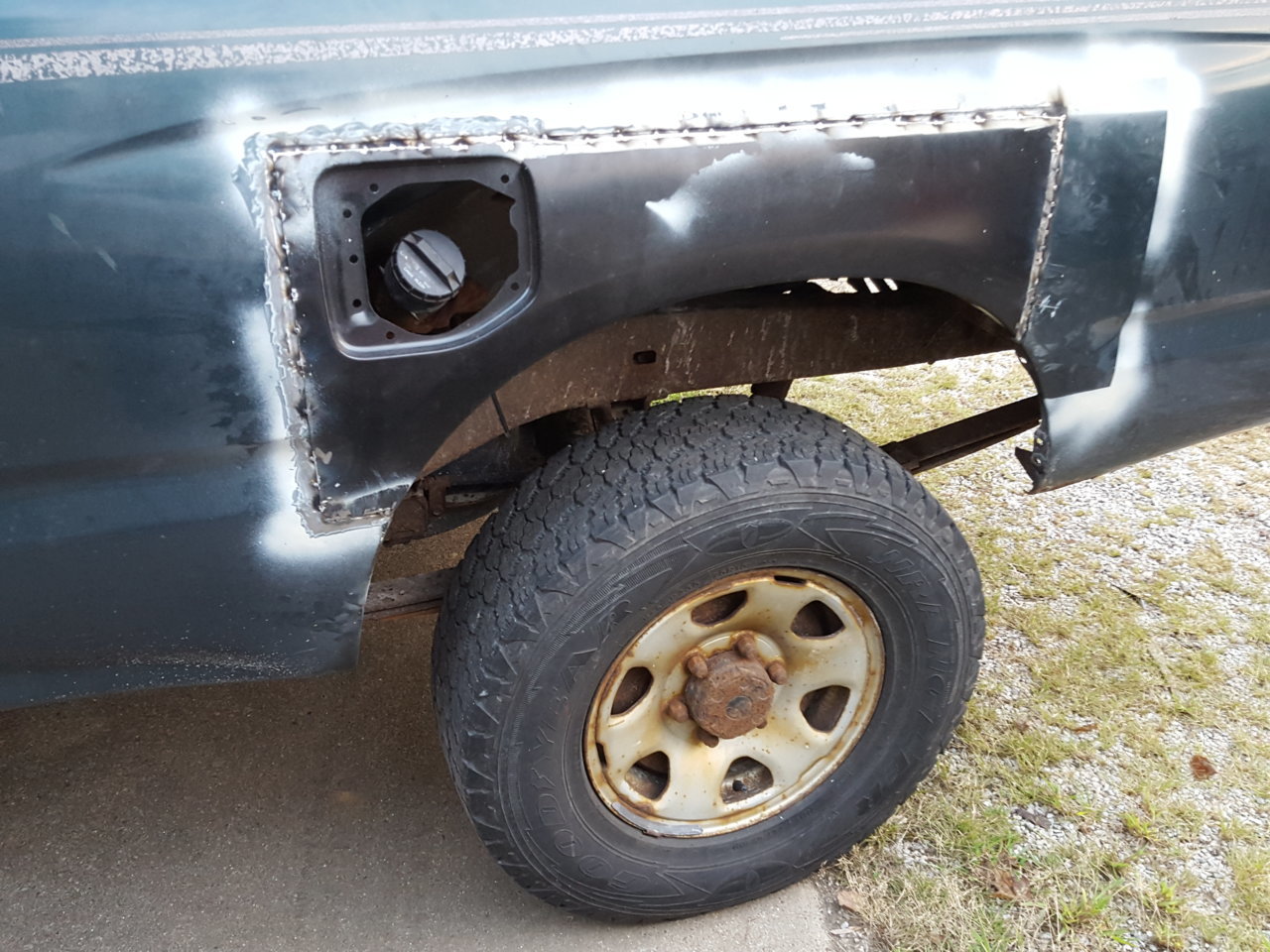

    [​IMG]

  12. Dec 9, 2019 at 9:38 AM
    #12
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    Not sure, I was quoted (sight unseen) 3K+ for body work, I didn't pursue it further.

    Cool, heading down to hit up Harbor Freight at lunch here.

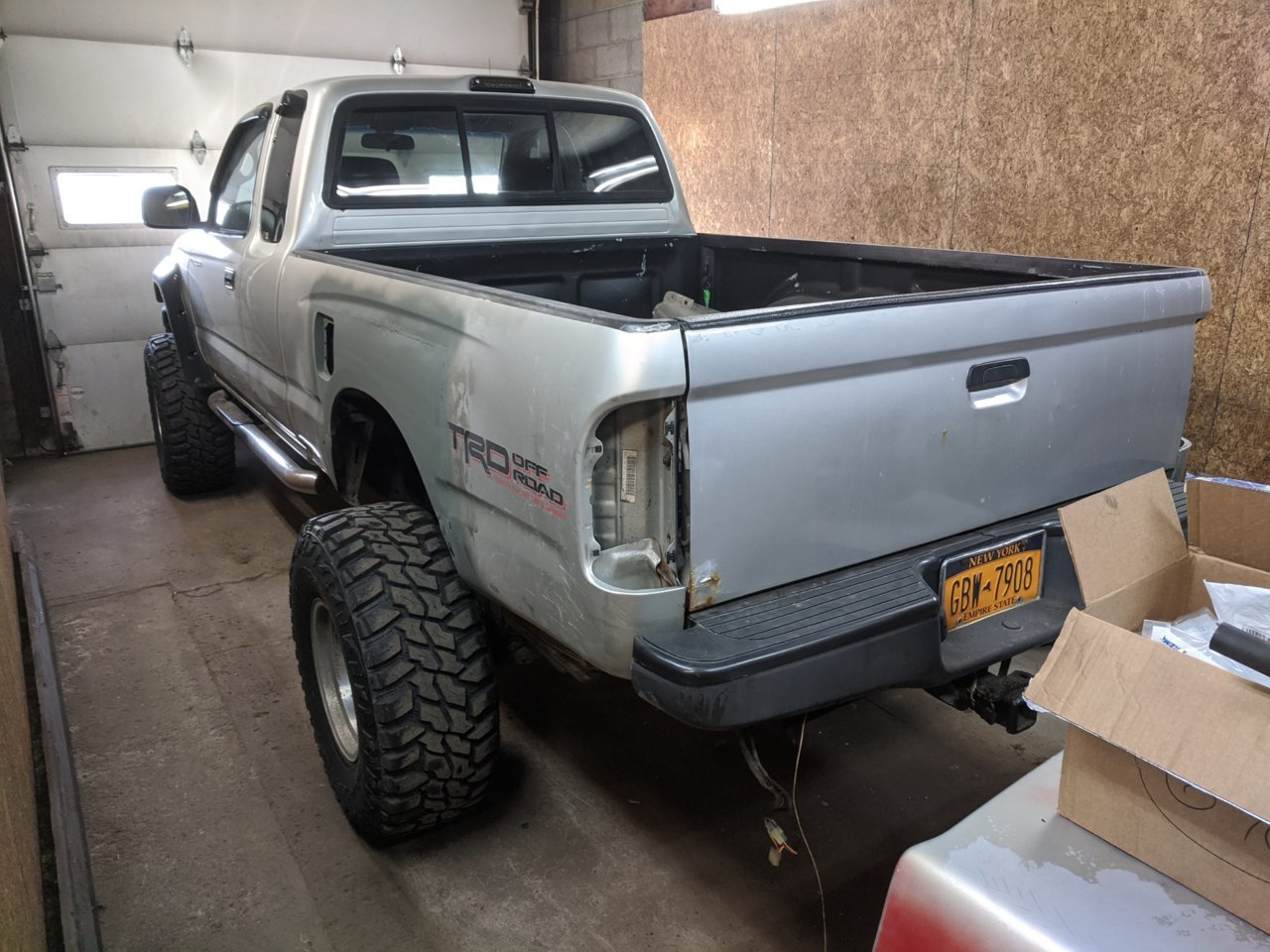

    Made it over to the shop last night, pulled the old filler neck (gas tank is pretty crusty around the top... may see what my options are there) temporary put the bed back on the truck to get my snow rims and tires on my tdi. Hoping to get back over to the shop later on this week to work some more on this but with grad school and life going on I may not be good but I sure am slow!


  13. Dec 10, 2019 at 1:09 AM
    #13
    Flare side Taco Lover

    Flare side Taco Lover I'm gettin hitched...to my truck!

    Joined:
    Dec 2, 2018
    Member:
    #274496
    Messages:
    489
    Gender:
    Female
    First Name:
    Mudder Trucker
    Hicktown Ohio
    Vehicle:
    Derek the 03 Taco and Purdy Face the 98 Dodge Ram
    hitch light and goat skull

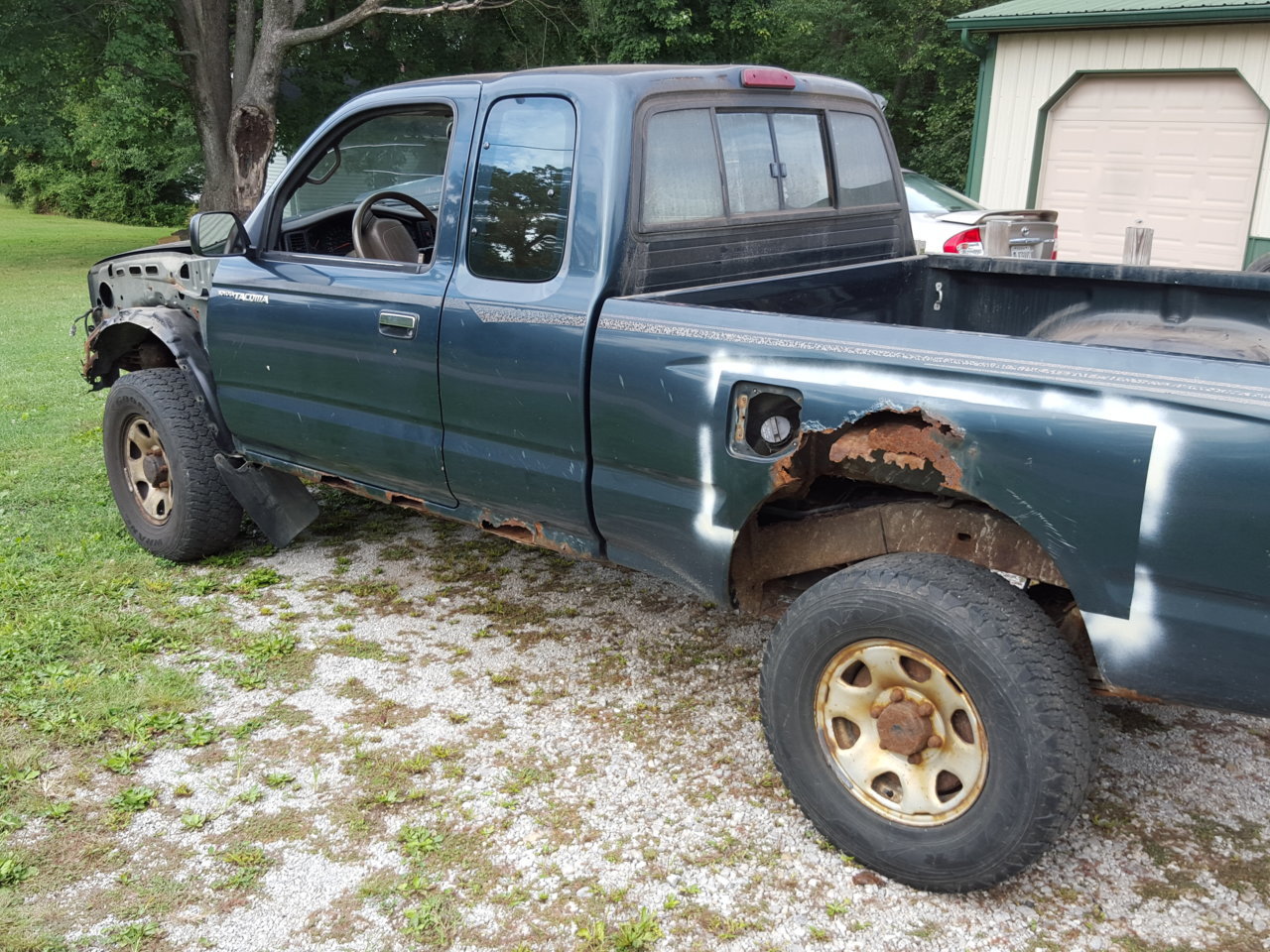

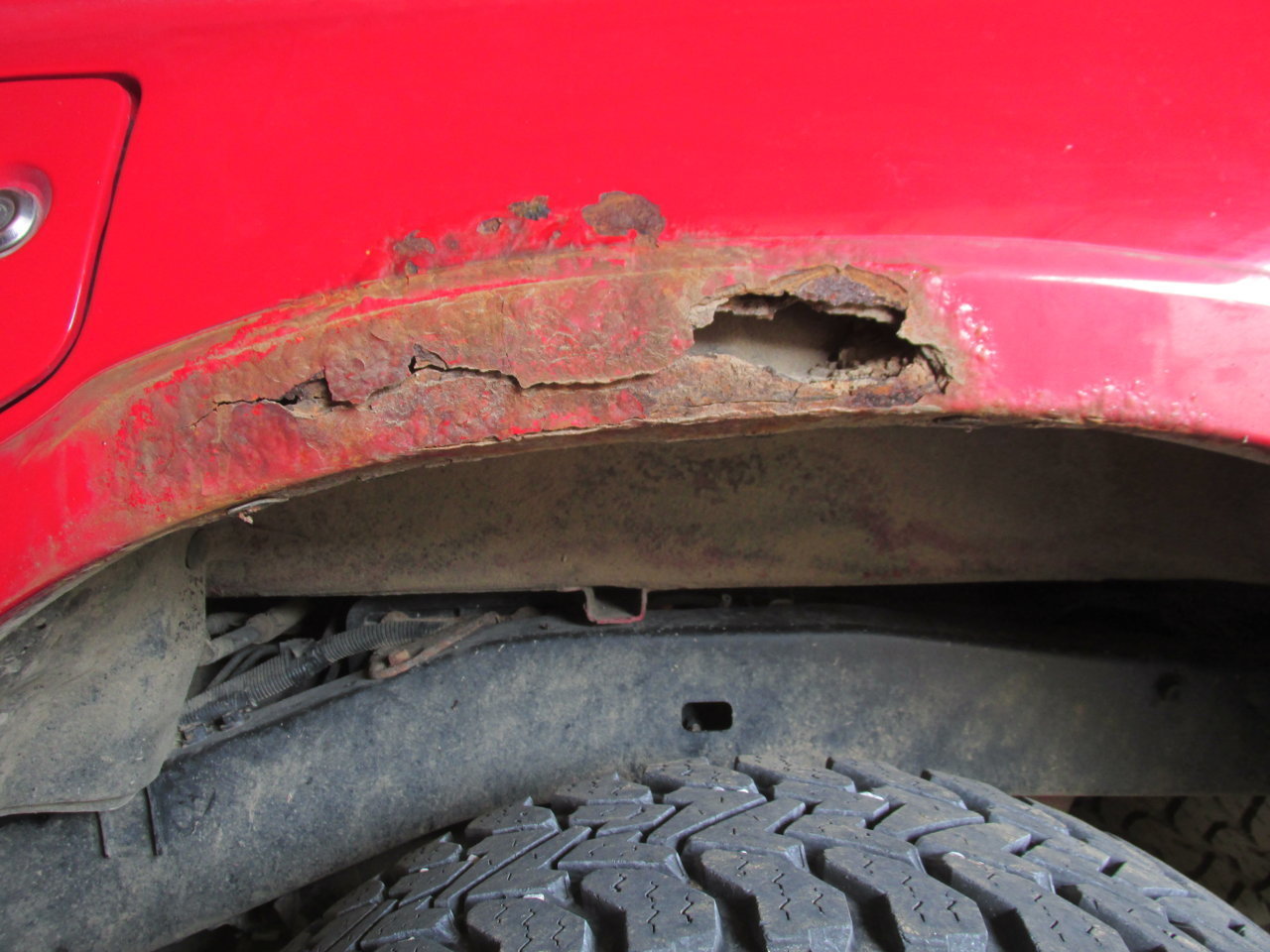

    My 03 had rust under the rear fender flares. It made me sick to see my pride and joy like that! Luckily, my dad has a good friend who does really good body work. He only charged me $250, and all the other shops wanted a fortune. One estimate was around $5,000. I'm keeping the flares off my 03. I just bought a 05 Taco for winter so I can keep my 03 off salty roads. I want to take the flares off my "new" truck too. There's a lot of dirt under them but I don't think there's rust. Here's some before and after pics of my 03.IMG_5107.jpg IMG_7281.jpg IMG_7279.jpg IMG_8769.jpg IMG_8765.jpg IMG_8775.jpg

  14. Dec 10, 2019 at 9:45 AM
    #14
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    ouch, yeah you had some rust trapped there, but it looks like it turned out great!

    Flare side Taco Lover likes this.
  15. Dec 10, 2019 at 12:30 PM
    #15
    04taccoo

    04taccoo Well-Known Member

    Joined:
    Jul 27, 2019
    Member:
    #300434
    Messages:
    292
    Gender:
    Male
    First Name:
    Cyrus
    San Diego
    Vehicle:
    2004 Tacoma double cab
    Bilstein 5100s Icon 3 leaf pack 17in Pro Comp steelies 33s Toyo OC AT2

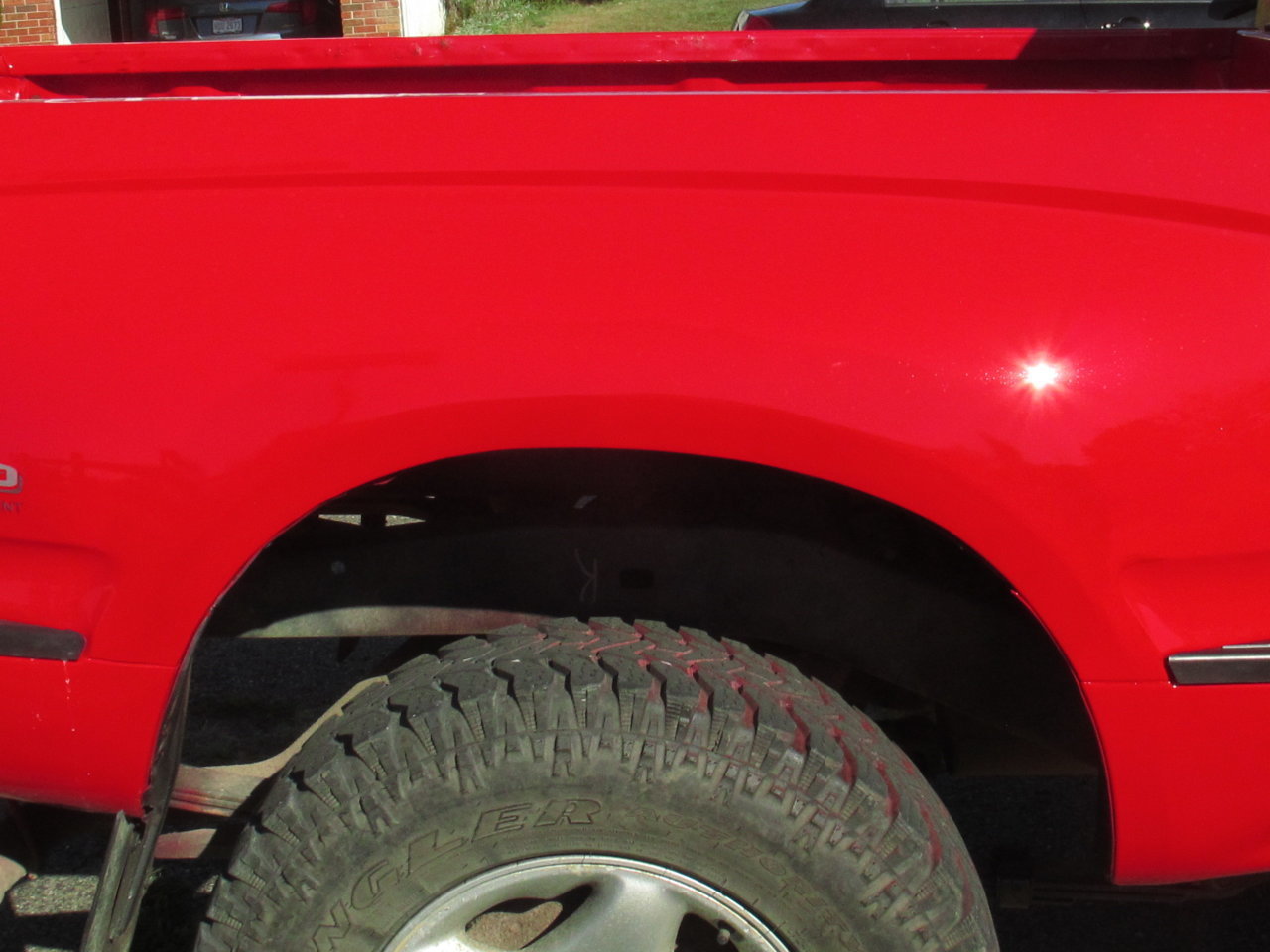

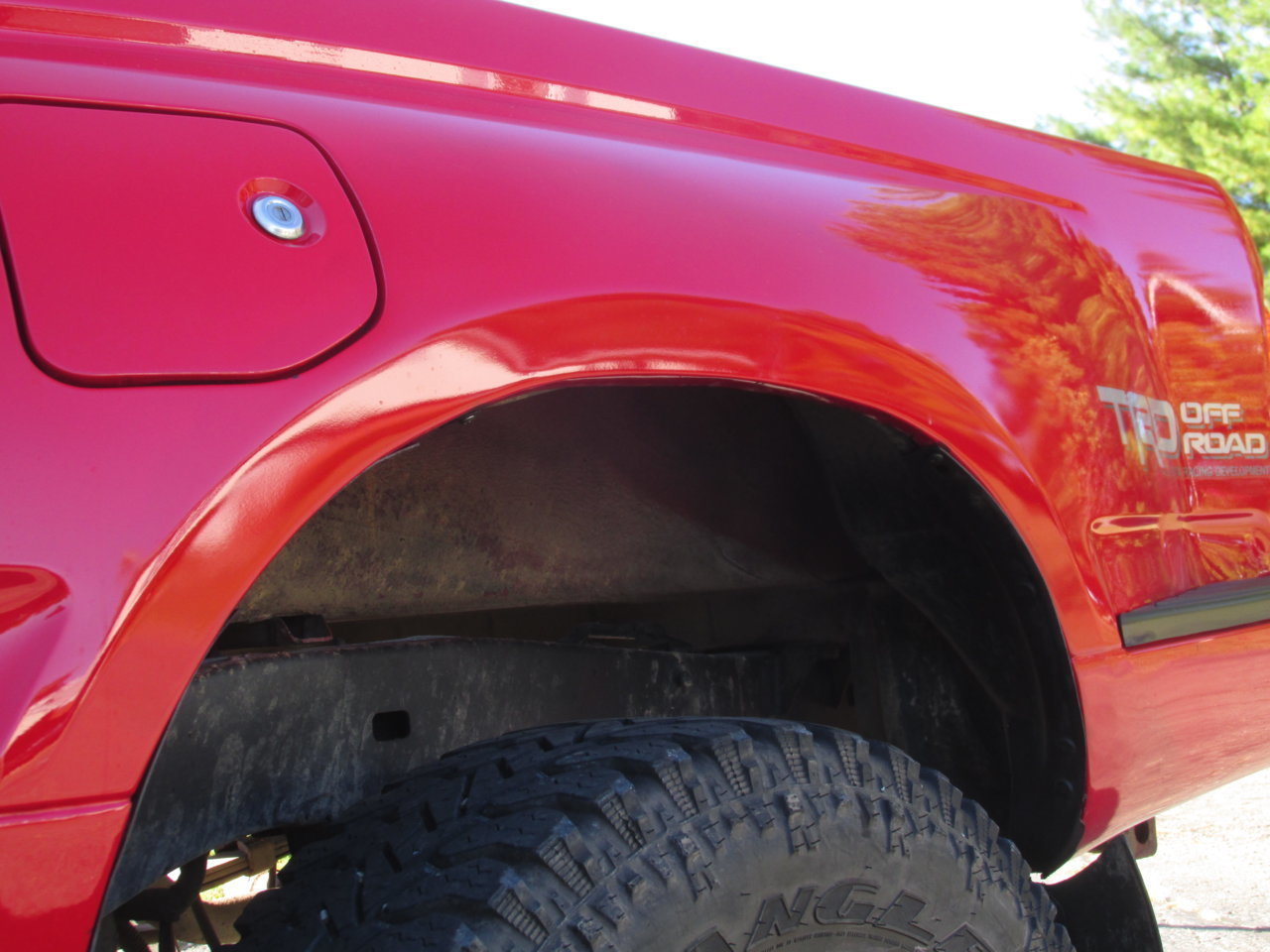

    250:eek: Great price and came out looking brand new! Looks good

    Flare side Taco Lover likes this.
  16. Dec 17, 2019 at 7:33 AM
    #16
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    Since I have a harbor freight right here in town I checked out the flange tool, but at the moment, I need to sand in a more targeted fashion so. I picked up this https://www.harborfreight.com/12-in...r-64932.html?_br_psugg_q=1/2+inch+belt+sander belt sander at harbor freight and a hook/loop DA backing pad for a dual action sander I have.

    Made some progress with that last night testing out the new sander & DA than hit things with a coat of primer to keep them from rusting. Will be buying some filler called "all-metal" that was recommended by a friend who did body work and says that it's really great to work with. https://www.napaonline.com/en/p/BK_7652769

    before:

    during:

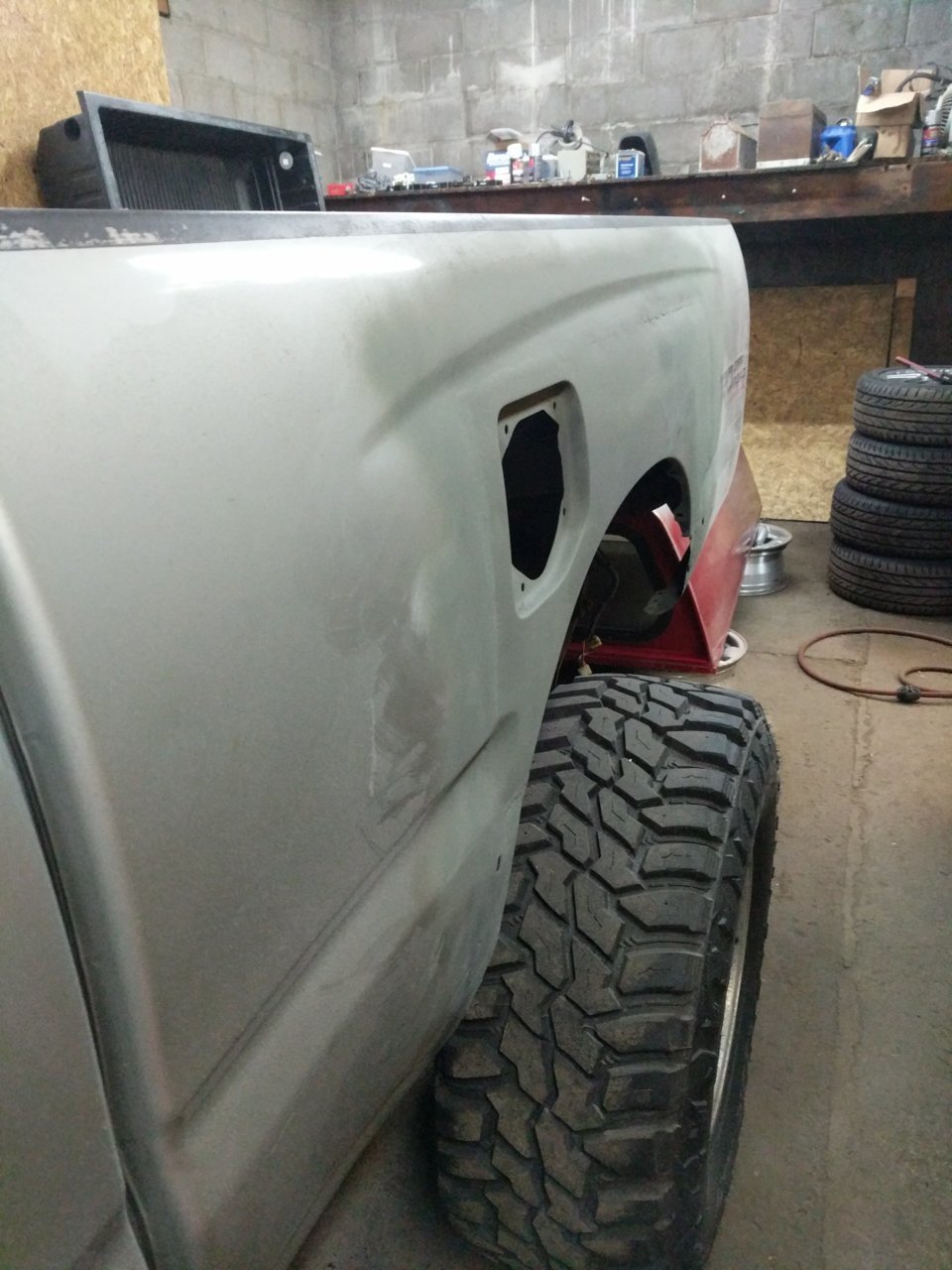

    after:

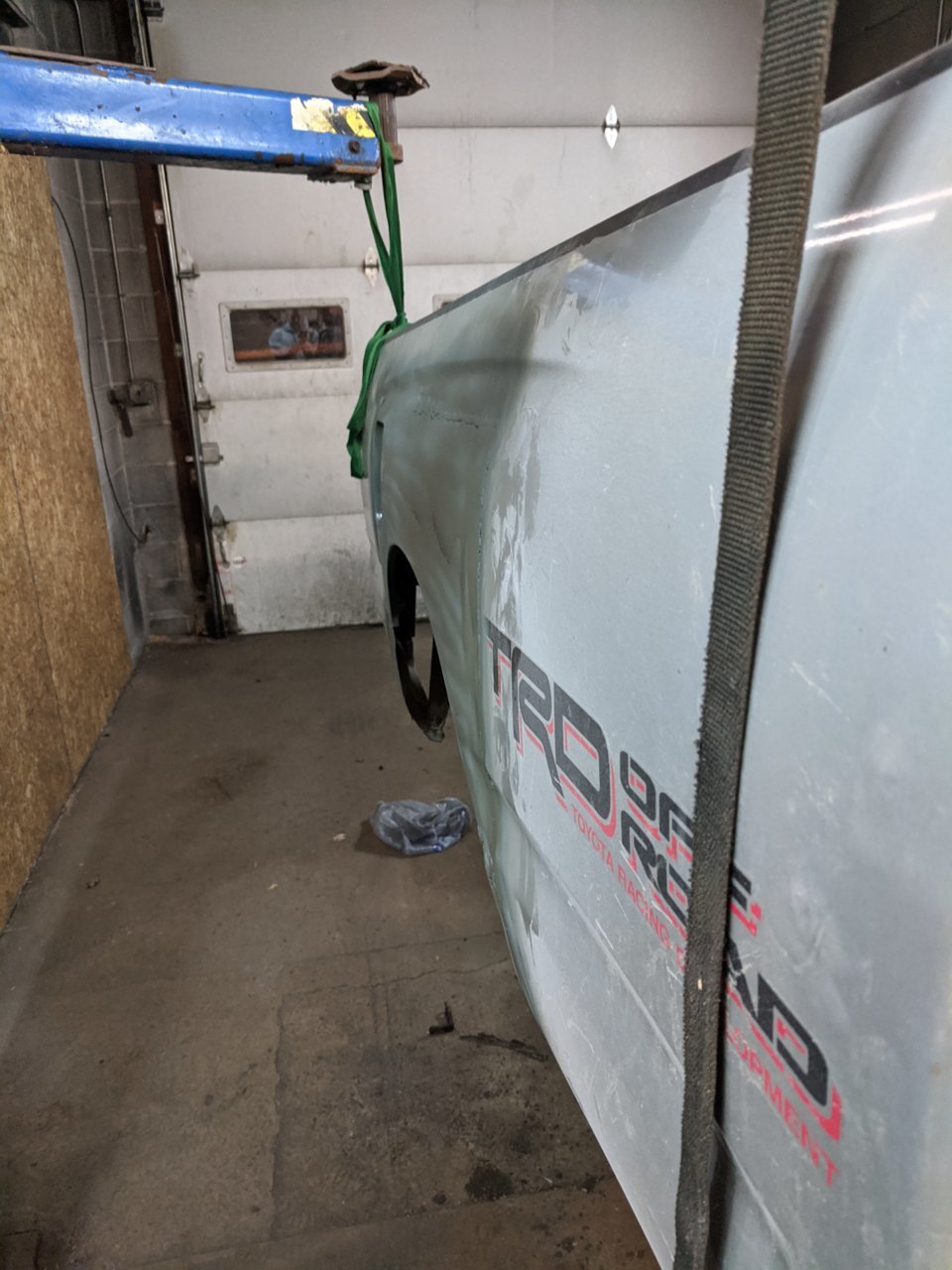

    While the The fender flare will cover most of the rest of the spots which are in rough shape, I probably going to cut out some more of the rusted parts that the patch panel didn't cover and weld in some new patches. (we'll see how ambitious I get, one of the things I debated about before this started was a flatbed project) but if I go that route, I'll check into the flanging tool.

  17. Jan 3, 2020 at 1:54 PM
    #17
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    I applied some all-metal to learn how the product works (I never have done this before so figured I need practice...) then got ambitious and made some lower patch panels. I think with the welds, I'm getting a little better with practice and watching a few how to vids, then testing out some new tools and refining techniques.

    That being said, I have not picked up the flange tool yet and I'm still working on mastering butt welds. I may before the end of the effort, but for now I'm going to go with butt welds.


    All Metal Application:
    allmetal-1st-app-a.jpg allmetal-1st-app-b.jpg allmetal-1st-app-b.jpg

    Lower rocker Patching:

    Patch 1
    patch-1.jpg patch-2.jpg patch-3.jpg patch-3a.jpg patch-3b.jpg patch-3c.jpg

    Patch 2:
    patch-4.jpg patch-4a.jpg patch-4b.jpg

    Final outcome: Better than rust
    primered-1.jpg progress1.jpg progress2.jpg

    next steps start working on the rocker on the other side of the box and then work on getting the all-metal applied.


  18. Jan 4, 2020 at 5:24 AM
    #18
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,242
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 175k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    :pccoffee: how about any minor repair tips or tricks and/or preventative measures to employ going forward different than what i have done for nearly 1/4 century? just spraying down routinely at the wand wash in the winter

    i have OCD about keeping the panels and wheel wells clean of winter slop with the routine wash wand hose ... but i guess you cannot get everything that finds it way up under there.
    recently removed the wheel arch mouldings and most of the fender liner grommets to clean decades of sand and dirt turned back to mud and topped off spraying anti corrosion gel wherever it would mist.

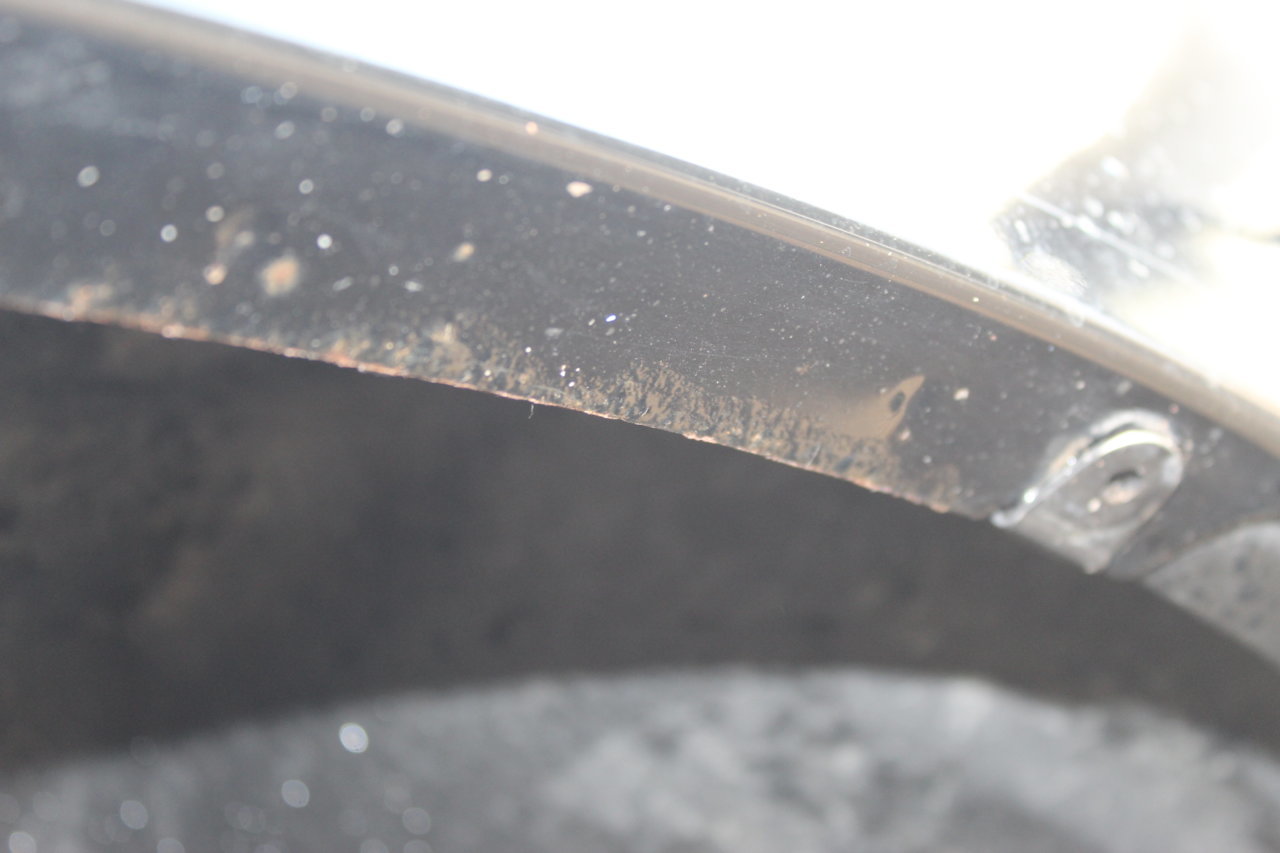

    but i found the beginnings of body rot i think on the lips of the wheel arches at the very top! it would seem like a simple repair once the bed is upside down. The body shop told me there is nothing really going on here but all they can do is paint the ENTIRE panel so IDK

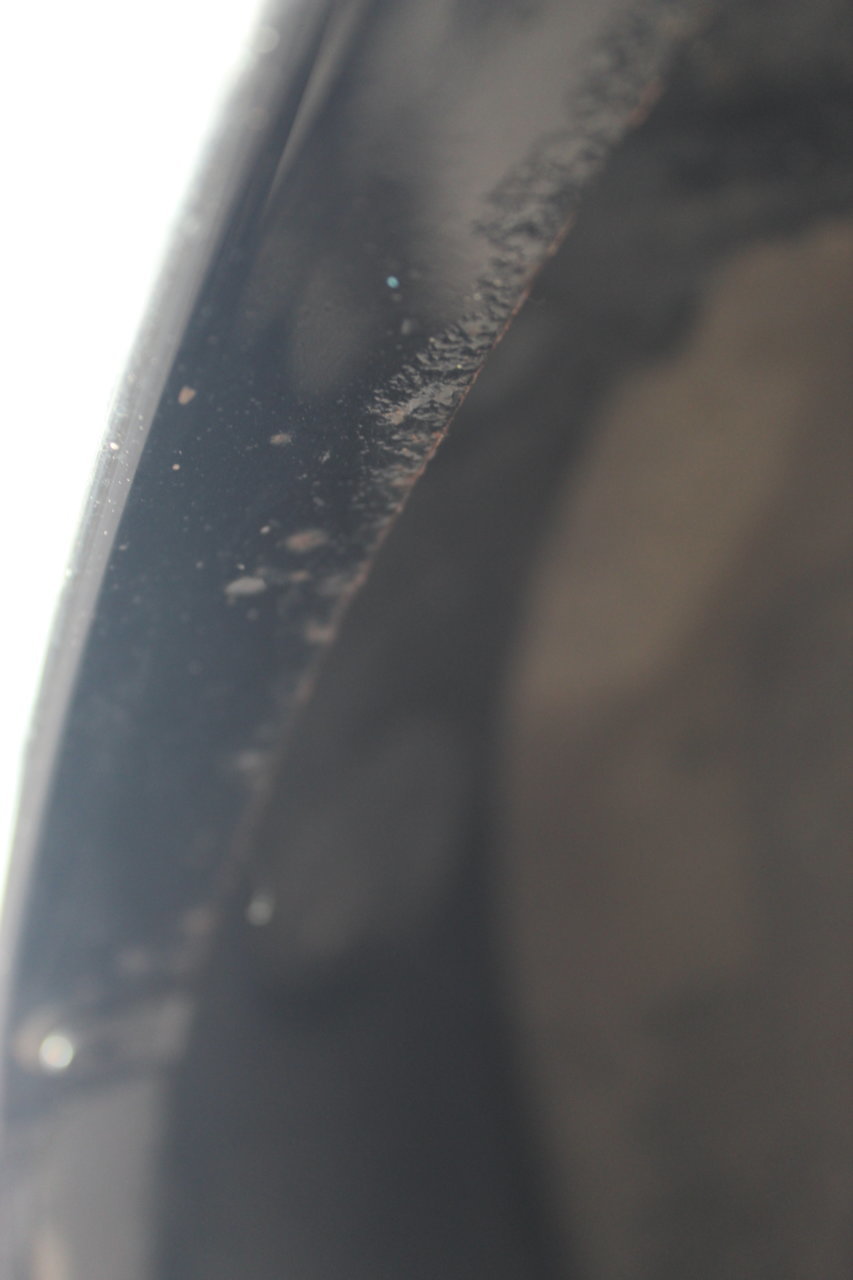

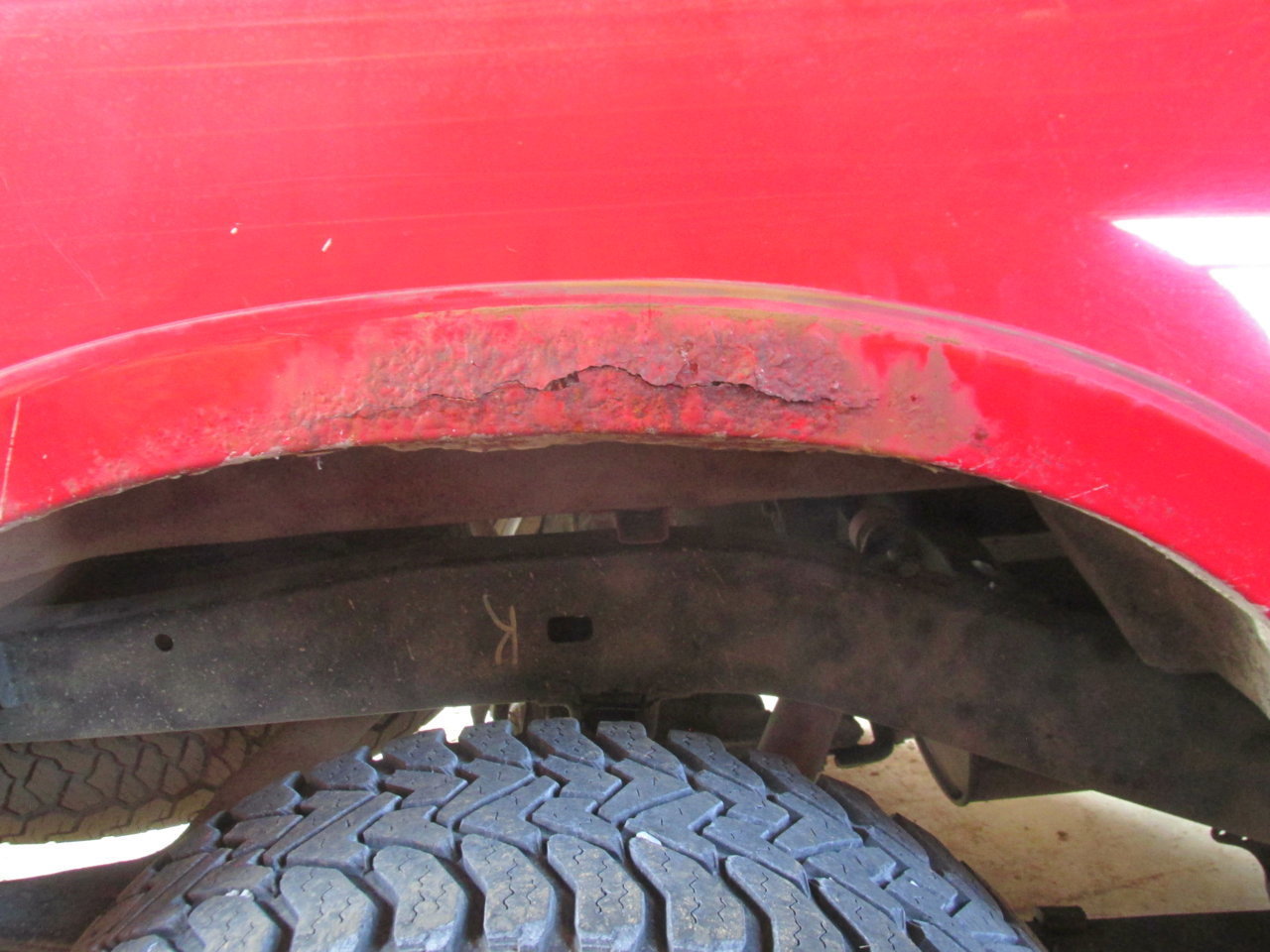

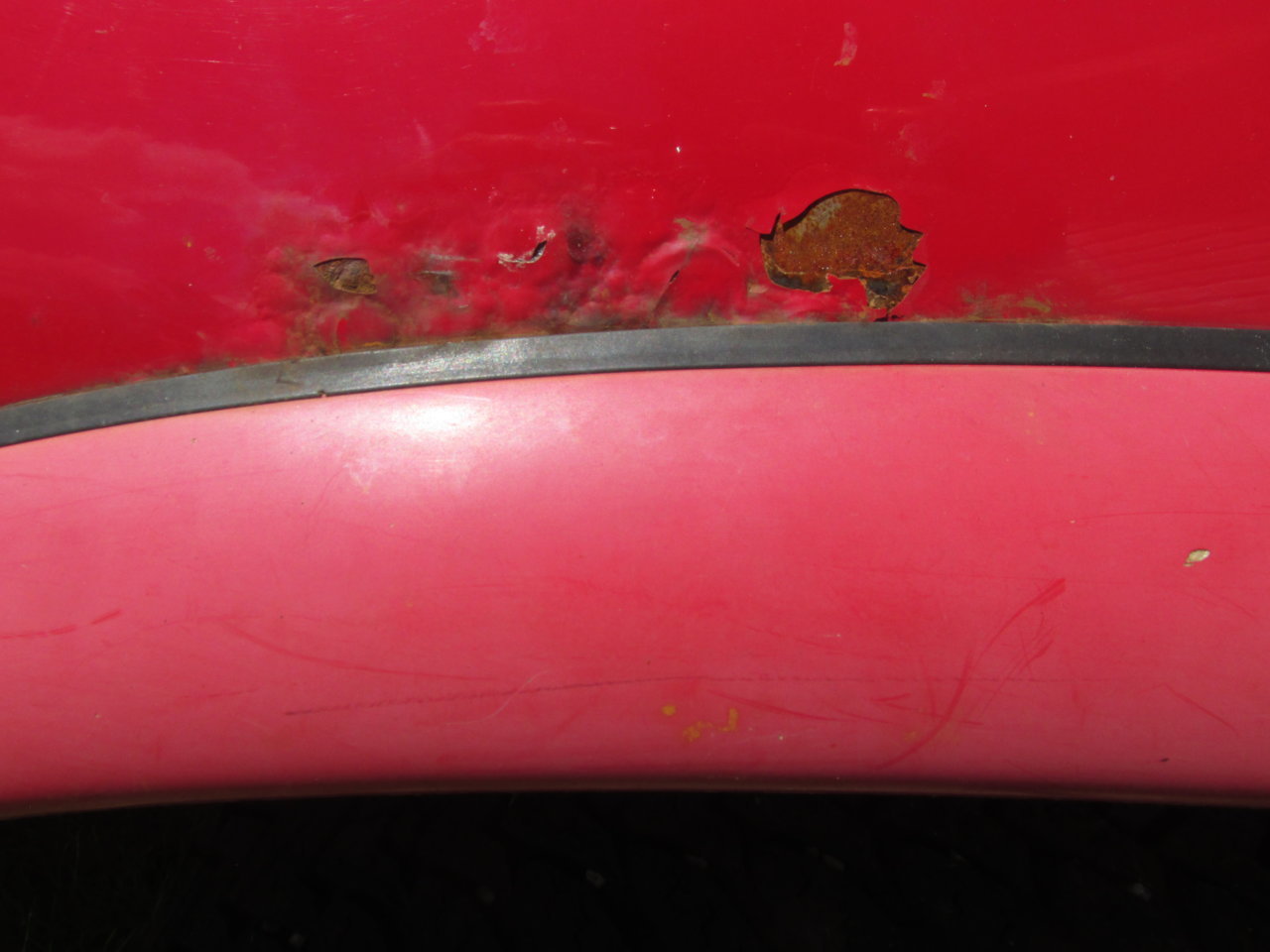

    here are pics, what to do for the best to fix this from getting worse

    i assume the same thing is going on the other side of this area that i cannot see as well?

  19. Jan 4, 2020 at 5:42 AM
    #19
    megalodon

    megalodon [OP] Well-Known Member

    Joined:
    Dec 16, 2017
    Member:
    #238645
    Messages:
    54
    Gender:
    Male
    FingerLakes Ny
    Vehicle:
    2003 v6 Ex.Cab
    most likely happening in places you can't reach easily / miss with the anti-corrosion routine (although from what I've seen you do a pretty great job) time and elements are hard to fight. You could confirm with a borescope inspection camera

    in terms of how to "fix" what you can see, I'm the first to admit I am not an expert! For what you can reach the amount there is probably small enough you could wire brush down, por15 (or some other form of rust conversion) and topcoat. (if it's super crusty, then cut out and weld in new metal is the only way to repair from what I've read)

    replace with new/unrusted parts or wirebrush & paint is what I am planning on doing for some of the major offenders on my truck that can be accessed now that I have the bed off (e.g. spare tire carrier, bumper supports ) assuming I can get things apart.

    in terms of rust treatment going forward, once I finish things with this I plan to undercoat with a treatment of some type that I haven't decided on yet. still reading up on what might work best. I'm debating on a combination of Noxudol 700 / 300 ... or just going with fluid film that most people (yourself included?) use. . . although with the rate I'm working on this, spring will be here before I get things back together :rolleyes:

    GQ7227 likes this.
  20. Jan 4, 2020 at 6:22 AM
    #20
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,242
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 175k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    it just looks like body panel paint with rust creeping behind it until the paint can no longer hold and falls off with the metal getting softer, its still solid it seems from finger tapping

    i have not heard of using por-15 on body panel parts as opposed to using lots of touch-up paint on a primer which i did in a few spots by the liner grommets that were mildly scratched up
    this is the first year i have ever tried spraying any product up there, just tried to keep it hosed down at the wash
    i am thinking the FF will most likely wash out of the wheel wells way too easily but i need to do some experiment with it first, then try some woolwax if that fails
    failure is a real bummer :(


Products Discussed in
