My FX-R Retro-fit

Discussion in 'Lighting' started by G-Sak, Jan 17, 2010.

  1. Jan 17, 2010 at 12:14 AM
    #1
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    I have been researching and planning on doing a true retrofit ever since I purchased the Luminous Solutions bolt on projector kit last year. The time has come and I was able to test the alignment tonight of my FX-R projectors that are mounted to the stock reflector bowls. TheRetrofitSource.com is where I purchased all my parts except for the ballasts since I already had them. TRS offers everything you would need to do a retrofit starting from scratch or even upgrading a plug n play HID kit to projectors.

    When it is all done my setup will be the following:

    Bi-xenon FX-R projectors (clear lens)
    Philips 85122+ D2S bulbs
    Digital HID 55 watt ballasts
    TRS H4 Bi-xenon wire harness
    Apollo shrouds
    BHLM

    I chose the Apollo shrouds because they are chrome to match the stock reflectors and they are different than what some of the other retro-fitters on TW have used. They should give my retro-fit a unique look when it is finished.

    Also, thank you to Matt at the Retrofit Source, Yosh2000, ElectronMan, Viet2100, and Rhino8541. I have PM'ed and/or emailed all of them at one point or another while learning about and working on my retrofit.

    Here are a few pics of what I have done so far.......more will come as I get close to finishing.

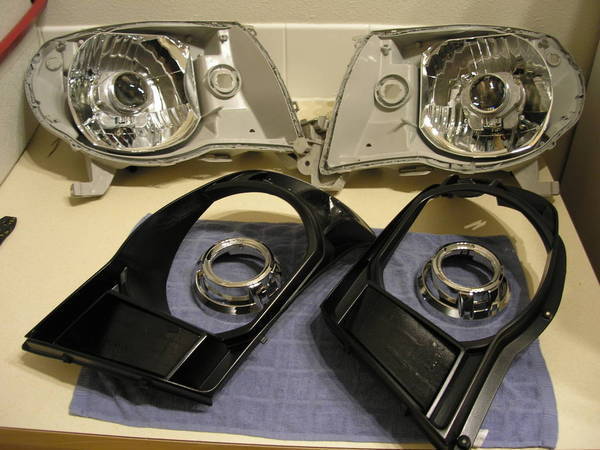

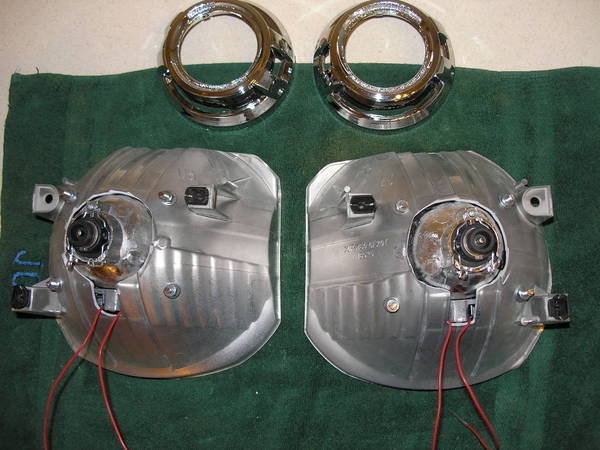

    Mounted and ready to align

    [​IMG]

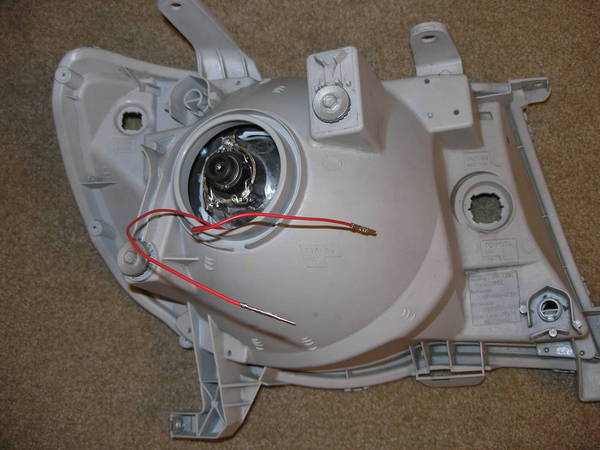

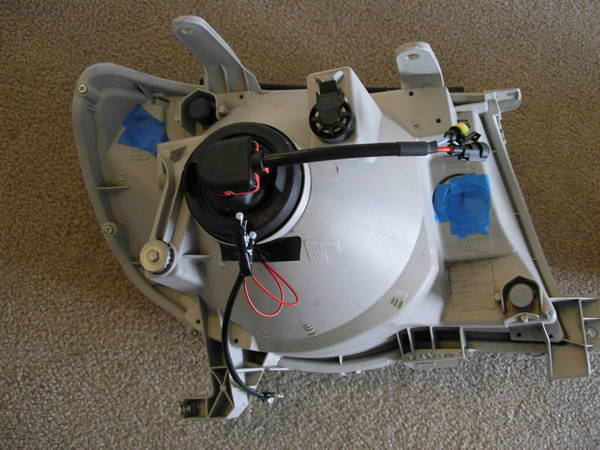

    Back of headlight housing - will have OEM black rubber grommet with finished product

    [​IMG]

    Another view

    [​IMG]

    Alignment 1

    [​IMG]

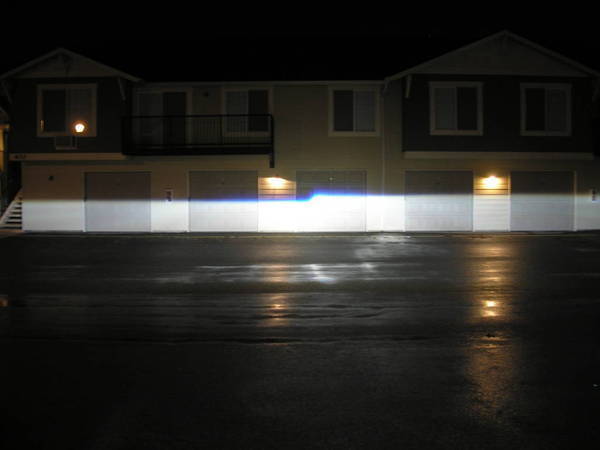

    Alignment 2

    [​IMG]

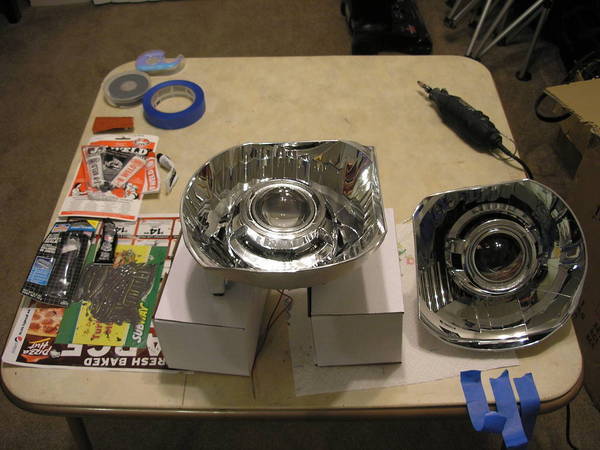

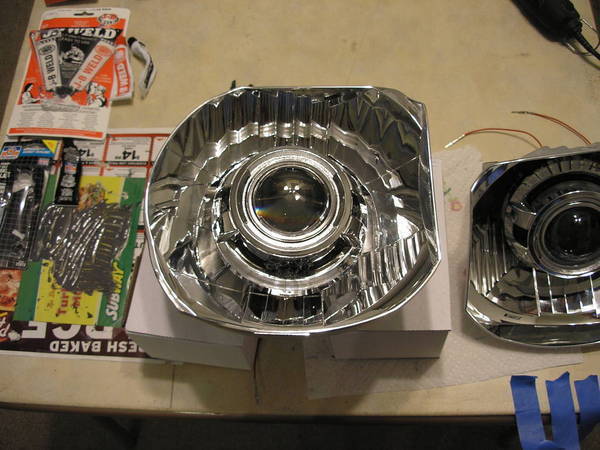

    Shrouds
    [​IMG]

    [​IMG]

    [​IMG]

    Back of reflector
    [​IMG]

  2. Jan 17, 2010 at 12:52 AM
    #2
    Fienoma

    Fienoma Well-Known Member

    Joined:
    Apr 22, 2009
    Member:
    #16310
    Messages:
    564
    Gender:
    Male
    First Name:
    Hieu
    New Mexcio
    Vehicle:
    2007 double cab Off road 4x4
    BHLM, In bed lights mod, K&N intake,OEM bed extender....more to come?
    Secccy...

  3. Jan 17, 2010 at 1:00 AM
    #3
    1BlkT

    1BlkT Mod'n on a Budget

    Joined:
    Oct 29, 2007
    Member:
    #3283
    Messages:
    1,290
    Gender:
    Male
    First Name:
    Ty
    90603
    Vehicle:
    2006 Black Sport Double Cab
    Allied 4'' Spindles, Sway A Way 2.5 Coilovers, Donahoe Remote Reservoir Shocks w/ Deaver 11Pack Leafs, Goodyear Duratrac 285's, Pro Comp Series 8128, Recessed Grill w/Hella 500's behind, Tint, Black TRD Skid Plate, Debadged, Tailgate Hose Clamp, Weathertech Mats, Aero Turbine 2525XL Exhaust, Volant Intake, RETRO'D Headlights by Yosh2000
  4. Jan 17, 2010 at 1:34 AM
    #4
    dysfunctnlretard

    dysfunctnlretard Hi

    Joined:
    Jun 5, 2009
    Member:
    #18080
    Messages:
    3,769
    Gender:
    Male
    First Name:
    Manny
    CA
    Vehicle:
    2010 FJC
    55w HIDs, 16" Countersteer Offroads, Yokahama All Terrains, Demello Sliders
    Good god that looks amazing. Nice job!

  5. Jan 17, 2010 at 9:06 PM
    #5
    sincitytaco

    sincitytaco Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10011
    Messages:
    868
    Gender:
    Male
    Las Vegas
    Icons, Bilstein 5100, Rear Leaf TSB, 17x9 American Racing Chamber Teflon, 275/70/17 Goodyear
    Looks like you need to aim them down quite a bit though.

  6. Jan 17, 2010 at 9:26 PM
    #6
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    True, I did just after I took those pictures. At that point I was just testing to see if the horizontal alignment was correct. I'm satisfied with the alignment and the next step is to seal the lights then mount and wire everything on the truck.

  7. Jan 17, 2010 at 10:46 PM
    #7
    SRQ TACO

    SRQ TACO "You've Got Red on You"

    Joined:
    May 6, 2009
    Member:
    #16879
    Messages:
    1,456
    Gender:
    Male
    First Name:
    Damon
    Sarasota, Florida
    Vehicle:
    00 RegularCab 5lug
    16'' 5zigen Streetfighters w/ 245/55R16 General Altimax HP's, K&N Filter w/ deckplate mod, Dynomax Super Turbo Muffler with turndown before the axle, 01-04 Tail lights tinted, Dual BMW M3 horns, JVC Headunit, JVC 6.5'' door Speakers, Pioneer Shallow Mount 1000W 12'' Sub, 1000W Amp, Monroe Gasmatics front and rear, 1.5'' Daystar Coil Spacer, JDM Smoked Headlights/Corners,2001 Bench Seat, Led swapped gauge cluster and AC controls, Ignition Light mod with blue led, OEM All weather Floor Mats, LED Dome Light, 6000K DDM Tuning HID's, Street Scene Grille and Valance inserts, Clear bumper lights with the fog light mod and JDM Yellow led's, Window Tint: 25% sides and 5% back, TRD Blue Oil Cap.
    What headlight bulb size do those use?

  8. Jan 17, 2010 at 10:53 PM
    #8
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    They are D2S HID bulbs, 4300K color temperature, Philips 85122+

  9. Jan 24, 2010 at 12:03 AM
    #9
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.

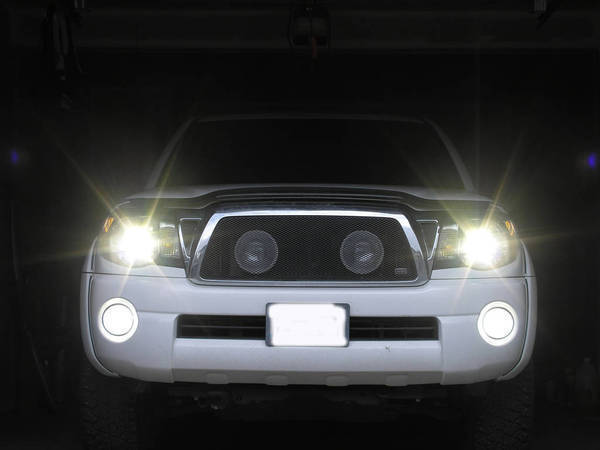

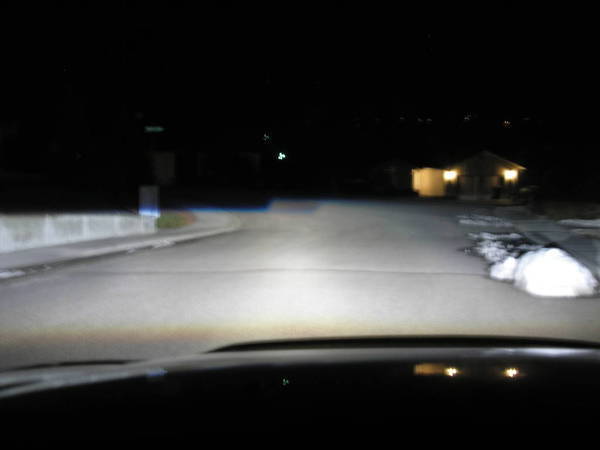

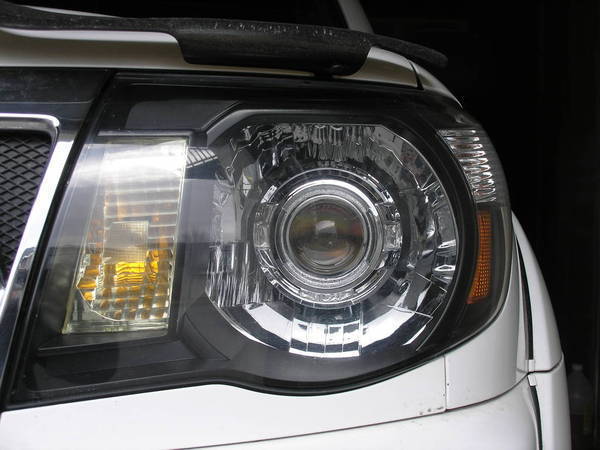

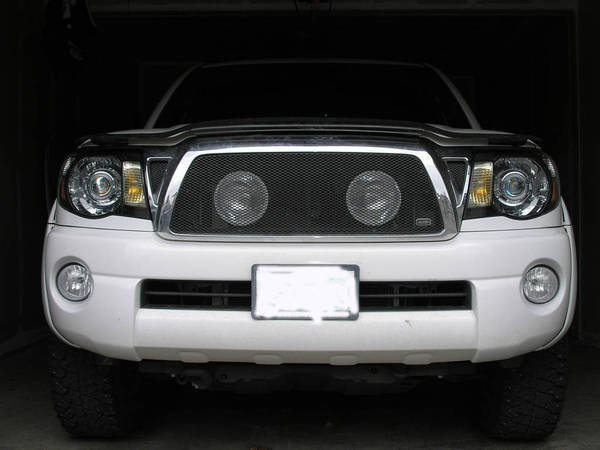

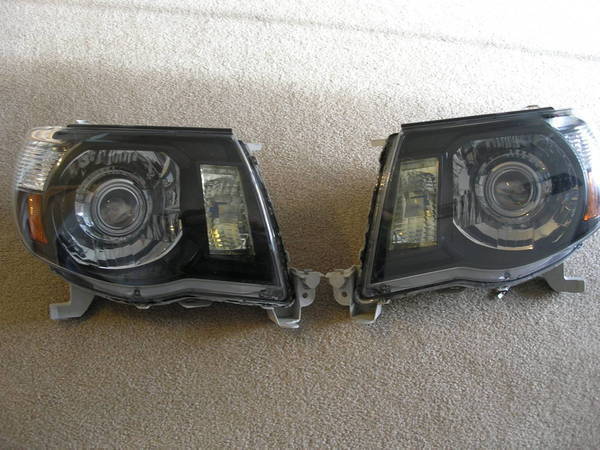

    Here are some updated pics. I finished the retro and now will have to spend some time aiming the lights to where I want them.

    [​IMG]

    [​IMG]

    [​IMG]

    Sorry for the poor quality pics, they are blurry and the location is not ideal. As I mentioned before, I will get them aimed to my liking as time goes on.

    low beam

    [​IMG]

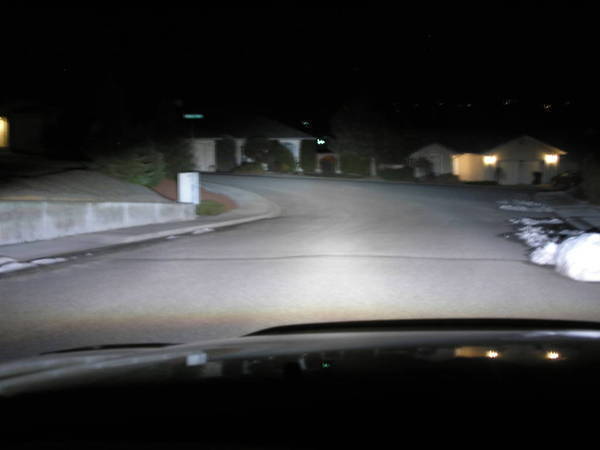

    hi beam

    [​IMG]

    I tried to capture the color flicker here, but it just shows a bunch of glare with my camera. I think you'll get the idea though......

    [​IMG]

    [​IMG]

    [​IMG]

  10. Jan 24, 2010 at 1:26 AM
    #10
    mrp192

    mrp192 REALLY!!

    Joined:
    Feb 21, 2009
    Member:
    #13911
    Messages:
    739
    Gender:
    Male
    First Name:
    Brent
    Cheney WA
    Vehicle:
    98 V6 4x4 limited
    Stereo, boobies
    damn dude that came out awesome!!!

  11. Jan 24, 2010 at 1:30 PM
    #11
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    Thanks for the compliments!

  12. Jan 24, 2010 at 1:47 PM
    #12
    lopedogg

    lopedogg Well-Known Member

    Joined:
    Jan 18, 2009
    Member:
    #12700
    Messages:
    116
    Gender:
    Male
    Spokane, WA
    Vehicle:
    '12 TACO TRD
    looks like that would be a real whore to do... would you do it again?

  13. Jan 24, 2010 at 2:12 PM
    #13
    ElectronMan

    ElectronMan Well-Known Member

    Joined:
    Apr 26, 2009
    Member:
    #16455
    Messages:
    93
    Gender:
    Male
    That looks great. I'm really liking how the shrouds turned out.

  14. Jan 26, 2010 at 8:22 AM
    #14
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    It is time consuming, but I enjoy it. Now that I have done it once it will be easier to do again. I suggest getting another set of lights so your truck isn't out of commission for too long. Luckily, I had my original set to do this with.

    Thank you sir! Also, thanks for the advice you have given me. I'm happy with how it turned out. I just got back from my first trip with the lights (about 600 miles round trip) and they performed very well! There was lots of snow in the mountains and then constant rain in the Seattle area. No fogging or condensation in the headlights either! 3M window weld seems to be holding up.

    Here are some comparison pics of my old projectors vs. my new set up!

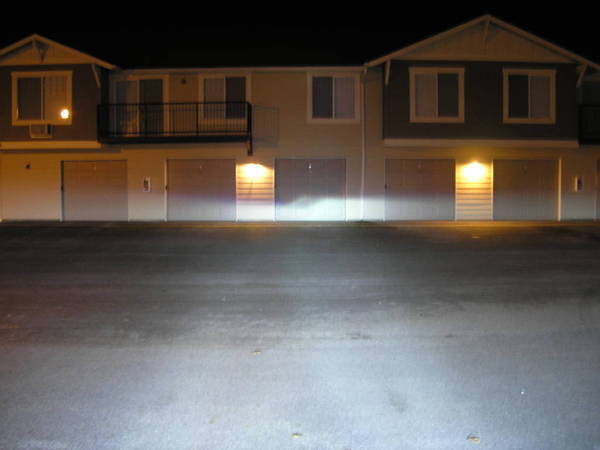

    Old set up - Gen 1 Plug n Play projectors with 6K bulbs (not good in wet conditions)

    [​IMG]

    New set up - FX-R retrofit with Philips 85122+ 4300k bulbs all powered by Digital HID 55 watt ballasts

    [​IMG]

  15. Jan 26, 2010 at 6:32 PM
    #15
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,519
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    Glad to know my stuff works in the snow!

  16. Jan 26, 2010 at 7:06 PM
    #16
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    Yes, it seemed like a safe bet since it is used to seal windshields. Quick question for you, did you mod your Gen 3 projector cut off shields? I saw some output/comparison pics on HIDplanet and couldn't remember if you did or not.

  17. Jan 26, 2010 at 7:10 PM
    #17
    s2kvtak

    s2kvtak Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20598
    Messages:
    311
    Gender:
    Male
    First Name:
    Lee
    Tulsa, OK
    Vehicle:
    2004 Tacoma 4x4 SR5
    Grillecraft grill w/ TRD badge, Bilstein 5100s on all 4 corners set at 2.5" and Toytec AAL in the rear. 285/75-17 Interco TRXUS M/T
    is it possible to add HIDs to a first gen? i had them on my honda s2000 and when i bought my truck it sucked! its almost like not having headlights compared to the HID

  18. Jan 26, 2010 at 7:29 PM
    #18
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    257
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    I have seen some first gen owners who have retrofitted projectors into their headlights. Others have just done HID conversions to the stock headlights as well. Check the following link out, I'm pretty sure some of the pics are first gen Tacoma headlights: http://www.lightwerkz.net/gallery/main.php?g2_itemId=3248

    Also, I can see how you would be disappointed with the lighting on the truck. You went from an S2000 which has arguably the best single beam projector HID setup back to a Tacoma with halogen bulbs and reflectors. The only way to get something comparable now would be to retrofit the Tacoma lights! Just another project to add to the mod list. :)

  19. Jan 26, 2010 at 7:37 PM
    #19
    rossk35

    rossk35 Do Work Son!

    Joined:
    Mar 26, 2009
    Member:
    #15197
    Messages:
    913
    Gender:
    Male
    hawaii
    Vehicle:
    07 TRD Sport Supercharged
    TRD S/C/TRD Intake/TRD Boost Gauge/DT Headers/OEM TL/ZKW retro/Pioneer DVD w/Ipod/Magnaflow/20% Tint/BHLM/JL 10" sub, JL VR components, JL 450/4 amp/Helwig Sway bar/Viper 791/ 18" limited 4runner rims

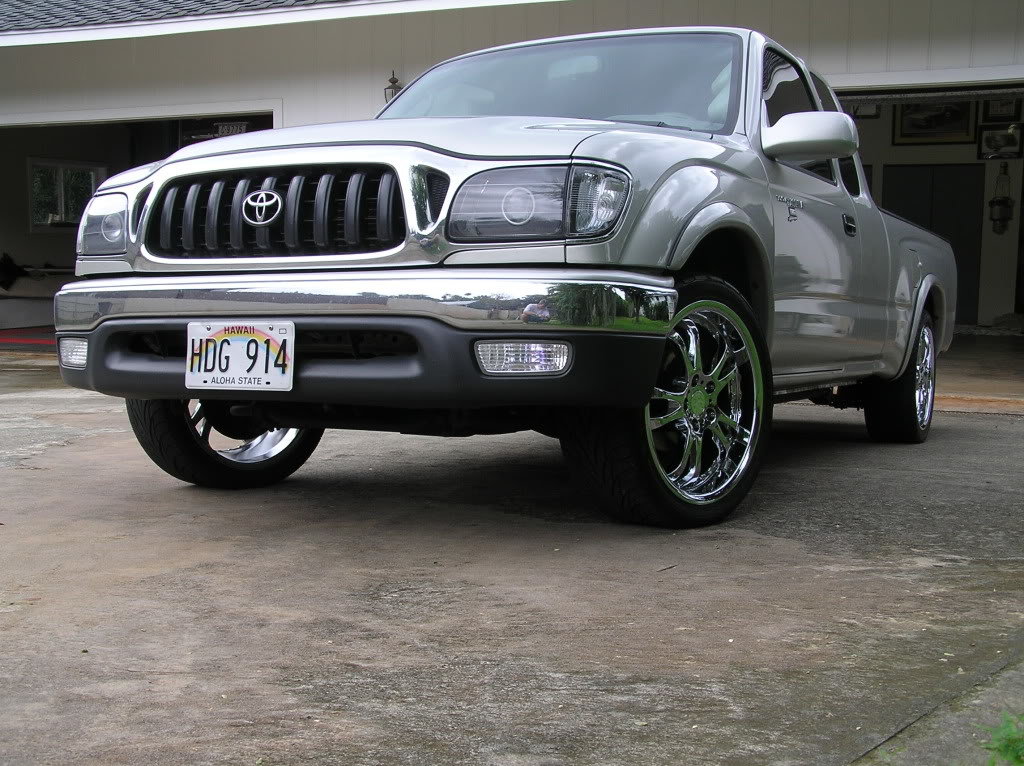

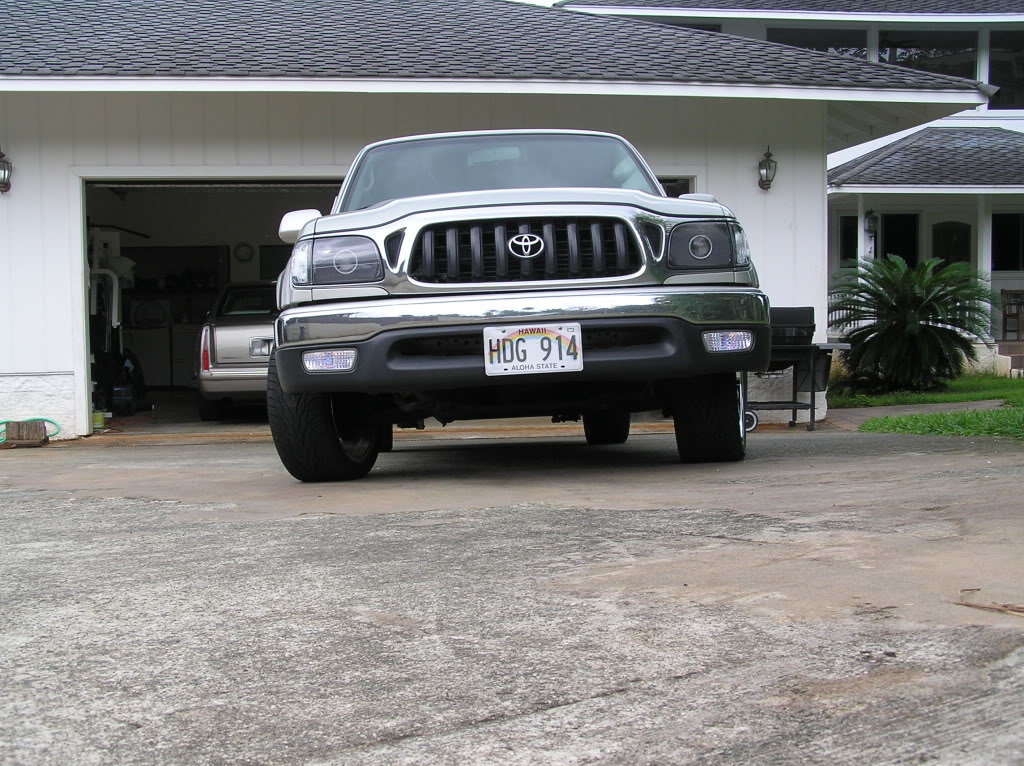

    Here was my 04 that I had. I used e55 projectors at the time, but they actually are crappy projectors that I look back on it, but at the time I wasn't about to spend a lot on it. It was good for my first setup.
    [​IMG]

    [​IMG]

  20. Jan 26, 2010 at 9:46 PM
    #20
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,519
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    Yes, I had the shield modded by stupidpig on HIDP.
