My high clearance rear bumper build

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Motoxerc0, Feb 24, 2012.

  1. Feb 24, 2012 at 7:18 PM
    #1
    Motoxerc0

    Motoxerc0 [OP] Well-Known Member

    Joined:
    Sep 10, 2009
    Member:
    #22561
    Messages:
    188
    Gender:
    Male
    First Name:
    Colin
    New Jersey
    Vehicle:
    06 4x4 DC LB Lifted
    DISCLAIMER: I am in no way shape or form a professional, just a college kid. If anyone sees a potential problem, please let me know and I will fix it.

    Let me start off by saying I wanted a high clearance bumper from either ATO or Relentless, but the funds for one just aren't there. I decide I would try and build my own. It is not done yet but it's close. I got the majority of it done today and hope to finish this weekend. Here we go.

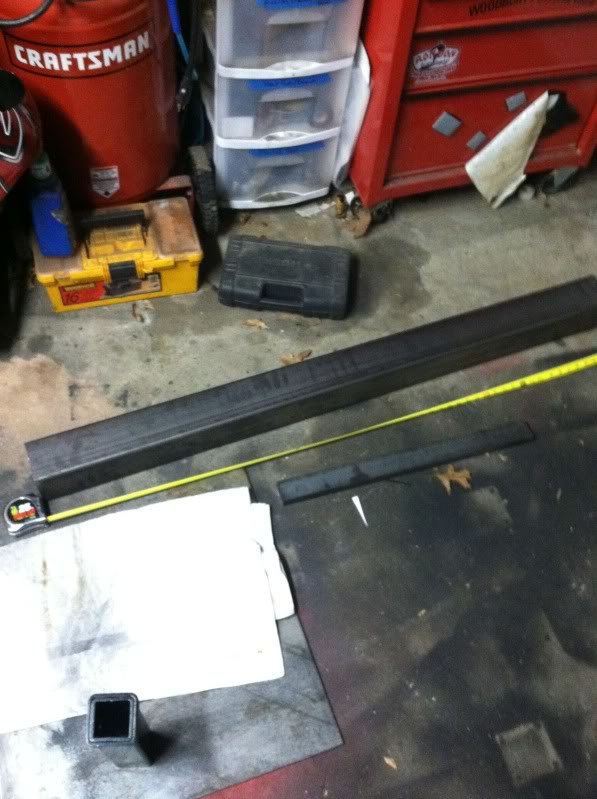

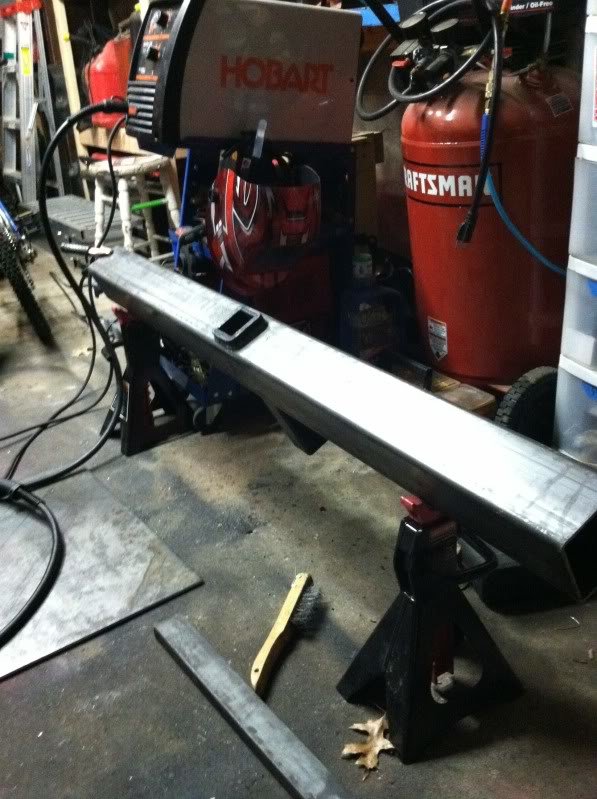

    It all started as a pile of metal.

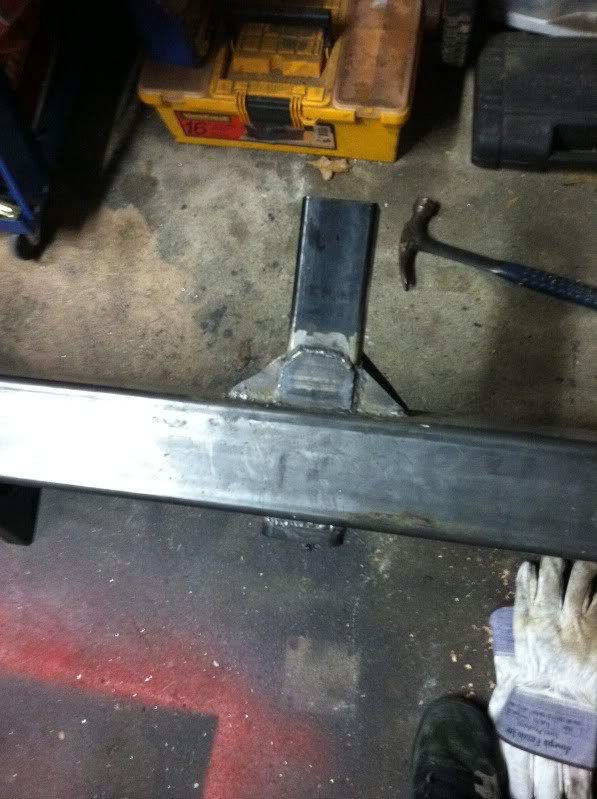

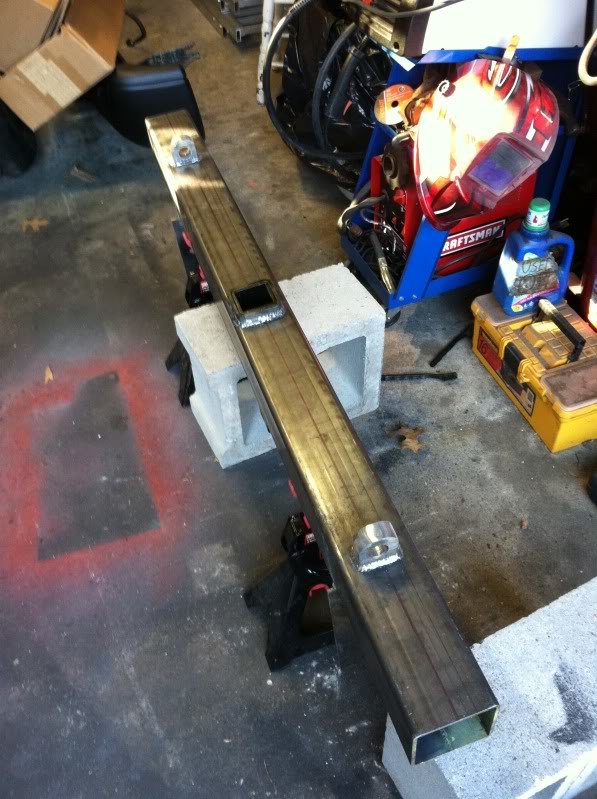

    From there, I cut the main tube to size and added my receiver and gussets.

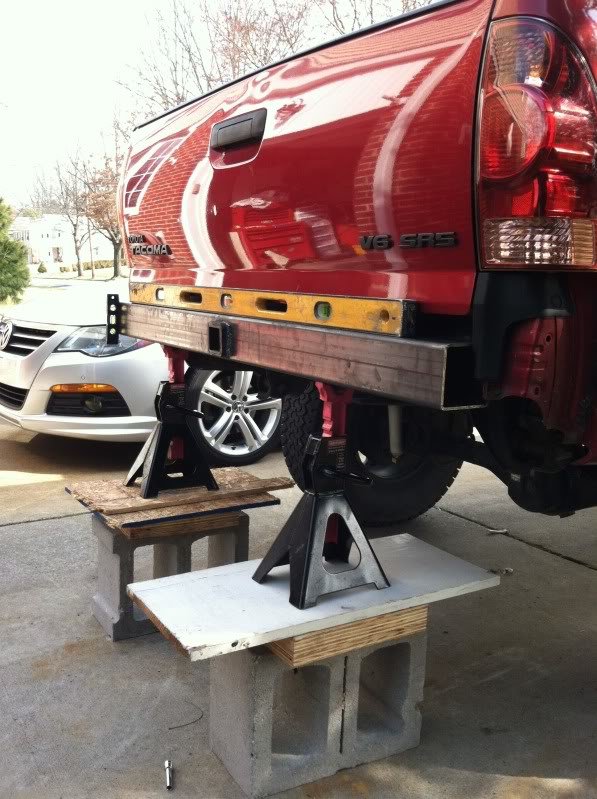

    Test fit of the main tube.

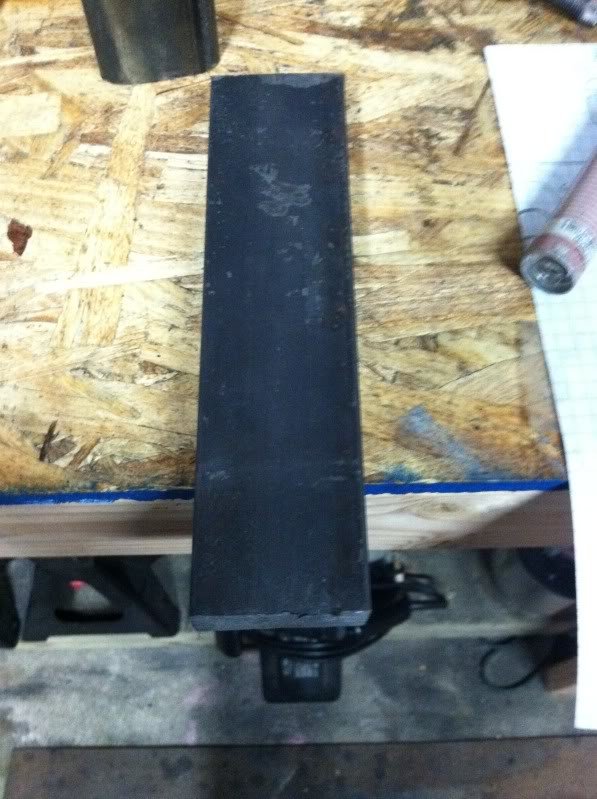

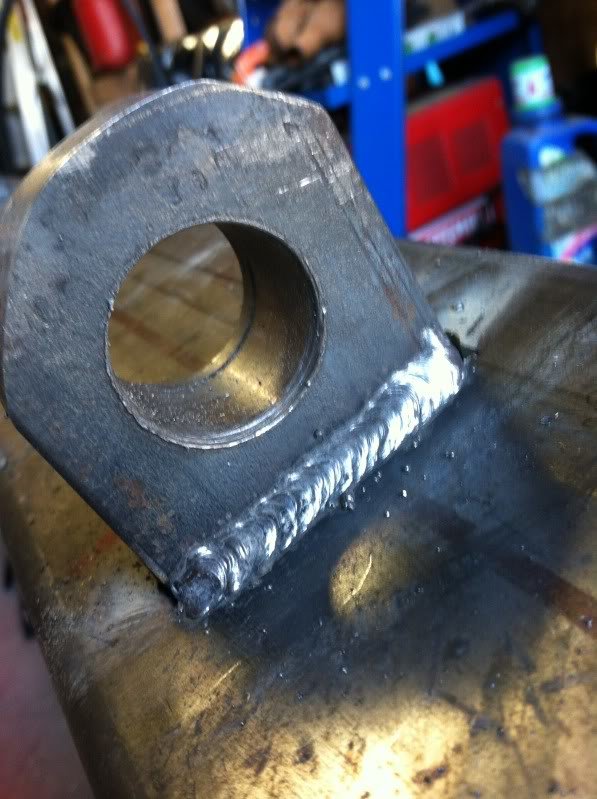

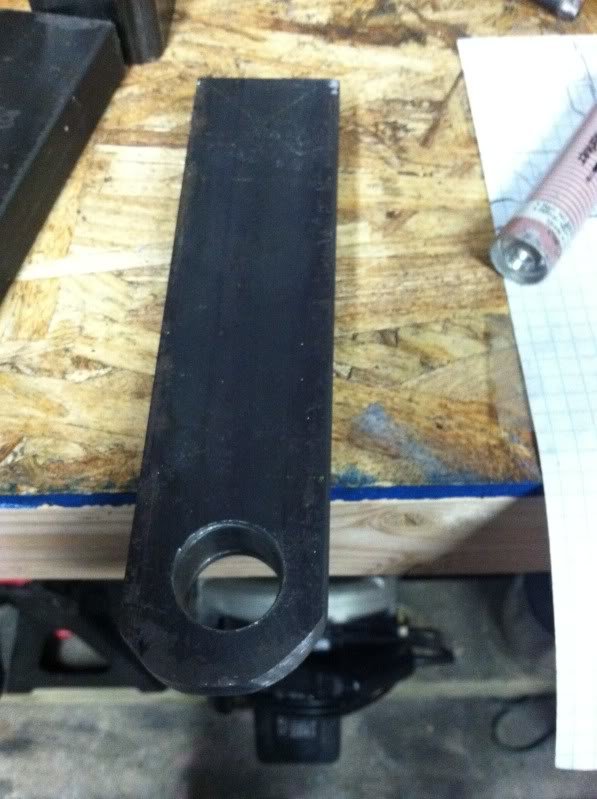

    I then cut, drilled and smoothed my shackle mounts out of 1 inch x 2 inch flat stock and cut them into the main tube.

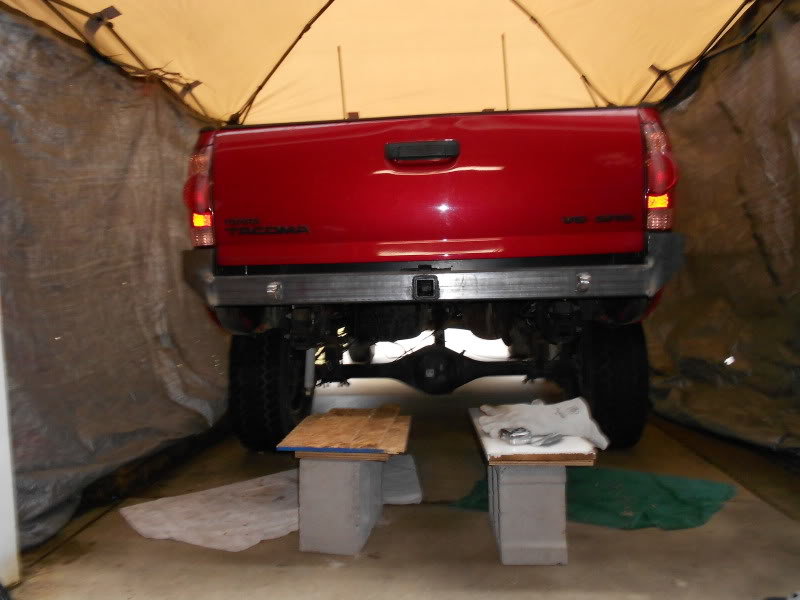

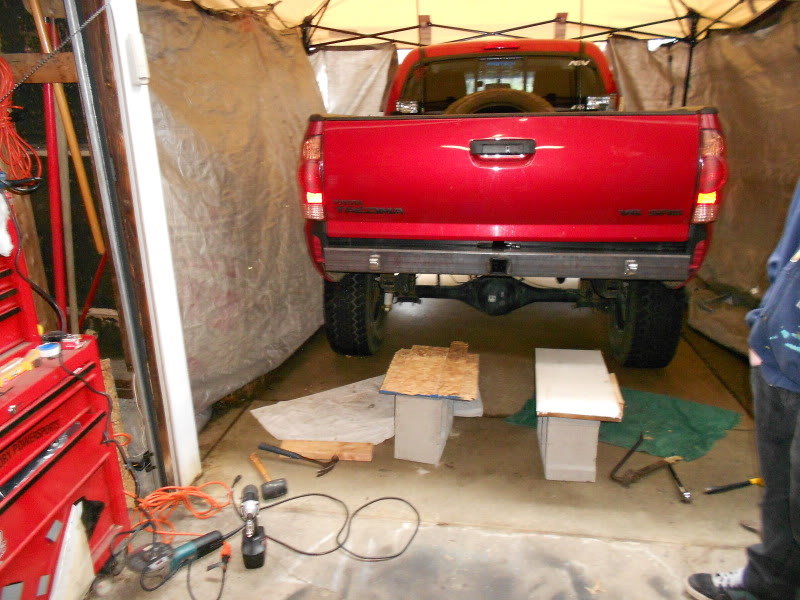

    Then i mounted it up.

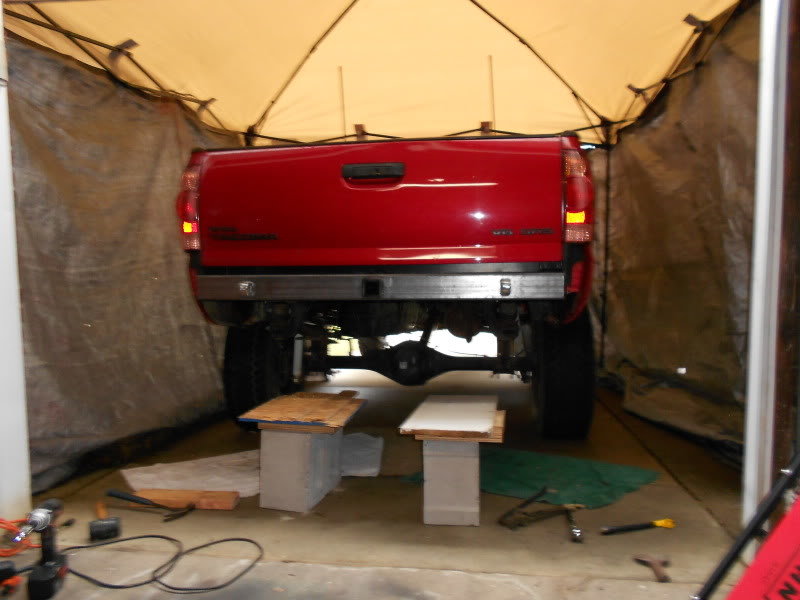

    Added my corners next.

    Then I cut and tacked on my wrap around pieces.

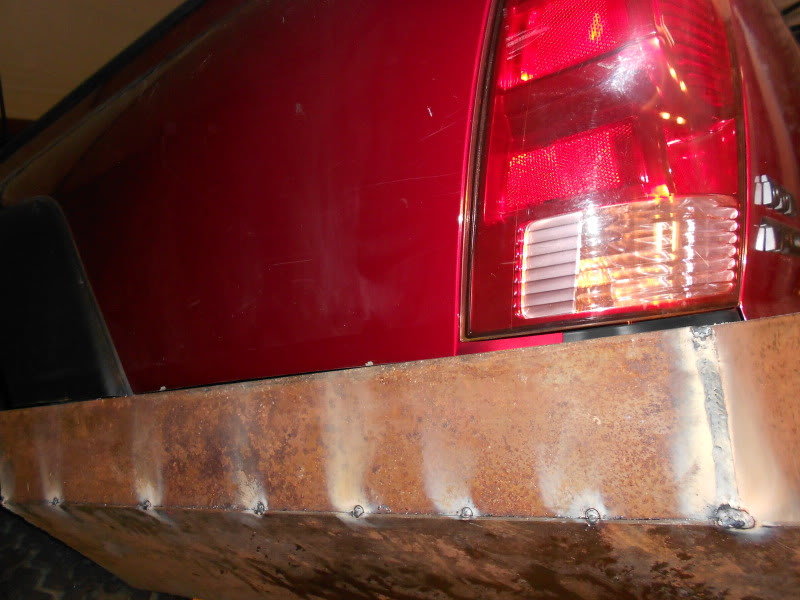

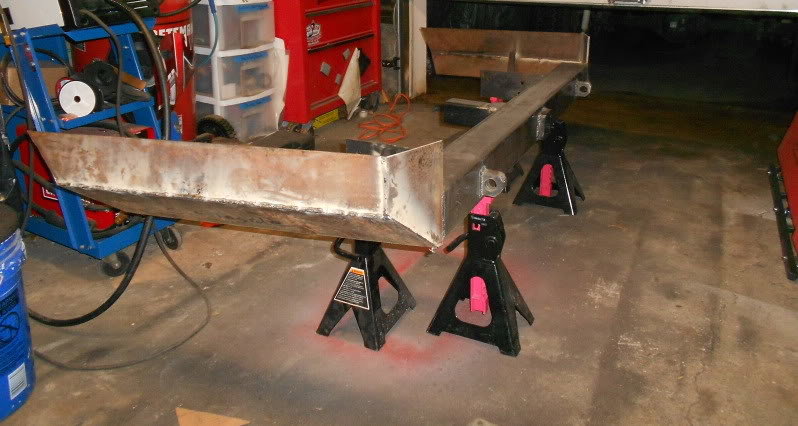

    Then pulled it off and began welding.

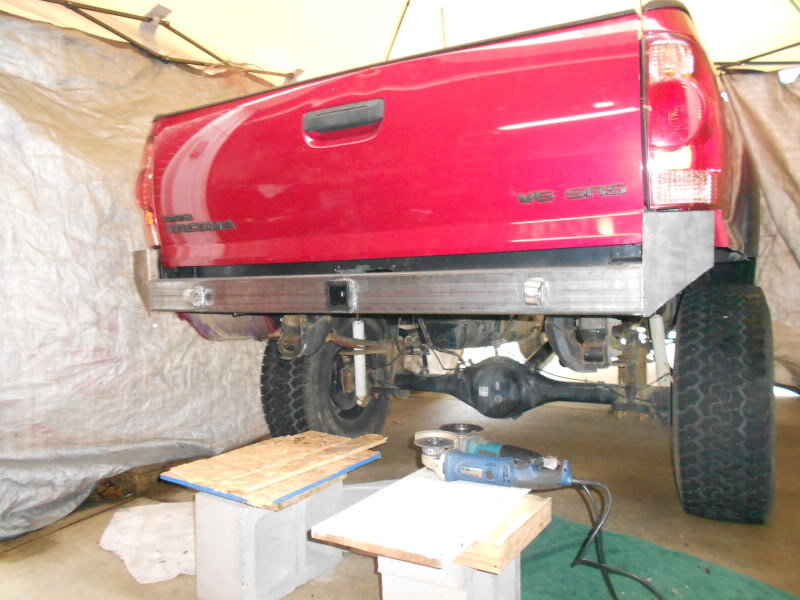

    I still have a lot of work to do to it. Tomorrow is going to involve a lot of grinding and cleaning up. I'm hoping to have it finished by the end of the weekend. I will post pictures with my progress. Let me know what you guys think.:D
