My tailgate mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by dbbd1, Nov 15, 2007.

  1. Nov 15, 2007 at 6:32 PM
    #1
    dbbd1

    dbbd1 [OP] Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    I will take some pic's soon, but....

    I bought a sheet of aluminum 54.75 x 15.25 by 1/8 thick. My idea is to put it between the composite tailgate cover and the tailgate itself. A few minutes with a jig saw and I notched out where the composite cover curves in (towards the hinged end). A little more time and I got it notched for the latches. A friend suggested some expanding foam, so I will put that it the raised areas of the cover. This should help with those deflecting inward. Then I will also bolt the cover to the aluminum in probably 10 places. I thought about epoxy but then thought better of it due to possible differences in thermal expansion properties, the bolt holes will give allow a little play. This will hopefully laminate the 2 together well enough for some additional support. The aluminum is expensive, more than steel right now, but I went with it for rust-resistance. Steel would have been stronger too, but then again, more weight. If you do this, buy some aluminum that is marred up or scratched and see if they will give you a discount. Mine was almost 90.00 including the cutting to size. I realize that this is not the strongest, best way to do this (it seems that even Toyota cannot figure that out yet!), but it is relatively cheap, easy to do, and keeps it more or less stock (and stock looking). Again, pic's when I get a chance. I am trying to get this done before the weekend, helping someone move. I am still anxious for Toyota to get a grip on this issue, hopefully soon.

  2. Nov 15, 2007 at 7:26 PM
    #2
    humanoid

    humanoid bite me

    Joined:
    Jun 27, 2007
    Member:
    #1932
    Messages:
    2,744
    Gender:
    Male
    Sunny SoCal
    Vehicle:
    I had a '99 Xtra Cab PreRunner SR5 V6
    Sounds like a plan... be sure to post pics of the mod if you can.

  3. Nov 15, 2007 at 7:29 PM
    #3
    allrsdup

    allrsdup Well-Known Member

    Joined:
    Oct 13, 2007
    Member:
    #3040
    Messages:
    863
    Gender:
    Male
    Sahuarita AZ.
    Vehicle:
    2015 dc superwhite 4x4
    yes post pics i would love to see this mod

  4. Nov 15, 2007 at 7:31 PM
    #4
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Moderator

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    28,093
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    i thought that someone said toyota was possibly scrapping the "putting shit in there after its already broke" mindframe and were actually replacing the entire tailgate?

  5. Nov 16, 2007 at 6:26 AM
    #5
    nd

    nd Radical Town. It's a hell of a place!

    Joined:
    Mar 12, 2007
    Member:
    #1047
    Messages:
    12,651
    Gender:
    Male
    First Name:
    Nate
    Greenville, SC
    Vehicle:
    07 TRD Off-Road 4x4 debadged
    De badged, 5100's, Black Toyota Baja wheels
    dbbd1: Toyota has already addressed this issue... unfortunately you're talegate has to be bent before they do anything about it. Anyway, sounds like a cool cheap mod you're doing. I'd love to see pics of the install process if you have them. You should turn it into a DIY thread and see if you cant get in the running for this months prize :)

  6. Nov 16, 2007 at 7:36 AM
    #6
    GTiVR6r

    GTiVR6r Big Cat Chew Toy

    Joined:
    Sep 25, 2007
    Member:
    #2805
    Messages:
    211
    Carpentersville, IL
    Vehicle:
    07 Tacoma Access Cab 2.7L Impulse Red
    Whats wrong with your tailgate that you have to spend $90 on an aluminum sheet?

  7. Nov 16, 2007 at 9:22 AM
    #7
    lsocoee

    lsocoee My hair is all natural Moderator

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,165
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
  8. Nov 29, 2007 at 7:12 PM
    #8
    dbbd1

    dbbd1 [OP] Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228

    How do I do that? I might want to turn in the "beep" mod I just wrote up.



    http://www.tacomaworld.com/forum/te...-door-lock-audible-2007-tacoma.html#post37186

  9. Nov 29, 2007 at 7:14 PM
    #9
    lsocoee

    lsocoee My hair is all natural Moderator

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,165
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
  10. Nov 29, 2007 at 7:17 PM
    #10
    dbbd1

    dbbd1 [OP] Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    Nothing yet. But I am the type of guy who would rather take care of it now, so I do not have to fix it later. The d@mn thing is too flimsy.


    That is kind of where I got the idea from, he is not making them anymore (but he is willing to sell the plans. anyone?) I just went with aluminum for ease, corrosion resistance. And thin enough to put the stock gate panel back on. I ended up trimming 1" off of the bottom edge, it was too thick at the lower end of the gate, where it meets up with the edge of the bed. It closed but too snugly for my liking. I would really prefer it if they would just replace the gate (there is a new TSB out now for it, but oyota still will not unless it is damaged).

  11. Nov 30, 2007 at 4:51 AM
    #11
    Viper-2

    Viper-2 Secret Agent

    Joined:
    Jul 12, 2007
    Member:
    #2073
    Messages:
    503
    Gender:
    Male
    First Name:
    Keith
    Charleston, SC
    Vehicle:
    Prerunner with many mods
    Cool, would love to see pics when you get them. :)

  12. Nov 30, 2007 at 9:45 PM
    #12
    dbbd1

    dbbd1 [OP] Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    Here are some pic's....

    Took it off
    [​IMG]


    Cut and shaped it
    [​IMG]

    To fit into the tailgate cover
    [​IMG]

    Drilled indexing holes to line up with existing indexing tangs
    [​IMG]

    [​IMG]

  13. Nov 30, 2007 at 9:49 PM
    #13
    dbbd1

    dbbd1 [OP] Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    Lined everything up
    [​IMG]

    Drilled and tapped 1/4-20 threads through the gate into the aluminum
    [​IMG]

    And here it is...
    [​IMG]

    It is quite a bit stronger but not really what it should be. we shall wait and see what this new TSB tailgate looks like.

  14. Nov 30, 2007 at 9:55 PM
    #14
    dbbd1

    dbbd1 [OP] Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    Almost forgot to tell you, ended up trimming about an inch off of the bottom, it was too thick, difficult to close to gate. Now that it is spaced out an 1/8 of an inch between the gate and bed, it was too much. After trimming, it works fine, allows the composite liner/gate cover to flex that 1/8 and close real easy. So, when you get yours cut, get it cut to 14.25 inches.

  15. Dec 1, 2007 at 6:55 AM
    #15
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Toyota engineers are idiots regarding this... Is easy to see that the top and bottom edges are too weak if you've ever seen one of the buckled tailgates. Their solution would have worked if:
    1. It was ONE SOLID PIECE instead of 2, bolted together, able to flex, and still let the tailgate bend
    2. made it out of something stronger that freaking SHEET METAL!! :mad: They know their doors, roof, hood, etc bend and dent easily so why on earth would they use the same crap for structural reinforcement?!?

    I did 2 braces on mine it's rock solid. No redesign, not custom milling or water jetting or other fab tools needed. But a cut off saw, titanium drill bits, and some nuts n bolts.

    What I did is put two pieces of angle iron (from scrap bed frames) in the tailgate. One over the top edge under the plastic cap, and one inside at the bottom.

    Here's a quick look: (bolts are where the piece is in the bottom)

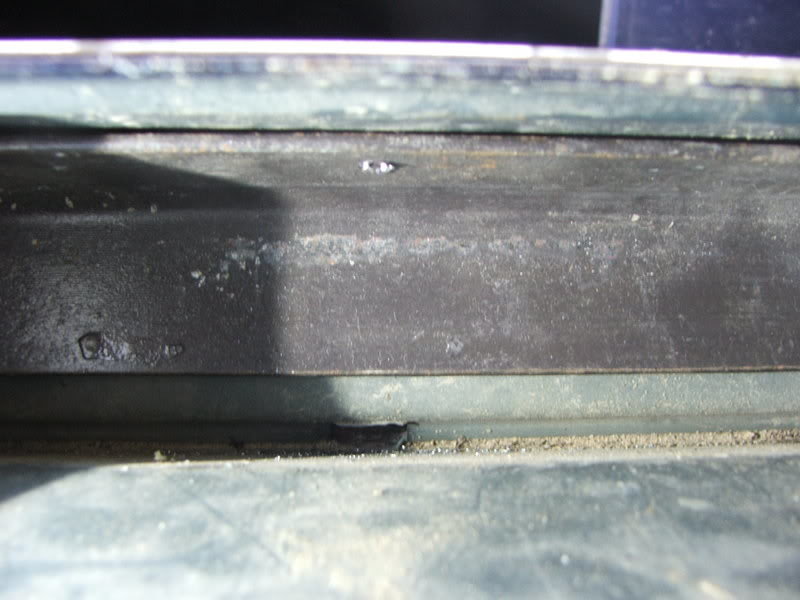

    [​IMG]

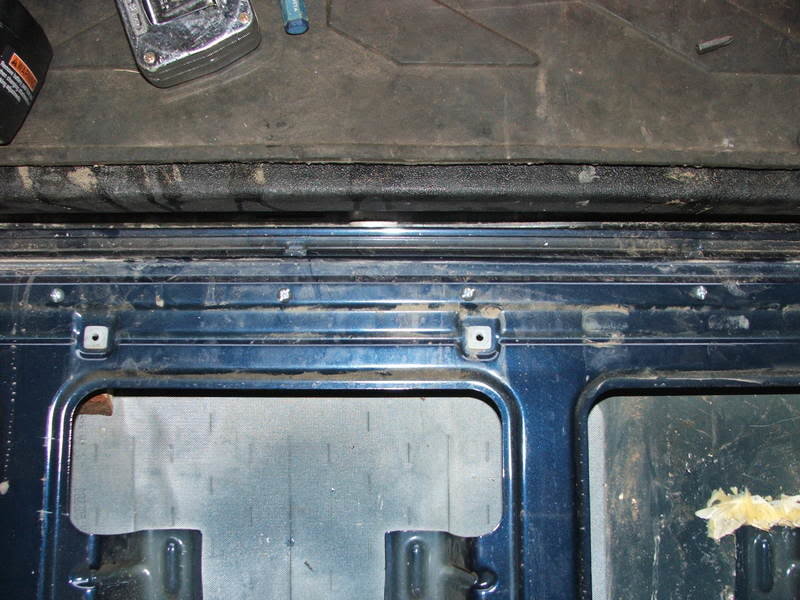

    Shot of inside the bottom of the tailgate.
    [​IMG]


    End result: stronger than anything Toyota has come up with yet, and free to do (for me anyway!). :D

  16. Dec 1, 2007 at 12:00 PM
    #16
    dbbd1

    dbbd1 [OP] Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    Have any pic's of the top edge?

  17. Dec 1, 2007 at 12:30 PM
    #17
    danusa

    danusa Well-Known Member

    Joined:
    Sep 8, 2007
    Member:
    #2637
    Messages:
    743
    Let me understand this. The tail gate is weak. If you break it Toyota will replace it.
    Why not break it in the spring and get it over with when it is convienient to replace?

  18. Dec 1, 2007 at 12:46 PM
    #18
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    No, sorry. I epoxied it on with 2-ton epoxy, trimmed the snaps off the plastic cap, and glued it back on before I thought about pics...

    The dealership boys f'd it up attempting to do their TSB. I had to order them to glue the cap back down since they peeled my glue off (they were just gonna let me leave before I said something), but their glue failed. So I ended up drilling holes through the plastic cap, angle iron and tailgate to drop some machine screws, washers and nuts in to hold everything together. They're more to hold the plastic cap on really. The 2 ton epoxy on the angle iron has held up for over a year and a half so far!

    It was just a 3' section of angle iron IIRC. It didn't cover the whole tailgate. Maybe 6" or so shy of each side. Basically just reinforces the center so it doesn't bend like this \/. The angle iron went on so that it covers the edge facing your legs while standing in front of it opened and the top (inside when closed) edge if that makes sense. I should've gotten pics but it's such a PITA to take apart now I'm not about to do it just for pics! :D

    But you can check this out:
    http://www.toyotanation.com/forum/t170754.html

    I got the idea from that one for the bottom piece. Someone else just did a piece of flat bar on the top edge, and that's what gave me the idea of my angle iron.

    Figure now for the tailgate to even FLEX it has to break a 1"x1" 90* bend in 1/16" (guessing) solid iron. Not likely! :D

  19. Dec 1, 2007 at 12:52 PM
    #19
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Well for me, I did this BEFORE Toyota issued the TSB, when they DID issue a TSB their "solution" was half-assed and not worth it, and now I'm out of warranty. Even they admitted it was a poor solution in a way because now they are replacing tailgates.

    Too bad I fixed mine over a year ago and it took them this long to figure it out.... :rolleyes: I mean, when my skinny-ass 150lb body steps on it and it flexes that shoulda been an indicator to the engineers that it wasn't up to par. Bed has something like a 1300lb capacity so how are you supposed to load things? 50lb boxes at a time? or take the tailgate off? :rolleyes: morons...

  20. Dec 1, 2007 at 12:58 PM
    #20
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    What blows my mind is that I'm not a structural engineer and I can see that the weakest point of a span is the center. The toyota engineers apparently forgot that as their original TSB was a 2-piece U shaped sheet metal bar inserted under the top edge and bolted in. The 2 pieces were tapered to fit into each other with over-sized holes for the bolts. So the whole bar could flex in the center, the very part you're trying to keep from bending!?!?!! :mad:


    I guess I should just be glad it only took them a few more months to realize this.
