My Trans a Cooler With a Fan Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by HolyHandGrenade, Nov 16, 2014.

  1. Nov 16, 2014 at 3:49 PM
    #1
    HolyHandGrenade

    HolyHandGrenade [OP] I'm not worthy...

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    5,334
    Gender:
    Male
    Mahwah, NJ
    -B&M Super Cooler 70268
    https://www.amazon.com/gp/product/B000CIGE9G/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

    -Spal Pusher Fan 30100393
    https://www.amazon.com/gp/product/B003PB4444/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

    -Spal FRH FAN Relay Harness
    http://www.amazon.com/gp/product/B003PB4AY8/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

    -Spal Fan Mounting Brackets
    http://www.jegs.com/i/SPAL/063/30130011/10002/-1

    I was looking to use the B&M oil cooler that comes with a thermostatically controlled fan. However, I realized that the fan on those is a puller. This wouldn't work for me as I wanted it in front of the radiator.

    So, I pieced together the above parts.

    Here it is:

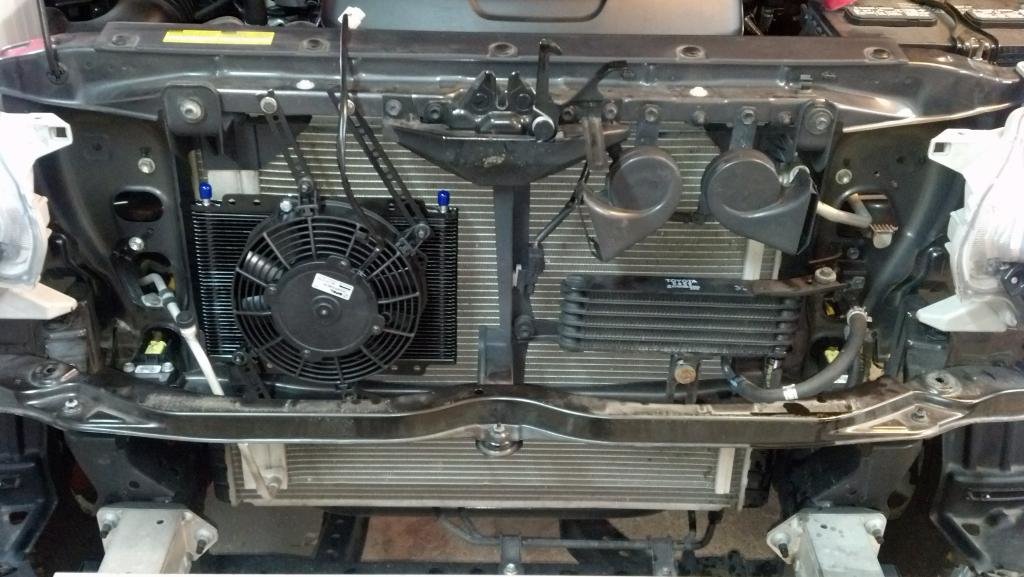

    The fan fits the cooler perfectly. If you tilt the fan the mounting holes fit over the edge of the cooler. You just have to drill two 1/4 holes.

    The Spal mounting straps fit into notches in the fan. This makes mounting the set up effortless. Just four more 1/4" holes. The best part is that they're already black. No painting required :D

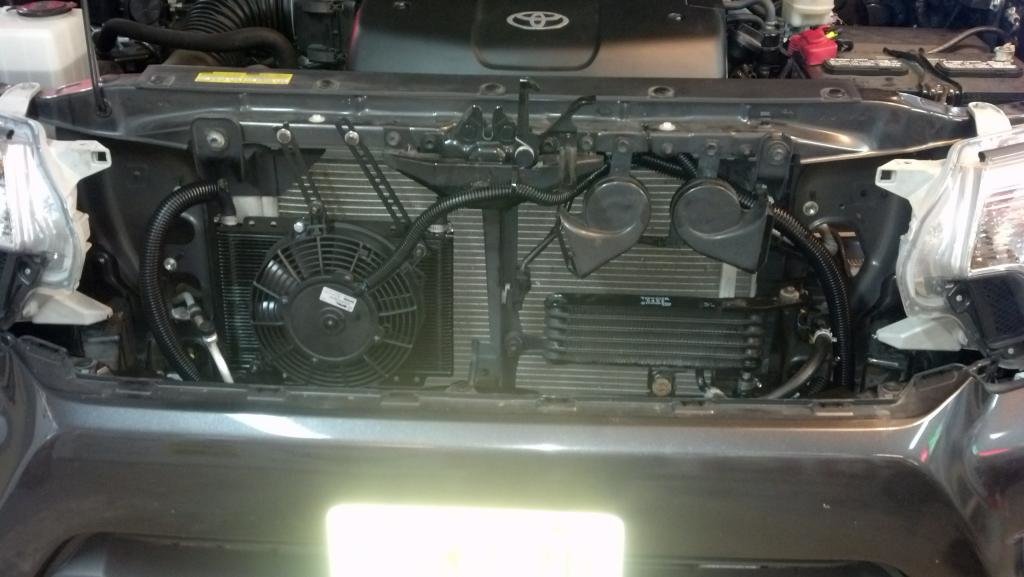

    Lines ran. I used some loom to protect from chaffing, and to give a more "factory" look.

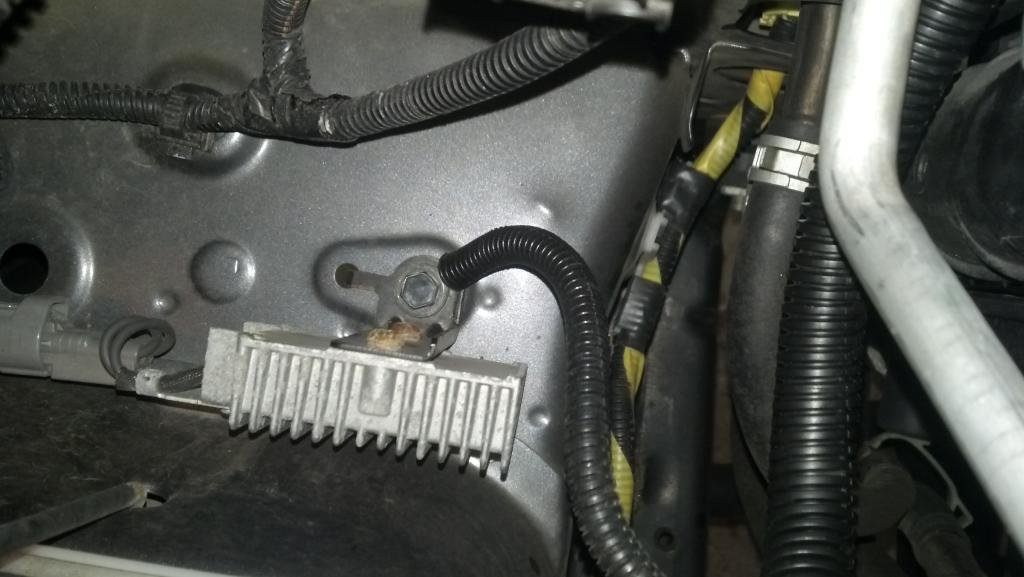

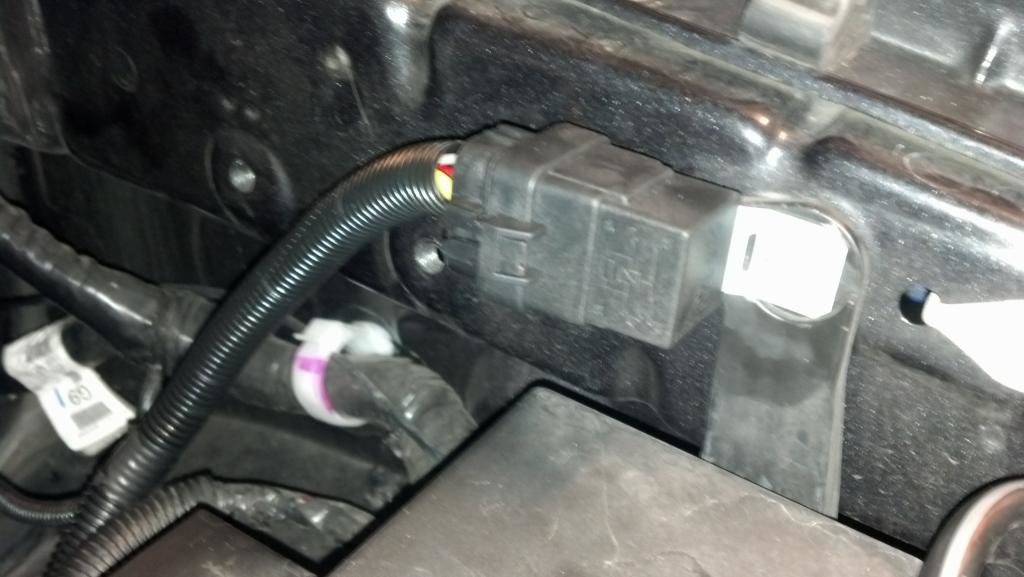

    Relay mounted and grounded to existing bolts

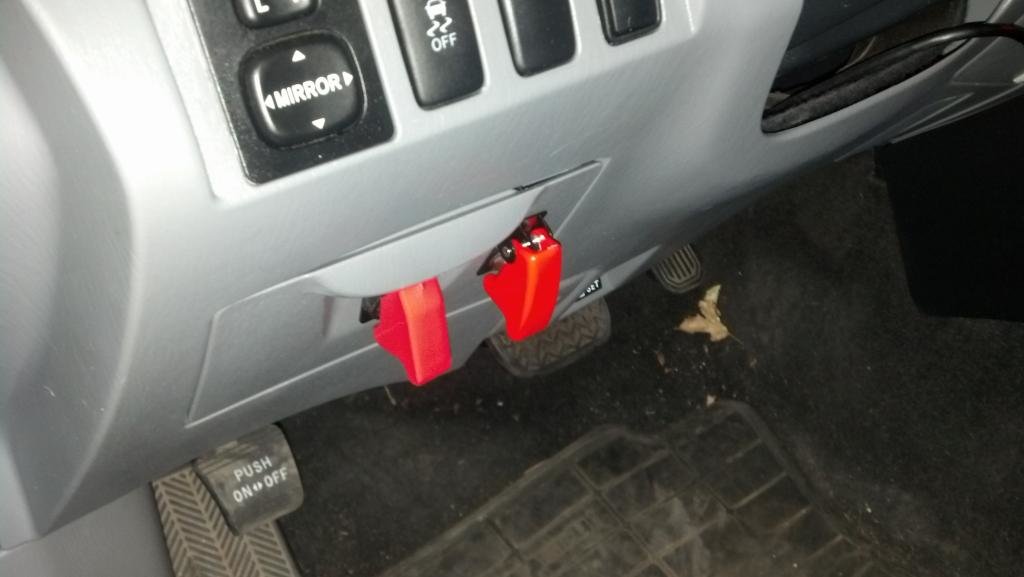

    Toggle switch. I don't care about a thermostat. I'll only use the fan in slow traffic anyway.

    One for the fan and one for my work lights. They look a little Fast and the Furious-ish, but they keep me from turning them on by accident.

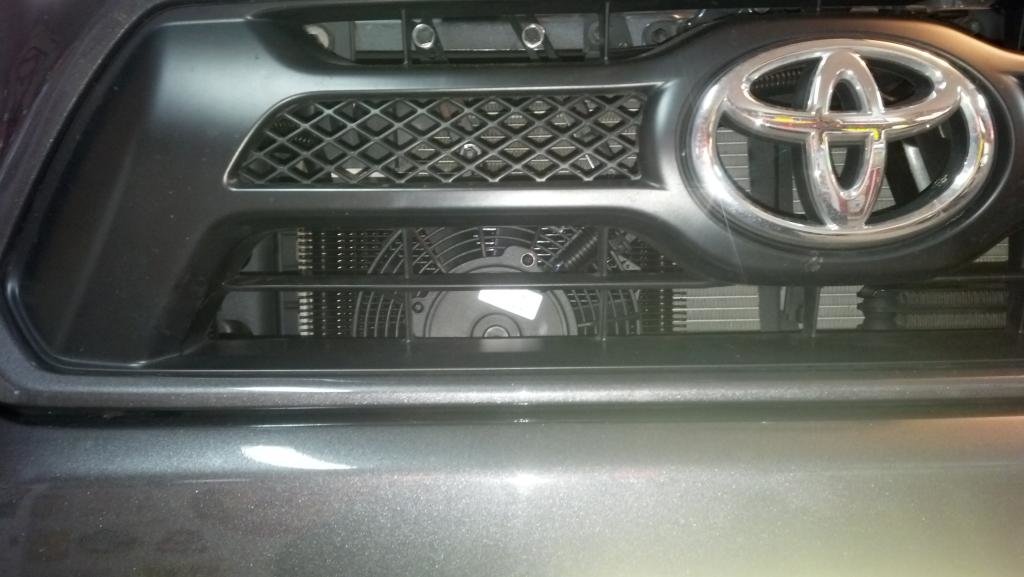

    Finished product:

    Last edited: Nov 16, 2014
  2. Nov 16, 2014 at 5:50 PM
    #2
    File IFR

    File IFR "... Intercepting The Localizer"

    Joined:
    Mar 4, 2012
    Member:
    #74145
    Messages:
    4,494
    Gender:
    Male
    First Name:
    Mike
    Central MA
    Vehicle:
    2012 MGM 4X4 DC-LB TRD Sport
    Nice clean work. :thumbsup:

    I'd be curious to know the temp difference.. if you have a Scangauge or the newer Ultragauge to monitor it.

  3. Nov 16, 2014 at 5:55 PM
    #3
    xsteinbachx

    xsteinbachx Well-Known Member

    Joined:
    Oct 17, 2014
    Member:
    #140524
    Messages:
    106
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2015 SR5 4x4
    Just curious why you needed the Tranny cooler?

  4. Nov 16, 2014 at 5:56 PM
    #4
    ntilehman

    ntilehman Well-Known Member

    Joined:
    Oct 15, 2012
    Member:
    #89088
    Messages:
    1,496
    Gender:
    Male
    First Name:
    Seth
    Charlotte, NC
    Vehicle:
    09 Prerunner Off Road
    Rock Sliders Front Light Bar +1.5" Front Arms with Ext. Kings
    I have been thinking about doing somethign very similar if I keep the truck. I would be interested to see what the temp change during normal op and with the fan on.

  5. Nov 16, 2014 at 7:19 PM
    #5
    HolyHandGrenade

    HolyHandGrenade [OP] I'm not worthy...

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    5,334
    Gender:
    Male
    Mahwah, NJ
    I added the extra cooler for slow stop and go driving. I have a 6 1/2 X 10 foot trailer that I use a lot. The trailer weighs 1000 LBSand is rated for 2000 LBS. I try to stay close to the rating...

    When I'm up to the rating it's fine at speed as long as I keep it out of O/D. The problem is in stop and go traffic. The stock cooler just doesn't get it done all of the time. I'm hoping the bigger cooler and fan do the trick.

    We'll see what the ScanGauge says.

    Last edited: Nov 16, 2014
    MTopp likes this.
  6. Nov 16, 2014 at 7:44 PM
    #6
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    23,635
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    Spaceballs 1 and Winnebago with secret hyper jets
    For Haulin Not Crawlin
    Great work man and keep us updated :thumbsup:

  7. Nov 16, 2014 at 7:49 PM
    #7
    HolyHandGrenade

    HolyHandGrenade [OP] I'm not worthy...

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    5,334
    Gender:
    Male
    Mahwah, NJ
    Thank you, will do.

  8. Nov 18, 2014 at 3:26 PM
    #8
    brian0128

    brian0128 Well-Known Member

    Joined:
    Sep 14, 2011
    Member:
    #63518
    Messages:
    99
    Gender:
    Male
    First Name:
    Brian
    Orchard Beach, MD
    Vehicle:
    2012 TRD OR DCSB
    Factory tow package, 15% Llumar tint
    What temps were you seeing on the scanguage before the install?

  9. Nov 18, 2014 at 3:36 PM
    #9
    07 sport 4x4

    07 sport 4x4 Well-Known Member

    Joined:
    Dec 24, 2010
    Member:
    #48165
    Messages:
    782
    Gender:
    Male
    First Name:
    Blake
    Southeast
    Vehicle:
    07 Sport DCSB
    I notice that the factory cooler is different than the previous 2nd gens, I wonder when they changed them? ImageUploadedByTapatalk1416353765.537816.jpg

    Crom likes this.
  10. Nov 18, 2014 at 3:39 PM
    #10
    TacomaG26

    TacomaG26 Well-Known Member

    Joined:
    Nov 18, 2011
    Member:
    #67283
    Messages:
    430
    Gender:
    Male
    First Name:
    Nic
    Goldsboro NC
    Vehicle:
    4.0v6 4x4 TRD Sport
    2.5in spacer leveling kit with Toytech AAL in the rear, Brute Force Fab front and rear bumper, AFE stage2 CAI, Alpine headunit with Rockford Fosgate amp and sub, tibted windows, KC lights.
    I don't want to be "that guy" but did you add extra trans fluid to compensate for the cooler ? should be almost a 1/3 qt more... Not trying to insult you jeep keep your taco good to go

  11. Nov 18, 2014 at 3:44 PM
    #11
    HolyHandGrenade

    HolyHandGrenade [OP] I'm not worthy...

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    5,334
    Gender:
    Male
    Mahwah, NJ
    Yeah, thank you. I did a drain and refill at the same time. I only got two quarts out of the pan. I think I was victim of low fluid from the factory....

    It's really easy to do with the ScanGauge. Worth the money for it just for checking the trans fluid, if you ask me.

  12. Nov 18, 2014 at 3:44 PM
    #12
    Kolunatic

    Kolunatic dont tread on me!

    Joined:
    Apr 29, 2012
    Member:
    #77862
    Messages:
    17,117
    Gender:
    Male
    Texas
    Vehicle:
    07,2wd,DC,SRD,TRD Sport,because
    Nice work. Putting this on wish list. Keep us updated.

  13. Nov 18, 2014 at 3:45 PM
    #13
    HolyHandGrenade

    HolyHandGrenade [OP] I'm not worthy...

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    5,334
    Gender:
    Male
    Mahwah, NJ
    If driving in stop and go I would get over 200. If driving in stop and go and then going up the big hill to my house after 220-230 ish.

    MTopp likes this.
  14. Nov 18, 2014 at 3:46 PM
    #14
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    3,878
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Awesome job with the install . An excellent idea for anyone towing in stop and go traffic as well crawling in 4X4 low . Great write up !!

  15. Nov 18, 2014 at 3:46 PM
    #15
    HolyHandGrenade

    HolyHandGrenade [OP] I'm not worthy...

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    5,334
    Gender:
    Male
    Mahwah, NJ
    I was surprised to find it was different too. Wonder why?

  16. Nov 18, 2014 at 3:47 PM
    #16
    TacomaG26

    TacomaG26 Well-Known Member

    Joined:
    Nov 18, 2011
    Member:
    #67283
    Messages:
    430
    Gender:
    Male
    First Name:
    Nic
    Goldsboro NC
    Vehicle:
    4.0v6 4x4 TRD Sport
    2.5in spacer leveling kit with Toytech AAL in the rear, Brute Force Fab front and rear bumper, AFE stage2 CAI, Alpine headunit with Rockford Fosgate amp and sub, tibted windows, KC lights.
    Cool deal. Man I need to look into getting one of them, I hear a lot of good things about them.

  17. Nov 18, 2014 at 3:49 PM
    #17
    HolyHandGrenade

    HolyHandGrenade [OP] I'm not worthy...

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    5,334
    Gender:
    Male
    Mahwah, NJ
    Thank you. I'll be towing my trailer to PA this weekend. We'll see what happens.

  18. Nov 18, 2014 at 3:51 PM
    #18
    brian0128

    brian0128 Well-Known Member

    Joined:
    Sep 14, 2011
    Member:
    #63518
    Messages:
    99
    Gender:
    Male
    First Name:
    Brian
    Orchard Beach, MD
    Vehicle:
    2012 TRD OR DCSB
    Factory tow package, 15% Llumar tint

    What is involved with using the scanguage? I might buy one just for this.

    I was planning on getting the ultra guage for the price. Anyone know if you can check trans fluid with that as well.

    Last edited: Nov 18, 2014
  19. Nov 18, 2014 at 4:11 PM
    #19
    DoorDing

    DoorDing Intentionally obtuse

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    30,318
    Gender:
    Male
    Bodie, CA
    Vehicle:
    2017 RC Off-Road 3.5WD
    yes
    lynyrd3 and MTopp like this.
  20. Nov 19, 2014 at 11:01 PM
    #20
    Crom

    Crom Outside

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,070
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Looks good! Question, how did you route the hoses? Did you come off the factory ATF fluid cooler and then your custom cooler, then return to transmission?
