My Trans a Cooler With a Fan Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by HolyHandGrenade, Nov 16, 2014.

  1. Nov 20, 2014 at 2:56 AM
    #21
    808hiker

    808hiker Taco addict

    Joined:
    Jul 5, 2010
    Member:
    #39799
    Messages:
    2,327
    Gender:
    Male
    First Name:
    Justin
    Big Island, Hawaii
    Subbed.

    Thought this was gonna be a "pink milkshake" story. Luckily I haven't heard of it happening with the 2nd gens.

  2. Nov 20, 2014 at 3:05 AM
    #22
    Kolunatic

    Kolunatic Broke ass

    Joined:
    Apr 29, 2012
    Member:
    #77862
    Messages:
    46,682
    Gender:
    Male
    First Name:
    Kevin
    Texas
    Vehicle:
    07 DC peerunner
    I wonder about 2 of this and disconnect from radiator?

  3. Nov 20, 2014 at 2:28 PM
    #23
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    I simply removed the inlet hose from the stock AUX cooler and put it to the new one. Then, the outlet from the new cooler to the stock one. It now flows through the new cooler then into the stock AUX cooler. From there it follows it's normal path.

    I kept the factory cooler because it's there already. Free cooling. Simple as that. The B&M cooler controls flow by viscosity. If the fluid is cold and thick it bypasses most of the cooler. When it warms it flows through the rest. That's another reason I didn't want the kit that comes with the fan and t-stat. It doesn't regulate flow like the Super Cooler does.

    I figured this would make over cooling less of a risk, so why not leave the stock one? We'll see if I was right I guess.

    bski22 likes this.
  4. Nov 20, 2014 at 4:04 PM
    #24
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    Oh, you're talking about the cooler in the bottom of the Rad. I thought you meant the stock external AUX. Cooler. I thought about bypassing the Rad. Cooler too, but it doesn't seem to be a problem with these trucks.

    I may re-evaluate when the truck gets closer to ten years old. For now, I'm feeling comfortable.

    MTopp likes this.
  5. Nov 20, 2014 at 4:43 PM
    #25
    Kolunatic

    Kolunatic Broke ass

    Joined:
    Apr 29, 2012
    Member:
    #77862
    Messages:
    46,682
    Gender:
    Male
    First Name:
    Kevin
    Texas
    Vehicle:
    07 DC peerunner
    X2
    And with TX heat and going on 8 yrs for me.

  6. Nov 20, 2014 at 11:27 PM
    #26
    SpoilsofWar

    SpoilsofWar Well-Known Member

    Joined:
    May 19, 2014
    Member:
    #130171
    Messages:
    341
    Gender:
    Male
    First Name:
    Jason
    Wilmington NC
    Vehicle:
    2014 DCLB 4x4 TRD Sport Super Charged
    Very nice

  7. Nov 21, 2014 at 10:42 PM
    #27
    shr133

    shr133 Well-Known Member

    Joined:
    Jul 8, 2013
    Member:
    #107900
    Messages:
    2,215
    Gender:
    Male
    First Name:
    Steve
    Muskego, WI
    Vehicle:
    2010 V6 Sport
    K & N filter, 275 70 17 Cooper AT3, OME Nitrocharger shocks, 884 Springs, Dakar leafs.
    Good job I put a cooler in this summer after some trans over heating on the dunes... I didn't put a fan on yet but I'm thinking about it... Works great keeps it cool on the dunes and towing....

  8. Nov 25, 2014 at 7:23 PM
    #28
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    So, it's cold in NJ right now... The trans is too cool. 115-130F after my 20 mile drive to work on the interstate.

    I know that when it warms up and I'm towing, I'll like having both coolers, so I don't want to just remove the factory external cooler.

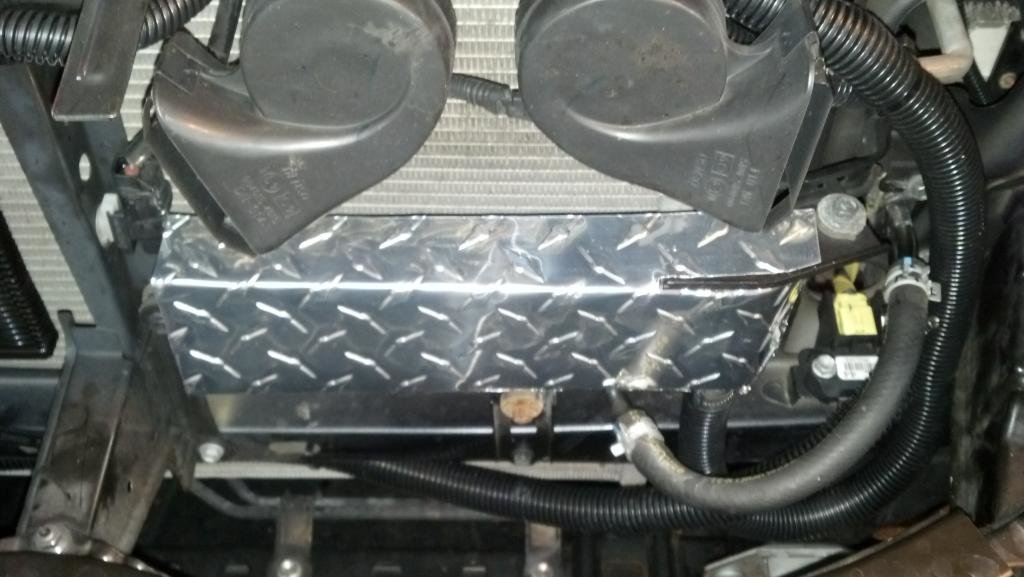

    This is what I came up with. I made a cover for it.

    I found this thin diamond plate sheet in Home Depot. I forget the gauge, but it's thin enough to bend by hand. They have a thicker version, but I don't have access to a brake. I knew I wouldn't be able to work the thicker version.

    This is what I ended up with. It's not perfect, but I was working with tin snips, a rubber mallet, and a block of wood... Notice I notched out the cover for the raised lip on th upper cooler mounting bracket.


    Not sure if you can pick it up, but it put a couple of wire ties around the cover and cooler. I don't think it would fall off with the upper notch, but better safe than sorry. I'm going to come up with some sort of reusable strap for easier removal and install.

    MTopp likes this.
  9. Nov 25, 2014 at 7:44 PM
    #29
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    The fan is on a toggle switch, so That's not the problem. If the cover doesn't help, I'll just ditch the stock external cooler.

  10. Nov 25, 2014 at 7:48 PM
    #30
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    It's all on the same loop, so if I put a valve in in its current configuration, it would just stop the flow all together when closed.

  11. Nov 25, 2014 at 7:57 PM
    #31
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    :)

    We'll see if the cover helps in the AM.

  12. Dec 10, 2014 at 11:56 AM
    #32
    Crom

    Crom 1/2 way thru. I'll be back AUG 31, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,506
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Any update on if the cover is helping? Excellent information in your thread by the way. :thumbsup:

  13. Dec 10, 2014 at 12:02 PM
    #33
    BlueT

    BlueT Well-Known Member

    Joined:
    Mar 30, 2009
    Member:
    #15341
    Messages:
    5,618
    Gender:
    Male
    NorthEast
    Vehicle:
    07 Dbl Cab LB with LSD
    I moded 1999 Taco so much it had turned to Land Cruiser
    I tought that was powersteering cooler, Thats what they get now for Transmission cooler. MY God Toyota is getting cheap. :D

    However, does that mean now they install transmission thermostat too like all other Toyotas ?

  14. Dec 10, 2014 at 12:23 PM
    #34
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    Unfortunately the cover didn't really do anything. I took the factory cooler off. It's better now. It does take a while to heat up in the cold weather, but it does heat up now.

    To be honest, prior to installing the new cooler, I never paid any attention to the temps when NOT towing. But, I'm happy with it now.

    Crom likes this.
  15. Dec 10, 2014 at 12:33 PM
    #35
    BlueT

    BlueT Well-Known Member

    Joined:
    Mar 30, 2009
    Member:
    #15341
    Messages:
    5,618
    Gender:
    Male
    NorthEast
    Vehicle:
    07 Dbl Cab LB with LSD
    I moded 1999 Taco so much it had turned to Land Cruiser

    Do you know if your truck has Transmission Thermostat (a round can on the side of transmission)?

  16. Dec 10, 2014 at 1:19 PM
    #36
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    Sorry, I don't. Now I'm curios too.

  17. Dec 10, 2014 at 1:21 PM
    #37
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,195
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    stock setup has a trans fluid thermostat afik.

  18. Dec 10, 2014 at 1:29 PM
    #38
    BlueT

    BlueT Well-Known Member

    Joined:
    Mar 30, 2009
    Member:
    #15341
    Messages:
    5,618
    Gender:
    Male
    NorthEast
    Vehicle:
    07 Dbl Cab LB with LSD
    I moded 1999 Taco so much it had turned to Land Cruiser
    Older 2gens did not had thermostat so runnig 100F in -14F outside is almost normal.
    I had never seen my truck go over 200F even when towing because older trucks have transmission fluid goign through radiator which has own fan anyway.
    However, if you have thermostat that's probably what makes your truck go to 200+ while towing.
    Toyota Transmission Thermostat does not fully open until like 220F. It starts opening around 190F
    If you have thermostat that would mean your transmission cooler no longer goes through Radiator. Those coolers have separate lines to keep transmission fluid heated. It circulates straight from the engine.
    Looks like Toyota installed the setup from other Toyotas.

  19. Dec 21, 2014 at 7:21 PM
    #39
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    Update.

    I finally had the chance to tow something with a little weight to it today. I got a Line on a free pile of Oak beside the road. Not really fireplace wood, but it'll be nice in the fire pit.

    Some in the trailer:

    Some in the bed:

    Ride Rites doing their job:

    I had to drive about 30 miles home with this load on the interstate. Normally, I leave the truck in 4th while towing, but I wanted to test out the cooler...

    The biggest difference I see I with the bigger cooler is that the pan temp stays much cooler relative to the torque convertor temps.

    I had to go up a couple of big hills on the way home. On the first one, I left the truck in OD part way up. I watched the TC temp rise to 195 before dropping it into 4th. When the TC was at 195, the Pan was still at 155. I never saw a 40 degree difference like that prior to the larger trans cooler.

    When I dropped it down into 4th, the TC temp fell very quickly to match the pan temp.

    On the second hill, I went down to 4th at the beginning. The temp barely budged in either location.

    The fan also seemed to do its job on the last part of the trip. Normally, the trans gets the hottest around town and up,the big hill to my house. Today, leaving it in 3rd with the fan on, I stayed WELL below 200 degrees.

    These are all obvious and expected results. Needless to say, I think the install was worth it. The truck is staying much cooler with this setup over stock. Now, I'm looking forward to seeing how it does in the summer heat.

    Last edited: Dec 21, 2014
  20. Dec 24, 2014 at 10:58 AM
    #40
    Crom

    Crom 1/2 way thru. I'll be back AUG 31, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,506
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Thanks for the update!
