My Winch Cradle Setup

Discussion in '2nd Gen. Tacomas (2005-2015)' started by HolyHandGrenade, Dec 10, 2015.

  1. Dec 10, 2015 at 8:10 PM
    #1
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    I know a bunch of you guys got in on the Mobtown black Friday sale. So, this might help some of you who bought their recovery bar?

    Parts:

    Mobtown Recovery Bar with receiver:
    http://mobtownoffroad.com/product/front-recovery-bar/

    Mile Marker Winch Cradle:
    http://www.amazon.com/gp/product/B0008F68NK?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s00

    Winch Wiring:
    http://www.amazon.com/gp/product/B00VVZLYYY?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s01

    HD Alligator Clips:
    http://www.amazon.com/gp/product/B000XMI1JC?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s00

    Jumper Cable Bag:
    http://www.amazon.com/Bucket-Boss-6...263_img_2?ie=UTF8&refRID=0N0NANAM3S2CECWR5GEQ

    ComeUp Seal Gen2 9.5 Winch
    http://shop.comeupusa.com/p/seal-gen2-9-5rs-12v-winch?pp=12

    Factor 55 ProLink:
    http://www.amazon.com/gp/product/B009X1XJWI?psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s01

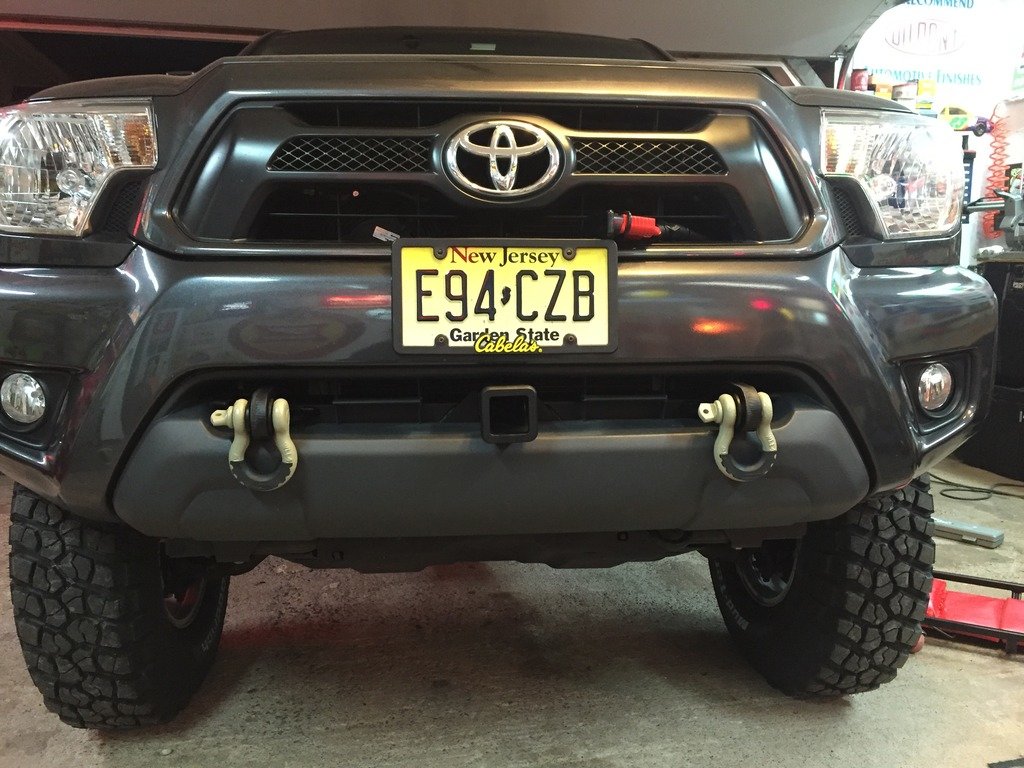

    First, I installed the Mobtown Recovery Bar
    7101F0B4-62EC-4F80-9687-1529ACC80A43_zps_35e93bd07bb229390425017cd428fd28d4bac872.jpg

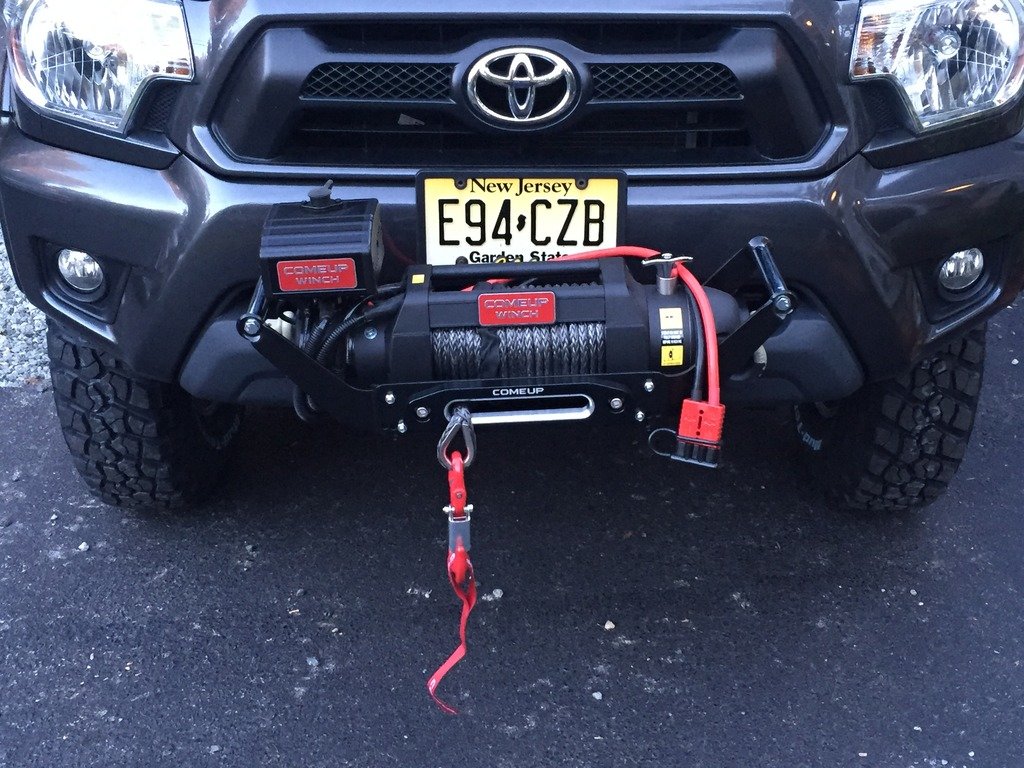

    Next, I bolted the winch to the FIRST winch cradle. IT was welded together crooked...
    82590D55-5834-4A97-9FD7-37EF66E0A3E3_zps_a9549efcd52ab404c55bd42b80112002ff854390.jpg

    So, I returned the first cradle and bought another that was three times the price... The second one was perfect... Almost

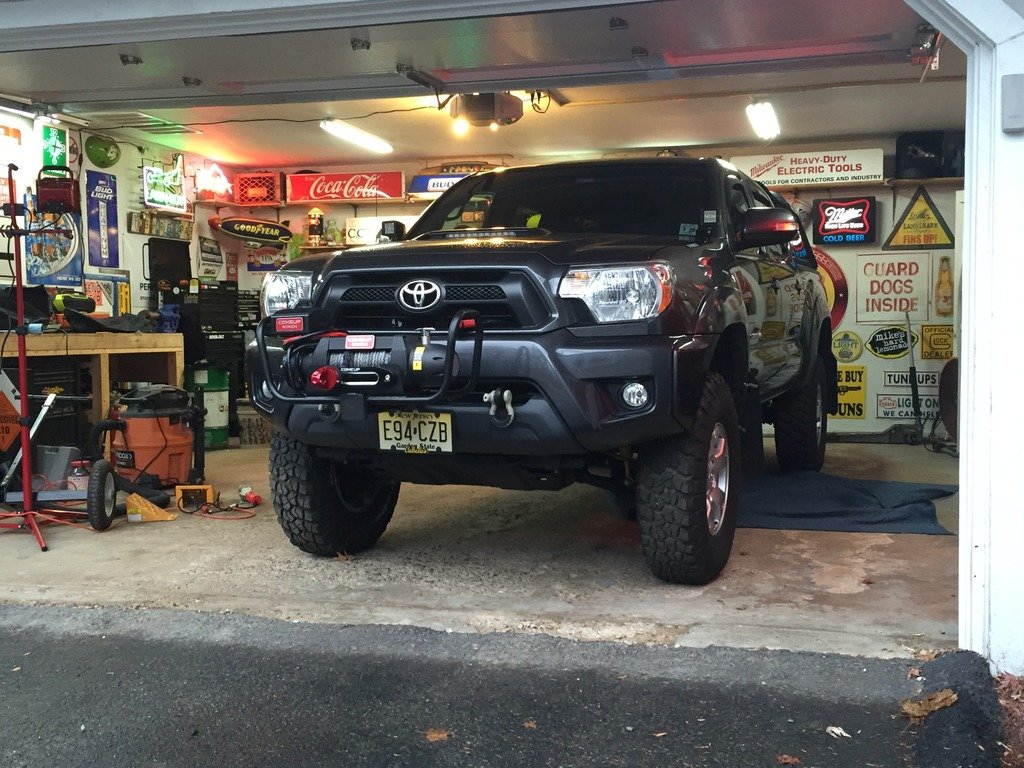

    B3A4FC34-8367-4D6A-9030-229B97DDD31F_zps_9e54c602e6105bd57541d03f7d4cae19e2d3d3d5.jpg

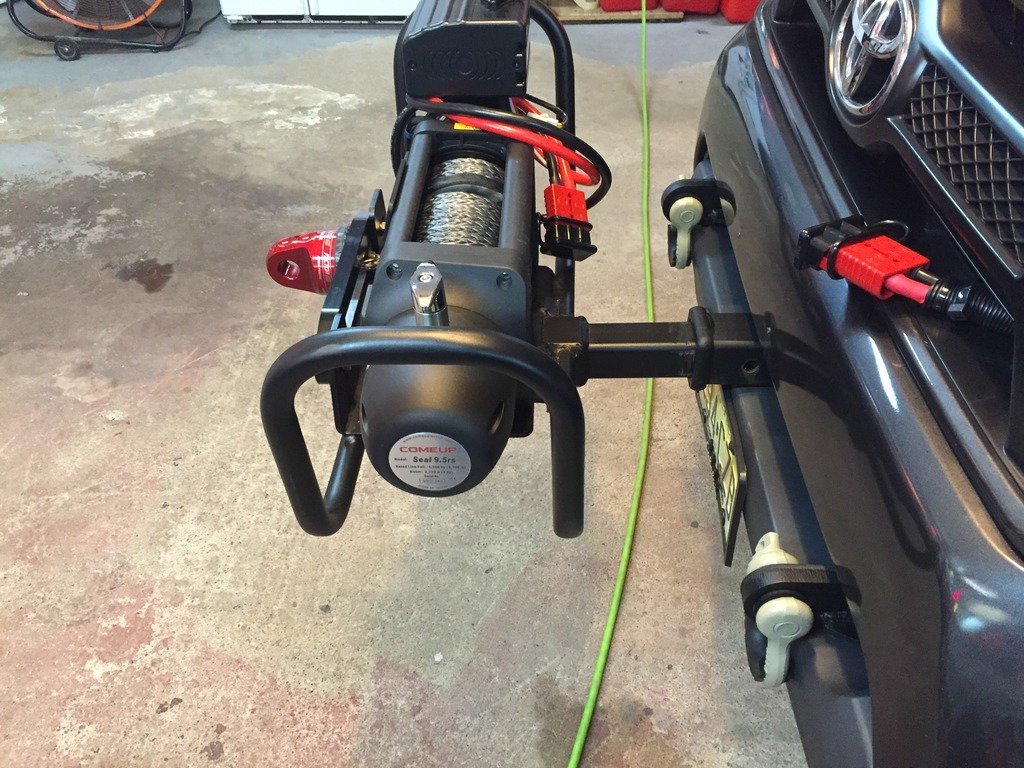

    It's put together straight, but it stuck out from the grill way too far for me.
    7584F292-29FD-4920-85A1-BB8B5188468A_zps_3613198e907296b687c60bd5d128a444c3dfffce.jpg

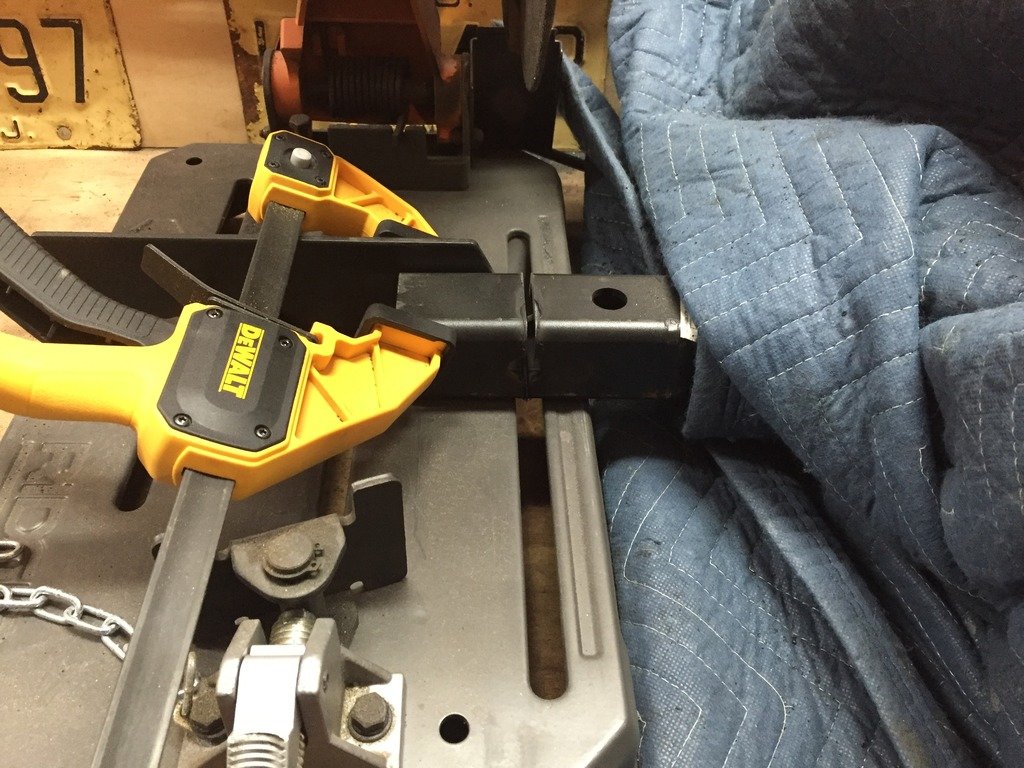

    So, after measuring front and rear, I introduced it to the chop saw and drilled a new hole for the receiver pin.
    A55B1391-76A4-48F4-AF46-B4DA6DCD345C_zps_379570f03bea4253ace32474285e306dc9dc9e29.jpg

    Much better
    C9BDF022-68F1-43C0-9F95-4F9AB48E8B4C_zps_ab150e7934af92a7a58a0c32acb79908ae9b08c1.jpg

    Still fits the rear after the trim
    77AC3F7A-1902-4518-A0AE-E976049C89D1_zps_246acc03096bb878c1d31b53591fbf251535a9a0.jpg

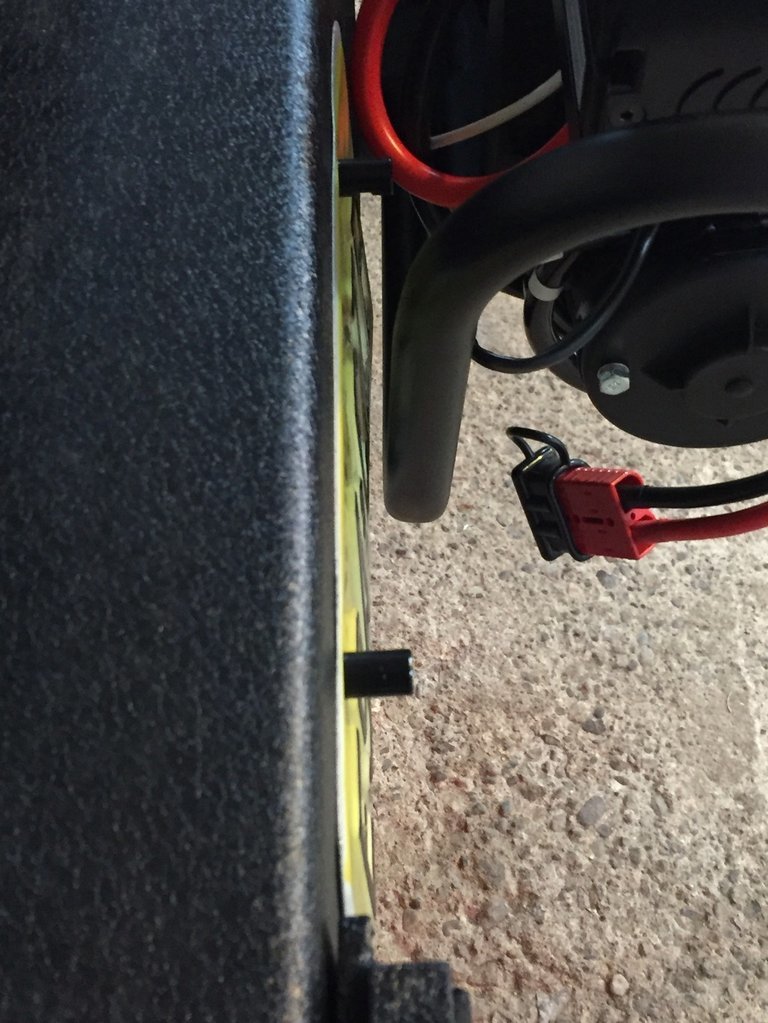

    Close...
    1AFE0D12-236D-411B-B664-DDF17B23EB6D_zps_a8f07ad54f4c777c989904021b658c080a2ed7f4.jpg

    For the wiring, I purchased the kit I linked to above.

    It came with two 3' lengths of cables with disconnects for the winch and for the front of the truck. I hooked one to the winch, and one directly to the battery terminals and stuck it through the grill.

    The kit also came with a 20' plus set of cables with disconnect for the rear. I didn't feel like running the cables under the truck. Instead, I bought some jumper cable ends and crimped them on.

    6AD5FD3D-644B-496B-88D8-259C0DE91045_zps_b35b9d8555c9902056bca26d8e4fcd05125aaf60.jpg

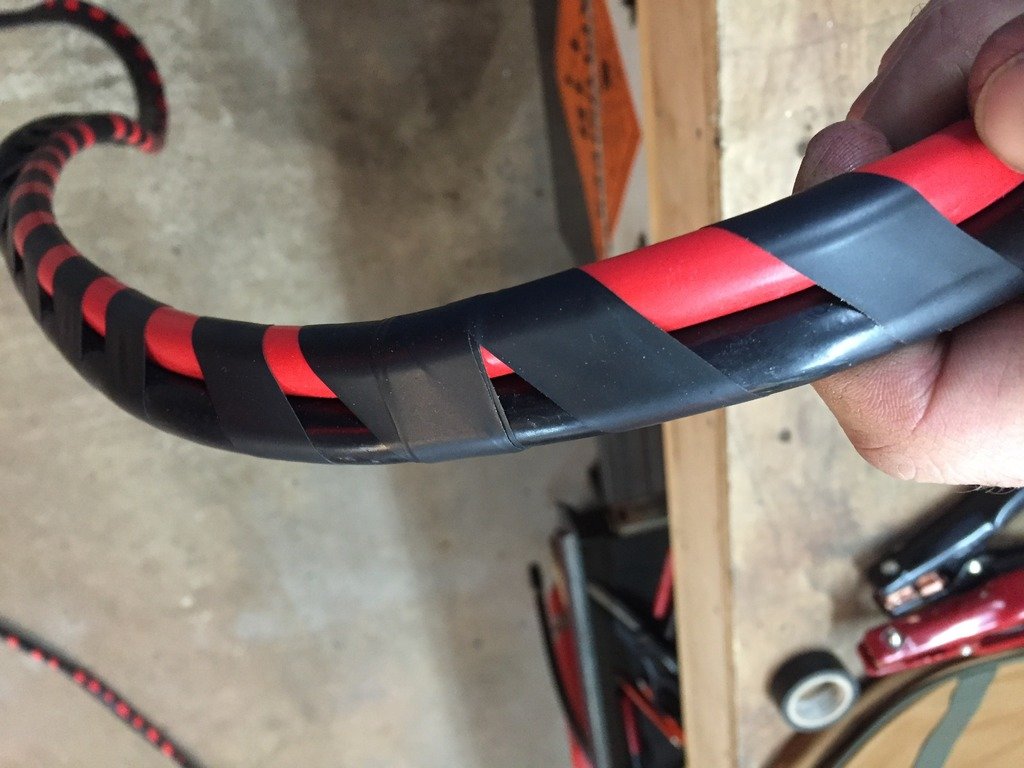

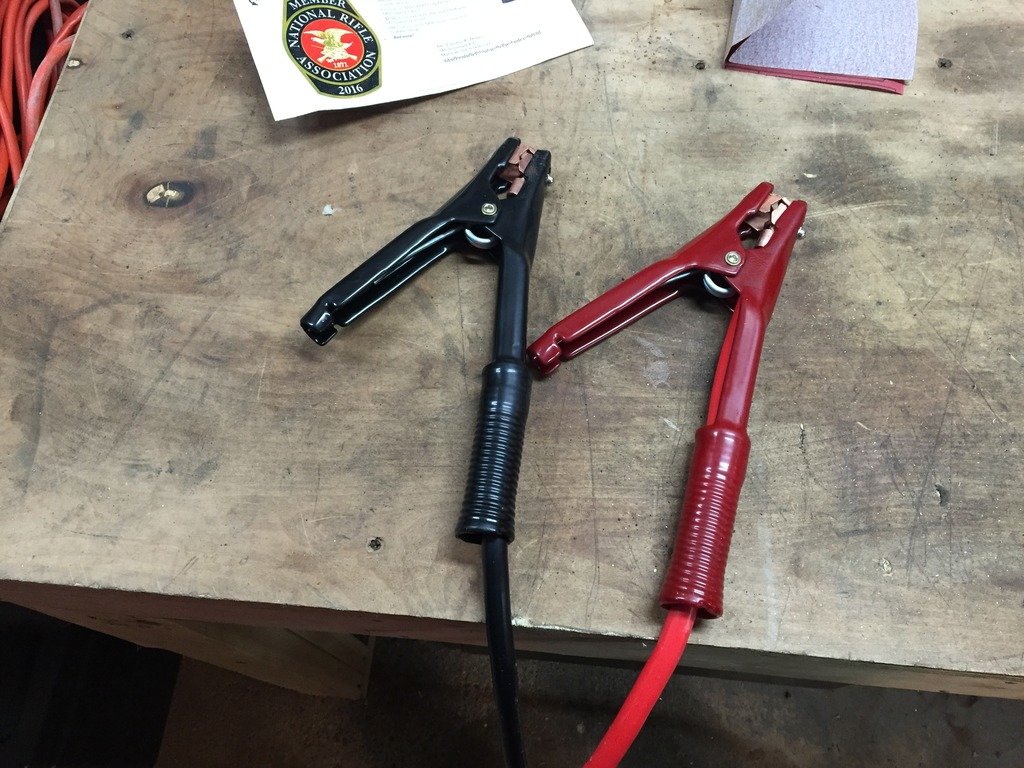

    These cables were not connected to one another like jumper cables are. So, I ran electrical tape down the entire length of cable to make them easier to handle and store.
    22064209-5F1C-4447-90BE-6209FF1F9826_zps_ab14bff8c2c6293b4cee8b42497326d82b8231f7.jpg

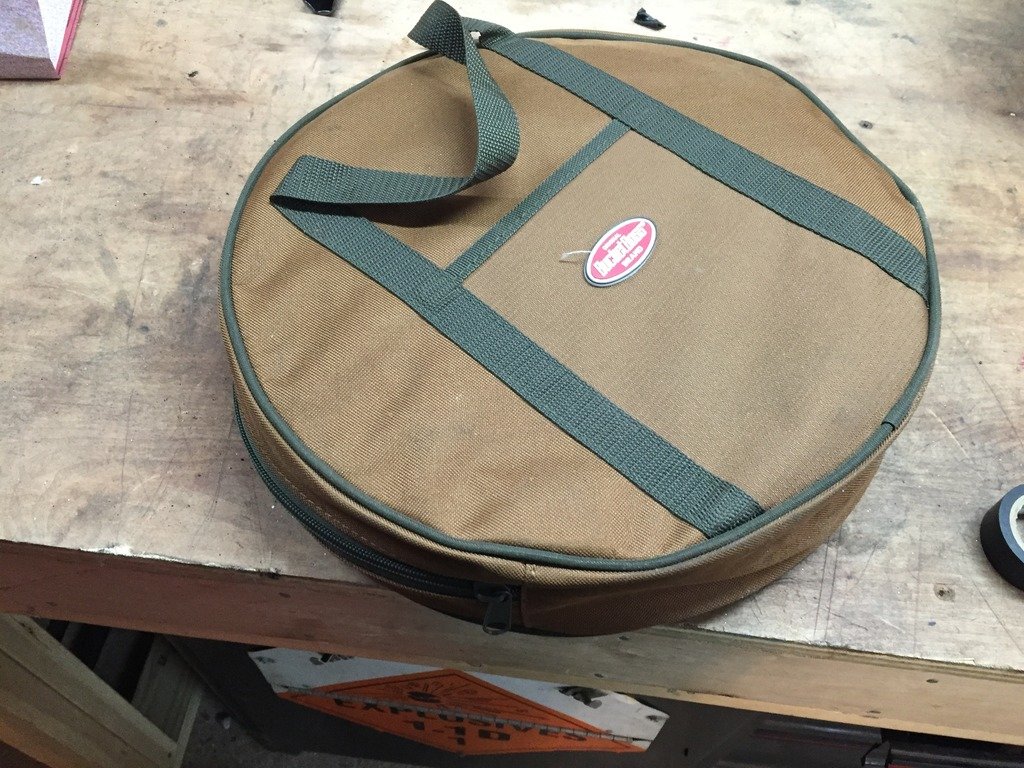

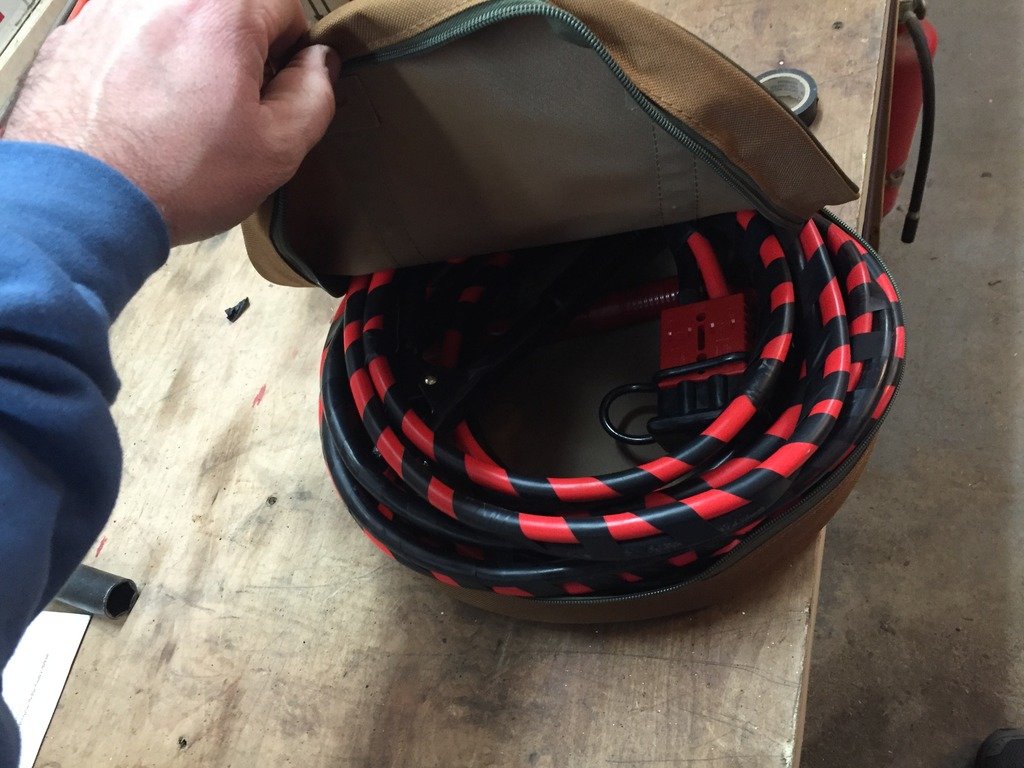

    And lastly, rolled it up neatly, put it in the jumper cable bag, and put it in the toolbox.
    ACF9E3DA-B931-4717-860D-045039D0F860_zps_2fa3cfe91e12a3f56175ee8c786c168b96bae2f7.jpg

    D41C4D5D-A8DE-4D2E-98C2-B330797182B1_zps_d98fc530ce2d1f4fcf890c60e66231e3a0613248.jpg

    C013A1E2-9B74-45D1-B2B5-693D8BF1A030_zps_3c1b539881138d0c5ddc868138c0fe25eda07d00.jpg

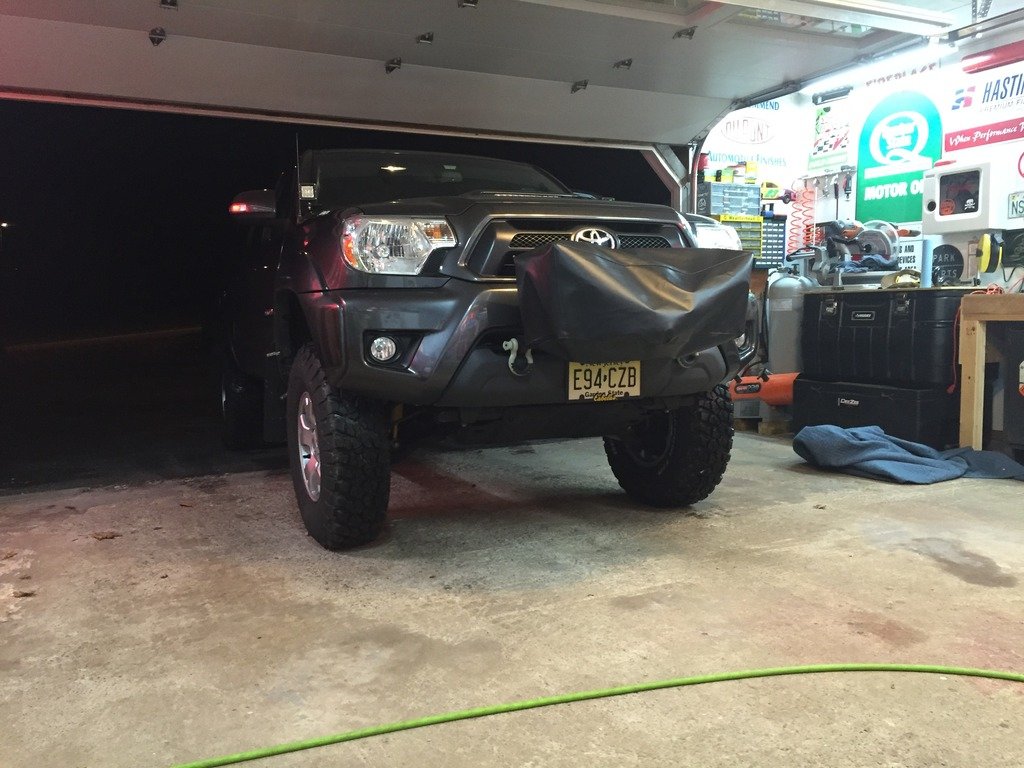

    I also had a cover made for it out of tonneau cover material. It ruins the "look" for sure, but I'm hoping It'll keep salt and road grime off of the synthetic rope.
    72F6697D-2397-4D5C-83C1-108BC3AF7AF6_zps_c61b9e51b4ced3a3cc55bb9d518a48de07fd6e83.jpg

    Wow... That took forever... Hope it helps!

    Oh, don't forget to pick up a locking hitch pin :thumbsup:

    Last edited: Dec 11, 2015
    yesmar, DoorDing, taco-man and 2 others like this.
  2. Dec 10, 2015 at 11:33 PM
    #2
    DC-USAF

    DC-USAF Well-Known Member

    Joined:
    Mar 13, 2013
    Member:
    #99665
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Dale
    WNC
    Vehicle:
    2015 SR5 Access Cab 4x4 V6
    TRD PRO Grill, mobtown offroad recovery bar, SCS Ray 10's
    I've been making a list of items that I thought I would need once my recovery bar comes. You have saved me alot of time searching for parts and im sure more people will also appreciate your help. Thanks for taking the time to do this.

  3. Dec 11, 2015 at 4:55 AM
    #3
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    No prob. Good luck!

  4. Dec 11, 2015 at 7:18 AM
    #4
    Pigpen

    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    8,854
    Gender:
    Male
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab toolbox/ dog bed with seats and headrests deleted, waterproof TRD seat covers, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to bumper, Pelfreybilt IFS and Mid skids, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Toyo M55 load E tires on stock steel rims, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 27F battery, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, Cobra 75WXST cb with rear mounted Wilson 3' antenna on Shmellmopwho mount, OME Dakar leaf packs with AAL, Billstein B110 rear shocks, 5100s with 885 coils and 1/4" spacers, SPC LR UCAs, 2wd low range mod
  5. Dec 11, 2015 at 7:24 AM
    #5
    SportsmanJake

    SportsmanJake Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    389
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    I am assuming you will keep it in the cab unless you actually need to use it or are in a situation where it might me needed?

  6. Dec 11, 2015 at 8:48 AM
    #6
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    Thank you. I almost went With the Warn Cradle myself.

    Nope. I leave it on the front. That's the reason I went with 886's when I did the lift.

    That's also why I had the cover made.

  7. Dec 11, 2015 at 7:19 PM
    #7
    yesmar

    yesmar Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103280
    Messages:
    680
    Gender:
    Male
    First Name:
    Ramsey
    Harrisburg, PA
    Vehicle:
    15 AC 2.7 4x4 5speed
    this is the winch set up I'm aiming for. you can't beat the option of front and rear winching on the fly. but ill only be rocking it when i need it

    my only question why would you leave it on all the time? Isn't one of the luxuries of having a mobile winch set up so you don't have to drag it around with you everywhere you go, no?

  8. Dec 11, 2015 at 7:30 PM
    #8
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    The luxury is having options. I can take it off if I want. That is nice.

    But, one thing I know for sure, when you need the winch, you don't want it to be sitting in the work bench. ;)

    Last edited: Dec 12, 2015
  9. Dec 11, 2015 at 7:36 PM
    #9
    yesmar

    yesmar Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103280
    Messages:
    680
    Gender:
    Male
    First Name:
    Ramsey
    Harrisburg, PA
    Vehicle:
    15 AC 2.7 4x4 5speed
    yeah i hear that, I'm going to keep mine in my toolbox on my truck.
    Keep this thread updated when you use it. I'm sure its not as sturdy as one bolted to a plate bumper but i know it will get you out.
    deff going with this style set up.

  10. Dec 11, 2015 at 7:38 PM
    #10
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    Will do. I'm looking forward to using it. I'm not looking forward to being stuck. I'm so conflicted...

    yesmar likes this.
  11. Dec 11, 2015 at 7:41 PM
    #11
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    Another reason I leave it on, is that I put 886's on with the lift. I know I'm going to do sliders and armor at some point. Didn't want to have to do the coils twice. The winch up front helps break the 886's.

  12. Dec 11, 2015 at 7:43 PM
    #12
    yesmar

    yesmar Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103280
    Messages:
    680
    Gender:
    Male
    First Name:
    Ramsey
    Harrisburg, PA
    Vehicle:
    15 AC 2.7 4x4 5speed
    hey, how much would you say the whole cradle and winch weigh? like just what you'd be pulling on and off the truck

  13. Dec 11, 2015 at 7:50 PM
    #13
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    The winch is 85 lbs with synthetic rope. The cradle is 30 lbs. 115 lbs. Not too bad.

  14. Dec 11, 2015 at 8:25 PM
    #14
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,790
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    That's easy - rescue some poor stranded jeep.:bananadance:

    HolyHandGrenade [OP] likes this.
  15. Dec 11, 2015 at 8:46 PM
    #15
    Pigpen

    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    8,854
    Gender:
    Male
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab toolbox/ dog bed with seats and headrests deleted, waterproof TRD seat covers, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to bumper, Pelfreybilt IFS and Mid skids, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Toyo M55 load E tires on stock steel rims, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 27F battery, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, Cobra 75WXST cb with rear mounted Wilson 3' antenna on Shmellmopwho mount, OME Dakar leaf packs with AAL, Billstein B110 rear shocks, 5100s with 885 coils and 1/4" spacers, SPC LR UCAs, 2wd low range mod
    Interesting... I'm running steel line. I wonder what my setup weighs now. I would have guessed less than that.

  16. Dec 11, 2015 at 8:58 PM
    #16
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    I just checked their site. Synthetic is 89.1 lbs. wire is 116 lbs. so, another 25-30 lbs depending on rope length. Theirs are both 100'.

    Jtaoj0 and Pigpen like this.
  17. Jan 6, 2016 at 7:30 PM
    #17
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff

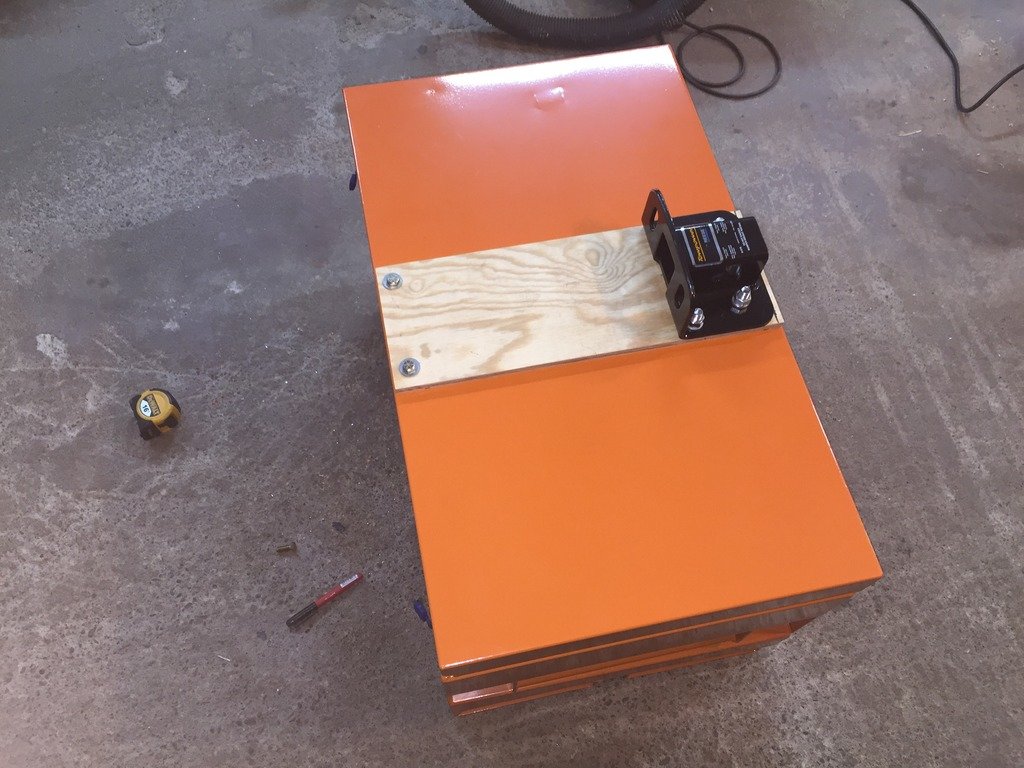

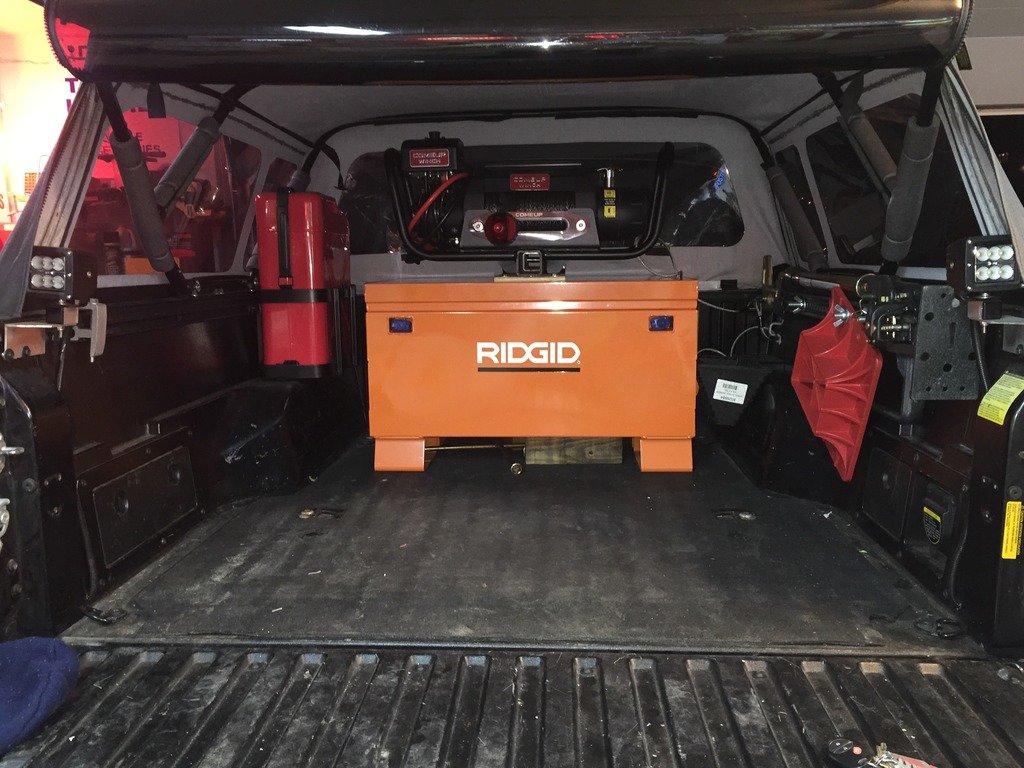

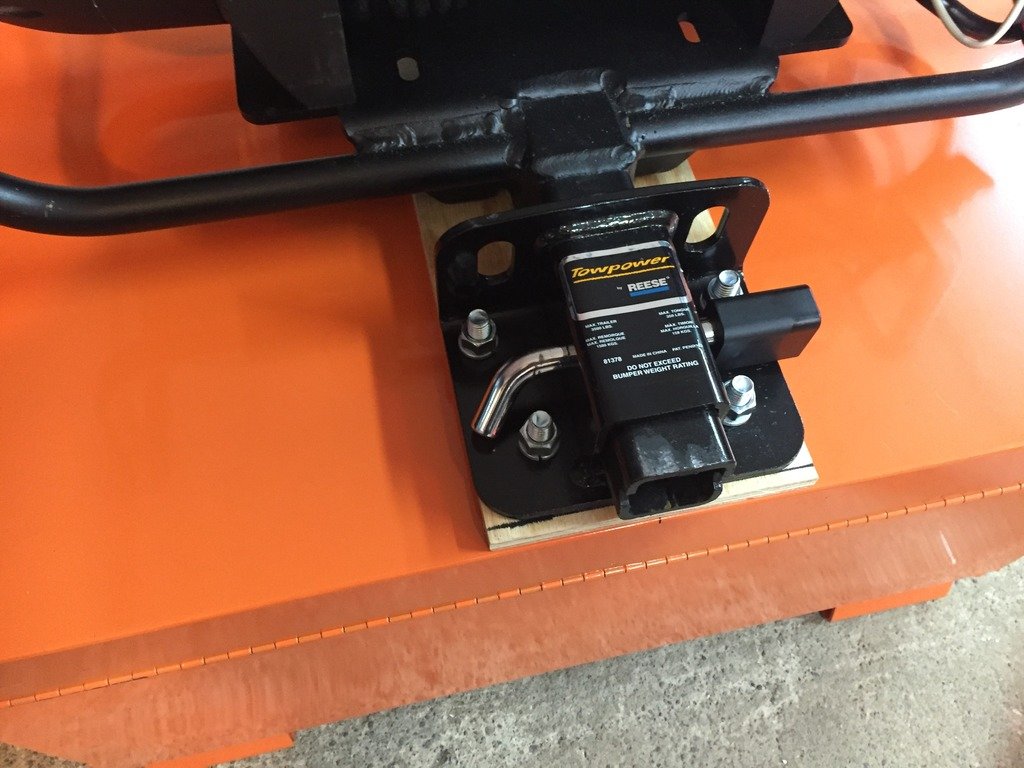

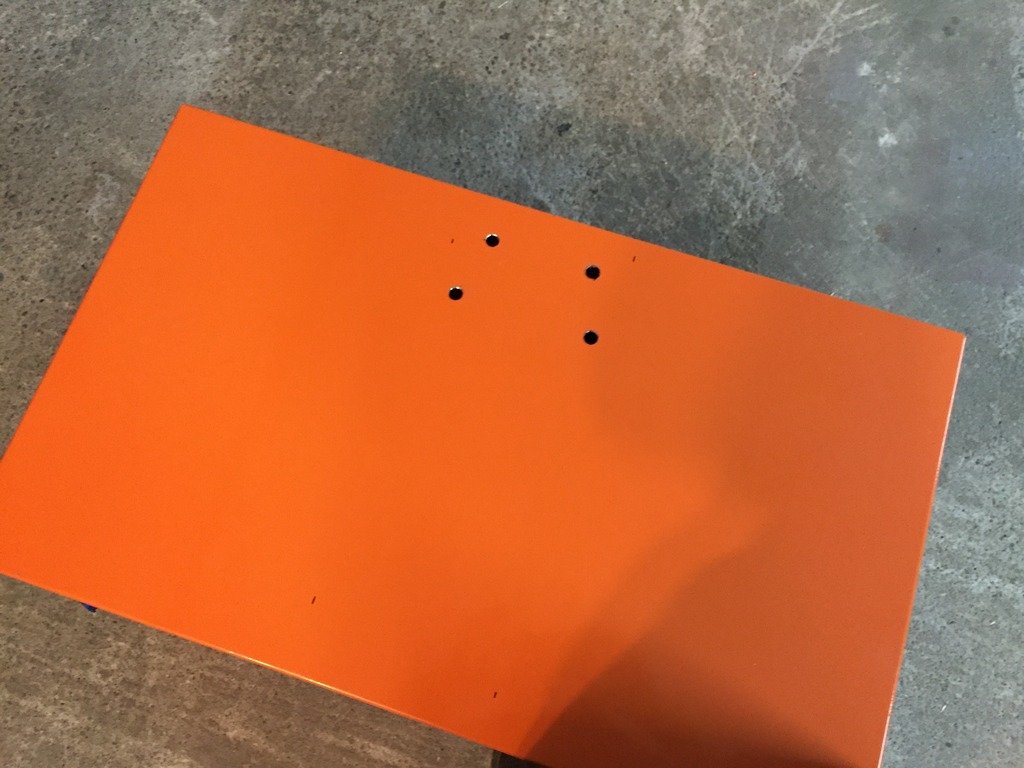

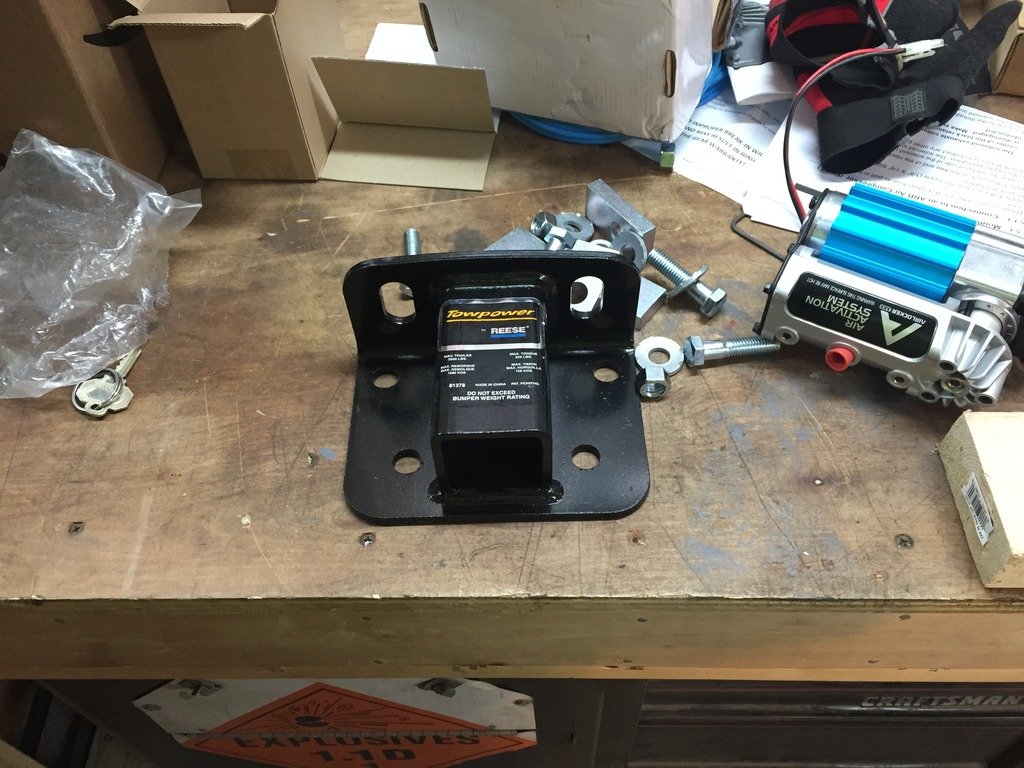

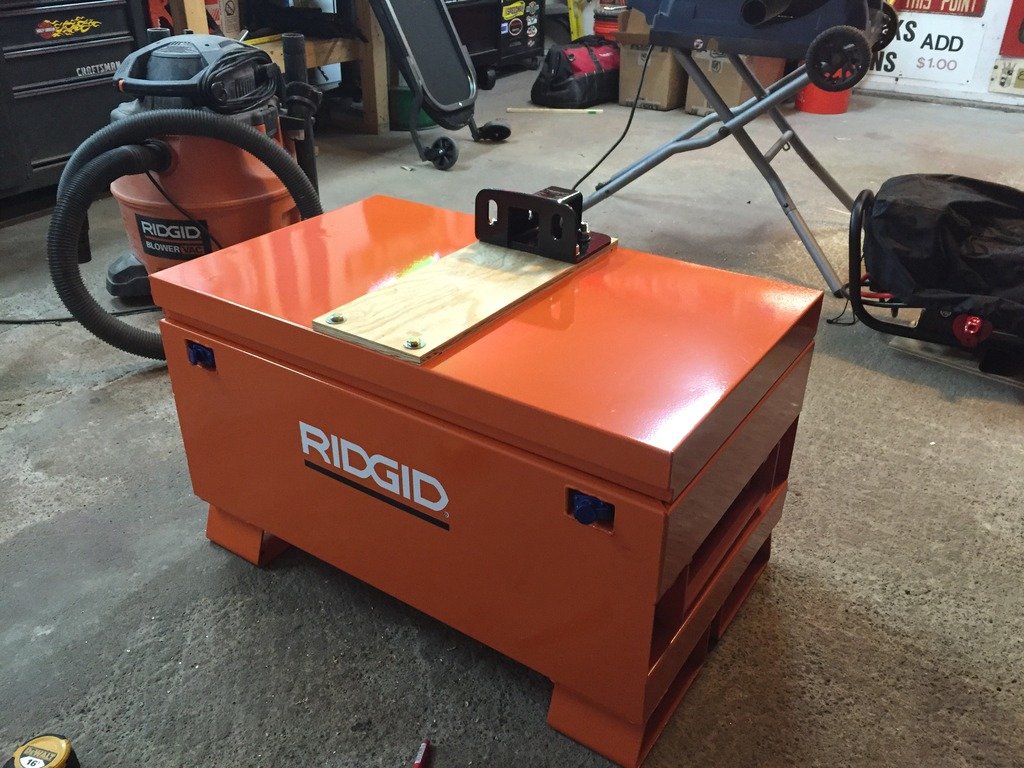

    Last edited: Jan 6, 2016
    yesmar likes this.
  18. Jan 6, 2016 at 7:53 PM
    #18
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,002
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    That'll keep it out of your way. Gonna be a pain to lift the lid on that box now, though.

  19. Jan 6, 2016 at 7:56 PM
    #19
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB
    Some Stuff
    Yeah, this is true. It's all recovery gear and such in there. If I need to get in, chances are, I'll need the winch anyway... :thumbsup:

  20. Jul 5, 2016 at 12:04 PM
    #20
    deeve

    deeve Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175103
    Messages:
    143
    Gender:
    Male
    First Name:
    Dave
    Hillsboro, OR
    Vehicle:
    2015 TRD OR SB MGM
    Great post...Thanks for the write-up. I am curious on your thoughts regarding the hitch pin strength for recovery. It seems that would be a weak point, but I have never used one so I am curious. I like the low profile of the Mobtown recovery front bar.

    Thanks!
    DAVE
