ND4's Fog Light Anytime Mod... NO splicing, No Bending, 100% reversible

Discussion in '2nd Gen. Tacomas (2005-2015)' started by nd4spdbh, Jan 4, 2014.

Page 43 of 56
  1. Oct 4, 2019 at 5:44 PM
    #841
    20stormtrooper15

    #841
    20stormtrooper15 Member

    Joined:
    Sep 26, 2019
    Member:
    #306384
    Messages:
    7
    Gender:
    Male
    SWVA
    Maybe I’m doing something wrong but in my 15 TRD OR I have things wired as they should be but the fogs aren’t coming on at all. It worked initially when I did the wiring now I get no power at all.

    20stormtrooper15, Oct 4, 2019
    #841
  2. Oct 4, 2019 at 5:48 PM
    #842
    gotblika

    #842
    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    869
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
    Sum Ting Wong

    gotblika, Oct 4, 2019
    #842
    Norton likes this.
  3. Oct 4, 2019 at 6:21 PM
    #843
    HawkShot99

    #843
    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    2,211
    Gender:
    Male
    Kingston, NY
    Vehicle:
    13' Silver DCLB TRD Sport - Sold
    If it did work, but now it doesn't then you probably popped the fuse.

    HawkShot99, Oct 4, 2019
    #843
  4. Oct 4, 2019 at 8:30 PM
    #844
    20stormtrooper15

    #844
    20stormtrooper15 Member

    Joined:
    Sep 26, 2019
    Member:
    #306384
    Messages:
    7
    Gender:
    Male
    SWVA
    Yeah I didn’t think about that.

    20stormtrooper15, Oct 4, 2019
    #844
  5. Oct 11, 2019 at 5:28 AM
    #845
    12taco12

    #845
    12taco12 Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219836
    Messages:
    1,160
    Gender:
    Male
    rochester NY
    Vehicle:
    2012 TX Pro
    Billy 5100s OME 886 Billy remote resi 5125 rear General hd packs TImbren superbumps/flipkit Pelfrey steel full hoop front SOS bolt on sliders Baja squadron amber fogs Baja 20" bar Aux fuse panel and switches custom 10 sub box double din
    ok i know this is gonna probably be a stupid question but do the wires need to be different colors, or is it just for ease of connecting for installer

    12taco12, Oct 11, 2019
    #845
  6. Oct 11, 2019 at 7:19 AM
    #846
    nd4spdbh

    #846
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    13,980
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    wires can be any color you want to long as they go the appropriate place.

    Only reason i have 4 different color wires in my original post is i had a section of trailer wiring harness left over... that just so happens to use 4 wires!

    nd4spdbh, Oct 11, 2019
    #846
    asudevil likes this.
  7. Oct 11, 2019 at 7:20 AM
    #847
    12taco12

    #847
    12taco12 Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219836
    Messages:
    1,160
    Gender:
    Male
    rochester NY
    Vehicle:
    2012 TX Pro
    Billy 5100s OME 886 Billy remote resi 5125 rear General hd packs TImbren superbumps/flipkit Pelfrey steel full hoop front SOS bolt on sliders Baja squadron amber fogs Baja 20" bar Aux fuse panel and switches custom 10 sub box double din
    and what gauge would be good

    12taco12, Oct 11, 2019
    #847
  8. Oct 11, 2019 at 7:22 AM
    #848
    nd4spdbh

    #848
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    13,980
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    I wouldnt use anything less in size than 14awg. 12awg would be better, 10awg would be overkill.

    nd4spdbh, Oct 11, 2019
    #848
    asudevil likes this.
  9. Oct 11, 2019 at 7:22 AM
    #849
    12taco12

    #849
    12taco12 Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219836
    Messages:
    1,160
    Gender:
    Male
    rochester NY
    Vehicle:
    2012 TX Pro
    Billy 5100s OME 886 Billy remote resi 5125 rear General hd packs TImbren superbumps/flipkit Pelfrey steel full hoop front SOS bolt on sliders Baja squadron amber fogs Baja 20" bar Aux fuse panel and switches custom 10 sub box double din
    10-4 thanks brother

    12taco12, Oct 11, 2019
    #849
    nd4spdbh[OP] likes this.
  10. Oct 13, 2019 at 10:08 AM
    #850
    12taco12

    #850
    12taco12 Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219836
    Messages:
    1,160
    Gender:
    Male
    rochester NY
    Vehicle:
    2012 TX Pro
    Billy 5100s OME 886 Billy remote resi 5125 rear General hd packs TImbren superbumps/flipkit Pelfrey steel full hoop front SOS bolt on sliders Baja squadron amber fogs Baja 20" bar Aux fuse panel and switches custom 10 sub box double din
    just did it super fast and nicer than splicing, now to install the BD in the bumper

    12taco12, Oct 13, 2019
    #850
    nd4spdbh[OP] likes this.
  11. Oct 13, 2019 at 12:04 PM
    #851
    Finkous

    #851
    Finkous Member

    Joined:
    Jan 15, 2018
    Member:
    #241350
    Messages:
    5
    Gender:
    Male
    I looked into doing this mod, but i have heated seats and the relay is beside the fog light relay making it very difficult to get all the wires inside the fuse box. There was a topic about using a tiny wire to connect two terminals on the relay making the fog lights come on with highbeam only, not on all the time. but it was pre 2012 and the relays are different on the 2014’s. All i want is an easy way to make the fog lights stay on when the headlights are on, high and low beam.

    Finkous, Oct 13, 2019
    #851
  12. Oct 13, 2019 at 12:58 PM
    #852
    HawkShot99

    #852
    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    2,211
    Gender:
    Male
    Kingston, NY
    Vehicle:
    13' Silver DCLB TRD Sport - Sold
    Stock heated seats or aftermarket? If aftermarket, why can't you move the relay to a different spot?

    As far as doing this mod, if I pop the cover on that fuse panel, I can barely tell that it's been messed with.

    HawkShot99, Oct 13, 2019
    #852
  13. Oct 13, 2019 at 1:02 PM
    #853
    Finkous

    #853
    Finkous Member

    Joined:
    Jan 15, 2018
    Member:
    #241350
    Messages:
    5
    Gender:
    Male
    stock heated seats

    Finkous, Oct 13, 2019
    #853
  14. Oct 13, 2019 at 2:51 PM
    #854
    nd4spdbh

    #854
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    13,980
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    If im not mistaken, somewhere buried in this here thread a member made it a stealth mod. Soldered a wire on the 12v switched hot (same pin the brown wire in OP goes to) underneath, then replaced the pin on the fog light spot so the fog relay stays in the same spot.

    nd4spdbh, Oct 13, 2019
    #854
  15. Oct 13, 2019 at 4:49 PM
    #855
    HawkShot99

    #855
    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    2,211
    Gender:
    Male
    Kingston, NY
    Vehicle:
    13' Silver DCLB TRD Sport - Sold
    Didnt realize any 2nd gens got them.

    HawkShot99, Oct 13, 2019
    #855
  16. Oct 13, 2019 at 5:59 PM
    #856
    gotblika

    #856
    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    869
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
    I did the single wire method with bending the terminal on the relay, should work for you. No need the inline fuse, it’s worthless. https://www.tacomaworld.com/threads/2013-fog-light-anytime-w-fuse-step-by-step.279537/

    Last edited: Oct 13, 2019
    gotblika, Oct 13, 2019
    #856
  17. Oct 13, 2019 at 9:16 PM
    #857
    caribe makaira

    #857
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,496
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OEM in there is 18 and 20 awg...


    Last edited: Oct 13, 2019
    caribe makaira, Oct 13, 2019
    #857
    gotblika likes this.
  18. Oct 13, 2019 at 9:33 PM
    #858
    Shadowhunter

    #858
    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    3,837
    Gender:
    Male
    First Name:
    Nate
    Birdsview Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer

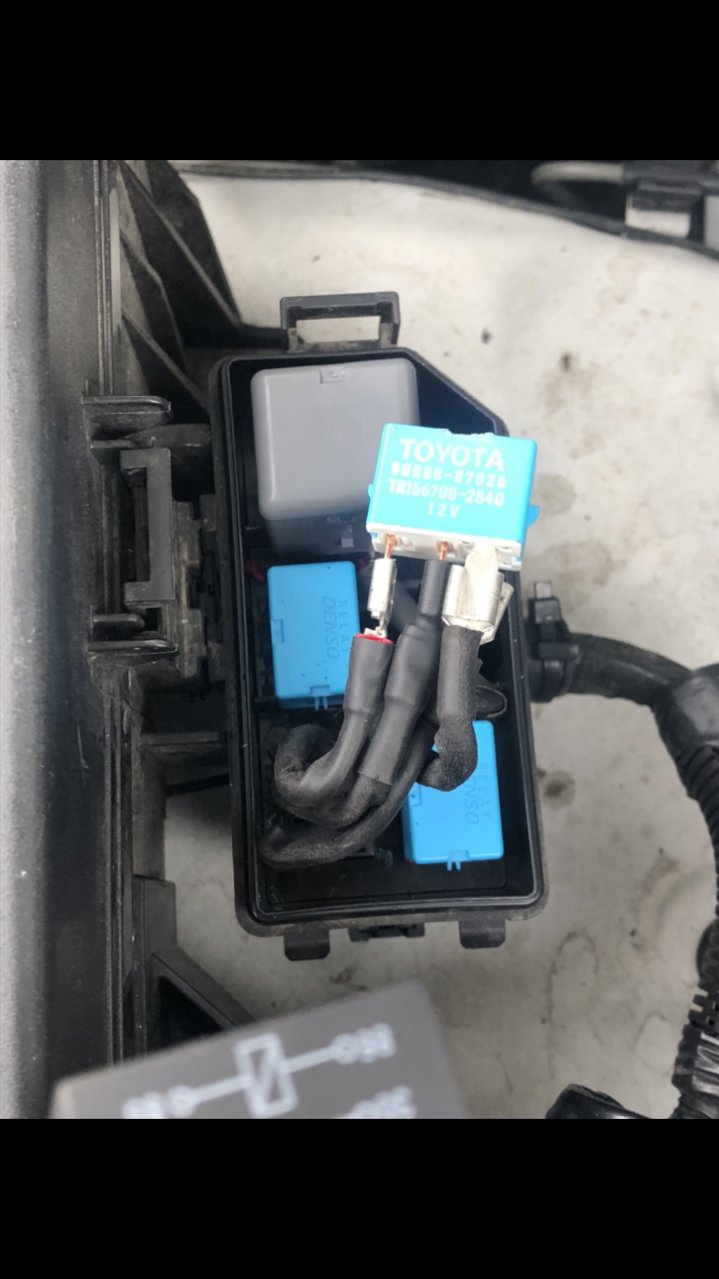

    61903B12-D441-489B-A637-C143DCAE11C9.jpg Mine fit in there, I didn’t even notice the heated seat relay being a problem. Hell I didn’t realize it was in there till this post.

    Shadowhunter, Oct 13, 2019
    #858
  19. Oct 13, 2019 at 9:41 PM
    #859
    caribe makaira

    #859
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,496
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

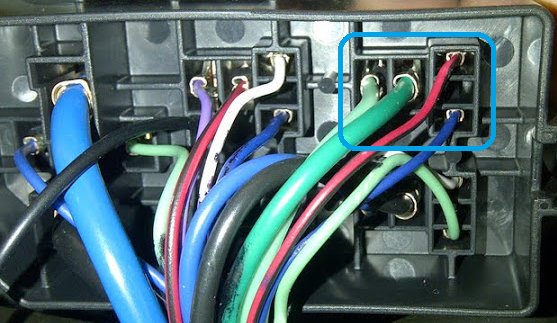

    You should run the heat shrink up to cover the terminals...

    caribe makaira, Oct 13, 2019
    #859
  20. Oct 13, 2019 at 10:00 PM
    #860
    Shadowhunter

    #860
    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    3,837
    Gender:
    Male
    First Name:
    Nate
    Birdsview Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer
    I eventually did. I only had a short chunk left big enough to cover the middle one at the time of the pic.

    Shadowhunter, Oct 13, 2019
    #860
