Need brake controller help!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by andrew3625897, Jun 11, 2019 at 6:24 PM.

  1. Jun 11, 2019 at 6:24 PM
    #1
    andrew3625897

    andrew3625897 [OP] New Member

    Joined:
    Tuesday
    Member:
    #296073
    Messages:
    2
    Gender:
    Male
    2010 Tacoma Trd with tow package. I have been trying to figure out the wiring harness for a brake controller.
    From my research it looked like I needed the Tekonsha 3040-p harness but it does not fit the only port I found that is free.

    Is this the right place to plug into for brake controller?

  2. Jun 11, 2019 at 6:33 PM
    #2
    pmstoy10

    pmstoy10 Well-Known Member

    Joined:
    Mar 15, 2012
    Member:
    #74978
    Messages:
    739
    Gender:
    Male
    hudson valley, ny
    Vehicle:
    2010 Tacoma DCLB TRD Sport
    Weathertech Floor Liners, UWS Toolbox, Seatbelt Chime Mod, Coverking Covers, Window Guards, Wheeler's 1.5" Single Leaf AAL, Rear Spring TSB, Front Bilstein 5100's @ 2.5", Rear Extended Travel Bilstein 5100's, removed front mud flaps, Lifetime LED Headlights, Firestone RideRite Air Bags with Daystar Cradles, Light Racing UCA's, ECGS Front Diff Bushing
    In my 2010 it was this one. There should be a pigtail that comes with the truck that you can wire to work. That's what I did. I wired it to a 4-pin trailer plug, then wired the controller to the opposite side of the 4-pin plug. That way I could always change the controller if I needed to.


  3. Jun 11, 2019 at 6:35 PM
    #3
    Radarninja

    Radarninja Safety 3rd

    Joined:
    Jun 10, 2017
    Member:
    #221167
    Messages:
    1,043
    Gender:
    Male
    First Name:
    Ryan
    Northern California
    Vehicle:
    06 taco
    Chromed out radiator cap
    It comes in the glovebox

  4. Jun 12, 2019 at 12:47 AM
    #4
    andrew3625897

    andrew3625897 [OP] New Member

    Joined:
    Tuesday
    Member:
    #296073
    Messages:
    2
    Gender:
    Male

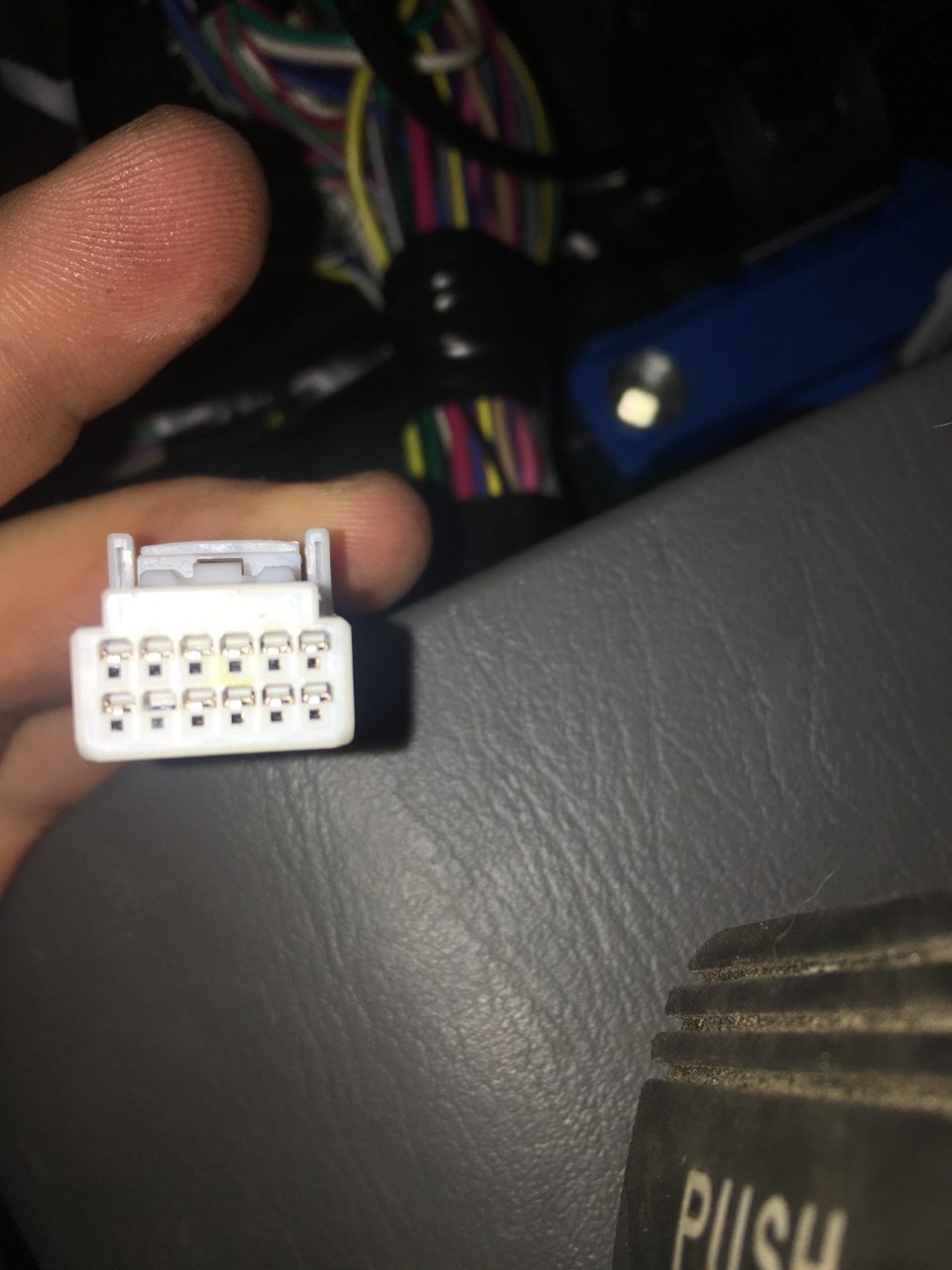

    This is what Iv been looking for but cannot find it. I don’t think what I’m holding is what I need and Im stumped.

  5. Jun 12, 2019 at 1:47 AM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    1,233
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

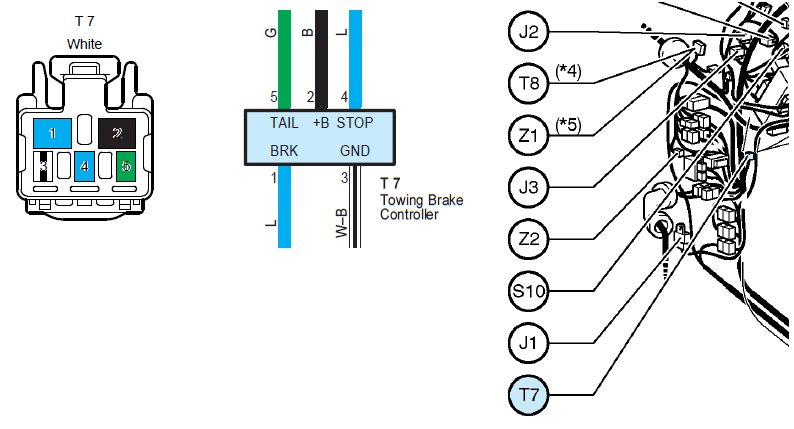

  6. Jun 12, 2019 at 4:15 AM
    #6
    pmstoy10

    pmstoy10 Well-Known Member

    Joined:
    Mar 15, 2012
    Member:
    #74978
    Messages:
    739
    Gender:
    Male
    hudson valley, ny
    Vehicle:
    2010 Tacoma DCLB TRD Sport
    Weathertech Floor Liners, UWS Toolbox, Seatbelt Chime Mod, Coverking Covers, Window Guards, Wheeler's 1.5" Single Leaf AAL, Rear Spring TSB, Front Bilstein 5100's @ 2.5", Rear Extended Travel Bilstein 5100's, removed front mud flaps, Lifetime LED Headlights, Firestone RideRite Air Bags with Daystar Cradles, Light Racing UCA's, ECGS Front Diff Bushing

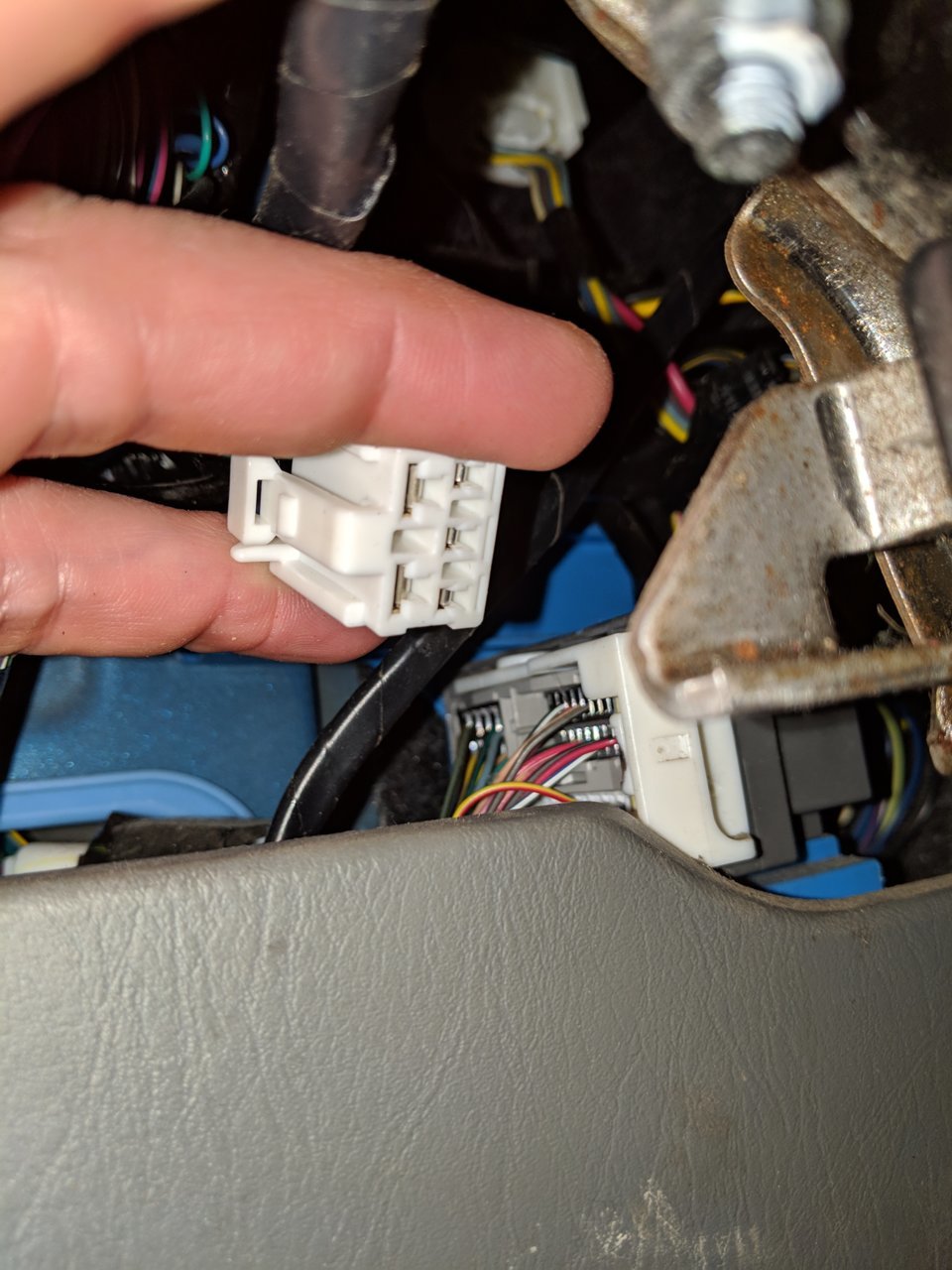

    Keep digging. It's in there. It took me a while to find the first time

  7. Jun 12, 2019 at 4:51 AM
    #7
    pearing

    pearing Well-Known Member

    Joined:
    Aug 4, 2018
    Member:
    #261610
    Messages:
    178
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 SR5 quadcab

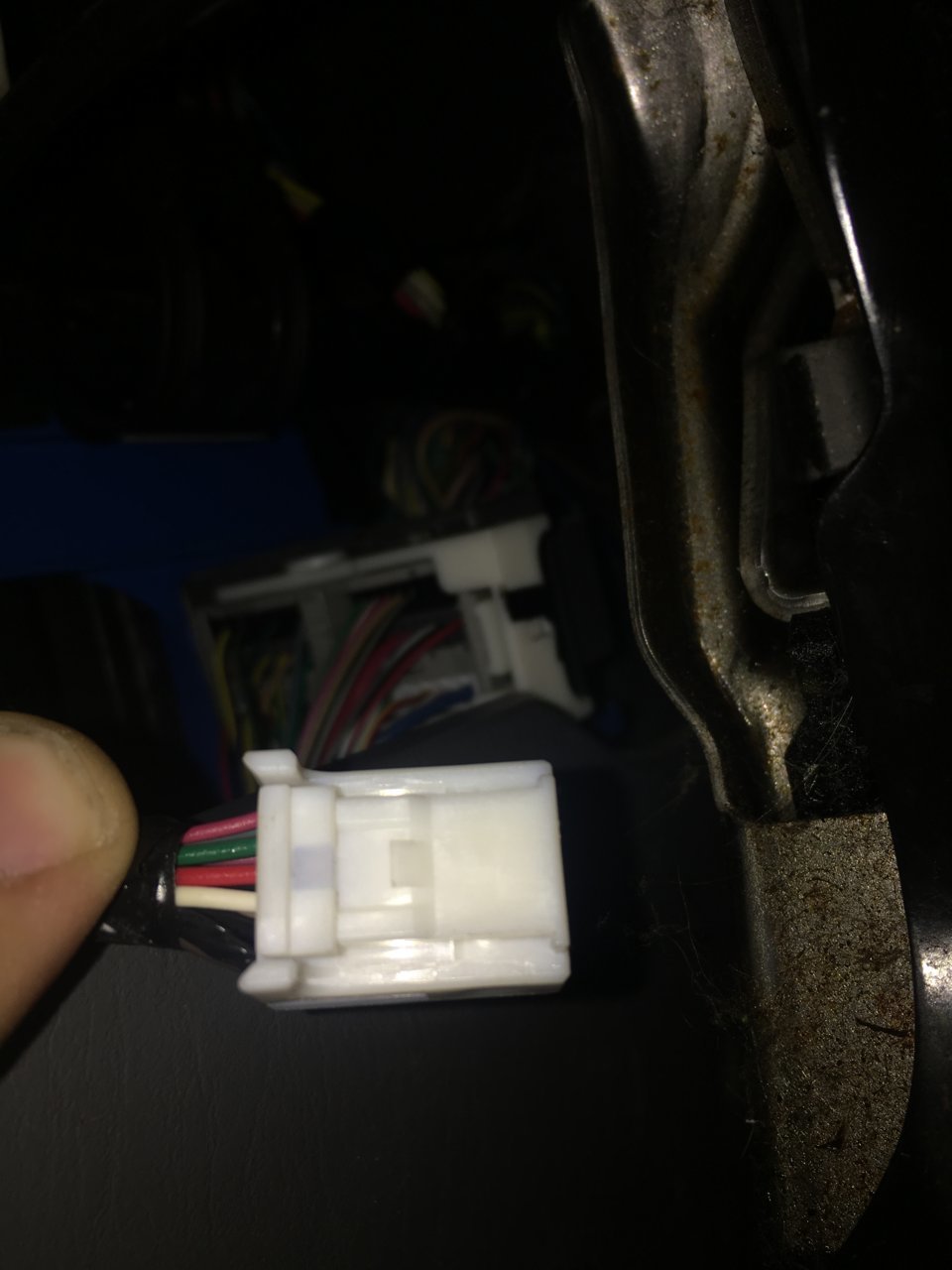

    Mine was WAYYYY up there on the back side of the wiring loom. Had to cut some of the tape loose to find it. That was the hardest part. It is up and behind the big wire bundle on the drivers side up above the brake.
