Need electrical advice to setup bed mounted ditch lights.

Discussion in '3rd Gen. Tacomas (2016+)' started by LivinOnEdge, Feb 5, 2020.

  1. Feb 5, 2020 at 11:42 AM
    #1
    LivinOnEdge

    LivinOnEdge [OP] ✧゚・:*¯\_(ツ)_/¯*:・゚✧ Sarcastic Fairy Dust

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,011
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator
    I do alot of work for family, friends and even myself at night. Saw a deal online for $20 for cheapo ditch lights that I figured I could mount to the bed rails using t-nuts.

    I guess the question is, how would one go about wiring it to switch in the cab? I have Meso's fuse cover as well if a tap needs to be added.

    I'm an electrical novice here.

  2. Feb 5, 2020 at 11:53 AM
    #2
    Camel89

    Camel89 IG: kh.camel

    Joined:
    Nov 30, 2015
    Member:
    #171087
    Messages:
    425
    Gender:
    Male
    Houston, TX
    Vehicle:
    2016 TRD OR 4x4
    You most likely want these on a separate switch, right? If so, you will need to run the wires to the engine compartment, and use a relay which will then connect to a switch inside the cab, if that is where you want the switch.

  3. Feb 5, 2020 at 11:59 AM
    #3
    EnBoo

    EnBoo Well-Known Member

    Joined:
    Jul 16, 2018
    Member:
    #259519
    Messages:
    369
    Gender:
    Male
    First Name:
    Nathan
    Denver, CO
    Vehicle:
    2018 DCSB Quicksand Sellout
    You could just get a cheap wiring kit off Amazon that has 2 light leads and a relay pre wired. You would most likely just need to extend the light leads to the bed.

    Everything would wire to the engine bay. Then you would take the switch wiring and feed it through to a new cab switch instead of using the provided kit switch.

    Edit. If you go with a ch4x4 style oem switch theres 4 wires and are pretty easy to setup. There are a few guides on here on how to do it

    LivinOnEdge [OP] likes this.
  4. Feb 5, 2020 at 12:03 PM
    #4
    LivinOnEdge

    LivinOnEdge [OP] ✧゚・:*¯\_(ツ)_/¯*:・゚✧ Sarcastic Fairy Dust

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,011
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator
    Any chance you could provide a link to this wiring kit you speak of? Thank you for the help!

  5. Feb 5, 2020 at 12:07 PM
    #5
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,507
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    I put ditch and reverse lights on my shell rack using a remote controlled switch that includes 2- 10amp relays. No wiring needed to the cab and it works very well!

    Solidremote 12V - 24V Secure Wireless RF Remote Control Relay Switch Universal 2-Channel 433MHz Receiver with 2 FCC ID Transmitters for Garage Door Openers, Cars, LED Lights & More (KIT-1) https://www.amazon.com/dp/B01JGDV8UM/ref=cm_sw_r_cp_api_i_ubYoEbMM5WZ3P

    LivinOnEdge [OP] likes this.
  6. Feb 5, 2020 at 12:09 PM
    #6
    LivinOnEdge

    LivinOnEdge [OP] ✧゚・:*¯\_(ツ)_/¯*:・゚✧ Sarcastic Fairy Dust

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,011
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator
    Hold on cowboy, while that's super neat, I'm still on step one....

    1. Have an idea I don't know how to execute and ask everyone else to do the work for me.

    :oops:

  7. Feb 5, 2020 at 12:12 PM
    #7
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,507
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    “I guess the question is, how would one go about wiring it to switch in the cab?”... I just mentioned a way to skip that step and make the job a whole lot easier...:thumbsup:

    LivinOnEdge [OP] likes this.
  8. Feb 5, 2020 at 12:15 PM
    #8
    Masterofnone

    Masterofnone 140.85

    Joined:
    Jan 14, 2017
    Member:
    #207536
    Messages:
    1,649
    Gender:
    Male
    First Name:
    Bobby
    Kansas
    Vehicle:
    2017 TRD Sport AC MT
    Buy a giant halogen work light and plug it into the bed outlet.


    BOOM.

  9. Feb 5, 2020 at 12:16 PM
    #9
    LivinOnEdge

    LivinOnEdge [OP] ✧゚・:*¯\_(ツ)_/¯*:・゚✧ Sarcastic Fairy Dust

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,011
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator
    :rofl: I have to look cool though, I have to make up for my lack of skewp.

    Masterofnone likes this.
  10. Feb 5, 2020 at 12:19 PM
    #10
    Masterofnone

    Masterofnone 140.85

    Joined:
    Jan 14, 2017
    Member:
    #207536
    Messages:
    1,649
    Gender:
    Male
    First Name:
    Bobby
    Kansas
    Vehicle:
    2017 TRD Sport AC MT
    Ha! Skewp don't make ya cool. Ask my wife...


    After the posts about guys trying to run lights and then their truck won't start, I'd wait to see how that all played out before splicing into anything.

  11. Feb 5, 2020 at 12:21 PM
    #11
    LivinOnEdge

    LivinOnEdge [OP] ✧゚・:*¯\_(ツ)_/¯*:・゚✧ Sarcastic Fairy Dust

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,011
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator
    After reading everyones other builds to ME at least, I am able to somehow wire the lights to the switch, then from the switch to the add a fuse. It seems so cheap and easy, the lights I want are like $13 and the button and wires are not much either, but just not sure what to buy and what works with what. As I said, I have an idea I want to execute and have no idea how.

  12. Feb 5, 2020 at 12:26 PM
    #12
    Masterofnone

    Masterofnone 140.85

    Joined:
    Jan 14, 2017
    Member:
    #207536
    Messages:
    1,649
    Gender:
    Male
    First Name:
    Bobby
    Kansas
    Vehicle:
    2017 TRD Sport AC MT
    So in the old days you found a hot spot in the fuse panel and go directly to it or splice into something that has power, mount your switch, wire to said switch, wire to the lights

    LivinOnEdge [OP] likes this.
  13. Feb 5, 2020 at 12:54 PM
    #13
    Camel89

    Camel89 IG: kh.camel

    Joined:
    Nov 30, 2015
    Member:
    #171087
    Messages:
    425
    Gender:
    Male
    Houston, TX
    Vehicle:
    2016 TRD OR 4x4
    https://www.amazon.com/RUN-D-Universal-Wiring-Harness-Connector/dp/B01B5UXWY4

    You would need a dual light wiring harness like this. Since the lights are going into your bed, you will need to extend the wires that go to your lights quite a bit to reach the bed.

    I would also wire it up directly to the battery instead of an add a fuse, or an auxiliary fuse box. If you want another switch, you can get one that will fit in one of your stock blanks if you have any, and wire that in instead of the switch supplied with the harness.

  14. Feb 5, 2020 at 1:38 PM
    #14
    LivinOnEdge

    LivinOnEdge [OP] ✧゚・:*¯\_(ツ)_/¯*:・゚✧ Sarcastic Fairy Dust

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,011
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator
    Thank you! That is very helpful!

  15. Feb 5, 2020 at 2:09 PM
    #15
    EnBoo

    EnBoo Well-Known Member

    Joined:
    Jul 16, 2018
    Member:
    #259519
    Messages:
    369
    Gender:
    Male
    First Name:
    Nathan
    Denver, CO
    Vehicle:
    2018 DCSB Quicksand Sellout
    I've used this one

    https://www.amazon.com/dp/B00O72R7Z8/ref=cm_sw_r_other_apa_i_jYZoEbG1AKKV4

    With a switch like this

    https://www.amazon.com/dp/B01MXI6JC6/ref=cm_sw_r_other_apa_i_6ZZoEbK8Y1C7F

    And I would get 16 gauge wire leads to extend the harness as well as some wire loom to route it.

    LivinOnEdge [OP] likes this.
  16. Feb 5, 2020 at 7:33 PM
    #16
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,078
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    https://www.tacomaworld.com/threads...uit-and-towed-battery-charger-circuit.650723/

  17. Feb 6, 2020 at 12:08 AM
    #17
    AKGSD

    AKGSD Warranty denied

    Joined:
    Apr 1, 2019
    Member:
    #288705
    Messages:
    966
    Gender:
    Male
    First Name:
    Joe
    Alaska
    Vehicle:
    2019 QSDCSBTRDOR4X4V6MT
    Dog hair, metaltech 4x4 rocksliders, KBVooDoo bed risers, Smittybilt RTT, 3” spacer lift (Removed!), caliraised ditch lights, amazon rock lights, OVtune, Skewp
    Why not tap it into the cargo lamp circuit? Then you don’t need to add an in-cab switch, and it will shut off when the battery gets low.
    Just make sure to only power the control side of your relay on it, not the lights themselves

  18. Feb 6, 2020 at 5:01 AM
    #18
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    855
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    Run it.


  19. Feb 6, 2020 at 6:25 AM
    #19
    savin yours

    savin yours Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266644
    Messages:
    751
    Gender:
    Male
    First Name:
    Bryan
    SE Tx
    Vehicle:
    2018 TRD Off Road

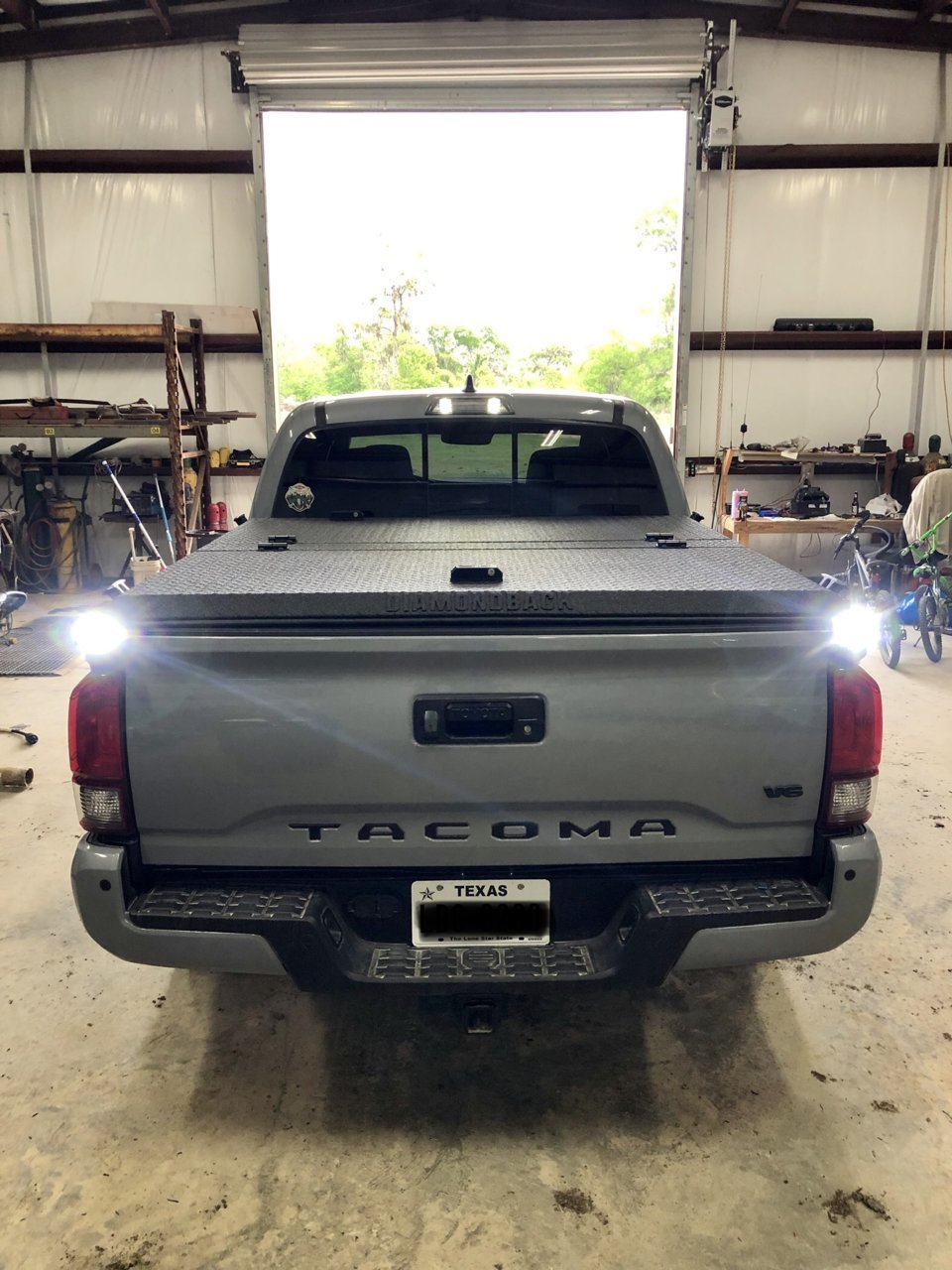

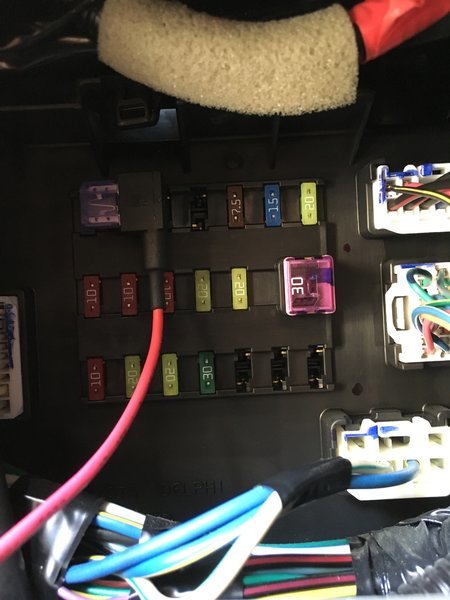

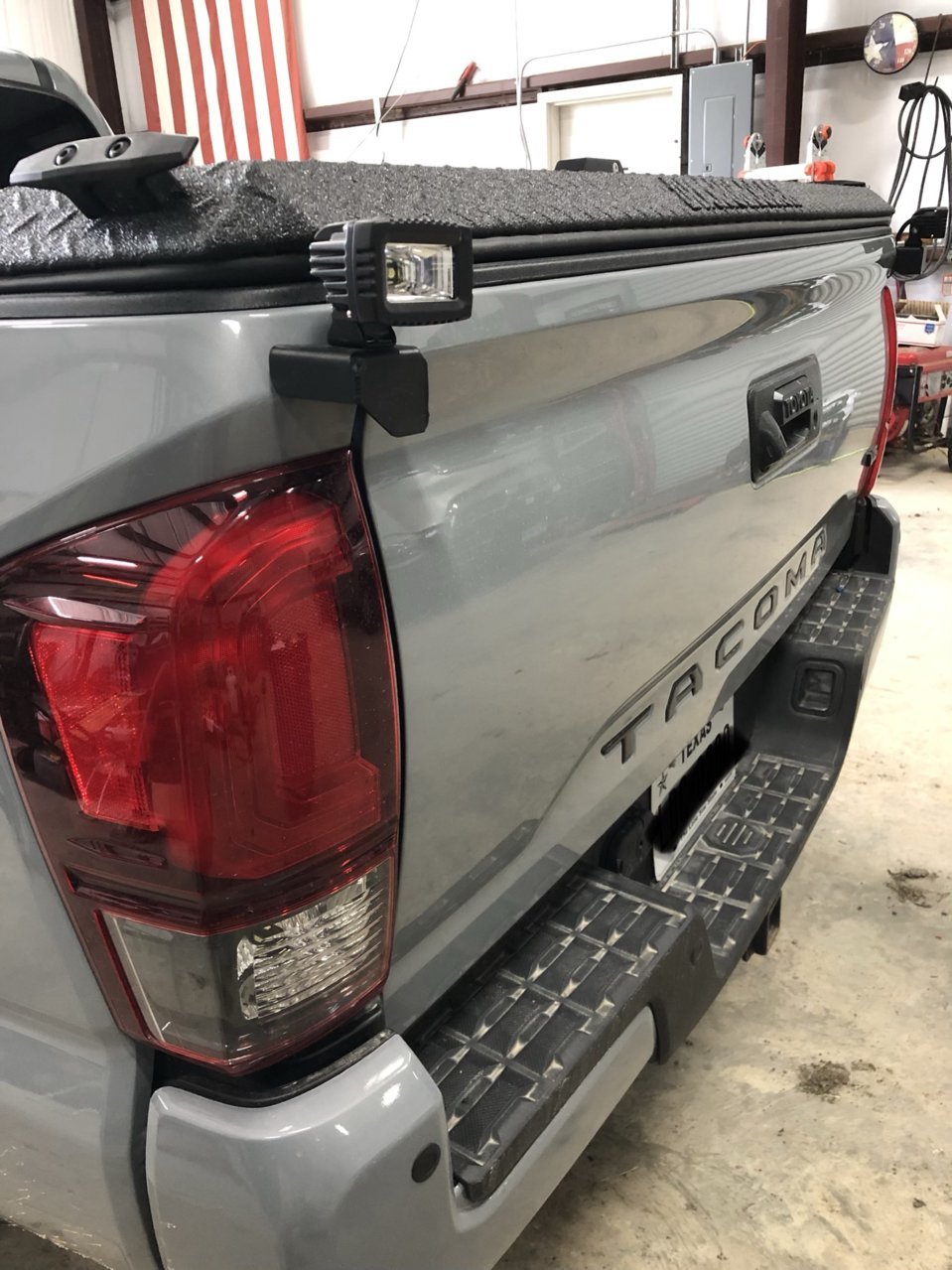

    Yep, switch to the cab, power to the battery. I used a light wiring kit and extended the wires to the back of the truck. Easy as can be


  20. Feb 6, 2020 at 9:11 AM
    #20
    Tacospike

    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    6,428
    Gender:
    Male
    Quarantine A-TX
    Vehicle:
    1 Owner 16 Attitude BLK TRD Spiked Sport 3.5 Gen
    Murderface Spike Edition
    I have ditch lights in my bed. Caliraised side shooters. They are mounted on a third rail behind the back window.
    The harness reached the battery but I did have to cut and splice additional wire for the interior cabin switch.
