Need help -- factory pre-wired for seat heaters? part numbers for factory switches

Discussion in '2nd Gen. Tacomas (2005-2015)' started by fireheadman, Dec 7, 2014.

  1. Dec 7, 2014 at 6:10 PM
    #1
    fireheadman

    fireheadman [OP] The Abyss

    Joined:
    Jun 1, 2013
    Member:
    #105360
    Messages:
    68
    Gender:
    Male
    Denver
    Vehicle:
    Blk 2015 Taco TRD Offroad
    access original tonneau cover, gentex genk51a review mirror, full leather katskin seats (Tucson), weather tech mats.
    Was curious if anyone has noticed taped up wires under their seats?
    I bought a 2015 Tacoma (TRD Offroad).

    I just finished changing the skins from factory to a full leather skin from John Huey, on the driver's side I noticed this bundle of wires taped up.... Anyone know what they are for? I will have to take the passenger seat back out and open up the looming... as I do not see the same wires taped up.

    [​IMG]

    I had the dealership include 2 factory switches and the male connectors so that I can integrate the katzkin heaters into the blanks in the dash.

    Part #s are:
    84751-0T010 (Left switch)
    84751-0T020 (Right switch)

    90980-12368 (Left male plug) -->10 pin plug, only 3 are used
    Pinout used: #4 = ground,
    #7 = to seat heater
    #9 = 12v igntion, 10amp (shared with right heater)
    90980-12551 (Right male plug) --> 8 pin plug, only 3 are used
    Pinout used: #3 = ground,
    #5 = to seat heater
    #7 = 12v igntion, 10amp (shared with right heater)

    Last edited: Dec 13, 2014
  2. Dec 13, 2014 at 4:04 PM
    #2
    fireheadman

    fireheadman [OP] The Abyss

    Joined:
    Jun 1, 2013
    Member:
    #105360
    Messages:
    68
    Gender:
    Male
    Denver
    Vehicle:
    Blk 2015 Taco TRD Offroad
    access original tonneau cover, gentex genk51a review mirror, full leather katskin seats (Tucson), weather tech mats.
    Got the dash apart right now... I see there are factory pre-wires for the heater switches
    If anyone has knowledge of this, can you lend me a hand?

    Has anyone noticed/seen the other end of these wires that would plug into the seat heaters? The factory said there would be 3 wires in each plug, so I was surprised to see 5 in each plug. No clue what they are...

    [​IMG]

    [​IMG]

    Passenger side
    [​IMG]

    Drivers side
    [​IMG]

  3. Dec 13, 2014 at 4:08 PM
    #3
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,100
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Sub'd I just bought Clazzio seat covers and heaters for the front and rear. Curious if there are any factory pre wiring myself?

  4. Dec 13, 2014 at 6:49 PM
    #4
    larrybbaker

    larrybbaker Well-Known Member

    Joined:
    Jun 14, 2012
    Member:
    #80690
    Messages:
    176
    Gender:
    Male
    First Name:
    larry
    South Central PA
    Vehicle:
    2013 MGM DCLB TRD SPORT 4WD
    OME 885 | Bilstein 5100 x 4 | WeatherTech Window Visors | VAIS Tech SiriusXM Adapter |Alpine KTP-445U Amp | Anytime fog light mod
  5. Dec 13, 2014 at 9:06 PM
    #5
    fireheadman

    fireheadman [OP] The Abyss

    Joined:
    Jun 1, 2013
    Member:
    #105360
    Messages:
    68
    Gender:
    Male
    Denver
    Vehicle:
    Blk 2015 Taco TRD Offroad
    access original tonneau cover, gentex genk51a review mirror, full leather katskin seats (Tucson), weather tech mats.
    well.... until I get more info on the subject, I am holding on the to factory switches, but went ahead and installed the katzkins switches into the blanks. Was a little hard for me to put a drill into a new truck, but I can always purchase new blanks if I need for probably $45/ea?? (its called a stealer-ship right???... LOL)

    The factory switches do have a disadvantage... they use resistor circuitry to sense when the seats get to a certain temp, then shutoff until they cool down enough, then turn back on. This can somewhat defeat the purpose of having nice warm/hot seats.

    The katzkins switches do 2 things warm and HOT. They do not auto shutoff...

    I took the dash apart looking for where the wires went... but all I found was massive brain damage and frustration......... ugh!
    [​IMG]

    new switches installed (until I get more info) They dont look half bad in this location.
    [​IMG]

  6. Dec 13, 2014 at 9:42 PM
    #6
    molimelight

    molimelight Well-Known Member

    Joined:
    Oct 26, 2012
    Member:
    #89862
    Messages:
    96
    Gender:
    Male
    MO
    Vehicle:
    14' Pyrite Mica TRD Sport 4X4
    You're a brave soul to tear your brand new truck down that much. Looks like it went together again pretty well though!

    That photo reminds me of the scene in "The French Connection" where they tore the car apart looking for the drugs. (One of the great movies of all time.)

    SGM Moose likes this.
  7. Dec 13, 2014 at 10:00 PM
    #7
    fireheadman

    fireheadman [OP] The Abyss

    Joined:
    Jun 1, 2013
    Member:
    #105360
    Messages:
    68
    Gender:
    Male
    Denver
    Vehicle:
    Blk 2015 Taco TRD Offroad
    access original tonneau cover, gentex genk51a review mirror, full leather katskin seats (Tucson), weather tech mats.
    yeah... its was apart in less than 20min. just grabbed a wrench and couple screwdrivers and went to town! I have a photographic memory, so that helps in putting things back together. Of course I can't have anything to drink in between the tear down and re-assembly as I have found (from previous experiences) that is creates a potential issue for spare parts to accumulate. But then again, it is still runs in the end, then you just have a weight savings... right? LOL

    did have one yellow clip break on me, will have to get a new one at the stealer-ship for the center console.

    Norton likes this.
  8. Dec 13, 2014 at 10:22 PM
    #8
    mikecoscia

    mikecoscia Well-Known Member

    Joined:
    Jul 22, 2014
    Member:
    #134409
    Messages:
    136
    Gender:
    Male
    First Name:
    Mike
    New Jersey
    Vehicle:
    2015 TRD Pro
  9. Nov 22, 2015 at 3:06 PM
    #9
    Louisd75

    Louisd75 Well-Known Member

    Joined:
    Nov 7, 2013
    Member:
    #116140
    Messages:
    952
    Gender:
    Male
    Northwest Washington
    Vehicle:
    '02 Xtra Cab, '15 DCSB
    I'm fairly certain that the factory Toyota seat heaters have six settings (five wires to the switch). The lowest would be off, then they five settings that get progressively hotter. There's a wire for each setting. Take a look at the factory switches that you've got, the little dial should have five clicks to it. Some seats have three positions, off, warm, hot. It looks like that's the type that you've currently got. I've got similar that I installed in my 1st gen. I ordered these ones for my second gen:

    http://www.amazon.com/gp/product/B01015AG2A?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s00

    They're the closest I've found to the factory style control. I still need to install them in my '15. I'm going to take a look and hopefully find the truck somewhat pre-wired like yours. These will be the second set of heaters that I'll be attempting to install. The first set didn't work and the return process turned into a huge PITA (find out where the heaters ship from. If they ship direct from China, move along to the next seller)

    I'll update here with what I find when I install my heaters in regards to factory wiring

  10. Nov 22, 2015 at 3:49 PM
    #10
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    29,517
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    Some heated seats sounds pretty nice.

  11. Nov 22, 2015 at 4:16 PM
    #11
    EdinCincinnati

    EdinCincinnati Old Enough To Know Better

    Joined:
    Mar 11, 2013
    Member:
    #99457
    Messages:
    2,216
    Gender:
    Male
    First Name:
    Ed
    Cincinnati
    Vehicle:
    2014 4x4 TRD OR
    2Lo Mod, OV Tuned ECU, Bed Cap, Prinsu and my kids college money
    Are the additional two wires green and green with white stripe? Those are the internal switch light to match interior lighting.

    I bought an eBay kit with those switches and installed them in the same location


  12. Nov 22, 2015 at 7:44 PM
    #12
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    11,659
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    That bundle of wires under the seat, they all appear to be White with a Black Stripe. Those are all ground wires.

    Last edited: Nov 22, 2015
  13. Nov 22, 2015 at 7:54 PM
    #13
    xjoey dubsx

    xjoey dubsx Curb Crawler

    Joined:
    Sep 18, 2015
    Member:
    #164617
    Messages:
    267
    Gender:
    Male
    First Name:
    Joe
    Cleveland, Ohio
    Vehicle:
    2015 Taco TRD Sport 6" Coil Overed
    6" PC Coil Over Lift, 35s, 18s, Extang Bed Lights, Garage Door Opener Hack, Bullydog GT Tuner, BHLM, 8300 Tinted everything else, Raptor Lights, Bakflip G2
    I have a set of WarmSeat inserts I am planning on installing, and am interested to know about what switches may work with it.... hmm.... sub'd.

  14. Nov 22, 2015 at 8:19 PM
    #14
    Louisd75

    Louisd75 Well-Known Member

    Joined:
    Nov 7, 2013
    Member:
    #116140
    Messages:
    952
    Gender:
    Male
    Northwest Washington
    Vehicle:
    '02 Xtra Cab, '15 DCSB
    The Warm Seats that I had came with a three way rocker switch that went "On-Off-On" with one "On" being high heat (with a red LED) and the other being low (with a green LED).

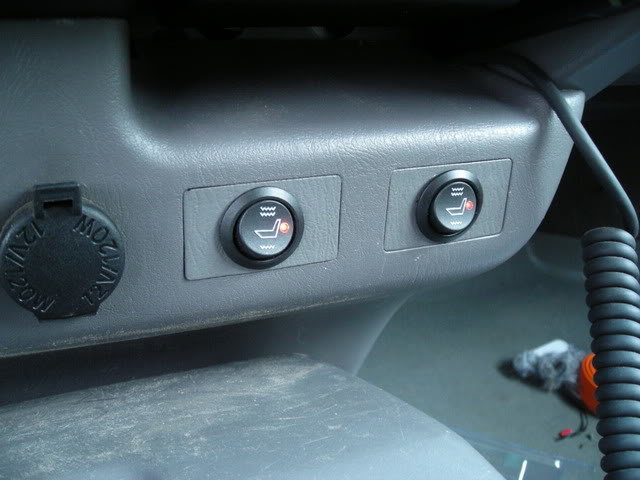

    Here are the switches installed in my 1st gen. I'm pretty sure the cigarette lighter is the same size as in my '15 to give you a switch size idea:


    And here's how I wired 'em up. The left side of the dotted line was the Warmseats harness, the right is how I connected to the truck. (I usually do a drawing of this stuff before I install just to make sure there aren't any surprises)


    It looks like I'm going to have to wait a little bit before I can install the new heaters in the '15. Need to make some space so that I can get the truck into the garage and out of the weather to do the work.

  15. Nov 22, 2015 at 8:53 PM
    #15
    xjoey dubsx

    xjoey dubsx Curb Crawler

    Joined:
    Sep 18, 2015
    Member:
    #164617
    Messages:
    267
    Gender:
    Male
    First Name:
    Joe
    Cleveland, Ohio
    Vehicle:
    2015 Taco TRD Sport 6" Coil Overed
    6" PC Coil Over Lift, 35s, 18s, Extang Bed Lights, Garage Door Opener Hack, Bullydog GT Tuner, BHLM, 8300 Tinted everything else, Raptor Lights, Bakflip G2
    thanks, I really want to make it use OEM switches though. ill look at this a bit more tomorrow. didnt really look at it too much yet.

  16. Nov 23, 2015 at 12:38 PM
    #16
    nhtundra

    nhtundra Well-Known Member

    Joined:
    May 26, 2009
    Member:
    #17649
    Messages:
    126
    Gender:
    Male
    First Name:
    Steve
    NH
    Vehicle:
    2015 Dcab Sport Barcelona Red
    sub'd. would like to see the results.

  17. Dec 31, 2016 at 7:55 PM
    #17
    jsucraig

    jsucraig Well-Known Member

    Joined:
    May 10, 2010
    Member:
    #36900
    Messages:
    792
    Gender:
    Male
    First Name:
    Craig
    Lynchburg, Virginia
    Vehicle:
    2013 Tacoma TRD Off-Road Double Cab
    Mudflaps removed, MESOJDM LED Interior lights, 886 Fog Lamps for Reverse Halogens, Redline Tuning Hood Struts, Garmin Dashcam 20, 17X8 Chrome Helo HE791 MAXX Wheels, Cooper Discoverer AT3 265/65R17, JBL Speakers, JL Sub, and Alpine & Memphis Amps, mattgecko LED Bed Light & Under Hood Kit, Truxedo Low Pro QT Tonneau Cover, OEM Bed Mat
    Anything definitive on pre-wiring of heated seats?

  18. Jan 1, 2017 at 6:50 AM
    #18
    JimNH

    JimNH Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153148
    Messages:
    128
    Gender:
    Male
    First Name:
    Jim
    Nashua, NH
    Vehicle:
    2009 White Dbl Cab, SR5, Tow Pkg, 138K and counting
    Kenwood bluetooth double din head unit trailer brake controller K-Z sportsmen classic 16RBT travel trailer!
    I got these also - the switches do match the OEM style.

    https://www.amazon.com/gp/product/B01015AG2A?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s00

    I just put them into my 2009 TRD sport - no factory wiring that I could see.

    I pulled power from the battery through a relay, and used an empty but switched circuit in the fuse box to turn them on with the key.

    I also had to take apart the inside of the truck to get to the switch location - but managed to get it all back together. Wife loves them now, but she never saw it when it was all apart - think she might have been worried. Bonus - basically she got her truck detailed since I cleaned up the inside before putting it back together.

    Last edited: Jan 10, 2017
  19. Sep 2, 2018 at 8:04 PM
    #19
    tbird95

    tbird95 Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99215
    Messages:
    376
    Gender:
    Male
    British Columbia, Canada
    Vehicle:
    TRD sport SR5 V6 DC, LB, 4x4, Tow package
    4runner heated, signal, courtesy light side mirrors, rearview mirror w/compass, temp & backup cam w/ pop luck PL 5400, Interior lights/gauges, BHLM, grillcraft MX black. Third brake light LED swap, rear tail lights LED swap from 2011. 3" Toytec (Boss) Coil overs, rear TSB AAL Bilsteins, Light Racing UCA. TRD grill badge, VIPER Smart Start.
    OP whered the pics go?

    81Taco likes this.
