Need help installing Axxess ASWC steering wheel controller

Discussion in 'Audio & Video' started by trdracing5, Apr 10, 2011.

Page 3 of 5
  1. Oct 30, 2011 at 6:31 AM
    #41
    double_b

    #41
    double_b Well-Known Member

    Joined:
    Jul 14, 2010
    Member:
    #40165
    Messages:
    194
    Gender:
    Male
    Red Lion, PA
    Vehicle:
    '14 DCab Tacoma TRD Off Road
    Woooooooooooooooo!!!!!!!!!!! I GOT MINE WORKING!!!!!!!!!

    I finally decided to tear mine apart again and mess with it(months later).....My issue was not having the white/red from the factory harness hooked up. I was thinking I had it grounded by having the black from the ASWC to the radio harness but I was wrong. As mentioned above the white/red from the factory harness NEEDS to be connected in with the other ground wires.

    Worked instantly!!!!

    THANK YOU EVERYONE!!!!

    Now if only I had a better option for the mounting kit.....I have single DIN Alpine and the Metra kit(from Crutchfield) and that thing is a total and complete POS. The plastic mount is so damn flimsy it's actually appalling!!! Oh well....some day I'll buy a double din and be able to use the factory metal mounts and lock it down tight.

    double_b, Oct 30, 2011
    #41
    jgalvar likes this.
  2. Oct 30, 2011 at 8:24 AM
    #42
    Polymerhead

    #42
    Polymerhead Well-Known Member

    Joined:
    Oct 15, 2010
    Member:
    #44737
    Messages:
    4,800
    Gender:
    Male
    Missouri
    Vehicle:
    '18 TRD Limited Inferno...Tundra!
    Man, this was a complicated install for a noob like me. Thanks much for this post:

    I made these 4 connections, plus I used 2 taps and and extra piece of wire to connect the white w/red stripe wire (more like orange stripe, not completely red) to the black ground wire mentioned in step 1. Plus I was installing a Kenwood receiver so I had to use the brown wire on the 3.5mm adapter, and taped up the other adapter wire (brown w/white stripe). Switched on the ignition and it worked perfectly the first time.

    This thread, or at least a condensed version with the wire info, should absolutely be a sticky.

    Polymerhead, Oct 30, 2011
    #42
  3. Dec 4, 2011 at 12:35 PM
    #43
    takaya49

    #43
    takaya49 Pacific Rim Mushrooms

    Joined:
    May 27, 2008
    Member:
    #6909
    Messages:
    242
    Gender:
    Male
    First Name:
    Brent
    Vancouver BC
    Vehicle:
    tacos
    Fox C/O long travel shox with resi, piggy back fox rears, TC UCA's, ICON AAL, Addicts/17 toyo MT, Mr. Marv set up,
    This site contains affiliate links for which the site may be compensated.
    takaya49, Dec 4, 2011
    #43
  4. Dec 4, 2011 at 1:00 PM
    #44
    Polymerhead

    #44
    Polymerhead Well-Known Member

    Joined:
    Oct 15, 2010
    Member:
    #44737
    Messages:
    4,800
    Gender:
    Male
    Missouri
    Vehicle:
    '18 TRD Limited Inferno...Tundra!
    No, that appears to be the dedicated Toyota harness. Mine came with about 20 wires and a confusing diagram on how to pick the right 2. Newer versions are coming with a simpler harness like what you have there.

    Here's a clue: the actual AXXESS unit should cost you about $60, not $9. ;)

    This site contains affiliate links for which the site may be compensated.
    Polymerhead, Dec 4, 2011
    #44
  5. Dec 4, 2011 at 2:19 PM
    #45
    84Hilux

    #45
    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
    84Hilux, Dec 4, 2011
    #45
  6. Dec 4, 2011 at 5:14 PM
    #46
    genxer36

    #46
    genxer36 Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,535
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    This site contains affiliate links for which the site may be compensated.
    genxer36, Dec 4, 2011
    #46
  7. Dec 20, 2011 at 8:28 PM
    #47
    The tacoman

    #47
    The tacoman Well-Known Member

    Joined:
    Nov 5, 2009
    Member:
    #25509
    Messages:
    179
    Gender:
    Male
    Texas
    Vehicle:
    2006 TRD
    Ok. So I have tackled this project myself, read through every thread I could find on this and searched the internet looked at the axxess site ect. I have my aswc hooked up like this.
    1) Black wire of the ASWC to ground using the same grounding point as the aftermarket radio.
    2) Red wire of the ASWC to a 12 volt accessory wire, one that turns on and off with the ignition key. Same as aftermarket radio.
    3) Connect the Green with Orange stripe wire of the ASWC to pin 7 (violet/white) of the vehicle.
    4) Connect the Black with Green stripe wire of the ASWC to pin 8 (yellow/black) of the vehicle.

    But when I turn it on and try to get it to program it blinks really fast at first and at one point it will turn the volume down a little bit on my head unit. After it flashes fast it pauses for the 2 seconds and flashes 7 times all short. Then pauses and flashes 6 times. I am using the Pioneer AVH-P4300DVD. Any help is greatly appreciated.

    The tacoman, Dec 20, 2011
    #47
  8. Dec 21, 2011 at 4:24 AM
    #48
    double_b

    #48
    double_b Well-Known Member

    Joined:
    Jul 14, 2010
    Member:
    #40165
    Messages:
    194
    Gender:
    Male
    Red Lion, PA
    Vehicle:
    '14 DCab Tacoma TRD Off Road
    See my post above from 10/30/11...you NEED to have the white/red from the factory harness connected in with the other ground wires. Mine was doing exactly what you describe until I connected the white/red from the factory harness into the other ground wires. As soon as it did that it worked instantly.

    double_b, Dec 21, 2011
    #48
  9. Jan 28, 2012 at 11:12 AM
    #49
    dsjacr

    #49
    dsjacr Active Member

    Joined:
    Nov 26, 2011
    Member:
    #67697
    Messages:
    36
    Gender:
    Male
    First Name:
    Scott
    West Monroe, Louisiana
    Vehicle:
    TRD Sport 4wd
    7" lift
    I am having issues with getting my access awed to control my 4300dvd. I have read all of the post and my wiring is correct. The red and white wire is grounded good with the radio. The led flashes and goes through the set up and then completes. The volume will beep during set up once. I am at a loss here.

    dsjacr, Jan 28, 2012
    #49
  10. Jan 28, 2012 at 11:16 AM
    #50
    dsjacr

    #50
    dsjacr Active Member

    Joined:
    Nov 26, 2011
    Member:
    #67697
    Messages:
    36
    Gender:
    Male
    First Name:
    Scott
    West Monroe, Louisiana
    Vehicle:
    TRD Sport 4wd
    7" lift
    NVM LOL. I feel like an idiot! There is a orange and green wire and a green and orange coming from the assess. It will work if you wire it correctly! Dumb A** lol

    dsjacr, Jan 28, 2012
    #50
  11. Jan 29, 2012 at 5:58 PM
    #51
    Nathan88

    #51
    Nathan88 Member

    Joined:
    Sep 25, 2011
    Member:
    #64094
    Messages:
    15
    Gender:
    Male
    First Name:
    Nathan
    Ga
    Vehicle:
    06 PreRunner SR5 TRD Sport
    DoubleDin Pioneer P3200 dvd headunit, Big Country chrome side step bars, 25% tint windows, Bak rollbak bed cover.
    I've had the same prob with mine as well but i will try the way described on this thread and see if anything changes.. why does this have to be such a pain in tha a$$??!!

    Nathan88, Jan 29, 2012
    #51
  12. Apr 1, 2012 at 12:48 AM
    #52
    Tokeisch

    #52
    Tokeisch Active Member

    Joined:
    Nov 5, 2009
    Member:
    #25455
    Messages:
    27
    Gender:
    Male
    fLORIDA
    Vehicle:
    09 tACOMA pRERUNNER
    Tokeisch, Apr 1, 2012
    #52
  13. Apr 3, 2012 at 7:54 PM
    #53
    idgara007

    #53
    idgara007 Active Member

    Joined:
    Apr 20, 2011
    Member:
    #55249
    Messages:
    43
    Gender:
    Male
    tx/CA
    Vehicle:
    09 TRD Sport double cab
    Curious if this harness also works for the bluetooth controls on the right side of the steering wheel? I want an aftermarket headunit but dont want to lose the wheel controls (audio or bluetooth). If so, the new receiver should have bluetooth built in correct? Unless I want to shell out $$$ for a bluetooth adapter for the receiver right... I dont know jack about audio components obviously. Thank you very much for your help!

    idgara007, Apr 3, 2012
    #53
  14. Apr 3, 2012 at 8:48 PM
    #54
    Tokeisch

    #54
    Tokeisch Active Member

    Joined:
    Nov 5, 2009
    Member:
    #25455
    Messages:
    27
    Gender:
    Male
    fLORIDA
    Vehicle:
    09 tACOMA pRERUNNER
    It will work, you'll need a Bluetooth compatible HU. Go to axxess.com and check it out.

    Tokeisch, Apr 3, 2012
    #54
  15. Apr 3, 2012 at 8:50 PM
    #55
    Tokeisch

    #55
    Tokeisch Active Member

    Joined:
    Nov 5, 2009
    Member:
    #25455
    Messages:
    27
    Gender:
    Male
    fLORIDA
    Vehicle:
    09 tACOMA pRERUNNER
    Get the friggin harness. 7.99 w/ free shipping.

    Tokeisch, Apr 3, 2012
    #55
  16. Apr 3, 2012 at 8:53 PM
    #56
    Tokeisch

    #56
    Tokeisch Active Member

    Joined:
    Nov 5, 2009
    Member:
    #25455
    Messages:
    27
    Gender:
    Male
    fLORIDA
    Vehicle:
    09 tACOMA pRERUNNER
    If mine works I will post it "Barney style" ...not to confused with the other style....get your head out the gutter .

    Tokeisch, Apr 3, 2012
    #56
  17. Jul 8, 2012 at 8:36 AM
    #57
    paidfor

    #57
    paidfor Well-Known Member

    Joined:
    Aug 21, 2009
    Member:
    #21536
    Messages:
    752
    Gender:
    Male
    Austin, TX
    Vehicle:
    2013 TRD OR 4x4
    Hidden GPS tracking system. Backflip cover, weather techs, bed mat, tailgate lock, OME 885 springs, blistein shocks, 2.5 in AAL/
    I have my Kenwood wired up like the above post say...with the exception that I cannot find a red/white wire in my harness. I have the black grounded to my radio ground. Light comes on and stays on but no workie.
    any suggestions?

    paidfor, Jul 8, 2012
    #57
  18. Jul 9, 2012 at 5:13 AM
    #58
    mne3312

    #58
    mne3312 Well-Known Member

    Joined:
    May 13, 2012
    Member:
    #78767
    Messages:
    136
    Gender:
    Male
    Alabama
    Vehicle:
    '10 Prerunner SR5
    K&N Air Filter, Weather Tech Floor Mats, Weather Tech Deflectors, Truck Covers USA Roll Cover, 15% front 5% back Tint, Toyota Hitch Cover, Pop & Lock 8521, Pioneer 4400BH, Infinity 6-1/2" Speakers, 4-Channel Amplifier, Access Bed Mat

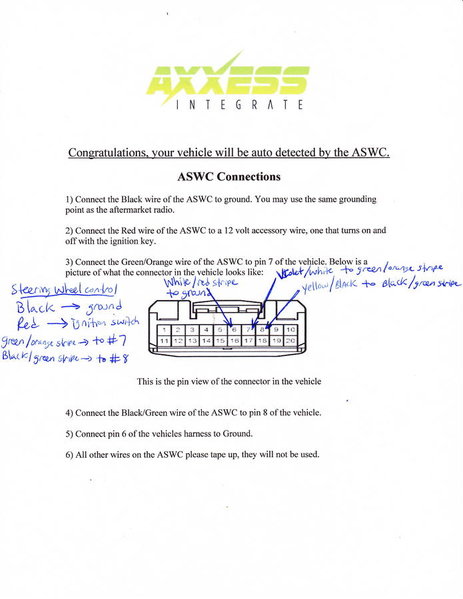

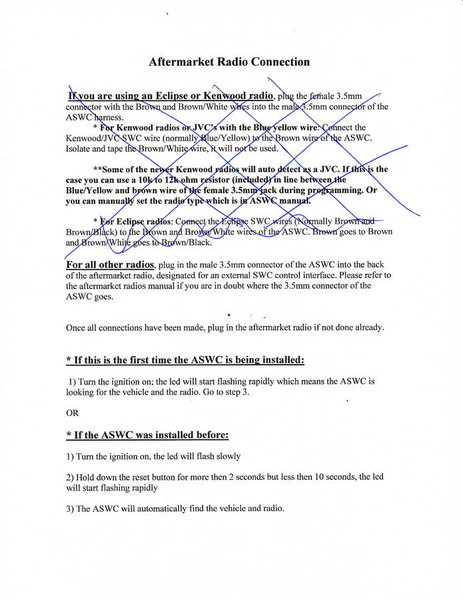

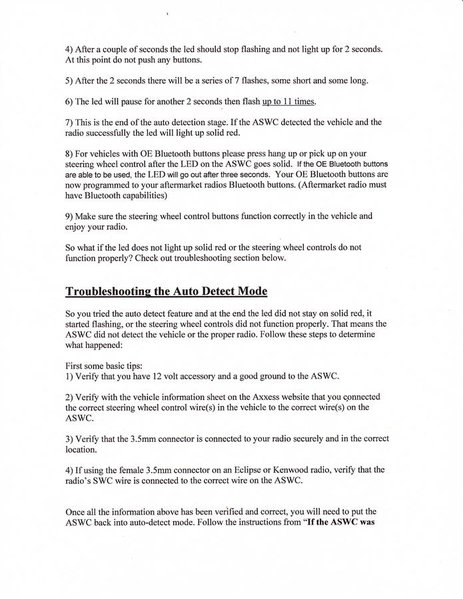

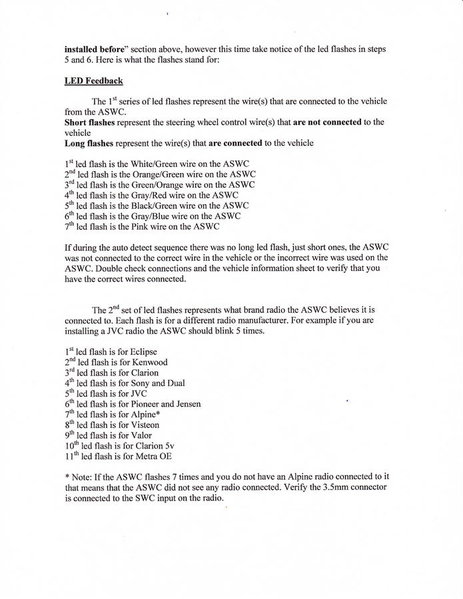

    This is what I used for my Pioneer 4400. There are instructions for a Kenwood HU. I scratched through it bc I didn't need it, but you can still read it. I cannot find where I got it on the web so I just scanned it back in.


    mne3312, Jul 9, 2012
    #58
  19. Jul 9, 2012 at 10:33 AM
    #59
    paidfor

    #59
    paidfor Well-Known Member

    Joined:
    Aug 21, 2009
    Member:
    #21536
    Messages:
    752
    Gender:
    Male
    Austin, TX
    Vehicle:
    2013 TRD OR 4x4
    Hidden GPS tracking system. Backflip cover, weather techs, bed mat, tailgate lock, OME 885 springs, blistein shocks, 2.5 in AAL/
    I gave up on mine at 5pm yesterday. I disconnected the radio controls and put it back into the bag. Might tear it apart again down the road. So far I am in the hole on that purchase.:cool:

    paidfor, Jul 9, 2012
    #59
  20. Jul 22, 2012 at 8:17 AM
    #60
    Nathan88

    #60
    Nathan88 Member

    Joined:
    Sep 25, 2011
    Member:
    #64094
    Messages:
    15
    Gender:
    Male
    First Name:
    Nathan
    Ga
    Vehicle:
    06 PreRunner SR5 TRD Sport
    DoubleDin Pioneer P3200 dvd headunit, Big Country chrome side step bars, 25% tint windows, Bak rollbak bed cover.
    I installed a harness that i ordered from *********.com , it's specifically for the tacoma, but when i had everything wired together and i turned the ignition switch on and as the controller was flashing i pressed volume up and down while it was programming and everything works just fine. Did you try pressing anything while it was self programming? If it still doesn't work, it might be the controller your trying to install. The one i ordered from ********* was pretty quick and easy

    Nathan88, Jul 22, 2012
    #60
