New Tire/Wheel Setup - Rubbing or Trimming?

Discussion in 'Wheels & Tires' started by blacksandtaco, Feb 7, 2011.

  1. Feb 7, 2011 at 9:44 PM
    #1
    blacksandtaco

    blacksandtaco [OP] Well-Known Member

    Joined:
    Feb 21, 2009
    Member:
    #13895
    Messages:
    179
    Gender:
    Male
    First Name:
    Tyler
    Kansas
    Vehicle:
    07 Access TRD Sport 4X4
    Viper remote start/alarm, Kenwood Excelon DNX 9140 in -dash Nav and DVD, Anzo black headlight, FoldaCover tonneau cover, BedRug carpeted truck bed, Pop-A-Lock electric tailgate lock, Level 8 MK6 (16x8), Toyo Open Country AT2 (LT265/75R16), Fold-A-Cover Tonneau, Bilstein 5100s front, Rear Leaf Suspension TSB, AVS in-channel front window vents, AVS Aeroskin hood protector,
    You guys all seem to know way more about wheels and tires than I do so I'm looking for a little help. I have an 07 Sport with stock 17" wheels and dunlop grandtreks that finally need replaced. I'd like to run a bigger, 70 series tire with black rims. I don't plan on putting a lift on it any time soon so I'm really hoping these will work on stock suspension as I don't really know anything about offset or backspacing. Let me know if anyone has done anything similar. Thanks in advance.

    Current setup:
    Stock 17" Sport Wheels
    P265/65/17 Dunlop Grandtrek AT20


    Desired setup:
    17x8, Black Rock Series 909B Type D - Satin Matte
    Bolt Pattern - 6 on 5.5
    Backspacing - 4.5"
    Offset - 0
    Center Bore - 4.250

    http://www.4wheelparts.com/Wheels/B...10&t_pt=101016&t_pl=101639&t_pn=BRW909B786045


    LT265/70R17 Falken Wildpeak AT
    http://www.falkentire.com/Tires/Wildpeak-A-T-17

  2. Feb 8, 2011 at 5:34 PM
    #2
    blacksandtaco

    blacksandtaco [OP] Well-Known Member

    Joined:
    Feb 21, 2009
    Member:
    #13895
    Messages:
    179
    Gender:
    Male
    First Name:
    Tyler
    Kansas
    Vehicle:
    07 Access TRD Sport 4X4
    Viper remote start/alarm, Kenwood Excelon DNX 9140 in -dash Nav and DVD, Anzo black headlight, FoldaCover tonneau cover, BedRug carpeted truck bed, Pop-A-Lock electric tailgate lock, Level 8 MK6 (16x8), Toyo Open Country AT2 (LT265/75R16), Fold-A-Cover Tonneau, Bilstein 5100s front, Rear Leaf Suspension TSB, AVS in-channel front window vents, AVS Aeroskin hood protector,
    Sorry to bump this but I need to get these ordered quickly, I'm heading out to Colorado for some serious snowboarding and my tires are balder than bald.

  3. Feb 8, 2011 at 5:47 PM
    #3
    Reepur

    Reepur Well-Known Member

    Joined:
    Jan 10, 2010
    Member:
    #29101
    Messages:
    216
    Gender:
    Male
    Brevard, NC
    Vehicle:
    '10 RC Black 4x4 2.7L
    265/75/16 BFG KM2 's on XD Hoss's 2.5" lift/4xBillies, OME 885's, Firestone Ride-Rites Desert Specialties UCA Volant CAI Grillcraft Grill Kobalt Slim Line Box Weathertech mats and Ventvisors. DTRL mod. 4 Lo -Trac Mod. Int. Wiper Mod. rcbs204 4x4 LEDS URD Short Shifter Plate Front bumper with Smittybilt XRC8000 winch Body Armor rear bumper with swing out tire carrier. ATO Front Skid Ultragauge BHLM
    should be fine, no rubbing.

    [​IMG]

  4. Feb 8, 2011 at 5:58 PM
    #4
    blacksandtaco

    blacksandtaco [OP] Well-Known Member

    Joined:
    Feb 21, 2009
    Member:
    #13895
    Messages:
    179
    Gender:
    Male
    First Name:
    Tyler
    Kansas
    Vehicle:
    07 Access TRD Sport 4X4
    Viper remote start/alarm, Kenwood Excelon DNX 9140 in -dash Nav and DVD, Anzo black headlight, FoldaCover tonneau cover, BedRug carpeted truck bed, Pop-A-Lock electric tailgate lock, Level 8 MK6 (16x8), Toyo Open Country AT2 (LT265/75R16), Fold-A-Cover Tonneau, Bilstein 5100s front, Rear Leaf Suspension TSB, AVS in-channel front window vents, AVS Aeroskin hood protector,
    Thanks for the response Reepur. I'm not as concerned about the tire difference as I am the wheel difference. 4.5" backspacing should make the tires stick out a little more which I would think would mean less chance of rubbing but I may be thinking backwards.

  5. Feb 8, 2011 at 6:41 PM
    #5
    Reepur

    Reepur Well-Known Member

    Joined:
    Jan 10, 2010
    Member:
    #29101
    Messages:
    216
    Gender:
    Male
    Brevard, NC
    Vehicle:
    '10 RC Black 4x4 2.7L
    265/75/16 BFG KM2 's on XD Hoss's 2.5" lift/4xBillies, OME 885's, Firestone Ride-Rites Desert Specialties UCA Volant CAI Grillcraft Grill Kobalt Slim Line Box Weathertech mats and Ventvisors. DTRL mod. 4 Lo -Trac Mod. Int. Wiper Mod. rcbs204 4x4 LEDS URD Short Shifter Plate Front bumper with Smittybilt XRC8000 winch Body Armor rear bumper with swing out tire carrier. ATO Front Skid Ultragauge BHLM

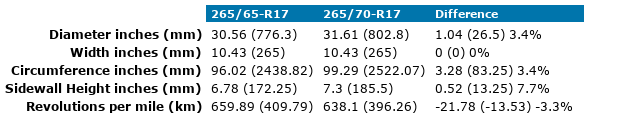

    You will be fine, that's equivalent to me going to 265/75/16's on stock rims (5.5" BS) on mine. Mine will sit in closer, but I am going to add spidertrax 1.25" spacers to bring my BS to bout 4.5"(just for looks). While I do have a lift, I researched it forever and you can fit yours (265/70/17) np. Your talking the same width tire, just 1" bigger diameter.

  6. Feb 8, 2011 at 7:39 PM
    #6
    blacksandtaco

    blacksandtaco [OP] Well-Known Member

    Joined:
    Feb 21, 2009
    Member:
    #13895
    Messages:
    179
    Gender:
    Male
    First Name:
    Tyler
    Kansas
    Vehicle:
    07 Access TRD Sport 4X4
    Viper remote start/alarm, Kenwood Excelon DNX 9140 in -dash Nav and DVD, Anzo black headlight, FoldaCover tonneau cover, BedRug carpeted truck bed, Pop-A-Lock electric tailgate lock, Level 8 MK6 (16x8), Toyo Open Country AT2 (LT265/75R16), Fold-A-Cover Tonneau, Bilstein 5100s front, Rear Leaf Suspension TSB, AVS in-channel front window vents, AVS Aeroskin hood protector,
    So Reepur, I should also be able to run a 265/75R16 if I wanted more tire and less wheel right? Basically the 265/70R17 and 265/75R16 are same diameter right? You think either will fit fine on stock suspension? Do you think it would be wise to take it into the local dealership to have them confirm?

  7. Feb 8, 2011 at 7:50 PM
    #7
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    I'm using a 17x8 wheel with 4.5" backspacing.

    At stock ride height, you may encounter minor rubbing with that wheel and that size tire. You may need to remove mudflaps and/or trim a little plastic. Many don't however. It's hit or miss.
