NEW YEAR, NEW MOD. REMOTE TAILGATE RELEASE FROM KEY FOB.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by adio, Jan 20, 2014.

  1. Jan 20, 2014 at 1:28 PM
    #1
    adio

    adio [OP] Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,644
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO
    Finally finish this mod this morning. Never seen anyone done it to a Taco before(if someone else did, then hey kudos to them). Goes well along side the Pop and Lock PL8540 combo kit that I installed last week. Got the idea to add this to the Taco when I saw a vid on YT of a Tundra that had done the mod. I'm a newbie when it comes to wiring and electrical, so it took a while for me to learn how to program the PAC TR-7. Only the down side to this is the half ass design of the DeeZee easy tailgate down kit that I had to get so the tailgate won't slam down(I'm pretty sure everyone already knows the flaws about the kit) there's no other kit that I'm aware that can be used besides these.

    I know some will say, stop being lazy and man handle it physically blah blah blah. Yah I could that, the mod doesn't interfere with the normal use of the tailgate.

    Just put yourself in a scenario. You go to Home Depot, you come out with a loaded kart, lumber, supplies and what not. As your walking to your Taco, bam key fob unlock action. And you'll be the envy of every other truck driver out there hahaha :D

    What do you guys thing. Like it, or hate it :thumbsup:

    With key FOB.
    http://youtu.be/leiuf67DouY

    Can also open tailgate from inside the cab.
    http://youtu.be/HBCVQfOPXOI

    I married my tacoma likes this.
  2. Jan 20, 2014 at 1:31 PM
    #2
    RearViewMirror

    RearViewMirror Saw things so much clearer once you... were in my

    Joined:
    Apr 13, 2013
    Member:
    #102010
    Messages:
    22,751
    Gender:
    Male
    First Name:
    Craig Christ
    State of Love and Trust
    Vehicle:
    2013 DCSB 4X4 TRD Off Road *Sold*
    That's fucking awesome!

  3. Jan 20, 2014 at 1:35 PM
    #3
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    109,245
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
    What he said ^^^^^

  4. Jan 20, 2014 at 1:38 PM
    #4
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    14,419
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
    not for me. but if you have your hands so full of stuff like the scenario you gave, how are you going to mess with a key fob?

  5. Jan 20, 2014 at 1:38 PM
    #5
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    32,339
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    What does FOB stand for?

    also,

    hmm.. where can i find the equipment for the mod, and i wonder if anyone has done a write up..

  6. Jan 20, 2014 at 1:39 PM
    #6
    adio

    adio [OP] Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,644
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO
    -sacrifice

    Like I said ain't for everyone.

  7. Jan 20, 2014 at 1:41 PM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    109,245
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
    Most people, when their arms are full of stuff, they still have their keys in their hands. I can see the use for this mod.

  8. Jan 20, 2014 at 1:43 PM
    #8
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    109,245
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
    fob 1 |fäb|
    noun (also fob chain)
    a chain attached to a watch for carrying in a waistcoat or waistband pocket.
    • a small ornament attached to a watch chain.
    • (also fob pocket) a small pocket for carrying a watch.
    • a tab on a key ring.
    ORIGIN mid 17th cent. (denoting a fob pocket in a waistband): origin uncertain; probably related to German dialect Fuppe ‘pocket.’

  9. Jan 20, 2014 at 1:49 PM
    #9
    B3nd3r

    B3nd3r Active Member

    Joined:
    Oct 19, 2013
    Member:
    #114802
    Messages:
    29
    Gender:
    Male
    Vehicle:
    2009 tacoma trd
    I want to do this to my Tacoma. That would be awesome.

  10. Jan 20, 2014 at 1:52 PM
    #10
    Boone

    Boone Vaginas are rad.

    Joined:
    Jul 16, 2012
    Member:
    #82731
    Messages:
    7,038
    Gender:
    Male
    First Name:
    Chris
    Boone, NC
    Vehicle:
    Airbags deployed
    Damn, nice OP.

  11. Jan 20, 2014 at 2:01 PM
    #11
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    14,419
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
    yea i know, just playing devil's advocate. good job either way :thumbsup:

    hmm? maybe its just me but i dont? :notsure:

    cool idea still

  12. Jan 20, 2014 at 2:17 PM
    #12
    xbxb

    xbxb Well-Known Member

    Joined:
    Oct 2, 2013
    Member:
    #113691
    Messages:
    772
    Gender:
    Male
    First Name:
    Jim
    O.P. Kansas
    Vehicle:
    2013 SR5 DC, SB, 4WD Pyrite Mica,
    undercover flex, Clazzio seat covers, Flyzeyes, Pop N Lock, Shackle to drag me out
    did you ever get your truck?

  13. Jan 20, 2014 at 2:20 PM
    #13
    carcharias

    carcharias Giggiddy what what

    Joined:
    Jan 9, 2011
    Member:
    #48988
    Messages:
    4,808
    Gender:
    Male
    First Name:
    Mike
    Los Angeles, CA
    Vehicle:
    '11 AC MGM OR
    Kings all-around w/ 700lb coils, Dakar leaf pack, TC uca's, DO single hoop bumper, BAMF bolt-on sliders w/ kickouts, Rigid 20" e-series spot/flood, aFe pro-dry, BFG KM2 255/85/16, silver TRD FJ wheels, WARN M8000-s, Access LE, Grillcraft, BAMF lightbar, BAMF rear dif skid, BAMF LCA skids, window tint, Wet Okoles, WeatherTech floorliners, Silverstar lights, led dome lights, Redline Tuning hood struts, center console lock mod, mag-lite mod, extra d-rings, re-routed exhaust, ATO skids, ATO Hi-Lift mounts, pipe tailgate lock, seatbelt alarm delete, wheel/spare locks, Viper 5901, LoJack... WISHLIST: a golden canary that poops platinum
    That's awesome!!!

  14. Jan 20, 2014 at 5:06 PM
    #14
    yellowrubiu

    yellowrubiu Well-Known Member

    Joined:
    Dec 30, 2011
    Member:
    #69678
    Messages:
    253
    Gender:
    Male
    Empire State
    Vehicle:
    2012 DCSB 4x4 SR5
    Very nice, now figure out how to make it go up too :D

  15. Jan 20, 2014 at 6:56 PM
    #15
    Greytacoma1

    Greytacoma1 Senior Member

    Joined:
    Feb 28, 2012
    Member:
    #73797
    Messages:
    485
    Gender:
    Male
    First Name:
    dave
    Sacramento ca
    Vehicle:
    Tacoma dc lb
    Satoshi grill, Plasti derp, Ready lift kit, Wheelers 2 inch aal, Hella 700, Wheather tech floor mats, Blueinstinct armrest cover, sockmonkey bed decal, BHLM, debadge, 35% tint front windows, OEM roof rack, OEM step bar, TRD skid plate, tacomaworld.com decal, stock antenna trimed, gorilla extended lug nuts,diff breather mod, cab mount chop, AVS window visor, spidertrax 1.25 wheel spacers, toytec sway bar relocate, extra d ring mod
    :drool: very nice!

  16. Jan 20, 2014 at 7:11 PM
    #16
    medic2230

    medic2230 @Koditten Pirate Radio member #002

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    59,574
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB 2019 TRD PRO 4runner
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper, Air Flow Snorkel, Ham comms, Tech Deck
    I like it!!! Nice job!

  17. Jan 21, 2014 at 12:24 AM
    #17
    adio

    adio [OP] Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,644
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO
    Thanks guys.

    Don't really need to do a write up on this. But I could put up what parts I used, and the thread I read up to do this mod. If you got question(s) let me know.

    Got all the parts from eBay.
    -2 lock actuator. I used the DEI 524N 2-wire actuators. Came with the wiring that I end up using from the tailgate to the cab.
    -1 PAC TR7 module.
    -12V bosh style relay and socket.

    You're gonna also need the DeeZee easy down tailgate kit. Keeps your tailgate from slamming down. Also got this from eBay. If you read up on this kit, everyone know that it's a half ass design for the Taco. But I had no choice this was the only kit that'll work.

    If you still have your stock handle without the fancy pop and lock tailgate lock/unlock like I have, then you're going to have to program the PAC TR7 module differently then what I did.

    Here's the thread that I read.
    http://www.tundratalk.net/forums/ex...y-remote-tailgate-release-factory-remote.html

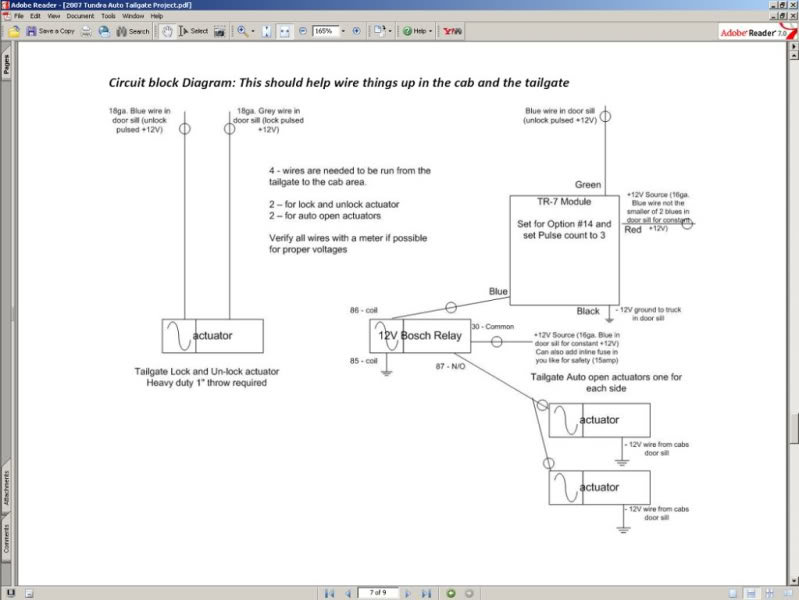

    Wiring diagram. Ignore the actuator on the left. That's the lock/unlock mod for the Tundra. Follow the one on the right. Pretty self explanatory on how it's wired up. Can't get any easier then that. I ended up just running one wire up to the cab, by connecting the other actuator positive wire to that one wire. Also did the same for the ground wire, and grounded it on the frame.
    d402976fe9f8be1deb77bfc6d8a325b2_zps1523_46d537035691bf02efbe8efce199714cbc2d1a35.jpg

    Here's how I program the TR7 module.

    Turn TR 7 on...then!!! apply Constant 12 volts to Red wire.
    Ground the Black wire. (You will want this 12 volts and ground wires permanent, if you loss 12volts to it you will need to reprogram. Unless you make a mistake. Disconnect positive and start all over)
    Tap Brown wire 14 times to ground, make sure you see led light each time you tap the wire to ground.
    Led light will flash 14 times
    After seeing led light 14 times tap Brown wire to ground 3 times or however many times you want your keyless remote to open the tailgate. I did three.
    Led light will flash 3 times wait 3-5 seconds.
    Tap Brown wire to ground rapidly 3 times
    Wait for 2 flashes another 2 flashes and then a solid 3 second flash.
    Turn TR7 off.
    Connect Blue wire to relay and you are set.

    Since the Tundra's tailgate is completely different from the Taco, mounting of the actuator will be different. I forgot to take a pic of this, but I'll get some tomorrow and put it up. I'll also get some pic of the wire that I tapped into for the constant 12V power.

    Like I said I'll get some pic tomorrow so you'll have an idea on how it looks.
