Nitori's OEM SR Foglight mod!

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Nitori, Sep 17, 2016.

Page 28 of 46
  1. Apr 17, 2021 at 10:34 AM
    #541
    caribe makaira

    #541
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,436
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, Apr 17, 2021
    #541
    davidstacoma and pinktaco808[QUOTED] like this.
  2. Apr 17, 2021 at 10:36 AM
    #542
    pinktaco808

    #542
    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,621
    Gender:
    Male
    This is to turn the fog light icon to come on , in the bash? Locate ld under the dash?

    pinktaco808, Apr 17, 2021
    #542
  3. Apr 17, 2021 at 10:37 AM
    #543
    pinktaco808

    #543
    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,621
    Gender:
    Male
    Yeeed

    pinktaco808, Apr 17, 2021
    #543
  4. Apr 18, 2021 at 7:30 AM
    #544
    pinktaco808

    #544
    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,621
    Gender:
    Male

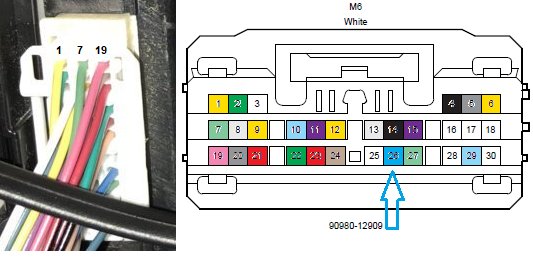

    What pin 26 for again and the point of wiring to that?

    pinktaco808, Apr 18, 2021
    #544
  5. Apr 18, 2021 at 7:54 AM
    #545
    caribe makaira

    #545
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,436
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Go ahead and re--read slowly the first 2 pages of the thread....

    caribe makaira, Apr 18, 2021
    #545
    bagleboy likes this.
  6. Apr 18, 2021 at 12:56 PM
    #546
    pinktaco808

    #546
    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,621
    Gender:
    Male
    I'm still lost lol.... it mean prewired for factory and where

    pinktaco808, Apr 18, 2021
    #546
  7. Apr 18, 2021 at 5:26 PM
    #547
    bagleboy

    #547
    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    6,858
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Lost without complete sentences.

    bagleboy, Apr 18, 2021
    #547
  8. Apr 19, 2021 at 9:04 AM
    #548
    pinktaco808

    #548
    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,621
    Gender:
    Male
    Lol
    If it pre-wired where can we wire the fog light from then?

    pinktaco808, Apr 19, 2021
    #548
  9. Apr 19, 2021 at 3:30 PM
    #549
    bagleboy

    #549
    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    6,858
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    It’s in those opening posts of the thread. Read the part that says what to do if you’re prewired. Clue: it involves a harness by the radiator.

    bagleboy, Apr 19, 2021
    #549
    pinktaco808[QUOTED] and davidstacoma like this.
  10. Apr 19, 2021 at 3:35 PM
    #550
    bagleboy

    #550
    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    6,858
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    The instructions for prewired are in post#68 but there’s a link to them in the OP.

    bagleboy, Apr 19, 2021
    #550
    pinktaco808 and davidstacoma like this.
  11. Apr 24, 2021 at 8:46 PM
    #551
    TNslawdog

    #551
    TNslawdog Member

    Joined:
    Nov 14, 2020
    Member:
    #346768
    Messages:
    8
    Gender:
    Male
    First Name:
    Shaun
    Knoxville, TN
    Vehicle:
    2016 Tacoma SR 4X4
    BFG KO2 265/75/16, Baja Designs Fogs

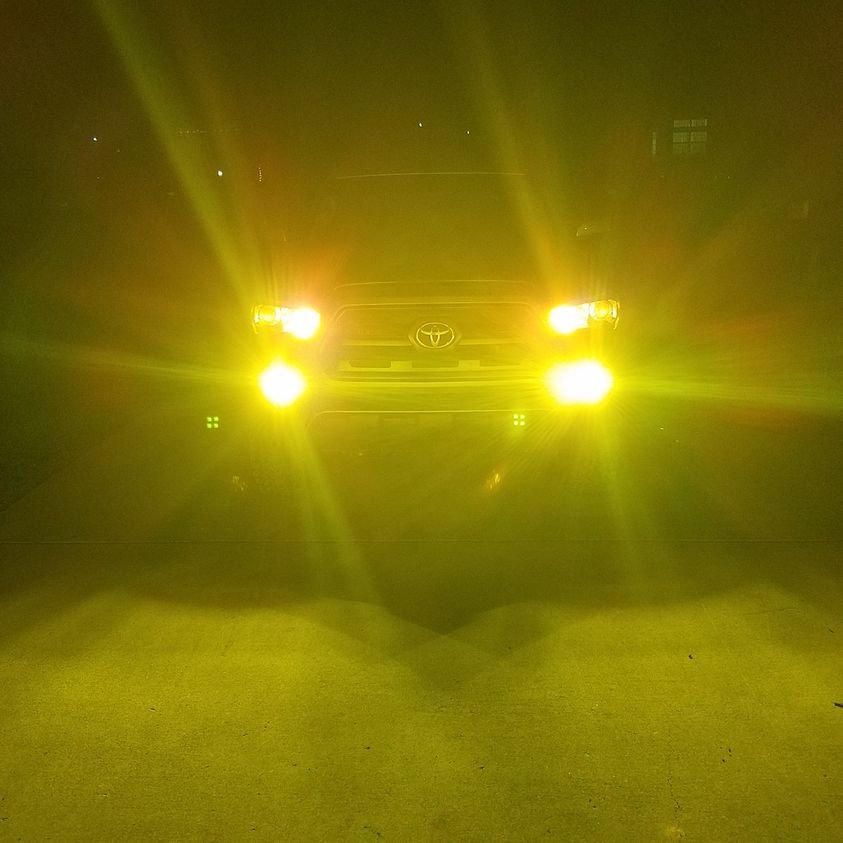

    Thanks for this write up, super happy with this install! I used the stock 2015 dash switch with Baja Designs Squadron Sport amber. So glad to have the blanks gone and lights put in place.

    TNslawdog, Apr 24, 2021
    #551
    Scotfree, pinktaco808 and davidstacoma like this.
  12. Apr 25, 2021 at 5:33 AM
    #552
    Wistrick

    #552
    Wistrick New Member

    Joined:
    Feb 20, 2021
    Member:
    #356741
    Messages:
    3
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2021 Charcoal Grey Access Cab SX
    NONE
    What I meant to say was the foglight relay under the HOOD was already in place, from the factory...

    Wistrick, Apr 25, 2021
    #552
  13. Apr 25, 2021 at 5:35 AM
    #553
    Wistrick

    #553
    Wistrick New Member

    Joined:
    Feb 20, 2021
    Member:
    #356741
    Messages:
    3
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2021 Charcoal Grey Access Cab SX
    NONE
    I meant to say under the HOOD and the relay was there from the factory...

    Wistrick, Apr 25, 2021
    #553
    davidstacoma[QUOTED] likes this.
  14. May 17, 2021 at 7:39 PM
    #554
    TacosRacingKTM

    #554
    TacosRacingKTM Active Member

    Joined:
    May 5, 2020
    Member:
    #326893
    Messages:
    33
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    '20 White 4x4 Taco CrewCab

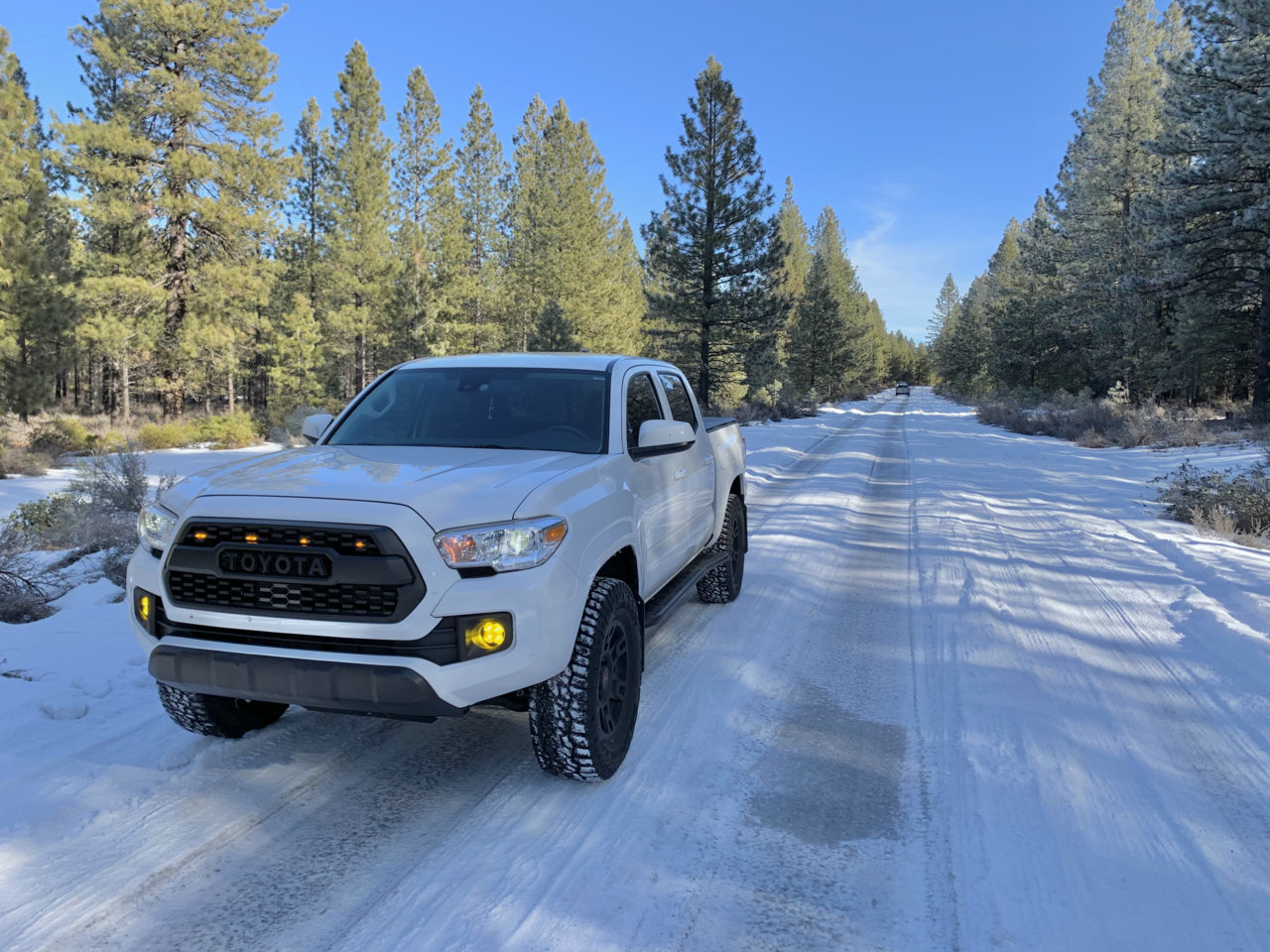

    Thanks for the write up! Worked out great on my SR


    TacosRacingKTM, May 17, 2021
    #554
    Anslet, Scotfree and pinktaco808 like this.
  15. May 31, 2021 at 3:15 PM
    #555
    caribe makaira

    #555
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,436
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Sep 15, 2021
    caribe makaira, May 31, 2021
    #555
    pinktaco808 and Nitori[OP] like this.
  16. Sep 10, 2021 at 11:30 PM
    #556
    907rx7

    #556
    907rx7 Well-Known Member

    Joined:
    Jul 1, 2019
    Member:
    #298028
    Messages:
    1,695
    First Name:
    James
    Vehicle:
    '20 Tacoma DCSB SR 4x4
    So, finally coming back to this. Has anyone else done the stalk swap and not have their DRL option work anymore? I'm guessing it's a bad stalk but figured I'd ask.

    907rx7, Sep 10, 2021
    #556
  17. Sep 14, 2021 at 10:00 PM
    #557
    Scotfree

    #557
    Scotfree I drive slow

    Joined:
    Aug 17, 2021
    Member:
    #374496
    Messages:
    1,100
    Gender:
    Male
    Vehicle:
    2021 sr 4x4 2.7
    Has the aftermarket switch held up? I’m going to copy this.

    Scotfree, Sep 14, 2021
    #557
    davidstacoma[QUOTED] likes this.
  18. Sep 15, 2021 at 4:33 AM
    #558
    davidstacoma

    #558
    davidstacoma Friendly Curmudgeon

    Joined:
    Nov 2, 2019
    Member:
    #309695
    Messages:
    4,549
    Gender:
    Male
    First Name:
    David
    NC
    Vehicle:
    2019 Tacoma SR Access cab - Utility
    *OEM Mods: Intermittent wipers, Fogs, Keyless Entry, Lomax
    Good question, I actually didn’t like the location of the switch (kept hitting the Auto headlight switch instead of my fog light switch) so I replaced it with a larger form factor switch to the right of the Auto headlights switch. I used a CH4X4 switch and like the larger switch in that location much better:
    https://www.tacomaworld.com/threads/nitoris-oem-sr-foglight-mod.451495/page-21#post-23754835

    davidstacoma, Sep 15, 2021
    #558
    Scotfree[QUOTED] likes this.
  19. Sep 15, 2021 at 6:11 AM
    #559
    Scotfree

    #559
    Scotfree I drive slow

    Joined:
    Aug 17, 2021
    Member:
    #374496
    Messages:
    1,100
    Gender:
    Male
    Vehicle:
    2021 sr 4x4 2.7
    Scotfree, Sep 15, 2021
    #559
  20. Sep 15, 2021 at 4:13 PM
    #560
    caribe makaira

    #560
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,436
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

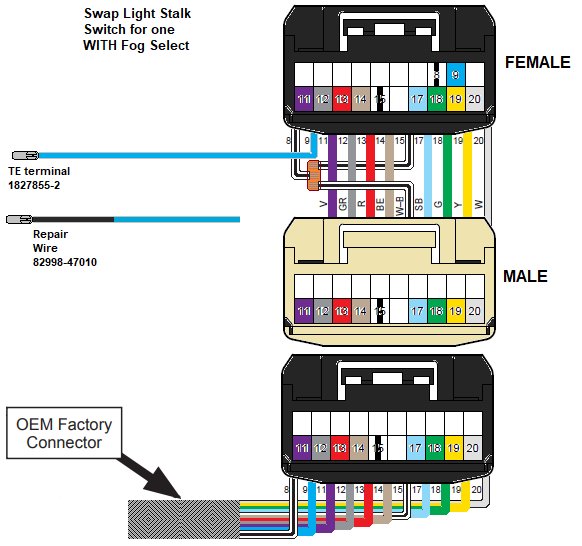

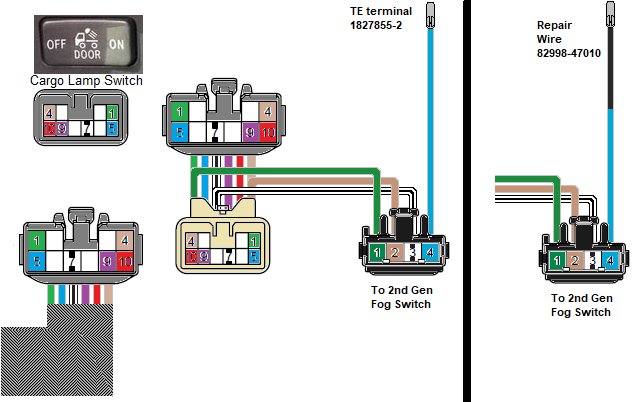

    Adding a C11 T "harness" and swapping the light stalk with one with the Fog Light select, but still need to locate, remove, disassemble M6 to add the missing terminal.
    Repair wire $$$ or TE terminal to Blue wire to C11 switch side.
    Required (missing) ground on SR is joined at C11 T harness.
    Switch completes the circuit.
    Contact @kmorgan3 for custom C11 T.

    caribe makaira, Sep 15, 2021
    #560
