Non-OEM Fog Light Install, On Anytime

Discussion in '2nd Gen. Tacomas (2005-2015)' started by gsm, Nov 15, 2007.

  1. Nov 15, 2007 at 10:22 PM
    #1
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)
    UPDATED & EDITED ON 3/26/10:

    Yes, yet another thread about fog lights. :eek: The others were so helpful to me I thought I’d contribute and post my modifications to the combined posts I’ve read and possibly give ideas or help someone else out in return.

    This install is for Taco’s delivered without fog lights installed, but for those that wish to have factory looking fog lights. This setup allows the Fogs to be turned on with the ignition set to ACC. or with the engine running. No other lights need to be on for them to work (so they can be turned on or off as desired and even used as Daylight Running Lights too if desired). And if forgotten on, will be off when the ignition is turned off, and back on when the ignition is set to ACC. or the engine is restarted again.

    I cannot and will not take credit for it all. I obtained most of my initial information for my particular install from the yourtacoma.com website listed below. This site appeared to be under maintenance, or malfunctioning, so I will attempt to add post extracts from that site. If you are unable to locate the thread at the link, please search this thread below for the extract postings. (This might take some time so check back from time to time, or PM me and I will email the PDF file to you).

    http://www.toyotapart.com/81211-AA030-KIT/TACOMA+FOG+LIGHTS+KIT.html

    http://www.toyotapart.com/tacomafog.html

    http://www.yourtacoma.com/faq/index.php?sid=18461&lang=en&action=artikel&cat=6&id=3&artlang=en

    What I will be covering next is the differences in my install. This will be covered in a couple of posts due to attachment sizes.

  2. Nov 15, 2007 at 10:41 PM
    #2
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)

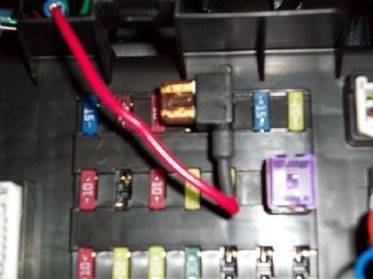

    First, I wired the the Illuminination and power in connection of the switch to a "Add-a-circuit" that I plugged into the fuse box located under the dash on the drivers side. The "Add-a-circuit" is plugged into the 7.5 amp fuse slot for the Radio. I inserted a 7.5amp fuse in the "Add-a-circuit" for the radio and a 5 amp fuse to cover the power to the switch and for it's illumination. This way the switch is powered whenever the ignition is set to ACC. or the engine is running. In short, if your radio will play, your Fogs will be available to come on.

    [​IMG]

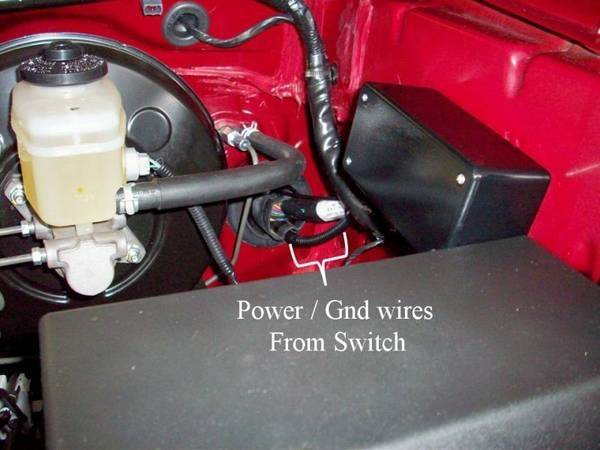

    The Fog Light switch power-out and ground both run out through the rubber seal as per the install instructions in the above link.

  3. Nov 15, 2007 at 10:48 PM
    #3
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)
    To keep the wiring neat and hopefully somewhat factory looking I purchased a Project Box from Radio Shack to house the Relay, In-Line fuse from the battery, and a common ground for the whole wiring setup.

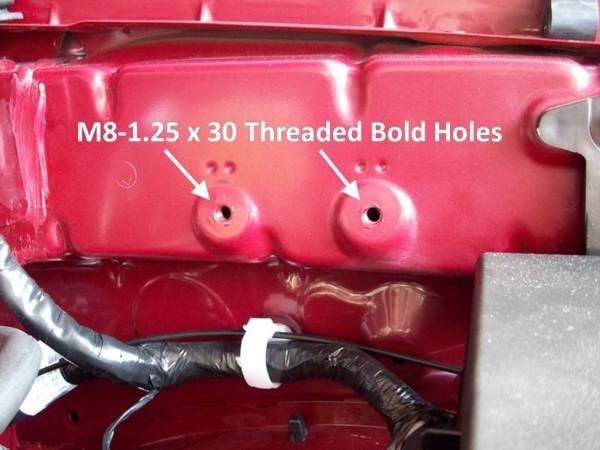

    Below you see the location for my Relay housing, on the drivers side wheel well in the engine compartment:

    [​IMG]

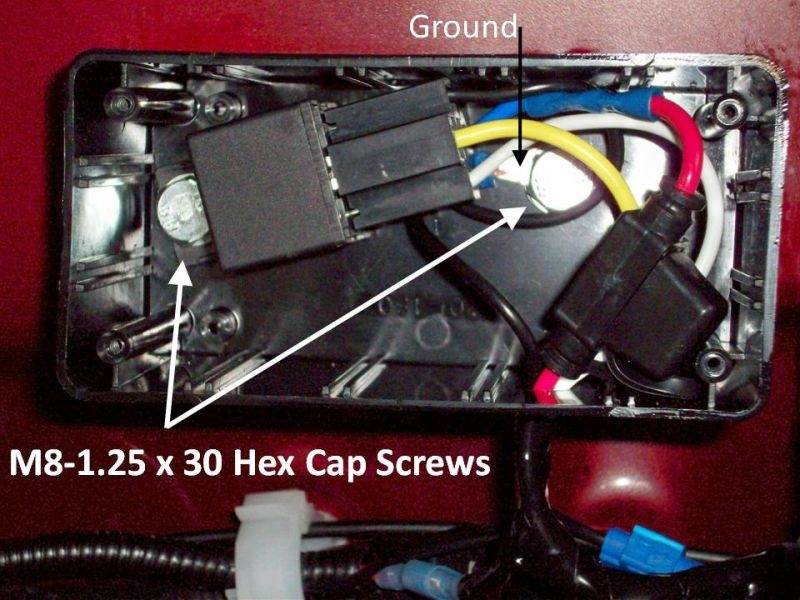

    Below is the Fog Light Relay, In-Line Fuse and Common Ground for the complete setup:

    [​IMG]

    For power from the battery I attached a power lead to the positive terminal as per the link at top and ran the wire along the one feeding power into the factory fuse box and covered both with the flex tubing, then continued running the lead under the fuse box to my Fog Relay box where it is connected to my in line fuse. (Sorry I don't have a picture of this).

  4. Nov 15, 2007 at 10:59 PM
    #4
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)

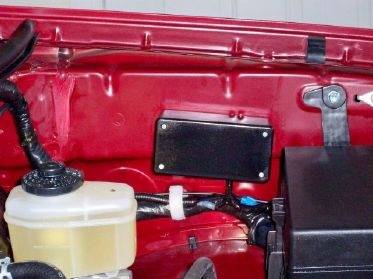

    And here it is with it all sealed up.

    [​IMG]

    I still have some touch up to do to cover the blue connectors I used. To cover the exposed wires I used 1/4 flex tubing similiar to that used throughout the engine compartment. The only place I was able to find 1/4 inch locally was at Pep Boys. a 10' roll runs about $9.

    [​IMG]

    Above you can see the connection through to the cab.

  5. Nov 15, 2007 at 11:11 PM
    #5
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)

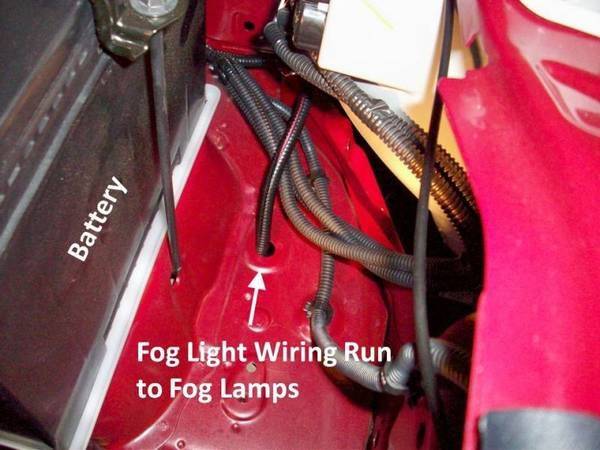

    Below you see the route I chose to take power to the Fog Lamps:

    [​IMG]

    And a view of the factory Fog light switch installed. It lights up whenever the key is switched to ACC. or the engine is running so that in darkness it's easy to locate. The style of push in button makes it easy to tell if the lights are on or off - but if left on accidentally, they will go off when the key is turned off saving your battery.

    [​IMG]

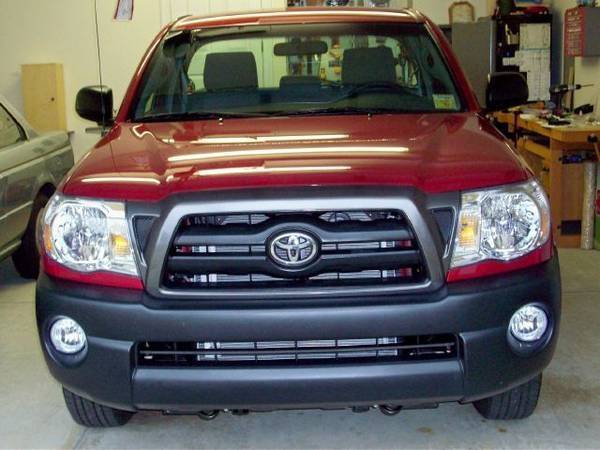

    Below the new front look of my Taco with fogs. With a standard cab version I believe the only way to get fogs is to put them on yourself. Hope this helps someone.

    [​IMG]

  6. Nov 16, 2007 at 4:56 AM
    #6
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,703
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2003 4Runner SE 4WD
    FYI - I am extremely impressed with the cleanlyness of this install. I will be following it for my install when I have the time and money.

    I have made this thread a sticky for the nice detail. Cheers!

  7. Nov 17, 2007 at 8:06 PM
    #7
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)
  8. Nov 30, 2007 at 4:58 AM
    #8
    Mudbug

    Mudbug Well-Known Member

    Joined:
    May 13, 2007
    Member:
    #1574
    Messages:
    292
    Amsoil 0w-20 engine oil and Amsoil Full synthetic 75w-90 in the Transmission, transfer case, front and rear Differentials. AFE Cold Air Intake
    No you can get fog lights on a regular cab if you get a pre runner 2wd. I drove a black one before I got mine. It was nice...but it was $500 less than my 4x4!!:eek: It had color matched bumper and fender covers and a chrome grille and rear bumper and fog lights and power locks/windows.

  9. Nov 30, 2007 at 5:43 AM
    #9
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,703
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2003 4Runner SE 4WD
    For those of you that went with the Bling lights, did you get the 4" or the 5"? They show both... :confused:

  10. Dec 4, 2007 at 10:30 AM
    #10
    MMurray

    MMurray Active Member

    Joined:
    Nov 25, 2007
    Member:
    #3594
    Messages:
    28
    Des Moines Iowa
    Vehicle:
    2008 Access Cab SR5
    None yet
    I would be interested in how you mounted the lights in the bumper with the non OEM light too. The kits I have seen mount differently than the Toyota light from what I have found here on the site.

    Mike
    08 SR5 Access Cab 2.7L 5spd Indigo Ink Pearl

    just put the first 100 miles on her and the mod bug is already biting!

  11. Dec 4, 2007 at 12:41 PM
    #11
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)
    I ordered the OEM fog lights from Toyotapart.com if you are asking about my install listed here. As they are the same as the ones that come factory.
    As for the Bling lights, someone else will have to answer that one:confused:

  12. Dec 4, 2007 at 4:27 PM
    #12
    MMurray

    MMurray Active Member

    Joined:
    Nov 25, 2007
    Member:
    #3594
    Messages:
    28
    Des Moines Iowa
    Vehicle:
    2008 Access Cab SR5
    None yet
    Yeah I am looking for how to mount lights like the bling or Piaas.
    Mike

  13. Dec 4, 2007 at 4:49 PM
    #13
    MotoXFreeStyle61

    MotoXFreeStyle61 Displaced Texan

    Joined:
    May 18, 2007
    Member:
    #1616
    Messages:
    865
    Gender:
    Male
    San Antonio TX
    Vehicle:
    06 PreRunner SR5 4Cyl, Access Cab, 5
    Black Head Light Mod, Tacoma All Weather Mats, ScanGauge II, Tonnaeu Bed Cover, 40% Tint, Added Fog Lights, 600W x 1 Alpine MRP-M650 Amp, Alpine 10" Type-R SWR-1022D Sub, Secondary Air Filter Removed, Day Time Running Lights, K&N Drop In Air Filter (oiled), Westin Bullbar (Black Powder), Alpine IVA-W505 w/Nav, JL Audio 6.5" Front Speakers, Toyota SR5 Seat Covers, 2.5" Toytec Spacer
    If you go non-OEM you pretty much have to engineer (ghetto rig?:thumbsup:) your own way of mounting. The housing itself is plastic so you do some drilling if you want to. I used the pre-existing holes to mount mine. Someday I might buy some OEM ones just to throw in there.

    GSM, how much did you pay for yours?

  14. Dec 4, 2007 at 9:08 PM
    #14
    L_Jackson

    L_Jackson Well-Known Member

    Joined:
    Jul 14, 2007
    Member:
    #2093
    Messages:
    450
    Houston, TX
    Vehicle:
    2007 Black Sand Pearl PreRunner Acce
    Tinted Windows, Tow Hitch, 3" Toytec Lift, American Racing Outlaw II Wheels, Cooper Discoverer 33's, Aries Bull Bar w/ (2) 5" Lights, Nerf Bars, Fog Lights as DTR Lights, Roll Bar w/ (4) 5" Lights, Sony Speakers, 2 Extra Tie Downs
    nice job, those look really good! i want some fog lights too!

  15. Dec 4, 2007 at 10:25 PM
    #15
    MotoXFreeStyle61

    MotoXFreeStyle61 Displaced Texan

    Joined:
    May 18, 2007
    Member:
    #1616
    Messages:
    865
    Gender:
    Male
    San Antonio TX
    Vehicle:
    06 PreRunner SR5 4Cyl, Access Cab, 5
    Black Head Light Mod, Tacoma All Weather Mats, ScanGauge II, Tonnaeu Bed Cover, 40% Tint, Added Fog Lights, 600W x 1 Alpine MRP-M650 Amp, Alpine 10" Type-R SWR-1022D Sub, Secondary Air Filter Removed, Day Time Running Lights, K&N Drop In Air Filter (oiled), Westin Bullbar (Black Powder), Alpine IVA-W505 w/Nav, JL Audio 6.5" Front Speakers, Toyota SR5 Seat Covers, 2.5" Toytec Spacer
  16. Dec 5, 2007 at 4:30 AM
    #16
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,703
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2003 4Runner SE 4WD

    What size did you go with? 4" or 5"?

  17. Dec 5, 2007 at 4:31 AM
    #17
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,703
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2003 4Runner SE 4WD
    yeah, I figured yours were a direct bolt-in, but the wiring is what I was impressed with. :thumbsup:

  18. Dec 5, 2007 at 5:30 AM
    #18
    gsm

    gsm [OP] Well-Known Member

    Joined:
    Nov 10, 2007
    Member:
    #3426
    Messages:
    143
    Raleigh, NC
    Vehicle:
    08 Tacoma Regular Cab, 2.7L, Impulse Red Pearl
    DIY OEM Fog Lights on anytime, DIY OEM Cruise Control, Removed 2ndary Air Filter, Rear Speakers Mod, Traction Bar/Helper Spring Mod, Red Brake Drums and Rotors, Stainless Steel Exhaust Tip, Door Sill Protectors, Taco Bed Mat, Custom Front Mud Flaps (Mudguards), TRD Bucket Seats (pending)
    I paid $350. for a kit from toyotapart.com, see below link:
    http://www.toyotapart.com/search.asp?SearchYear=183&SearchModel=70&sc=111&spl=&spu=&Submit=Search

    kit comes complete with OEM fog lights, switch and connectors with wire leads for the lamps and switch. A generic relay with connector, inline fuses (2) are also included. I didn't use the low quality inline fuses that came with the kit.

    I purchased separately (2) 10' spools of 14 ga. wire (red/black), 30 amp inline fues, an add-a-circuit, & misc. connectors from Advance Autoparts for about $18.

    And a 10' 1/4 black flex tubing from Pep Boys for about $9

    A black project box from Radio Shack for under $4 to house the 30amp inline fuse, relay and support for the common ground.

    Finally, (2) Stainless Steel 8-1.25 x 30 bolts with washers to mount the project box and supply a grounding point from Lowe's hardware $2.

    So the completed project cost me approximately $383. Expensive yes for fog lights but I feel was well worth it :D as I wanted a factory looking install without looking like a bandaid. And since my Taco wasn't wired for fogs from the factory would have cost me more than $600 :eek: for my Toyota dealership to install (their estimate!)

    GOOD LUCK ON YOUR CHOICE

    Ouch!! Price for light kit today is $416. Glad I did mine two years ago.

  19. Dec 5, 2007 at 7:41 AM
    #19
    MotoXFreeStyle61

    MotoXFreeStyle61 Displaced Texan

    Joined:
    May 18, 2007
    Member:
    #1616
    Messages:
    865
    Gender:
    Male
    San Antonio TX
    Vehicle:
    06 PreRunner SR5 4Cyl, Access Cab, 5
    Black Head Light Mod, Tacoma All Weather Mats, ScanGauge II, Tonnaeu Bed Cover, 40% Tint, Added Fog Lights, 600W x 1 Alpine MRP-M650 Amp, Alpine 10" Type-R SWR-1022D Sub, Secondary Air Filter Removed, Day Time Running Lights, K&N Drop In Air Filter (oiled), Westin Bullbar (Black Powder), Alpine IVA-W505 w/Nav, JL Audio 6.5" Front Speakers, Toyota SR5 Seat Covers, 2.5" Toytec Spacer
    I believe mine on the 4" ones. The housing is about that size. I know that the fogs from bling lights just seem a tad bit too small. Which is why I'm looking at just finding some lamps that I can just plug into the factory plastic clips. I found these on ebay as well. They look used but the guy says that they are in perfect working condition.

    http://cgi.ebay.com/ebaymotors/06-T...90919QQrdZ1QQsspagenameZWDVW#ebayphotohosting

    The only concern that I have is that the OEM light bulb plug is different than that of my wiring harness. I might have to order the connector from some where or just make my own. Let me know if anyone else has ideas. Thanks. :)

  20. Dec 15, 2007 at 1:01 PM
    #20
    gegundez

    gegundez Well-Known Member

    Joined:
    Sep 23, 2007
    Member:
    #2778
    Messages:
    87
    Gender:
    Male
    Miami, FL
    Vehicle:
    07 TRD Prerunner Dcab
    Overpriced stereo and alarm. MBRP Dual Exhaust.
    I bought my EBAY fog light relay for $9 and installed in under 30 seconds. Though it does not turn off automatically.
