O-Ring Fell Out During Diff Oil Change

Discussion in '3rd Gen. Tacomas (2016-2023)' started by foy1der, Oct 20, 2024.

  1. Oct 20, 2024 at 3:58 PM
    #1
    foy1der

    foy1der [OP] Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    570
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    Just like the title says. This o-ring fell out of the drain hole when I was changing the rear diff fluid. It's on a 2017 TDR-OR with the locking diff. I poked around for a bit but I can't make heads or tails on what it's for. There's a part of me that wants to say that it was already broken when I drained the fluid, and it wasn't leaking so let sleeping dogs lie.

    Anyone else had this happen?
    [​IMG]
    [​IMG]

    MGMDesertTaco likes this.
  2. Oct 20, 2024 at 4:20 PM
    #2
    Clearwater Bill

    Clearwater Bill Never answer an anonymous letter

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    24,652
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug AC w/convenience package
    A few OE parts from fancy trucks
    That seems kinda weird. I've drained a lot of diffs over the years but never had something like that exit!

    SH10151 and crawlerjamie1 like this.
  3. Oct 20, 2024 at 4:21 PM
    #3
    Buck Henry

    Buck Henry Well-Known Member

    Joined:
    Dec 10, 2020
    Member:
    #349241
    Messages:
    3,608
    Gender:
    Male
    Vehicle:
    2019 White TRD Off Road
    Which differerential? I know one of the differential access plugs is big but it ain't that big. Honestly, that looks like a buggard up old filter cartridge o-ring left over from an oil change to me?

    usmc2msu likes this.
  4. Oct 20, 2024 at 4:23 PM
    #4
    Toycoma2021

    Toycoma2021 Well-Known Member

    Joined:
    Jan 3, 2021
    Member:
    #351607
    Messages:
    1,688
    Northern California, Temporarily
    Vehicle:
    2021 Access Cab, LB, AT, V6, Off Road
    I have no experience with the internals of the Toyota E-locker internals, but that does not look like anything that would come from a regular open differential. There is a thread on here somewhere that shows all the locker internal parts - someone took one apart and documented it.

    Pinon seal? No, would have to get past the bearing to enter the pumpkin.
    Axel seal? Is the only possibility I can see.

    Can't make out the profile of the seal, looks to be "L" shaped.

    Is it possible this O-ring was left in the bottom of your drain pan from some other prior work?

    rolled93slc, t0p_d0g and turbosnail like this.
  5. Oct 20, 2024 at 4:34 PM
    #5
    NC Gazzer

    NC Gazzer Well-Known Member

    Joined:
    Sep 27, 2022
    Member:
    #406812
    Messages:
    301
    Gender:
    Male
    Durham, NC
    Vehicle:
    1996 Tacoma 4wd 2.7 + 2023 TRD Sport
    [QUOTE="Toycoma2021, post: 30209654, member: 351607"
    Is it possible this O-ring was left in the bottom of your drain pan from some other prior work?[/QUOTE]

    This has my vote unless, of course, the OP actually saw it exiting the drain port.

  6. Oct 20, 2024 at 5:24 PM
    #6
    foy1der

    foy1der [OP] Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    570
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    I personally saw the broken oring hanging out of the rear diff drain plug after the oil finished draining. I pulled it and this big ring came out.

  7. Oct 20, 2024 at 5:32 PM
    #7
    Rusty66

    Rusty66 Ain’t Afraid

    Joined:
    Oct 17, 2022
    Member:
    #408261
    Messages:
    1,456
    Gender:
    Male
    Rhode Island
    Vehicle:
    19' Limited 4x4 (01' TRD OR, 97’ SR5 V6, 88’ SR5 Extra Cab)
    If the the diff locks fine and doesn’t make noise, I say send it. Looks like a wheel bearing O ring, watch for an axle seal leak.

    Last edited: Oct 20, 2024
    usmc2msu likes this.
  8. Oct 20, 2024 at 5:47 PM
    #8
    jerrybear

    jerrybear Well-Known Member

    Joined:
    Dec 30, 2022
    Member:
    #414290
    Messages:
    201
    Vehicle:
    17 off-road
    Rear axle o-ring?

    t0p_d0g likes this.
  9. Oct 20, 2024 at 5:48 PM
    #9
    jerrybear

    jerrybear Well-Known Member

    Joined:
    Dec 30, 2022
    Member:
    #414290
    Messages:
    201
    Vehicle:
    17 off-road
  10. Oct 20, 2024 at 5:51 PM
    #10
    helix66

    helix66 Well-Known Member

    Joined:
    Nov 10, 2017
    Member:
    #235675
    Messages:
    1,822
    Gender:
    Male
    DPRC
    Vehicle:
    2017 DclB TRDor MgM
    ProGrille,MesoStuff,Tinted,AllPro sliders, RCI ALL skids, BAMF diff skid, KDmaxPro tune, Demello bumper, Warn evo10s, BD s8 & squadrons, Accutune UCAs, Fox 2.5pes, Eibach & Deaver
    How would that get past the more inboard oil seal?

  11. Oct 20, 2024 at 5:52 PM
    #11
    foy1der

    foy1der [OP] Well-Known Member

    Joined:
    Sep 18, 2016
    Member:
    #197597
    Messages:
    570
    Gender:
    Male
    First Name:
    W1FOY
    Vehicle:
    2017 OR DCLB
    And all the way down the axle shaft?

  12. Oct 20, 2024 at 6:27 PM
    #12
    bfonic

    bfonic Well-Known Member

    Joined:
    Dec 10, 2023
    Member:
    #439254
    Messages:
    112
    Vehicle:
    2023tacoma
    Maybe the axle oil seal rubber split apart?

  13. Oct 20, 2024 at 7:03 PM
    #13
    Toycoma2021

    Toycoma2021 Well-Known Member

    Joined:
    Jan 3, 2021
    Member:
    #351607
    Messages:
    1,688
    Northern California, Temporarily
    Vehicle:
    2021 Access Cab, LB, AT, V6, Off Road
    If this is the case a careful inspection of the rubber edges may show a jagged edge on one side. OP could get out a magnifying glass and take a very good looksee at both edges of the rubber.

  14. Oct 20, 2024 at 8:12 PM
    #14
    t0p_d0g

    t0p_d0g 私はタコマが大好きです

    Joined:
    Apr 17, 2023
    Member:
    #422653
    Messages:
    1,719
    Gender:
    Male
    Vehicle:
    2023 TRD SPORT 4X4 DCSB CSM, 2004 TRD OR DCSB IRP
    My vote is inner axle seal.

    MGMDesertTaco and Toycoma2021 like this.
  15. Oct 20, 2024 at 8:40 PM
    #15
    BLtheP

    BLtheP Constantly Tinkering Member

    Joined:
    Apr 5, 2022
    Member:
    #394355
    Messages:
    4,559
    Gender:
    Male
    Plano, TX
    Vehicle:
    2021 MGM TRD On-Road DCSB MT
    RC60F Transmission ADD delete with FJ full-time tube FJ Metal Clutch Pedal OEM Mexico-Spec Condenser Fan 265/70R16 Michelin Defender LTX M/S 2 OEM 1-Piece Lug Nuts Custom Built Switch Panel for all Electrical Accessories Rigid Amber Pro D-SS Ditch Lights Rigid 30" SAE High Beam Driving Light Bar Rigid SR-Q Pro Back-Up Light Kit (Recessed) VLEDS Tail Conversion VLEDS Foot Well Light Kit KC HiLites Cyclone V2 Under Hood Lights Operable (Switched) Clutch Safety Bypass
    That’s not a thing. There is a pinion seal and two axle seals, one at each end of the housing that the wheel bearing retainer seals to. I suppose it’s possible for part of an outer seal to come apart and make its way down the tube, but that’s a decently long journey to end up at the drain and not be sucked up into something else like a bearing first.

  16. Oct 20, 2024 at 8:40 PM
    #16
    BLtheP

    BLtheP Constantly Tinkering Member

    Joined:
    Apr 5, 2022
    Member:
    #394355
    Messages:
    4,559
    Gender:
    Male
    Plano, TX
    Vehicle:
    2021 MGM TRD On-Road DCSB MT
    RC60F Transmission ADD delete with FJ full-time tube FJ Metal Clutch Pedal OEM Mexico-Spec Condenser Fan 265/70R16 Michelin Defender LTX M/S 2 OEM 1-Piece Lug Nuts Custom Built Switch Panel for all Electrical Accessories Rigid Amber Pro D-SS Ditch Lights Rigid 30" SAE High Beam Driving Light Bar Rigid SR-Q Pro Back-Up Light Kit (Recessed) VLEDS Tail Conversion VLEDS Foot Well Light Kit KC HiLites Cyclone V2 Under Hood Lights Operable (Switched) Clutch Safety Bypass
    Where is the inboard oil seal?

  17. Oct 20, 2024 at 8:48 PM
    #17
    Toycoma2021

    Toycoma2021 Well-Known Member

    Joined:
    Jan 3, 2021
    Member:
    #351607
    Messages:
    1,688
    Northern California, Temporarily
    Vehicle:
    2021 Access Cab, LB, AT, V6, Off Road
    See link supplied in Post #9.

    helix66 likes this.
  18. Oct 20, 2024 at 8:50 PM
    #18
    BLtheP

    BLtheP Constantly Tinkering Member

    Joined:
    Apr 5, 2022
    Member:
    #394355
    Messages:
    4,559
    Gender:
    Male
    Plano, TX
    Vehicle:
    2021 MGM TRD On-Road DCSB MT
    RC60F Transmission ADD delete with FJ full-time tube FJ Metal Clutch Pedal OEM Mexico-Spec Condenser Fan 265/70R16 Michelin Defender LTX M/S 2 OEM 1-Piece Lug Nuts Custom Built Switch Panel for all Electrical Accessories Rigid Amber Pro D-SS Ditch Lights Rigid 30" SAE High Beam Driving Light Bar Rigid SR-Q Pro Back-Up Light Kit (Recessed) VLEDS Tail Conversion VLEDS Foot Well Light Kit KC HiLites Cyclone V2 Under Hood Lights Operable (Switched) Clutch Safety Bypass
    The piece in the photo doesn’t really resemble anything in the rear axle assembly. From what I can recall, I don’t believe the o-rings that go onto the end of the axle tube are squared off like the ring in the photo. They are round, IIRC. There are only 3 seals, 2 axle shaft seals and 1 pinion. Unlikely any part of the pinion seal could have broken off and made its way past the 2 pinion bearings and out the drain plug without being chopped up. Axle seal is more feasible but still unlikely.

    My bet is on some sort of manufacturing debris that put a foreign part in there. I can’t think of anything else it would be.

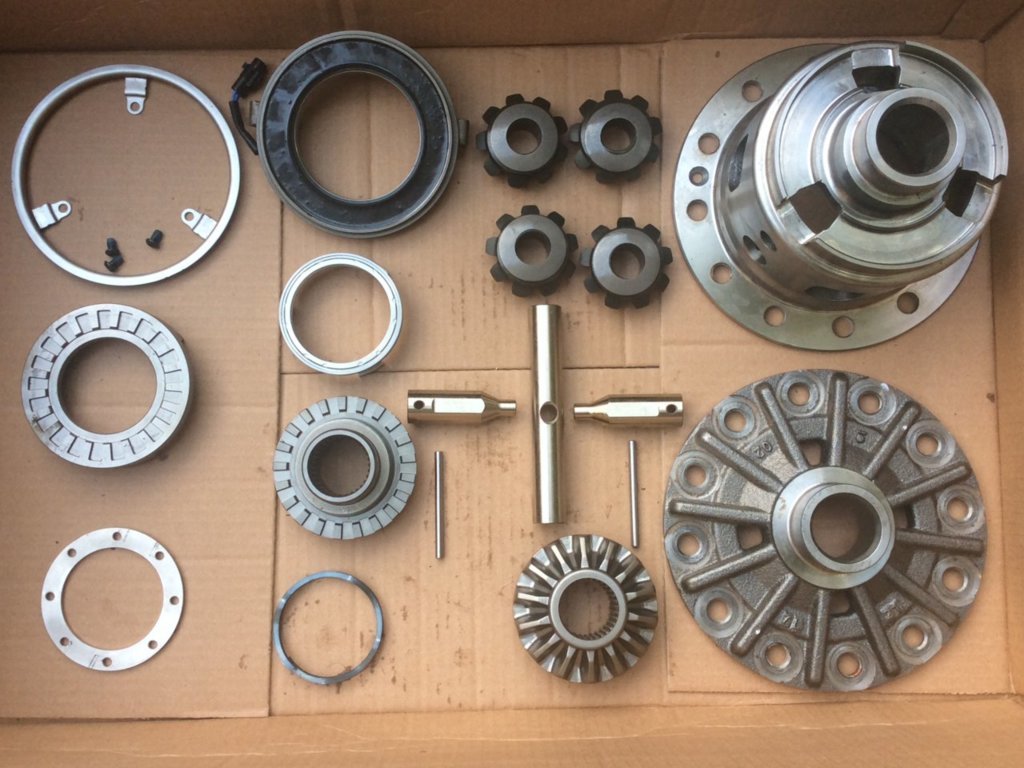

    Courtesy of @Jowett, here is the diagram for the locker. It looks sort of similar to the part on the bottom row, second from the left, but even then, that part looks metal. Hard to tell.


    If all functions properly, I’d toss it and keep driving.

  19. Oct 20, 2024 at 8:54 PM
    #19
    BLtheP

    BLtheP Constantly Tinkering Member

    Joined:
    Apr 5, 2022
    Member:
    #394355
    Messages:
    4,559
    Gender:
    Male
    Plano, TX
    Vehicle:
    2021 MGM TRD On-Road DCSB MT
    RC60F Transmission ADD delete with FJ full-time tube FJ Metal Clutch Pedal OEM Mexico-Spec Condenser Fan 265/70R16 Michelin Defender LTX M/S 2 OEM 1-Piece Lug Nuts Custom Built Switch Panel for all Electrical Accessories Rigid Amber Pro D-SS Ditch Lights Rigid 30" SAE High Beam Driving Light Bar Rigid SR-Q Pro Back-Up Light Kit (Recessed) VLEDS Tail Conversion VLEDS Foot Well Light Kit KC HiLites Cyclone V2 Under Hood Lights Operable (Switched) Clutch Safety Bypass
    I’m probably being nitpicky. I’ve replaced the diffs and the axle bearings before so I’m familiar with what is where. There’s only one seal + an exterior o-ring per side. To me, “inboard” implied there’s something sealing at the diff itself, which of course there isn’t. Anyways, I don’t think the part in the photos looks anything like o-ring anyways so for that to get past the seal would indeed be one hell of a task.

  20. Oct 20, 2024 at 9:07 PM
    #20
    t0p_d0g

    t0p_d0g 私はタコマが大好きです

    Joined:
    Apr 17, 2023
    Member:
    #422653
    Messages:
    1,719
    Gender:
    Male
    Vehicle:
    2023 TRD SPORT 4X4 DCSB CSM, 2004 TRD OR DCSB IRP
    It’s the inner hub assembly O ring directly behind the brakes.
