OBA Install on 05+ Tacoma

Discussion in '2nd Gen. Tacomas (2005-2015)' started by barlowrs, Jan 9, 2011.

  1. Jan 9, 2011 at 6:21 PM
    #1
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Well after getting stuck over seas for work for a few weeks, I am back on schedule with my compressor install. So, here it is, hope it helps some people or give them some inspiration.
    My plan was to have a compressor that could fill tires, blow out filters, etc, while at the same time, run some basic air tools for trail. I wish I could fit a york or belt driven compressor, but if you have ever looked inside the engine bay of one of these V6 tacos, that was clearly not an option. I researched a lot, and came to the conclusion that the PD-1006 compressor that is strapped onto the top of a Puma assembly was the best option. Here are the stats for the compressor:

    ¾ HP Running
    1 HP Peak
    3.4 CFM (not bad for a 12V compressor)
    135PSI Working pressure
    150PSI Max Pressure

    In addition, here is a list of some of the other toys that go along with it:

    2.5 gallon Viar Tank (yes the puma came with a tank, but it was too small for my liking)
    90 PSI On / 120PSI Off Pressure Swtich
    140 PSI Blow Off
    18” Steel Leader Hose
    PA61A Load Genie Unloader/Check Valve
    80A Resetable Water Proof Breaker
    100 A Relay
    Interstate Metal encased water separator
    75 ft of Nylon Tubing
    7 port manafold
    A LOT of compression fittings and other fittings
    A lot of 4 AWG Wire

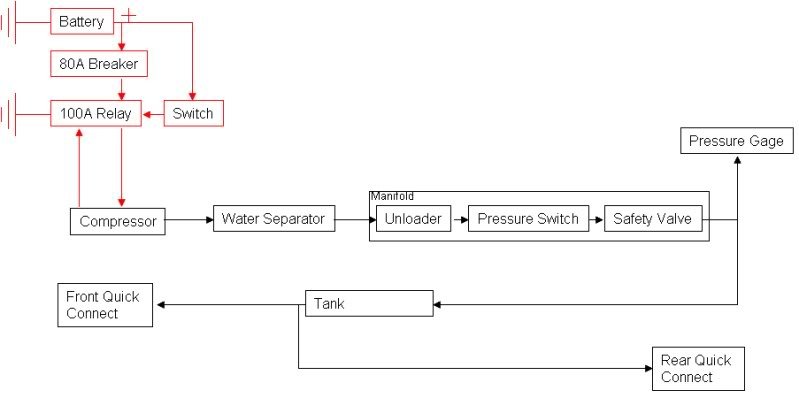

    Hmm, there is probably a bunch of other stuff, but that is the basics….The scheamit I ended up coming up with went something like this. (Red is Electrical, Black is Air):

    [​IMG]

    So…now it came time to mount it all. I wanted the compressor out of the elements best I could, but under the hood posed a few problems, first of all, it is very hot there, and heat is bad for compressors. Also, as we already established there is not much room, and this compressor is not a small one by any means. I thought about under the rig, but that is to exposed to the elements. Finally I fount a nice solution. Behind door number 1!

    [​IMG]

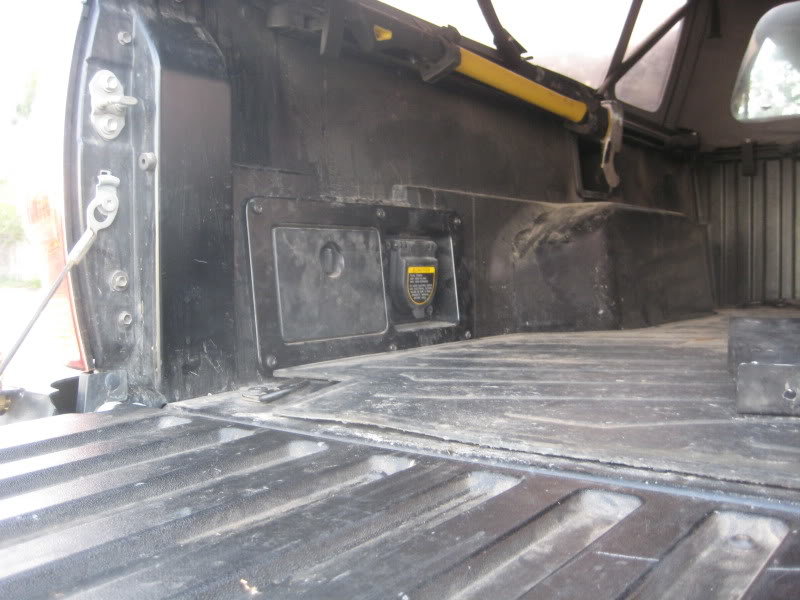

    First thing I had to do was relocate the factory 120V plug. I do use this a lot, so I didn’t want to just get rid of it. Instead I made a harness and extended it to the other side of my bed.

    [​IMG]

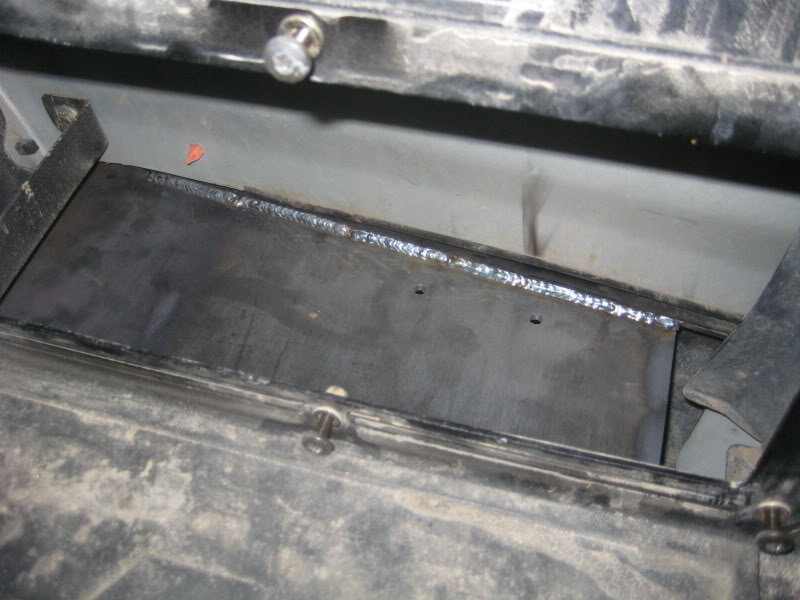

    That left me a nice opening to play with. Because I have the CBI rear bumper, I have a large opening behind the cubby hole, and a lot of steel to weld to. I created a little shelf that welds directly to the bumper. Because this compressor is pretty hefty, I needed the shelf to be strong since it is cantilevered off the bumper, I used ¼” Plate and added some nice gussets for bracing. Here are few pics of the shelf and the bracing.

    [​IMG]

    [​IMG]

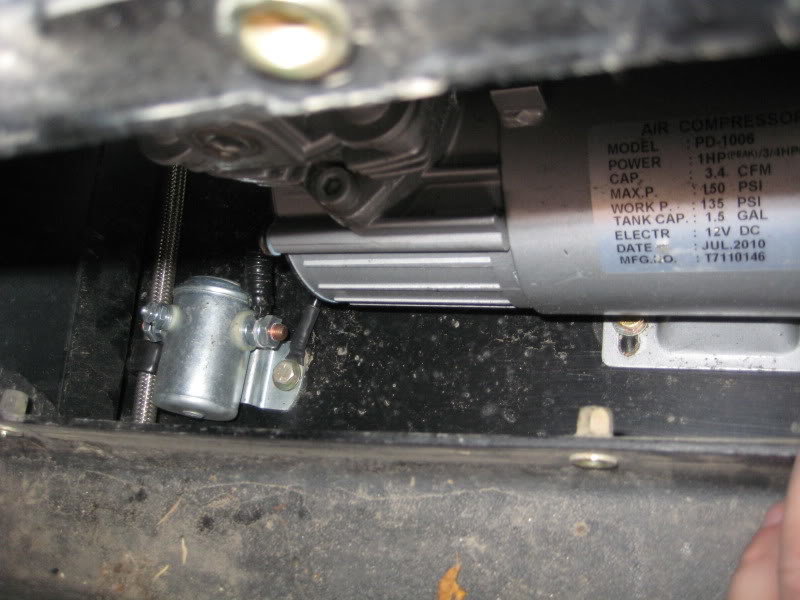

    This also give me a nice place to mount the 100A relay. Here you can see the relay. In addition I added a separate ground strap..just to be safe. Non proper grounding is a bad thing.

    [​IMG]

    [​IMG]

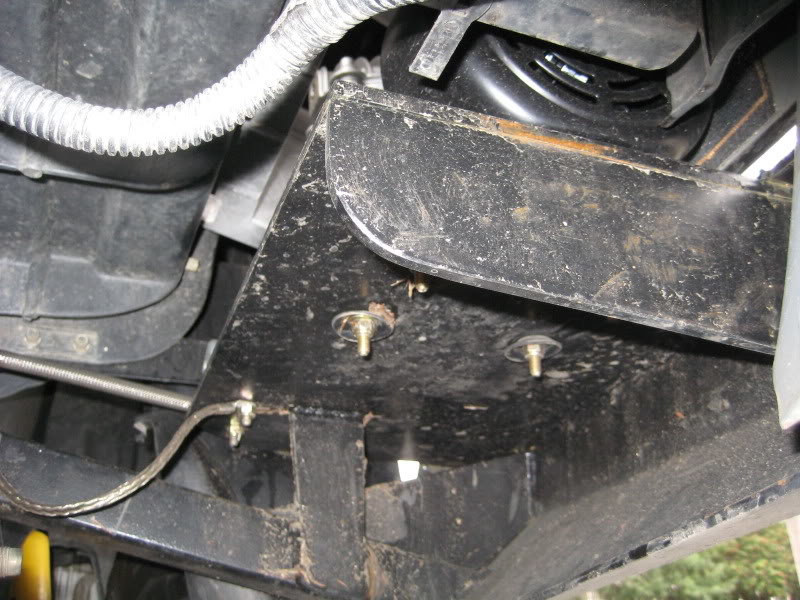

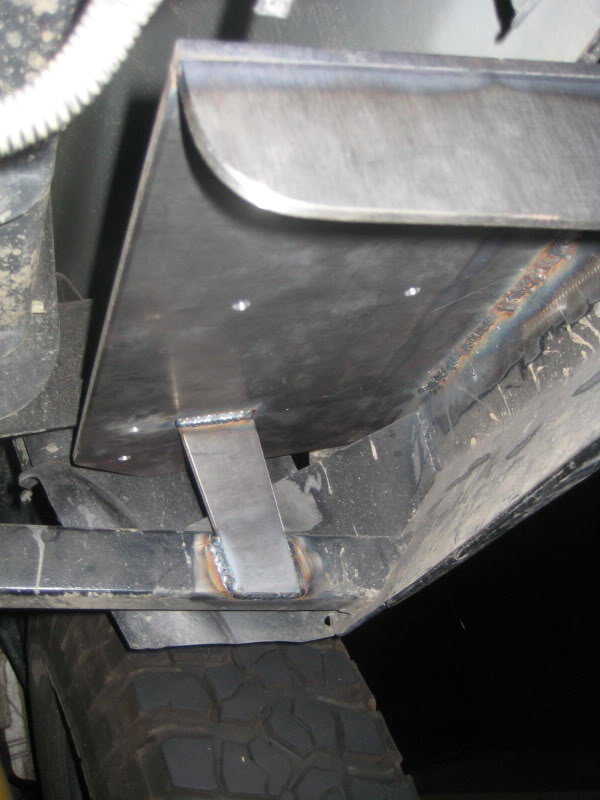

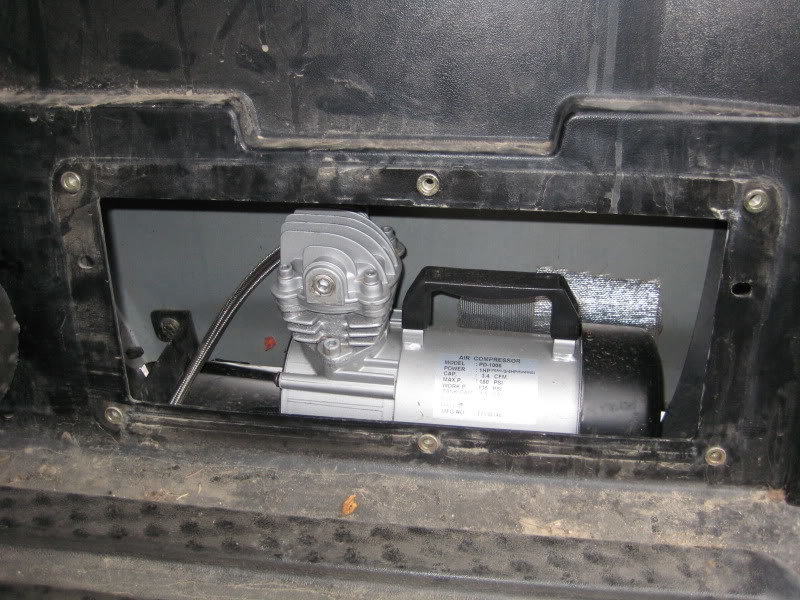

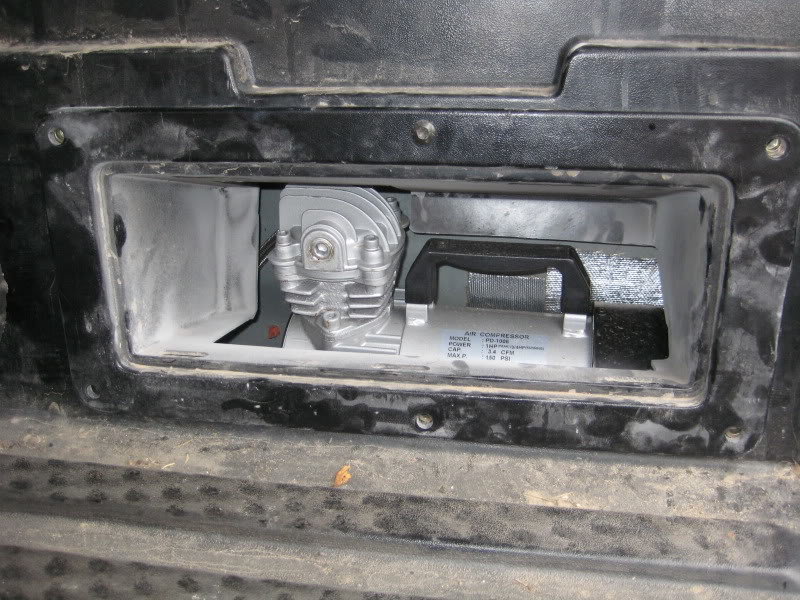

    Next was to mount the compressor and trim the cubby to fit around it. The cubby provides some nice protection for the compressor while also proving enough space for her to breath. I also added some fiberglass heat shielding behind it so my body paint doesn’t start to melt on the outside. With the cover closed, you would never know I had a compressor there (the first pic in the post is with the compressor already mounted….didn’t see it did you!?)

    [​IMG]

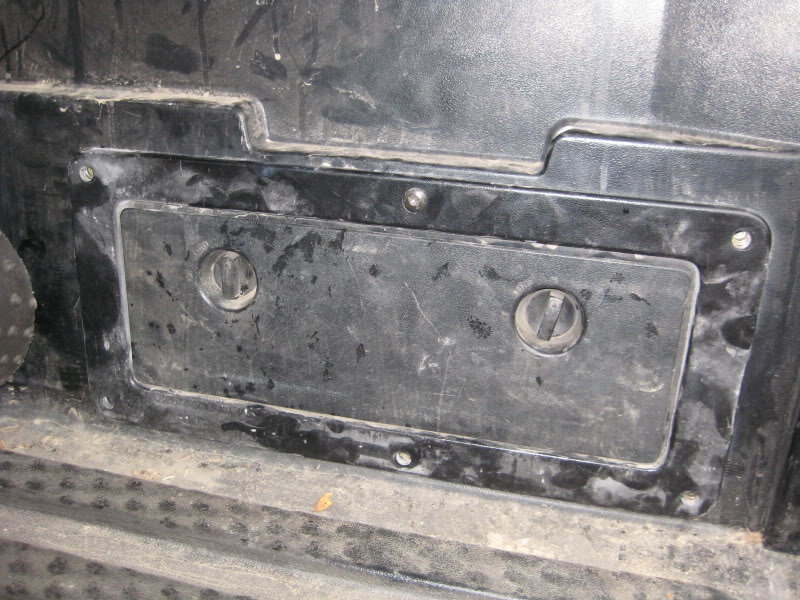

    Cubby Mounted:

    [​IMG]

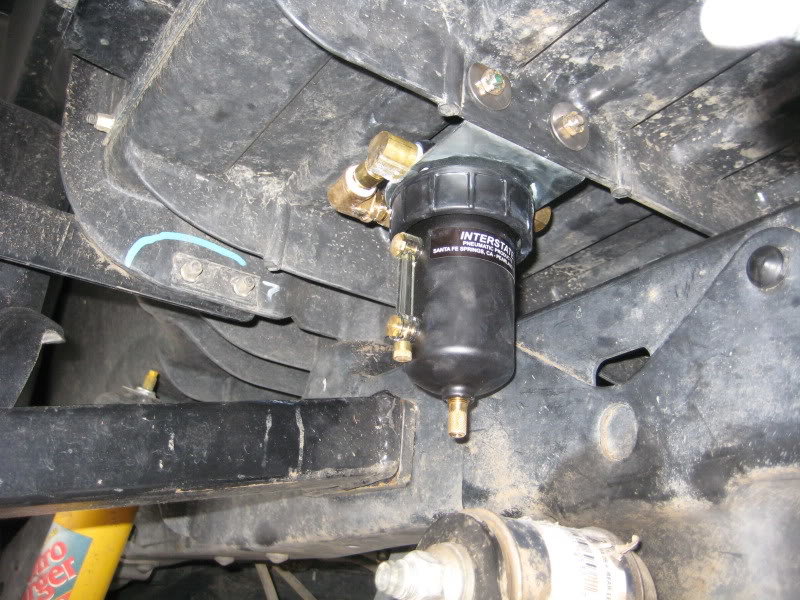

    Now for all the accessories. The water filter is mounted right above my rear shackle, This makes it accessible to drain, but protects it because the suspension would hit before any rocks hit it. I also opted for a metal encased filter to be safe.

    [​IMG]

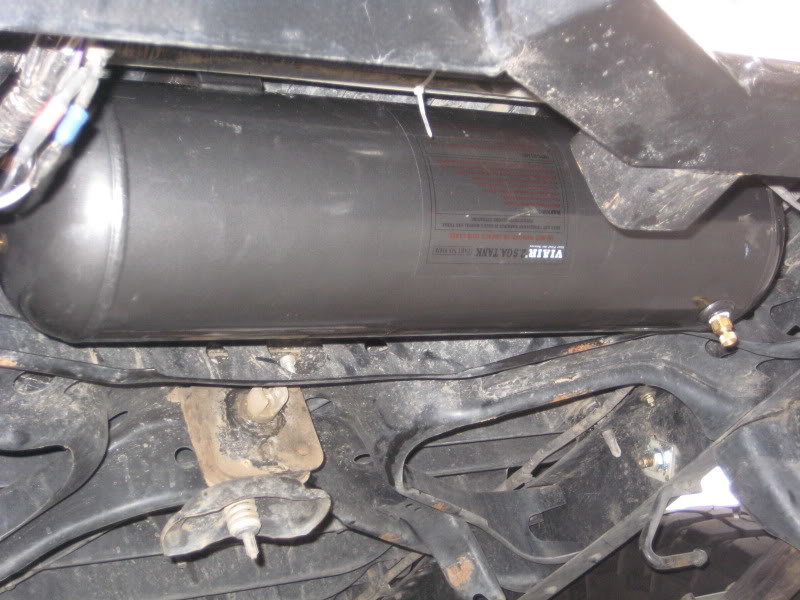

    The tank is mounted right in front of my rear bumper. It is just the perfect height to not hang below the bumper (even the drain cock).

    [​IMG]

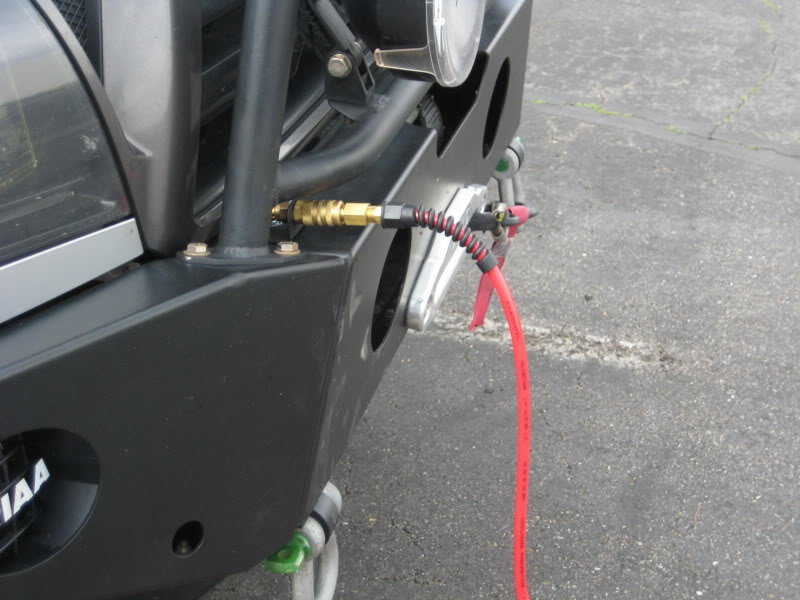

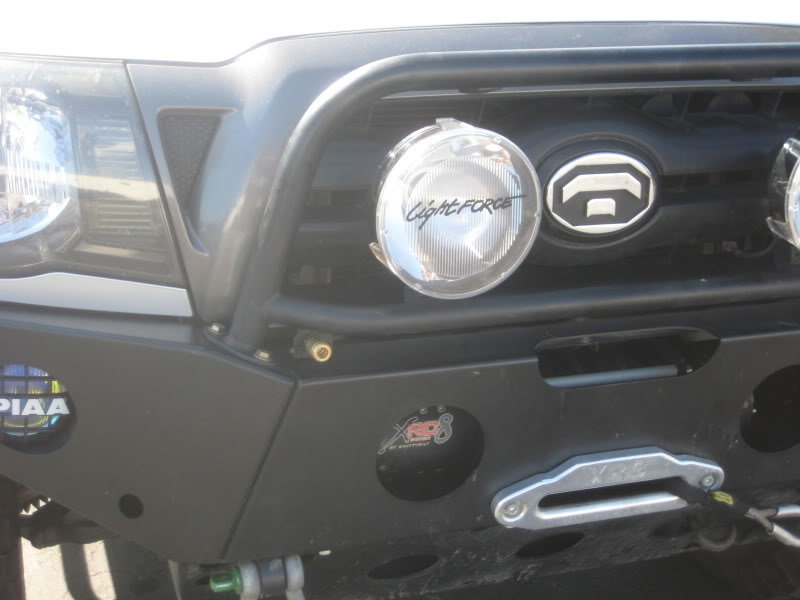

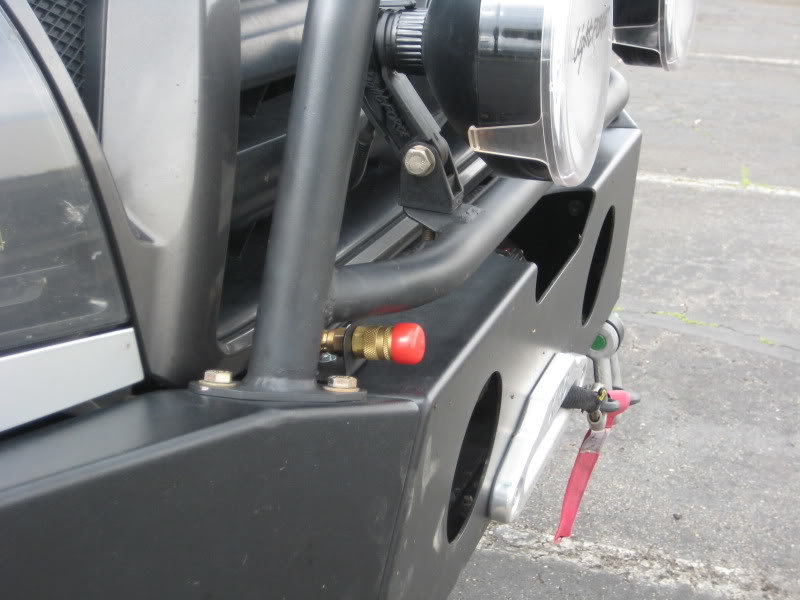

    I then decided to go with two quick connects, one up front and one out back. I made a little bracket for the front one and bolted it to my Allpro bumper

    [​IMG]

    [​IMG]
    [​IMG]

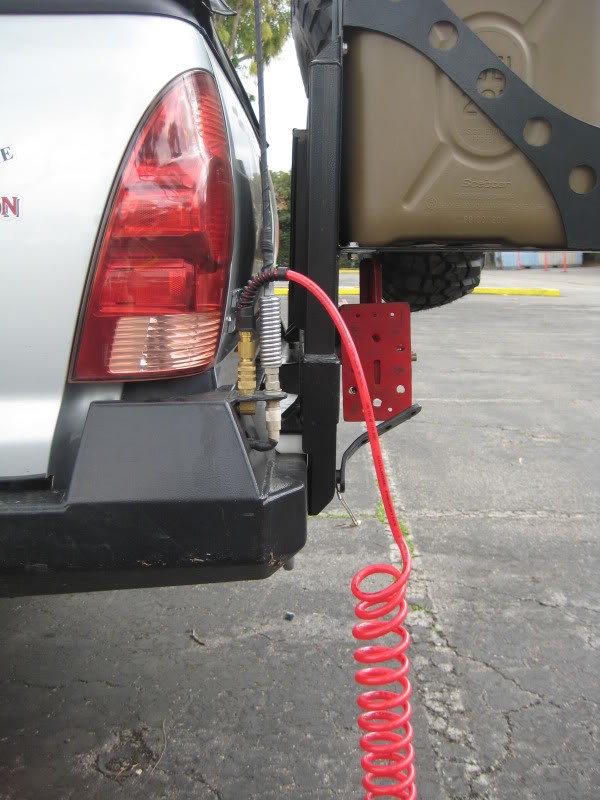

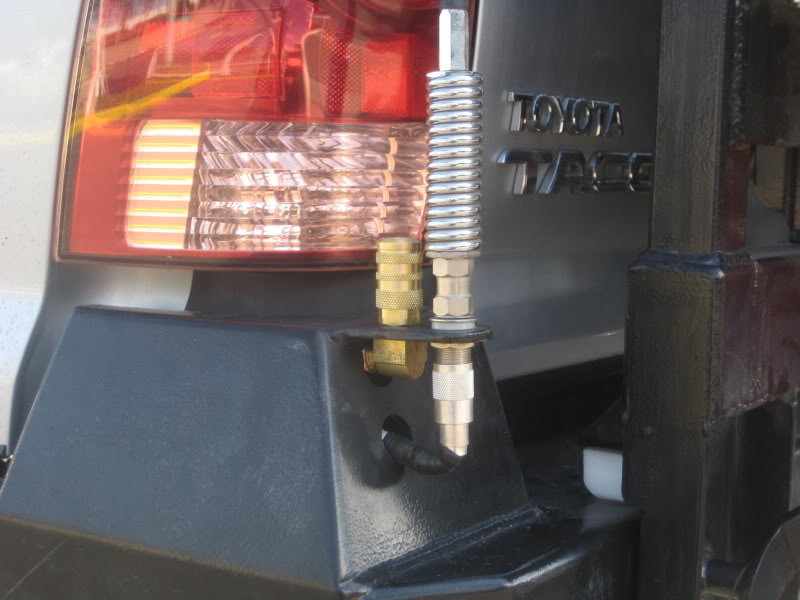

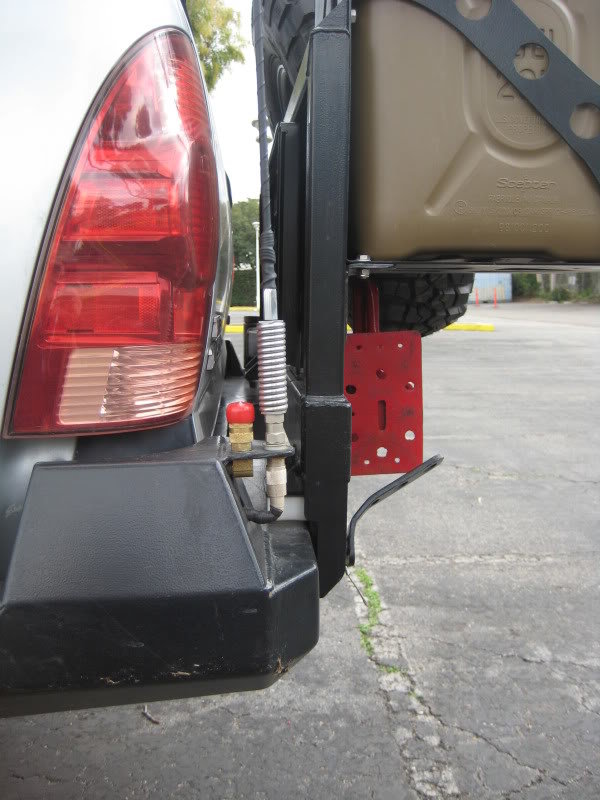

    For the rear, I decided to mount it vertically off of the antenna tab on the CBI bumper. Mounting it vertically is a bit risky as moisture could flow down into the system, but I have some nice covers grabbed from work.

    [​IMG]

    [​IMG]

    [​IMG]

    The wiring will be in another write-up as I revamped my aux fuse block mount to make room. That should be up in a week or two.


    Thanks

  2. Jan 9, 2011 at 6:31 PM
    #2
    DonnoD

    DonnoD Well-Known Member

    Joined:
    Jun 6, 2010
    Member:
    #38459
    Messages:
    960
    Gender:
    Male
    First Name:
    don
    las vegas
    Vehicle:
    07 dc 4x4 v6
    wow!! im jealous good work. i like how you cant even tell where everything is at except for the quick connects

  3. Jan 9, 2011 at 6:33 PM
    #3
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,969
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    damn thats clean

  4. Jan 9, 2011 at 8:01 PM
    #4
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    you some skills bro! nicely done.

  5. Jan 9, 2011 at 9:20 PM
    #5
    A7XT

    A7XT Reppin UWYO

    Joined:
    May 1, 2009
    Member:
    #16656
    Messages:
    343
    Gender:
    Male
    First Name:
    Kyle
    WYOMING
    Vehicle:
    '09 TRD Sport V6 Silver
    BRUTEFORCE FAB HYBRID BUMPER!, 1.5 AAL, 5100 at 2.5" in front, foglight and DRL mod, fully de-badged, diff-breather mod, aux backup lights, rear view switch on mod, full husky floor liners, yellow wire mod, black action packer toolbox, Rockford P3SD412 sub on a hifonics Zues, Pioneer 4200DVD, hitch recovery shackle, Toyota Ski racks over bed, 55W Bixenon 6000K, Rigid 4" LED bars on bumper, Black Ultra Thunder 17" rims
    Dude that is amazing, nice job on the cleanliness of the install. Your rig is so nice I am jealous

  6. Jan 10, 2011 at 8:00 AM
    #6
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Thanks guys

  7. Jan 10, 2011 at 8:07 AM
    #7
    Fire931

    Fire931 Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    Looks great!!

    Only thing I might add is that you might want to add a piece of rubber or something in front of the compressor hanging off the bottom of what's left of the cubby, hard to tell from the pictures but looks like there's a decent size opening in there and I know you'll get alot of debris thrown up in there from the tires.

  8. Jan 10, 2011 at 8:31 AM
    #8
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    I had thought about this when I frist started. I beleive it should be ok, there is a decent hole where the side of the cubby ends, but I still have my inner wheel well liner there. Before I cut the cubby, I looked to see how "dirty" the side was (to see if the wheel throws mud or anything up there). It was pretty clean, so I should be ok. I can always change that up later, thats whats nice about having it easy to get to.

    Thanks

  9. Jan 10, 2011 at 8:41 AM
    #9
    Fire931

    Fire931 Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    Sounds good, you may have left more of the inner liner that I did on mine, thus the difference. In any case it's a really clean well thought out install as usual!

  10. Jan 10, 2011 at 10:06 AM
    #10
    musty40

    musty40 Well-Known Member

    Joined:
    Jan 30, 2010
    Member:
    #30318
    Messages:
    208
    Gender:
    Male
    First Name:
    Alan
    Duluth, MN
    Vehicle:
    2010 DC SB TRD OR
    Another nice write-up!

    I'm envious of your truck! Hopefully someday mine will be as well equipped.

    Alan

  11. Jan 10, 2011 at 1:45 PM
    #11
    beach triple

    beach triple Member

    Joined:
    Nov 10, 2008
    Member:
    #10629
    Messages:
    12
    Gender:
    Male
    Is the 100A relay neccesary? I'm about to install my MV-50, and since it's made to hook directly to the battery I didn't think I'd need anything other than a fuse between the pump and the battery.

  12. Jan 10, 2011 at 2:36 PM
    #12
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    The 80A relay is my fuse. This is a much bigger compressor than the MV-50. You should be fine with how yours came though.

  13. Jan 10, 2011 at 2:41 PM
    #13
    ToucanV13

    ToucanV13 You think I was rollin out here naked?

    Joined:
    Feb 21, 2008
    Member:
    #4866
    Messages:
    2,339
    Gender:
    Male
    San Diego and Colorado
    Vehicle:
    Infideled out TRD Sport 4X4
    285/70 Hankook AT-M, Window vents, TRD CAI, TRD Cat-back exhaust with WickedFlow can, AFE Throttle Body Spacer, Billy 5100 @ 2.5 and 1" block rear, RBP nerf bars, Halo HIDs, 20% tint up front
    Wow Robert, looking great :thumbsup:

  14. Apr 17, 2011 at 2:40 PM
    #14
    skytower

    skytower Well-Known Member

    Joined:
    Jun 7, 2010
    Member:
    #38505
    Messages:
    3,228
    Gender:
    Male
    First Name:
    Dave
    virginia
    Vehicle:
    08 Tacoma 4x4
    Hitch and wiring, aux back-up light, rear strobe lights, radio and underseat sub.
    Fixed it for ya:)

    Puma rates it's compressor at 30 amps. I don't know the safety factor of your wires, but make sure you have the right combination. If your wires are rated lower than 90A, then you need to get a smaller breaker.

  15. Apr 17, 2011 at 4:31 PM
    #15
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim

    I am running 3 awg stinger wire that is rated over the 80A...the breaker is the weakest link, as it should be. The steady state for the compressor is 30A, however startup exceeds that, hence the larger breaker. I do know that the time frame of the startup current is several hundred milleseconds, so it is not really a concern, but I like to be safe.

  16. May 19, 2011 at 3:39 PM
    #16
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,331
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Very clean. Well done.

  17. May 19, 2011 at 6:39 PM
    #17
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,564
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    Where can I get some of those coupler covers?

  18. May 19, 2011 at 10:32 PM
    #18
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    They are actually post covers off of an odessy batter..haha, they fit PERFECTLY. Run to a shop that sells Oddessy and see if they have any extra.

    Otherwise, Kilby sells them, but I think they only fit their couplers (not sure never tried them): http://www.kilbyenterprises.com/universal-couplers.htm

  19. May 19, 2011 at 11:24 PM
    #19
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,564
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    Yeah I checked out the Kilby ones already, but they're so damn expensive. I'm probably just going to make them somehow.

    btw, thanks for all your help barlowrs, I made a similar bracket on my bumper (see sig)

  20. Dec 22, 2012 at 10:29 PM
    #20
    jeverich

    jeverich Well-Known Member

    Joined:
    Mar 25, 2008
    Member:
    #5517
    Messages:
    2,235
    Gender:
    Male
    First Name:
    Jake
    PNW/Kodiak
    Vehicle:
    07 2.7 4x4
    OME 886/Old Man Doug Suspension Lift, ARB Bumper, Bruteforce High Clearance w/Swing Out, De-badge, Block Heater, Homemade IFS Skid, 7" Kragens, Blue Seas Fuse Block, BlitzPro Fogs, 12k BadLands Winch, BAMF Sliders, ARB Locker, 4.88s Yaesu FT-1900R, Larsen 150B NMO Mount Antenna
    Well, after some heavy research I've decided to go the Puma route. Seems as though it's the best CFM/$ ratio available. Plus, it's not threaded in BPST like the ARB (which forces you to use ARB only components)..

    Unfortunately I don't have a HC rear...yet. Did you have any alternative mounting points for the compressor in mind?

    Plumbing in my rear ARB locker as well, and would like to have front and rear quick connects, too. What did you use for air line? I'm thinking about using Aeroquip Push-Loc hose.

    I'll be bugging you about details within a few weeks!

    Jake
