OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Mar 8, 2020 at 10:11 AM
    #2021
    503_trd

    503_trd Member

    Joined:
    Jan 6, 2020
    Member:
    #315329
    Messages:
    12
    Vehicle:
    2017 TRD OR
    None
    Thanks for the info, I just figured it wouldn’t be an issue because they put the plug in the bed.

  2. Mar 8, 2020 at 12:45 PM
    #2022
    Thatbassguy

    Thatbassguy Derriere extraordinaire

    Joined:
    Mar 17, 2018
    Member:
    #247525
    Messages:
    4,276
    Gender:
    Male
    First Name:
    James
    Vehicle:
    '19 T4R, TRDORP, KDSS
    RSG sliders, Pro-Comp '05 wheels, Yakima offgrid basket
  3. Apr 4, 2020 at 3:20 PM
    #2023
    Hobbes_4x4

    Hobbes_4x4 Active Member

    Joined:
    Mar 15, 2019
    Member:
    #286690
    Messages:
    35
    Gender:
    Male
    Vehicle:
    2015 SR5

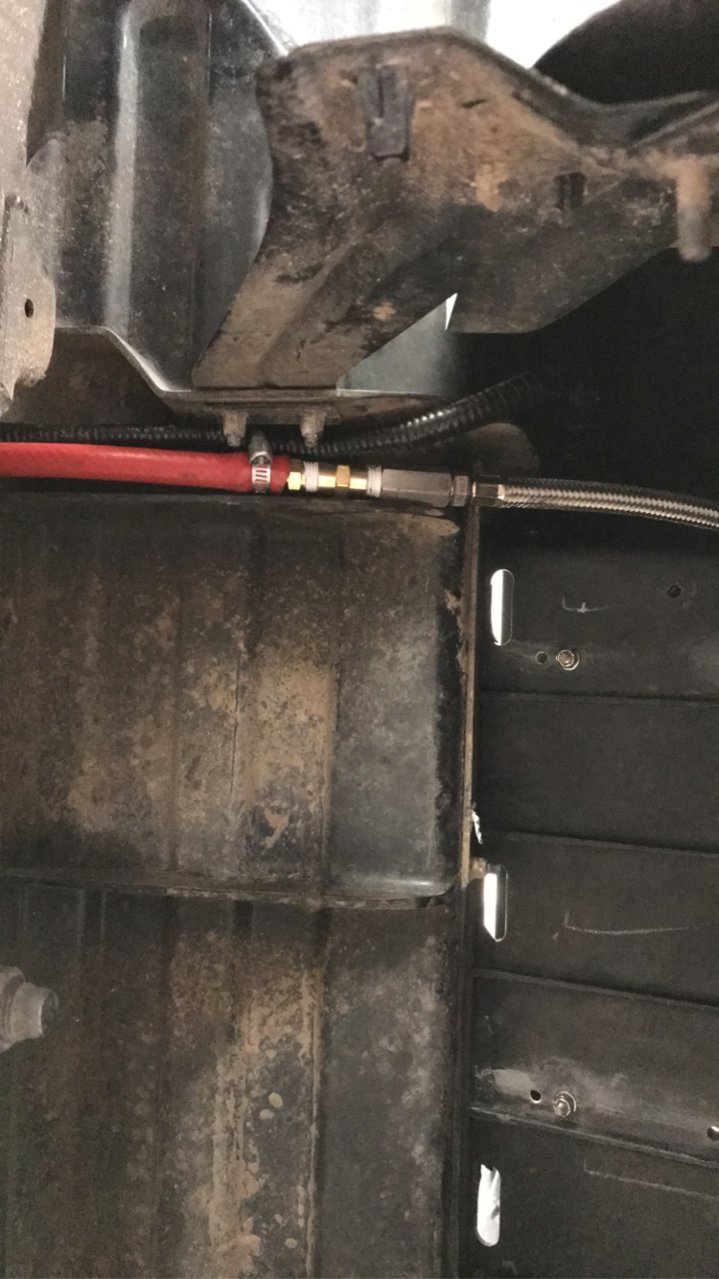

    So, got my compressor mounted in the bedside cubby.

    anyone see an issue with this line routing? Too close to the power conduit?


  4. Apr 4, 2020 at 10:13 PM
    #2024
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Could be OCD on my part but I’d like to see that coupling area strapped to something solid that still allows the hoses to flex and then zip tie the split loom to the rubber hose since the braided hose is the one that gets hotter. The split loom will take the wear as it is but just on principle I’d separate them around those nutserts and the hose clamp.

  5. Apr 4, 2020 at 11:11 PM
    #2025
    Hobbes_4x4

    Hobbes_4x4 Active Member

    Joined:
    Mar 15, 2019
    Member:
    #286690
    Messages:
    35
    Gender:
    Male
    Vehicle:
    2015 SR5
    Would like to do something like that but the way everything’s positioned is kinda difficult. Not a super fan of it, but I’m only running the comp., no tank, at the moment.

    The braided hose and the conduit are clamped down to the cubby separately.

    Maybe wrap a length of 3/4” conduit about the connectors on the air line?

  6. Apr 5, 2020 at 10:06 AM
    #2026
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    My concern was for the damage that hose clamp could do to the loom with vibration from the compressor. The coupling area is the only section of the airline where it’s rigid and where a clamp could stifle the vibration. If it’s already clamped there then no need for another. If not, a vynil coated conduit clamp might do the trick. Or maybe just loosen and rotate the hose clamp so the corner of the screw isn’t angled into the loom above it. Hard to tell if it’s even an issue since there maybe some space between them but you asked for a criticial eye and that’s all I could come up with after looking at it and thinking “what could go wrong and how could you make that less likely?”. Like I said, could be just OCD on my part.

    Hobbes_4x4 likes this.
  7. Apr 5, 2020 at 5:21 PM
    #2027
    Hobbes_4x4

    Hobbes_4x4 Active Member

    Joined:
    Mar 15, 2019
    Member:
    #286690
    Messages:
    35
    Gender:
    Male
    Vehicle:
    2015 SR5
    Nope, glad to get a second look. I can stare at stuff for an hour sometimes and not find a solution I like.

    The hose clamp I managed to wrap.

    Main concern is if the heat from the fittings will be an issue. They’re tho most conductive components in the area of the loom.

  8. Apr 7, 2020 at 9:47 PM
    #2028
    Taco-Obsessed

    Taco-Obsessed Wildlife Peeping Tom

    Joined:
    Dec 23, 2018
    Member:
    #276756
    Messages:
    6,750
    Gender:
    Male
    First Name:
    Shawn
    San Jose
    Vehicle:
    2015 4x4 DCLB: Work in Progress
    Never ending
    Sub a dub dub

    Last edited: Apr 7, 2020
  9. Apr 29, 2020 at 12:07 PM
    #2029
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    5,470
    Gender:
    Male
    Currituck NC
    Vehicle:
    09 LMM 2500HD Duramax
    Where’s the most ideal place to mount a water separator. Currently have a 12” SS line coming off compressor into a quick disconnect with DOT lines straight to the chuck located in my bed. Ordered a small water separator for it and was curious of everybody’s opinions on mounting it. Up high close to the connector? Or low in the middle?

  10. Apr 29, 2020 at 4:48 PM
    #2030
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,222
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Right before the chuck at the bed. That way the air has the most time to cool and condense

    bellassaiw10 likes this.
  11. May 24, 2020 at 2:16 PM
    #2031
    microsnook

    microsnook Well-Known Member

    Joined:
    Oct 5, 2019
    Member:
    #307192
    Messages:
    314
    Vehicle:
    '20 TRD OR MGM MT
    Finally got around to taking photos of my engine bay. The empty side is the passenger side where there seems to be plenty of space to mount a compressor. I've just ordered the ARB single. Is there a bracket that mounts to this side of the engine bay? I've seen the CBI one that goes on the driver side, but I think I will be mounting my SP9100 in this location (using the SDHQ bracket - if anyone can confirm this will fit in my location).
    I need some help, please! Thanks

    https://imgur.com/a/M1EoVAk

  12. May 27, 2020 at 6:08 PM
    #2032
    StevenP

    StevenP Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297659
    Messages:
    585
    Gender:
    Male
    First Name:
    Steven
    Alta, Ca
    Vehicle:
    2003 Tacoma DCSB TRD
    Build thread in Signature
    On board air experts, I need your help!

    I’m trying to plan out OBA for my front ARB locker and inflating 37’s. I’ve decided to squeeze in a dual ARB compressor, and I know I need the manifold for my locker. I want to run an air coupler to the bumper for inflation. I know I can do that off of the manifold and be done, but I’d kind of like to put a tank in the system as well to help speed up inflation (going to be using a MORRFLATE off the coupler at the bumper).

    I think its a simple question, but google hasn’t provided me any answers thus far, so I’m here seeking your help.

    The manifold has 2 ports for lockers, and 2 x 1/4 NPT ports, one of those goes to the compressor, which leaves me with 1 x 1/4 port..

    Can I run a tank off the remaining port and then run the air coupler hose to the bumper from the tank? Will this mess with the lockers, or are those regulated by the solenoids?

    I’m pretty confused, and the more I think about it the more I confuse myself by over thinking it lol.

  13. May 27, 2020 at 6:39 PM
    #2033
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Some will tell you the tank will help when adding a little air or running the locker without needing the compressor to come on but after the initial tank charge is depleted will slow airing up since you have to fill both the tank and the tires. You can connect the manifold to the tank through a shut off valve so you can close the valve and not have to pressurize the tank until after you’ve aired up.

  14. May 27, 2020 at 7:03 PM
    #2034
    StevenP

    StevenP Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297659
    Messages:
    585
    Gender:
    Male
    First Name:
    Steven
    Alta, Ca
    Vehicle:
    2003 Tacoma DCSB TRD
    Build thread in Signature
    Hmmmm, interesting, I hadn’t thought about that. Maybe I’ll just skip the tank for now

  15. May 27, 2020 at 7:23 PM
    #2035
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    17,129
    Gender:
    Male
    First Name:
    Matt
    NC
    im confused how a tank would slow down the process. Someone please enlighten me.

    Once the tank empties the compressor kicks on (probably before it’s empty) and the now empty air tank acts like an air line. Its nothing more than a tube for the air to pass through. It’s neither being filled nor emptied while air is passing through it...think about it. The same volume of air going into an empty tank is going to be the same volume of air exiting the tank, assuming both the inlet and outlet fittings are the same size.

    I think it’s another “hearsay” that tends to spreads around TW.

  16. May 27, 2020 at 7:29 PM
    #2036
    StevenP

    StevenP Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297659
    Messages:
    585
    Gender:
    Male
    First Name:
    Steven
    Alta, Ca
    Vehicle:
    2003 Tacoma DCSB TRD
    Build thread in Signature
    And the plot thickens! I guess my biggest concern is about the locker, would having a tank connected to the manifold mess with the locker at all? Would the tank holding 150 psi be too much, does the solenoid regulate pressure? Or would I have to regulate the line to locker, and where in the system would I do that? I read the 1/8 BSPP fittings for the solenoid are essentially ARB only, so making a regulator at the manifold may be difficult, but I just don’t know.

  17. May 27, 2020 at 7:36 PM
    #2037
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    17,129
    Gender:
    Male
    First Name:
    Matt
    NC
    Maybe the tank causes a big drop in pressure and/or cfm, since it’s much larger than the lines going in/out of it? That’s the only reason I could see why a tank would slow things down.

  18. May 27, 2020 at 7:41 PM
    #2038
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    17,129
    Gender:
    Male
    First Name:
    Matt
    NC
    supposedly the solenoids are good to 160ish psi. The twin has a pressure switch of 150psi IIRC. So should be fine. Guess we’ll see once my gears are ready.

    StevenP likes this.
  19. May 27, 2020 at 8:34 PM
    #2039
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Not hearsay. Think it through.
    The tank has a lot more volume than the air lines and the compressor has to bring it all up to the same level that you want each tire to be. Imagine blowing up a ballon then adding a second balloon and trying to blow them both up at the same time. By closing the tank valve you eliminate the extra balloon. After your tires are full you can fill the tank or not but that time isn’t necessarily part of the airing up process.

    tfro33 and Tsinajinii like this.
  20. May 28, 2020 at 5:20 AM
    #2040
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    If you want a tank get a tank, the difference is negligible. Is a min or 2 difference if any (who's really tested it) gonna kill you?
