OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jun 9, 2020 at 7:54 AM
    #2041
    SportsmanJake

    SportsmanJake Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    405
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    Can anyone recommend a surface mount quick connect for my ARB compressor?
    Preferable cheaper than the ARB model and with some kind of cover/plug to keep sand/water out of it.

    thebaker likes this.
  2. Jun 9, 2020 at 10:05 AM
    #2042
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,889
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter

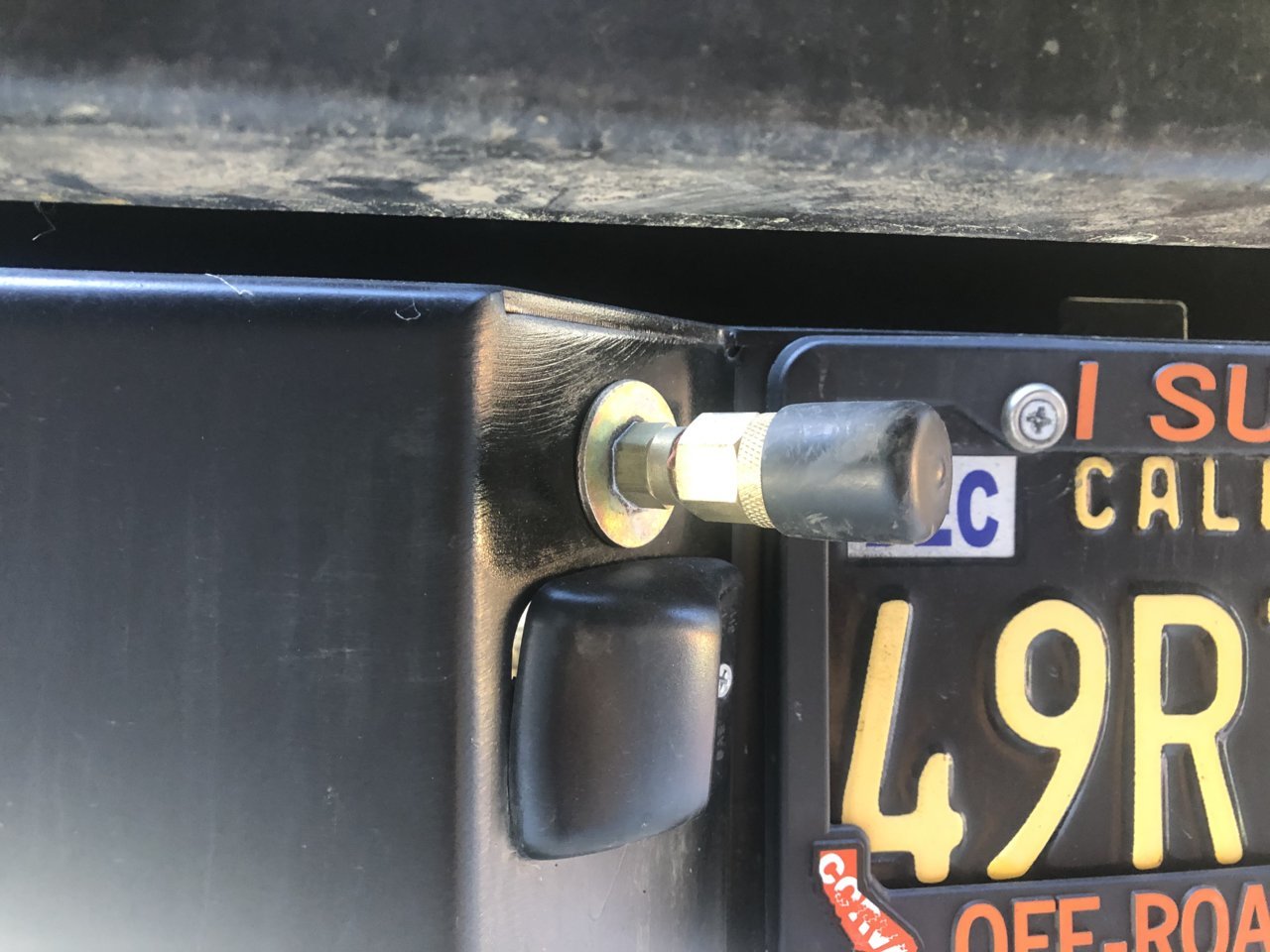

    I just used a NPT quick disconnect female air fitting on my bumper (https://www.homedepot.com/p/Husky-3...ck-Connector-Kit-5-Piece-HDA71900AV/205190585) and use a rubber chair tip (don't recall the correct size but basically this: https://www.homedepot.com/p/Shepherd-1-in-Black-Rubber-Leg-Tips-4-per-Pack-89128/100138443). been using it for years though I have changed out the female fitting once or twice in that time frame.


    PNW/TRD Steve and doublethebass like this.
  3. Jun 9, 2020 at 10:13 AM
    #2043
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    16,958
    Gender:
    Male
    First Name:
    Matt
    NC
  4. Jun 9, 2020 at 10:38 AM
    #2044
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,810
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera

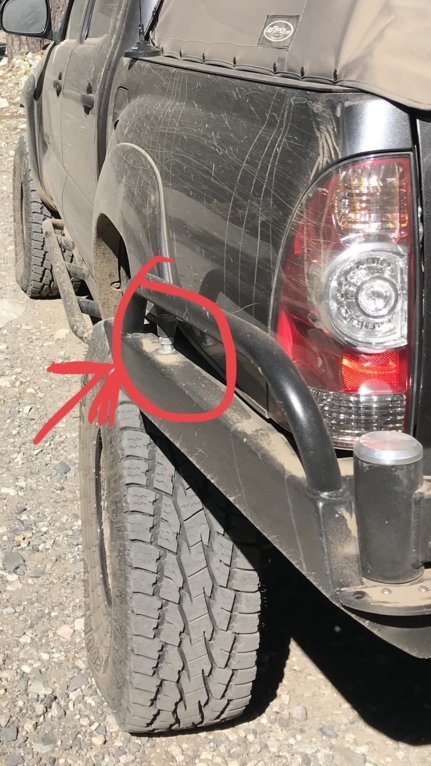

    My solution:


    Including protective cover from Home Depot :D

  5. Jun 9, 2020 at 10:43 AM
    #2045
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,335
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    d.shaw, rob1208 and doublethebass like this.
  6. Jul 10, 2020 at 4:49 PM
    #2046
    lamjam

    lamjam Well-Known Member

    Joined:
    Oct 21, 2019
    Member:
    #308585
    Messages:
    193
    Los Angeles
    Vehicle:
    2021 TRD Off road 4x4

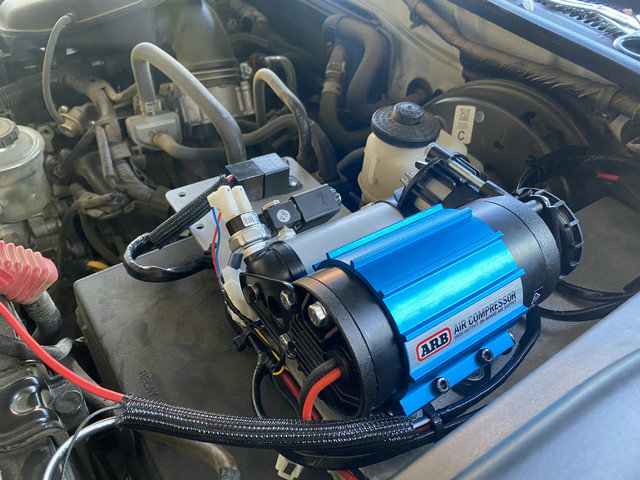

    Got my ARB installed today using the Rago mount. Always shocked when things work on the first try.

  7. Aug 15, 2020 at 2:55 PM
    #2047
    seafur

    seafur Well-Known Member

    Joined:
    Jul 11, 2014
    Member:
    #133755
    Messages:
    115
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2014 DCSB MT TRD OR

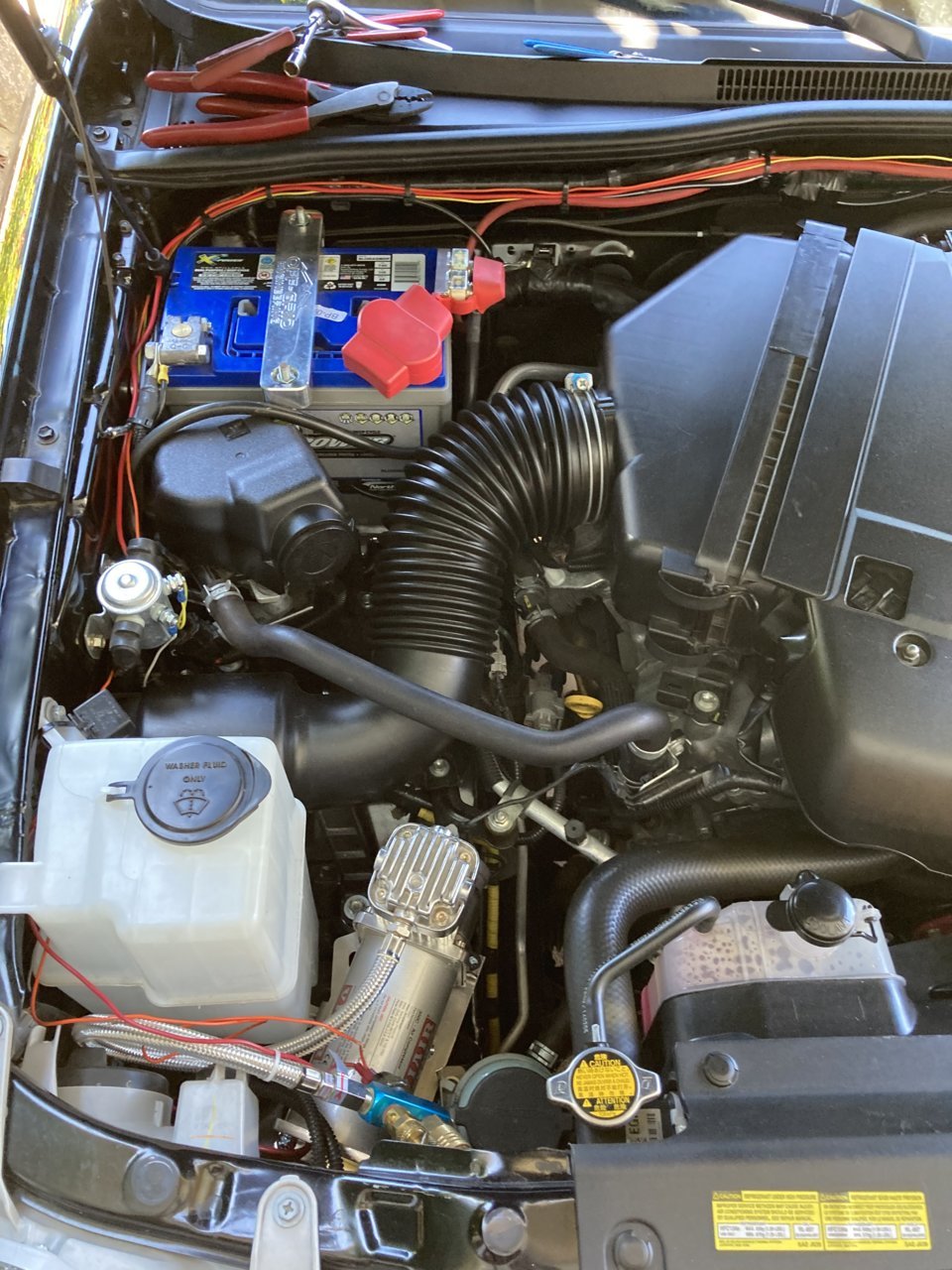

    Sprinter bed tiedowns, Aux fuse box, AIO key, 3-way canopy light switch, 12V bed outlet, Dual Battery AGM G35, Viair OBA, Uni-filter mod
    Gunshot-6A [OP] likes this.
  8. Sep 15, 2020 at 10:20 AM
    #2048
    thebaker

    thebaker Well-Known Member

    Joined:
    Feb 14, 2009
    Member:
    #13597
    Messages:
    2,218
    Gender:
    Male
    First Name:
    Byron
    NorCal
    Vehicle:
    Upgraded to a 3rd gen
    Never ending......$$$
    Does anyone have pictures of how they mounted a quick disconnect/air chuck on a 3rd gen behind the grill but in front of the radiator?

    I have my compressor mounted next to the windshield fluid reservoir and i already have the stainless leader hose but need ideas on how to mount the chuck.

    Ive searched but could find anything andy eyes are cross eyed from going through this thread.

  9. Sep 15, 2020 at 1:48 PM
    #2049
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    16,958
    Gender:
    Male
    First Name:
    Matt
    NC

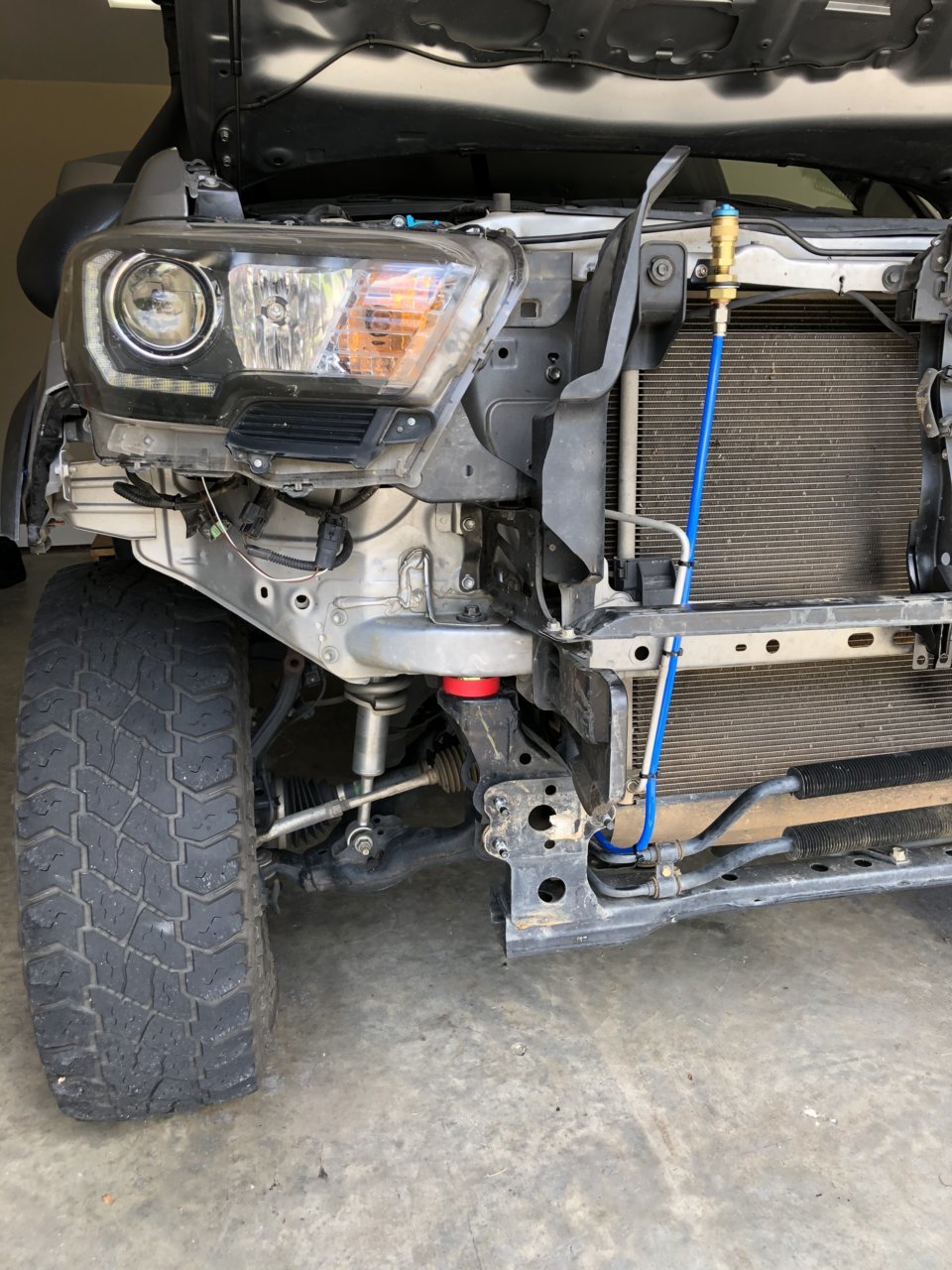

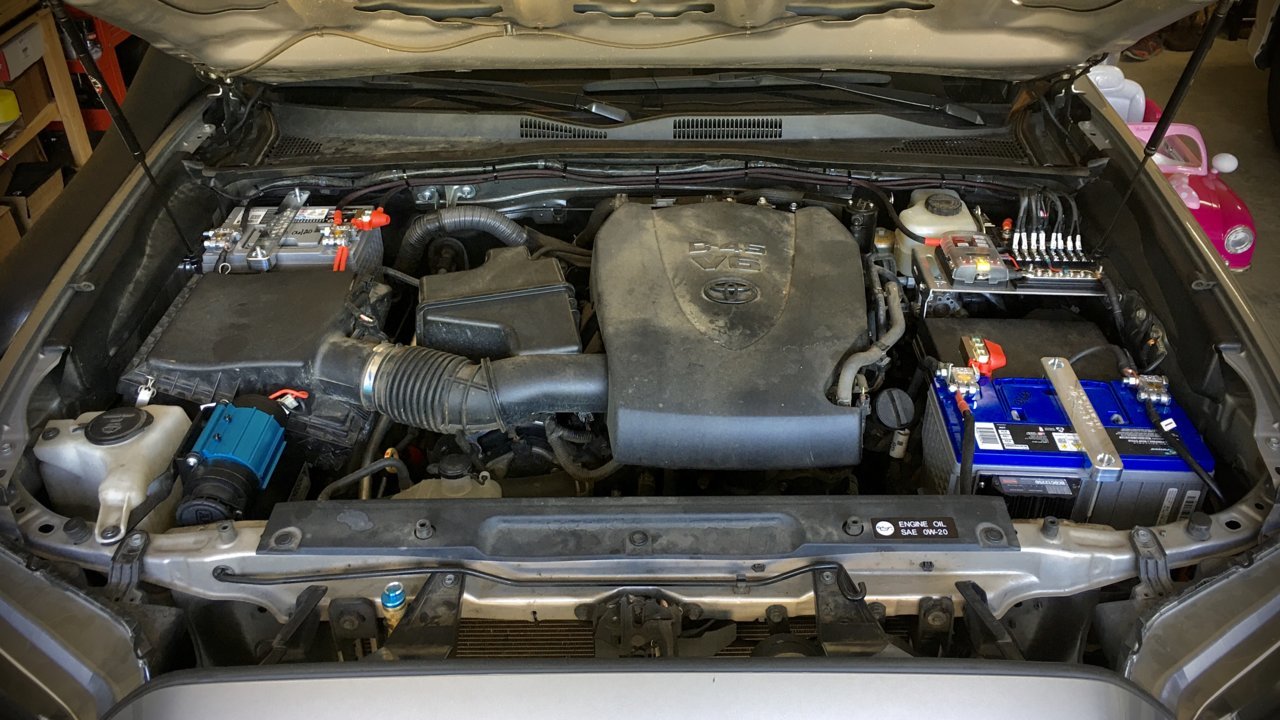

    wits end quick connect kit :thumbsup:

    8F3BFA55-67FC-4124-890A-90EFF30BD6BC.jpg 13C2E1E6-56A5-4E91-A4AE-D66D535834E1.jpg

  10. Sep 15, 2020 at 5:00 PM
    #2050
    seafur

    seafur Well-Known Member

    Joined:
    Jul 11, 2014
    Member:
    #133755
    Messages:
    115
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2014 DCSB MT TRD OR
    Sprinter bed tiedowns, Aux fuse box, AIO key, 3-way canopy light switch, 12V bed outlet, Dual Battery AGM G35, Viair OBA, Uni-filter mod
    you can mount a frame nipple on a simple homemade bracket from angle aluminum. The frame nipple has 1/4” NPT threads on the inside with a threaded outside and comes with a nut.

    https://www.amazon.com/KOOTANS-Female-Fitting-Bulkhead-Nipple/dp/B07PBF6CLK

    thebaker and doublethebass like this.
  11. Sep 24, 2020 at 7:51 PM
    #2051
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    43,017
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
  12. Sep 25, 2020 at 3:48 AM
    #2052
    Shadowhunter

    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    1,994
    Gender:
    Male
    First Name:
    Nate
    Birdsview Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer

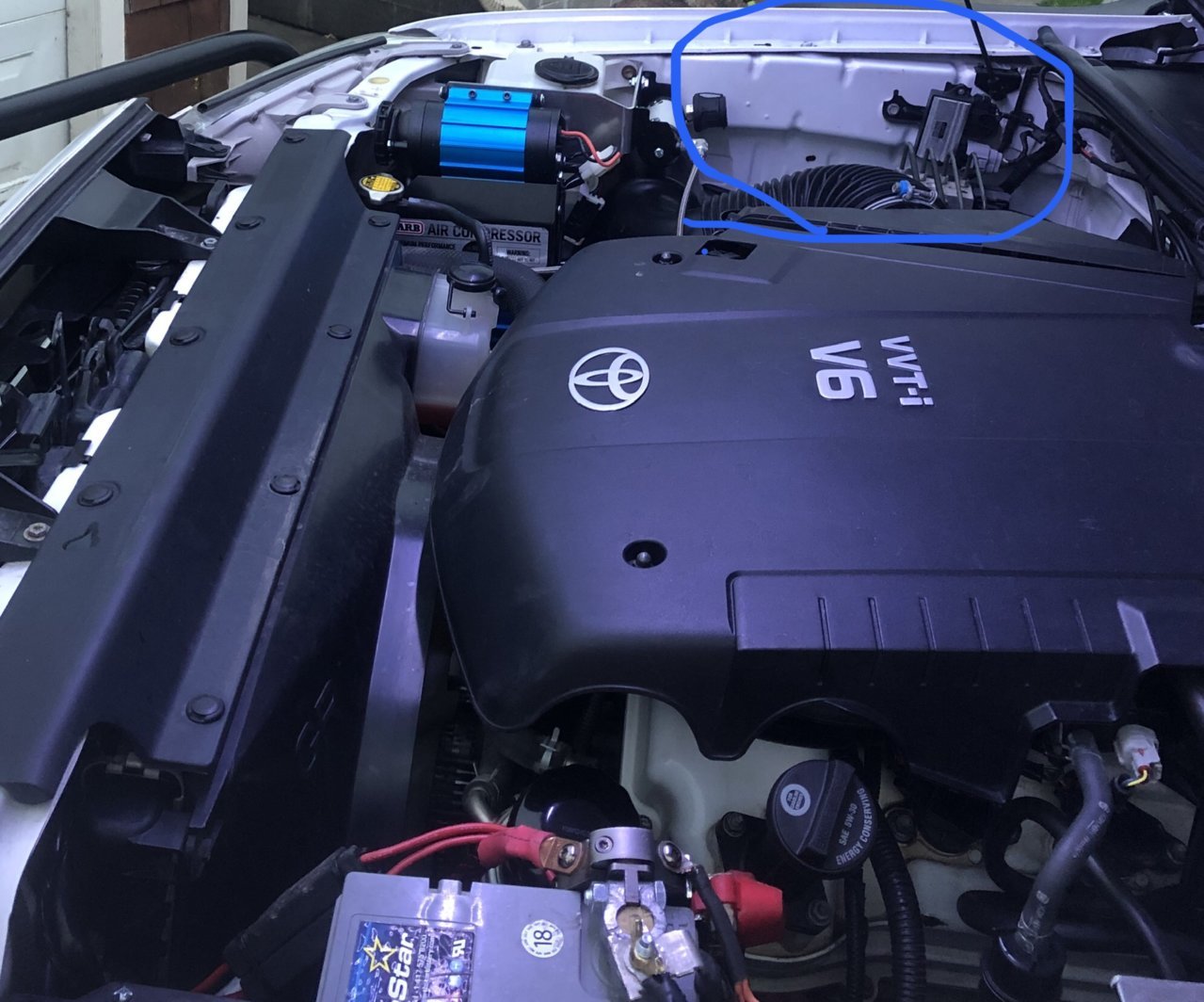

    I just got my up down air system today in the mail. I’m gonna have to figure out a place to put it. My power tray is taking up the room in the place where their bracket goes. I’m going to have to make a bracket and get it over in that area in the blue circle. I kinda makes more sense to me to keep it over by the compressor anyways. It also didn’t come with instructions on installing it. It said to look at their website for instructions..... nothing for a Tacoma. Probably gonna have to follow the Wifey instal You Tube video. I’ll have time next week to mess with it. 2D594F92-8C1A-4F35-9D2F-A6EA87CCA882.jpg

    Knoc31 and fatfurious2 like this.
  13. Sep 25, 2020 at 3:58 AM
    #2053
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    43,017
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    Where you have circled is where my compressor is. I have a 2010, so I dont have anything there. I just mounted my compressor using a piece of 16 gauge steel that i bent, but its rusting through now. Ive been looking for another suitable mount, but haven't found anything yet.

    I did find some stuff on Rago Fabs site, but its for the other side. Thats where I have my sPod mounted. I also dont want to move the compressor to where you have it, because Id have to get a longer air line to go back to my tank (not a huge expense, but i want to use that space for something).

    Andy Standard likes this.
  14. Sep 25, 2020 at 5:32 AM
    #2054
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,649
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I'm just imagining one of those as seen on TV commercials where the lady goes for a Tupperware lid and the piles of Tupperware spontaneously go flying all over the kitchen...
    Pulling out a hose isn't that difficult, 10mins of talking shit while you walk around the truck isn't that bad. Also it's way cheaper to make your own daisy chain if you really can't be bothered to air up 4 whole tires seperately.

  15. Sep 25, 2020 at 5:39 AM
    #2055
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,238
    Gender:
    Male
    First Name:
    Brent
    Southern New Mexico
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    I'm of the same mindset. Never been sold on the multi-chuck hoses, but maybe if I tried one I'd change my mind :notsure:

  16. Sep 25, 2020 at 5:43 AM
    #2056
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,649
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Hmm you might be onto something.. I need to start a youtube channel and sellout to anyone that is willing to give me free products to hok.

  17. Sep 25, 2020 at 7:27 AM
    #2057
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    43,017
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    I think those systems have hard lines that are mounted near each wheel. But i get it. I am not going to get one. Thought it was an interesting idea

    rob1208 likes this.
  18. Oct 2, 2020 at 8:39 PM
    #2058
    Shadowhunter

    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    1,994
    Gender:
    Male
    First Name:
    Nate
    Birdsview Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer

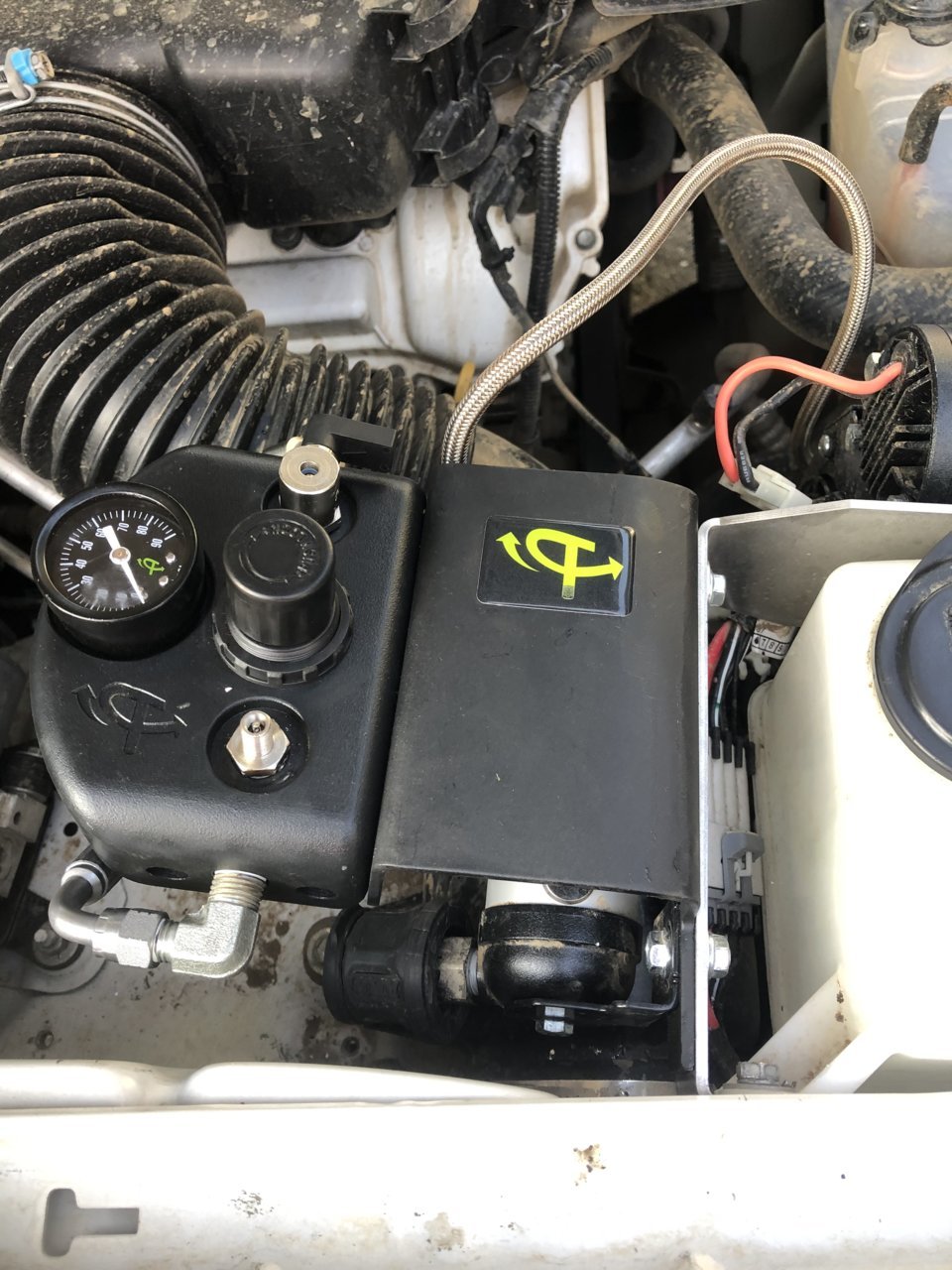

    6D38DEC6-FA3D-4D08-859B-754466937E81.jpg Made some progress tonight. I chopped the bracket down, added a hole and bent it to fit the Slee Mount.

    bagleboy likes this.
  19. Oct 2, 2020 at 8:51 PM
    #2059
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,889
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter
    i may eventually do this down the road if i decide to upgrade to a dual arb. Would be nice to air up the same pressures simultaneously but with short 2-3ft sections or air line. I like the sponsoredbywifey air system but I’d likely just make it myself.

    thebaker likes this.
  20. Oct 3, 2020 at 10:18 AM
    #2060
    Boomkanani

    Boomkanani Well-Known Member

    Joined:
    Nov 7, 2015
    Member:
    #168939
    Messages:
    995
    Gender:
    Male
    First Name:
    Mike
    Goldsboro, NC
    Vehicle:
    2009 TRD OffRoad DCSB - 6 Speed
    Some stuffz
    Those systems seem cool. Just not sure how it saves any time? Spend money and time on install, but I still have to get the little hoses out and walk all the way around my truck....twice.

    rob1208 and PcBuilder14 like this.
