OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by skygear, Oct 20, 2013.

  1. BradyT88

    BradyT88 Skinkwerks Rockware & Fabrication!!

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    34,311
    Gender:
    Male
    Idaho
    Vehicle:
    Rock Damage
    Skinkwerks armor and a lot of other stuff!
    Which compressor do you have? I haven't actually seen real world tests, but on paper the ARB is rated higher than the 480C at 29/30 psi and the Twin ARB is higher than the dual 480C's.

    I already have 1 single ARB and I would like to pick up a Twin and hook them all together and see if I can run power tools right off of that.

  2. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    Air Zenith OB2

  3. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    So my set up is finally operational and was able to test it out yesterday with some air tools.

    One of the local guys ran an air saw off my truck while cutting bedsides for his HC rear which consumed a ton of air (6CFM is what the box said) and it was enough air to do a a full side on one tank. Compressor ran for over an hour while doing all the cutting.

    I also filled up one of my 35's from 12PSI to over 40 on one tanks worth of air. Next time I air down all four, I'll time it on getting back up to street pressure.

  4. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    This thread is exactly what I was looking for.

    I just ordered a dual Viar 480c kit. I was planning on the 2.5 gal tank but now I have more options.

    I plan on doing a tank for horns, tire inflation and quick disconnect in the bed for tools.

  5. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    Not sure where the OP disappeared off too :confused:

  6. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    It's all good. I just wanted to sub. There is plenty of information on the 11 pages. I think I can get it all pieced together but I may have questions while I am at it.

  7. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    You mounting the 480s behind each tail light ?

  8. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    I haven't really decided. My original plan was to mount small compressors in the useless storage bins toward the front of the bed but those small compressors were crap. Thats when I started looking at different brands/makes, prices and CFM. I decided to go with the 480c. The cheapest 480c I could find was $245 shipped but I found a dual 480c kit for $350 shipped so I just went with that.

    While going through this thread I have found a lot of good mounting spots but, like someone mentioned earlier, I worry if I mount the compressors too far away from the tank I will loose compression through the lines. I will probably use the storage bins for the breathers at least. I'm pretty sure I will be installing the gauges/regulator in the bed above the power unit.

    Do you guys stay pressurized at all times or do you just air up when you plan on using it? Did anyone end up getting those AVS 2 gal slim tanks?

  9. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    No need to worry about loss of compression with extended leader hoses, it's just more space for the compressor to fill. It's going to fill until the entire system reaches the pressure switch's set PSI. I have a leader hose thats 2x the length of the included. Just make sure to get a stainless steel hose made that can withstand the heat and pressure.

    I'd mount the 480's behind the tail lights. I wish my Air Zenith would have fit there. Somewhere you can co-locate them together would be good too, it'll minimize the fittings and wiring. The AVS slim tanks arlong, so they'd have to go inside of the bed sides. A ton of work, to get access to the tanks, and fittings. I have the AVS 5 gallon under my bed. e

    If I know I'm heading somewhere to air up, I'll kick it on so it'll be full when I need it. I do have a slight air leak somewhere I need to locate so my compressor kicks on every 2hrs or so when it drops below 160psi.

  10. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    I am all about minimizing lol

    I am hoping that once I have everything installed and working I wont have to access them too much (other then to drain the tank occasionally). Not saying I am going to do it but would there be any pros/cons to having multiple tanks? example: 5 gal under bed and 2 gal in bedsides?

    Also how does your 5 gal fit under there? is it snug or do you have room?

  11. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    I
    Way overkill to have 7 gallons of air on a truck for filling tires and run a air horn.

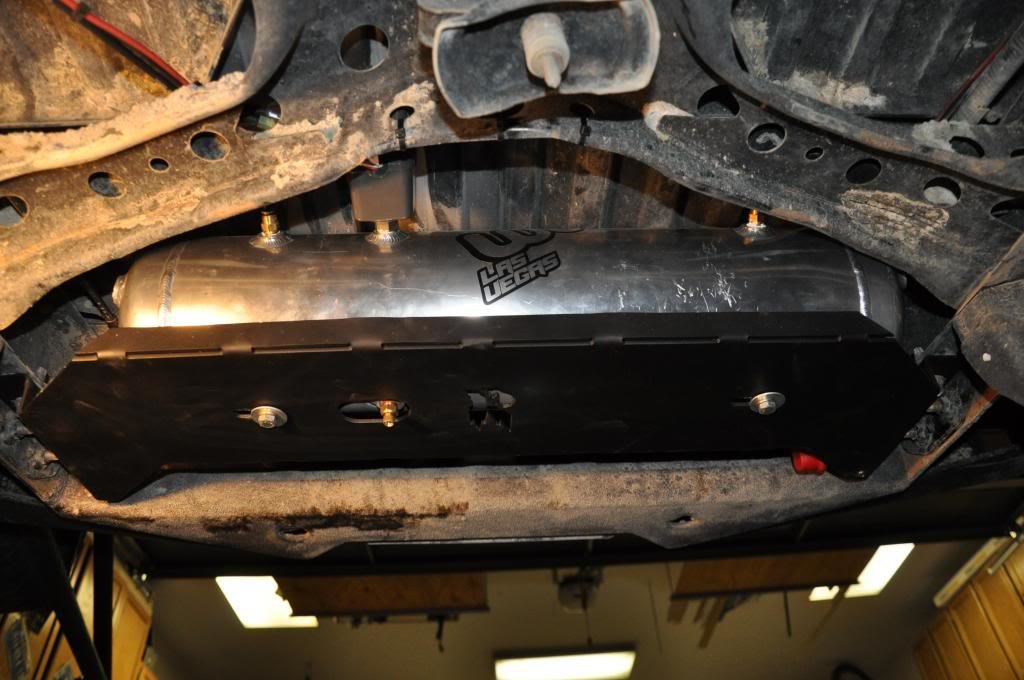

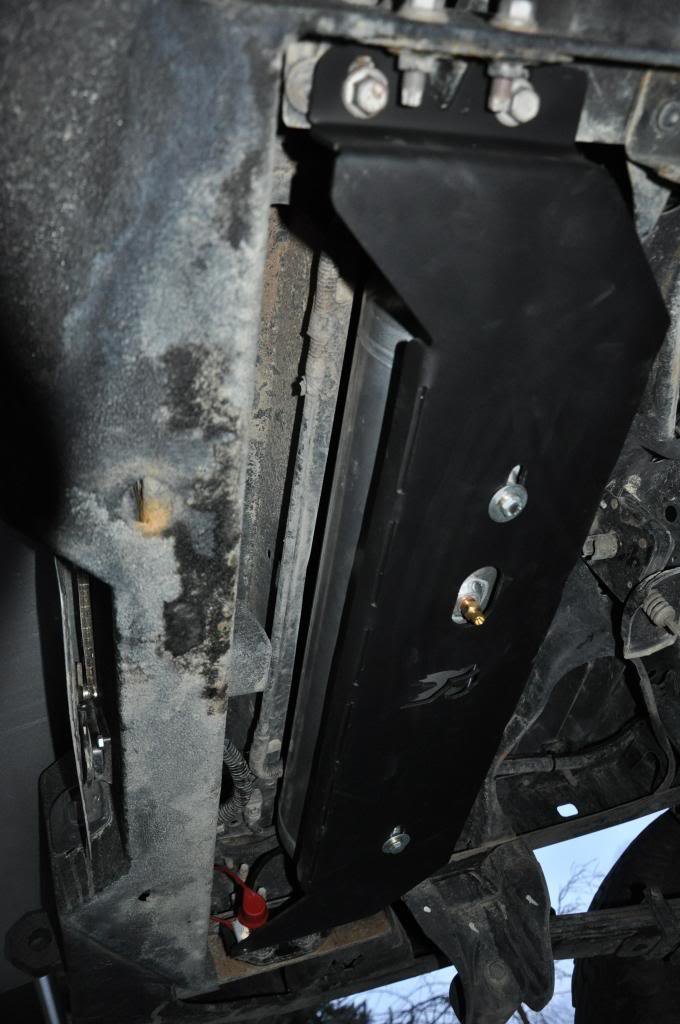

    The 5 gallon is TIGHT between the frame rails. Can't use some of the Ports because of this.

    As far as draining, you can wire a valve to remotely dump the tank. Adding more tanks also makes more fittings for leaks !

    Last edited: Feb 21, 2014
  12. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    I totally agree; more fittings, more leaks. I was looking at the AVS 5 gal and they have a bunch of differnet options. They only make ones with ports on the top (bottom in our case) for the 9 port version.

    And I just realized I paid $350 for the dual 480c kit when there is a dual 480c kit with 5 gal tank for $400 shipped... Thats annoying.

  13. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    You can always run a manifold block. Not too concerned with ports on the tank. I can use three of mine. Pressure switch, leader hose and one out. Going to put a manifold block on it for my regulator for lockers and running front and rear air line for quick disconnects in each bumper.

    You can also use the block to eliminate the need for extended leaders as they are expensive and you'll need two.

  14. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    Just received my Viair 480c compressors today. I am hoping to be able to play with mounting locations this weekend. Aaron, you said that behind the taillights is the best location. Will I have to pull off my bedsides or can it be done through the cubby hole and under the bed?

  15. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    You'll just have to pull the taillights and the Cubby's out of the bed. Should be able to get up there no issues. That's how I test fit mine, and found it was too beastly.

    Looking forward to your oba build !

  16. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.

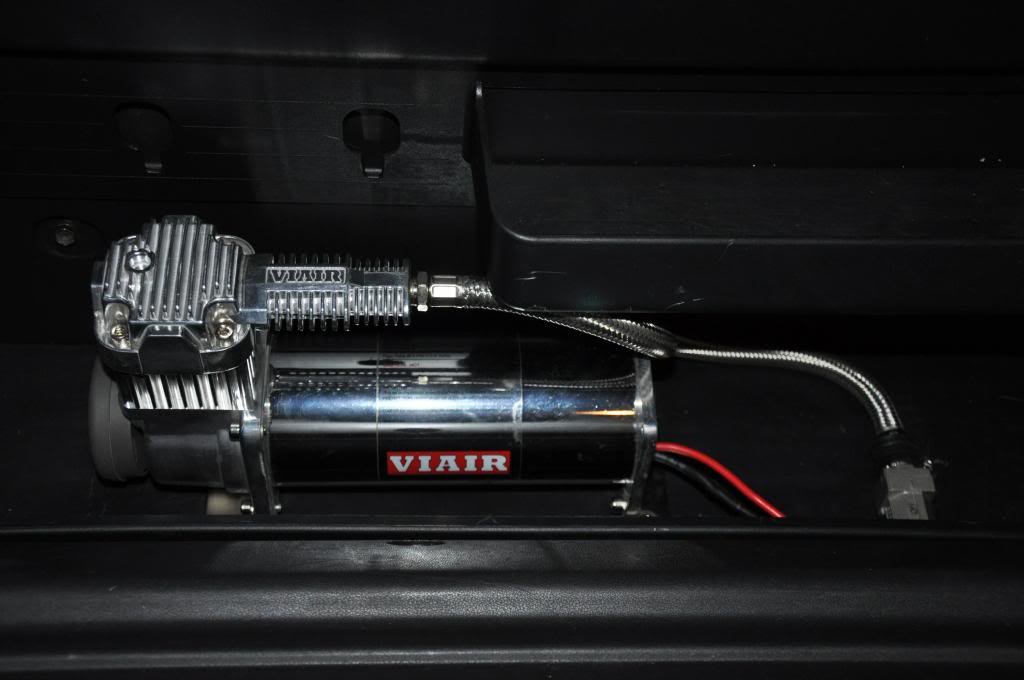

    I started playing around with the passanger side. I pulled the tail light and the cubby. It fits but just barely. I got one whole drilled but it's looking like I have very limited access to the other 3 holes I would need to drill. If I could get the rear wheel well liner out I should be able to shoot the holes from the inside but other than cutting them out it looks like that will be a job in it's self.

    I will update as soon as I have time to mess with it again.

  17. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    I ended up just ripping mine out, I have to cut them for my hc bumper anyways. Just remove the three rear bolts, and pull the clips out. You can flap it towards the front and have plenty of room

  18. PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,345
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.

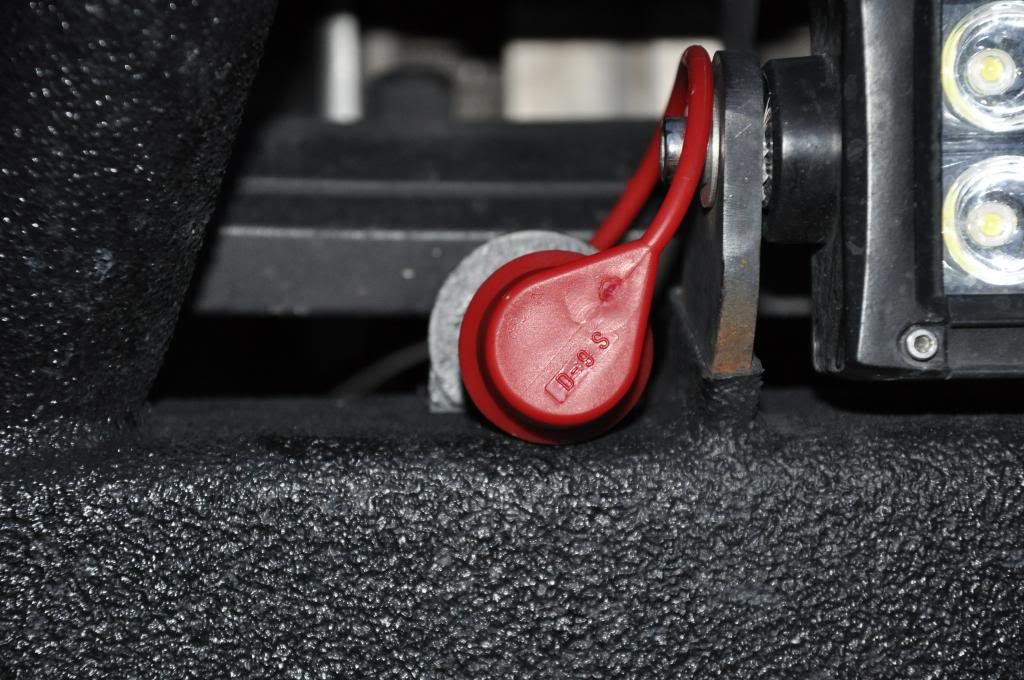

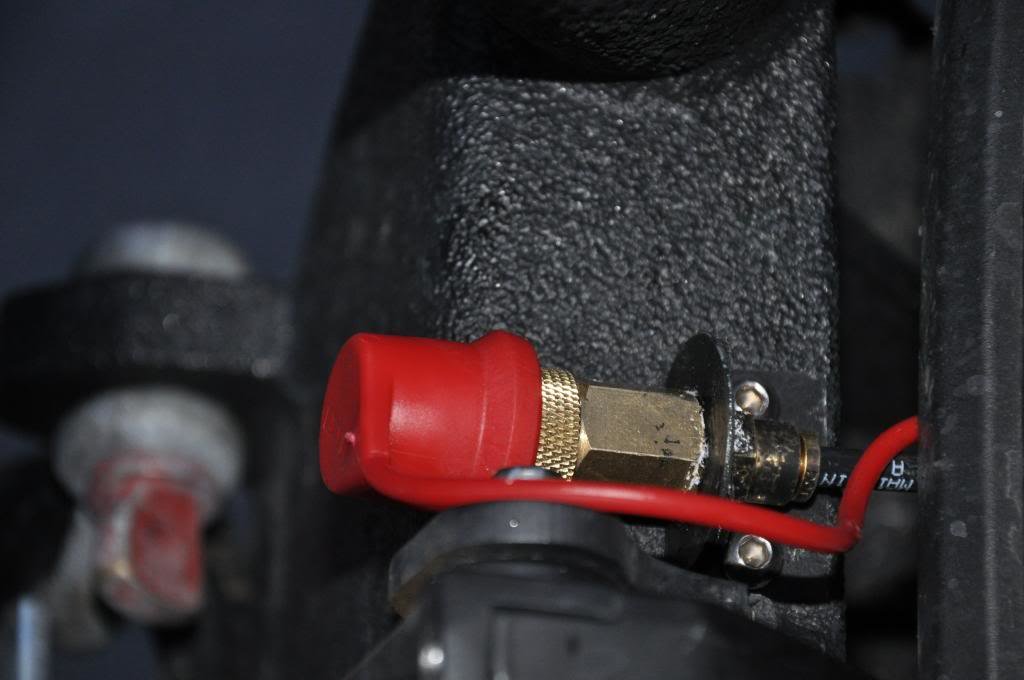

    I got the holes drilled and finally found a 3/8" theaded female coupler to put on the end for now. I also worked on a dual tire chuck to fill one side at a time. I got most of the wiring yesterday so I may be trying to finish that part up this weekend. This shit is NOT cheap.

  19. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,292
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    Brass and copper costs are outrageous

  20. Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,204
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.

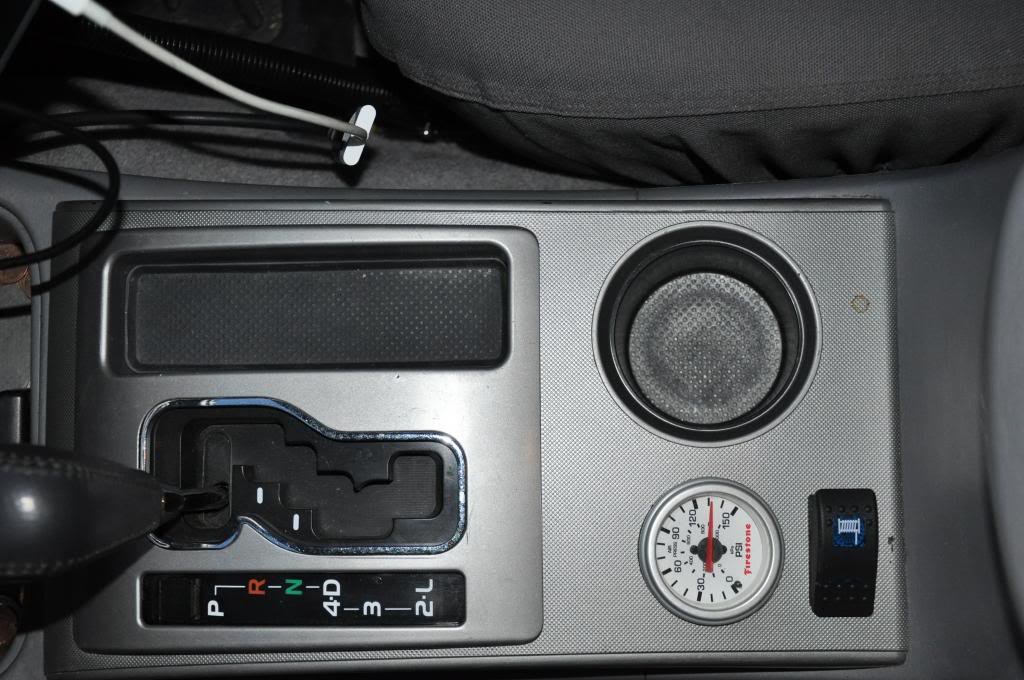

    Going to have to get some photos of my set-up and post it here. Viair 450 (I think?) compressor mounted on RH tail light bulkhead, 4 gallon tank under the bed (no spare under there anymore). A cubby mounted home built manifold with regulator for ARB lockers at 80 PSI and Quick Disconnect for hose to fill tires, pressure gauges pre and post regulator, two ASCO solenoids for the lockers on manifold. 8 gauge wirie for compressor 16 gauge for control all in Riuku (German) flex conduit routed bside factory wire harness so it looks legit. All wire connections sealed inside aluminum junction boxes with gasketed covers. Dash panel for compressor on/off swithc and locked enable switches with indicator lights.
