OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jul 14, 2021 at 8:40 PM
    #2181
    optysite

    optysite Member

    Joined:
    Jan 22, 2021
    Member:
    #353665
    Messages:
    18
    Vehicle:
    ‘15 TRD OR Magnetic Grey
    I just installed the viair 400p automatic with the expedition essentials bedside mount and I love it

    Dan8906 likes this.
  2. Jul 19, 2021 at 7:34 PM
    #2182
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    213
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    Hi there, are there any engine bay mounts specifically for the ARB single? Seems like the Slee and Rago mounts are quite a bit bigger than necessary, yeah? Thanks!

  3. Jul 20, 2021 at 6:12 AM
    #2183
    Dan8906

    Dan8906 Well-Known Member

    Joined:
    Jul 26, 2016
    Member:
    #192977
    Messages:
    4,409
    Gender:
    Male
    First Name:
    Daniel
    Concord, California
    Vehicle:
    2004 Tacoma ext cab TRD 4x4
    CBI sliders, ADS extend travel with compression adjuster coil overs, 9” Bilstein 5125 rear shocks, Icon Tubular UCA, Alcan custom leafs, All Pro Apex bumper and skids, NWTI rear diy bumper, 295/70/17 Cooper St Maxxs and nitro 4.88s.
    I think cbi makes one

    lylefk likes this.
  4. Jul 20, 2021 at 1:19 PM
    #2184
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    213
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    They do, but it doesn't work for 20/21. Thanks!

  5. Jul 21, 2021 at 12:38 PM
    #2185
    Bruce988jl

    Bruce988jl Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168035
    Messages:
    4,743
    Gender:
    Male
    First Name:
    Jason
    Southern NH
    Vehicle:
    08 Tacoma Dbl Cab TRD Off-Road & 05 Mitsubishi Evo
    Quick question about wiring and ampacity - I have #4 welding wire going from my battery (+ and -) to my bedside compartment (Doublecab Shortbed). From there I have a busbar that the ARB twin and a separate fuse panel go to. On that fuse panel I will have my fridge, bed lights and possible some led strip lighting for camping setup. When I turn the compressor on the bed lights dim, I haven't tried with the fridge yet. Does this mean I'm drawing too much and the #4 wire isn't enough?

    Thank you all for any help - as a mechanical engineer this electrical wizardy is news to me. The #4 welding wire was run previously to installing the bedside compressor.


    Setup:
    15ish feet of #4 Gauge (power and ground) going from the battery back to the bedside
    80A Breaker off the battery (should I step this up as well?)
    Battery is XS Power Group 31 (But I only run the compressor with the truck on)

    Accessories:
    ARB Twin Compressor (two 40A inline fuses) 50A draw underload and 28A with no load
    BlueSea Fuse Panel

    Fuse panel has the following hooked up to it:
    Snowmaster 42L Max 5.5A draw
    Bed Lights are 2x Ebay 6 inch strip lights (honestly not sure how much these draw)

  6. Jul 21, 2021 at 6:47 PM
    #2186
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,804
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Wire sizing depends on both amp draw and length of run. But if the engine isn’t running when the compressor is on it’s not surprising the lights would dim. If it dims with the engine running as well then awg 2 or 0 might be in order. Also consider moving the compressor closer to the battery.

    Bruce988jl and Digiratus like this.
  7. Jul 24, 2021 at 4:25 AM
    #2187
    ClassyTacos

    ClassyTacos Wait what.

    Joined:
    Sep 26, 2019
    Member:
    #306325
    Messages:
    818
    Gender:
    Male
    First Name:
    Papalote
    Florida
    Vehicle:
    2017 TRD Sport 4x4
    Stockish
    I'm curious if anyone has installed pressure gauges in the cab to monitor pressure in the locker. I'm starting to collect parts for the install and considering placement of the gauges. I plan to run mechanical gauges, one for each locker tied in at the solenoid. That way there is some positive feedback in the cab they are actually locked and holding pressure. It would also reflect any leaks on the locker side. It would be another pain in the ass install for the channel so I'm happy with that.

  8. Jul 24, 2021 at 9:31 AM
    #2188
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,804
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    I bought some 1” gauges and use them to monitor tank and air bag pressure from a panel in the center cubby. The panel also has switches controlling solenoids to each use plus the compressor and a pressure regulator for control. I got the idea from Iggy’s panels but made it from ABS.

    ClassyTacos likes this.
  9. Jul 26, 2021 at 7:18 AM
    #2189
    shiftd

    shiftd Well-Known Member

    Joined:
    Jul 9, 2020
    Member:
    #333973
    Messages:
    73
    Gender:
    Male
    Pennsylvania, USA
    Vehicle:
    2020 Tacoma TRD Pro
    Took some inspiration from TW for my OBA setup. Installed an ARB twin last week near the windshield washer fluid reservoir.


    It's a tight fit but with a 2nd gen slee mount bracket and a custom bracket I picked up on TW it fits nice. If I ever have to remove it I will probably have to remove the grill and headlight. I managed to install without removing either.


    Wired up a custom switch harness to have the switch nearby. Re-pinned the ARB switch harness and added and inline fuse to a on/off waterproof switch.


    Used ARB air fittings and air hose ran to a quick detach from wit's end mounted on an angle bracket I found online and spray painted. Used and existing threaded hole behind the grill to secure the bracket.


    Just ordered an ARB hose and tire inflator to round out the setup.

    Last edited: Jul 26, 2021
  10. Jul 26, 2021 at 8:26 AM
    #2190
    Bruce988jl

    Bruce988jl Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168035
    Messages:
    4,743
    Gender:
    Male
    First Name:
    Jason
    Southern NH
    Vehicle:
    08 Tacoma Dbl Cab TRD Off-Road & 05 Mitsubishi Evo
    @shiftd - FYI I went through about 5 of those rubber "waterproof" switches over the last 3 years. I opted against buying more because when they fail sometimes they switch on. Just be wary...

    shiftd likes this.
  11. Jul 26, 2021 at 9:35 AM
    #2191
    shiftd

    shiftd Well-Known Member

    Joined:
    Jul 9, 2020
    Member:
    #333973
    Messages:
    73
    Gender:
    Male
    Pennsylvania, USA
    Vehicle:
    2020 Tacoma TRD Pro
    Thanks for the heads up. I'll keep an eye on it and consider swapping it out if I can find something better. For now the hose quick disconnect has a plug so the compressor shouldn't continue to run if it switches on but it's something to consider.

    Bruce988jl likes this.
  12. Jul 27, 2021 at 3:25 PM
    #2192
    ClassyTacos

    ClassyTacos Wait what.

    Joined:
    Sep 26, 2019
    Member:
    #306325
    Messages:
    818
    Gender:
    Male
    First Name:
    Papalote
    Florida
    Vehicle:
    2017 TRD Sport 4x4
    Stockish

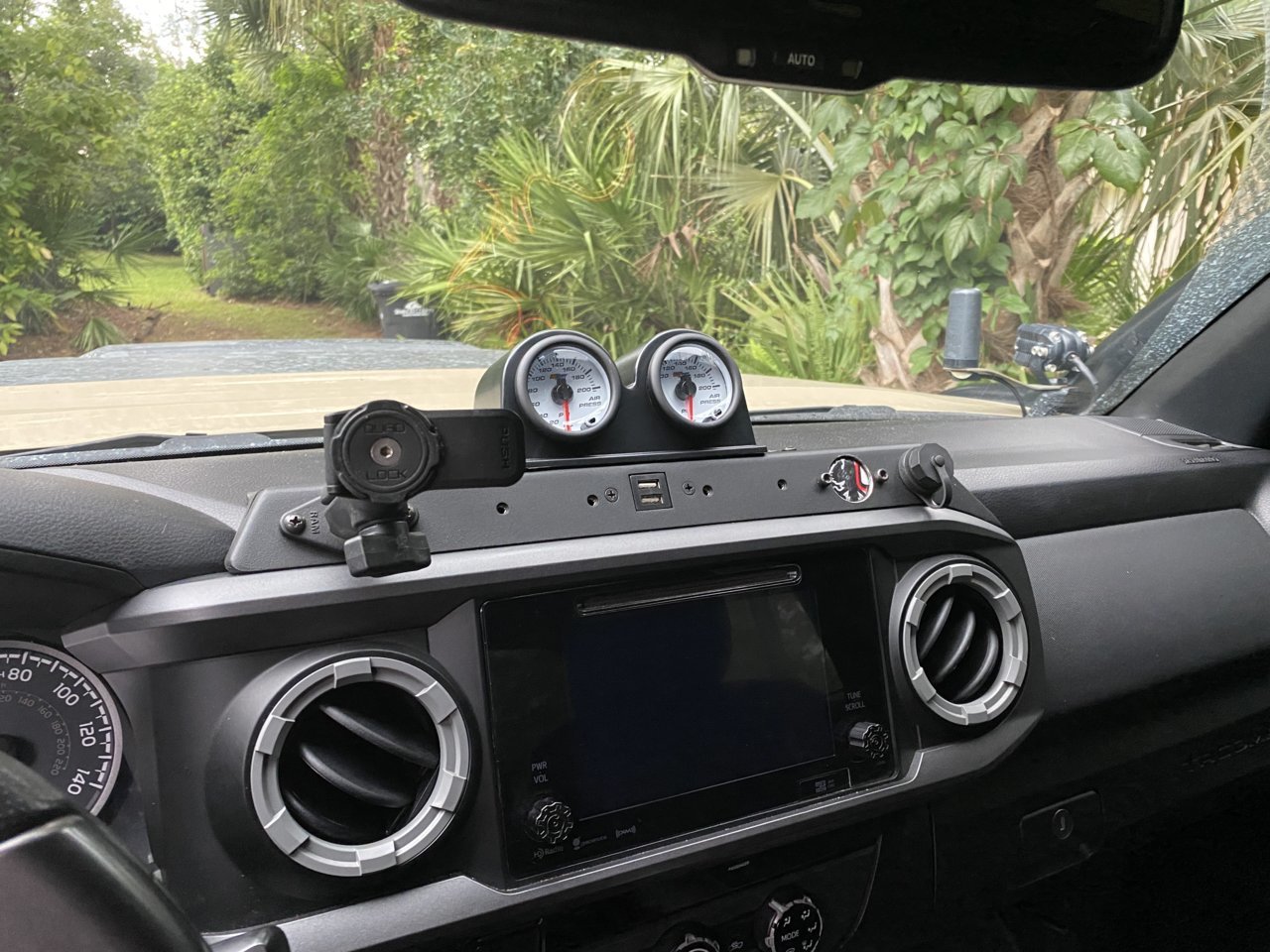

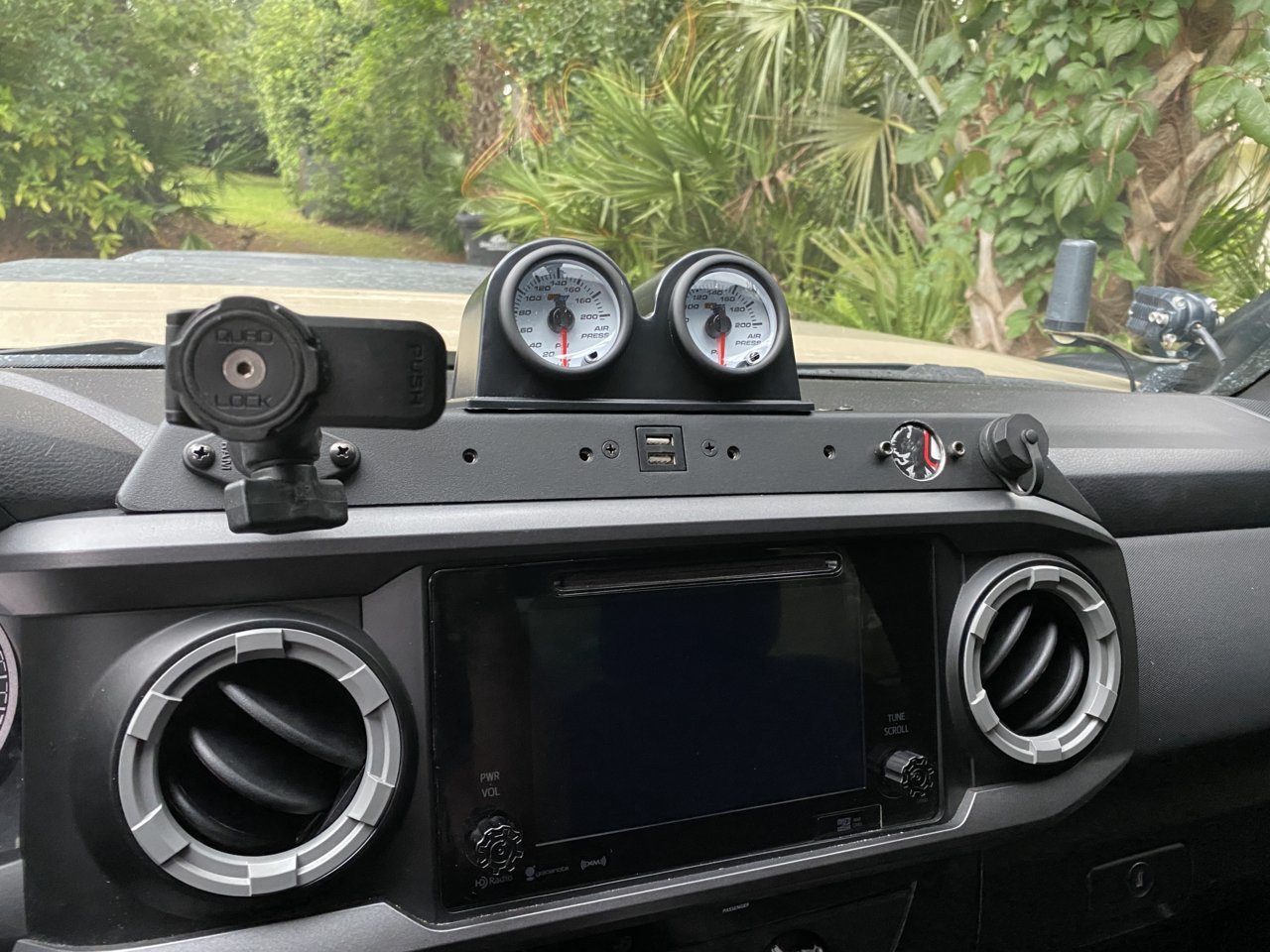

    Test fitting for the right placement. I would have loved to retrofit an FJ Cruiser gauge set up but they are too large and super pricey.

    IMG_4483.jpg IMG_4485.jpg

  13. Aug 5, 2021 at 9:44 AM
    #2193
    Jojee117

    Jojee117 Well-Known Member

    Joined:
    Jul 30, 2018
    Member:
    #261068
    Messages:
    672
    Gender:
    Male
    First Name:
    Joe
    MT
    Vehicle:
    06 TRD Sport Prerunner 4WD swapped
    Do you have any pics of that setup? I just recently found out that the expedition essentials mount will work with smittybilt/viair compressors, but I've only ever seen them with ARBs mounted. Also, how did you go about changing the wiring? If the viair is anything like the smittybilt, the wires are far too small for bed mounting. My concern is going from 4 gauge wire to the 10ish gauge wire inside the end cap. I don't want the remaining original wiring inside the cap to end up acting like a fuse and burning up.
    Also, would anyone happen to have the measurements for the inside of the expedition essentials bedside mount? Never seen a smittybilt in one before, but I'd like to know if it would fit.

    optysite likes this.
  14. Aug 5, 2021 at 9:52 AM
    #2194
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,735
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4
    Larger gauge wire is required because of the voltage drop on the longer cable run. Smaller gauge is fine for shorter runs (like inside the compressor).

    It should be fine running the larger gauge to the compressor and tying into the stock wiring on the compressor because internally it is for very short runs. This is very common. I have a power panel in my bed run off 2 10ga wires from my fuse box under the hood but then the wiring within the panel is all 14ga but that's all for 2 inch runs of wire.

    It's not like higher end compressors are wired with welding cable internally. You'll be fine.

    optysite, Digiratus and Jojee117 like this.
  15. Aug 6, 2021 at 8:51 PM
    #2195
    optysite

    optysite Member

    Joined:
    Jan 22, 2021
    Member:
    #353665
    Messages:
    18
    Vehicle:
    ‘15 TRD OR Magnetic Grey
    I can snap a picture tomorrow but despite the consensus of using thicker gauge wire I only had 8 gauge wire and ran it from the batter with a 40A breaker. I snipped the battery clamps that came attached to the compressor off and connected it to the 8awg wire with an Anderson disconnect plug. I’ve used it to air up multiple times and felt the wire to make sure it wasn’t heating up and I haven’t had any issues thus far. I live in AZ so if excess heat were a problem that hasn't done anything yet either. I’ve been super happy with the Viair 400p automatic and I think it’s a good bang for buck. If you’re doing the bedside install the Expedition Essential bedside box made it super easy. I can try to grab some basic measurements with the picture

    Jojee117 likes this.
  16. Aug 6, 2021 at 9:07 PM
    #2196
    Jojee117

    Jojee117 Well-Known Member

    Joined:
    Jul 30, 2018
    Member:
    #261068
    Messages:
    672
    Gender:
    Male
    First Name:
    Joe
    MT
    Vehicle:
    06 TRD Sport Prerunner 4WD swapped
    Thanks, I'd really appreciate it. Also makes me feel better about the wiring situation. I wonder if it only pulls 45 amps when starting up and a lesser amount once it gets going? Either way I think I'll stick to 4 Gauge, but I think I might do a connector as you mentioned. I was just planning on a splice, but I think a plug would be way more convinient.

  17. Aug 6, 2021 at 9:14 PM
    #2197
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,804
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Make sure the connector terminals are rated for the current, it’s the most common failure point.

    Jojee117 likes this.
  18. Aug 6, 2021 at 9:32 PM
    #2198
    optysite

    optysite Member

    Joined:
    Jan 22, 2021
    Member:
    #353665
    Messages:
    18
    Vehicle:
    ‘15 TRD OR Magnetic Grey
    The manufacturer states the the Viair only draws 30A during operation so the startup is probably somewhere around 40A. I would hope my breaker would pop if it was higher than 40A and the Viair has a 40A in-line fuse that I decided to keep. The Anderson connector I used was rated for 50A

    bagleboy and Jojee117 like this.
  19. Aug 7, 2021 at 11:41 AM
    #2199
    optysite

    optysite Member

    Joined:
    Jan 22, 2021
    Member:
    #353665
    Messages:
    18
    Vehicle:
    ‘15 TRD OR Magnetic Grey

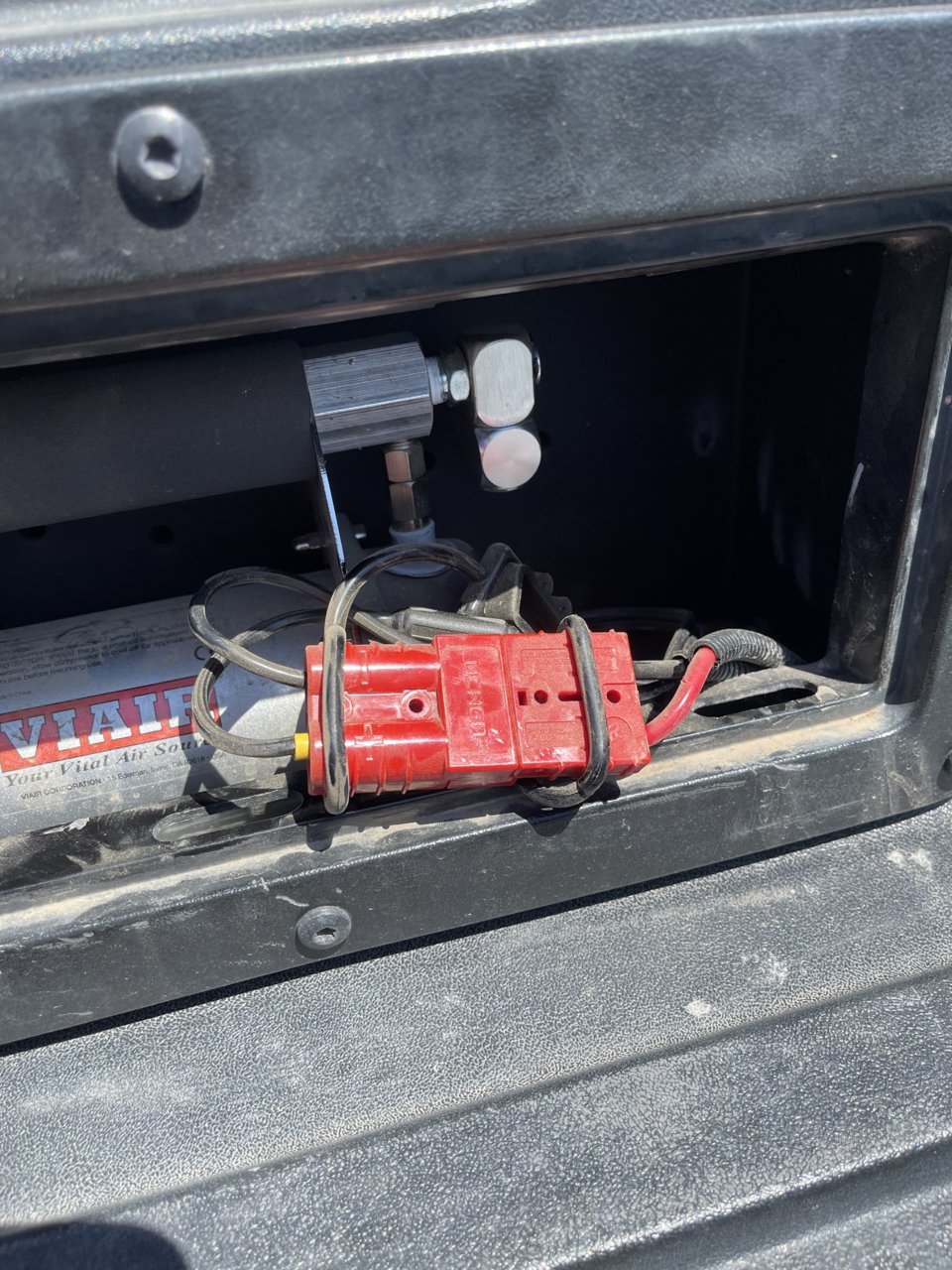

    Here’s what it looks like. The dimensions of the box are loosely 6in deep, 17in wide, 8in tall give or take some. I was rushing to work this morning. DD5DD67B-468B-430A-9EAC-F37AB18E58FE.jpg
    Here’s what the Anderson plug looks like. The real test will come when I air up both my tires and a buddy’s tires. If it passes that then I’ll be more then satisfied.

    Greg.Brakes.Tacos and Jojee117 like this.
  20. Aug 7, 2021 at 12:52 PM
    #2200
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,804
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Good.
    Amp draw<fuse or breaker<wire & connector capacity. There are other tables that make recommendations but I use the one at Powerstream because it lists the ohms per unit length for each wire gauge so I can determine the voltage drop for any given wire size/length and choose accordingly.
    https://www.powerstream.com/Wire_Size.htm
    Listed as ohms per 1000 ft and maximum chassis wiring current(conservative “rule of thumb values”). A few examples are:
    Awg 6 - .3951 ohms, 101A
    Awg 8 - .6282 ohms, 73A
    Awg 10 - .9989 ohms, 55A
    Awg 12 - 1.588 ohms, 41A
    For a compressor in the passenger side rear cubby the wire length from the battery is going to be ~20’ more or less but for a complete circuit this gets doubled so 40’(40/1000=.040) The voltage drop @ 40A for:
    #6 - .040 x .3951 x 40A = .632V
    #8 - .040 x .6282 x 40A = 1.005V
    #10 - .040 x .9989 x 40A = 1.598V
    #12 - .040 x 1.588 x 40A = 2.54V
    40A is within the “rule of thumb” guidelines for all of these wire sizes but which size you choose will affect performance. Shortening the wire run by choosing a mount location closer to the battery can alter which wire you choose. An engine bay location could allow #10 wire to outperform #6 wire to the cubby saving $ and weight.
    This was just an example since there are other factors that go into where you decide to install an accessory. It just shows that wire length is just as significant as wire gauge on installations.
