OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by skygear, Oct 20, 2013.

  1. benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,153
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    Dude. That is brilliant use of space. I am definitely doing this.

  2. Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Vertical!!

  3. Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,168
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.
    Trying to figuer out your photos. So the part we might normally consider the base of the compressor is vertical and mounted against the rear bulkhead for the tailights? I just bought a Viair 400C compressor and this looks like a winner location if mine will fit. I did not see what compressor you are using.

  4. NC15TRD

    NC15TRD Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,681
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
  5. Box Rocket

    Box Rocket Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,746
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    I keep it simple and carry a portable 20lb CO2 tank. I actually have two tanks that share duty if I catch myself slighty unprepared and haven't filled a tank before a long trip I can take the second tank. I try to keep at least one of the tanks filled always.

    I have brackets for the truck and on my trailer to hold the tanks so I can take both tanks if necessary (one on the truck and one on the trailer).

    I'm using an adjustable regulator in case I want to run air tools, but the primary use of the tanks is just filling tires and the CO2 handles that quickly and easily.

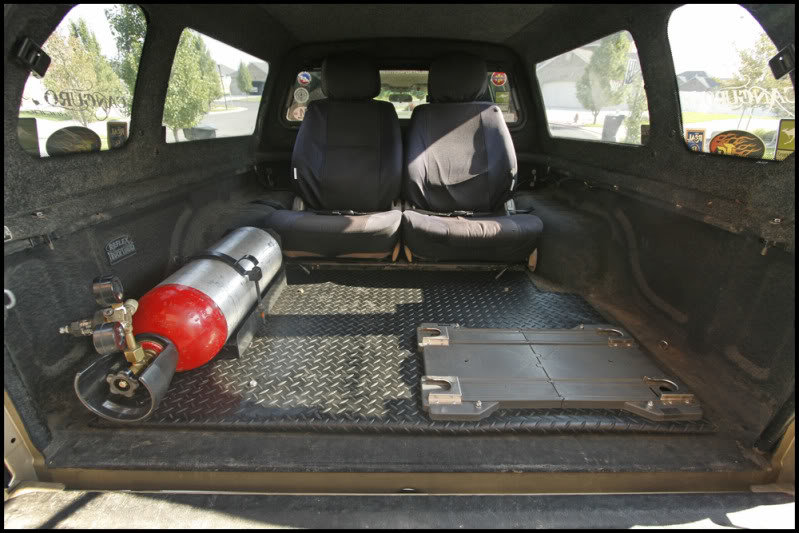

    I have a few different configuration for how I carry the tank in the truck. This is the current setup for when I use my bedrack. The bracket is attached to the bedrack in this setup.
    [​IMG]

    [​IMG]

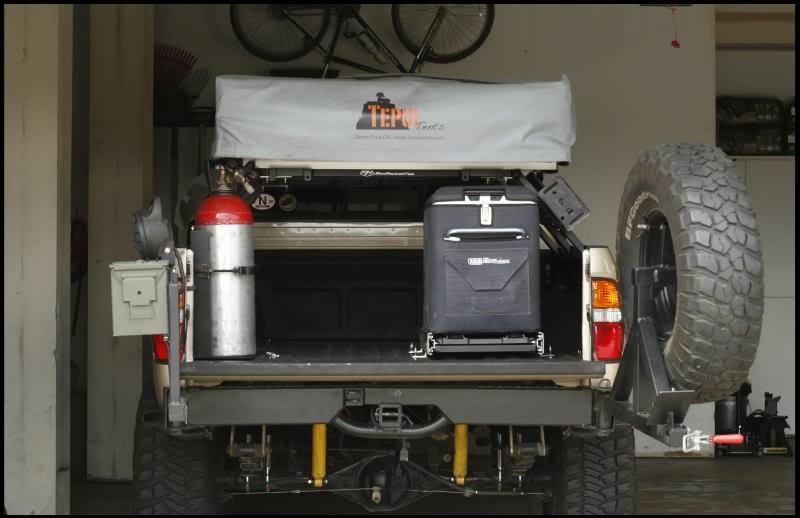

    When the cap is on the truck I use this setup with the bracket mounted to a bed deck on the floor along with my fridge mount and bed seats.
    [​IMG]

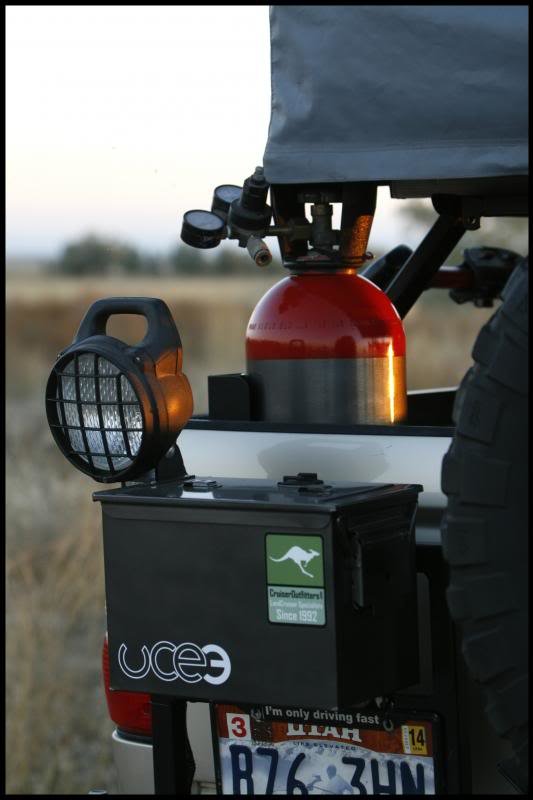

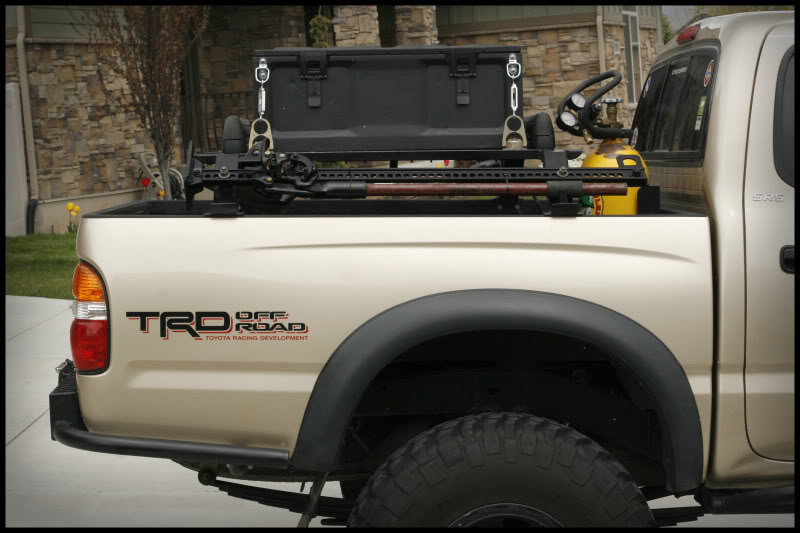

    I've also used this setup with the tank mounted at the front of the bed but I've moved away from this setup over time.
    [​IMG]

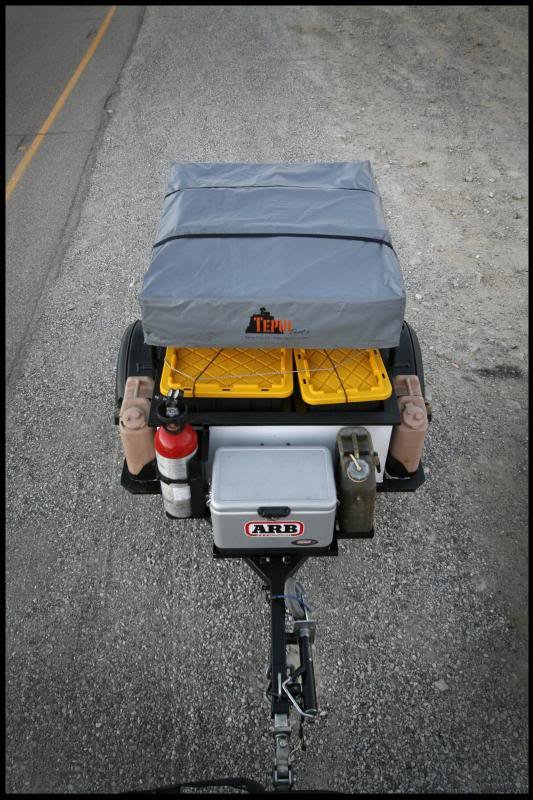

    The trailer has a bracket on the tongue close to the front of the trailer.
    [​IMG]

    [​IMG]

  6. benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,153
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    Does that mean there will be a spod for sale?

  7. SoCaltaco65

    SoCaltaco65 Well-Known Member

    Joined:
    May 10, 2011
    Member:
    #56389
    Messages:
    6,986
    Gender:
    Male
    Vehicle:
    2011 DCSB 4x4 Offroad TRD
    Harbor Freight 110v welder garage fab parts.
    Nice thread Sky, :thumbsup:

  8. Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,168
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.
    Box Rocket: CO2 tank seem to suit you needs and I like the no power required aspect! I am going the 12 volt compressor route with a small tank because I allready spent the money on a Viair 400C 'presser.

    That is a fine photo of your camping setup with the whole family, great to see the happy faces and a family enjoying the outdoors! I like the RTT on the off-road trailer idea too.

  9. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,518
    Gender:
    Male
    No, originally was going to buy one, or two. After another member mentioned them to me a couple weeks ago. They even have a Phone app now! errrr aaaa coming out (SEMA) - for my application, they do not have a big enough 'pod' with only 6 solenoids, thats not going to cut it. They should make a couple different sizes for the masses. Especially overland users. The form factor of the box they already sell is capable of double the capacity if they make a new board.

    Last edited: Nov 6, 2013
  10. benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,153
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    I know, I've been talking with Cindy about that very thing. My solution was to get two, but I'm getting set up as a dealer for them so price is a lil different. I still may need more than 2 and I'd hate to have to run a blue sea on top of the spod like xoverland did.

  11. Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,168
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.
    This is just in time for my install! Thanks for the great ideas.

    I have my spare tire mounted on a swing out that is part of the Pelfreybily rear bumper. So the spare is no longer under the bed. If I buy a "pancake" style air tank I could fit it where the spare was then cover it with a good skidplate bolted to the frame rails to clean up the bottom of the truck for rock crawling.

  12. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,518
    Gender:
    Male
    The system is simple really. Am electronically sound. I was looking at cutting my own board and making a similar one. These company's "get it" but only stick to what their requirements are for the most part. OPTIONS are the key in this industry. Having this integrated into a Battery monitoring system for n all in one solution is the way to go here. Wouldn't be cheap, but would save people from shopping around so much, scratching their heads and asking "how are all these going to 'talk' to eachother"

    Could be a Switch solution with all the solenoids, battery monitoring system, and a fuse block. Hopefully the whole system would be MODULAR to add solutions and remove them as requirements increase.

    An idea i have had is that battery monitoring system. Right now, it is a corded 'dongle'. They could EASILY integrate all that tech into a switch platform. Dual LED marker lines/ gauges and a split rocker switch with an integrated buzzer for low voltage. The switch could be a 3 position. Up for monitoring, middle for 'set'?, and down to JUMP the battery's.

    So instead of having a National LUNA DBMS w/Smart Solenoid, Blue Sea Fuse Block and an S-POD. Could integrate ALL the systems into one modular unit.

    Last edited: Nov 6, 2013
  13. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,518
    Gender:
    Male
    You could also get a couple smaller or slimmer tanks and mount them in the wells there. You have a HCRB right? If you are not using those storage boxes you could cut the bed storage box off in the rear of it and mount a conventional cylendar tank up in there. Additionally you would just need some of the 90º fittings.

    Last edited: Nov 6, 2013
  14. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,518
    Gender:
    Male
    DESERT - get a build thread going! Saves me from having to 'research' your vehicle to find key posts.

  15. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,518
    Gender:
    Male
    Another wise thing for anyone that will be running a heavier load in the rear of the vehicle would be to do as I did. Run a HEAVY Gauge cable to the rear from the front of the truck/

  16. Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,168
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.
    good idea, I want to add a couple 15W LED floodlights to use when camping for nighttime set-up, cooking, etc. Make a small "sub panel" at the back of the truck with fuses and a couple spare circuits.

  17. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,518
    Gender:
    Male
    Plenty of room behind those tail lights. I have mine there and will do a fuse box as needs arise.

  18. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,299
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    :D

    That's an awesome spot to mount the compressor...what are your feelings on heat back there? Is the space large enough/enough air flow so the heat dissapates compressor doesn't overheat?
    I wanted to go with an ARB and mount it under the hood but the 2012+ has the pesky air pump in the way. Might go with an Air Zenith and small aluminum tank from AVS.

    [​IMG]

    Not a fan of hardlines, DOT line is the way to go. Easy to repair and work with, and for the riggors of offroad use less worry about fatigue/cracks. I am no stranger to OBA set ups, used to have an S10 with 12 gallons of air on board, 5/8" line through-out and 8 valve set-up laying frame. :D

  19. Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    15,548
    Gender:
    Male
    You could run a #2 AWG from the battery to an aux fuse panel in the back, more times than enough I've run cables from the back all the way through the cab and under the hood, it's a PITA.
    I don't think you would have issues with over heating, and I'm sure there is plenty of air flow. I've seen another member cut his driver side cubby up and cram a viair 440 in there and he has had 0 issues. I plan on running stainless tubing front to rear, I am running 2 compressors, an ARB under the hood for the air lockers and an external one I plan to mount my 400P in the cab somewhere. While running stainless tubing make sure you use expansion loops every 4' or so for body and frame flex. Hopefully I will have some OBA porn to show in here soon enough.

  20. AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    3,299
    Gender:
    Male
    First Name:
    Aaron
    Chesapeake, VA
    Vehicle:
    2012 DCSB LT 4x4
    Total Chaos +2 Long Travel. Check the build thread!
    You going with hard lines purely for looks? Much easier IMO to properly run DOT air line, and push to connect fittings. Carry some spare line and a few union fittings. If using compression fittings carry some spare ferrules as well.
