OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Sep 14, 2014 at 7:09 AM
    #381
    AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    4,218
    Gender:
    Male
    First Name:
    Aaron
    VA Beach
    Vehicle:
    2023 LR OR DCSB

    So your telling me barb fittings are better then DOT Compression or PTC fittings? If you melt a line, etc with DOT tubing its a simple union fix and your done! Use PTC or carry some spare ferrules. Standard air hose from your garage is not the long term solution for a compressor leader hose.

  2. Sep 14, 2014 at 7:14 AM
    #382
    AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    4,218
    Gender:
    Male
    First Name:
    Aaron
    VA Beach
    Vehicle:
    2023 LR OR DCSB
    Here is a prime example of why you should use SS braided leader hoses. Even DOT Nylon with a compression fitting would be better then air tool hose, barbs and hose clamps. I've seen DOT tubing melt like this as well in high duty cycle air ride suspension applications.


    Last edited: Sep 14, 2014
  3. Sep 14, 2014 at 6:38 PM
    #383
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    :spy: might have had that issue with ss braided leader hose and then air tube after it....

  4. Sep 14, 2014 at 8:37 PM
    #384
    AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    4,218
    Gender:
    Male
    First Name:
    Aaron
    VA Beach
    Vehicle:
    2023 LR OR DCSB
    Using DOT lines with compression fittings?

  5. Sep 14, 2014 at 9:32 PM
    #385
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    YEP. Had a nice set of balloons on there. :jawdrop:

  6. Sep 15, 2014 at 3:21 AM
    #386
    2008taco

    2008taco Well-Known Member

    Joined:
    Mar 4, 2011
    Member:
    #52323
    Messages:
    2,831
    Gender:
    Male
    First Name:
    chris
    san diego
    Well it looks like its time to discuss the proper way to plumb an air compressor.

    NOTHING should be connected within 4 inches of the compressor head except hard line. There should be NO sharp angles for another 12 inches after that. This is to prevent heat build up which damages hoses, and is why the hose in the picture shown failed. All a stainless braided hose is going to do is HIDE the damage that is happening. (i've seen this happen) Stainless braided hose is basically the same hose that I am using with a braided sheath over it. It provides slightly higher burst pressure, better abrasion resistance, but does nothing to dissipate heat. It is also more difficult to repair when it does go wrong.

    As for the DoT line. Like I said, I am building this truck to travel. In America I can get standard air line barb fittings just about anywhere. Home depot, lowes, harborfreight, walmart, target, k-mart, etc. Now look at Mexico, or Canada. Pretty much the same availability, now look for dot fittings... their availability is much more limited.

    In the end the compressor in no way affects my safety. What it comes down to is this is a simple compressor that get used a couple times a month. It has been on my truck for over two years and I have never had a problem with it. When my current project is complete it will be getting a little bit more use, and if I have a problem then I will address it, however I really doubt I will have to.

  7. Sep 15, 2014 at 3:44 AM
    #387
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    36,024
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings

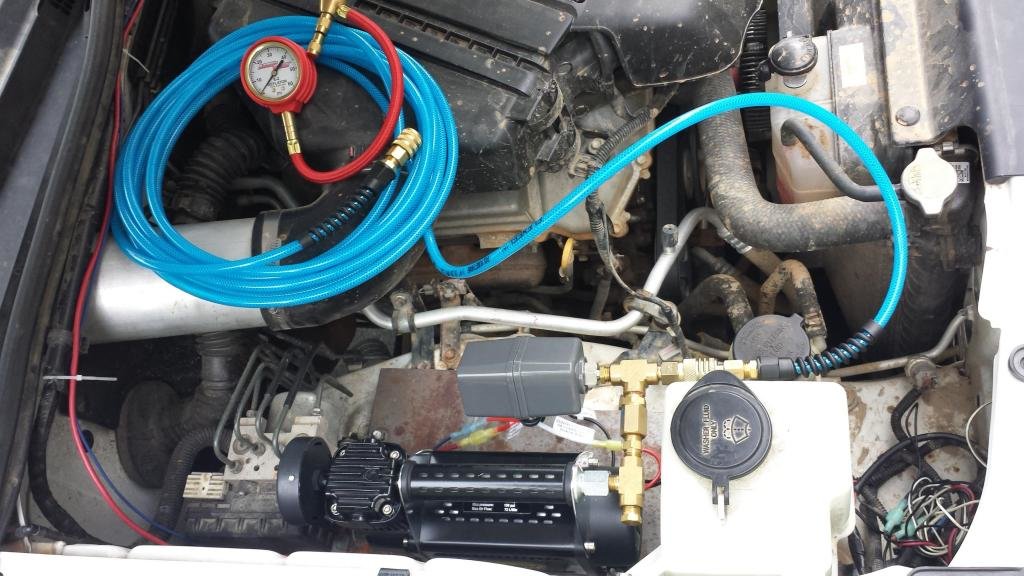

    I did it the "right way"!?

  8. Sep 15, 2014 at 6:30 AM
    #388
    AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    4,218
    Gender:
    Male
    First Name:
    Aaron
    VA Beach
    Vehicle:
    2023 LR OR DCSB
    Slightly higher burst pressure...way off

    You can get air brake line pretty much anywhere/everywhere all big trucks can be found. Even buses have air brakes. In a pinch home depot and lowes have compression fittings that'll work. Just won't be DOT rated.

    Maybe I'm a snob when it comes to air lines and compressor installs. Coming from building custom suspensions relying on such to keep the frame/body from dragging on the ground. (aka bagged mini truck scene)

    Last edited: Sep 15, 2014
  9. Sep 15, 2014 at 12:59 PM
    #389
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Chris, I was going to echo what Aaron said on availability of DOT stuff. Those places are fewer and farther between than a Big box store, but not inaccessible. I do prefer the barbed approach. In my spares box, I carry enough to re-plumb the whole truck though.

    Matter of fact, I HAVE seen some in a HomeDepot, but not in others. DOT fittings that is. Each store carries products specific to their target market they are in. Homer can vouch to that remark.

    Last edited: Sep 15, 2014
  10. Sep 15, 2014 at 8:15 PM
    #390
    vern650

    vern650 Well-Known Member

    Joined:
    Sep 2, 2013
    Member:
    #111738
    Messages:
    837
    Gender:
    Male
    First Name:
    brandon
    hyrum, ut
    Vehicle:
    '97 4x4 taco xtra cab 3rz/5spd
    HBS leveling kit, 31x10.50 mudders, header/imco exhaust, rear billies, LR ucas, home brewed onboard air, cb radio
    just tested out my a/c conversion compressor, took about 45 seconds to go from 15 to 30 psi on my 31x10.50 at about 1000rpm. Pretty pleased with that, it takes my buddy a good 5+ minutes per tire with his electric compressor to go from 15 to 30 psi. Now we'll just have Ta see how long it works.

    edit: that's with no tanks on either setup

  11. Sep 15, 2014 at 8:20 PM
    #391
    SnowroxKT

    SnowroxKT Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68604
    Messages:
    5,319
    Gender:
    Male
    First Name:
    Kyle
    Anchorage Alaska
    Vehicle:
    2008 TRD OR

    Wow that is sweet! I will have to do this eventually.

  12. Sep 15, 2014 at 11:19 PM
    #392
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Hardlines are either stainless steel, copper or brass normally. You need a bender and a realistic expectation of price. Not terribly hard to do, just very time consuming. You will also need a flaring tool.

  13. Sep 15, 2014 at 11:29 PM
    #393
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    My fault. People do 'hard lines' for air. It is a term used in the 'bagged' scene.

    [​IMG]
    [​IMG]
    [​IMG][​IMG]


    You get the point. When I can afford the tools, I will be doing a hardline install on mine. Hopefully that will resolve any and all issues I have been having with the leaks.

  14. Sep 15, 2014 at 11:34 PM
    #394
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    To answer you directly on the brass fittings you are referring to. They will all work. No issues. Make sure you use Loctite 545 or similar to seal the fittings. All of the fittings at your local hardware store will too. Go to Home depot and sit in the aisle where all the Watts fittings are. They are all the same threads as our systems also. T's and all. If it works for water, It will work for air in 95% of the time. I am using a ball valve for my sprayer. No leaks from it. at all. If you look in the hardline links/ pics above, you can clearly see water fittings and valves in there.

  15. Sep 15, 2014 at 11:49 PM
    #395
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Half the stuff I have on my OBA setup is off the shelf HD stuff. Good luck . Post pics as the project progresses.

  16. Sep 23, 2014 at 9:26 PM
    #396
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    36,024
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Last edited: Sep 23, 2014
  17. Sep 23, 2014 at 10:01 PM
    #397
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Where on the compressor is this? I haven't seen this typer before stateside.

  18. Sep 23, 2014 at 10:13 PM
    #398
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    36,024
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I lied about the viair, it doesn't use a quick disconnect, post changed. I am using the smittybilt ones on RaleighTaco's viair

    It's what the smittybilt uses to connect its open air chuck and Yellow coil hose.

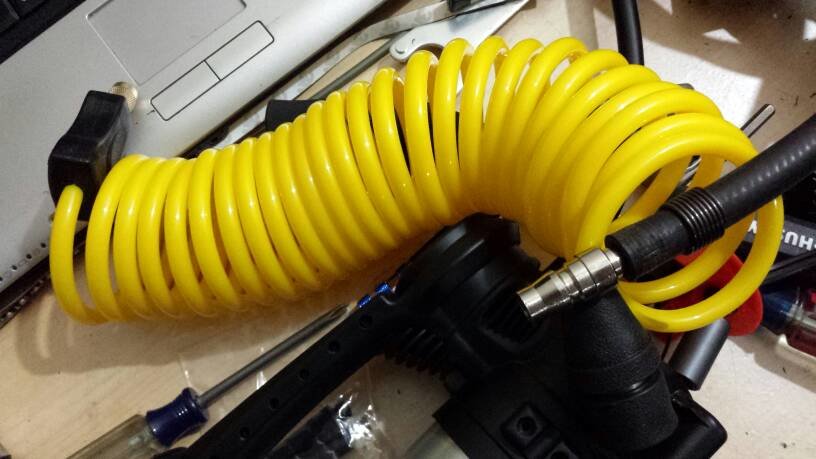

    Pictured is the modified hoses from my smittybilt for his viair. Temporary solution for big dogs trip.

  19. Sep 23, 2014 at 10:16 PM
    #399
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    AH. See, I am used to the 'National' standard fittings. Guess thats OUR Nation ;) - Would be nice if the world went with only a couple STANDARD connector types for specific applications, then changed what the standard was due to a better design or innovation.

    Notice that they work better? Or anything special about them? Looking on youtube right now for the pros and cons.

  20. Sep 23, 2014 at 10:22 PM
    #400
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    36,024
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Nope nothing in particular that I see better. They're hard to get here, and they're not universal like the Home Depot ones I bought.
    I've just got a lot of projects lined up so it's a temp solution until we can get unloader valves, plumbing, and pressure switch ordered and installed. Don't wanna blow up the compressor because someone plugged a closed hose into it.
