OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jul 15, 2016 at 3:49 AM
    #881
    Onlydad

    Onlydad Well-Known Member

    Joined:
    Jan 5, 2016
    Member:
    #174109
    Messages:
    77
    Gender:
    Male
    Vehicle:
    2014 Tacoma
    Stock
    Lots of fantastic ideas and installs in this thread. I just figured I'd add mine. Being basically "cheap" as I can be.. Years ago when I wanted OBA for my Jeep I bought an MV50 and a discounted/cheap Ryobi compressor for $50 on sale at my local hardware. I found all the parts I wanted on the compressor, regulator,shut off, blow out pin, 1.5 gal tank etc. All I had to do was swap out the compressor for the MV50 and quickly and easily and cheaply I had OBA. figured I'd share..

  2. Jul 15, 2016 at 12:31 PM
    #882
    916TacoTruck

    916TacoTruck BallzDeep is how I go

    Joined:
    Jul 23, 2013
    Member:
    #108916
    Messages:
    3,149
    Gender:
    Male
    First Name:
    Mike
    Sactown
    Vehicle:
    '13 Money Pit.
    Vagabond Outdoors The Drifter

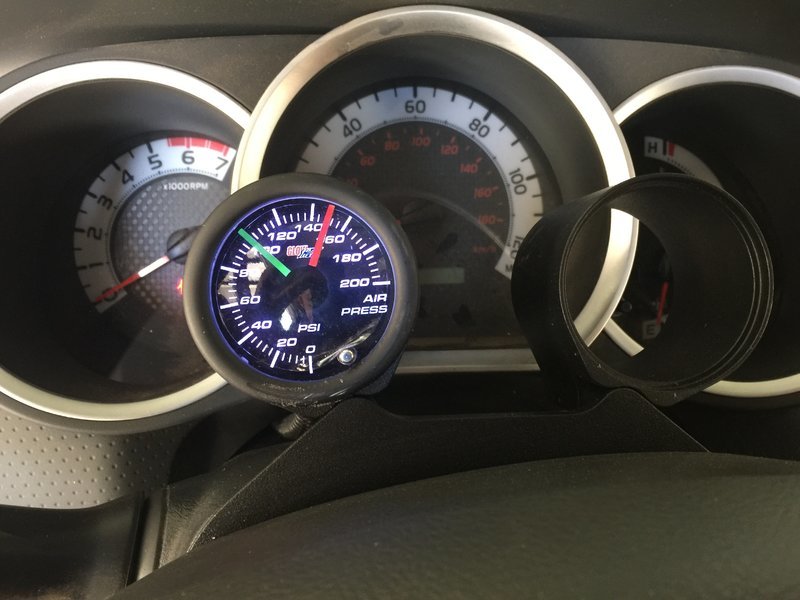

    New addition to the oba setup. Can watch locker psi and supply psi on one gauge.

  3. Jul 16, 2016 at 11:58 AM
    #883
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,810
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    Locker PSI seems a little high. I've heard that around 85 is ideal.

    916TacoTruck likes this.
  4. Jul 16, 2016 at 12:17 PM
    #884
    916TacoTruck

    916TacoTruck BallzDeep is how I go

    Joined:
    Jul 23, 2013
    Member:
    #108916
    Messages:
    3,149
    Gender:
    Male
    First Name:
    Mike
    Sactown
    Vehicle:
    '13 Money Pit.
    Vagabond Outdoors The Drifter
    Yea, book says 85-105. My old ass regulator gauge is at 95, digital say 100.

  5. Oct 4, 2016 at 2:28 PM
    #885
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    I notice you guys use a different variety of tank sizes.

    2 - gallon
    3 - gallon
    1.5 - gallon
    5 - gallon

    are you guys happy with tank size with respect to filling tires and running air tools?

  6. Oct 4, 2016 at 2:46 PM
    #886
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    8,555
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    I'm using the main tube of one of my sliders as an air tank. My calculations have it at 1.3 gallons.

    Not enough air to do anything with, and is annoying to fill when you want to use a locker. First tire airs up slightly quicker. If I weren't running an air locker, I would consider a larger tank.

  7. Oct 4, 2016 at 2:48 PM
    #887
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    so that eliminates the 1.5 gallon for meeh

  8. Oct 4, 2016 at 2:53 PM
    #888
    el topu

    el topu Well-Known Member

    Joined:
    Apr 4, 2014
    Member:
    #126969
    Messages:
    1,316
    Gender:
    Male
    First Name:
    Juan
    SLC, Ut
    Vehicle:
    Tundra Limited CM TRD Off-road
  9. Oct 4, 2016 at 3:00 PM
    #889
    samiam

    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,154
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it

    I use a 1 gallon tank. It gives a quick burst from 20 - 30 lbs, then all compressor from there, but it refills quickly while moving from tire to tire.

    Crom and ramonortiz55 like this.
  10. Oct 4, 2016 at 3:42 PM
    #890
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,657
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    My small tank(I don't recall size) works fine for locker. Air it up and compressor doesn't run all weekend.

  11. Oct 11, 2016 at 11:58 AM
    #891
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    So I think im going to pull the trigger on an OBA setup. I believe I'm already halfway there - Figure I get some critiques from you guys:

    I already have a compressor installed for my rear locker -



    The compressor and the small tank already have a pressure switch, which is the one that came with the ARB compressor:


    It is rated at shutting off at 145 PSI - which is okay with me.

    Since I already have that pressure switch, I wouldn't NOT this puppy:

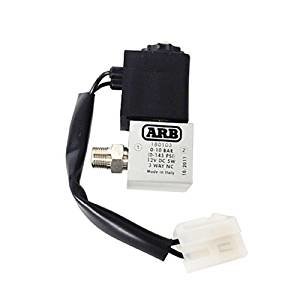

    [​IMG]

    I only plan to run a hose from a spare port on the ARB compressor 'mini - tank' using ARB air line hose and fittings I have laying around to a via air 2.5 gallon tank.

    ARB Air hose fitting:

    [​IMG]

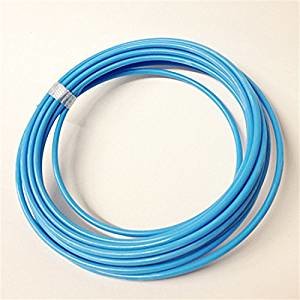

    Extra ARB hose I have laying around:


    and then run my plumbing to:

    [​IMG]

    Is this thought process sound?

    Would there be an issue with me using the ARB pressure switch VS the pressure switch from VIAIR?

  12. Oct 11, 2016 at 12:08 PM
    #892
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,657
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    This puppy is not a pressure switch. Just an air valve. You're toggle switch opens and closes the valve.
    The pressure switch is the piece on the left with 2 spade connectors.

  13. Oct 11, 2016 at 12:09 PM
    #893
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    ARBs are built in I believe. Having two would be pointless. you wont need the viair one. but using that solenoid(the arb air valve) might be useful. You could turn off/on the air two the tank with a switch. That makes me think. I might have two re do my pumping this way. but back to you. your pumping for the tank make sure to put a relief valve on it as well as a drain.

    Last edited: Oct 11, 2016
  14. Oct 11, 2016 at 12:09 PM
    #894
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    wait! you're right! That was the wrong picture lol

  15. Oct 11, 2016 at 12:10 PM
    #895
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    8,555
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    That hose is too small to fill up your tank. I believe the port on that mini tank where the pressure switch is is 1/4" NPT. So get a T and go off that. I'm running 3/8" OD air line and PTC fitting I bought off Amazon and have had good luck with them.

  16. Oct 11, 2016 at 12:11 PM
    #896
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    arb pressure switch - https://www.amazon.com/Air-Compress...476212998&sr=8-5&keywords=arb+pressure+switch

    Yes @Sandman614 you are correct, the pressure switch is the piece on the far left with the spade connectors. Would that suffice for my setup?

    Sandman614 likes this.
  17. Oct 11, 2016 at 12:13 PM
    #897
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    I have an extra port that is not being used on the little tank, can I just come out of there with a 3/8" OD air line?

  18. Oct 11, 2016 at 12:14 PM
    #898
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    8,555
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    The air locker ports are 1/8" BSP fittings. I wouldn't use them.

    ramonortiz55 likes this.
  19. Oct 11, 2016 at 12:15 PM
    #899
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,657
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Nothing wrong with BSP threads. The 1/8" fitting though will just be a bottle neck. 3/8" line is not gonna do any better of a job @ramonortiz55

  20. Oct 11, 2016 at 12:16 PM
    #900
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    Thanks for the input squeaky.

    Looks like ill be adding a brass tee into my cart and do this:

    The tee will have the pressure switch and the airline to the tank.
