OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Oct 12, 2016 at 3:18 PM
    #941
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,851
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    Yeah... and when it does go, it is loud.

    Correct, from the chuck to the tool, not a problem. I ran stainless all throughout to the Peterbilt fan clutch switch. Exiting the slider, 3/8" ID rubber fuel line to the chuck. I use the supplied ARB chuck and orange line for my tire gauge and air tools.

  2. Oct 12, 2016 at 3:19 PM
    #942
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,628
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  3. Oct 12, 2016 at 3:20 PM
    #943
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,851
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
  4. Oct 12, 2016 at 3:21 PM
    #944
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    Sandman614 likes this.
  5. Oct 12, 2016 at 3:26 PM
    #945
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,628
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Here's the tank Install, looking for latest pics of compressor.

  6. Oct 12, 2016 at 3:28 PM
    #946
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    and since there is a swivel union on the end, this will reduce the amount of fittings I need to run regular hose. Ill just thread it directly into the compressor and directly into the tank.

    Ritchie and Sandman614 like this.
  7. Oct 12, 2016 at 3:32 PM
    #947
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,628
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings

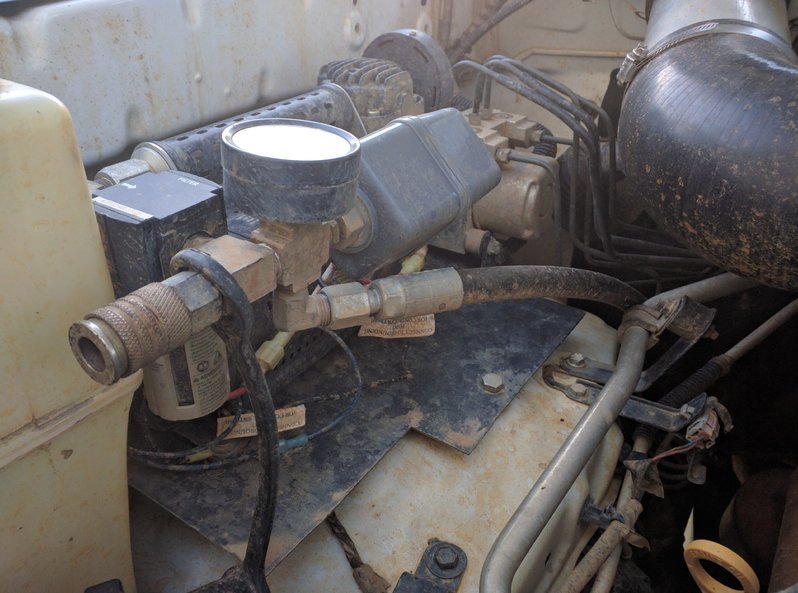

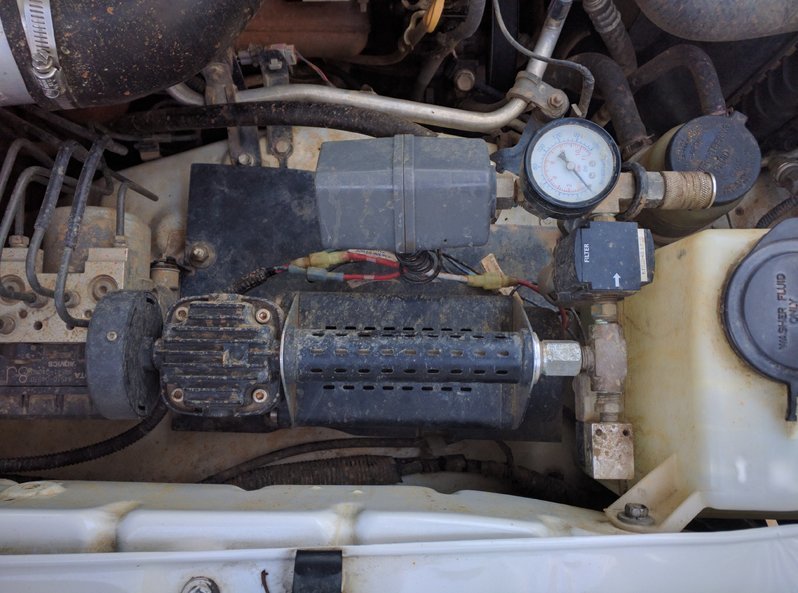

    Hell it was easier to go out and take a few shots.


  8. Oct 12, 2016 at 3:44 PM
    #948
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,851
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    Nice stuff there.
    Does the black line get close to any heat from the exhaust?

  9. Oct 12, 2016 at 4:22 PM
    #949
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,628
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yea, it dives down near the manifold, but tucked against the fender liner, but it doesn't get too hot.

  10. Oct 12, 2016 at 7:03 PM
    #950
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    What thread your guys think this is?

    The green arrow. It's next to 1/4" NPT for reference.

    I'm guessing 1/8"???


    Came off my ARB air chuck.

    I may call ARB. I'm trying to upgrade the business end. But I don't think it's removable from the stainless hose.

    Last edited: Oct 12, 2016
  11. Oct 12, 2016 at 7:07 PM
    #951
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,628
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Probably 1/8 BSP

    I take it you're replacing the line? Was it an Open flow air chuck vs a closed flow?

  12. Oct 12, 2016 at 7:12 PM
    #952
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    8,544
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
  13. Oct 12, 2016 at 7:23 PM
    #953
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    which tee do you recommend for this?

  14. Oct 12, 2016 at 7:24 PM
    #954
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    i like these, any issues with the fittings?

    link of the black air line you used?..

  15. Oct 12, 2016 at 7:30 PM
    #955
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    8,544
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
  16. Oct 12, 2016 at 7:31 PM
    #956
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
  17. Oct 12, 2016 at 7:36 PM
    #957
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock

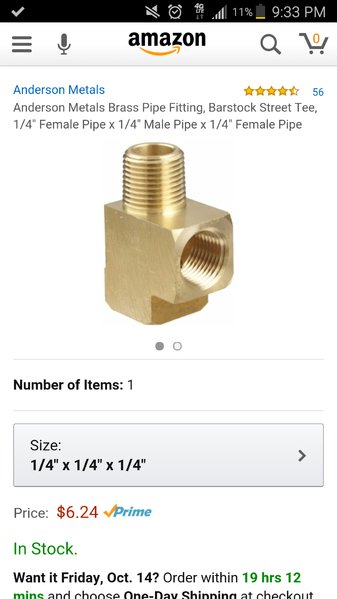

    found a tee


    Sandman614 likes this.
  18. Oct 12, 2016 at 8:27 PM
    #958
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,628
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    As long as it's the configuration you want it'll do the job.

  19. Oct 12, 2016 at 9:03 PM
    #959
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    The ARB air chuck is a little too cheap. I'm trying to upgrade the end that clips on the valve stem. As seen in the photo, I can remove the stainless hose, but the ends are crimped and not serviceable, so yeah, need to find new line with right thread, AND will work with 1/4 NPT.

    I might go full custom if I have to...

  20. Oct 12, 2016 at 10:00 PM
    #960
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,851
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    All,
    Be careful using 1/8" threaded fittings w/ ARB components.

    I actually ordered the 90 exiting my ARB manifold from a place I can't recall but the fitting came from Poland. Damn thing was $27.00 US.

    The difference in the fittings is the thread pitch... one is @ 45 degrees, the other is 55 degrees. I don't remember which is which but a place that sells hydraulic & AN fittings can tell you.

    I know this because I f'd up my manifold and had to purchase a second. No pipe dope or thread sealant could eliminate the small leak.

    Good luck.

    Crom, jubei and ramonortiz55 like this.
