OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by MJonaGS32, Oct 20, 2013.

  1. Oct 20, 2016 at 9:40 AM
    #981
    MJonaGS32

    MJonaGS32 [OP] MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,953
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    This is more of a FYI in case anyone else is doing something similar

    [​IMG]

    I run my rear locker off my OBA set up with a pressure regulator right next to the ARB solenoid. I was wondering why my cab was starting to smell like gear oil. Come to find out that my ARB air line is acting like a secondary extended diff breather (which I already have - extended to the gas door) and gear oil was leaking through the solenoid and all over my stuff. I just ordered a ball valve lever that I'll be putting in-line right before the solenoid and just flipping it on when I'm on the trails. Hopefully that will limit how much gear oil travels upward into the solenoid.

    jqueener and Crom like this.
  2. Oct 20, 2016 at 12:55 PM
    #982
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,475
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, 31" tires, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera, CB
    I read (online) that there are seals in the diff that are supposed to prevent the air line getting contaminated with oil.
    The seal has gone bad, or installation error.

    ramonortiz55 likes this.
  3. Oct 21, 2016 at 6:55 AM
    #983
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    22,385
    Gender:
    Male
    Boone, NC\Garner, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I had a similar issue except my tank was being filled with gear oil... ECGS did a warranty job on it and said the seals were installed correctly , checked everything else and said it was all correct too. I think the ARB design just isn't leak proof and the locker act as a suction somehow. When I disconnected the air line from the diff and drove around there was still oil being pushed out.

    MJonaGS32 and Crom like this.
  4. Oct 24, 2016 at 2:41 PM
    #984
    inv3ctiv3

    inv3ctiv3 Well-Known Member

    Joined:
    Jun 24, 2010
    Member:
    #39411
    Messages:
    2,751
    Gender:
    Male
    Figured I'd do a little write-up on my OBA set up that I put in this weekend, hopefully it comes in handy for someone. A lot of this was already covered in @Crom thread which I'm sure everyone has already seen and I won't be going over my aux battery set up that's a whole separate thing.

    Parts list:
    ARB Twin Compressor
    ARB Air Chuck
    Flexzilla 1/4" x 25' Air Hose (I used this as the fill up line connected to the air chuck)
    Flexzilla 3/8" x 25' Air Hose (I used this one to go from the braided line to the bumper)
    4AWG Welding Cable (I ran this from the starting battery to the bed for power)
    4AWG 1/4" Lug
    1/4" FPT to 3/8" Barb (Braided line to 3/8" hose running to bumper)
    90 Degree Elbow (from compressor to braided line)
    18AWG Wire (used to run from the bed to the switch and switch to battery)
    Viar 18" Steel Braided Line
    1/4" FPT V-style Plug
    1/4" FPT Quick Disconnect (you'll need two of these, one for bumper and one for hose)
    Two way switch (this is up to you, depends on what style you want and where you put it)

    Now there are some items I used like bolts, screws, wiring, etc that you won't need if you're not mounting it the way I did but you'll need basic tools, good drill bits, solder, shrink wrap, zip ties, different gauge wiring, pipe tape, etc.

    So I don't have a lot of photos of wiring it up but it should be pretty straight forward, you take the big power harness that has the two big fuses and run those wires together into the 4AWG wire and route that to the starting battery, then take the black wires and run those together into another section of 4AWG wire and ground it to whatever you can that's closest to the compressor. Next up cut the connector off the other ARB harness and there is one purple (power) wire and one black (ground wire). I ran the ground into the other grounds to the 4AWG ground and then ran the purple wire to the cab for one side of the switch using 18AWG wire and then the other side of the switch got ran through the firewall to the starting battery, it's super simple. I didn't use ARB's switch even thought I wanted to, it's just too big and didn't fit anywhere so I went to radioshack and bought a switch that would fit on one of the blanks below the climate control:

    [​IMG]

    I drilled a hole into the blank and then hot glued around behind the switch in the blank so it would be clean and not have glue everywhere:

    [​IMG]

    I gently pried the blank out with a small flathead making sure not to eat up the dash, you could also drill a small hole and pull it out if you want, I used an old clothes hanger straightened out to run the 18AWG wire from along the drivers doorsill and over the pedals and through the opening.

    [​IMG]

    Quickly soldered up the switch with one wire running to the starting battery and one running back to the switch and viola!

    [​IMG]

    I mounted the compressor using the compressor mounts stock holes, just took the mount off the compressor and held it up to the tool box, marked the holes and drilled them making sure everything was straight and would clear. I also drilled a few vent holes just under the lip of the lid of the toolbox so it would get air and ventilation because these do get very hot.

    [​IMG]

    Now my toolbox is mounted to the composite bed so I did have to drill another hole for the braided line and made sure it would clear that black box that's below the bed and above the axle/gas tank area so the hose wouldn't be crimped or at a funny angle.

    [​IMG]

    Used the barbed fitting for this:

    [​IMG]

    Ran it along the frame rail:

    [​IMG]

    The zip ties are temporary I'll be using big hose clamps or something else to secure the hose to the hitch:

    [​IMG]

    I also had to drill a hole in my @Pelfreybilt HC rear bumper for the quick disconnect:

    [​IMG]

    And here you go, just get a little chair stopper to cover the QD and you're good to go!

    [​IMG]

    [​IMG]

    I hope this helped and if anyone has any specific questions just PM me.

  5. Oct 24, 2016 at 3:14 PM
    #985
    jqueener

    jqueener Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    3,961
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4 trd sport
    LR UCA's Kings ext rmlt resi 700lb springs. Rear ARB locker all pro expos u-bolt flip Armor BAMF sliders with kick out All pro apex front all pro ifs skid Pelfreybilt Off-Road mid and transfer skids all pro hi clear rear bumper Wheels 285/70/17 dura tracs on MB TKO matt black 17x 8.5" gears 4.56 OBA viair 450c with 2.5 tank. engo 10k winch
    I need to inspect mine as I installed mine pretty much the same way in the same location, I thought I got a hint of gear oil smell the other day.

  6. Oct 24, 2016 at 3:17 PM
    #986
    jqueener

    jqueener Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    3,961
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4 trd sport
    LR UCA's Kings ext rmlt resi 700lb springs. Rear ARB locker all pro expos u-bolt flip Armor BAMF sliders with kick out All pro apex front all pro ifs skid Pelfreybilt Off-Road mid and transfer skids all pro hi clear rear bumper Wheels 285/70/17 dura tracs on MB TKO matt black 17x 8.5" gears 4.56 OBA viair 450c with 2.5 tank. engo 10k winch
    they changed the design on them a yr or so ago to prevent this maybe he has the old design or the new design didn't fix the problem.

  7. Oct 31, 2016 at 9:45 AM
    #987
    Crom

    Crom Outside

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,065
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
  8. Oct 31, 2016 at 9:49 AM
    #988
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    22,385
    Gender:
    Male
    Boone, NC\Garner, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Crom likes this.
  9. Oct 31, 2016 at 9:56 AM
    #989
    CaptainReverso

    CaptainReverso Instagram @ CaptainReverso

    Joined:
    Nov 28, 2014
    Member:
    #143246
    Messages:
    2,629
    Gender:
    Male
    First Name:
    Cory
    Los Angeles
    Vehicle:
    2015 TRD off road 4x4 DBL cab Magnetic Grey
    Full weather tech floor mats, hid fog and headlights, window tint, Yotamac aux fuse plate, black plasti dip badges. 4' saber whip. Infinity kappa 6x9 front speakers, Infinity kappa 6.5 rear speaker, full Icon stage 4 suspention with billet upper control arms, prinsu design roof rack

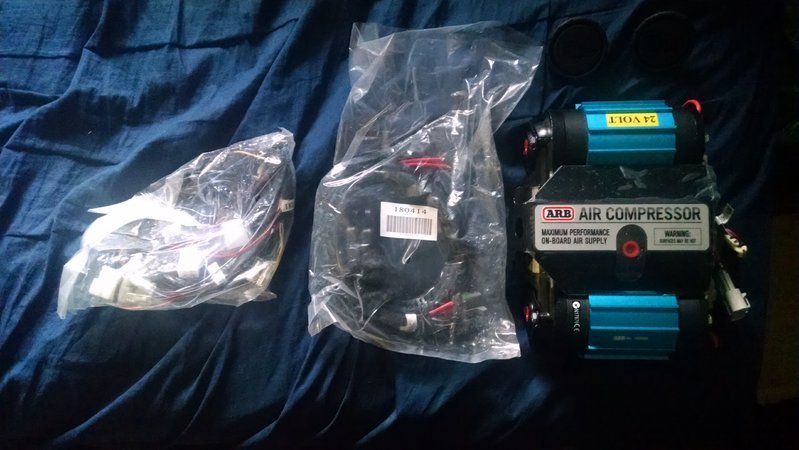

    Hey guys I am selling an ARB TWIN AIR COMPRESSOR 24VOLT CKMTA24 it is new but was sent to me with very minor cosmetic scratches. So the company sent me a new one and got a deal on this. But I do not need it. It is a complete compressor. Wiring , air filter, switch ECT. Just no original box. Looking for $380 shipped on your dime

  10. Oct 31, 2016 at 10:30 AM
    #990
    Crom

    Crom Outside

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,065
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Thanks. I'm really happy with it now. :)

  11. Nov 4, 2016 at 8:38 PM
    #991
    WhiteNight

    WhiteNight Well-Known Member

    Joined:
    Nov 8, 2014
    Member:
    #141939
    Messages:
    247
    Gender:
    Male
    PDX
    Vehicle:
    13 DCLB SPORT
    Dynamat, Rigid E series 30", Rigid SR2 combo/Rigid grill, Redline elite hood struts, Clear Bra all over
    Hmmm pictures

  12. Nov 4, 2016 at 10:31 PM
    #992
    CaptainReverso

    CaptainReverso Instagram @ CaptainReverso

    Joined:
    Nov 28, 2014
    Member:
    #143246
    Messages:
    2,629
    Gender:
    Male
    First Name:
    Cory
    Los Angeles
    Vehicle:
    2015 TRD off road 4x4 DBL cab Magnetic Grey
    Full weather tech floor mats, hid fog and headlights, window tint, Yotamac aux fuse plate, black plasti dip badges. 4' saber whip. Infinity kappa 6x9 front speakers, Infinity kappa 6.5 rear speaker, full Icon stage 4 suspention with billet upper control arms, prinsu design roof rack

  13. Nov 5, 2016 at 7:07 AM
    #993
    Crom

    Crom Outside

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,065
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Put it on eBay. Nobody here has 24V to feed that.

  14. Nov 5, 2016 at 4:57 PM
    #994
    Stickerice85

    Stickerice85 Well-Known Member

    Joined:
    Aug 21, 2015
    Member:
    #162338
    Messages:
    134
    Gender:
    Male
    South Central, PA
    Vehicle:
    2015 Tacoma DCSB TRD Pro




    As per the ARB install instructions for the twin compressor........the Red/Yellow wire to "ignition" and Blue/White wire to "dash illumination". If you did that, where is the "ignition" and "dash illumination" wires located at?

  15. Nov 5, 2016 at 5:46 PM
    #995
    inv3ctiv3

    inv3ctiv3 Well-Known Member

    Joined:
    Jun 24, 2010
    Member:
    #39411
    Messages:
    2,751
    Gender:
    Male
    I didn't do the little LED light in the switch I don't care about having that.

  16. Nov 5, 2016 at 6:07 PM
    #996
    G.T.

    G.T. Official TW Burrito Inspector

    Joined:
    Jul 14, 2010
    Member:
    #40169
    Messages:
    6,327
    Gender:
    Male
    First Name:
    G.T.
    CONUS
    Vehicle:
    2011 Pyrite Mica 4WD DCLB TRDSport w/ FlipPac
    Some stick on chrome from pep boys
    Forwarding to a Land Cruiser buddy, his is 24v like mine.

    CaptainReverso and Crom like this.
  17. Nov 6, 2016 at 7:01 PM
    #997
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    22,385
    Gender:
    Male
    Boone, NC\Garner, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    @JimboAnz for Josh
    @nastyneight for Jason

    *both have diesel conversions running 24v

    Crom, JimboAnz and CaptainReverso like this.
  18. Nov 7, 2016 at 6:12 PM
    #998
    sasquatch95

    sasquatch95 Well-Known Member

    Joined:
    Oct 21, 2013
    Member:
    #114937
    Messages:
    528
    Gender:
    Male
    First Name:
    Hunter
    nanaimo BC
    Vehicle:
    07 DCLB sport
    Currently being rebuilt
    Hey everyone. What is the best tire inflator with gauge?

  19. Nov 7, 2016 at 6:13 PM
    #999
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    22,385
    Gender:
    Male
    Boone, NC\Garner, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    @Crom

    Crom likes this.
  20. Nov 7, 2016 at 6:15 PM
    #1000
    Crom

    Crom Outside

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,065
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Best is relative.

    I'm using the ARB. It's good value for $30. Probably better for more $$$, but I'm happy.
