OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Nov 8, 2016 at 8:40 AM
    #1001
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,509
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Are the valve stems on the 4runner like the TPMS factory ones on our trucks?

    If they are, the brass fitting on the Powertank looks identical to the one I just tried on my modified ARB. It was a "CTA Tools 1930 Straight Lock-On Air Chuck"

    I had the same issue. When I built it, it worked on my wife's Nisan fine, rubber valve stems I think. I tried it on the truck this weekend and I was like, this POS is getting sent back!

    Mr.PowerTrays likes this.
  2. Nov 8, 2016 at 10:09 AM
    #1002
    G.T.

    G.T. Official TW Burrito Inspector

    Joined:
    Jul 14, 2010
    Member:
    #40169
    Messages:
    17,203
    Gender:
    Male
    First Name:
    G.T.
    CONUS
    Vehicle:
    2011 Pyrite Mica 4WD DCLB TRDSport w/ FlipPac
    Some stick on chrome from pep boys
    The problem is with where they placed the valve stem itself.

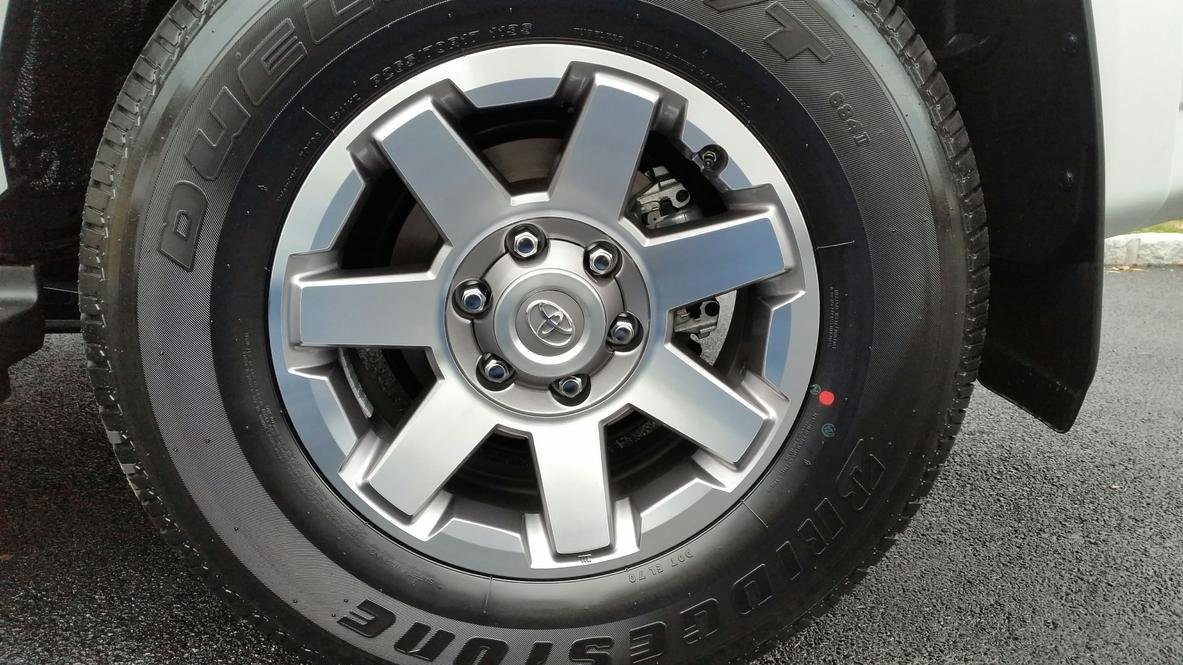

    183219d1449971748-sale-5th-gen-trail-pre_5c09de4888efc6d457bc0d303e253cfa34c17d98.jpg

    Picture swiped from an image search. See how it is recessed into that stylized lug? That opening is really quite small and limits the size of chuck that can fit into it. I think I'm going to buy her an inflator and change the chuck out to a round knurled slip locking type so that we don't have to rely on what I keep in my tool bag.

    Crom likes this.
  3. Nov 8, 2016 at 10:16 AM
    #1003
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,509
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    @G.T. Good to know. Thanks for the description and picture. :)

    G.T. likes this.
  4. Nov 16, 2016 at 10:55 AM
    #1004
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,509
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Thanks! I bought the open version, and I like it a lot!

    Coilhose Pneumatics CH15A Open Lock-On Chuck, 1/4-Inch FPT, pictured on the left.

    I returned the one on the right as I was not happy with it.

    The Coilhose one works great, it has two pieces of metal which grip the valve stem making a really solid connection. The clip on one on the right, like the original ARB, only had one, and didn't work as well as I initially thought.

    I like the Open chuck vs. the closed chuck, because I can use the open version to blow dust off and out of my truck after finishing a trail in the desert.

    [​IMG]

    Final modified product.
    [​IMG]

    Thanks @Sandman614 for suggesting the Coilhose variant. :thumbsup:

    KTJO 4x4, Sandman614 and Jim Bob like this.
  5. Nov 16, 2016 at 12:07 PM
    #1005
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    What's up with the tape?

  6. Nov 16, 2016 at 12:26 PM
    #1006
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,509
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Not a QD, it's an air chuck called Coilhose that looks like a QD.

    Here it is laid out:

    ARB tire inflator + 8mm OD Hose Barb 9.5mm 1/8BSP Brass Coupler + hose clamp + your longer air hose + barb to 1/4 MNPT + Coilhose air chuck.​

    Search back two pages in this thread for details, or build thread has it listed too.

    @ramonortiz55 tape is a safety feature, covers the stainless size 4 hose clamp that secures the hose to barb.

  7. Nov 16, 2016 at 12:35 PM
    #1007
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,141
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
  8. Nov 19, 2016 at 5:19 PM
    #1008
    2X4TACOMA

    2X4TACOMA Well-Known Member

    Joined:
    Sep 19, 2010
    Member:
    #43470
    Messages:
    177
    Gender:
    Male
    Vehicle:
    Pyrite Mica 2010 Tacoma 4x4 Off Road
    Just ordered this after trying to decide which one to get. It was between the Superflow MV90 and the Air Armor M240.

    I went with the Air Armor M240. Found a discount code here It says it ended but it just now worked for me. Its 80 bucks off.

    Thought id share.

  9. Nov 19, 2016 at 5:28 PM
    #1009
    GreeGunc

    GreeGunc Full of regret

    Joined:
    Sep 6, 2014
    Member:
    #137721
    Messages:
    3,505
    Gender:
    Male
    First Name:
    Jacob
    North GA
    Vehicle:
    1st gen 3rz+18' inferno OR 6spd
    2lo mod. PIAA 510s. Green Floor Lights. Green dash swap. Axle dump exhaust. Husky floor mats. Moto metal mo970's. Shrockworks. Sundown sa-8. 9.5xrc. Kings
    Anyone tried a Vixen 200psi kit with a 3 gallon tank? It says air horns but shouldn't it work for tires to? And lockers with a regulator?

  10. Nov 20, 2016 at 5:46 AM
    #1010
    WhiteNight

    WhiteNight Well-Known Member

    Joined:
    Nov 8, 2014
    Member:
    #141939
    Messages:
    255
    Gender:
    Male
    PDX
    Vehicle:
    13 DCLB SPORT
    Dynamat, Rigid E series 30", Rigid SR2 combo/Rigid grill, Redline elite hood struts, Clear Bra all over
    What is the perk to mount here vs under the hood is it not noisy when filling the tank?

  11. Nov 20, 2016 at 6:10 AM
    #1011
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I'd say it's cleaner but judging by that picture lol. With the dual compressor filling a tank shouldn't take long. Also there's a lot of insulation because of the seat I would think it wouldn't be a problem.

  12. Nov 20, 2016 at 6:12 AM
    #1012
    WhiteNight

    WhiteNight Well-Known Member

    Joined:
    Nov 8, 2014
    Member:
    #141939
    Messages:
    255
    Gender:
    Male
    PDX
    Vehicle:
    13 DCLB SPORT
    Dynamat, Rigid E series 30", Rigid SR2 combo/Rigid grill, Redline elite hood struts, Clear Bra all over
    I guess I view it differently. Being a cdl driver it's weird not having a belt driven compressor. Even weirder for it to be located at the rear of the truck.

  13. Nov 20, 2016 at 7:56 AM
    #1013
    NorthwestCruiser

    NorthwestCruiser Well-Known Member

    Joined:
    Nov 20, 2013
    Member:
    #117000
    Messages:
    13,080
    Gender:
    Male
    First Name:
    Brian
    Snohomish, WA
    Vehicle:
    1996 Land Cruiser
    Custom 3 link, 40's etc..
    Keeping it clean and dry mainly. Also its incredibly hard to make a mount to fit it under the hood without relocating something. When I have it on to run the lockers it isn't too noisy because the seat back is blocking a lot and isn't running constantly. When I am filling tires it is loud but I also lean the back of the seat forward for more ventilation. Also I don't run a tank. Don't have a need big enough to spend the money for it

    Its inside the cab, behind my rear seat. The second place I would have put it is inside the bed side in the back.

  14. Nov 23, 2016 at 6:02 PM
    #1014
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    2,550
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    Questions:

    If one were to mount the ARB CMKTA12 On-Board Twin Air Compressor under the hood for a 2nd Gen taco (or even the single ARB CKMA12 Heavy Duty Air Compressor), would there be room to install a snorkel?


    Has anyone used the Slee Off-Road Tacoma Compressor Brackets for the 2005-15 Tacoma?

    Slee Off-Road–Tacoma Single Compressor Bracket (SOK-0002) – 2005-15 Tacoma
    <http://www.sleeoffroad.com/installation/2005-15_tacoma_compressor_bracket_v1.1.pdf>

    Slee Off-Road–Tacoma Twin Compressor Bracket (SOK-0001) – 2005-15 Tacoma
    <http://www.sleeoffroad.com/installation/2005-15_tacoma_twin_compressor_bracket_v1.1.pdf>

    If either of these were used, would it allow for a snorkel?

    It's difficult to tell from the photos on Slee Off-Road.

    My plan is to use the air compressor to inflate my tires after wheeling. Somewhere down the road, I may install a front locker...so, I'm thinking the twin would be the better option but space is the concern.

    Looking forward to your inputs.

  15. Nov 24, 2016 at 1:43 AM
    #1015
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    4,574
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DCSB 4x4
    Yes
    The Slee mount does not conflict with the OE airbox or intake tube

  16. Nov 24, 2016 at 1:57 AM
    #1016
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    2,550
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    For the OE airbox or intake tube, I understand. But what about a snorkel?

  17. Nov 24, 2016 at 6:33 PM
    #1017
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    4,574
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DCSB 4x4
    Yes
    a snorkel connects to the OE airbox amigo

  18. Nov 24, 2016 at 6:42 PM
    #1018
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    2,550
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    Ok. Thanks!

  19. Dec 7, 2016 at 7:54 PM
    #1019
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    Good info in here. :thumbsup:

  20. Dec 29, 2016 at 12:28 PM
    #1020
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    2,550
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    I installed the single ARB CKMA12 Heavy Duty Air Compressor, mounted it with the Slee Off-Road–Tacoma Single Compressor Bracket (SOK-0002) in my hood.

    Now, I want to relocate the air source (quick connect/disconnect) to the rear of the taco. In order to do so, what are the exact parts I will need to buy at the hardware store (or online)?

    From the list of products discussed in this thread (at the bottom of the pages), would these apply for my situation?

    1. 12" or longer stainless steel braided leader hose without check valve -- to connect directly to the air compressor between the T-fitting and the pressure switch?
    2. MettleAir MTMF 3/8-N02-1PK Push to Connect Straight Bulkhead Female Fitting, 3/8" OD, 1/4" NPT? -- only 1, or will I need 2? Or one Female and one male?
    3. One of these air lines?
    a. 50' Roll of Power Products 3/8" OD Black Nylon Air Brake Tubing SAE J844,
    https://www.amazon.com/dp/B00CMTJQX4 - $43.55
    b. ATP Value-Tube LDPE Plastic Tubing, Black, 1/4" ID x 3/8 OD, 100 feet Length
    https://smile.amazon.com/dp/B000R87R4C - $15.44
    c. 1/4" OD x 50' SAE J844 Nylong Air Brake Tubing Suspension Horn Train Lowrider
    https://smile.amazon.com/dp/B00CLXGHQU - $20.49
    d. ARB 170301 Engine Air Intake Adapter (blue)
    https://smile.amazon.com/ARB-170301...rd_wg=ofrJm&psc=1&refRID=K5DZQVW6NF3A7Q2GPEFV
    4. Fittings:
    a. 90 degree brass pipe fitting street elbow, 1/4" NPT Male x 1/4" NPT Female -- two of these, one towards the air compressor, and the other at the rear end of the truck?
    5. Quick connect/disconnect

    Or can I just use the Viair 90007 Air Source Relocation Kit? Would it be compatible with the ARB fittings/hardware?

    Note: I also bought the ARB inflation accessory kit (orange air hose and parts) and the ARB blue inflator with gauge and braided hose. I'm trying to avoid having to open up my hood every time I need to inflate my tires using the air compressor. TIA.


Products Discussed in
