OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by MJonaGS32, Oct 20, 2013.

  1. Nov 20, 2016 at 7:56 AM
    #1021
    NorthwestCruiser

    NorthwestCruiser Well-Known Member

    Joined:
    Nov 20, 2013
    Member:
    #117000
    Messages:
    11,979
    Gender:
    Male
    First Name:
    Brian
    Snohomish, WA
    Vehicle:
    1996 Land Cruiser
    In the process of being built..
    Keeping it clean and dry mainly. Also its incredibly hard to make a mount to fit it under the hood without relocating something. When I have it on to run the lockers it isn't too noisy because the seat back is blocking a lot and isn't running constantly. When I am filling tires it is loud but I also lean the back of the seat forward for more ventilation. Also I don't run a tank. Don't have a need big enough to spend the money for it

    Its inside the cab, behind my rear seat. The second place I would have put it is inside the bed side in the back.

  2. Nov 23, 2016 at 6:02 PM
    #1022
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    1,435
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    Questions:

    If one were to mount the ARB CMKTA12 On-Board Twin Air Compressor under the hood for a 2nd Gen taco (or even the single ARB CKMA12 Heavy Duty Air Compressor), would there be room to install a snorkel?


    Has anyone used the Slee Off-Road Tacoma Compressor Brackets for the 2005-15 Tacoma?

    Slee Off-Road–Tacoma Single Compressor Bracket (SOK-0002) – 2005-15 Tacoma
    <http://www.sleeoffroad.com/installation/2005-15_tacoma_compressor_bracket_v1.1.pdf>

    Slee Off-Road–Tacoma Twin Compressor Bracket (SOK-0001) – 2005-15 Tacoma
    <http://www.sleeoffroad.com/installation/2005-15_tacoma_twin_compressor_bracket_v1.1.pdf>

    If either of these were used, would it allow for a snorkel?

    It's difficult to tell from the photos on Slee Off-Road.

    My plan is to use the air compressor to inflate my tires after wheeling. Somewhere down the road, I may install a front locker...so, I'm thinking the twin would be the better option but space is the concern.

    Looking forward to your inputs.

  3. Nov 23, 2016 at 7:16 PM
    #1023
    inv3ctiv3

    inv3ctiv3 Well-Known Member

    Joined:
    Jun 24, 2010
    Member:
    #39411
    Messages:
    3,034
    Gender:
    Male
    I don't see why it wouldn't allow for a snorkel I bought my ARB snorkel at Slee and talked to them about that mount and they said it would work great but you should call them just to confirm.

    seoulja99 likes this.
  4. Nov 24, 2016 at 1:43 AM
    #1024
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    3,430
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DCSB 4x4
    Yes
    The Slee mount does not conflict with the OE airbox or intake tube

  5. Nov 24, 2016 at 1:57 AM
    #1025
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    1,435
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    For the OE airbox or intake tube, I understand. But what about a snorkel?

  6. Nov 24, 2016 at 6:33 PM
    #1026
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    3,430
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DCSB 4x4
    Yes
    a snorkel connects to the OE airbox amigo

  7. Nov 24, 2016 at 6:42 PM
    #1027
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    1,435
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    Ok. Thanks!

  8. Dec 7, 2016 at 7:54 PM
    #1028
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    884
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    09 PM DCSB TRD OR Pyrite Mica
    Pelfreybilt|Icon|AllPro|SCS|Prinsu
    Good info in here. :thumbsup:

  9. Dec 29, 2016 at 12:28 PM
    #1029
    seoulja99

    seoulja99 Well-Known Member

    Joined:
    Mar 8, 2016
    Member:
    #180618
    Messages:
    1,435
    Gender:
    Male
    First Name:
    E.J.
    Oahu
    Vehicle:
    2012 DCSB 4x4 V6 TX Baja (1GR-FE)
    all things mall rated
    I installed the single ARB CKMA12 Heavy Duty Air Compressor, mounted it with the Slee Off-Road–Tacoma Single Compressor Bracket (SOK-0002) in my hood.

    Now, I want to relocate the air source (quick connect/disconnect) to the rear of the taco. In order to do so, what are the exact parts I will need to buy at the hardware store (or online)?

    From the list of products discussed in this thread (at the bottom of the pages), would these apply for my situation?

    1. 12" or longer stainless steel braided leader hose without check valve -- to connect directly to the air compressor between the T-fitting and the pressure switch?
    2. MettleAir MTMF 3/8-N02-1PK Push to Connect Straight Bulkhead Female Fitting, 3/8" OD, 1/4" NPT? -- only 1, or will I need 2? Or one Female and one male?
    3. One of these air lines?
    a. 50' Roll of Power Products 3/8" OD Black Nylon Air Brake Tubing SAE J844,
    https://www.amazon.com/dp/B00CMTJQX4 - $43.55
    b. ATP Value-Tube LDPE Plastic Tubing, Black, 1/4" ID x 3/8 OD, 100 feet Length
    https://smile.amazon.com/dp/B000R87R4C - $15.44
    c. 1/4" OD x 50' SAE J844 Nylong Air Brake Tubing Suspension Horn Train Lowrider
    https://smile.amazon.com/dp/B00CLXGHQU - $20.49
    d. ARB 170301 Engine Air Intake Adapter (blue)
    https://smile.amazon.com/ARB-170301...rd_wg=ofrJm&psc=1&refRID=K5DZQVW6NF3A7Q2GPEFV
    4. Fittings:
    a. 90 degree brass pipe fitting street elbow, 1/4" NPT Male x 1/4" NPT Female -- two of these, one towards the air compressor, and the other at the rear end of the truck?
    5. Quick connect/disconnect

    Or can I just use the Viair 90007 Air Source Relocation Kit? Would it be compatible with the ARB fittings/hardware?

    Note: I also bought the ARB inflation accessory kit (orange air hose and parts) and the ARB blue inflator with gauge and braided hose. I'm trying to avoid having to open up my hood every time I need to inflate my tires using the air compressor. TIA.

  10. Jan 7, 2017 at 8:40 AM
    #1030
    Squishy!

    Squishy! Member

    Joined:
    Jan 2, 2017
    Member:
    #206307
    Messages:
    6
    Gender:
    Male
    Vehicle:
    @themightyredchili
    Just about everything, but enough to do to keep me poor

    Nicely done indeed. This is the exact approach I'm taking on my 3.4 swapped 1st gen Runner. It looks like you are running 1/4" air line. If so, are you happy with the rate of flow, or if not is there any issue running 1/4" line on that compressor? Considering that an A/C compressor is typically pressurizing against a tiny expansion valve, I wouldn't think so, but lets see what y'all have to say about it.

  11. Jan 7, 2017 at 9:15 AM
    #1031
    ToyRyd04

    ToyRyd04 Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    805
    Gender:
    Male
    First Name:
    Greg
    Taneytown, MD
    Vehicle:
    '04 Prerunner
    SAS'd PreRunner
    Everything is 3/8" line, minus the guage. Flow rate is great, with the heavier line as well helps with the heat coming from the compressor.

    seoulja99 likes this.
  12. Jan 7, 2017 at 3:53 PM
    #1032
    Squishy!

    Squishy! Member

    Joined:
    Jan 2, 2017
    Member:
    #206307
    Messages:
    6
    Gender:
    Male
    Vehicle:
    @themightyredchili
    Just about everything, but enough to do to keep me poor
    interesting. I cant seem to find a 3/8 manifold like that, only 1/4", but it definitely was a great tip for this build. Where did you source all your parts? Amazon seems to have most things, but damn the brass fitting are expensive there...

  13. Jan 7, 2017 at 7:21 PM
    #1033
    ToyRyd04

    ToyRyd04 Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    805
    Gender:
    Male
    First Name:
    Greg
    Taneytown, MD
    Vehicle:
    '04 Prerunner
    SAS'd PreRunner

    http://m.ebay.com/itm/162313940576

    Ebay and Amazon is where I sourced 95% of the parts. A few were from my local Ace hardware.
    Certain parts I used from Viair for piece of mind.

  14. Jan 30, 2017 at 9:37 PM
    #1034
    HABOOBS

    HABOOBS 2nd Year Member / Long time TW Lurker

    Joined:
    Jun 24, 2016
    Member:
    #190449
    Messages:
    779
    Gender:
    Male
    First Name:
    Bill
    Phoenix AZ
    Vehicle:
    2008 AZ-BASED DCSB

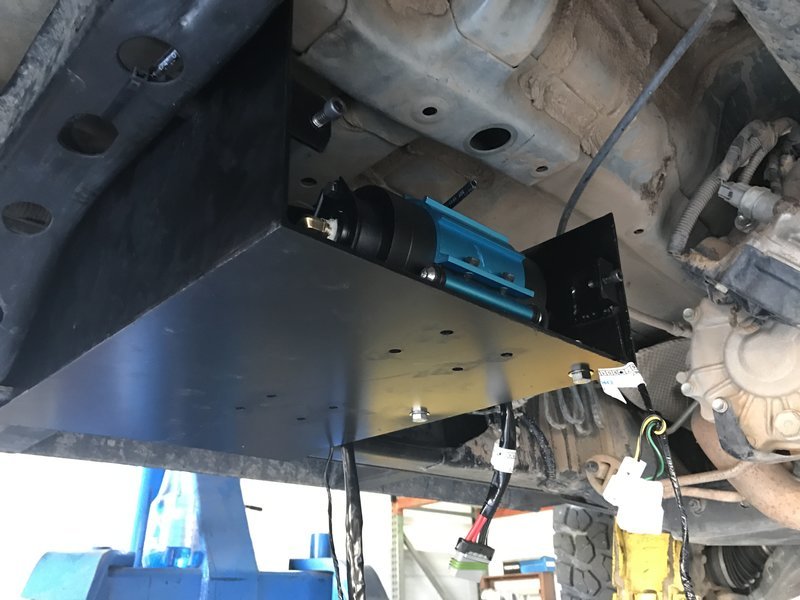

    Alright... So I need some input fast... I'm currently working with Sierra Expeditions on installing an ARB Dual Air Compressor into the truck... I wanted to find room under the hood, but thats a no go. Then I wanted it behind the rear seat but was worried about the noise factor. So their solution was to put it underneath mounted to the frame rail... Initially I didn't think anything of it since the ARB system has an intake that can be relocated as necessary but now I am second guessing this route all together... Why? H20!!!

    They've already made a pretty bad ass mount/box to protect the compressor but I'm worried about any major water crossing (especially while running a locker - If I ever install one). The box/mount is located just in front of the rear crossmember and is definitely not water tight/proof but it is strong enough to resist minor impacts (plus there are other points on the truck that would hit rocks first). I'm just worried about water... Should I be worried about this location? Am I being overly cautious here? They want to finish up this project tomorrow and I am now questioning their chosen design. See pic...


    Anyone ever have issues with these underneath? Fast input would be hugely appreciated...

  15. Jan 30, 2017 at 9:52 PM
    #1035
    tacomgee

    tacomgee just ain't care....

    Joined:
    Aug 5, 2014
    Member:
    #135522
    Messages:
    3,223
    Gender:
    Male
    First Name:
    Blake
    NorCal - Santa Rosa
    Vehicle:
    2014 Double cab
    Mostly whatever sweet stuff I can find at Vatozone
    I'm no expert, but I wouldn't want mine there. Deep water could fully submerge it, and it just doesn't sound like a good idea to me. Not sure how it much the compressor would like that. Imagine your compressor that low on the truck in a situation like this.:notsure:IMG_3551.jpg IMG_3552.jpg
    I know @Nate87 mounted his under his bed and @916TacoTruck has his mounted in his bedside where the storage cubby was and they worked fine. Maybe they can chime in.

    Is a small box somewhere in the bed out of the question?
    Good luck

    Pirhett and 916TacoTruck like this.
  16. Jan 30, 2017 at 9:57 PM
    #1036
    HABOOBS

    HABOOBS 2nd Year Member / Long time TW Lurker

    Joined:
    Jun 24, 2016
    Member:
    #190449
    Messages:
    779
    Gender:
    Male
    First Name:
    Bill
    Phoenix AZ
    Vehicle:
    2008 AZ-BASED DCSB
    Yeah right!? I agree... I'm a bit surprised Sierra Expeditions suggested this spot... it just doesnt seem smart...

    Even under the bed it would be higher up and better than where it is now but still exposed in deep water...

    And yeah there is no way I'd consider loosing more bed space... so a small box is out of the question...

  17. Jan 30, 2017 at 10:01 PM
    #1037
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    3,795
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    Rad. Red debadged 07 PreRunner
    5100 w/ OME 884 front, AAL with AirLift airbags and self leveling setup in the rear, DTLT headers, O2 sims, AT2525XL, color match Satoshi grill, devil horns, Leer 100xq, full bed rug, BLHM, LED tails, Pioneer AVH-P4300DVD, Kicker door speakers, Kicker 8" in custom box under rear seat along with Kicker 400w amp, power rear sliding window mod, LED (Jumpers) interior lights, dual trumpet air horns with tank/compressor mounted in bed, pillar gauge pod with air tank pressure and trans temp, all glass tinted. RAAMmat BXT II on back wall/doors/inside of rear seat panels. Some other misc stuff done also.
    Not an ARB, but I plan on mounting my Viair 444c on the side of the bed tub between the tub and the bedside. Going to make a L mount to spread the load a bit on the tub and will put a backing plate on the inside of the bed. Will use a similar setup to mount the 2 gallon tank.

  18. Jan 30, 2017 at 10:14 PM
    #1038
    inv3ctiv3

    inv3ctiv3 Well-Known Member

    Joined:
    Jun 24, 2010
    Member:
    #39411
    Messages:
    3,034
    Gender:
    Male
    What's the reason you can't use the slee mount? And also I know you said you don't wanna lose bed space but mine is perfectly protected in a tool box with my aux battery:

    [​IMG]Maintenance day by Jim Bob Barnett, on Flickr

    rob1208 and jubei like this.
  19. Jan 30, 2017 at 10:16 PM
    #1039
    HABOOBS

    HABOOBS 2nd Year Member / Long time TW Lurker

    Joined:
    Jun 24, 2016
    Member:
    #190449
    Messages:
    779
    Gender:
    Male
    First Name:
    Bill
    Phoenix AZ
    Vehicle:
    2008 AZ-BASED DCSB

    I'm pretty sure the slee mount doesnt work with my CAI... Plus I'm still a little unsure how the relocation of the PS fluid works.

  20. Jan 30, 2017 at 10:17 PM
    #1040
    tacomgee

    tacomgee just ain't care....

    Joined:
    Aug 5, 2014
    Member:
    #135522
    Messages:
    3,223
    Gender:
    Male
    First Name:
    Blake
    NorCal - Santa Rosa
    Vehicle:
    2014 Double cab
    Mostly whatever sweet stuff I can find at Vatozone
    That turned out great! :thumbsup:

    inv3ctiv3 likes this.
