OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Feb 11, 2017 at 8:27 PM
    #1161
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,604
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    No problem.

  2. Feb 11, 2017 at 11:42 PM
    #1162
    SCRunner12

    SCRunner12 Tundra Troll

    Joined:
    Aug 8, 2011
    Member:
    #61363
    Messages:
    9,081
    Gender:
    Male
    First Name:
    Robert
    Santa Cruz, CA
    Vehicle:
    2006 Tundra DC, TRD, 4wd

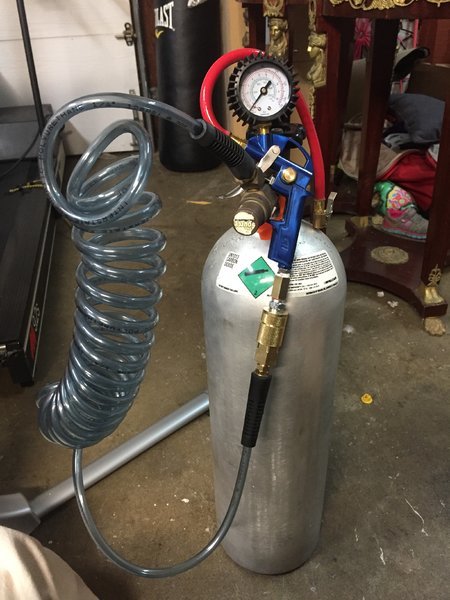

    Finally finished my CO2 tank set up tonight. 20lb tank, 100 psi regulator (I think, it came with the tank), Campbell Hausefield inflator. Need to get some different connections to remove some non-essential parts but it works for now so I can't complain.

    Now to figure out how to mount it to my Tundras bed.


    Jerry311SD, jubei and seoulja99 like this.
  3. Feb 12, 2017 at 12:35 AM
    #1163
    kitsym

    kitsym Well-Known Member

    Joined:
    Feb 23, 2015
    Member:
    #149453
    Messages:
    1,425
    Gender:
    Male
    Portland, OR
    Vehicle:
    2015 4x4 MGM DCSB TRD Sport
    Drop bracket with the XL Quikfists?

  4. Feb 12, 2017 at 5:16 AM
    #1164
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,628
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Quick Fist ratchet clamp for mounting tools & equipment 1/2" to 8" in diameter https://www.amazon.com/dp/B01LZC4YFV/ref=cm_sw_r_cp_apa_OagOybJNWZ19C

  5. Feb 13, 2017 at 5:00 PM
    #1165
    jamiec

    jamiec Man who keep hands in pockets feel cocky all day

    Joined:
    Feb 2, 2015
    Member:
    #147753
    Messages:
    2,728
    Gender:
    Male
    First Name:
    Jamie
    Chillicothe, Ohio
    Vehicle:
    2017 Prius three touring. Sold the Taco
    Funny, right after we were discussing this I got water in my switch. I took it off, shook all the water out and sat it in the sun for a day.
    Today I moved my tank to the bed floor with the switch inside the storage box and I'm back in business. Meanwhile I ordered another switch in case the one I have now gives me problems.

  6. Feb 13, 2017 at 5:28 PM
    #1166
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,604
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.

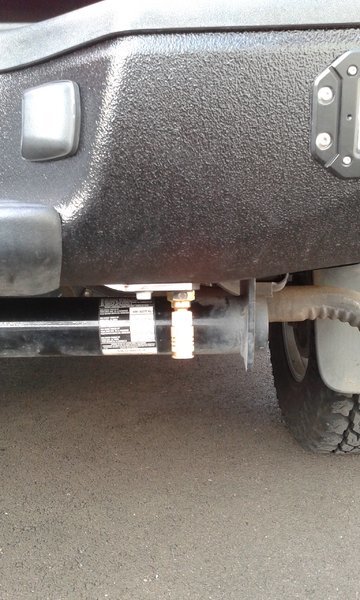

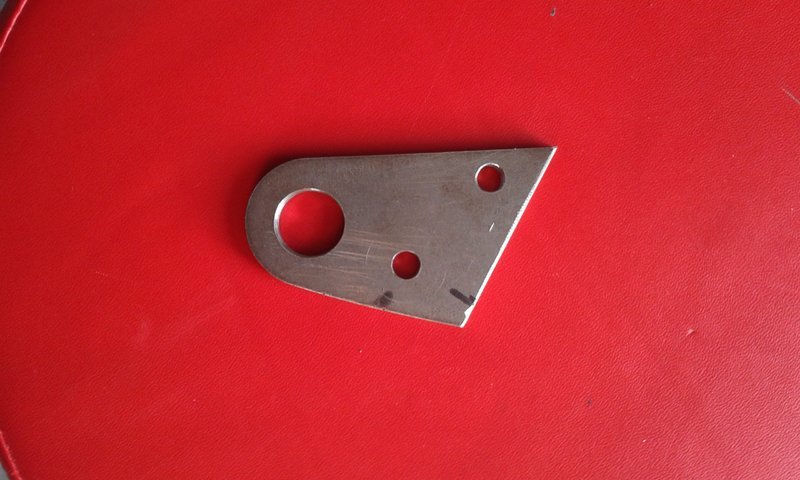

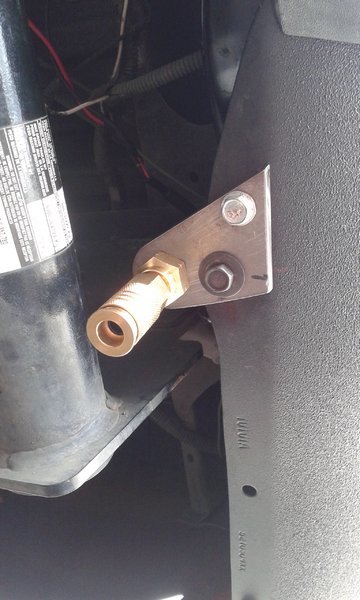

    Hopefully my fittings will get here tomorrow so i can get my tank in and post more pictures. Meanwhile, i built a bracket for my quick disconnect. Didnt have flat stock that i thought was thick enough so i cut up some angle. Mounting holes use two factory holes in the bumper. The bracket is currently drying after i sandblasted and dipped it in my bucket o' bedliner.
    20170213_162408.jpg 20170213_162436.jpg 20170213_162826.jpg 20170213_162742.jpg

    jamiec likes this.
  7. Feb 14, 2017 at 8:18 PM
    #1167
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,604
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Alrighty folks. Got everything hooked up and working other than the horns. Waiting on a waterproof 5 lead relay and a new ch4x4 switch to get here to wire it up how I want it.

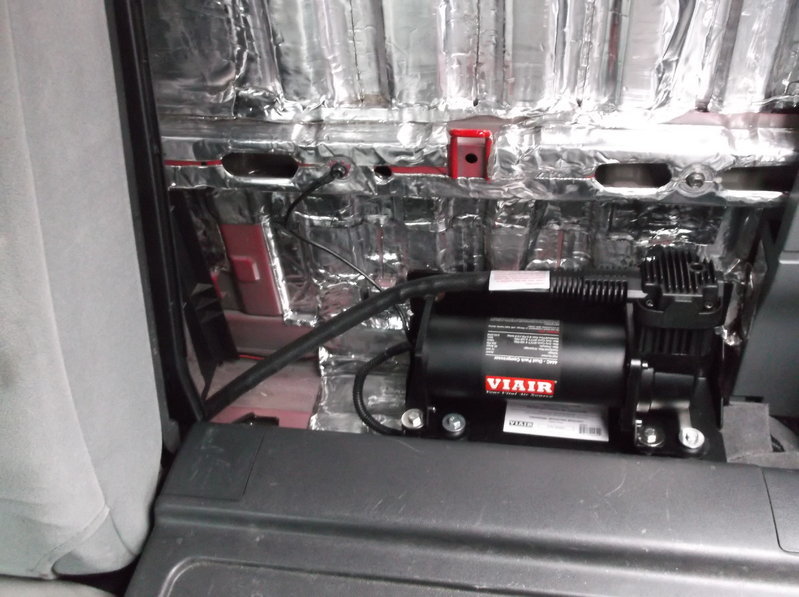

    Viair 444c mounted on a Viair mounting bracket bolted to the back wall.

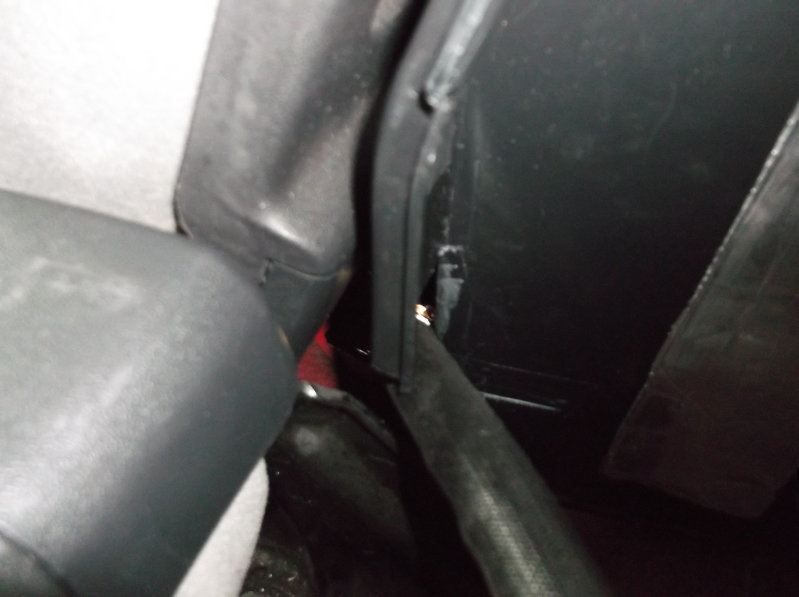

    I cut the pass side storage to allow the leader hose to run between the tray and the seat back without rubbing.

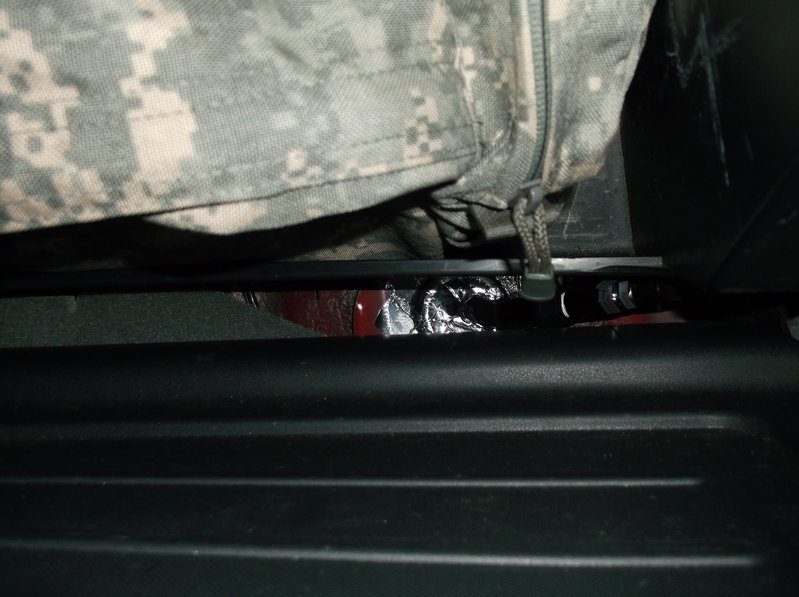

    Kind of hard to see because I forgot to take a pic before putting the tray back in. I am using a 1/4" (female) to 3/8" push to connect fitting. The 3/8 air line runs through a rubber body plug below the seat.

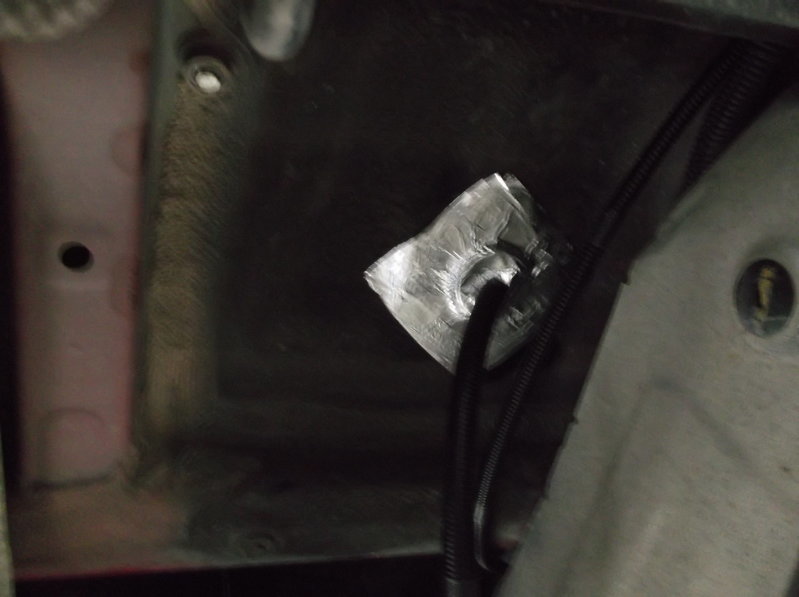

    Here is the under side. The hose has a double layer of wire loom on it to protect from chaffing. I cut the hole a little too big, so I used silicone to seal it, then aluminum tape top and bottom to fully seal it from water intrusion.

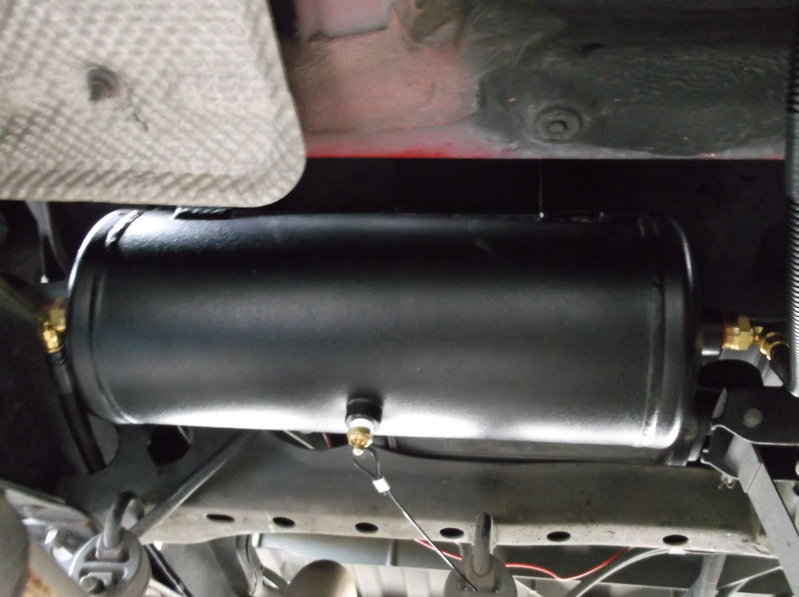

    2gal air tank mounted to the bottom front of the bed using 3/8 stainless hardware. 1/2" NPT to 3/8" push to connect fittings on the ends. One is the feed from the compressor, the other goes to the quick disconnect on the back bumper. On the back, I have a 1/4" NPT to 1/4" push to connect 90* fitting that runs to my air horns and a 1/4" NPT 120/150 pressure switch. Top has a 1/4" NPT 200psi pop off valve (ring and part of the pin removed to allow full release movement without hitting the bed. On bottom is a 1/4" NPT cable pull purge valve. Cable will be run to the back driver side (still need to finalize it). I will be getting some heat shield material to go between the exhaust and the air tank.

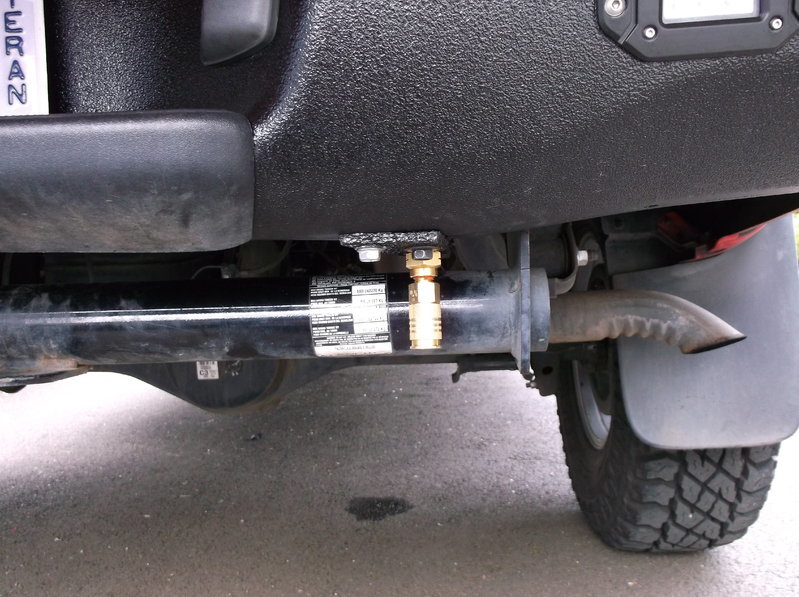

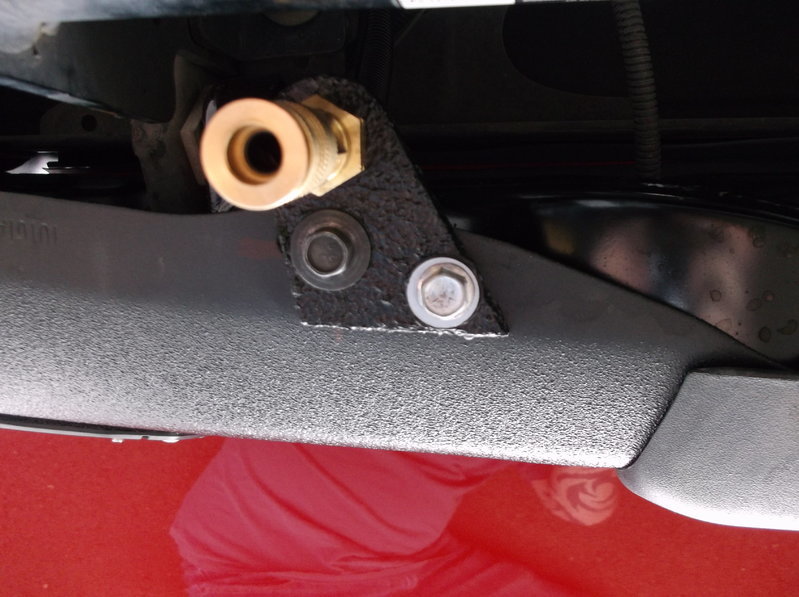

    3/8" air line from the tank runs back to a 3/8" push to connect to 1/4" NPT bulkhead fitting. Attached to that is a "universal" quick disconnect. Mounting plate was dipped in cheapo bedliner (1gal can from Walmart).
    DSCF0060.jpg DSCF0061.jpg

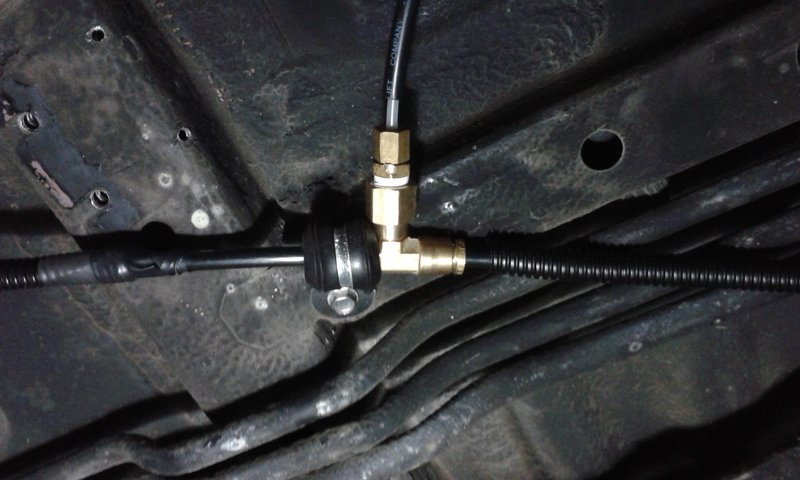

    1/4" PTC x 1/4" PTC x 1/8" NPT T-fitting. The 1/8" line feeds my pillar mounted pressure gauge. The 1/4" air line going to the front feeds the Kleinn model 220 air horns.

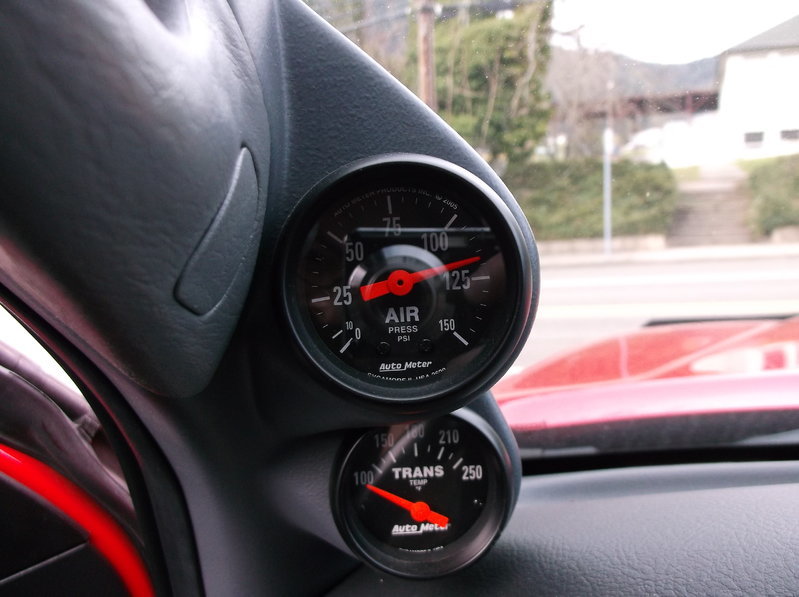

    Here is the pillar mounted pod. Trans temp will be hooked up next month when I have the temp sensor bung welded into the tranny pan.

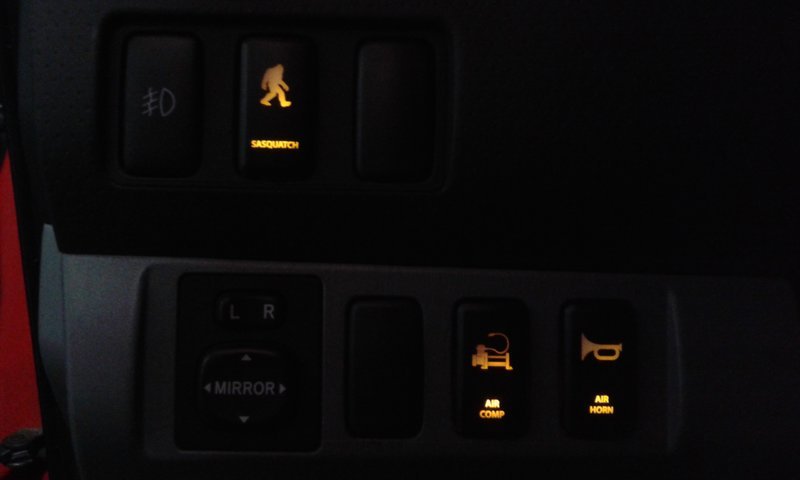

    Switch wired in, still waiting for the relay to get here. Switch controls the relay which will switch from 12v horns to air horns. Which ever horn the relay is turned to will activate with the factory horn circuit.

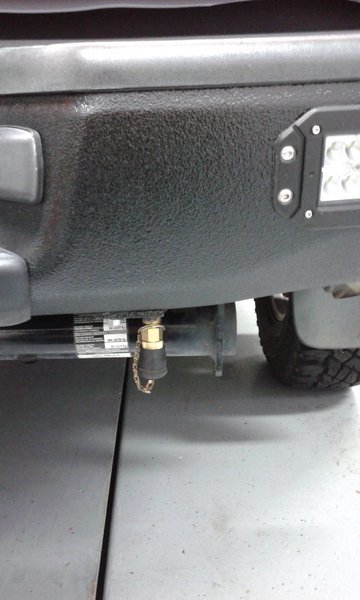

    Added a dust cover to the quick disconnect. Picked it up from one of the local logging shops.

    Last edited: Feb 17, 2017
    kgarrett11 and jamiec like this.
  8. Feb 14, 2017 at 8:41 PM
    #1168
    jamiec

    jamiec Man who keep hands in pockets feel cocky all day

    Joined:
    Feb 2, 2015
    Member:
    #147753
    Messages:
    2,728
    Gender:
    Male
    First Name:
    Jamie
    Chillicothe, Ohio
    Vehicle:
    2017 Prius three touring. Sold the Taco
    I would love to mount my pressure gauge there! Where did you get the A pillar gauge pod?

  9. Feb 14, 2017 at 8:46 PM
    #1169
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,604
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    It is a Lotek pod. The color is not quite the same, but it works for me. Scroll all the way to the bottom >>>http://www.gaugepods.com/toyota.html
    I'm not sure what the difference would be to a '15.

    jamiec likes this.
  10. Feb 16, 2017 at 1:03 PM
    #1170
    Spansfelder

    Spansfelder Well-Known Member

    Joined:
    Mar 9, 2015
    Member:
    #150495
    Messages:
    2,003
    Gender:
    Male
    Austin, TX / Germany
    Vehicle:
    05 4WD
    What size tank are you guys running? 1 Gallon?

  11. Feb 16, 2017 at 1:05 PM
    #1171
    Tacoma SS

    Tacoma SS Well-Known Member

    Joined:
    Sep 3, 2015
    Member:
    #163341
    Messages:
    5,032
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    Supercharged 09 on 35s
    Boost and flex and 35s
    I'm looking to do two 2.5 gallon tanks mounted in the spare tire location

  12. Feb 16, 2017 at 1:11 PM
    #1172
    tacomgee

    tacomgee just ain't care....

    Joined:
    Aug 5, 2014
    Member:
    #135522
    Messages:
    4,785
    Gender:
    Male
    First Name:
    Blake
    NorCal - Santa Rosa
    Vehicle:
    2015 Supercharged Taco
    Mostly whatever sweet stuff I can find at Vatozone
    I have a 2.5 gallon mounted there

  13. Feb 16, 2017 at 1:17 PM
    #1173
    Tacoma SS

    Tacoma SS Well-Known Member

    Joined:
    Sep 3, 2015
    Member:
    #163341
    Messages:
    5,032
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    Supercharged 09 on 35s
    Boost and flex and 35s
    I don't have my spare mounted there anymore so I think I can fit 2

  14. Feb 16, 2017 at 2:11 PM
    #1174
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,810
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    When I had an A/C-compressor-driven OBA, I used one 2.5 gallon tank. Worked fine for years.

  15. Feb 16, 2017 at 5:30 PM
    #1175
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,604
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    How about just a single 5 gallon tank? Would cost less than buying two smaller tanks.

  16. Feb 16, 2017 at 6:13 PM
    #1176
    diabetiktaco

    diabetiktaco Instalander

    Joined:
    Sep 5, 2016
    Member:
    #196480
    Messages:
    5,607
    Gender:
    Male
    First Name:
    Eric
    New Jersey
    Vehicle:
    2013 DCSB
    Anyone ever taken a portable ARB compressor, removed it from the case, and mounted it behind the rear seats on a double cab?

  17. Feb 16, 2017 at 6:34 PM
    #1177
    Tacoma SS

    Tacoma SS Well-Known Member

    Joined:
    Sep 3, 2015
    Member:
    #163341
    Messages:
    5,032
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    Supercharged 09 on 35s
    Boost and flex and 35s
    The 5 gallon tanks have bigger outside diameter and would hang too low to be safe when wheeling

    jubei likes this.
  18. Feb 16, 2017 at 6:41 PM
    #1178
    Spansfelder

    Spansfelder Well-Known Member

    Joined:
    Mar 9, 2015
    Member:
    #150495
    Messages:
    2,003
    Gender:
    Male
    Austin, TX / Germany
    Vehicle:
    05 4WD
    You guys have pictures how you mounted the tanks under the bed??

  19. Feb 16, 2017 at 6:44 PM
    #1179
    tacomgee

    tacomgee just ain't care....

    Joined:
    Aug 5, 2014
    Member:
    #135522
    Messages:
    4,785
    Gender:
    Male
    First Name:
    Blake
    NorCal - Santa Rosa
    Vehicle:
    2015 Supercharged Taco
    Mostly whatever sweet stuff I can find at Vatozone

    Speedo and docloco like this.
  20. Feb 16, 2017 at 6:44 PM
    #1180
    windsor

    windsor Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,604
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Digiratus and docloco like this.
