OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jun 6, 2017 at 11:10 AM
    #1321
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    5,962
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    OK. Thanks.

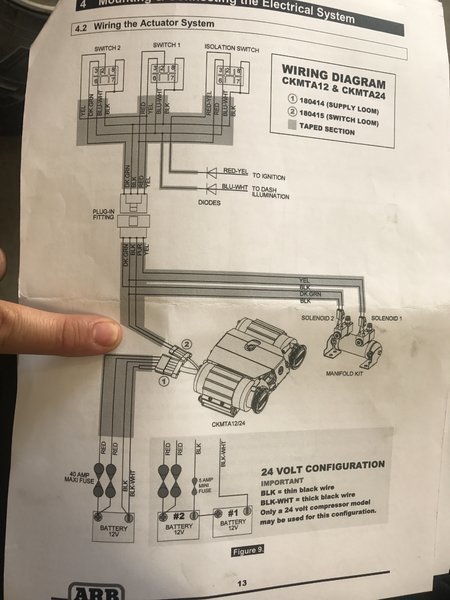

    Now another question. Looking at the wiring diagram, I see that Switch 1 and Switch 2 are for use with air lockers which I do not have.

    Therefore I assume the Isolation Switch is the one that goes in the dash to turn the compressor on and off. There are four wires. Which two do the powering on and off, and which two are for illuminating the switch?

  2. Jun 6, 2017 at 1:06 PM
    #1322
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,399
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    You post the instructions and ask questions that are answered?? Yes isolation switch turns the compressor on, and sends power to the next switch inline, isolator>rear locker>front locker.

  3. Jun 6, 2017 at 3:59 PM
    #1323
    Sleipnir

    Sleipnir Still havent found that stupid snipe

    Joined:
    Apr 28, 2016
    Member:
    #185554
    Messages:
    9,945
    Gender:
    Male
    First Name:
    I'm a horse
    Asgard
    Vehicle:
    Furd Rangero Ecoboost
    Yea my brain was going a mile a minute for the last part. Let me ask you this, Could I use the spod harness, clip the terminal ends off it and wire them directly into each relay? I dont think I'd ever get a front locker but for now what I could do is split the black wire so each it would go from one black on the spod harness to three black for each switch. This would allow each locker to have a relay and the compressor to have its own too. This would allow me to use the RTMR relay and simplify the installation, right?

  4. Jun 6, 2017 at 6:18 PM
    #1324
    CenCal805

    CenCal805 Well-Known Member

    Joined:
    Dec 29, 2015
    Member:
    #173422
    Messages:
    386
    Gender:
    Male
    First Name:
    Ryan
    California
    Vehicle:
    2016 Tacoma TRD OR AC

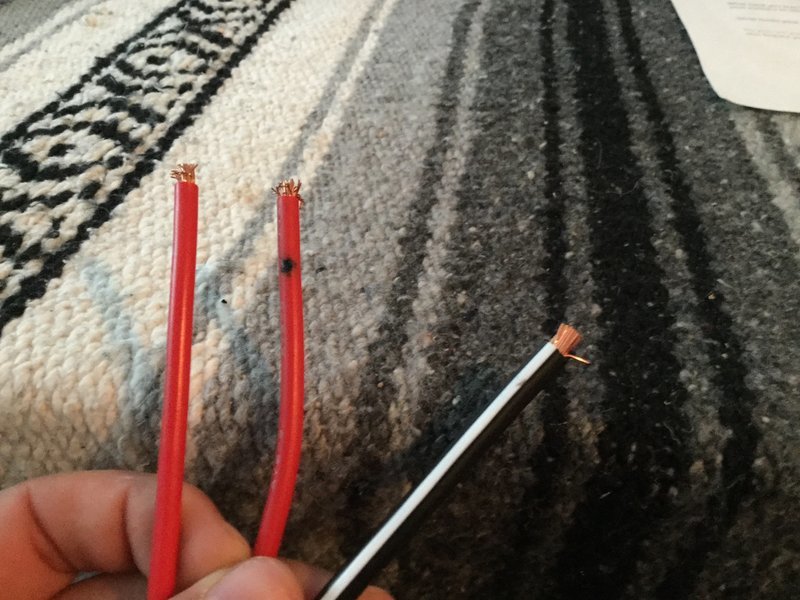

    Question regarding the wiring harness for the ARB twin compressor. What type of end do I use to connect to the battery? I should preface this with I know nothing about wiring. Sorry if it's a dumb question. Also, if I have to lengthen the wire to make it reach the battery what what I use to connect the original wire with the additional wire?


    Mr.PowerTrays likes this.
  5. Jun 6, 2017 at 6:34 PM
    #1325
    JWROSE4

    JWROSE4 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158640
    Messages:
    1,768
    Gender:
    Male
    First Name:
    Jonny
    Virginia
    Vehicle:
    2013 DCSB SR5 4X4
    Work In Progress
    You need some good quality preferably water proof butt splices and for the battery a good ring terminal. You should be able to get them at advance or auto zone.

    CenCal805 and Salty_Dog like this.
  6. Jun 6, 2017 at 8:12 PM
    #1326
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    4,501
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DCSB 4x4
    Yes
    Take a chill pill bro, not everyone has experience with this stuff and everyone has a first time.

  7. Jun 6, 2017 at 8:14 PM
    #1327
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,399
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Lol just being curious... Bro

  8. Jun 7, 2017 at 4:12 AM
    #1328
    CenCal805

    CenCal805 Well-Known Member

    Joined:
    Dec 29, 2015
    Member:
    #173422
    Messages:
    386
    Gender:
    Male
    First Name:
    Ryan
    California
    Vehicle:
    2016 Tacoma TRD OR AC
    Thanks, Jonny. Appreciate it, man!

    JWROSE4 likes this.
  9. Jun 7, 2017 at 7:00 AM
    #1329
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    5,962
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    Thank you.

    Now back to my question, which of the wires for the Isolation Switch are the two that actually turn the compressor ON? I don't care so much about the wires to illuminate the switch.

  10. Jun 7, 2017 at 7:03 AM
    #1330
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    5,962
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
  11. Jun 7, 2017 at 7:08 AM
    #1331
    Drainbung

    Drainbung Somedays you are the show....

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    8,197
    Gender:
    Male
    First Name:
    Bob
    Fallabama, NV
    Vehicle:
    10 DCLB
    TRD Fleshlight
  12. Jun 7, 2017 at 7:36 AM
    #1332
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,399
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Blu-wht - to dash illumination does not turn on compressor
    Red->purple and blk turn on the compressor relay

    As shown in your diagram.

    Marbleyard likes this.
  13. Jun 21, 2017 at 6:39 PM
    #1333
    Nazupag524

    Nazupag524 Well-Known Member

    Joined:
    May 12, 2014
    Member:
    #129648
    Messages:
    1,430
    Gender:
    Male
    Elizabeth, CO
    Vehicle:
    07 DCSB 4x4
    2.5 Icons up front, Dakars and 2.0 Icons in the rear, 1.25" Spidertrax on front, TRD Intake, Fog Light Mod, Weather Tech, Debadged, Addicted front bumper, XRC 9.5K
    Just got mine mounted. Plumbing and wiring will have to wait til the weekend.

  14. Jun 22, 2017 at 9:20 AM
    #1334
    SeekingZero

    SeekingZero Well-Known Member

    Joined:
    Sep 22, 2013
    Member:
    #113063
    Messages:
    565
    Gender:
    Male
    First Name:
    Ben
    Bay Area, CA
    Vehicle:
    01 Xtracab 4x4 SR5 TRD Supercharged

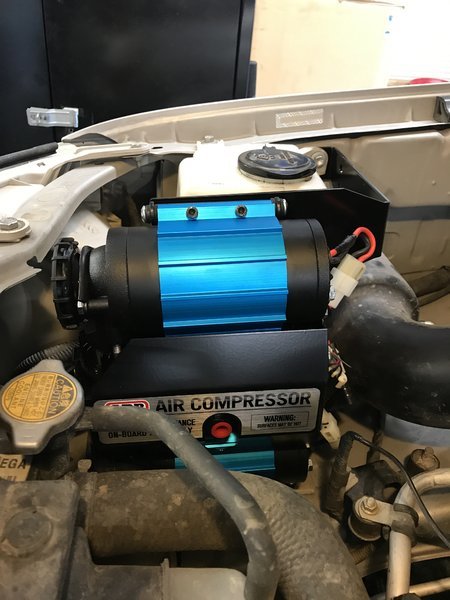

    I just finished my OBA install. I may still get a tank, but for now I don't have one. I just ran a line straight to a quick connect and that's it. Having the SwitchPro made the installation super easy. Run the main power to my blue sea circuit breaker. Ground the unit in the cubby where the compressor is mounted. Connect the switch line power to a slot on the SwitchPro block and ground it nearby and I'm done! Here's some pics because I haven't seen anyone else do this location and with a SwitchPro. For connection to the SwitchPro, I just took the purple switch wire to power, the black to a ground, and taped off the green and yellow wires.





    I will eventually change this mount location for the quick connect, but it was a perfectly sized hole on the frame and it will do for now.


    https://www.youtube.com/watch?v=YwufB6CFJrs

  15. Jun 23, 2017 at 9:57 AM
    #1335
    Taco16Jessy

    Taco16Jessy Well-Known Member

    Joined:
    Aug 26, 2016
    Member:
    #195646
    Messages:
    2,163
    Gender:
    Female
    First Name:
    Jessica
    Damn Corn Desert/Missing MO
    Vehicle:
    2016 BBP 4x4 AT-OR-DCSB
    Now accepting monetary donations for mods!
    okay someone save me som e$$ before I go off and buy a new hose thinking it's the issue.

    I have my viair 300P mounted in my engine bay. It is hard wired to the battery and is operated by it's original switch. I only run it with the engine on.
    Air comes out of the port on the side. Though when I hooked up my hose to air up my mountain bike, no air would come out. The auto deflator near the end was not compressed in.

    Any ideas aside from a hose issue?

  16. Jun 23, 2017 at 10:03 AM
    #1336
    turbodb

    turbodb AdventureTaco

    Joined:
    Feb 9, 2016
    Member:
    #177696
    Messages:
    5,889
    Gender:
    Male
    First Name:
    Dan
    PNW
    Vehicle:
    2000 Tacoma Xcab 4x4 SR5 V6 TRD
    AdventureTaco
    Do you have another hose you can try? (borrow and try?) If that works then it's a good indicator it's the hose; otherwise it's probably not.

    If it's the hose, do you know if you have a plug or a leak? You can submerse the hose in a bucket of water while it's plugged into the compressor to see if you get bubbles. If you do, it's a leak. If it's a leak, it's probably pretty easy to fix (even eletrical tape might work in the short term). If it's a plug, you'll have to find where the plug is...

    Taco16Jessy likes this.
  17. Jun 23, 2017 at 10:07 AM
    #1337
    Pirhett

    Pirhett Instagram @pirhett_ship

    Joined:
    Jan 29, 2015
    Member:
    #147498
    Messages:
    5,227
    Gender:
    Male
    First Name:
    Rhett
    San Diego
    Vehicle:
    2014 TRD Sport 4x4 DCLB MGM
    Stock...
    Might have you help me do this one day bro!

  18. Jun 23, 2017 at 2:29 PM
    #1338
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,399
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Does the hose have a one way valve? Is it turned around backwards? Can you blow through it? Pics?

  19. Jun 23, 2017 at 2:34 PM
    #1339
    Taco16Jessy

    Taco16Jessy Well-Known Member

    Joined:
    Aug 26, 2016
    Member:
    #195646
    Messages:
    2,163
    Gender:
    Female
    First Name:
    Jessica
    Damn Corn Desert/Missing MO
    Vehicle:
    2016 BBP 4x4 AT-OR-DCSB
    Now accepting monetary donations for mods!
  20. Jun 23, 2017 at 2:37 PM
    #1340
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,399
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
