OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jul 31, 2017 at 8:56 AM
    #1381
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    6,005
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    Well, I did all that when I assembled the whole thing. I guess I'll have to break out the Soap Suds and brush.... :annoyed:

    scottalot likes this.
  2. Jul 31, 2017 at 10:39 AM
    #1382
    PNW/TRD Steve

    PNW/TRD Steve Well-Known Member

    Joined:
    Aug 11, 2012
    Member:
    #84527
    Messages:
    1,982
    Gender:
    Male
    First Name:
    Steve
    WA
    Vehicle:
    2012 DCSB TRD
    ImMrYo Rear view mirror lift bracket. Changed out mud flaps. Salex glove box organizer. OEM Ashtray (cup). AVS Step Shields. 16x8 SCS F5 Matte Jet Black. 265/75 16 Cooper St Maxx. OME Bp-51s. U.S. Offroad Winch Mount (in process) Smittybuilt x20 12k synthetic winch (in process) More....
    May have been mentioned here but wanted to pass on great results.

    I had leaks in my OBA and redid all the connections with Loctite 7649 Primer and Loctite 545 Hydraulic/Pneumatic thread sealer.
    There is a required 24 hour cure time. I did not use mine for about 32 hours.
    It's a super clean seal and no leaks!

    scottalot, JWROSE4 and Salty_Dog like this.
  3. Jul 31, 2017 at 10:51 AM
    #1383
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    What'd you use initially?
    Yep, loctite 545 is the best I've found for this.
    NEW Loctite 545 20ml Thread Sealant ****I Buy Bulk So You Don't Have To****

    PNW/TRD Steve and scottalot like this.
  4. Jul 31, 2017 at 10:53 AM
    #1384
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    6,005
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    White Teflon tape.

  5. Jul 31, 2017 at 10:54 AM
    #1385
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Some people have better luck with that than others.

  6. Jul 31, 2017 at 10:56 AM
    #1386
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    6,005
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    It's always worked for me.

    Shellshock likes this.
  7. Jul 31, 2017 at 10:57 AM
    #1387
    PNW/TRD Steve

    PNW/TRD Steve Well-Known Member

    Joined:
    Aug 11, 2012
    Member:
    #84527
    Messages:
    1,982
    Gender:
    Male
    First Name:
    Steve
    WA
    Vehicle:
    2012 DCSB TRD
    ImMrYo Rear view mirror lift bracket. Changed out mud flaps. Salex glove box organizer. OEM Ashtray (cup). AVS Step Shields. 16x8 SCS F5 Matte Jet Black. 265/75 16 Cooper St Maxx. OME Bp-51s. U.S. Offroad Winch Mount (in process) Smittybuilt x20 12k synthetic winch (in process) More....
  8. Jul 31, 2017 at 11:06 AM
    #1388
    The Hunter

    The Hunter Sailing the high Puddle's

    Joined:
    Nov 29, 2011
    Member:
    #67883
    Messages:
    9,984
    Gender:
    Male
    First Name:
    Hunter
    Monroe NJ
    Vehicle:
    2011 Submarine
    Flux capacitor and bi-plane wings
    The 549 is good too. Thats basically the pipe dope I was talking about too

    Salty_Dog likes this.
  9. Aug 1, 2017 at 4:03 AM
    #1389
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    6,005
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    OK. I figured out the "leak."

    The air is bleeding backwards through the compressor after it shuts off. I thought these ARBs had a built-in check valve to prevent that but I guess not. New leader hose with check valve has been ordered. Will have it tomorrow via Amazon Prime.

    seoulja99 likes this.
  10. Aug 2, 2017 at 10:55 AM
    #1390
    jc11taco89

    jc11taco89 Well-Known Member

    Joined:
    May 28, 2016
    Member:
    #188157
    Messages:
    1,861
    Gender:
    Male
    First Name:
    jon
    Naugatuck CT
    Vehicle:
    2011 Tacoma aclb 4wd
    3 inch toytec 5100 SPC uca's Pelfreybilt front plate bumper with center hoop Pelfreybilt rear plate bumper with swing out B.A.M.F. sliders with kick out Mobtown ifs and trans skid. 33's with rims that are to large.
    Hey all soo after a few off-road trips I've realized I need OBA asap hahahaha. Now the plan is to run front and rear ARB's but that's with a re-gear and honestly I'm not ready for all that just yet, however I am ready for OBA now to be able to air up on my own or run air tools possibly mainly for airing up tires tho. So my ?? Is can a single ARB compressor run the 2 air lockers. Can it fill 35's in a reasonable amount of time?? Can it run air tools?? My apologies I'm sure it's been answered in this "mega" thread somewhere but I have ADD pretty bad and I'll get off track in 10 minutes hahaha true story. Thanks

  11. Aug 2, 2017 at 11:07 AM
    #1391
    jc11taco89

    jc11taco89 Well-Known Member

    Joined:
    May 28, 2016
    Member:
    #188157
    Messages:
    1,861
    Gender:
    Male
    First Name:
    jon
    Naugatuck CT
    Vehicle:
    2011 Tacoma aclb 4wd
    3 inch toytec 5100 SPC uca's Pelfreybilt front plate bumper with center hoop Pelfreybilt rear plate bumper with swing out B.A.M.F. sliders with kick out Mobtown ifs and trans skid. 33's with rims that are to large.
    Yaaa awesome thanks for the info bud, Ya honestly I would almost be 99% sure that I would never run air tools off it more of just a curiosity

  12. Aug 2, 2017 at 11:11 AM
    #1392
    jc11taco89

    jc11taco89 Well-Known Member

    Joined:
    May 28, 2016
    Member:
    #188157
    Messages:
    1,861
    Gender:
    Male
    First Name:
    jon
    Naugatuck CT
    Vehicle:
    2011 Tacoma aclb 4wd
    3 inch toytec 5100 SPC uca's Pelfreybilt front plate bumper with center hoop Pelfreybilt rear plate bumper with swing out B.A.M.F. sliders with kick out Mobtown ifs and trans skid. 33's with rims that are to large.
    Hey so just another curiosity ?? Is there another compressor similar to the dual ARB that's not as $$$ ?

  13. Aug 9, 2017 at 4:51 AM
    #1393
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,486
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it
    Can you share your source?

    JWROSE4 likes this.
  14. Aug 9, 2017 at 5:24 AM
    #1394
    JoeySauce

    JoeySauce Well-Known Member

    Joined:
    Jan 8, 2013
    Member:
    #94744
    Messages:
    670
    Gender:
    Male
    First Name:
    Joe
    Eagle PA
    Vehicle:
    11 DCSB
    Didn't really find a source....just figured I could use the 36 to get out of the engine bay then conver to normal line. I was just worried about heat really.

  15. Aug 9, 2017 at 6:11 AM
    #1395
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Just search air leader hose and you will find sources

  16. Aug 13, 2017 at 9:06 PM
    #1396
    Fosk

    Fosk Well-Known Member

    Joined:
    Nov 11, 2009
    Member:
    #25787
    Messages:
    368
    Gender:
    Male
    First Name:
    Andrew
    Huntington Beach, CA
    So, my ARB twin is mounted and wired to the Isolation Switch according to the diagram but I wasn't getting any power. Tapped the red/yellow wire to a wire running straight to the battery - got power for about 15 seconds then the diode on my red/yellow wire went up in flames. What happened? Suggestions?

    I'll try and get some pictures tomorrow if it will help troubleshoot.

    Is there a way I can wire the ARB switch with a custom harness that doesn't use the extra wires for each locker?

    Last edited: Aug 13, 2017
  17. Aug 14, 2017 at 4:41 AM
    #1397
    JoeySauce

    JoeySauce Well-Known Member

    Joined:
    Jan 8, 2013
    Member:
    #94744
    Messages:
    670
    Gender:
    Male
    First Name:
    Joe
    Eagle PA
    Vehicle:
    11 DCSB
    No fuse from battery to switch power?

  18. Aug 14, 2017 at 5:03 AM
    #1398
    Fosk

    Fosk Well-Known Member

    Joined:
    Nov 11, 2009
    Member:
    #25787
    Messages:
    368
    Gender:
    Male
    First Name:
    Andrew
    Huntington Beach, CA
    No. Would that make sense? What size fuse?

    If you haven't figured it out yet, electrical and me don't mix.

  19. Aug 14, 2017 at 5:24 AM
    #1399
    JWROSE4

    JWROSE4 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158640
    Messages:
    1,768
    Gender:
    Male
    First Name:
    Jonny
    Virginia
    Vehicle:
    2013 DCSB SR5 4X4
    Work In Progress
    I used red wire to the top left 15A labeled IGN and the blue to the top row 3rd overfrom theleft 10A labeled Tail. These are in the fuse box to the left of the steering wheel. Your fuses for the compressor are on the hot wire coming from the battery. I am assuming you are using the switch and all provided with the compressor.

  20. Aug 14, 2017 at 5:26 AM
    #1400
    JWROSE4

    JWROSE4 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158640
    Messages:
    1,768
    Gender:
    Male
    First Name:
    Jonny
    Virginia
    Vehicle:
    2013 DCSB SR5 4X4
    Work In Progress

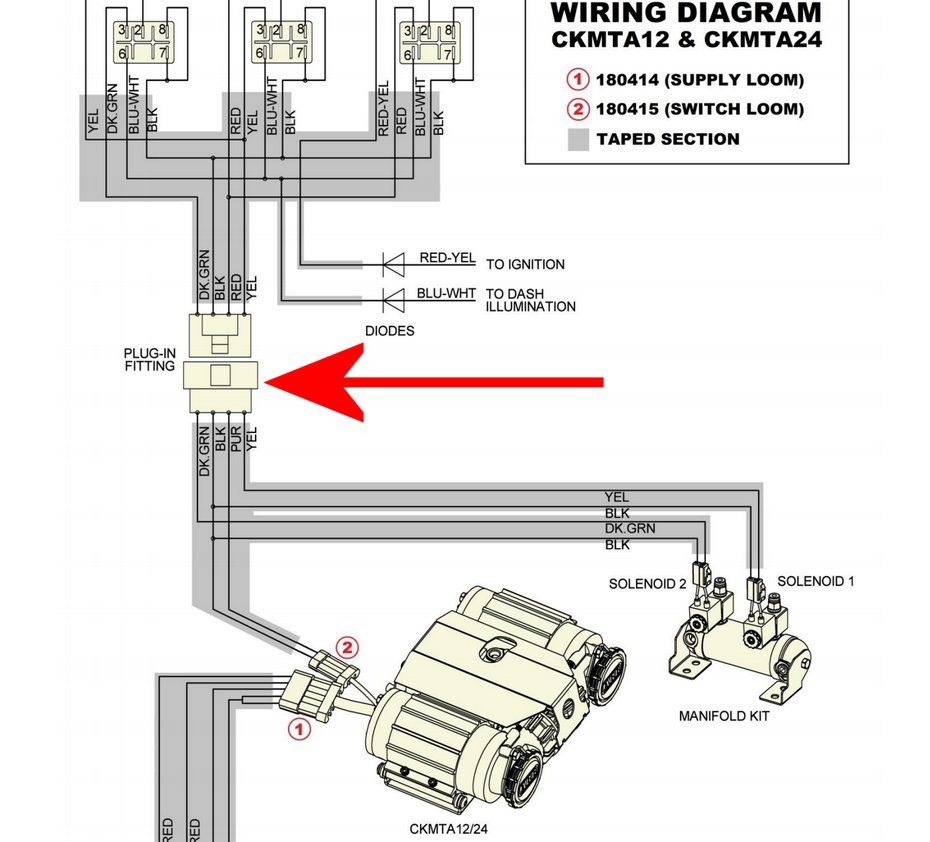

    @Fosk use this wiring diagram....[​IMG]
