OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Dec 31, 2017 at 1:13 PM
    #1501
    Doogz

    Doogz Well-Known Member

    Joined:
    Apr 23, 2017
    Member:
    #217122
    Messages:
    768
    Gender:
    Male
    First Name:
    Bryce
    Western MA
    Vehicle:
    2009 MGM AC
    yep..
  2. Dec 31, 2017 at 1:16 PM
    #1502
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    You only have 1 tank versus 2, and no mounting hardware. 6” PVC pipe and fitting are exponentially more than 4”, but it’s super thick and will last a lifetime. I think it’s rated for almost 200 psi.

  3. Dec 31, 2017 at 7:11 PM
    #1503
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    Well I discovered something what with the recent cold snap. My ARB compressor won't run. After I've been driving for a while and the engine bay heats up, it will run (sometimes) and often kicks off before the air tank reaches full pressure.

  4. Dec 31, 2017 at 7:14 PM
    #1504
    Doogz

    Doogz Well-Known Member

    Joined:
    Apr 23, 2017
    Member:
    #217122
    Messages:
    768
    Gender:
    Male
    First Name:
    Bryce
    Western MA
    Vehicle:
    2009 MGM AC
    yep..
    That sucks. The Aussies probably didn't think to test down to -10! Just kidding. Hopefully it's just some loose wiring and nothing serious.

  5. Dec 31, 2017 at 7:17 PM
    #1505
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Could be froze up. Air has lots of moisture in it, I'd bet there's some in the compressor piston head or a line/valve is froze up.

    Drainbung and Salty_Dog like this.
  6. Dec 31, 2017 at 7:18 PM
    #1506
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.
    No, I think it might be an overload switch or something built in to the compressor's circuitry.

  7. Dec 31, 2017 at 7:21 PM
    #1507
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    The only overload protection is a fuse, nothing resetable like a circuit breaker. There might be an over temp safety switch, I don't recall.

    Salty_Dog likes this.
  8. Dec 31, 2017 at 7:26 PM
    #1508
    Salty_Dog

    Salty_Dog Tactical Panda

    Joined:
    Mar 6, 2017
    Member:
    #212502
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Tim
    Fredericksburg, VA
    Vehicle:
    2015 Tacoma Double Cab, Off-Road Edition
    AJT Designs Shifter AJT Designs Battery Hold-Down Amazon Special 40-inch light bar ARB Awning 2500x2500 ARB Twin Compressor w/ Slee Offroad Mounting Bracket Avid Brush Bar Avid Step Bars BFGoodrich All-Terain T/A Tires Black Rock Wheels Series 997 Type 8 Circuit Breaker/Relay Panel Custom TRD Decals Bulletproof Fabricating Raptor Grill Bulletproof Fabricating Cooling Panel Bulletproof Fabricating Tow Hook Exhaust Breather Mod eBay Special 3-Gallon Air Tank EZ Down tailgate damper Flagpole Mounts, Dual Foglight Mod Hella Supertone Horns Iggy Switch Panel Icon Dynamics Stage 3 Suspension Katskin Leather Interior LED Bed Lights LED Interior Lights OEM Audio Plus Reference 500 audio upgrade Plano Cases. 42" roof mounted, X2 Pop-N-Lock Tailgate Handle Prinsu CabRack Prinsu-like Shell Rack Redline Tuning Hood Struts Rigid Industries Ditch Lights Rigid Industries Spotlights Toyota Bed Step Treat-A-Pet Dog Hammock Vixen Air Horns, Four-Trumpet Whole bunch of decals worth about 5HP each.

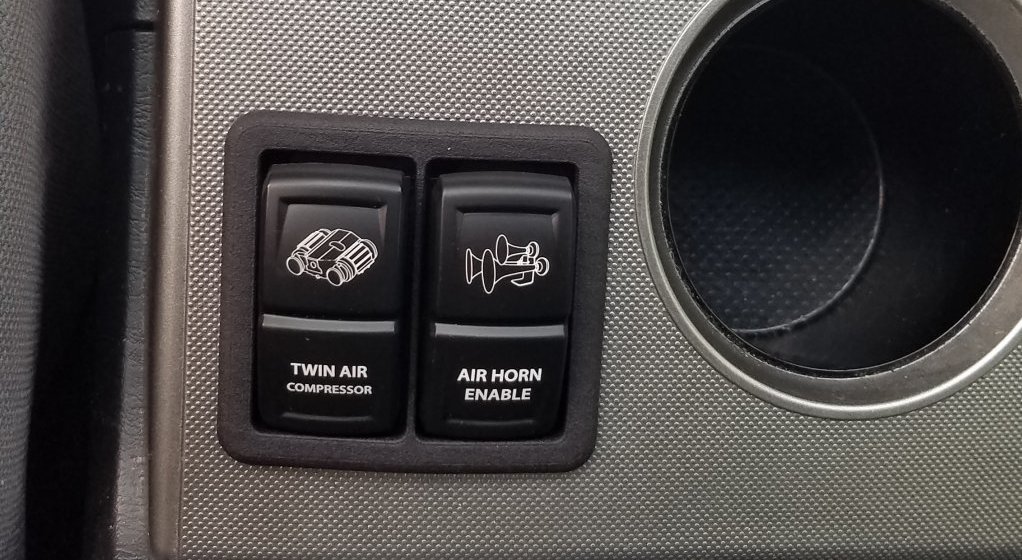

    Whatever. Maybe there is ice in the air line and the compressor THINKS it is a full pressure so it shuts off. In any event, I'm keeping the compressor switch turned off while it is cold.


    mcharfauros likes this.
  9. Dec 31, 2017 at 7:58 PM
    #1509
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,997
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    A water trap and antifreeze are a VERY good investment for an air system

    Salty_Dog likes this.
  10. Jan 1, 2018 at 6:51 PM
    #1510
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    Considering the highs have been in the low 20s and I’m working outdoors, my install is going to wait.

    Someone mentioned antifreeze, where does that go?

  11. Jan 4, 2018 at 9:44 PM
    #1511
    yote

    yote Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    4,628
    Gender:
    Male
    First Name:
    Mark
    Shoreline, WA
    Vehicle:
    2002 Ext Cab TRD Off-Road
    I'm seeing a lot of guys running tanks in this thread- I have a VAIR 440P. Am I able to JUST have that and run wire from the battery back to wherever I'm mounting it... of course wire a switch in the cab to turn it on/off when I need to air back up?

  12. Jan 4, 2018 at 11:18 PM
    #1512
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,643
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Yes. A tank is nice to have if you need to maintain a constant air pressure or need high volume quickly but isn't necessary to air up. Use wire rated for the current, awg 10 for 30A and you probably need a relay so the switch doesn't supply the full current.

    yote and Sandman614 like this.
  13. Jan 5, 2018 at 3:00 PM
    #1513
    Traviste

    Traviste Now with more woopow

    Joined:
    May 25, 2013
    Member:
    #104899
    Messages:
    848
    Gender:
    Male
    First Name:
    Travis
    Georgia
    Vehicle:
    2014 DCSB Locked 4x4 Mid-Travel
    F:King 2.5 coilover resi ext 700#coils R:King 2.5 ext allpro expos
    quick question for those of you with ARB dual compressors: was there anything special (wiring or other) what you had to do to get the pressure switch to work? fresh out of the box install the unit works great and fills my tank, much much faster then my old viair, but it will not shut off when it hits 150 psi. i have to cut power using the toggle. If i fill my tank (5gal) above the stated 135 psi mark and turn the toggle off then back on it continues to fill. Power pulled from the battery, grounded to the truck, OTRATTW toggle.
    I'm thinking my pressure switch is defective.
    I've already emailed ARB but just curious if I'm missing something.

  14. Jan 5, 2018 at 6:52 PM
    #1514
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,643
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    The pressure switch needs to be in the same circuit as the toggle so that both must be "on" for the compressor to run.

  15. Jan 5, 2018 at 8:22 PM
    #1515
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,997
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    In the tank.

    https://www.bagriders.com/media/bag...nd_relay_wiring/viair_single_relay_wiring.pdf
    [​IMG]

  16. Jan 5, 2018 at 11:37 PM
    #1516
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,643
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Keyed power source is your in cab switch.

  17. Jan 6, 2018 at 5:16 AM
    #1517
    Traviste

    Traviste Now with more woopow

    Joined:
    May 25, 2013
    Member:
    #104899
    Messages:
    848
    Gender:
    Male
    First Name:
    Travis
    Georgia
    Vehicle:
    2014 DCSB Locked 4x4 Mid-Travel
    F:King 2.5 coilover resi ext 700#coils R:King 2.5 ext allpro expos
    First off thanks for the replys
    I understand how the pressure switch and relay activate and relate to one another. I was under the impression the dual had the PS on board and was ready to go out the box

  18. Jan 6, 2018 at 5:17 AM
    #1518
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    3,720
    Gender:
    Male
    Apex, NC
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    It is on board and shuts down around the 150 mark. It is built in, not sure what the tolerance is but mine shuts off around 153.

  19. Jan 6, 2018 at 5:19 AM
    #1519
    Traviste

    Traviste Now with more woopow

    Joined:
    May 25, 2013
    Member:
    #104899
    Messages:
    848
    Gender:
    Male
    First Name:
    Travis
    Georgia
    Vehicle:
    2014 DCSB Locked 4x4 Mid-Travel
    F:King 2.5 coilover resi ext 700#coils R:King 2.5 ext allpro expos
    Which is the impression I was under and why I'm thinking my PS is bad. Supposed to be 135-150

  20. Jan 6, 2018 at 8:34 AM
    #1520
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    3,720
    Gender:
    Male
    Apex, NC
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    How high have you let it go? I would check it to 160 if you haven’t already. I know there are calibration issues in my tools as well as tolerance built in the PS as well. This is why I recommend up to 160 before declaring it is bad, but I’m sure ARB can answer all your questions.
