OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jan 25, 2018 at 1:57 PM
    #1561
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,138
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    I have one of those cubbies that I'll be mounting a Viair compressor in. It's all in my ever growing pile of mods to install at some point.

    House Forsaken likes this.
  2. Jan 26, 2018 at 3:35 AM
    #1562
    House Forsaken

    House Forsaken Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175702
    Messages:
    774
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    2015 Tacoma TRD Off Road (Traded) 2017 TRD Off-Road (Traded) 2018 TRD Off-Road
    I'm not keen on drilling into the truck...just yet, so that's good to know. Could I trouble you for a few photos? Have you run the wiring? Is the harness from ARB long enough to reach the cab?

  3. Jan 26, 2018 at 3:38 AM
    #1563
    House Forsaken

    House Forsaken Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175702
    Messages:
    774
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    2015 Tacoma TRD Off Road (Traded) 2017 TRD Off-Road (Traded) 2018 TRD Off-Road
    That's what I was thinking too! I feel it would be less exposed in the bed cubby rather than in the engine bay

  4. Jan 27, 2018 at 6:32 PM
    #1564
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    All done!

    Laying on the ground looking up: VIAIR 400C compressor mounted to rear of taillight and regulator/switch assembly rough mounted. The only thing I was somewhat disappointed with the result was the switch mount. It works, but it didn't line up perfectly. I cannot describe in words how difficult the bolts holding the gauge/switch were to tighten, so I was happy just to get them on. Also worth noting is the coil I added to the main compressor line coming out to protect from friction. Everything was assembled with hard fittings and Loctite 565. The only DOT line I used was a short piece to the tank and for the remote intake.

    [​IMG]

    This picture is taken from the wheel well looking back. It all fits with the cubby still in-place. The compressor filter is mounted to the inside of the cubby for easy access and cleaning. The orange line is the air line going to the hose reel mounted in the bed. Obviously the tank mounted to the bottom of the cubby.

    [​IMG]

    This picture is the hole/grommet from the hose reel, through the fender, and to the regulator assembly. You can also see here how the hose reel is mounted using a T-nut and nylon washers.

    [​IMG]

    Below is the tank with a quick disconnect supply line, and with the super quickfist mounts I can remove the tank in about 10 seconds. Also on the tank is a drain cock and blow-off. The tank is mil-surp 2 gal aluminum that I painted in bed liner, and it all tucks up tight and out of reach from trail hazards.

    [​IMG]

    Here is the pressure gauge and regulator knob mounted bed side. The gauge does not read tank pressure since I plumbed it to the regulator. I didn't see the need to know tank pressure, but if I want to know just max out the regulator. I like that they are both protected by the hose reel, and that hose reel rotates up if I need access. You can also see the intake filter inside the cubby, and the mounting bolts for the tank mounted below.

    [​IMG]

    Overall I'm extremely happy with the results. It's clean, and with the 50' hose reel I can reach both of my water tanks and all 4 tires no problem. The idea is to set the regulator to 20-30 psi and hook up to the water tanks for a steady flow of water. Now that I've had it setup for several months, I can report the system seems to be leak-free. I've left the switch turned off for several weeks at a time, and always had full pressure available. If you're considering this setup, I spent right around $500 for everything, $100 of which was spent at the hardware store.

    [​IMG]

    Last edited: Jun 21, 2018
  5. Jan 27, 2018 at 8:30 PM
    #1565
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,645
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Nice! What's your impression of the hose reel?

  6. Jan 27, 2018 at 9:19 PM
    #1566
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    I don’t know why no one has tried it sooner, but for my needs I’d consider it must-have.

    Last edited: Jan 27, 2018
  7. Jan 28, 2018 at 12:26 AM
    #1567
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,645
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    If that's the ironton is it actually 11" OD X 6" thick? I'm curious if it would fit inside the bedwall above one of the cubbies.

  8. Jan 28, 2018 at 3:56 AM
    #1568
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    It probably would, or behind the bumper somewhere.

  9. Jan 30, 2018 at 8:28 AM
    #1569
    Papa Taco

    Papa Taco HARD CAAAAAAARRRRRRRL

    Joined:
    Feb 20, 2013
    Member:
    #98004
    Messages:
    8,485
    Gender:
    Male
    First Name:
    Jared
    Safety Meeting
    Vehicle:
    2011 Access Cab 4x4 6 Speed
    Follow the yellow brick road

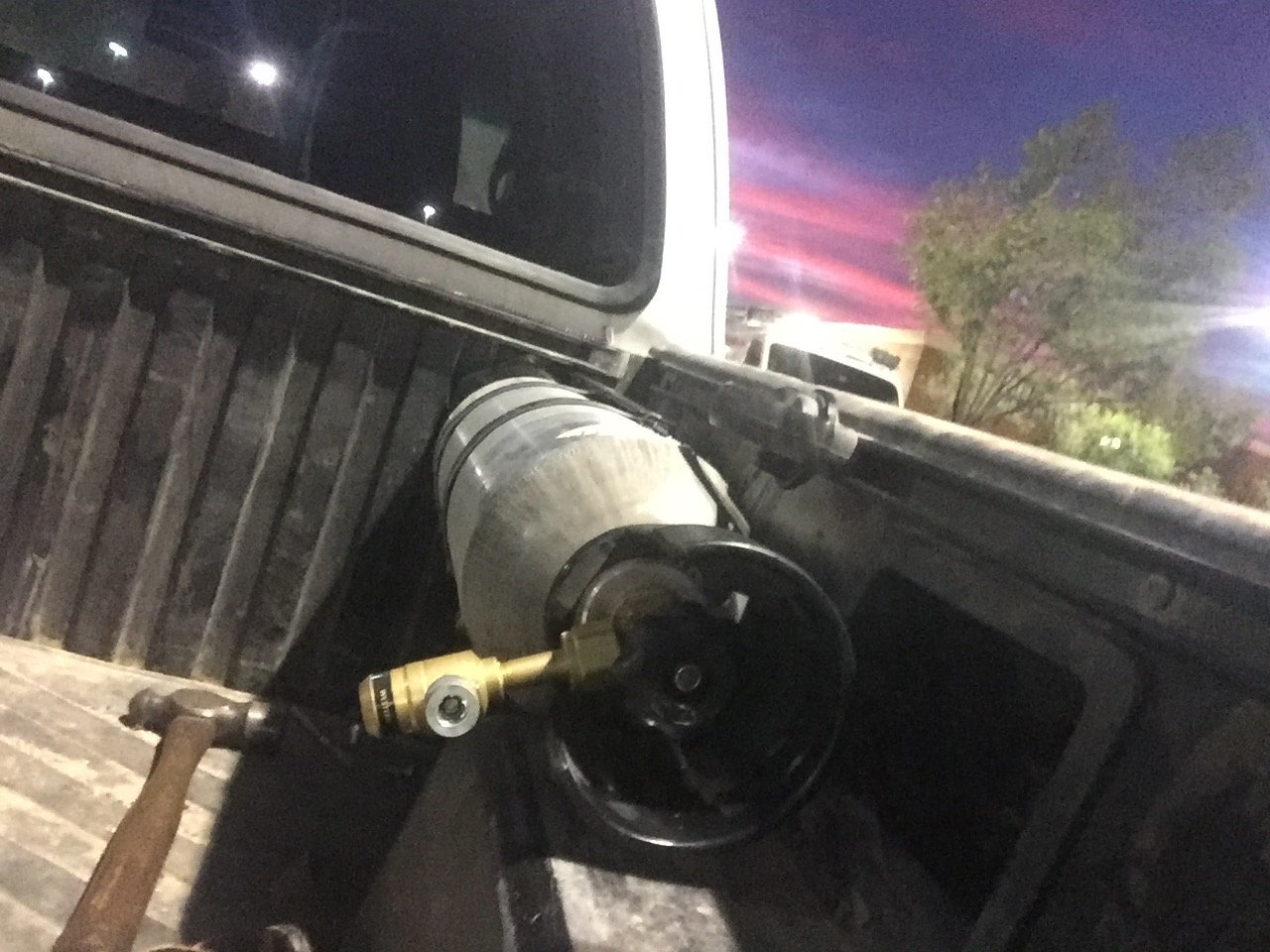

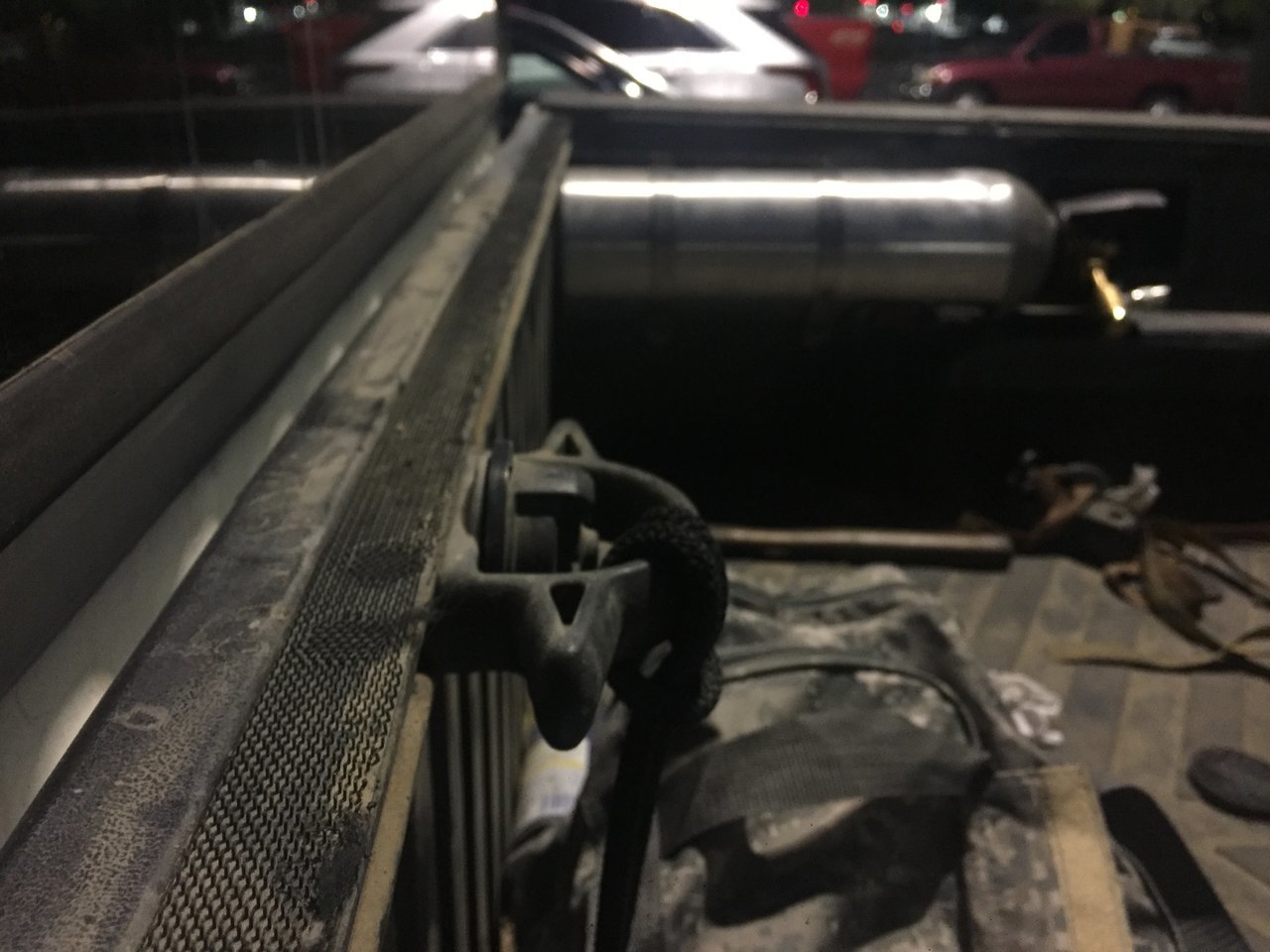

    Finally got around to mounting my tank. Shot on iPhone 6+ potato



    IMG_6475.jpg IMG_6478.jpg

  10. Jan 30, 2018 at 10:52 PM
    #1570
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,281
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    I thought a CO2 tank had to be upright to be used?

  11. Jan 30, 2018 at 10:55 PM
    #1571
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    35,598
    Gender:
    Male
    First Name:
    Zane
    Spokane, WA
    Vehicle:
    93 Land Cruiser & 96 Tacoma V6 4WD
    I've done a mod or two
    I think you're right, I can't remember if they have an internal straw or not.

    Last edited: Jan 30, 2018
    Digiratus likes this.
  12. Jan 31, 2018 at 6:03 AM
    #1572
    Drainbung

    Drainbung Somedays you are the show....

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    8,198
    Gender:
    Male
    First Name:
    Bob
    Fallabama, NV
    Vehicle:
    10 DCLB
    TRD Fleshlight
    You are correct sir.

    Digiratus likes this.
  13. Feb 4, 2018 at 6:54 PM
    #1573
    ksj

    ksj Well-Known Member

    Joined:
    Nov 20, 2008
    Member:
    #10907
    Messages:
    856
    Gender:
    Male
    Pacific NW
    Vehicle:
    2018 Cavalry Blue TRD Pro
    265/70-17 KO2

    Nice. Thanks for this! I just installed a compressor and was looking for the best place to mount a 1 gallon tank in back. This looks perfect. I can hack off the mounts, file them smooth enough, then use same method you used with the quickfists. Then I can stick a quick connect in the cubby until I get a rear bumper. I was looking for the best place to mount it vertically so I could drain it as needed, but being able to just release the quickfists and turn it now and then is fine for now. It's an aluminum tank, so it's more loss of volume than corrosion worries (well, and spitting water into air filled/driven stuff). I have the ARB twin with the manifold up front for a front locker (soon) and outlet. Will use a 1/4" T off the manifold outlet to send one up front and one back to the tank.

  14. Feb 5, 2018 at 6:12 AM
    #1574
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    Just be aware you cannot install or remove the quickfists unless the cubby is mounted to the truck (it won't fit through the opening). If you have any need to remove the cubby semi-frequently, you'll have to take the mounts off which are kind of a pain. Also note I used blocks to lower the quickfist about an 1" from the bottom of the cubby. I did this to prevent the tank from bouncing off the side of the bed.

  15. Feb 8, 2018 at 2:26 PM
    #1575
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,281
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
  16. Feb 8, 2018 at 2:37 PM
    #1576
    ksj

    ksj Well-Known Member

    Joined:
    Nov 20, 2008
    Member:
    #10907
    Messages:
    856
    Gender:
    Male
    Pacific NW
    Vehicle:
    2018 Cavalry Blue TRD Pro
    265/70-17 KO2
  17. Feb 8, 2018 at 7:58 PM
    #1577
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,645
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    If that's the case then you could probably back blow and then soak overnight in a mild degreaser solution then rinse to finish the job.

  18. Mar 11, 2018 at 11:50 PM
    #1578
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    261
    Gender:
    Male
    First Name:
    Kellen
    Vancouver, BC
    Vehicle:
    07 DCSB 6MT 4x4
    Pop rivets and JB Weld.
    Hello OBA Hive Mind,

    I've been searching the forums but haven't really found what I'm after yet. I just picked up an ARB rear locker and CMKA12 compressor (which I will also be using to air up my 315/75/16 tires). I wanted to add a Viair 91014 1-gallon reserve tank under the hood to help out a bit, mainly with the tires.

    My question is: will a 1-gallon tank actually help? Or will the difference be negligible, compared to that of a larger tank mounted under the bed?

    Found this as an example:

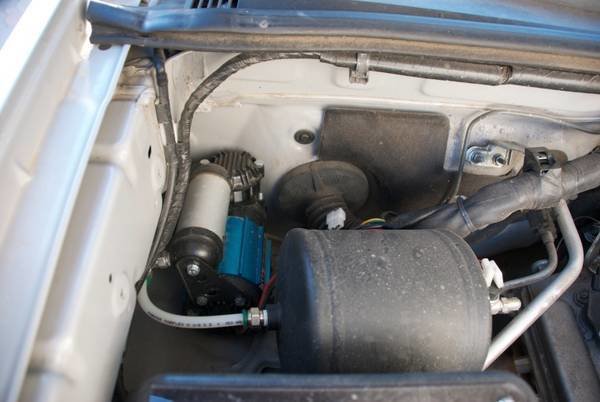

  19. Mar 11, 2018 at 11:53 PM
    #1579
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    35,598
    Gender:
    Male
    First Name:
    Zane
    Spokane, WA
    Vehicle:
    93 Land Cruiser & 96 Tacoma V6 4WD
    I've done a mod or two
    1 gallon won't help with airing the tires for more than a couple seconds but it'll help for using air tools if that's something you need to do. Otherwise I find tanks to be a draw when filling tires with a small compressor.

  20. Mar 11, 2018 at 11:54 PM
    #1580
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,178
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Yes! I ran a 2.5 gallon with a mv50 and the tank made it slow as hell airing up

    G.T. likes this.
