OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jun 20, 2018 at 9:03 AM
    #1661
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    appreciate it. I purchased lockers and was lucky enough to get the twin compressor for free instead of the single. So thats when the idea of having a tank and going full OBA was decided.

    I have been piecing together everything and trying to figure it out based on everything here since all i got was the compressor, and solenoids for the lockers. So lots of figuring out. I will start with the check valve and go from the there. Rule out the dumbest/easiest/known problems first before spending more money on fittings and what not (those begin to add up haha)

  2. Jun 20, 2018 at 9:11 AM
    #1662
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    No doubt, I'll bet I spent $100 on fittings alone.

    Good luck man, the best thing you got going for you is easy access to everything. If my system would have leaked, it would have been a huge pain to remove everything to chase it down.

    tacoma16 likes this.
  3. Jun 20, 2018 at 9:12 AM
    #1663
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    Yeah thats why when I found the $100 kit with all the fittings, and air line I was pumped. Hopefully it wasn't a waste and this is just an easy fix with a check valve.
    Thanks, one goal I had for my "electrical wall" was to have easy access in case something needed to be fixed/replaced on the road...

  4. Jun 20, 2018 at 9:25 AM
    #1664
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,689
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Good luck with it.

    tacoma16 likes this.
  5. Jun 20, 2018 at 11:11 AM
    #1665
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    Thanks may need it. I’m sure this is just as bad as tracking down a short in a electrical system.

  6. Jun 20, 2018 at 7:27 PM
    #1666
    t8fanning

    t8fanning Active Member

    Joined:
    Mar 7, 2016
    Member:
    #180460
    Messages:
    32
    Gender:
    Male
    Utah
    Vehicle:
    2018 Quicksand TRD OR
    33" KO2s, TC UCA, 3" OME lift, ARB front bumper
    I'm essentially done with my install besides wiring up my ARB compressor. I'll only use it to air up tires, so I didn't do a tank, although I may in the future if I have issues.

    I used the slee 2nd gen mount with the adapter made by a member here, then used a 1/4" JIC line to a bracket I made to hold an ARB quick disconnect and 1/4" JIC to 1/4" NPT bulkhead fitting. I'll have to open the hood every time I want to air up, but I didn't really want to drill into my ARB bumper, so it's not a huge deal. The quick disconnect has a couple inches of clearance with the hood, although you can't really tell from the pictures.

    [​IMG]

    [​IMG]

    [​IMG]

    shiftd, bonnfabrication and rob1208 like this.
  7. Jun 21, 2018 at 4:50 AM
    #1667
    micwillia

    micwillia Nonstop Tinkerer

    Joined:
    Mar 27, 2017
    Member:
    #214526
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Mike
    Cental Masshole
    Vehicle:
    Turd gen Inferno Taco TuRD OR DCSB 6MT, '96 Mustang V6 Vert 5MT
    Cubby Covers, TRD Pro Exhaust, BAK RevolverX2, Pro Skid, Speaker Upgrade, OBA/W, CB, 255/85R16

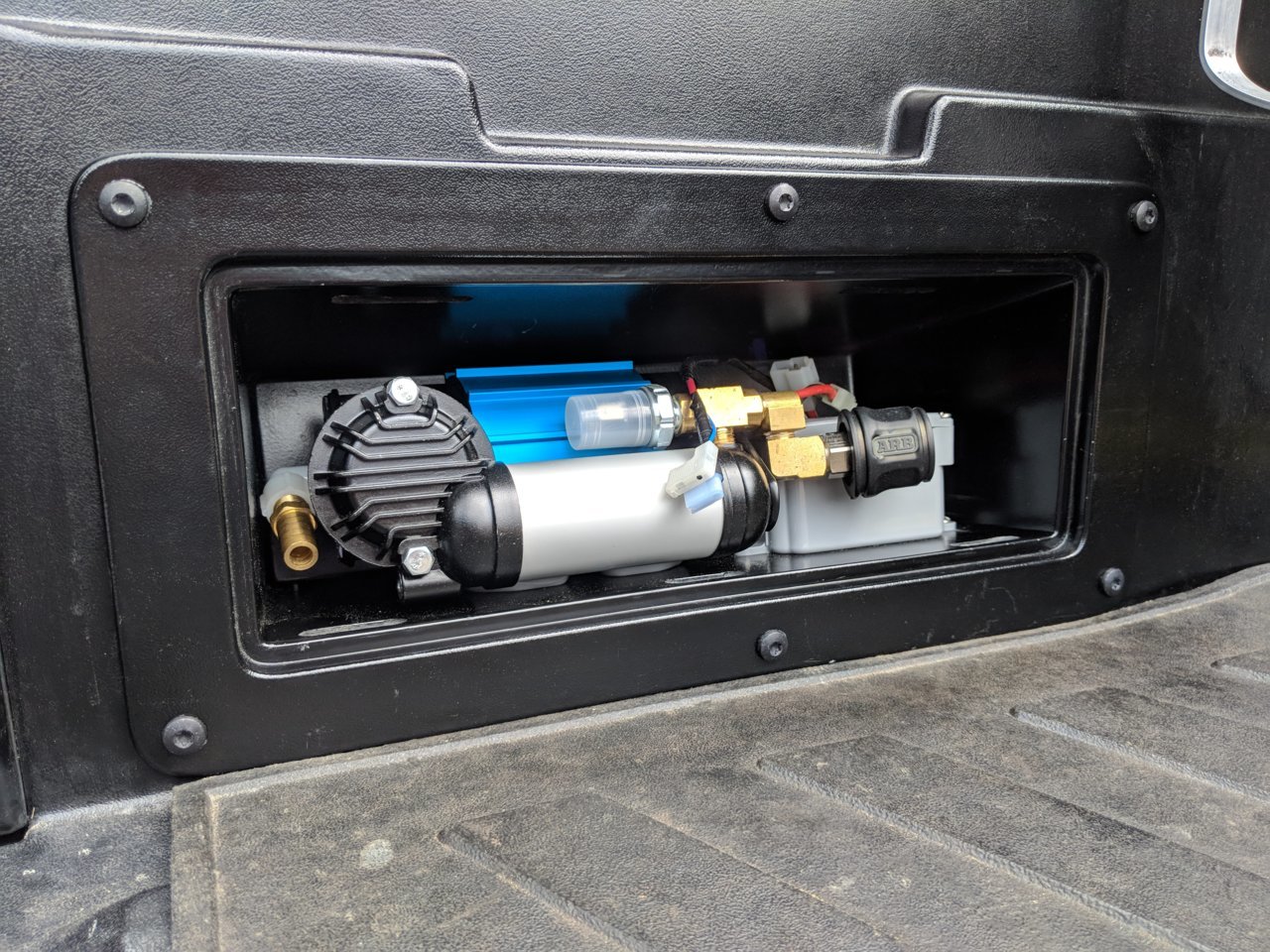

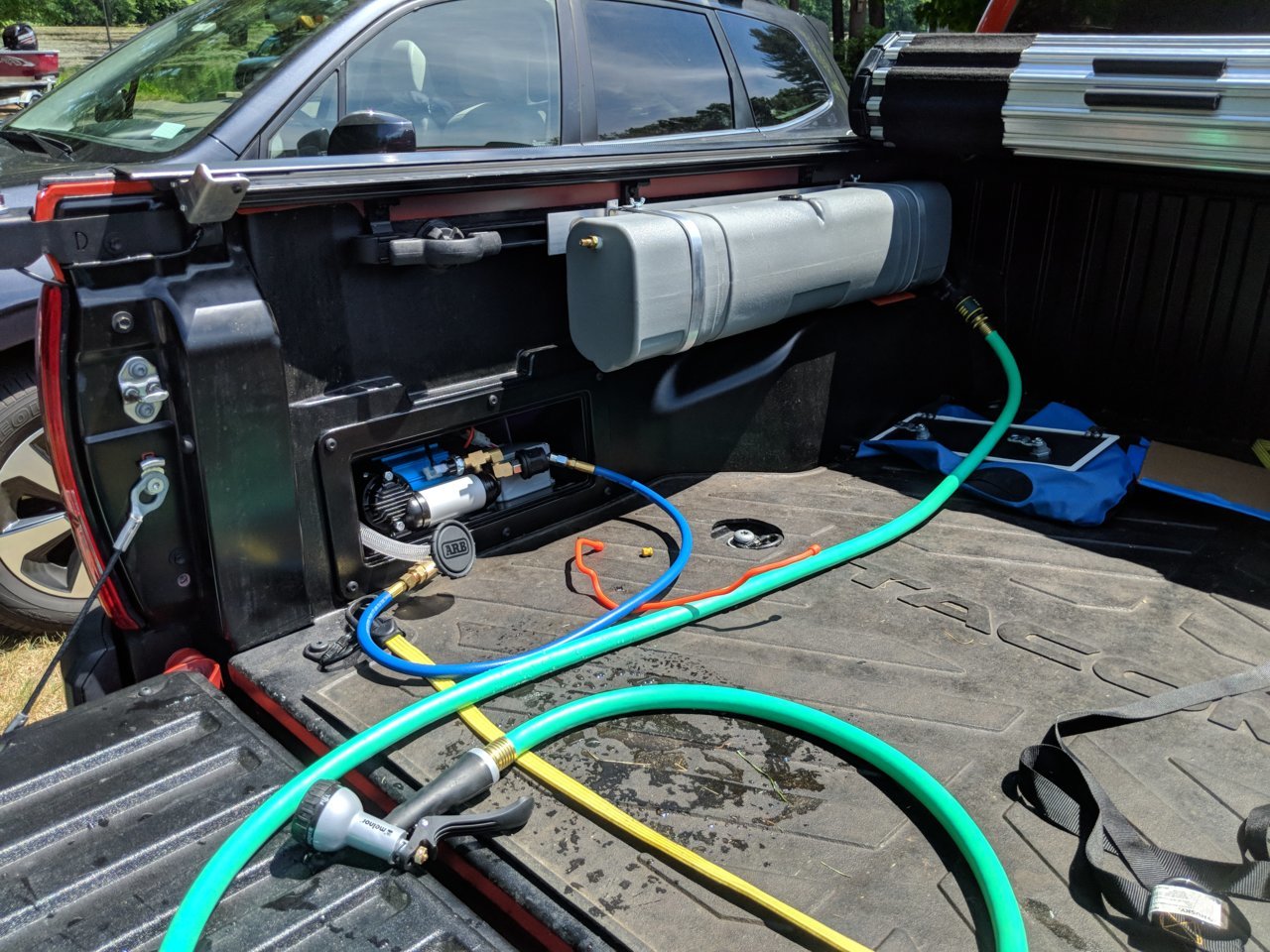

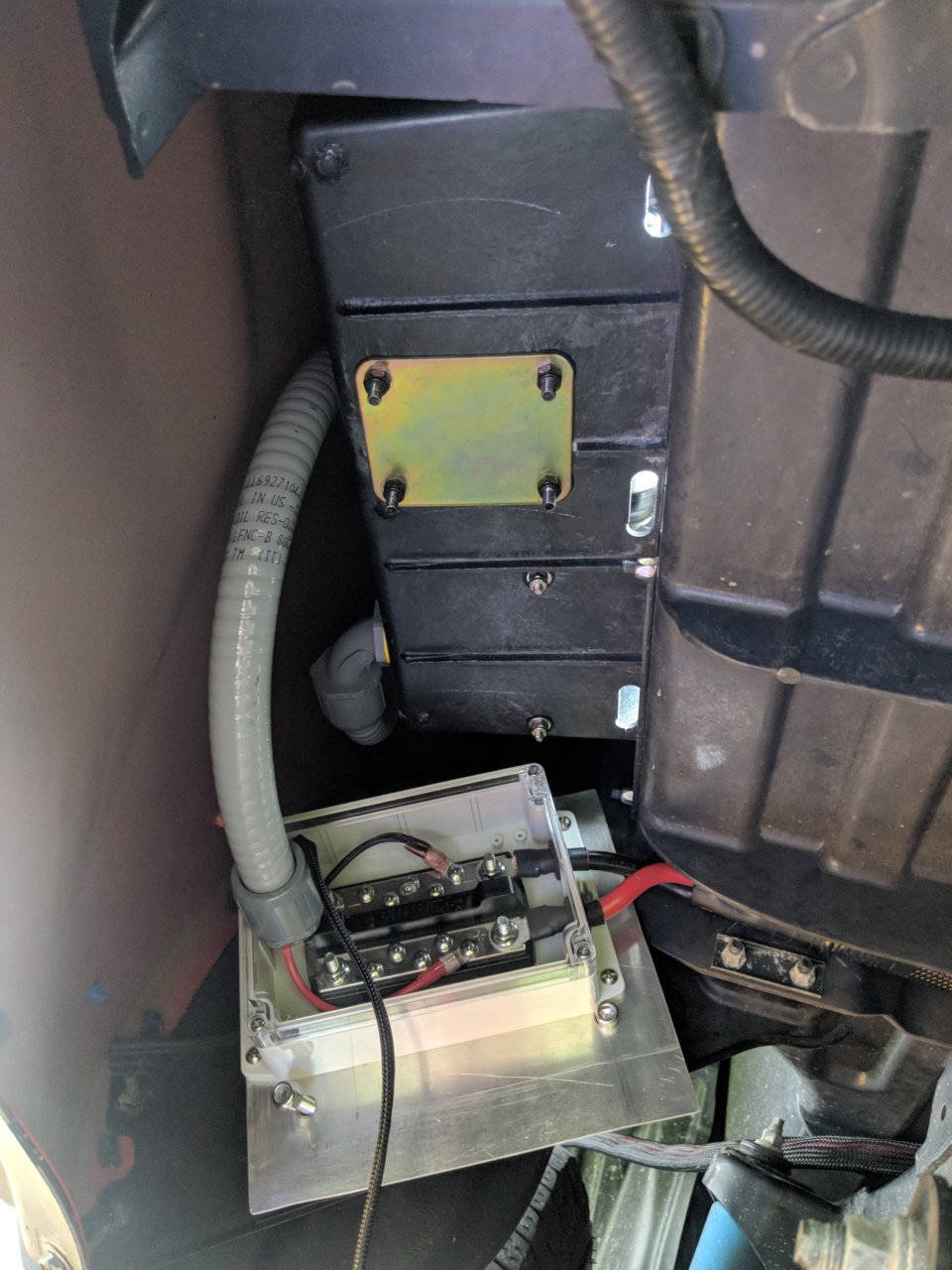

    I should probably throw my beginning info of my install here; I'll eventually do a better write-up in my build thread but for now enjoy.
    IMG_20180617_142438.jpg IMG_20180614_163238.jpg IMG_20180614_182618.jpg

    rob1208 likes this.
  8. Jun 21, 2018 at 6:34 AM
    #1668
    4x4Banger

    4x4Banger Gold Member

    Joined:
    Nov 16, 2014
    Member:
    #142517
    Messages:
    4,251
    Gender:
    Male
    First Name:
    Ham
    Los Angeles
    Vehicle:
    2012 DCSB/OR 4x4
    Which system do you have? I have a viair and am looking into different ways to mount it

  9. Jun 21, 2018 at 6:36 AM
    #1669
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
  10. Jun 21, 2018 at 6:41 AM
    #1670
    4x4Banger

    4x4Banger Gold Member

    Joined:
    Nov 16, 2014
    Member:
    #142517
    Messages:
    4,251
    Gender:
    Male
    First Name:
    Ham
    Los Angeles
    Vehicle:
    2012 DCSB/OR 4x4
    Thanks!! I am trying to find out where to mount my 5 gallon air tank under my shirt bed and somehow keep the tire under there

  11. Jun 21, 2018 at 6:54 AM
    #1671
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    Good luck, haha. Unless you have a high flow compressor, or compressors, that big tank is more of a burden when filling tires. The only reason I opted for the tank is for my water setup.

  12. Jun 21, 2018 at 6:56 AM
    #1672
    4x4Banger

    4x4Banger Gold Member

    Joined:
    Nov 16, 2014
    Member:
    #142517
    Messages:
    4,251
    Gender:
    Male
    First Name:
    Ham
    Los Angeles
    Vehicle:
    2012 DCSB/OR 4x4
    It is the viair heavy duty I believe it is a 100% duty cycle compressor and can fill up to 37’s I believe

  13. Jun 21, 2018 at 7:04 AM
    #1673
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    That should be the 450C and it is 100% duty cycle, but it's only 1.8 cfm. I opted for the 400C because it's rated for 2.6 cfm, however only 33% duty cycle. The duty cycle has yet to be an issue for me, but if you're filling up multiple vehicles it could be. I'm not saying what you have won't work, it absolutely will, but just be aware it's going to be slow after the first tire. At that point you'll be pressurizing your larger tank and tires simultaneously.

    4x4Banger likes this.
  14. Jun 21, 2018 at 7:17 AM
    #1674
    silasvirus82

    silasvirus82 Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215977
    Messages:
    435
    Gender:
    Male
    First Name:
    John
    NC
    Vehicle:
    3rd Gen Off-Road DCLB
    Hobie Fishing Edition
    Last edited: Jun 21, 2018
    OneFastGeek likes this.
  15. Jun 23, 2018 at 2:31 AM
    #1675
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,335
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    I had a 450c and man that thing was slow. Added a second 450c and the ARB twin guys were still airing up faster than me. Now I have a Zenith and I finish just as fast, if not faster (when I cheat and fill up the tank right before we hit pavement) :D

    bonnfabrication and rob1208 like this.
  16. Jul 13, 2018 at 5:01 PM
    #1676
    SGTCap

    SGTCap Well-Known Member

    Joined:
    Oct 30, 2013
    Member:
    #115529
    Messages:
    3,823
    Gender:
    Male
    First Name:
    Cap
    Summerville, SC
    Vehicle:
    4x4 6-spd,
    37s, 4x4 6-spd, OME 886s, Allpro Expos, SOS sliders and front/rear bumpers,Rack,Skids, 4.56s, Lockers,Recon Winch, TJM RTT, Lots of tools, boxes and gear. Shaggy mutt behind the seat
  17. Jul 27, 2018 at 8:31 AM
    #1677
    SportsmanJake

    SportsmanJake Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    405
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    Reading through thread now but thought I'd go ahead and ask my questions.

    I need to run a 4 foot hose in the engine bay to my quick connect. I want something that will last a long time.
    I would prefer 1/4 npt female on both ends. The closest I have found is this from Viair.
    https://smile.amazon.com/Viair-9280...2705412&sr=8-2&keywords=viair+36+braided+hose

    Is a stainless hose necessary? Any recommendations?

    Also, whats the cheapest way to protect an exposed ARB quick connect coupling? I'm not paying $20 for a "binky".

  18. Jul 27, 2018 at 9:01 AM
    #1678
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,689
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    You need reinforced braided hose for the first 18-24" from the compressor because 1, the hose will get too hot at the coupling and possibly fail, and 2, the stainless braid helps conduct heat away and gives it more surface area to convect.
    Bycicle inner tube.

    SportsmanJake likes this.
  19. Jul 27, 2018 at 9:14 AM
    #1679
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,810
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera

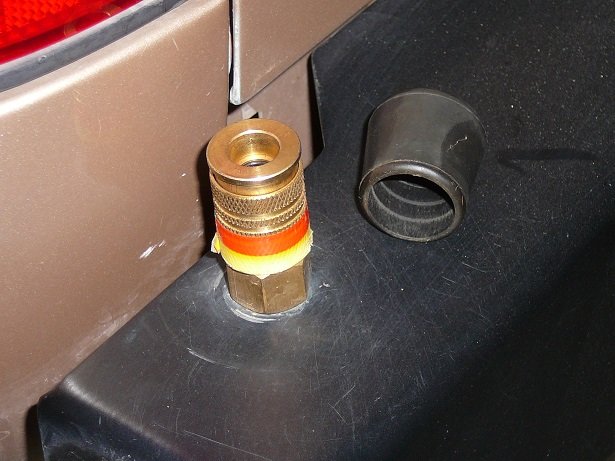

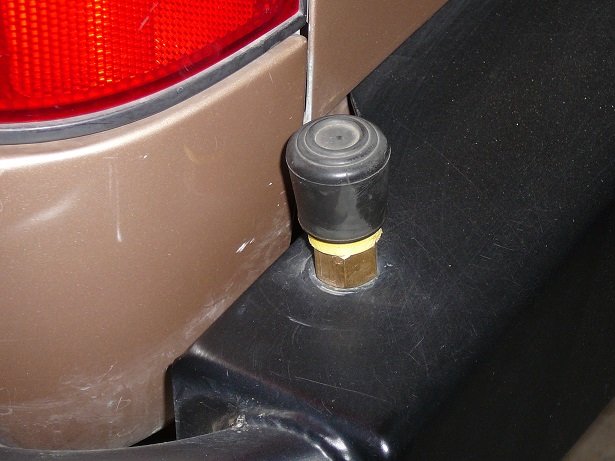

    I went to Lowe's , to the furniture hardware area, and picked up one of these:


  20. Jul 27, 2018 at 5:36 PM
    #1680
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,657
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
