OBA -> On Board Air Mega Thread & BS

Discussion in 'Technical Chat' started by Gunshot-6A, Oct 20, 2013.

  1. Jan 28, 2019 at 7:31 PM
    #1741
    apocataco2015

    apocataco2015 Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #157006
    Messages:
    701
    Gender:
    Male
    First Name:
    Clayton
    Salado, TX
    Vehicle:
    2017 Tacoma TRD OR 4x4
    Fox/OME/Icon lift. TRD Beadlocks. Toyo MT’s. Pelfreybilt, RCI, Mobtown armor.

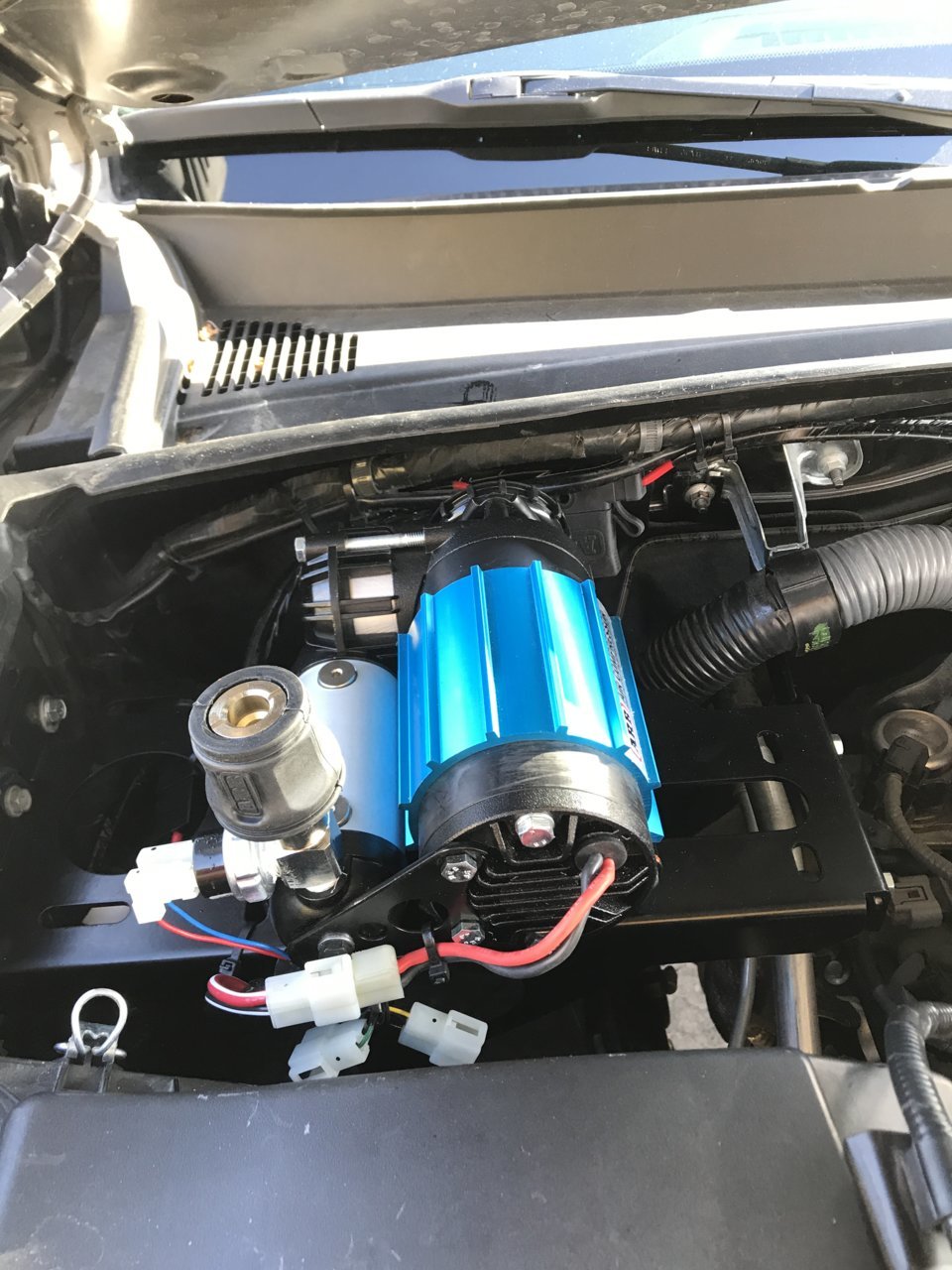

    Yep. Here it is. Keep in mind I’m not using the top half of the harness. It’s my understanding that I don’t need to since I’m not running lockers.

  2. Jan 28, 2019 at 7:39 PM
    #1742
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Correct. So the red wire is the one you need to supply +12v to turn on the pump.

    That’s how I wired mine up. Granted the twin uses different color.

    apocataco2015 likes this.
  3. Jan 28, 2019 at 7:48 PM
    #1743
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,178
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    OBA complete. May add a water trap

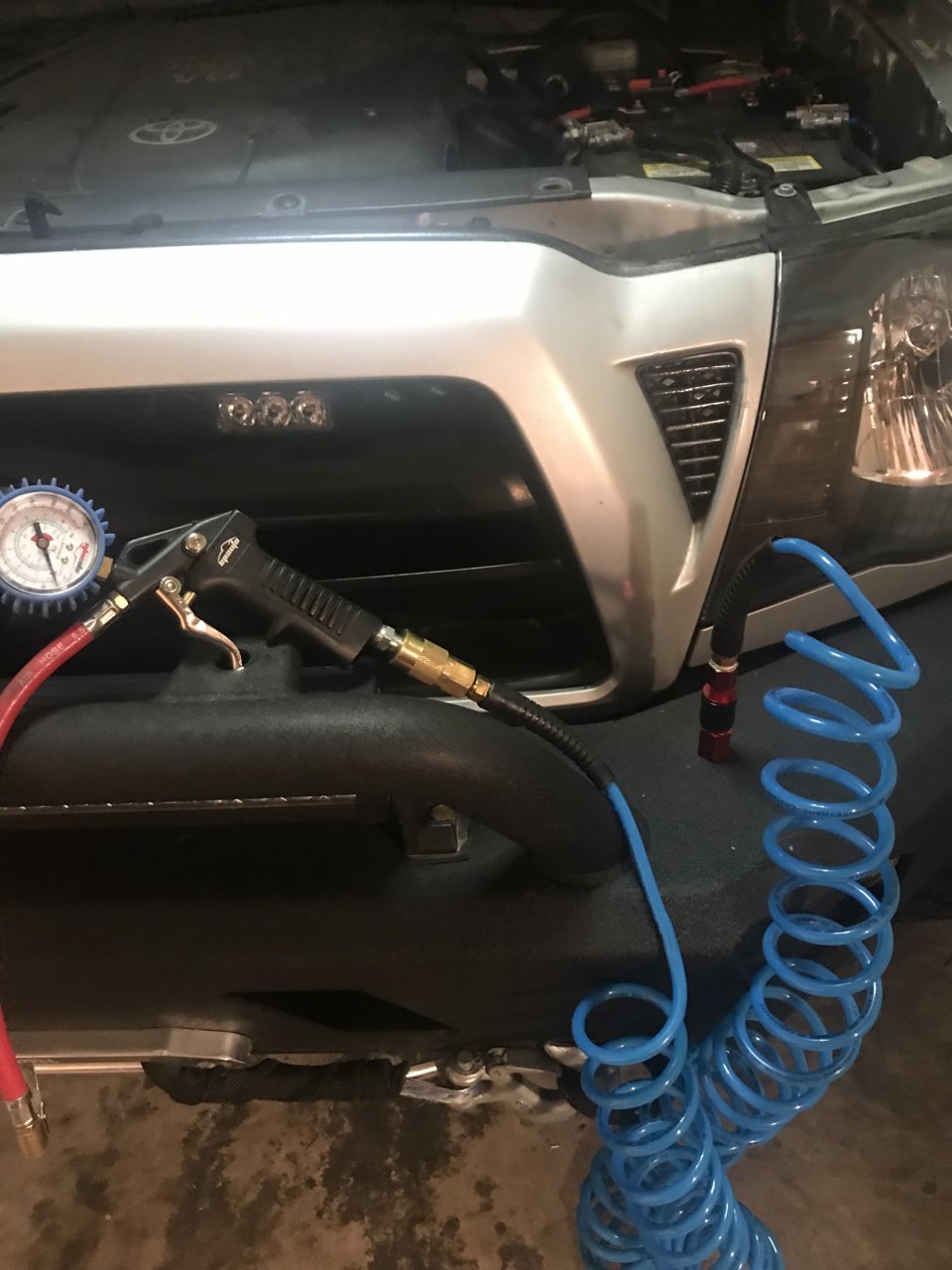

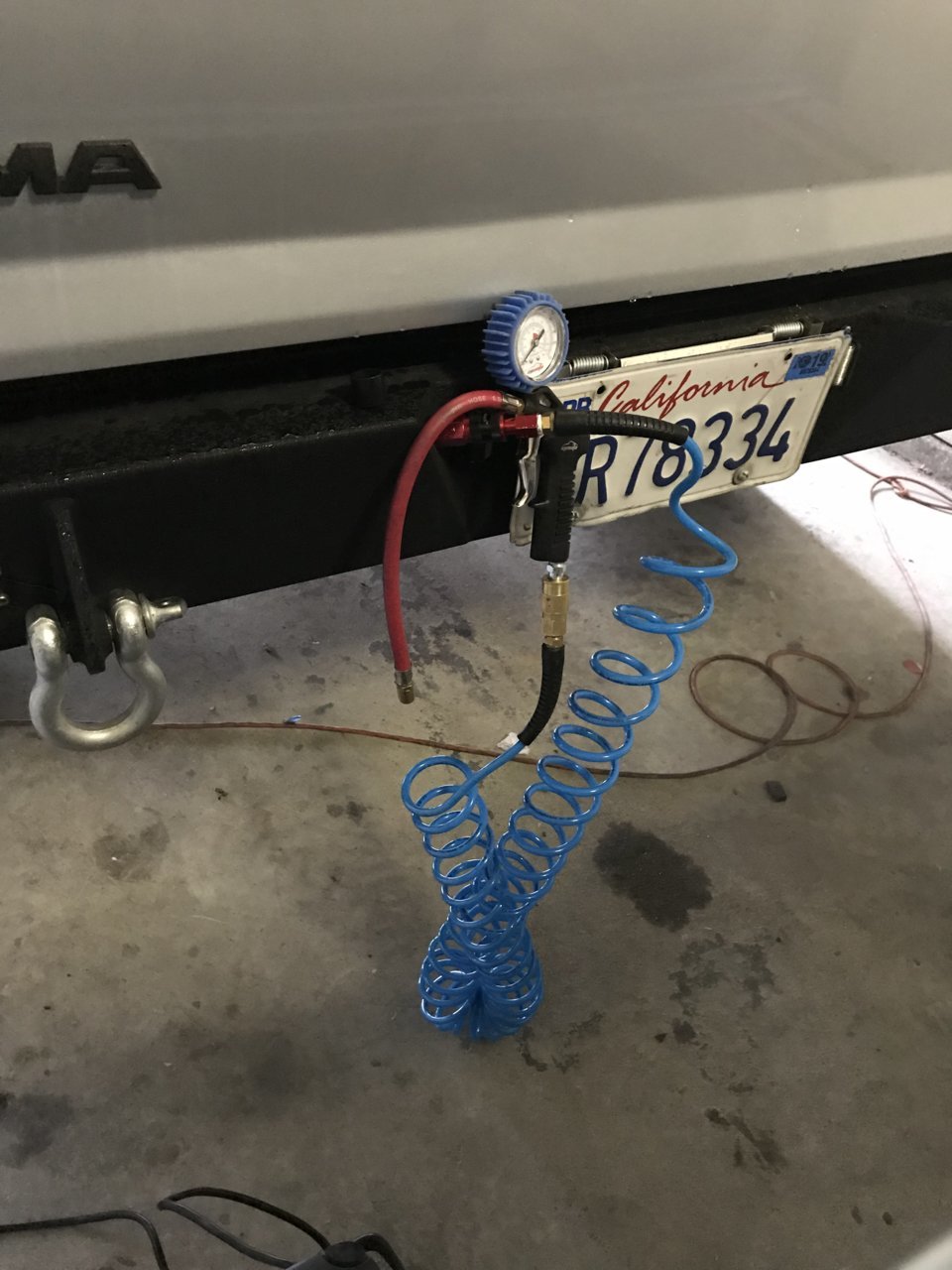

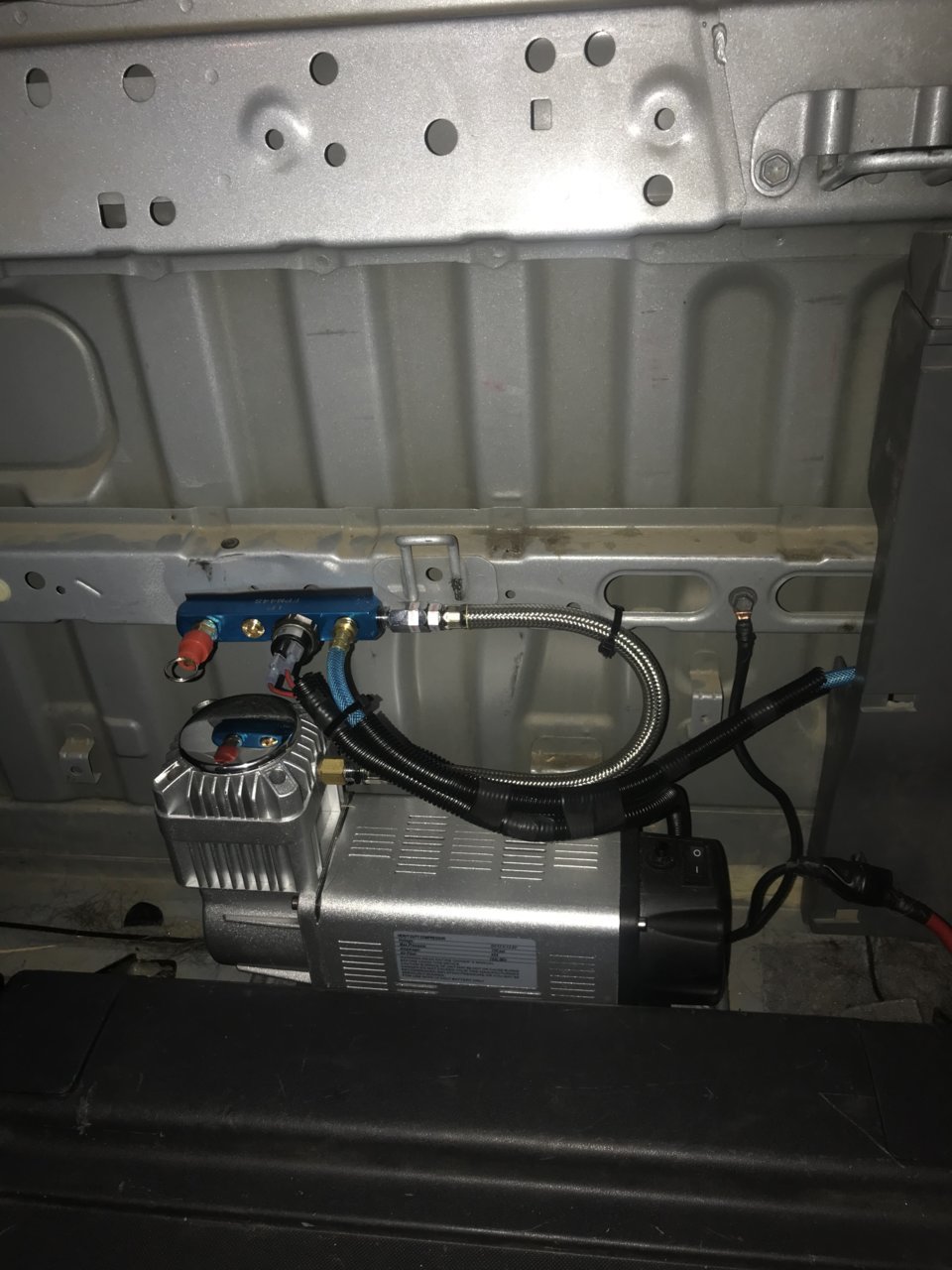

    23396A63-ACB8-41EB-BB7D-F190DBD84996.jpg 8C3F1135-6B59-4E0A-A69A-5167FA244AF9.jpg 82EC255E-0597-45AD-87C5-2109695904AC.jpg

    golfindia and TacoNorth76 like this.
  4. Jan 28, 2019 at 7:53 PM
    #1744
    apocataco2015

    apocataco2015 Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #157006
    Messages:
    701
    Gender:
    Male
    First Name:
    Clayton
    Salado, TX
    Vehicle:
    2017 Tacoma TRD OR 4x4
    Fox/OME/Icon lift. TRD Beadlocks. Toyo MT’s. Pelfreybilt, RCI, Mobtown armor.
    Thanks again. I’ll report back with an update.

    YamaDirtrider likes this.
  5. Jan 30, 2019 at 7:26 AM
    #1745
    bgreyc

    bgreyc Well-Known Member

    Joined:
    Dec 31, 2018
    Member:
    #277549
    Messages:
    507
    Gender:
    Male
    First Name:
    Brad
    Albuquerque, NM
    Vehicle:
    '19 Silver TRD Off Road DCLB
    Lighting: BD S2 Sport Flush Mount Rear Bumper Lights (Work) BD Squadron Pro Driving/Combo Fogs (Amber) BD S2 Pro Ditch Lights (White, Off Camber Hood Bracket) KC Hilites Cyclone Under Hood Lights KC Hilites Cyclone Pair - Shell Lights 30" Rough Country Black lower grill light bar Raxiom Bluetooth Light Switch Accessory Controller Suspension Teraflex 2" Falcon Load/Haul Suspension Tires BFG T/A KO2 C 265/70R-17 Wheels Fuel Wheels - Vector Gun Metal (17x8.5) MESO Mods Coin Tray Dome Light Map Lights Key Fob - Orange/Red Keys @OneMoreTaco Radio Knobs TRD Pro Grill - Runnin4Tacos ARB Single compressor (Underhood) GTFO Expedition Compressor Bracket Runnin 4 Tacos - White Grille Lights - 4 Caliraised Bed Stiffeners Redline hood struts Bedrug Bedliner KTJO4x4 Tail Gate Auto Lock Kit Dual camera setup - Anytime front/rear Camera Runnin4Tacos - TRD Off Road Emblems Victory Blitz Rock Sliders Victory Top Rack Ordered (delivered, need time) Victory 4x4 Center Console Molle Wish List Victory 4x4 Blitz Front Bumper Victory 4x4 Strike Rear Bumper
    Is that the Slee Mount? Looks really clean.

  6. Jan 30, 2019 at 5:33 PM
    #1746
    moser633

    moser633 2016 TRD OR AC

    Joined:
    Nov 23, 2016
    Member:
    #203153
    Messages:
    158
    Gender:
    Male
    Vehicle:
    2016 magnetic grey Tacoma TRD Offroad
    Aux Reverse Lights, tailgate inserts , TRD PRo Grill, Truxedo lo pro gt tonnaeu cover, Cali Raised led Apex stealth light bar Cali raised led Ditch Lights ARB on Board air Method NV Bronze 16 in with 265 75 16 Cooper STT Pro

    its the The Go Travel Far & Often Expedition bracket. Bought it threw rogue off road out of Las Vegas super clean and easy install.

  7. Jan 30, 2019 at 6:05 PM
    #1747
    bgreyc

    bgreyc Well-Known Member

    Joined:
    Dec 31, 2018
    Member:
    #277549
    Messages:
    507
    Gender:
    Male
    First Name:
    Brad
    Albuquerque, NM
    Vehicle:
    '19 Silver TRD Off Road DCLB
    Lighting: BD S2 Sport Flush Mount Rear Bumper Lights (Work) BD Squadron Pro Driving/Combo Fogs (Amber) BD S2 Pro Ditch Lights (White, Off Camber Hood Bracket) KC Hilites Cyclone Under Hood Lights KC Hilites Cyclone Pair - Shell Lights 30" Rough Country Black lower grill light bar Raxiom Bluetooth Light Switch Accessory Controller Suspension Teraflex 2" Falcon Load/Haul Suspension Tires BFG T/A KO2 C 265/70R-17 Wheels Fuel Wheels - Vector Gun Metal (17x8.5) MESO Mods Coin Tray Dome Light Map Lights Key Fob - Orange/Red Keys @OneMoreTaco Radio Knobs TRD Pro Grill - Runnin4Tacos ARB Single compressor (Underhood) GTFO Expedition Compressor Bracket Runnin 4 Tacos - White Grille Lights - 4 Caliraised Bed Stiffeners Redline hood struts Bedrug Bedliner KTJO4x4 Tail Gate Auto Lock Kit Dual camera setup - Anytime front/rear Camera Runnin4Tacos - TRD Off Road Emblems Victory Blitz Rock Sliders Victory Top Rack Ordered (delivered, need time) Victory 4x4 Center Console Molle Wish List Victory 4x4 Blitz Front Bumper Victory 4x4 Strike Rear Bumper
    Thank you, I will check it out!

    moser633 likes this.
  8. Jan 31, 2019 at 6:33 AM
    #1748
    apocataco2015

    apocataco2015 Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #157006
    Messages:
    701
    Gender:
    Male
    First Name:
    Clayton
    Salado, TX
    Vehicle:
    2017 Tacoma TRD OR 4x4
    Fox/OME/Icon lift. TRD Beadlocks. Toyo MT’s. Pelfreybilt, RCI, Mobtown armor.
    Follow up. All done with mine. In summary, I’m just not good at reading diagrams and understanding electrical terminology. With everyone’s help and studying the ARB diagram over and over and over, I finally got it. My biggest win is that I didn’t have to use the other ginormous part of the harness that includes the part for the lockers because I didn’t need that. I very briefly tested it after working on it this morning before work and it came on. Now to test it extensively and see if it starts popping fuses. If it does, I’ll report back.

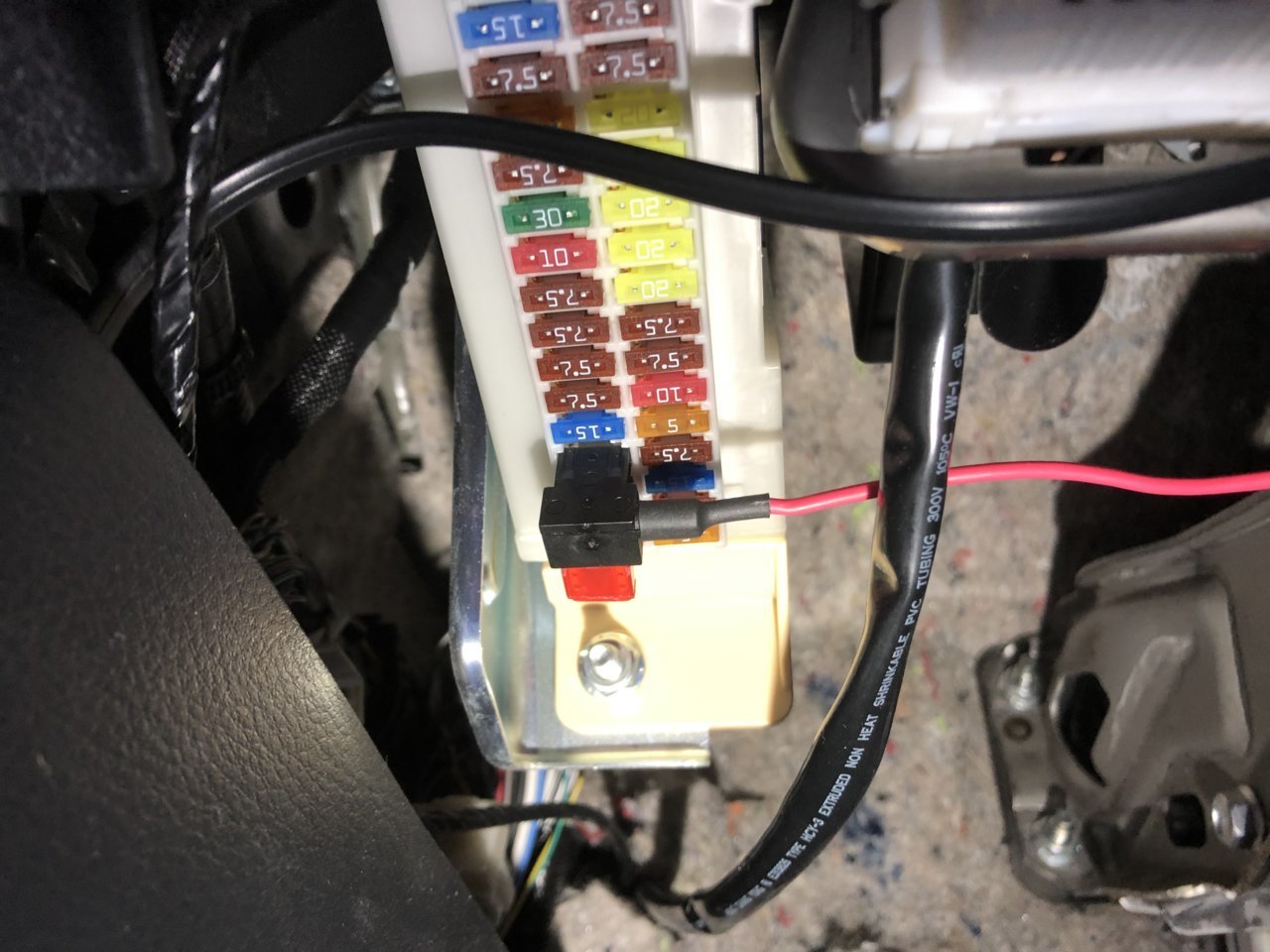

    This is the step I was missing and what ultimately got it working.

    YamaDirtrider likes this.
  9. Feb 13, 2019 at 7:32 PM
    #1749
    eldedo

    eldedo voted most likely eaten by a bear

    Joined:
    Dec 14, 2015
    Member:
    #172201
    Messages:
    1,822
    Gender:
    Male
    Mojave Desert
    Vehicle:
    '16 DCSBOR 4X4
    2888/5100/Dakars 285's/Camburgs

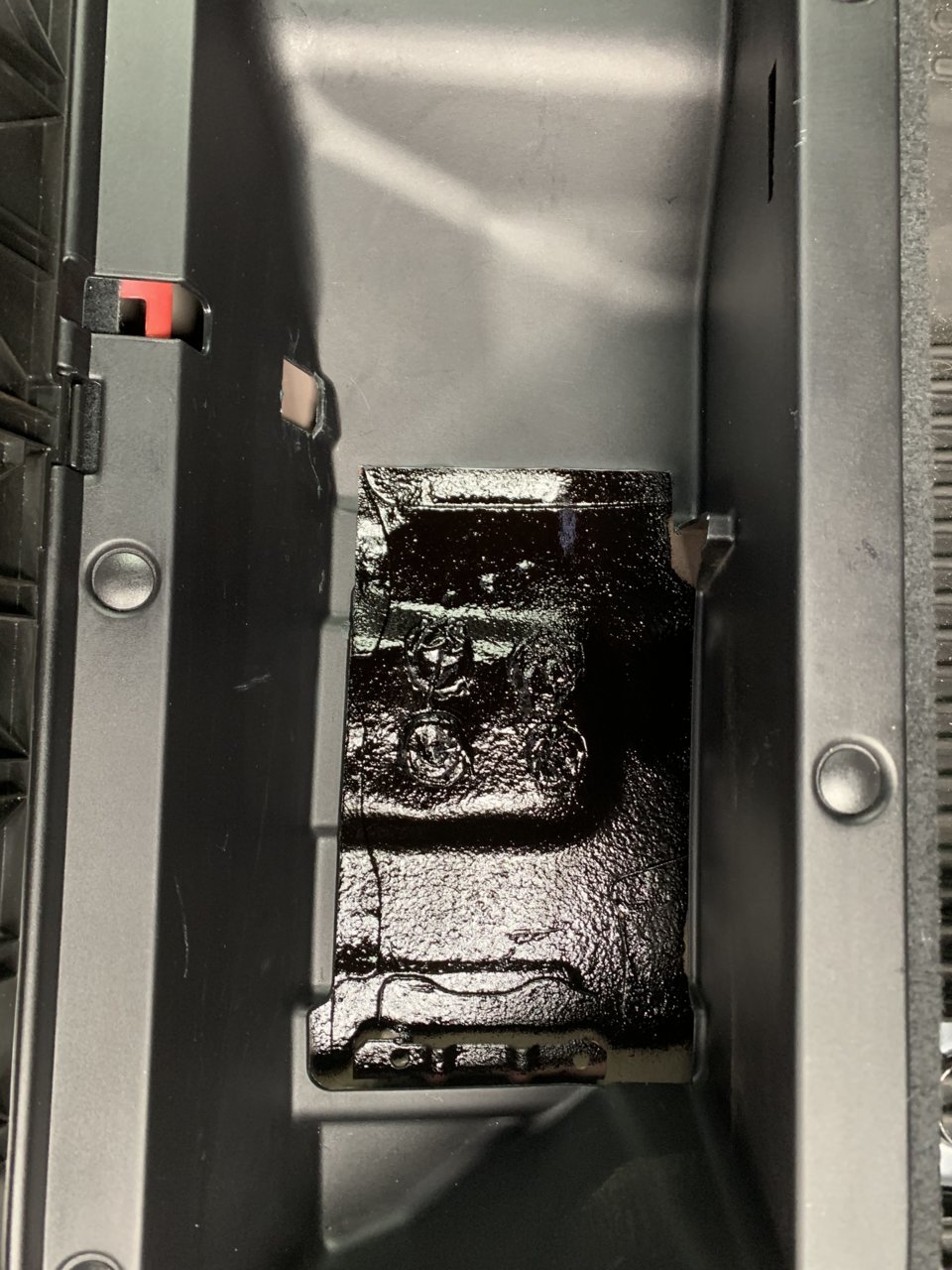

    4FBB6DE1-376B-4582-A515-82DC60584E64.jpg Anyone know how hot the visit 450c gets mounting it here

  10. Feb 13, 2019 at 7:51 PM
    #1750
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,678
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Deletedfirst effort as I misidentified that as a bed cubby rather than the back seat cubby. Yes, it will get hot there so try and induce some airflow. Chances are you'll have the space above packed so you'll need to be creative to get inlet air. Exhaust can be directed at the rear cab wall vent.

  11. Feb 14, 2019 at 6:21 PM
    #1751
    Jakoda

    Jakoda beep boop

    Joined:
    Feb 16, 2017
    Member:
    #210747
    Messages:
    365
    Gender:
    Male
    First Name:
    Jackson
    SoCal
    Vehicle:
    2017 TRDOR DCSB
    Bunch O Shit

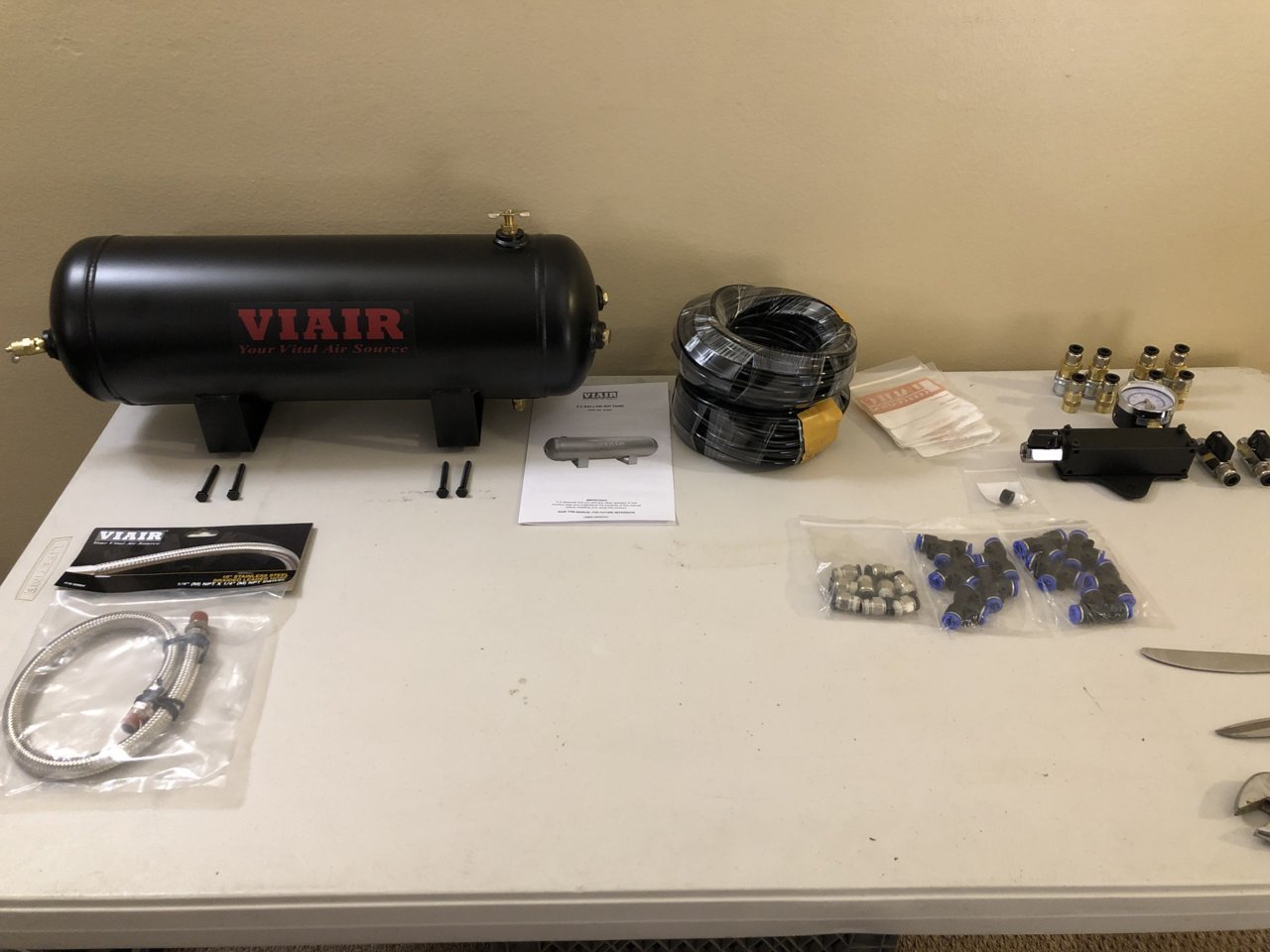

    Collecting parts for my OBA set up. I’m going to try and install a custom manifold system that can air up or down all tires on one line. On another line I will put a tank that has ports at the front and rear for airing friends up and air tools.

    Does anyone have a good suggestion for a compressor switch for the tank? I’m going with an arb twin that will be mounted under the hood and the tank will be mounted where the spare is / was


  12. Feb 14, 2019 at 6:25 PM
    #1752
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    The twin has a built in pressure switch. No need to put on on the tank

    Jakoda likes this.
  13. Feb 14, 2019 at 6:27 PM
    #1753
    Jakoda

    Jakoda beep boop

    Joined:
    Feb 16, 2017
    Member:
    #210747
    Messages:
    365
    Gender:
    Male
    First Name:
    Jackson
    SoCal
    Vehicle:
    2017 TRDOR DCSB
    Bunch O Shit
    Perfect thank you! One less thing to buy.
    Any pro tips before diving in?

  14. Feb 14, 2019 at 6:37 PM
    #1754
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Maybe a dryer to keep out mosture?

    Arb pressure switch is @150 psi check your safty valve pressure.

    Jakoda likes this.
  15. Feb 14, 2019 at 6:44 PM
    #1755
    Jakoda

    Jakoda beep boop

    Joined:
    Feb 16, 2017
    Member:
    #210747
    Messages:
    365
    Gender:
    Male
    First Name:
    Jackson
    SoCal
    Vehicle:
    2017 TRDOR DCSB
    Bunch O Shit
    I put a condensation drip chuck on the tank.

    My safety valve is 175

    What is this dryer you speak of?

  16. Feb 14, 2019 at 7:35 PM
    #1756
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,678
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Moisture trap/filter.

  17. Feb 14, 2019 at 7:39 PM
    #1757
    Jakoda

    Jakoda beep boop

    Joined:
    Feb 16, 2017
    Member:
    #210747
    Messages:
    365
    Gender:
    Male
    First Name:
    Jackson
    SoCal
    Vehicle:
    2017 TRDOR DCSB
    Bunch O Shit
    And this goes between compressor and tank?

    Do you happen to have a link to one?

  18. Feb 14, 2019 at 8:26 PM
    #1758
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,678
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Goes between tank and manifold. The tank should have its own drain cock. The filter gets everything that doesn't condense in the tank. I'll hunt up the one I bought.

  19. Feb 14, 2019 at 8:28 PM
    #1759
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,678
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
  20. Feb 14, 2019 at 8:58 PM
    #1760
    Jakoda

    Jakoda beep boop

    Joined:
    Feb 16, 2017
    Member:
    #210747
    Messages:
    365
    Gender:
    Male
    First Name:
    Jackson
    SoCal
    Vehicle:
    2017 TRDOR DCSB
    Bunch O Shit
    Yes the tank does have a drain

    Thank you so much kind sir. Did you go 90 or 150? I’m thinking 150 since that’s what the compressor is switch as I was informed earlier but the 150 seems so large

    Last edited: Feb 14, 2019
