OBD Fusion Dashboard Swappin' Thread

Discussion in '3rd Gen. Tacomas (2016+)' started by RushT, Sep 4, 2020.

  1. Sep 4, 2020 at 8:40 PM
    #1
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    I know there's a tips and tricks thread for OBD Fusion(OBD Fusion tips and tricks), but I thought I'd start a thread specifically for trading Dashboards. Sometimes (like coding), the easiest way to do something is to start with a base, or pirate someone else's code.

    To prep this thread, I think it would be good to put down some expectations. So here are my thoughts on what should be included with any post. Also I'm happy to edit my first post to include any dashboard anyone wants to contribute. Just send me the content and I'll edit the first post.

    First, here are the things I think should be included:
    • Screen capture in correct orientation
    • Ecosphere (Apple or Android) and hardware version
    • Version of App (Settings | About | Information | Version)
    • List of PIDs used in the dashboard
    • Export with ONLY the dashboard included (file or link to file)
    • TW username if willing to answer questions
    • Any comments and info you want to include
    Okay... some instructions:

    First, I can only speak to the iPhone import/export feature at this point. I can assume that Android is similar, but cannot confirm that. If someone out there wants to PM me confirmation or separate instructions, I can include them here.

    Here's the confirmed process for exporting dashboards (sharing).
    1. Setup a free Dropbox account, or use one you already have
    2. Configure your Dropbox credentials in OBD Fusion. Do this in Settings | Preferences | Dropbox/iCloud.
    3. This will create a folder series in your root of Dropbox called Apps/OBD Fusion/... there are three folders there; CSVLogs, Import, Export. They should be pretty explanatory.
    4. If you want to export a dashboard, go to Settings | Menu (in the top right) and choose 'Export Settings'. Then choose Dropbox and go back one menu by choosing 'Settings' at the top. This is not totally intuitive, but it will open another dialog box with a series of switches. Turn off all switches except Dashboards. Select 'Back'. This is the semi-intuitive part. You'll get a message box indicating the export was successful. And, it'll show you the path to your export.
    If you want to use a shared Dashboard, you'll need to acquire the file from someone and manually put it in your Dropbox folders. If you want to share a Dashboard, you'll need to export it and make it available to others.

    The process for importing is very similar. Go through the same steps except select 'Import Settings' instead. After selecting 'Back', you'll be presented with a list of files currently in either your export or import folders (go figure... one would think it would show you only the import folder). Select the file you want. You'll be presented with a list of import options that matches the export options. Deselect all but 'Dashboards'. Once you select 'Back' it'll ask you if you want to 'Clear Existing Dashboards' or Overwrite Existing Dashboards'. Choosing 'Clear Existing Dashboards' gives you the notice that this will remove all existing dashboards and only newly imported Dashboards will be available. Choosing 'Overwrite Existing Dashboards' doesn't give a warning, so I'm unclear on what it does at the moment with existing Dashboards. I'll risk losing my work in a day or two and test it. Choose 'Back', and it should import the Dashboards in the file you chose.

    I hope this post will help boost the adoption and use of OBD Fusion. I found it to be 'somewhat' daunting because of all the PIDS and the fact that they aren't always intuitive by naming convention. Also, I don't fully understand the three different export options. File mode doesn't seem to be very intuitive at all, particularly for the iPhone variant. As I learn more or others educate me, I'll update the post here. Note: I fully expect to update this post as I learn more or discover any errors.

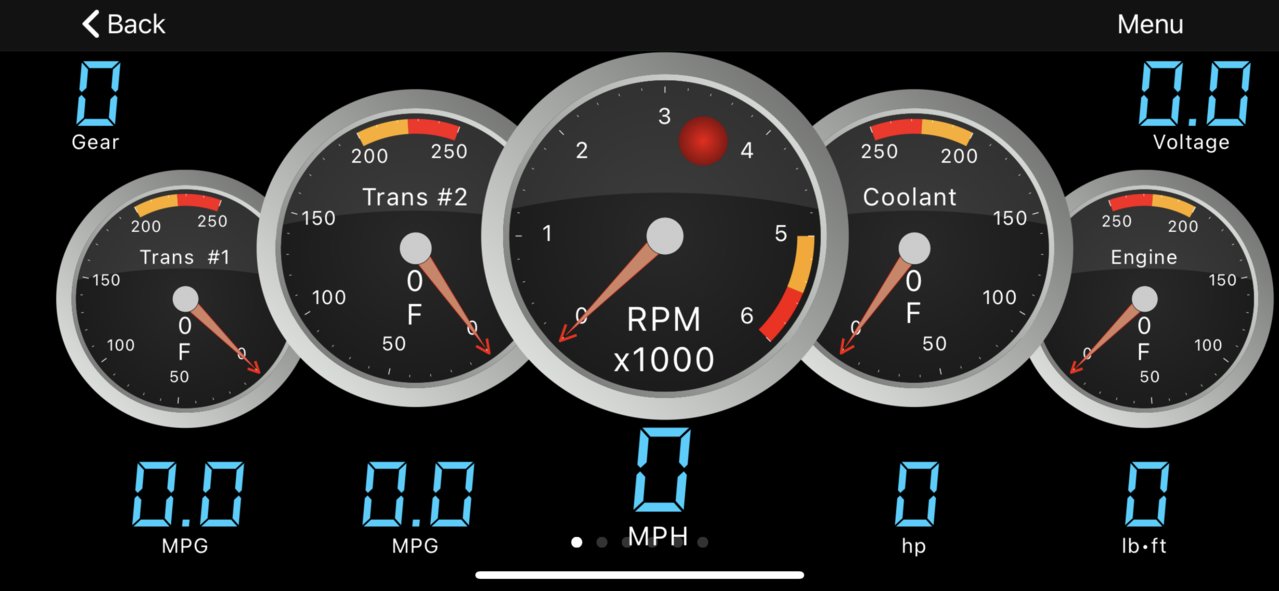

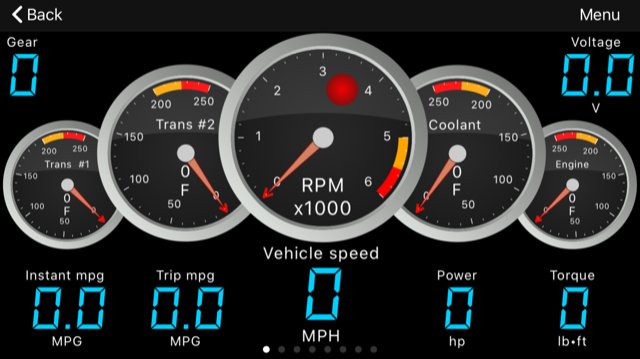

    I'll provide a first post as an example.


    1. Apple iPhone 8
      1. Added iPhone 12
    2. OBD Fusion 5.11.0.1200
    3. PIDS
      1. Gear: Toyota, Lexus, Scion | Status of the Shift Status / 1st, 2nd, 3rd, 4th, 5th, 6th, 7th, or 8th
      2. Voltage: SAE PIDS | Input voltage read by scan tool
      3. Trans #1: Toyota, Lexus, Scion | Transmission | A/T Oil Temperature No. 1
      4. Trans #2: Toyota, Lexus, Scion | Transmission | A/T Oil Temperature No. 2
      5. RPM: Toyota, Lexus, Scion | Engine | Engine Speed
      6. Coolant: Toyota, Lexus, Scion | Engine | Coolant Temperature
      7. Engine: Toyota, Lexus, Scion | Engine | Engine Oil Temperature
      8. Instant mpg: Fuel | Instant Fuel Economy
      9. Trip mpg: Trip | Trip Fuel Economy
      10. Vehicle Speed: SAE PIDs | Vehicle Speed
      11. Power: Calculated PIDs | Engine Power
      12. Torque: Toyota, Lexus, Scion | ABS/VSC/TRAC | Real Engine Torque
      13. Torque Converter Lock: Toyota, Lexus, Scion | Transmission | Lock Up Status
    4. File link to this one:
    1. TW User: @RushT
    2. Notes: I built this Dashboard for use as a Towing Monitor. The intent was to have ready access to relevant temperatures, gear status, torque converter status, and some fuel consumption stats. Also, there's some basic HP/Torque info. What I like about it is the relative symmetry, the red/green dot that indicates the torque converter status, and I admit that I added ranges so I could more easily see temperatures and their status compared to 'too hot'. I still need to tune the ranges a little.

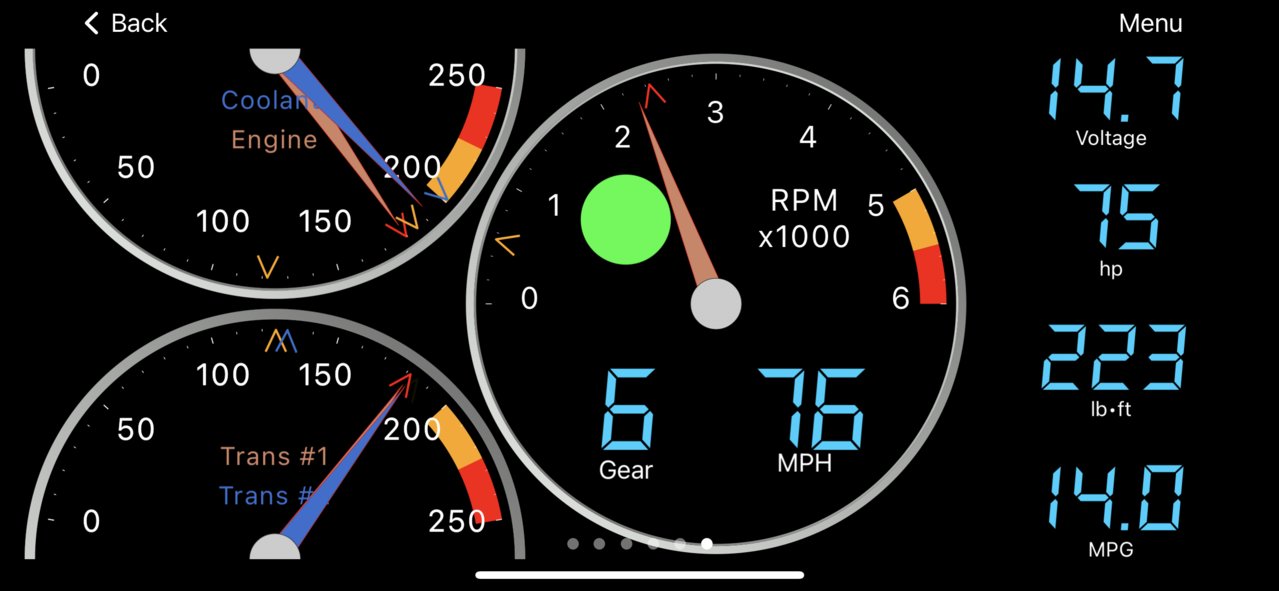

    <eta> upgraded to an iPhone 12 which has a different screen than my 8. I uploaded a copy of the rescaled dashboard. Also, you’ll notice that it seems ‘offset’ some. That’s to deal with the iPhone notch.


    Last edited: Feb 14, 2021
    tonered, C41n, jmneill and 7 others like this.
  2. Sep 27, 2020 at 12:54 PM
    #2
    harbrown

    harbrown Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193686
    Messages:
    115
    Gender:
    Male
    First Name:
    Harold
    Daphne AL
    Vehicle:
    2016 Tacoma Off Road 4x4
    awesome dashboard. i cant believe no response yet. the dropbox link doesnt work. i have a 2016 tacoma and just want easy way to get trans temp for drain/refill method.

  3. Sep 27, 2020 at 1:04 PM
    #3
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    I’ll check the link. Thanks for the notice.

  4. Sep 27, 2020 at 1:07 PM
    #4
    harbrown

    harbrown Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193686
    Messages:
    115
    Gender:
    Male
    First Name:
    Harold
    Daphne AL
    Vehicle:
    2016 Tacoma Off Road 4x4

    if your dash is a 2016, then could you please export to me? if so i would really appreciate it big time. your work is great.

    Last edited: Sep 27, 2020
  5. Sep 27, 2020 at 5:25 PM
    #5
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    I have an '18, but I suspect it may work for the '16 too? I updated the link, let me know if it won't let you download. Click on the link, then there's the option to download because browsers don't know what to do with *.stg files.

  6. Jan 14, 2021 at 9:17 PM
    #6
    Poppintool

    Poppintool BAMF

    Joined:
    Jan 13, 2011
    Member:
    #49235
    Messages:
    9
    Gender:
    Male
    First Name:
    Tim
    Arizona
    Vehicle:
    04 PreRunner SR5 TRD
    LED Interior
    This is legitimately awesome! I was trying to build this ugly utilitarian dash and figured I’d check if anyone was sharing nice dashboards. This is super slick! I hope others share theirs as well, and if I’m able to put something half decent together myself I’ll post here.

  7. Jan 14, 2021 at 9:41 PM
    #7
    PapaRee

    PapaRee And now I'll do what's best for me

    Joined:
    Oct 31, 2015
    Member:
    #168275
    Messages:
    2,060
    Gender:
    Male
    First Name:
    Kreg
    Prairieville, Louisiana
    Vehicle:
    2016 Black TRD Sport DCSB-Custom Tuned
    OVTune/VFtuner, Raceline Assault 18x9 -6 Offset wheels, Falken Wildpeak Atw3 33"-265/70/18 tires, GTS Dobinson's suspension lift 2.75", Backflip G2 bed cover, Magnaflow exhaust, Pro tail lights, Pro fog lights, Pro grille, Raptor grille lights, Predator side steps, RedLine Hood Struts, Toyota bedmat, tinted windows, Retrofitted-BHLM-Amber Halo-Amber DRL-HID headlights, LED Highbeams, LED Hood Scoop lightbar, LED hidden bumper lightbar, LED under hood light, LED Bed lights, LED license plate lights, Tacoma tailgate 3d letters, Tacoma glovebox 3D letters, removed air dam, Custom TRD Sport emblems, Pro Shift Knob with Meso ECT Stealth button, Meso LED dome and map lights, Meso V3 smoked mirror turn signals, Meso Stage 2 Tail lights, Meso Mirror Puddle lights, Meso KC-5 Brake/Cargo light, Meso center console bucket with OG lid, Tailgate PNP kit, Garage door opener button in overhead console, Meso Minimalist keyfobs, Matte black Pro hood decal, KTJO4x4 Led door handle LED lights, Pioneer 6x9 3 way front speakers, Rockford Fosgate 6.75' rear speakers, TacoTunes tweeters, AJT black vent rings, JDM Gas cap cover.
    Last edited: Jan 14, 2021
    jmneill and RushT [OP] like this.
  8. Jan 14, 2021 at 10:00 PM
    #8
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    PapaRee likes this.
  9. Jan 14, 2021 at 10:05 PM
    #9
    PapaRee

    PapaRee And now I'll do what's best for me

    Joined:
    Oct 31, 2015
    Member:
    #168275
    Messages:
    2,060
    Gender:
    Male
    First Name:
    Kreg
    Prairieville, Louisiana
    Vehicle:
    2016 Black TRD Sport DCSB-Custom Tuned
    OVTune/VFtuner, Raceline Assault 18x9 -6 Offset wheels, Falken Wildpeak Atw3 33"-265/70/18 tires, GTS Dobinson's suspension lift 2.75", Backflip G2 bed cover, Magnaflow exhaust, Pro tail lights, Pro fog lights, Pro grille, Raptor grille lights, Predator side steps, RedLine Hood Struts, Toyota bedmat, tinted windows, Retrofitted-BHLM-Amber Halo-Amber DRL-HID headlights, LED Highbeams, LED Hood Scoop lightbar, LED hidden bumper lightbar, LED under hood light, LED Bed lights, LED license plate lights, Tacoma tailgate 3d letters, Tacoma glovebox 3D letters, removed air dam, Custom TRD Sport emblems, Pro Shift Knob with Meso ECT Stealth button, Meso LED dome and map lights, Meso V3 smoked mirror turn signals, Meso Stage 2 Tail lights, Meso Mirror Puddle lights, Meso KC-5 Brake/Cargo light, Meso center console bucket with OG lid, Tailgate PNP kit, Garage door opener button in overhead console, Meso Minimalist keyfobs, Matte black Pro hood decal, KTJO4x4 Led door handle LED lights, Pioneer 6x9 3 way front speakers, Rockford Fosgate 6.75' rear speakers, TacoTunes tweeters, AJT black vent rings, JDM Gas cap cover.

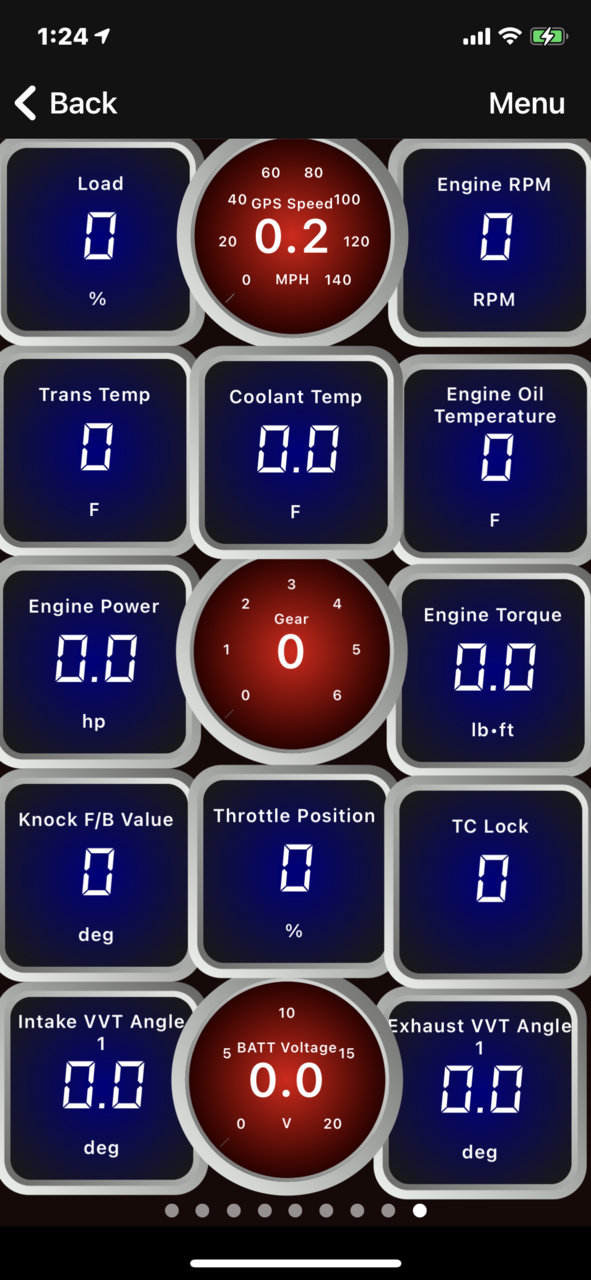

    When I first got my app, I found this thread and downloaded yours, but yours are sideways---I put my phone in a vertical mount in my truck. So I had to start from scratch. One day I am going to sit there with my phone and make one that doesn't look stock. There are a lot of cool looking ones on the internet, but it takes skills to make them. I like the ones with multiple things on one gauge. Like gear and T/C lock on the same gauge, etc.
    If you ever make any more, be sure to share.
    Thanks!

    Skydvrr likes this.
  10. Jan 15, 2021 at 4:42 AM
    #10
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Will do. I have in mind something for 4x4 showing all the wheels and perhaps spin rate or something. Will have to tinker.

  11. Jan 15, 2021 at 6:51 AM
    #11
    wahoobie

    wahoobie Taco Uno

    Joined:
    Nov 6, 2016
    Member:
    #201692
    Messages:
    1,475
    Gender:
    Male
    Suffolk, VA
    Vehicle:
    2016 DCLB 4x4 SR5ish
    OVTuned w/KDMax
    Thanks for this thread @RushT and contributions @PapaRee ...I am just heading down the path to set something up. If I can add any value in my efforts I will post back! Thanks!!

    PapaRee and RushT [OP] like this.
  12. Jan 15, 2021 at 8:09 AM
    #12
    PapaRee

    PapaRee And now I'll do what's best for me

    Joined:
    Oct 31, 2015
    Member:
    #168275
    Messages:
    2,060
    Gender:
    Male
    First Name:
    Kreg
    Prairieville, Louisiana
    Vehicle:
    2016 Black TRD Sport DCSB-Custom Tuned
    OVTune/VFtuner, Raceline Assault 18x9 -6 Offset wheels, Falken Wildpeak Atw3 33"-265/70/18 tires, GTS Dobinson's suspension lift 2.75", Backflip G2 bed cover, Magnaflow exhaust, Pro tail lights, Pro fog lights, Pro grille, Raptor grille lights, Predator side steps, RedLine Hood Struts, Toyota bedmat, tinted windows, Retrofitted-BHLM-Amber Halo-Amber DRL-HID headlights, LED Highbeams, LED Hood Scoop lightbar, LED hidden bumper lightbar, LED under hood light, LED Bed lights, LED license plate lights, Tacoma tailgate 3d letters, Tacoma glovebox 3D letters, removed air dam, Custom TRD Sport emblems, Pro Shift Knob with Meso ECT Stealth button, Meso LED dome and map lights, Meso V3 smoked mirror turn signals, Meso Stage 2 Tail lights, Meso Mirror Puddle lights, Meso KC-5 Brake/Cargo light, Meso center console bucket with OG lid, Tailgate PNP kit, Garage door opener button in overhead console, Meso Minimalist keyfobs, Matte black Pro hood decal, KTJO4x4 Led door handle LED lights, Pioneer 6x9 3 way front speakers, Rockford Fosgate 6.75' rear speakers, TacoTunes tweeters, AJT black vent rings, JDM Gas cap cover.
    Yea, I'd like to see this thread get some more people sharing Dashboards. That would be nice!

    Watkinseli91 and wahoobie like this.
  13. Jan 15, 2021 at 1:34 PM
    #13
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Off topic, but for anybody using OBD Fusion, I ask that you reach out to the developer and do a product improvement request for linear gauges. I asked them once and they said it was a great idea and they would put it on the development roadmap. That could be real, or polite service. But the more people who ask for it, the more likely it is to happen.

    wahoobie and PapaRee like this.
  14. Jan 15, 2021 at 1:42 PM
    #14
    wahoobie

    wahoobie Taco Uno

    Joined:
    Nov 6, 2016
    Member:
    #201692
    Messages:
    1,475
    Gender:
    Male
    Suffolk, VA
    Vehicle:
    2016 DCLB 4x4 SR5ish
    OVTuned w/KDMax
    This is something other than gauge smoothing?

    edit: you don;t mean update-wise you mean line-based gauges??

  15. Jan 15, 2021 at 1:52 PM
    #15
    Technique

    Technique Well-Known Member

    Joined:
    Nov 4, 2017
    Member:
    #235046
    Messages:
    1,760
    Gender:
    Male
    First Name:
    Alex
    Utah
    Vehicle:
    2017 Silver Offroad DCSB
    5100s with 888 coils
    This is really cool. What 'dongle' are you guys using with your iPhones to get the readings? I wanna order one and do this.

  16. Jan 15, 2021 at 2:26 PM
    #16
    PapaRee

    PapaRee And now I'll do what's best for me

    Joined:
    Oct 31, 2015
    Member:
    #168275
    Messages:
    2,060
    Gender:
    Male
    First Name:
    Kreg
    Prairieville, Louisiana
    Vehicle:
    2016 Black TRD Sport DCSB-Custom Tuned
    OVTune/VFtuner, Raceline Assault 18x9 -6 Offset wheels, Falken Wildpeak Atw3 33"-265/70/18 tires, GTS Dobinson's suspension lift 2.75", Backflip G2 bed cover, Magnaflow exhaust, Pro tail lights, Pro fog lights, Pro grille, Raptor grille lights, Predator side steps, RedLine Hood Struts, Toyota bedmat, tinted windows, Retrofitted-BHLM-Amber Halo-Amber DRL-HID headlights, LED Highbeams, LED Hood Scoop lightbar, LED hidden bumper lightbar, LED under hood light, LED Bed lights, LED license plate lights, Tacoma tailgate 3d letters, Tacoma glovebox 3D letters, removed air dam, Custom TRD Sport emblems, Pro Shift Knob with Meso ECT Stealth button, Meso LED dome and map lights, Meso V3 smoked mirror turn signals, Meso Stage 2 Tail lights, Meso Mirror Puddle lights, Meso KC-5 Brake/Cargo light, Meso center console bucket with OG lid, Tailgate PNP kit, Garage door opener button in overhead console, Meso Minimalist keyfobs, Matte black Pro hood decal, KTJO4x4 Led door handle LED lights, Pioneer 6x9 3 way front speakers, Rockford Fosgate 6.75' rear speakers, TacoTunes tweeters, AJT black vent rings, JDM Gas cap cover.
    Based on suggestions from on here, I bought this one. Works great.


    Veepeak OBDCheck BLE+ Bluetooth 4.0 OBD2 Scanner for iOS & Android, Car Diagnostic Code Reader Scan Tool for Universal OBDII/EOBD Vehicles https://www.amazon.com/dp/B076XVQMVS/ref=cm_sw_r_cp_api_glc_fabc_ZyHaGbZYQZMCA

    Skydvrr likes this.
  17. Jan 15, 2021 at 5:15 PM
    #17
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Yep. Instead of the round dials, it would be nice to have thermometer style gauges that ‘fill up’. Basically, a straight line version of the round gauges.

    wahoobie likes this.
  18. Jan 24, 2021 at 10:02 PM
    #18
    rdump

    rdump Member

    Joined:
    Aug 14, 2020
    Member:
    #337689
    Messages:
    10
    First Name:
    Richard
    Colorado
    Vehicle:
    2016 Tacoma TRD Off-Road DCLB
    Icon suspension uplift Wheels of moderately larger size

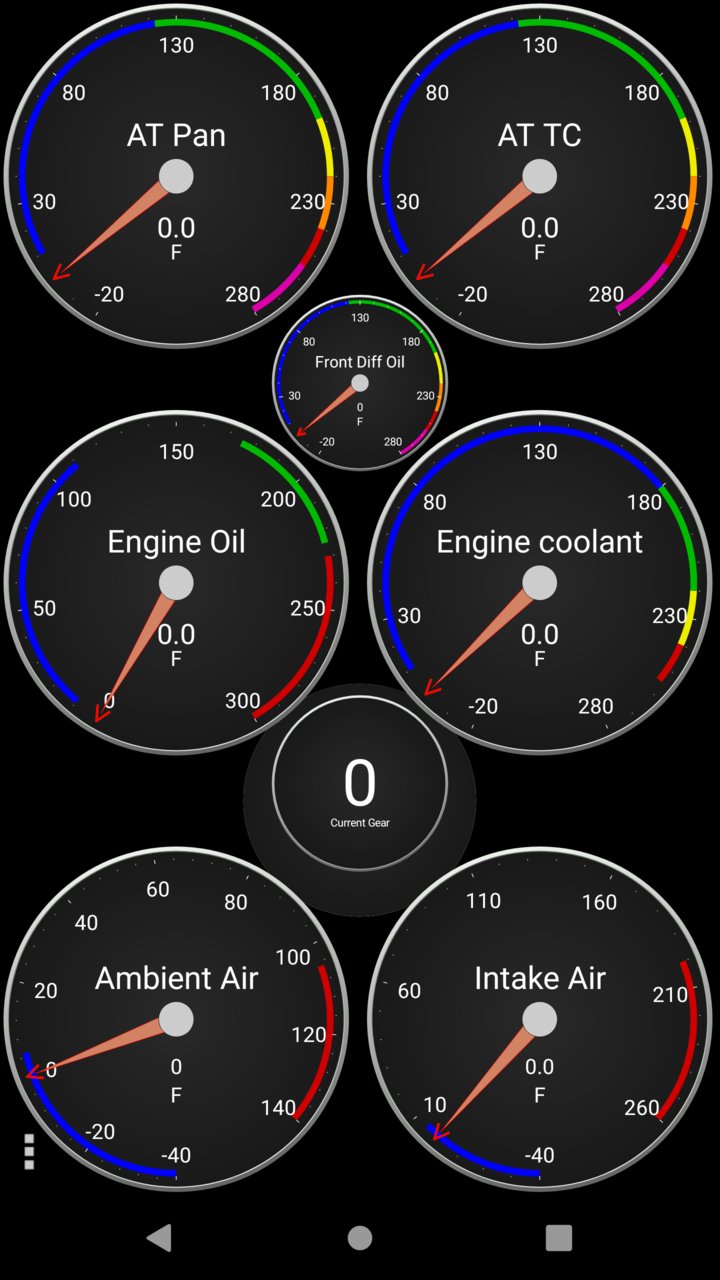

    1. Device: Google Nexus 6 (Ancientdroid) running Lineage OS 17.1
    2. OBD Fusion Version: OBD Fusion 5.13.0
    3. PIDS used (Toyota 2016 Enhanced Diagnostics extra installed):

    || A/T Oil Temperature No.1 || || A/T Oil Temperature No.2 ||
    || || Front Differential Oil Temperature || ||
    || Engine Oil Temperature || || Engine coolant temperature ||
    || || Status of the Shift Status / Lo or Hi || ||
    || || Lock Up Status || ||
    || Ambient Temperature for Air Conditioner || || Intake Air Temperature ||

    4. Settings file: https://www.dropbox.com/s/9mjxevbvf5cbz1y/OBD Fusion Settings 2020-11-01.stg?dl=0
    5. TW User: @rdump
    6. Dashboard was intended to monitor the possible pain points, while towing in mountainous desert heat, on my old Nexus 6's screen. Results convinced me to get a Shift Sense Pro while I prep for a re-gear.

    RushT [OP] likes this.
  19. Jan 25, 2021 at 5:02 AM
    #19
    RushT

    RushT [OP] Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    4,230
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Nice work! Where’s the intake air sensor located? And ambient for that matter? In the vehicle that is.

  20. Jan 25, 2021 at 5:50 AM
    #20
    rdump

    rdump Member

    Joined:
    Aug 14, 2020
    Member:
    #337689
    Messages:
    10
    First Name:
    Richard
    Colorado
    Vehicle:
    2016 Tacoma TRD Off-Road DCLB
    Icon suspension uplift Wheels of moderately larger size
    I haven't actually checked on the truck, but the 2016 service manual screen cap says ambient sensor is where they usually are. Behind the grill, in front of the radiator, about midway up on the drivers side of the center post pair.

    Intake air sensors have to be right at the intake for ECU computation purposes, downstream from the air cleaner. Haven't found a diagram yet.

    Last edited: Jan 25, 2021
