OBD Fusion Dashboard Swappin' Thread

Unless you have a tune that will lock it up. I have the KDMax with 3rd TQ lockup



I understand the Taco does a partial lock up in 3rd as standard (which I’ve never seen on OBD), but you’re saying the tune enables full lock up in 3rd (do you have a screenshot of OBD showing lockup). Is this standard with the tune or special request.
Furthermore are there any negatives for doing this; ie why didn’t Toyota include 3rd lock up…



Double up some of the gauges, that’ll save space… make them transparent and over lay them.

Have you tried: Menu>CalibrateDeviceSensors



I'm still using the same one you quoted. It already does more than I need.



That's a great idea but I've kind of gotten used to what I have. I appreciate the explanation which may pull me into playing around with it again.



I need to try this again, it's been a year or so, and last time new iphone didn't like the files.



Does someone mind sharing a file for a more current model iphone(have 14 pro) dashboard?

thanks



Got bored with my current setup. Or perhaps always looking for that optimal setup.

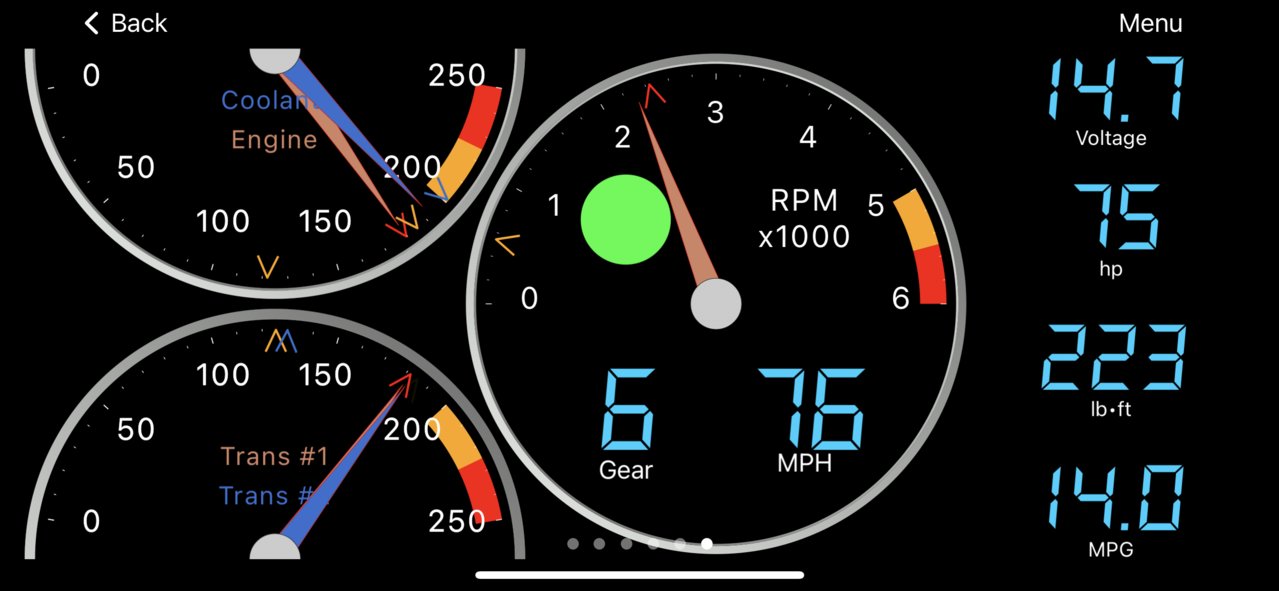

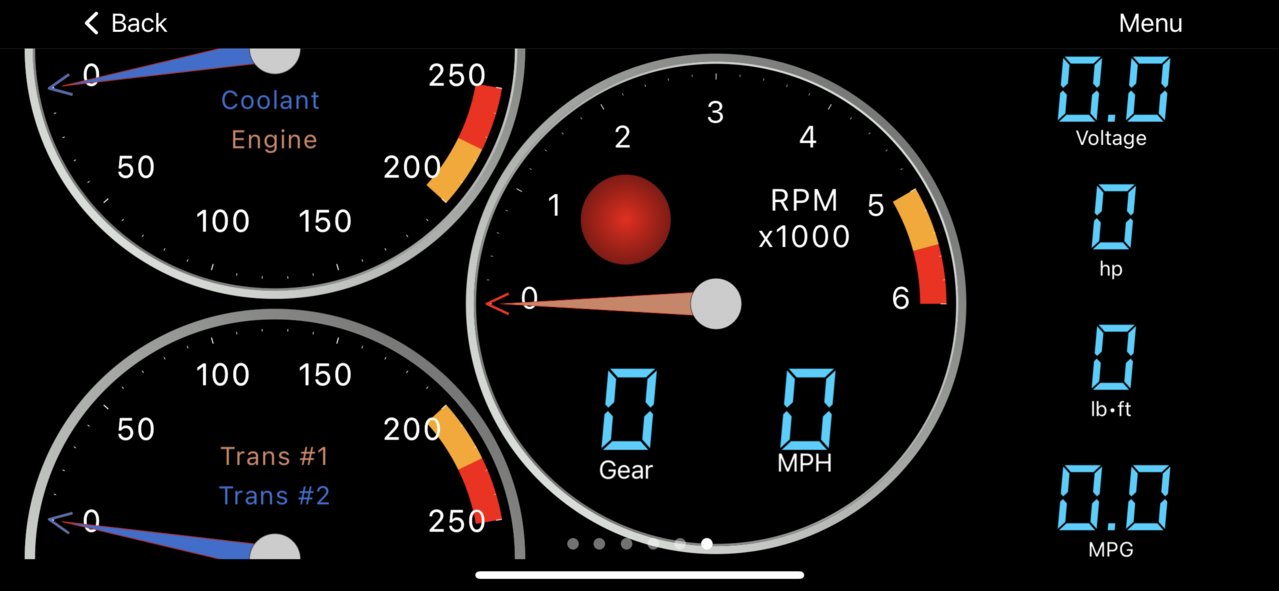

So this one’s a bit different. The two gauges on the left are actually double gauges. Needles are different colors so we’ll see what it looks like once I get some real-time values. Kept the classic red-dot green-dot for the torque converter lock status.

I thought about varying the needle style on each gauge. You can do a ‘fill’ instead of a needle. So you can do a wrap around fill, and a needle from two overlaid gauges. Meh…. Maybe tomorrow.

I really wish you could do larger than 100% gauges. You could get some good sized gauges and center them in a corner and have needles track 90 degrees.



I can share the one I just posted if you want it.



thanks, that would be much appreciated! Can you link Dropbox or DM me your email? I’ve only done this once and think I need that file right?



Great idea with the overlay dials/double needle I may need to have a play

Would you mind sharing the setup for your tc lock up status, specifically how you got the graduated colour. I have the dot but just solid colours.

I observed the hottest temps ever in my trans oil pan the other day, 203’f, I wasn’t even towing! Had about 30 minutes of stop go heading up i17 from Phoenix to Flagstaff in 110’ heat. Having a fan would have definitely helped.

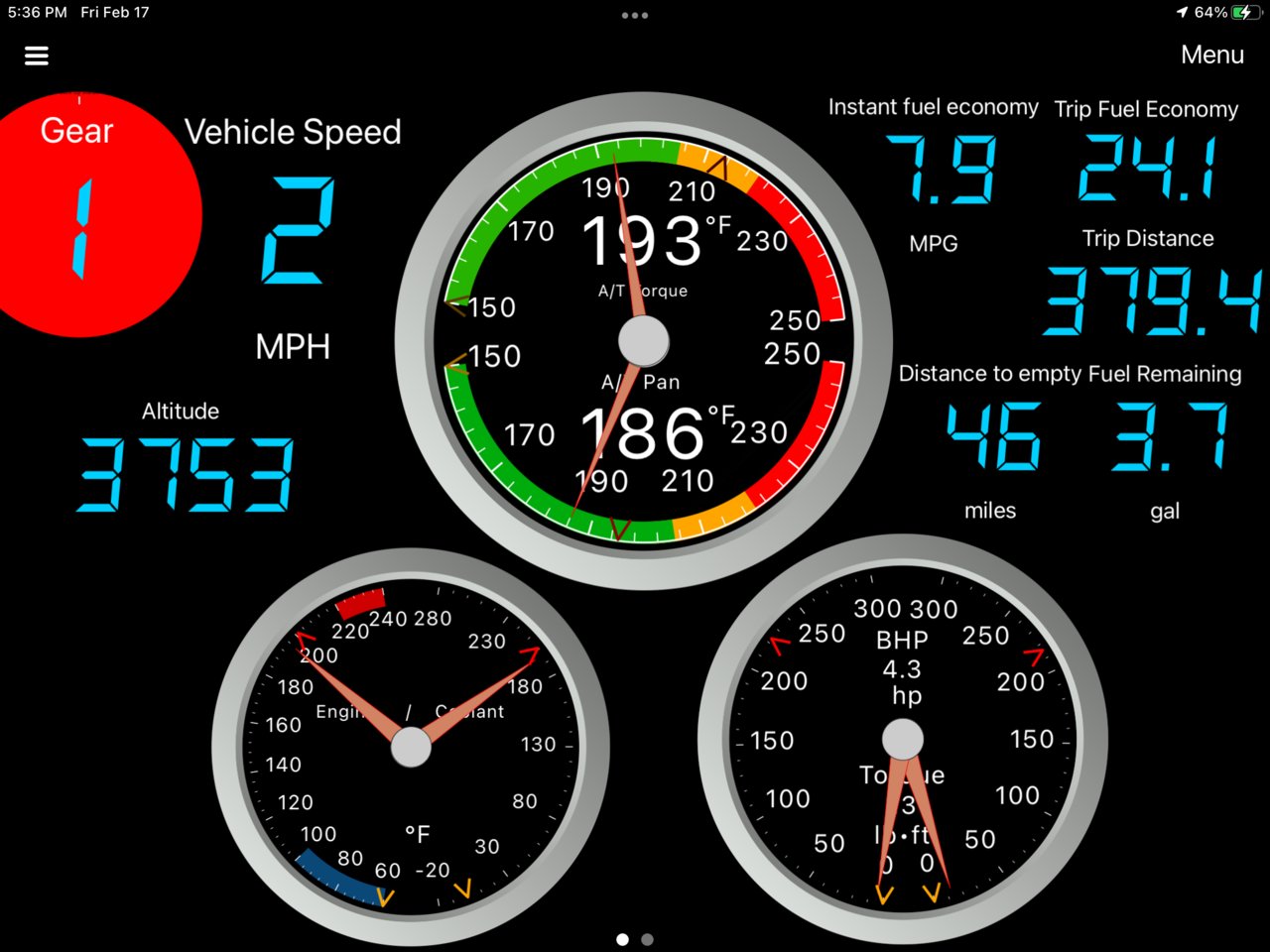

Here’s a pic from the morning commute. I’ll get a Dropbox link up in a bit. I also wish the min:max markers were separately enabled.



Link to dashboard above:

https://www.dropbox.com/scl/fi/37p5...4249.stg?rlkey=ilcidp5tdjabcbxaf0obnposh&dl=0



That’s a good question. It’s been such a long time since I created that one. It’s probably a gradient setting somewhere in the style. I’ll take a look tonight.



Thank you, I’ll give it a go this weekend.



I just found this thread, thank you all for contributing these great ideas!!



Enjoy the fun, it’s another learning curve.



I still can't get this to work. I have your file in the Import section of my dropbox, my app is seeing the file and importing, but it is not displaying (I read your first post about to select and deselect).



What version are you running? I’m not on the latest and that *might* be an issue. I’ve found that upgrades sometimes break things.

I’m on:


Also, I went and looked at the instructions I wrote and they are now 3 years old. I toyed with the import process and it’s a little different now. It looks like you follow the ‘next’ options until the end. I’ll see if I can update my first post with the latest instructions.



Thanks, yeah my version is different so that may very well be it.
