OBD Fusion Dashboard Swappin' Thread

Yep, I had to select "use simple dashboard" to even get it to download. I really like how you and Rush T have your gauges set up. I can't find where the AT Temps are to create my own dashboard..... that's my main attraction to this whole thing.

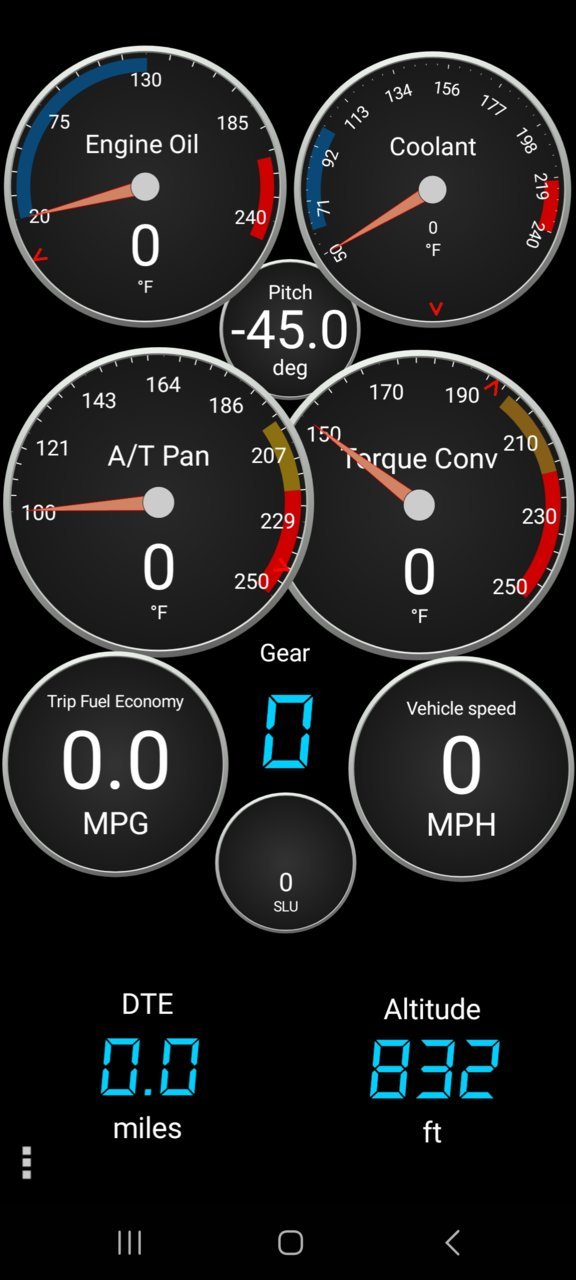

Here's what I've come up with. This will be displayed using my Galaxy S21 so I had to be mindful of what's displayed. I wanted to put info on there that would tell a story if I Screenshot a situation. I'd like to figure out how to add the red or green behind the gear indicator but the SLU should tell me the info I need.

Let me know what you think and if any of the limit levels look out of wack.



that looks great. I tow a 5100 lb trailer and that’s almost identical to what I have



@rybern Looks good, I have the same limits for the trans temps too.

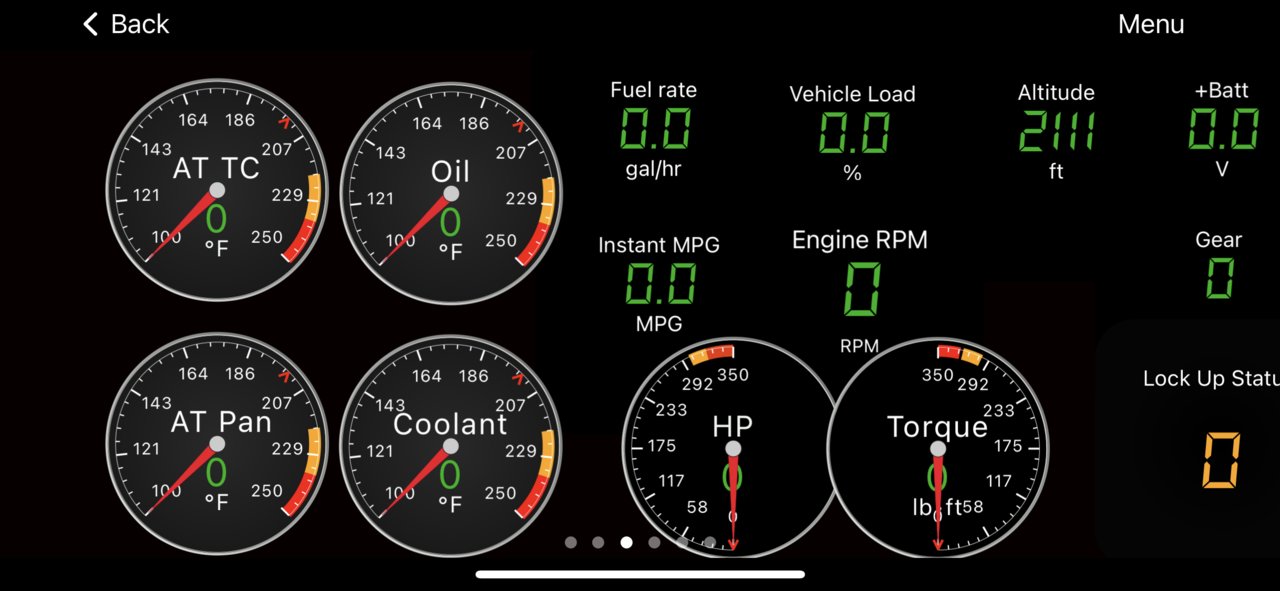

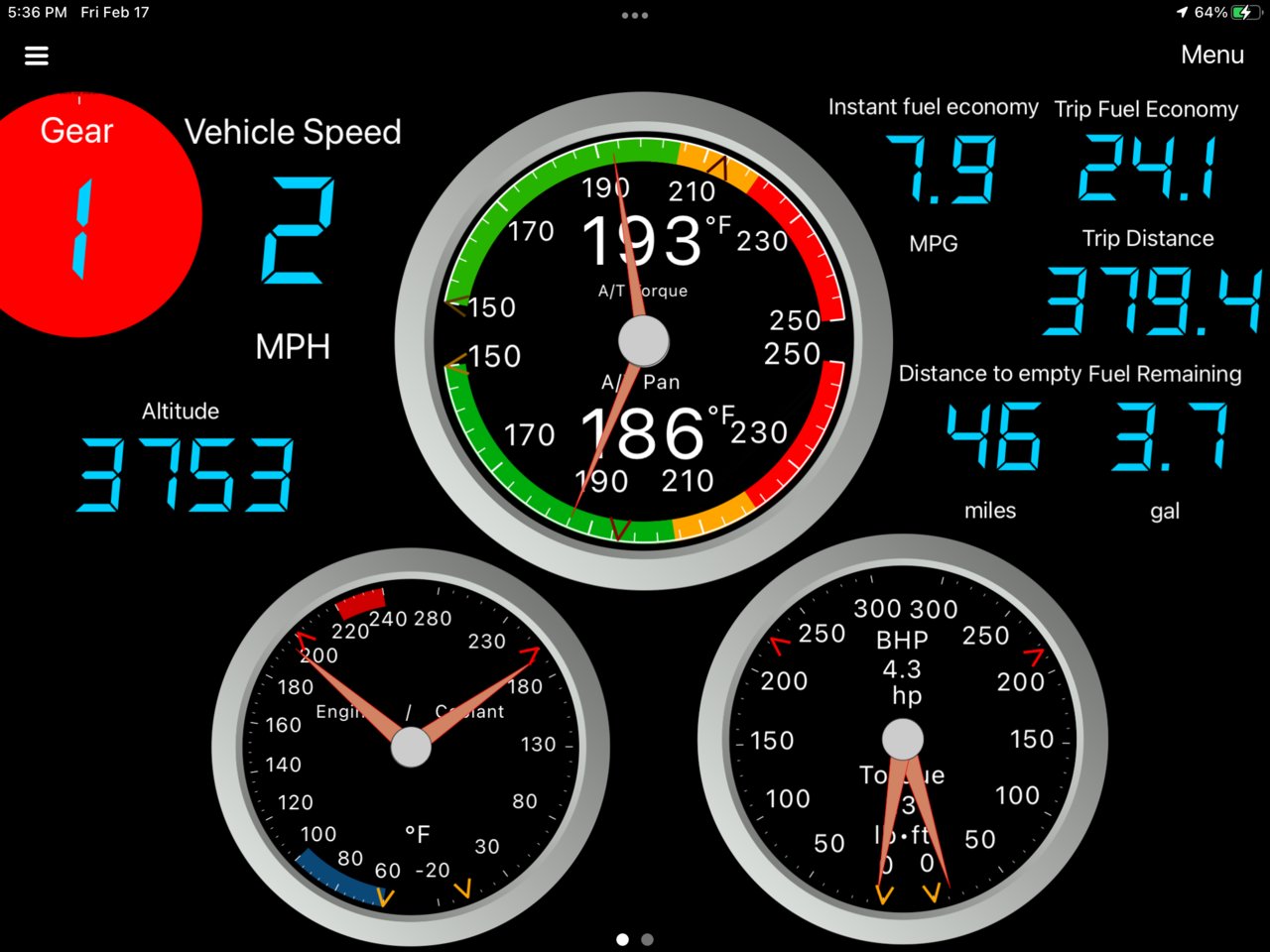

Seeings as we’re doing show and tell… Torque converter lock/unlock behind the gear top left.



The little red high limit marker on your pan temp is crazy high (245’), that can’t be correct?

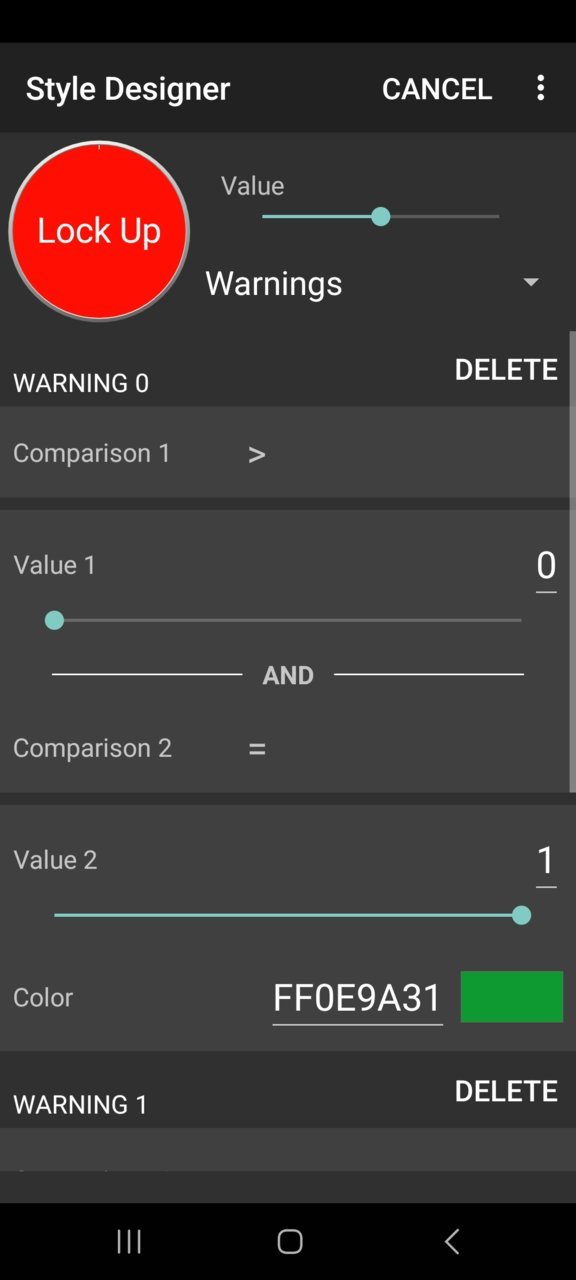

To do the red green for lock up status just do a regular dial and set all frame visuals to zero then set warnings to green and red like below…



Thanks for the feedback guys. Mark, your right about the tick mark.... I didn't really know how it even got there or what it's for. I was able to turn it off. Thanks for the "how to" about adding the TC lock/unlock. I'll add that in the near future.

I removed "Pitch" because I didn't find it helpful due to not providing accurate info. I plan to add a tach.



Do you use "SLU" or "Lock Up Status" for this? They seem to provide similar info.



Lock up status. TBH this is the most useful feature of everything, for me.

I also have a warning set on the tc oil temp set at 220 so if I go above that the dial turns red… just in case I’m not paying attention!



SLU (0) - fluid coupling.
SLU (1)-slipping state of the torque converter (modulating torque converter clutch)
Lockup(1) - torque converter is fully locked.
If not tuned, use Lockup.



@Vlady See below. This is my understanding of the two and please correct me so I can learn.

Simplified version. The ECM tells the SLU to lockup the torque converter.

Knowing the status of the SLU can aid troubleshooting.

So one way to think of it is that SLU is input information and lockup status is output (result) information.

I monitor lockup status



I greatly appreciate the clarification from you all. I spend some time tweeking again in the near future. So far, all gauges work except the gear status; I removed and re-added it this morning and will check status on the way home.



I think I got it. I'll find out on way home. This pic is not connected to truck.... not sure if red is supposed to be red now.

I may move gear selection on top of lock up once I get it all working.



There are tables in ECU to turn SLU On/Off and Lock/Unlock TC. Those are speed/throttle related.
The reason I mentioned SLU is if SLU is Off(0), AT2 temp (TC) will rise. Some folks believe if you pin the thermostat, the tc temps will go down. SLU has to be On(1) for TC temp to go down.



Thanks! Good info!



Who has gotten the oil temperature to work on an early gen 2? Like 2007? I never had luck finding it

thanks



I'm starting to get this figured out.

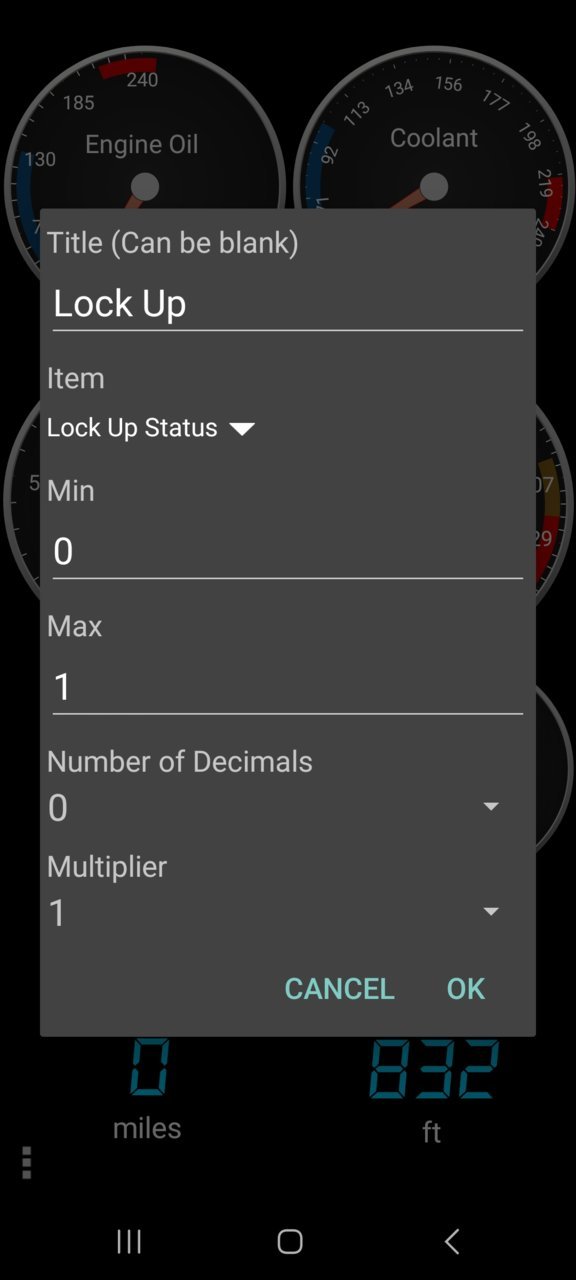

Engine oil, Coolant, A/T 1(Pan), A/T 2 (T/C), Speed and Altitude all seem to work good. But I'm having issues with Lock Up Status showing black back ground a lot of the time but does show green some and red some. Here's screen shots for Lock Up Status is someone sees something wrong:

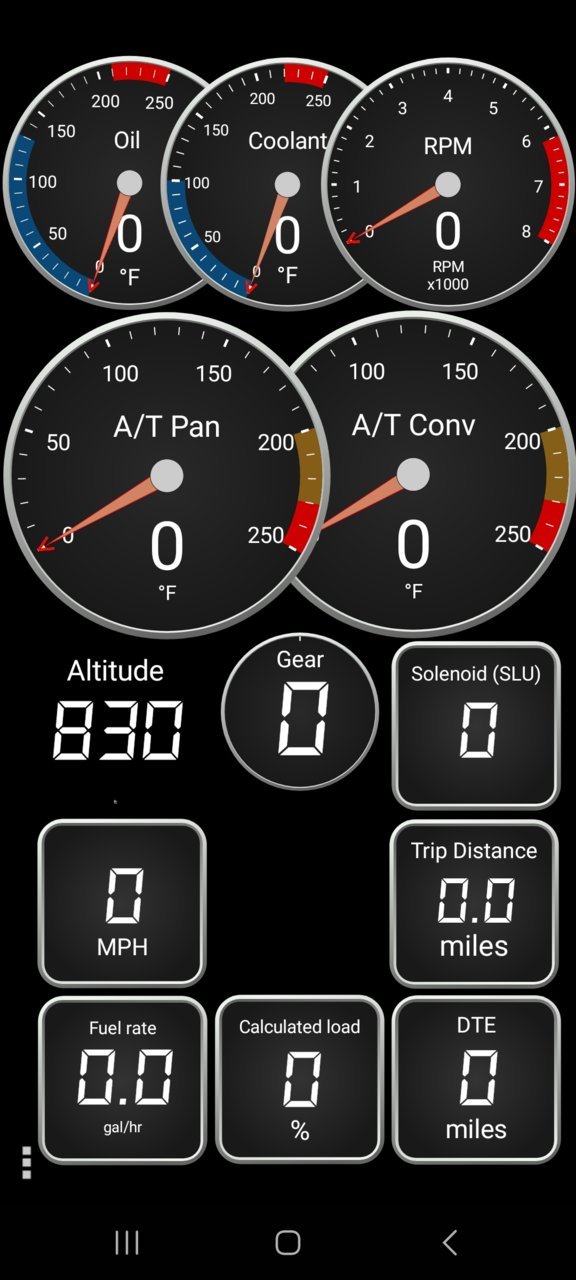

Here's my latest. I made trans temps a little larger and moved the tach up with engine gouges. I also bumped up my trans temp ranges so that the red starts at 230 deg. Lock up status shows red or green(but sometimes nothing behind gear status). I have one more empty spot. This is displayed on my Galaxy S21 so real estate is limited. This app has been super helpful and I really appreciate all the help from everyone on here.



10 hours later and I'm still trying to copy this dashboard This is a great thread that needs a couple of bumps! Any new dashboards to share with the community??

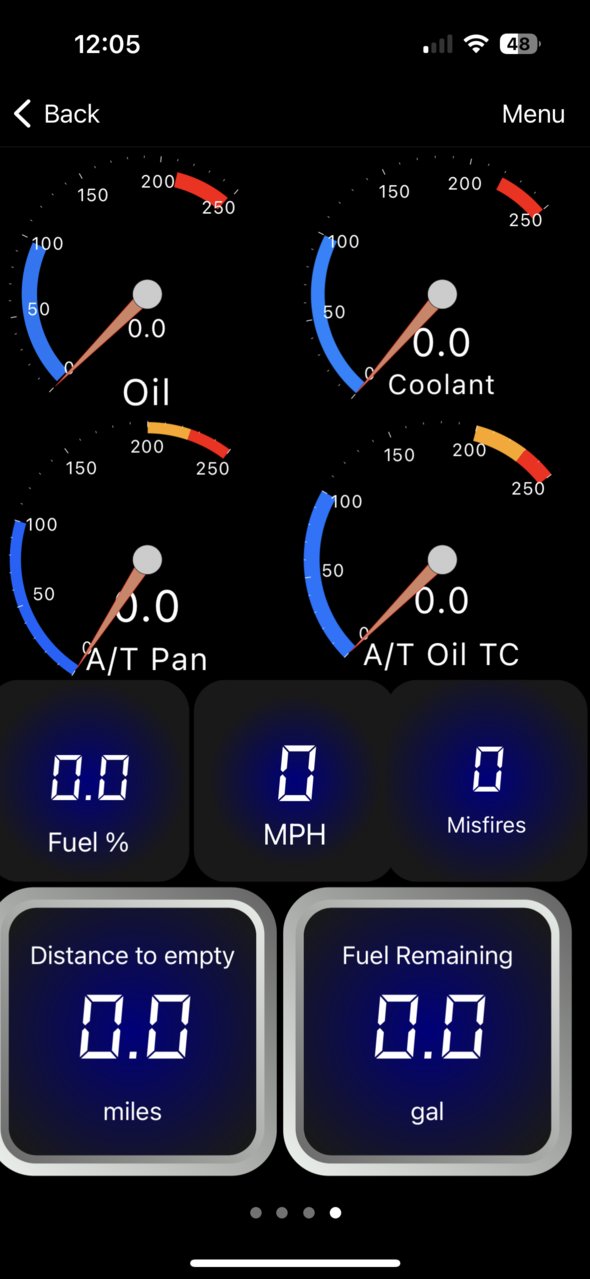

It's sad... but it's a start!! Some of you guys are freaking Michelangelo on the dashboards. Not towing anything but just curious about the numbers. I'll adjust the ranges as I get some data. This is a fun little app with BIG time information.



Everything looks good compared to mine.

Just in case you didn’t know Lockup only works in 4th, 5th & 6th.
