OBD Fusion tips and tricks

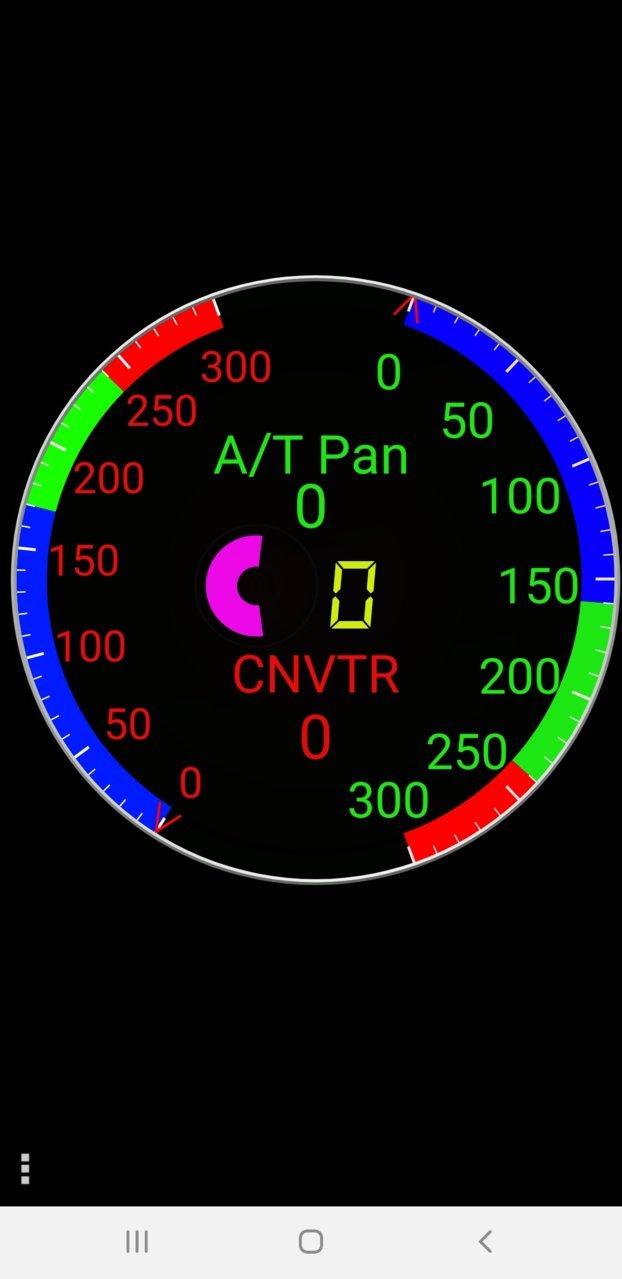

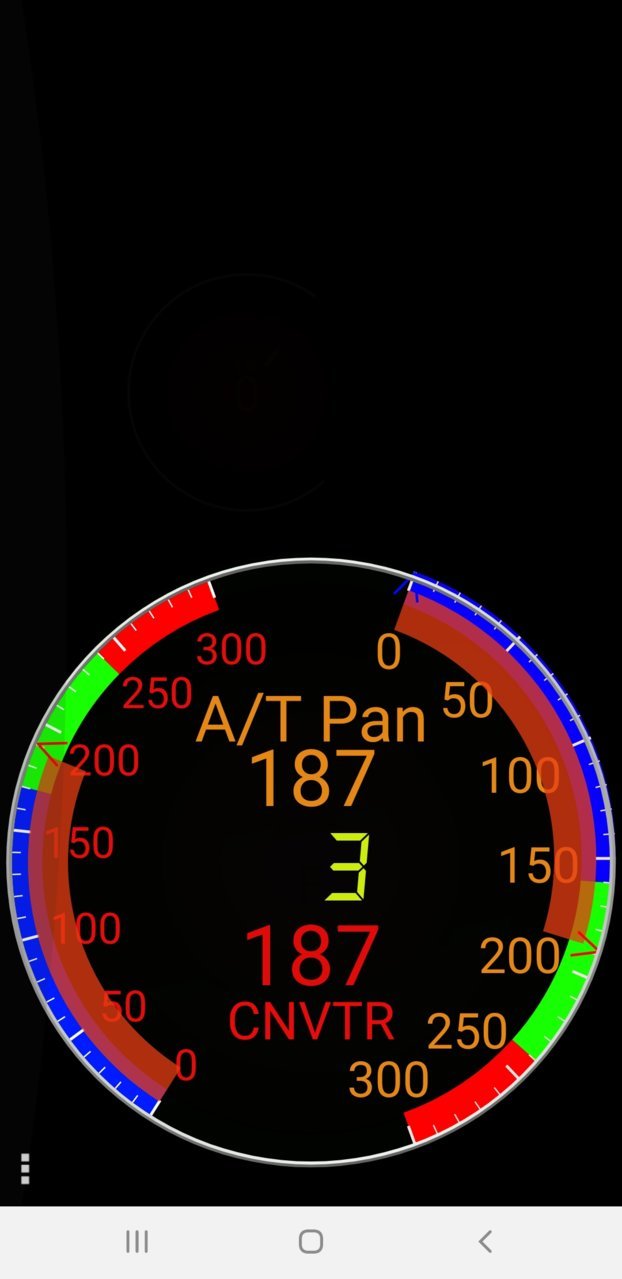

Here's what I am working on, ignore most off it, but I couldn't figure out a color combo for the TC, so I made it disappear when off and show up as a C when locked.


I'm still working on colors and such. On my phone using while driving I can't see the circle that shows up on the screenshot.



Can you change the PID selected there? I don't have a screen that looks like that.

My next screen is display type. I'm on android btw.

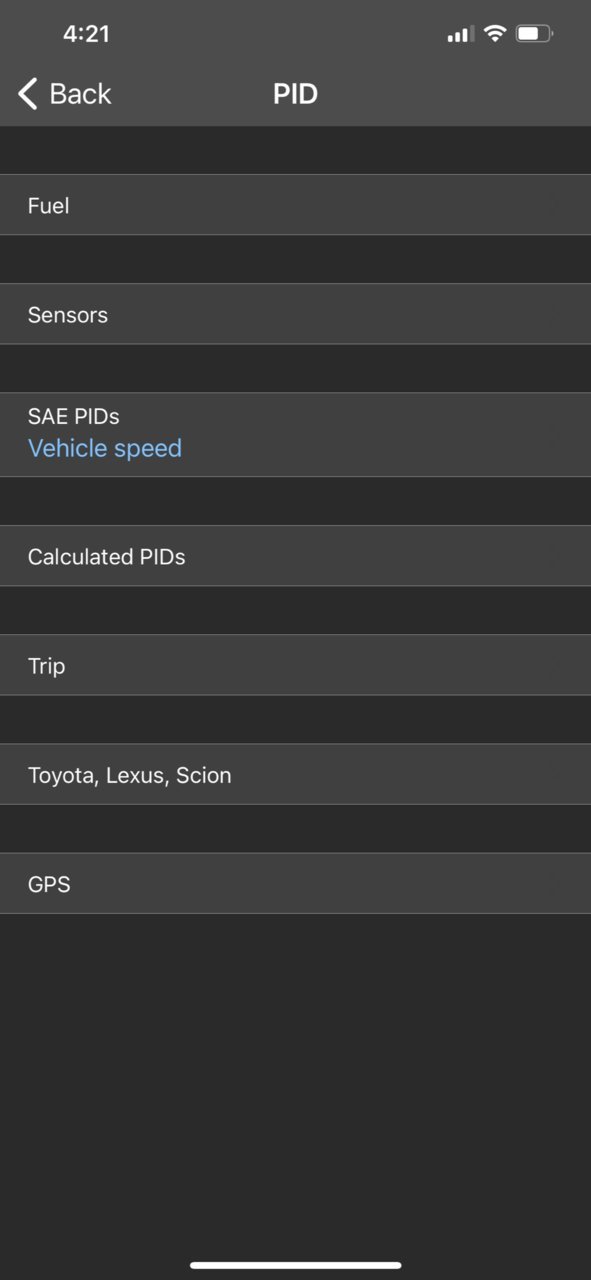

Then the next page is this and I click on SAE PIDs. That’s where a very large list of things I can choose from. Nothing that says transmission or shift.



Don't go to SAE PID's.

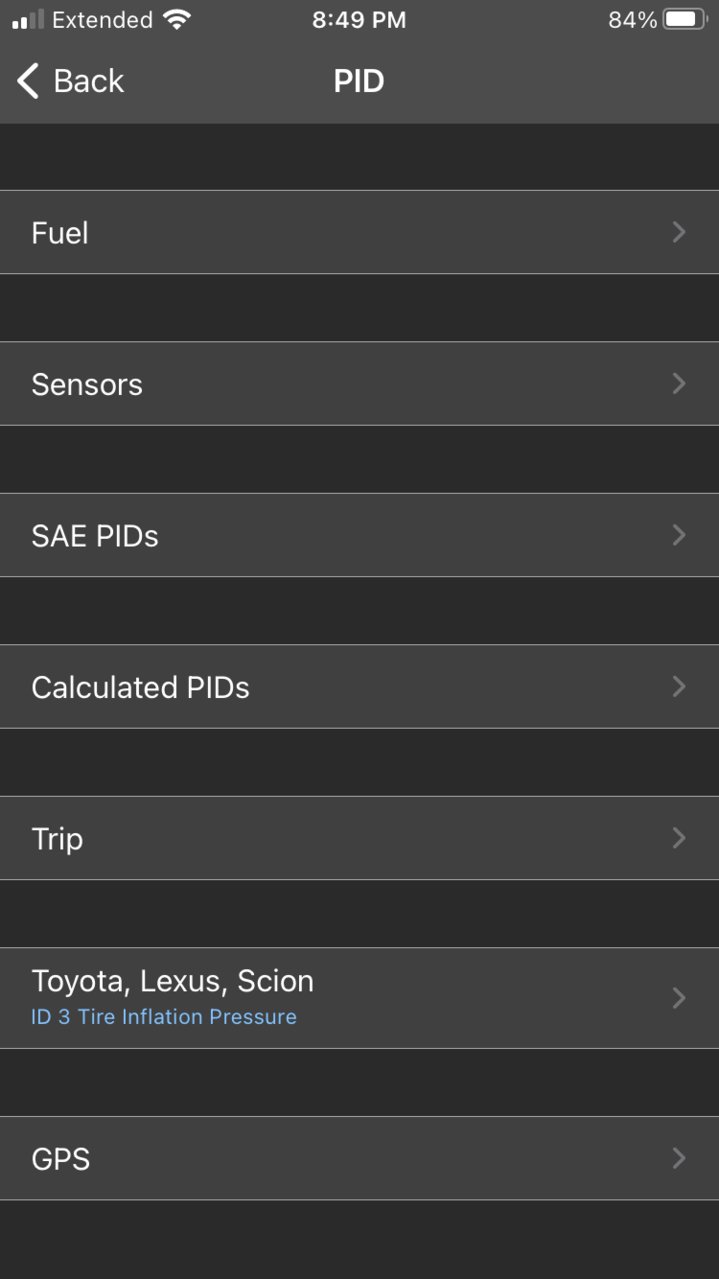

Can you press Toyota, lexus, scion there?



I found one that worked. I’ll take a picture of it in a second and send it to you. Pretty cool. Thanks for your help man. You were right it’s not easy.



You can make the TC be a solid dot if you want. You just need to set the range to cover 100%, and also set the bezel thickness so that it’s full rather than a ring.
But if your goal was that C, then:



C was my goal. I kept forgetting what color I had for what and I couldn't make up my mind what color made sense lol. I'm dumb, so when the C pops up, even I can't miss it.

It works properly, it's off cycle on my screenshot, but I was testing at the time before I got it settled.



Sup fellas, didnt know if anyone has had this issue before.

Ive got the 2005 advanced diag purchased on my Iphone so i can read A/T temps and such.

I got onto my ipad and restored purchases so i could have the same level as access as my phone.

I have like 25 less parameters i can find on my Ipad vs my Iphone?

Anyone know whats going on? I should have the same # correct? annoying because i just want to see the Transmission Temp #1 and #2 on the ipad and i literally cant.



That's an interesting question. I guess it depends on if the two apps are uniquely different, or if it's the same app and is device (Apple) independent. If separate, I can see there being an 'oops, didn't get one fully updated'.

I don't use an iPad for OBD, so don't have any perspective to give you.



Yeah its strange.

Just checked both devices and both are version 5.16.0

I emailed the support. Hopefully i'll have an answer tomorrow.

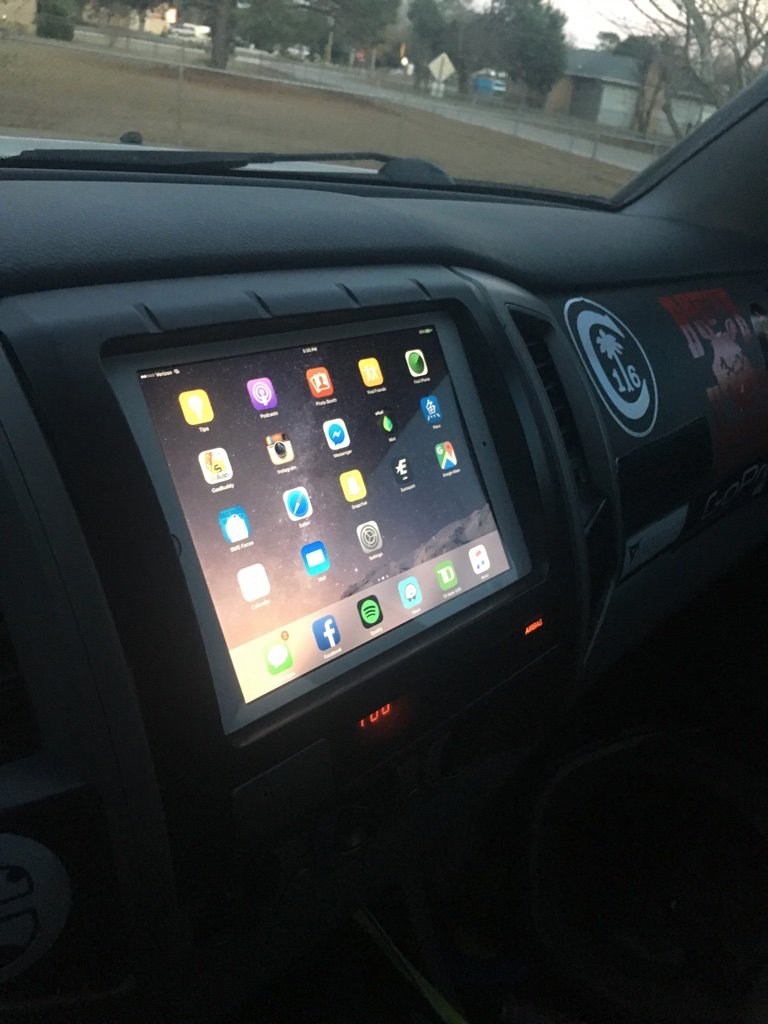

I have my ipad intergrated into my 2nd gen where the radio normally is so it's super helpful to see all the data nice and large vs on my phone.



This post is over two years old. I would like to know how you were able to create guages with the three colors based upon the parameters per guage. Thanks!



Can anyone confirm an ODB dongle that will read the TPMS system with OBD Fusion?

I have this one.

$35 LELink Bluetooth Low Energy BLE OBD-II OBD2 Car Diagnostic Tool for iPhone/iPod/iPad and Android. New: Configurable Auto On/Off

https://www.amazon.com/LELink-Bluetooth-Energy-OBD-II-Diagnostic/dp/B00QJRYMFC
And this one.

OBD2 Scanner & WiFi Car Code Reader (2-Pack) – Clears Check Engine Lights – Diagnose 3000 Car Codes - Wireless Car Diagnostic Scanner – Auto Scanner for 1996+ Vehicles (iOS & Android Devices)

https://www.amazon.com/KOBRA-Products-Wireless-Reader-2-Pack/dp/B07BBSH8C3

Neither one will read the TPMS system. I have the enhanced diagnostic purchased for my Tacoma year. I want to be able to see my tire pressures on the Fusion dashboard.



Tpms is on the network D. When you are making a connection, make sure to select Network D.



I read that in a earlier post in this thread. Mine doesn’t show a Network D. That’s why I’m wondering if I need a different dongle?



Do you see Tire pressure monitor when go to Select PID when not connected?

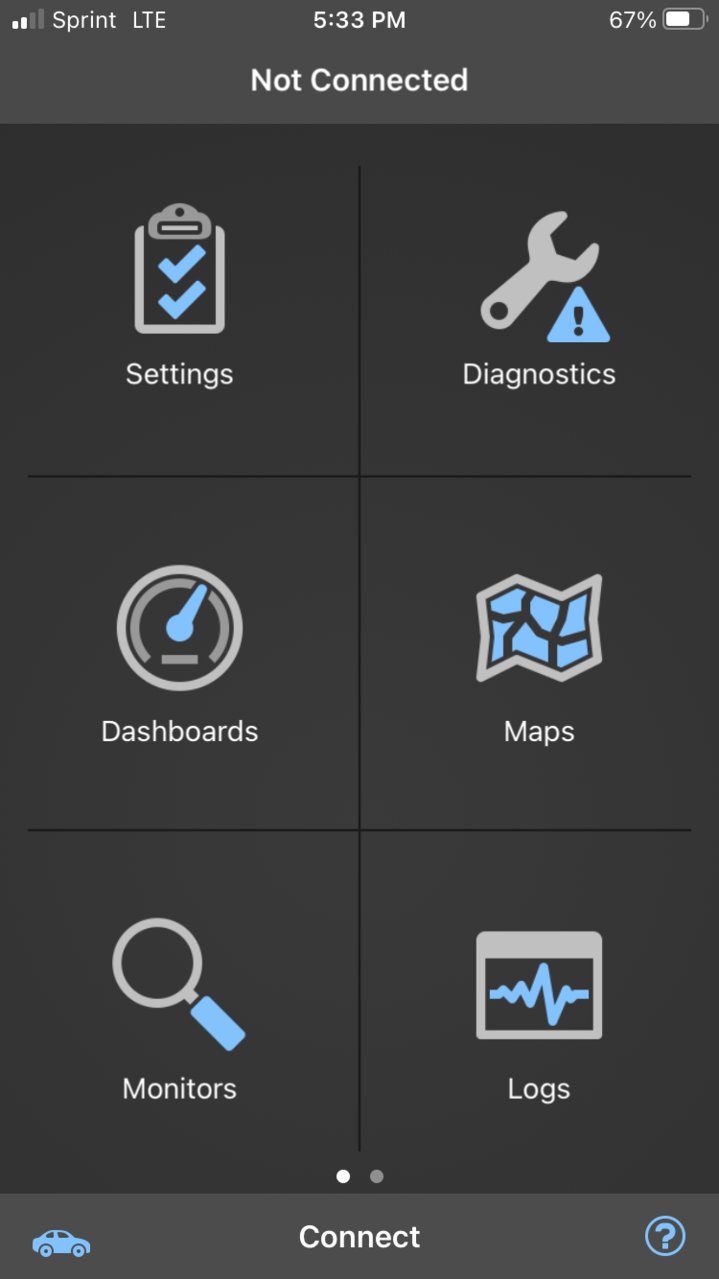

Not sure where to find what you are talking about. I’m not connected here.

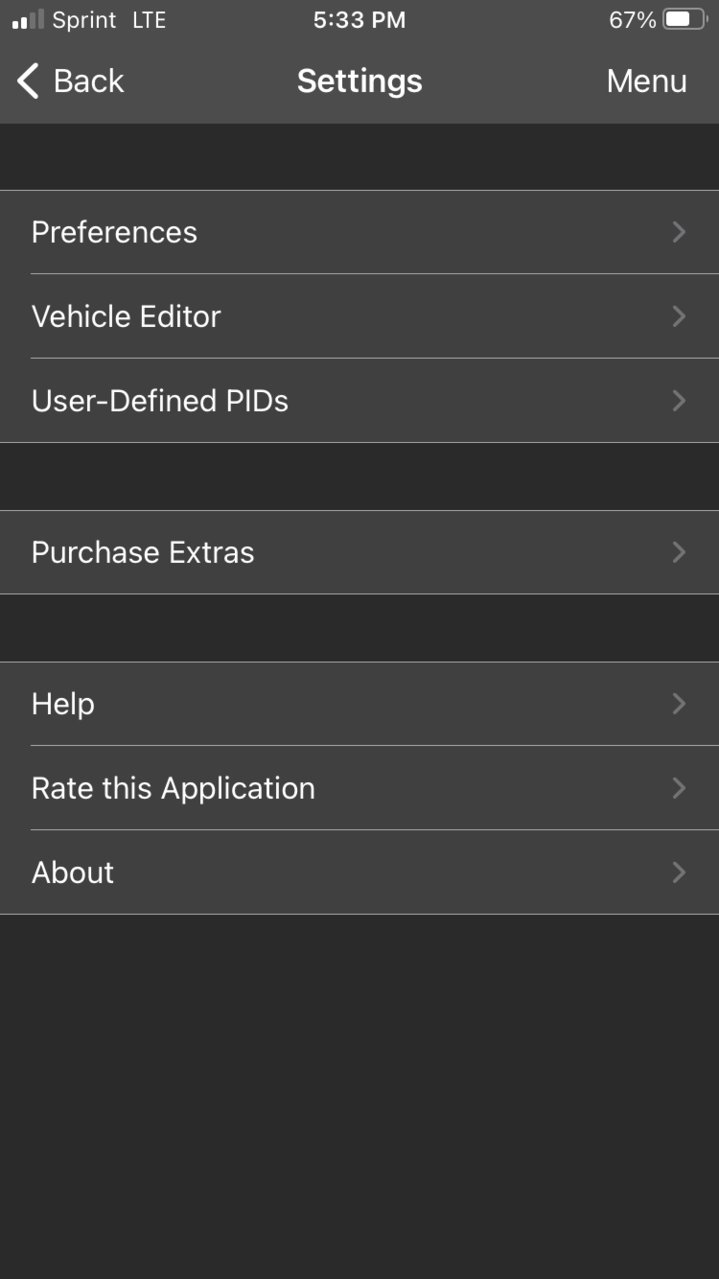

When I click on Settings, I go here.



Where do I go from here?

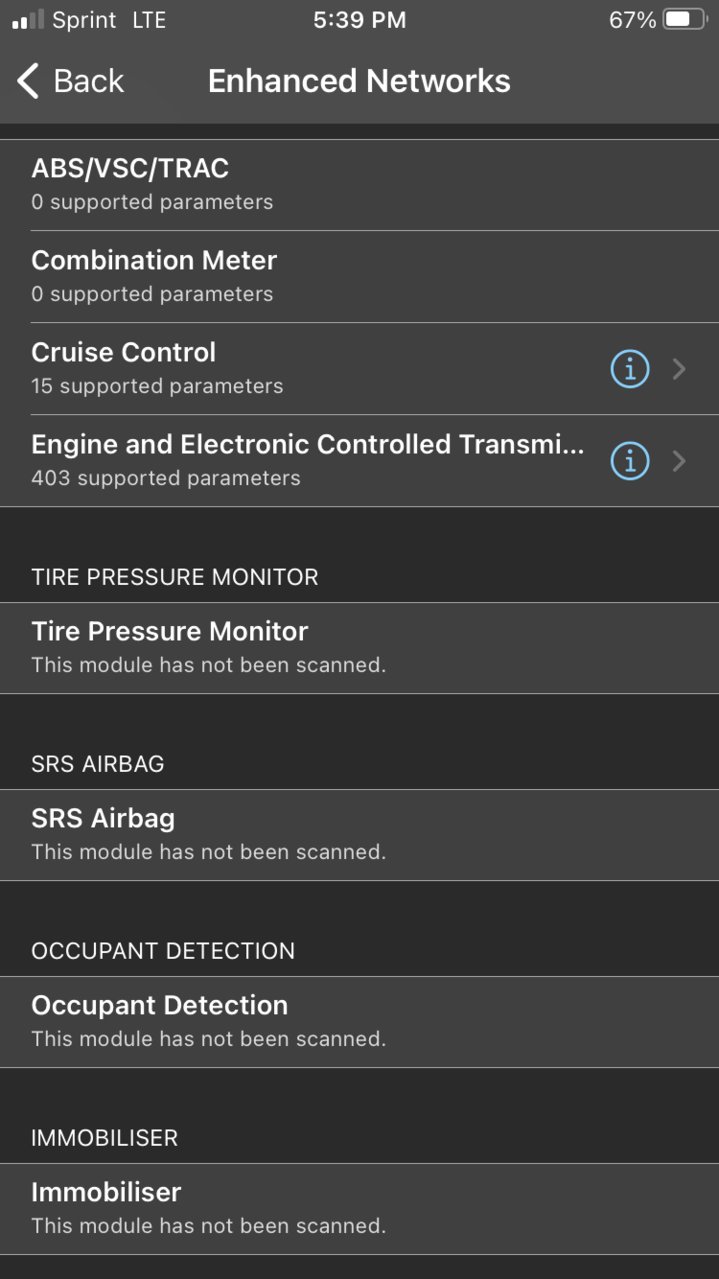

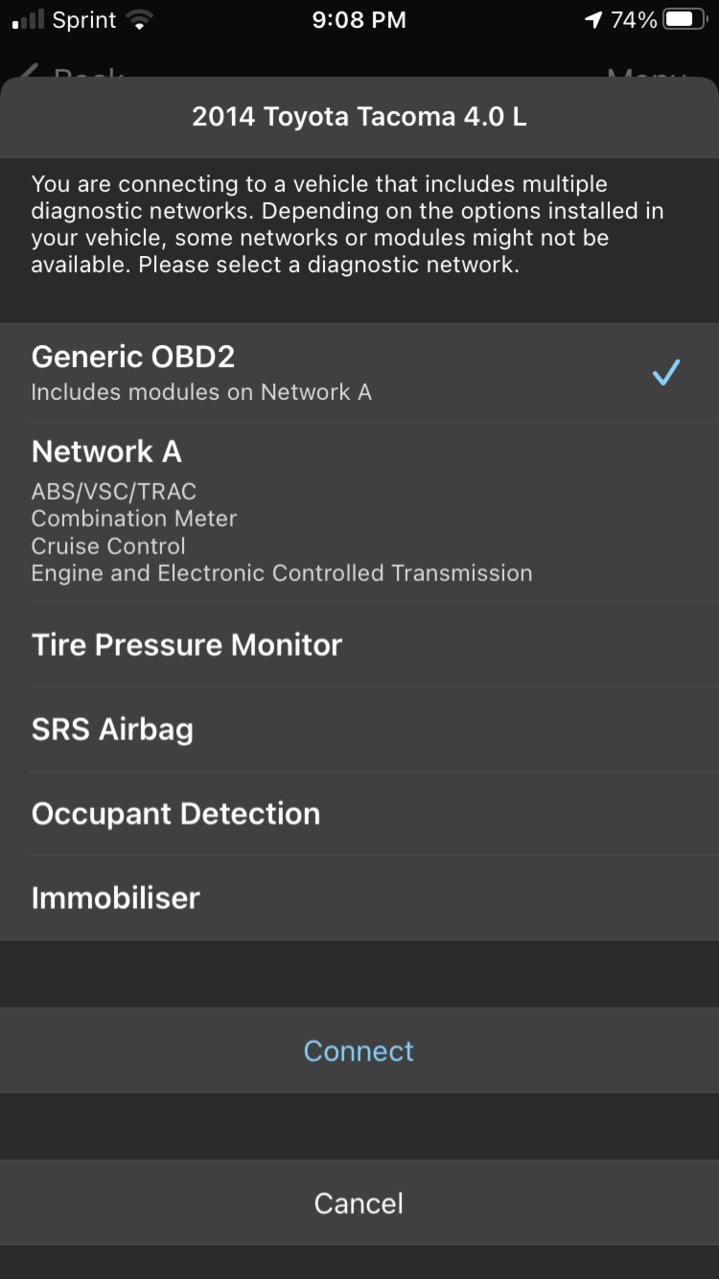

When I click on settings/vehicle editor/view networks I see Tire Pressure Monitor. When I try to connect to that module I get an error.

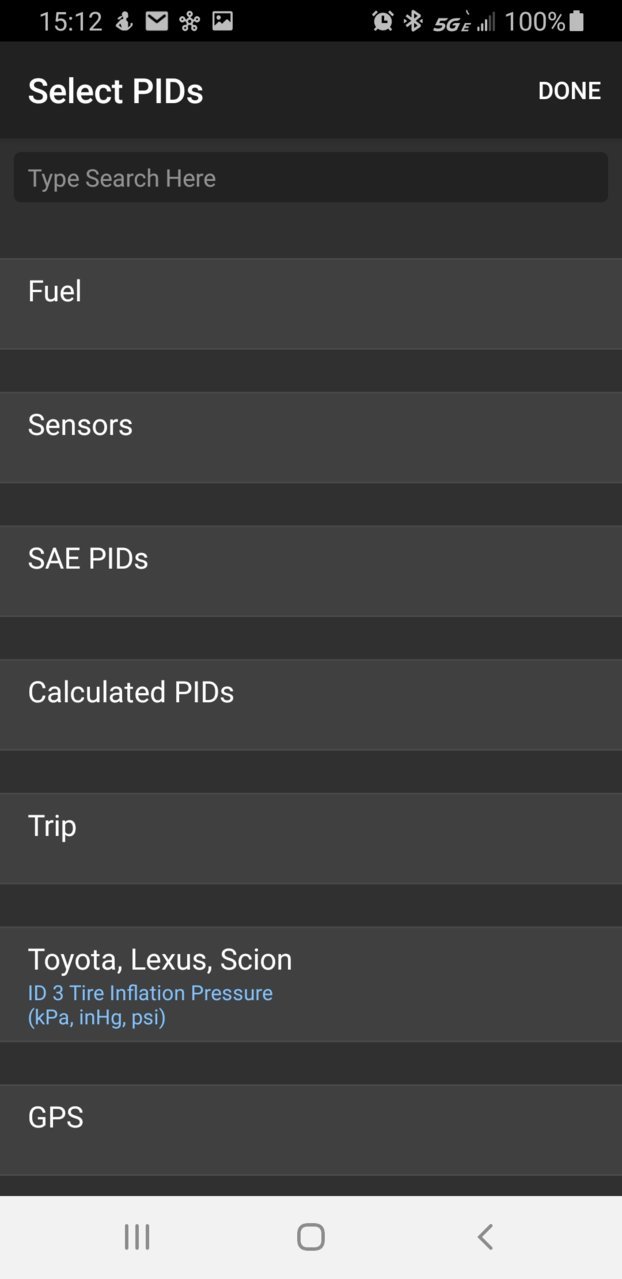

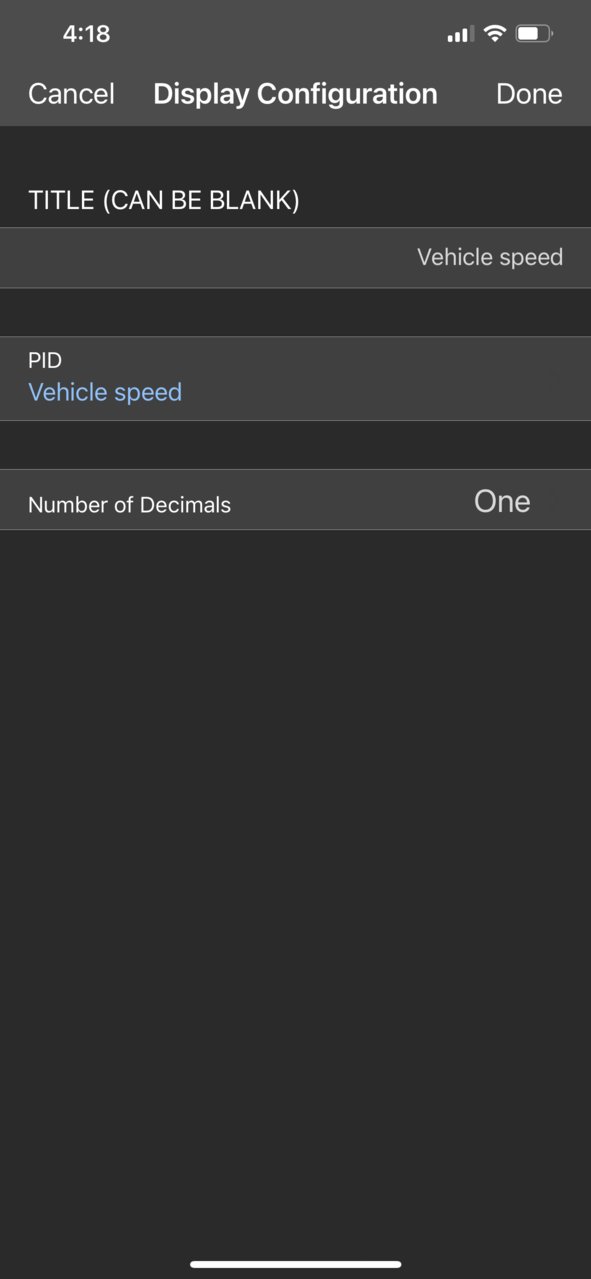

1st screen, go to Dashboard. If you have Dashboard setup, touch and hold any displayed parameter and select Display configuration, then use an arrow down to get to list of available PIDs. Should see your Toyota folder. Look there or type "inflation" in the search field



I have the PID for Tire Inflation.

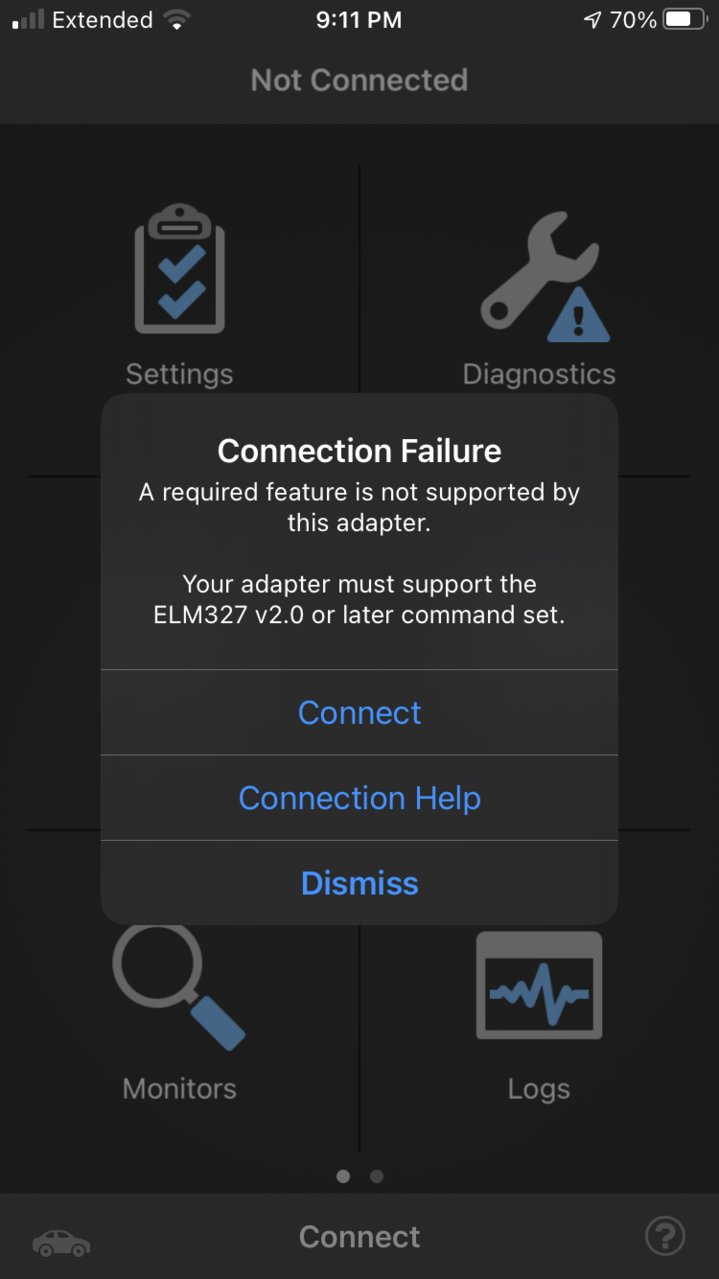

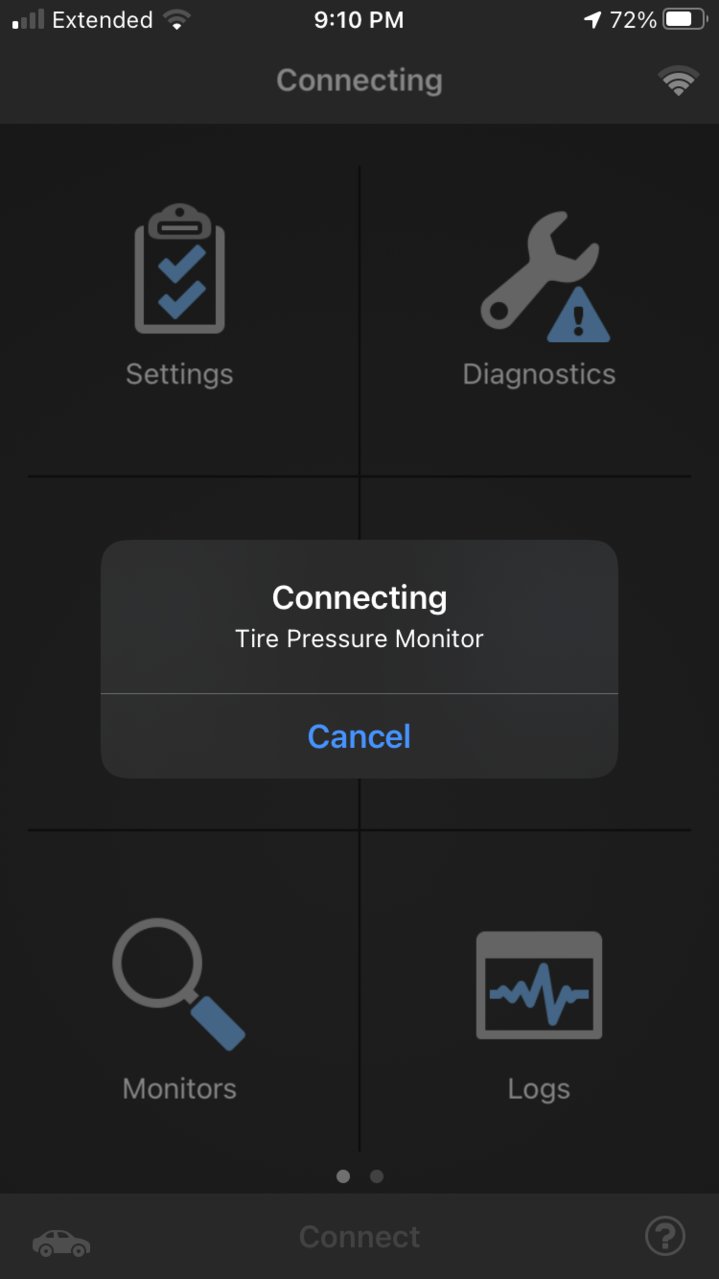

When I go back to this screen, click on Tire Pressure Monitor, and connect these are the results I get.

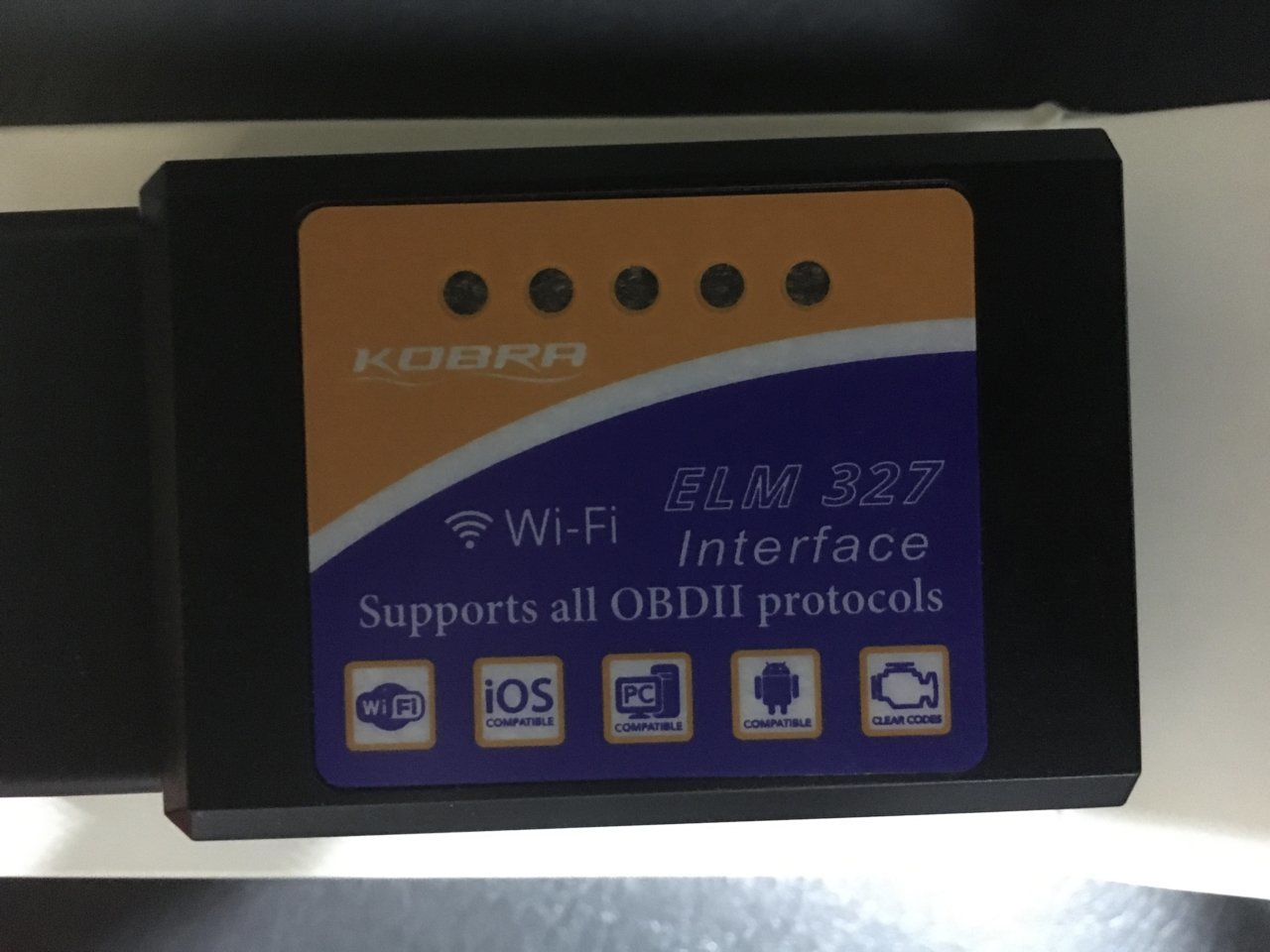

I’m using this dongle as well as the LE Link one and get the same results.
