OBD Fusion tips and tricks

10-4, I still need to tweak. But will do.

This is just as bad as the Grand Tourismo 100% Days!!!



Thank you to all, this is just too damn cool days.

Im stopping here for now. I’ll have to save them for sure. Skeered to lose them!

Done with the 1st, not with the 2nd, and done with the 3rd.

I’ll be adding to the voltage page later. I’m fucking burned out lol



OMG don't get me started..........



Jeff, that game had me by the sack lol.

Until I reached that 100%, it was brutal how much time I spent at home and at friends homes at the most ungodly hours.

I can’t wait to test out the 1st one!

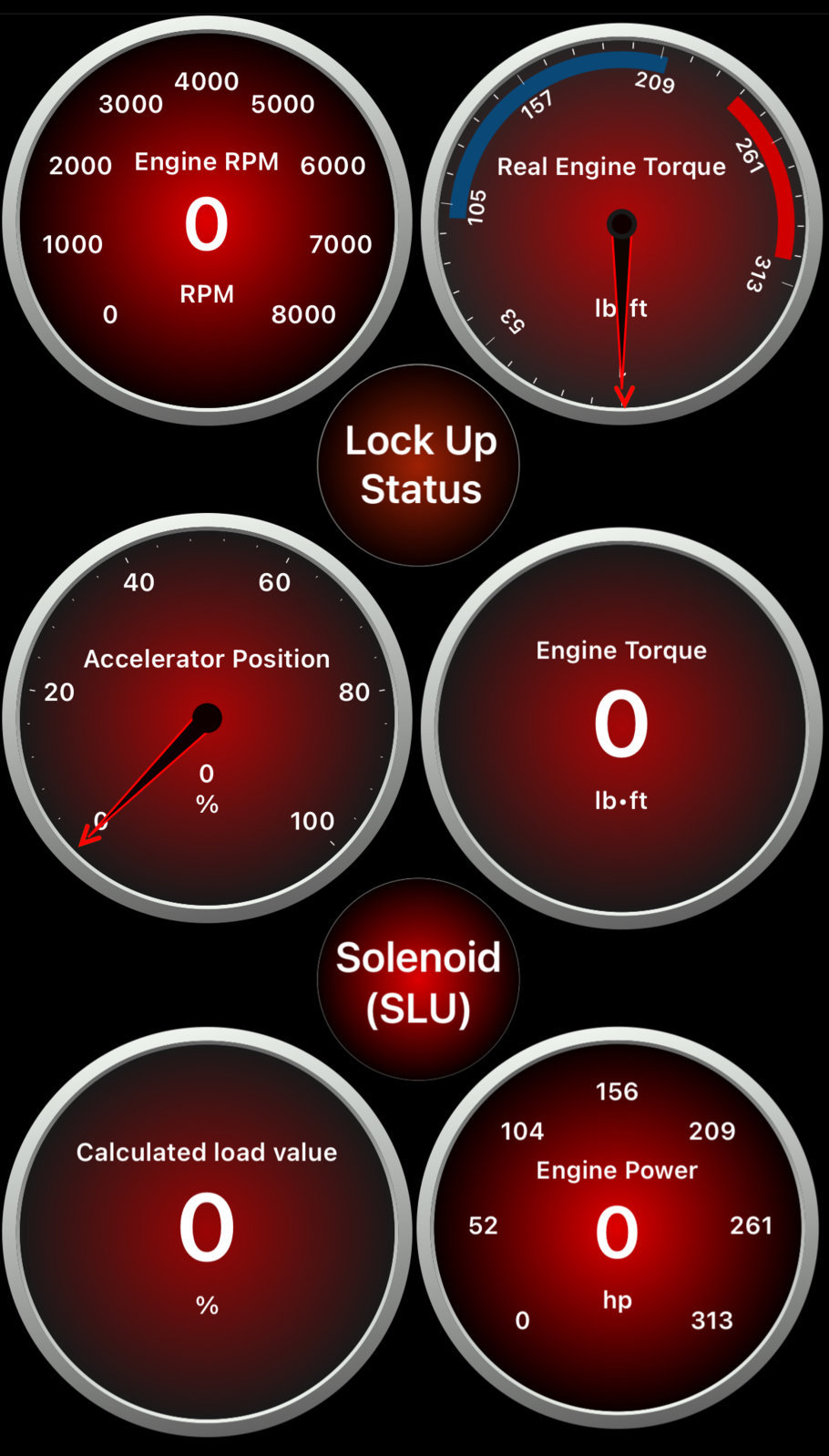

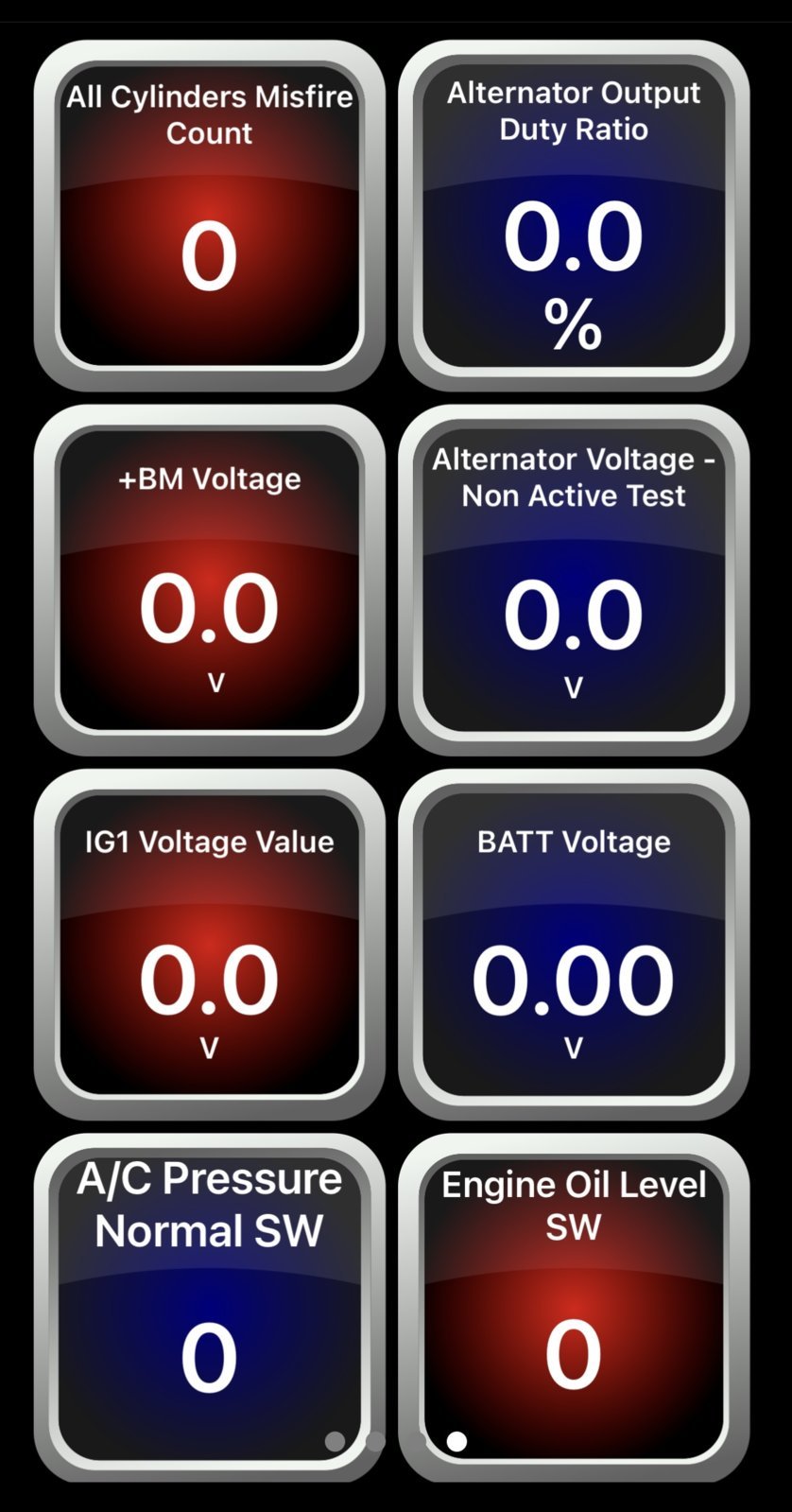

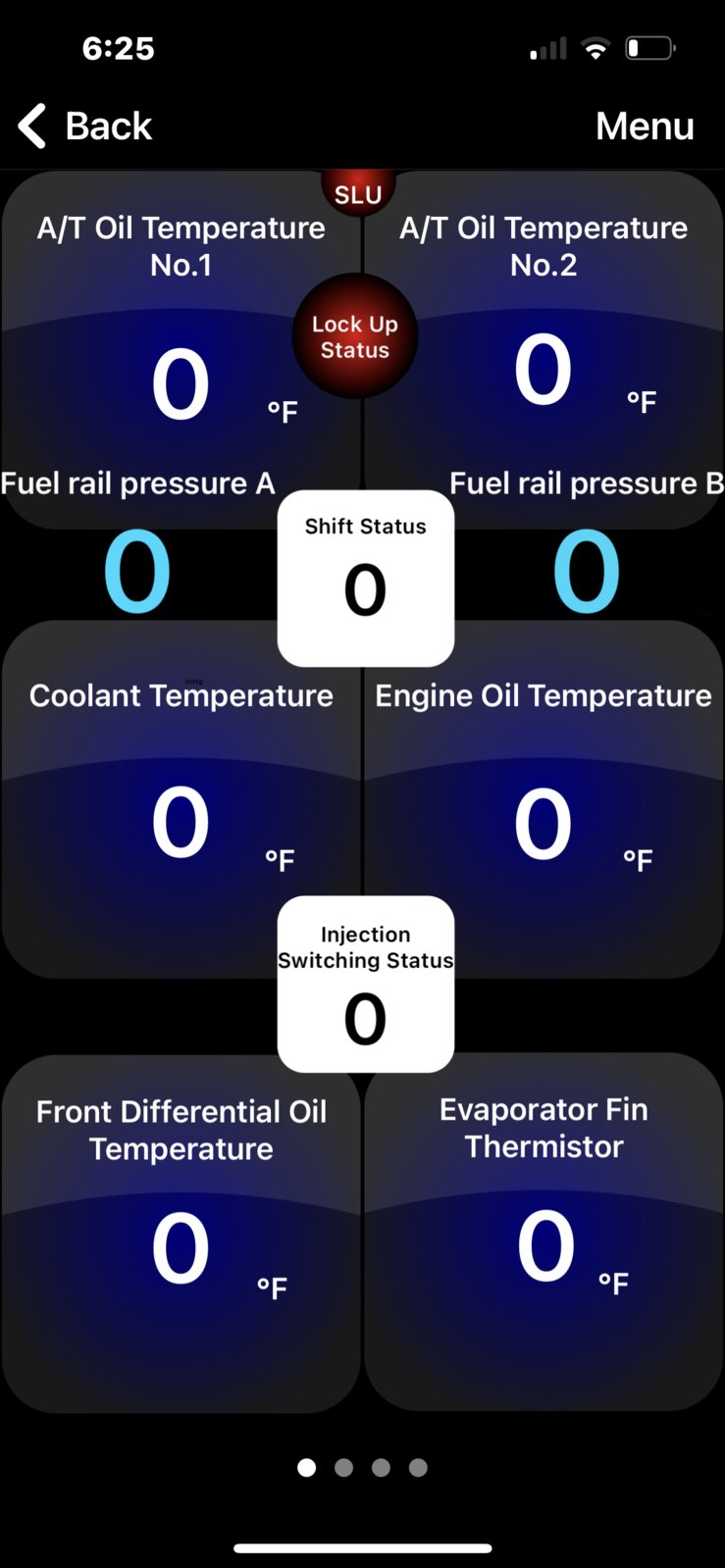

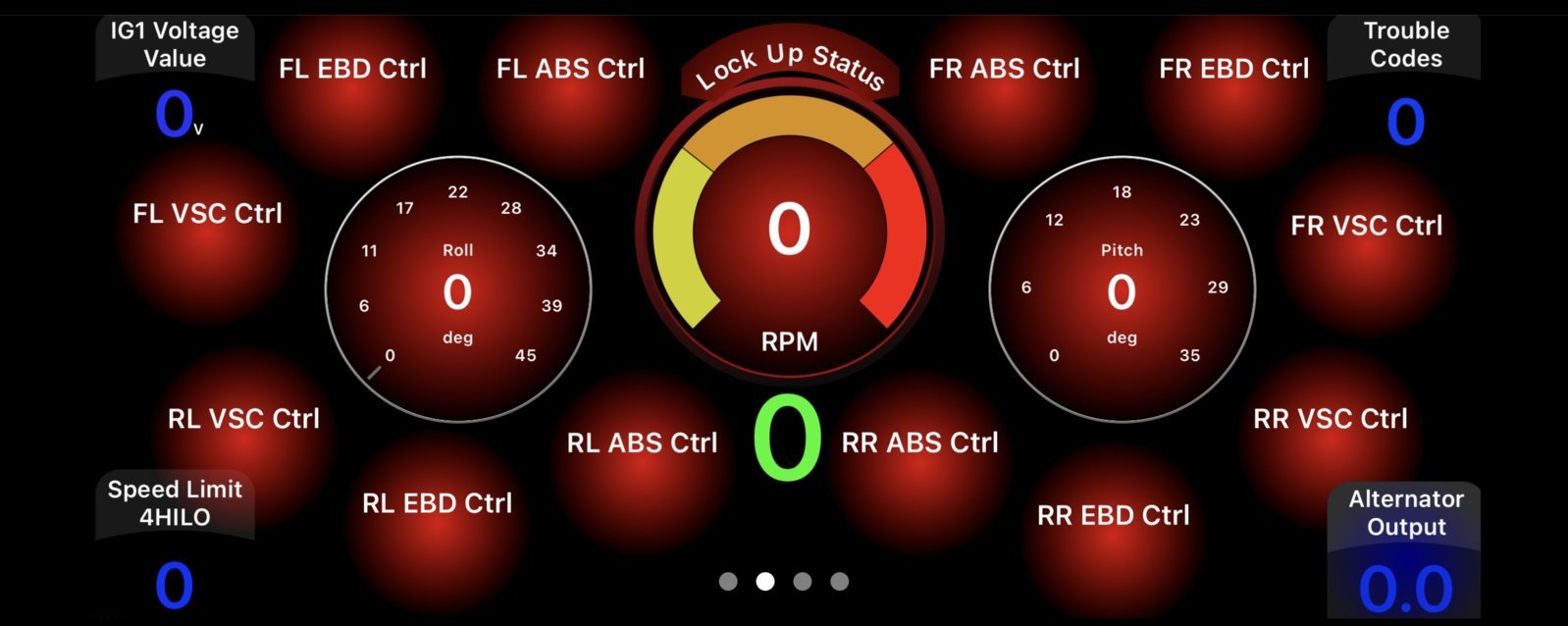

3rd and 4th still need tweaking because I couldn’t get Alternator Voltage to register.



Oil level switch is not going to show anything informative. It will show 0 or 1 if you are out of the oil. Same goes to most of switches that have On/Off status. Keep it to most important items that don't have indicators on the dash.



I found that out yesterday. I originally took that pod off , the. Reinstalled. Good to know it will only register 0-1. Now I gets it.



Alright fellas, I’m officially at 100%

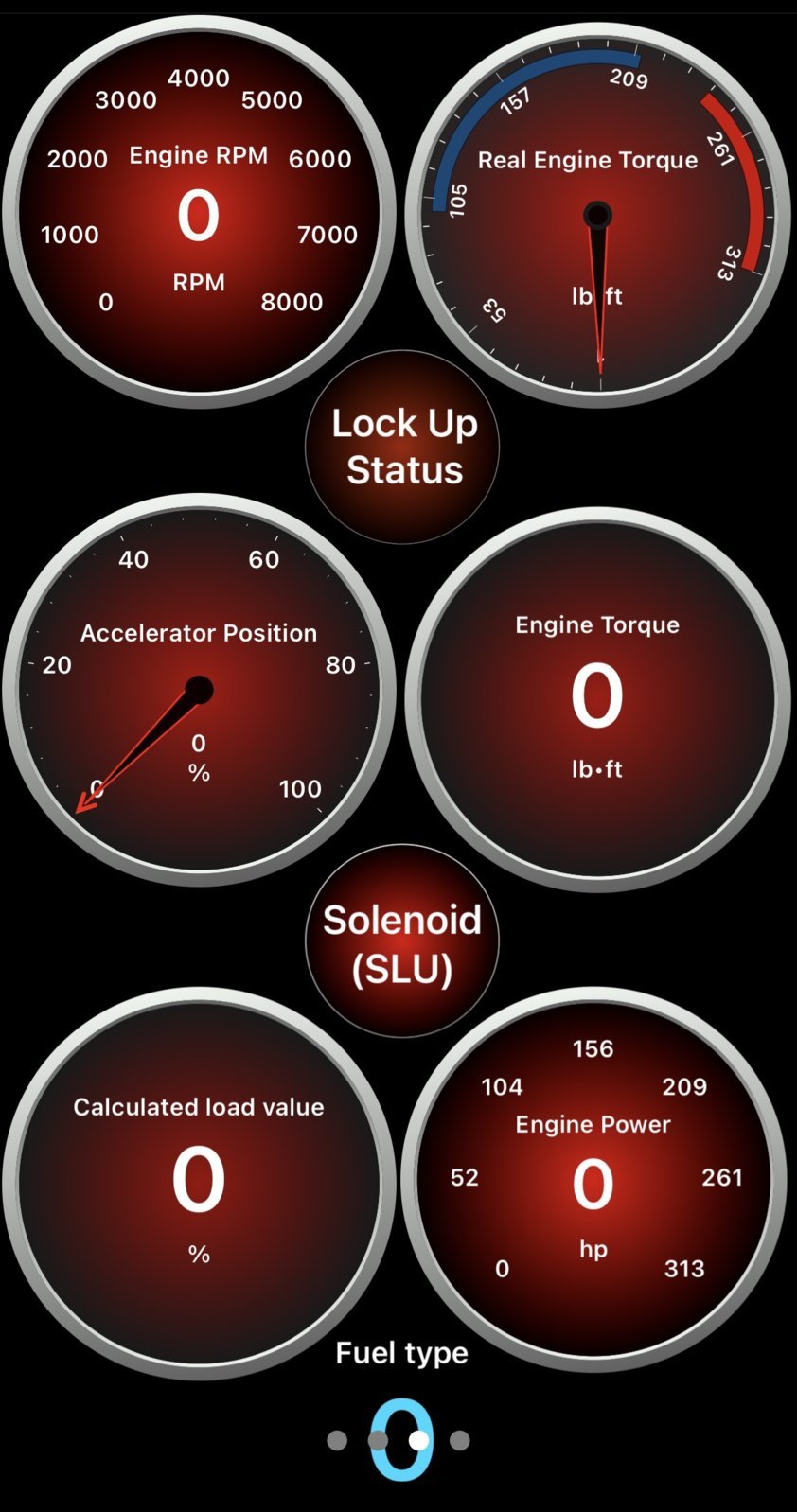

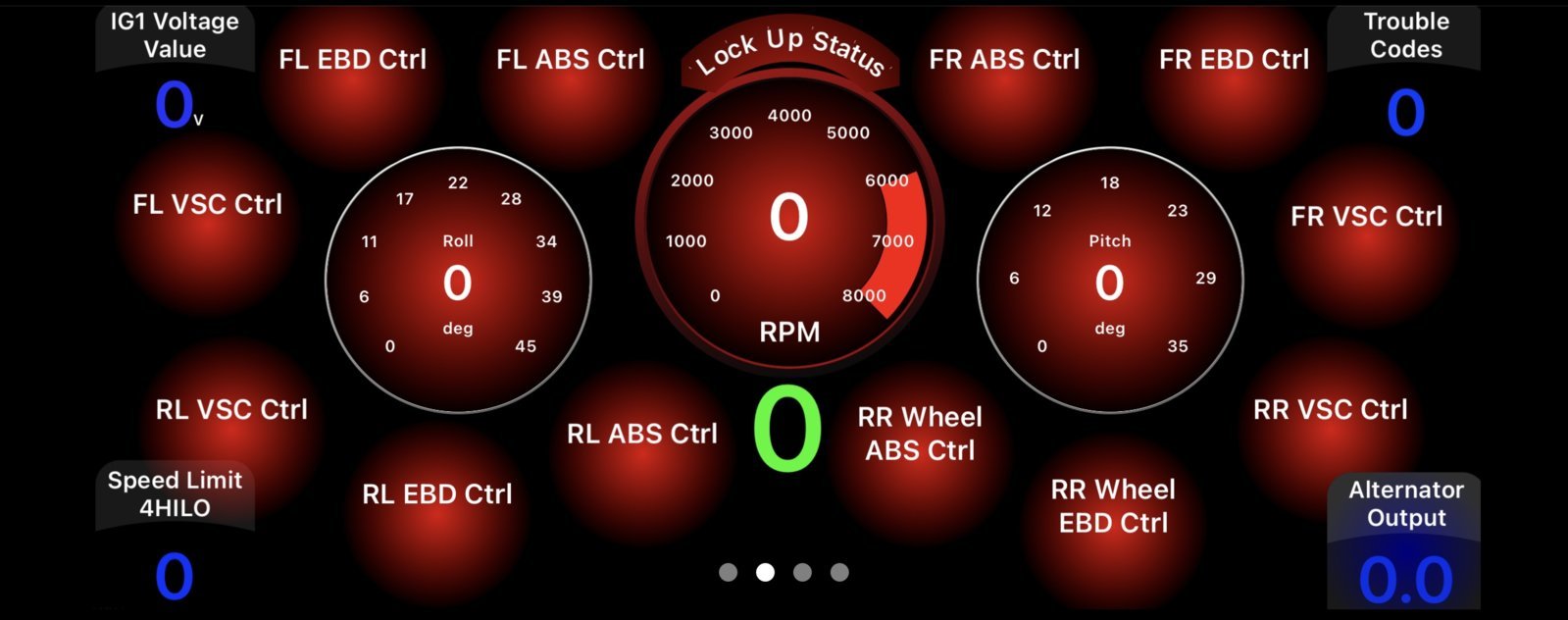

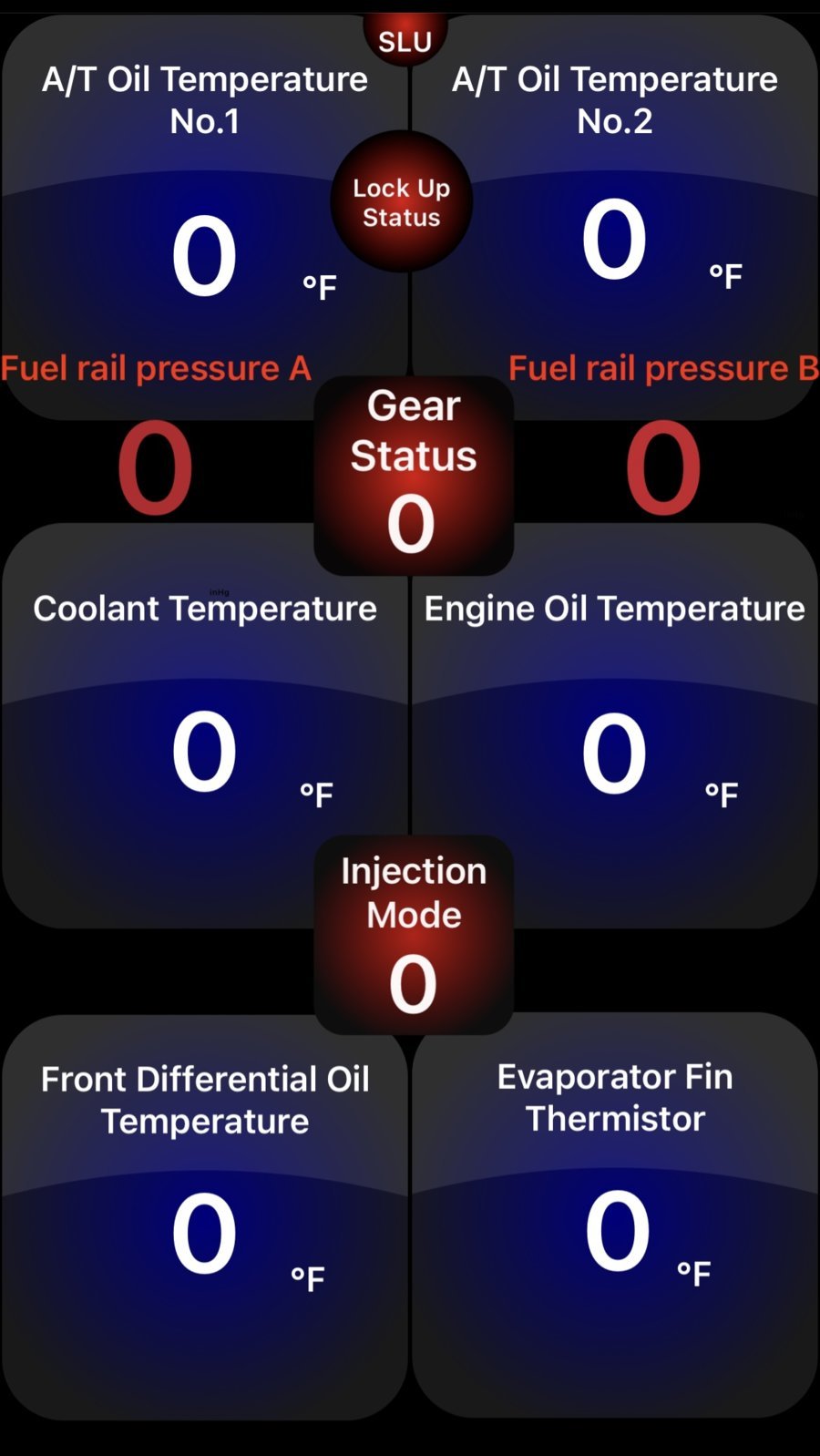

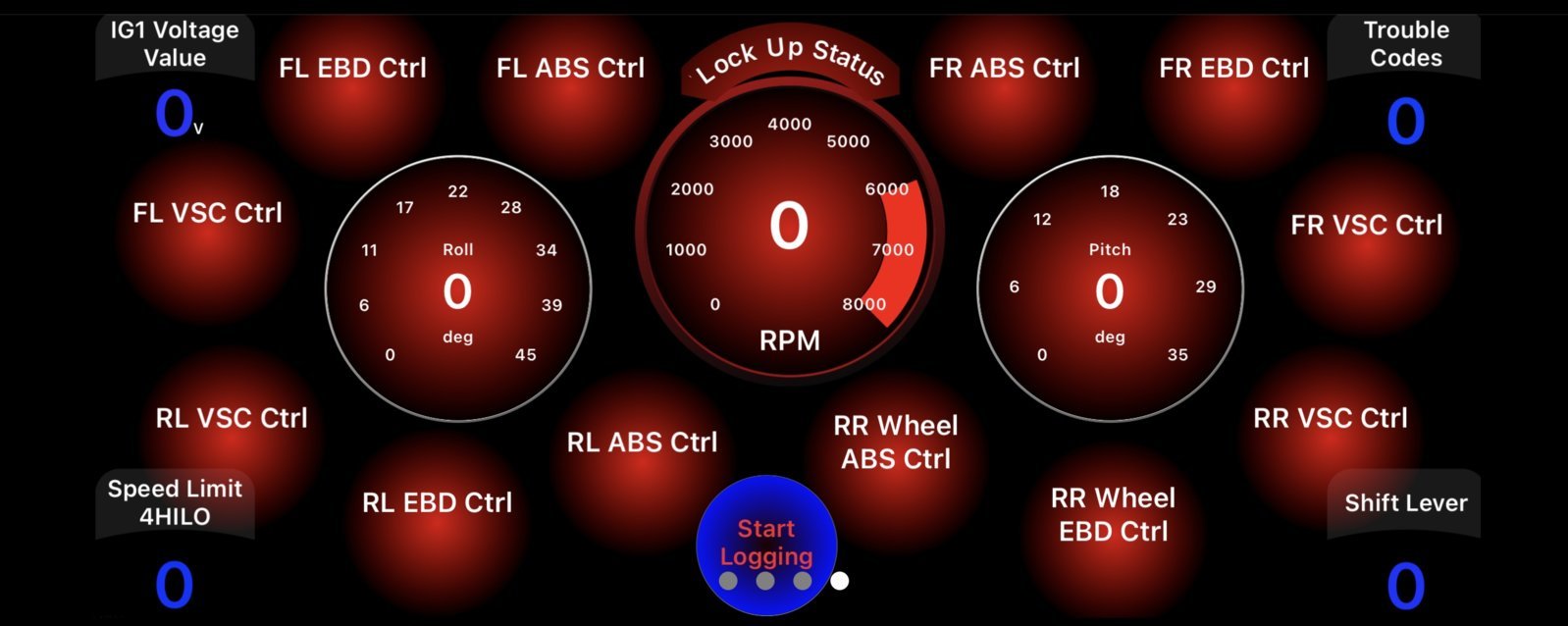

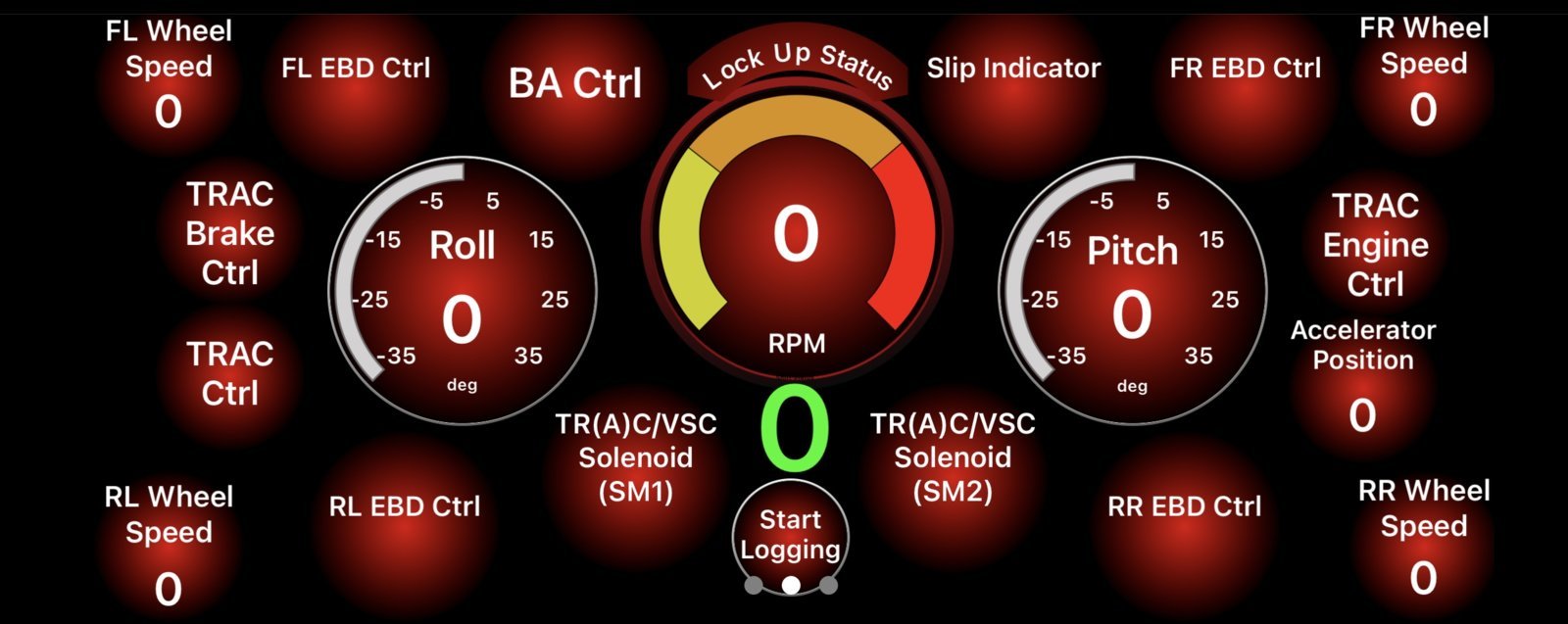

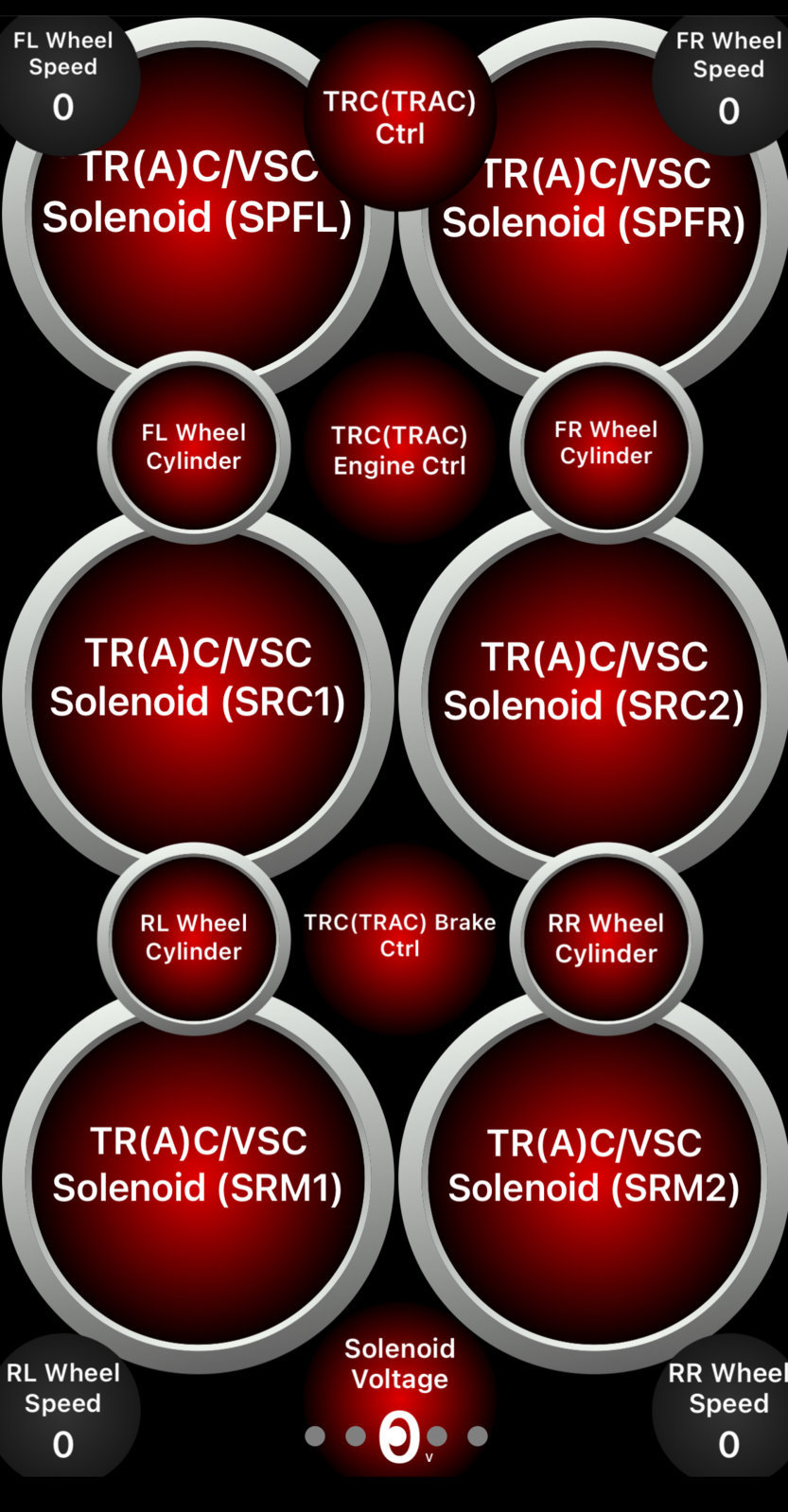

All light up with a narrow green band except pitch and roll.

I had to go cool days with the Yota badge.

I can’t wait to go 4 wheeling for some TRAC testing. Thank you to all that helped and contributed to this thread.



Did you grab those from sensor section of the app? I don't think these will work. SR5 does not have pitch/roll sensors like OR and Pro.



It’s for the cell.

However, super bummed about yesterday’s and today’s testing. Today’s testing was a muddy day and not sure if it was enough to fire off the sensors. Or if they even work. I’ll have to give it a go again on dry surfaces. I wanted to climb my favorite hill where I could feel and hear a lot of slip and TRAC working when I climb it, but it was too muddy. The last time I tried I got sideways and took a slippery ride I didn’t like, lol.

I believe that and the moguls test will verify if these PID sensors work. (Might try the 4LO fitty launch too)

I was hoping the cylinder sensors would be the ticket, particularly yesterday. But I ain’t giving up yet. I’ll fine tune when I get a good idea as to which sensors work while in 4WD.

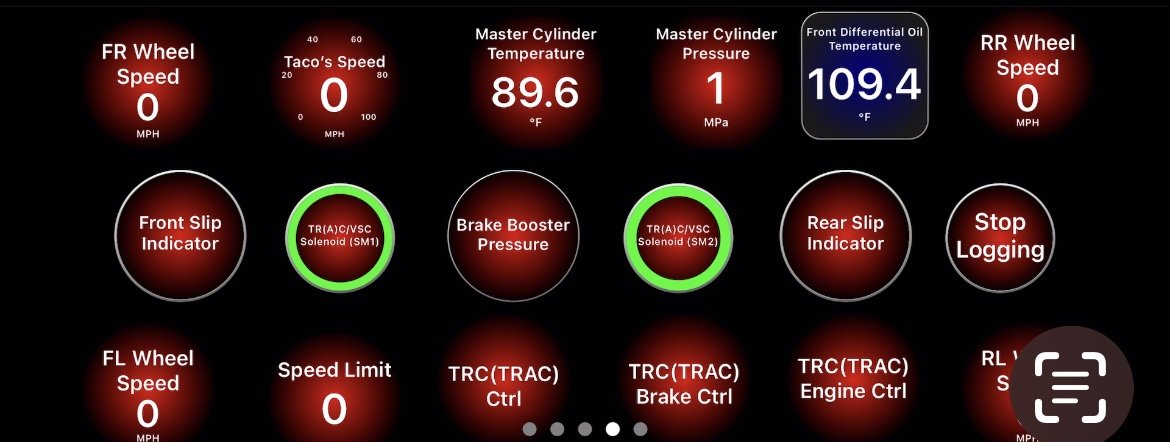

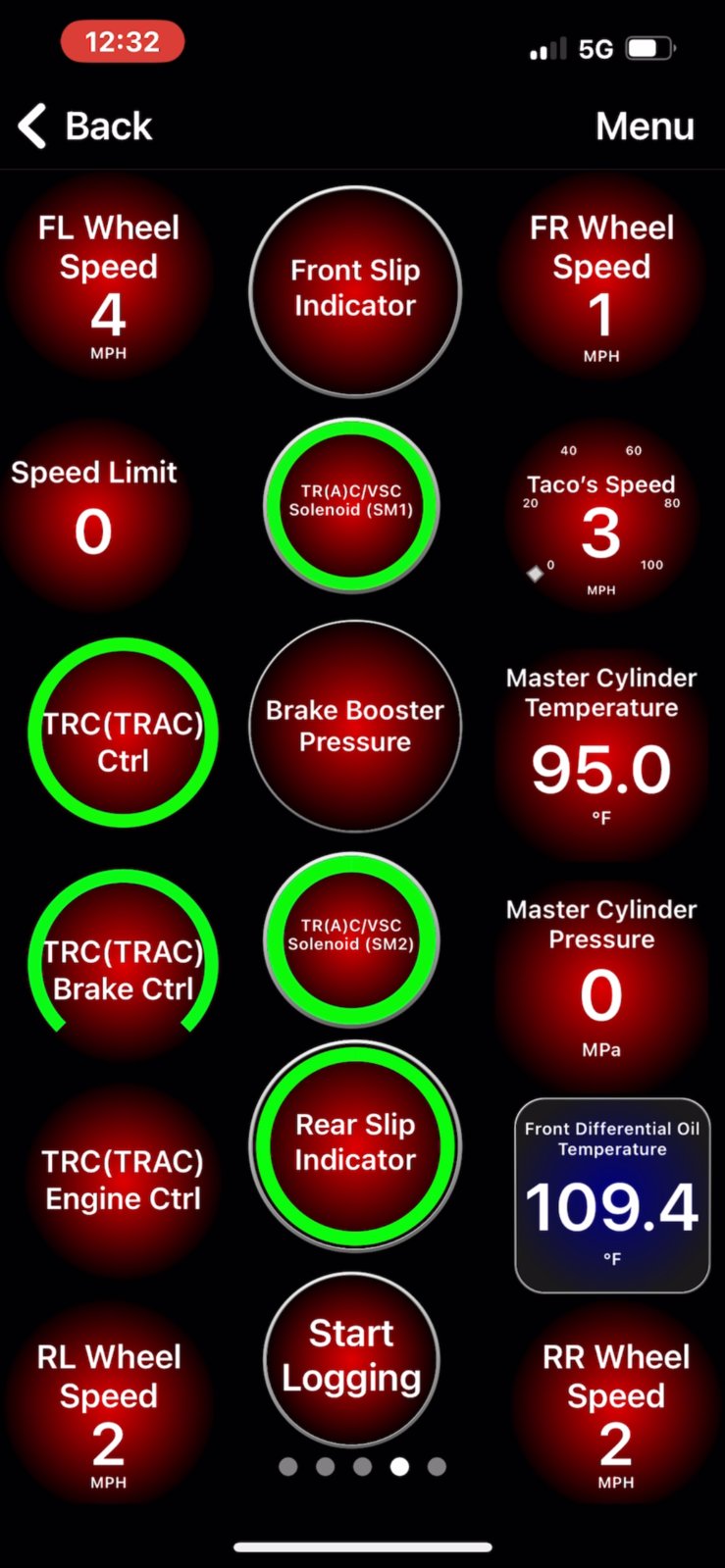

The first two pictures were from a nice trail at Carrizo Plain yesterday. I never busted out 4WD. At this point of the trail, I knew ALSD would get us out. Crept down to the contorted mogul obstacle and sure enough, I felt and heard two good thumps on the drum brake system as we maneuvered out. Those are the only sensors that lit up. Bummed as feeling the two strong thumps made me think the cylinder sensors were going to light up. I know I have the display configuration and settings in style correct. Bazillioned checked.

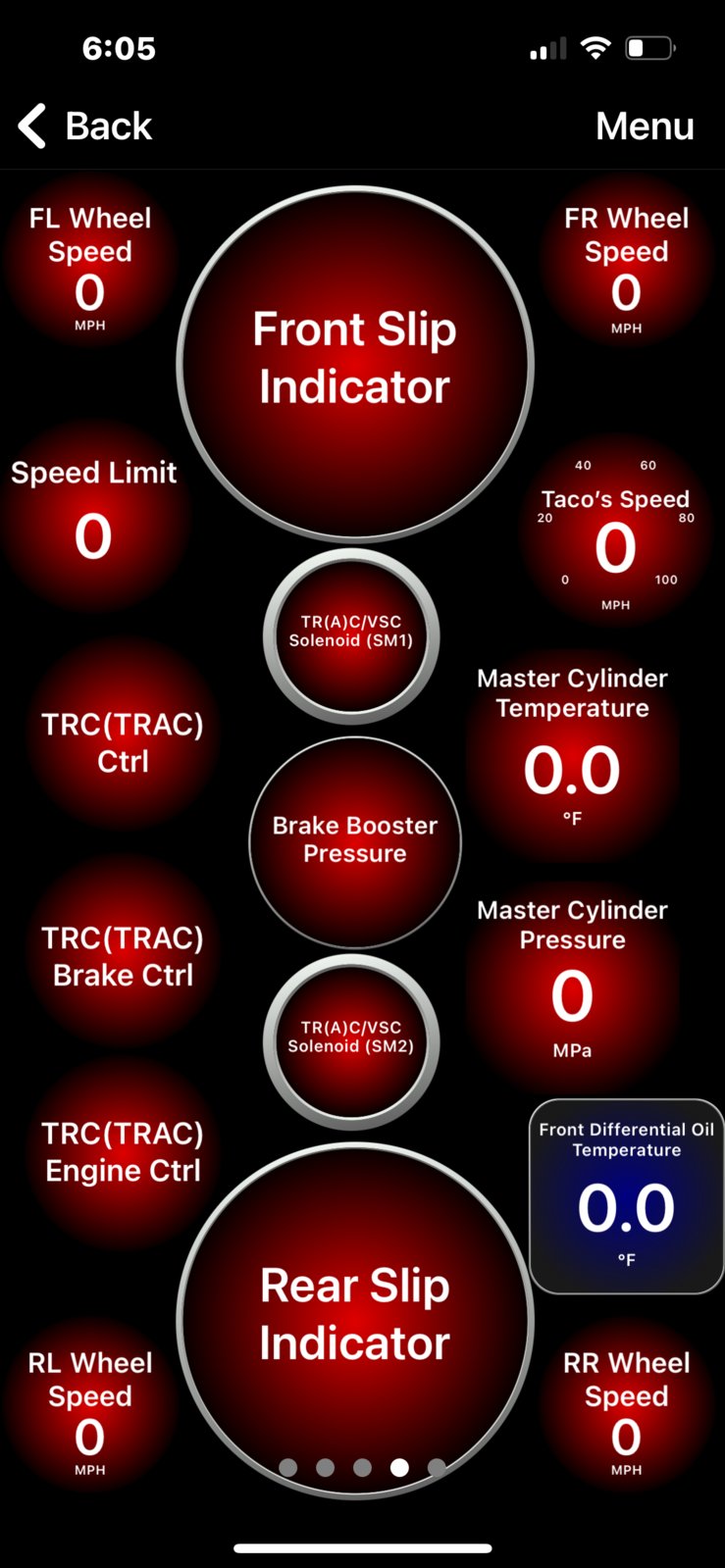

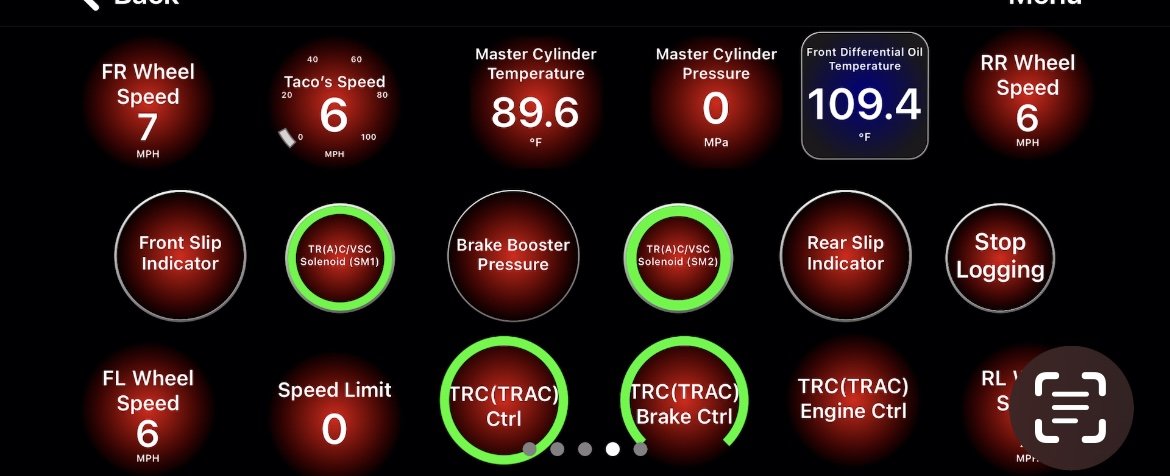

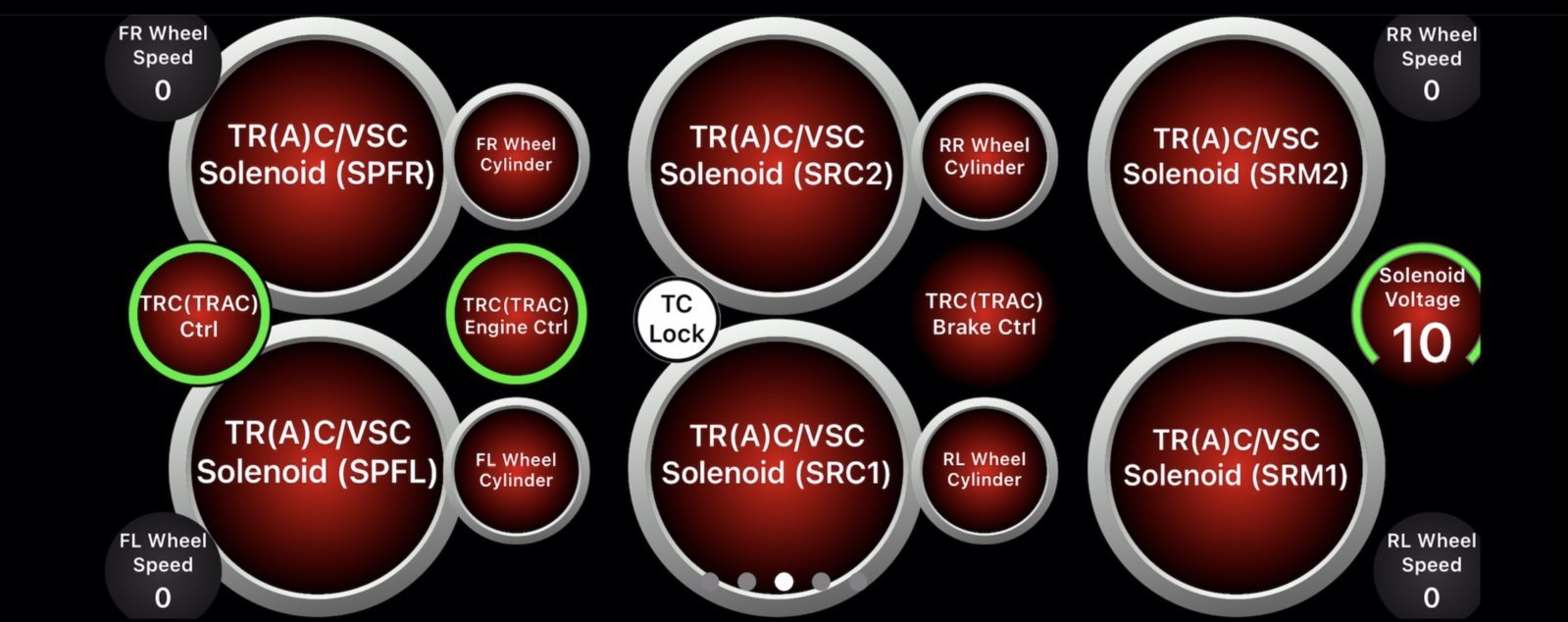

The third picture was so much freaking fun. That was today at Hungry Valley. I was on a trail where I decided to turn around in a mess of mud. All 2WD and the Taco got out!!!!!! Wow, I was stoked as the engine/ctrl lit up but didn’t kill the engine output entirely. But towards the end I had to engage ALSD and BAM! The Taco got out. I also have to give credit to the Hankook’s. But not much sensor output.

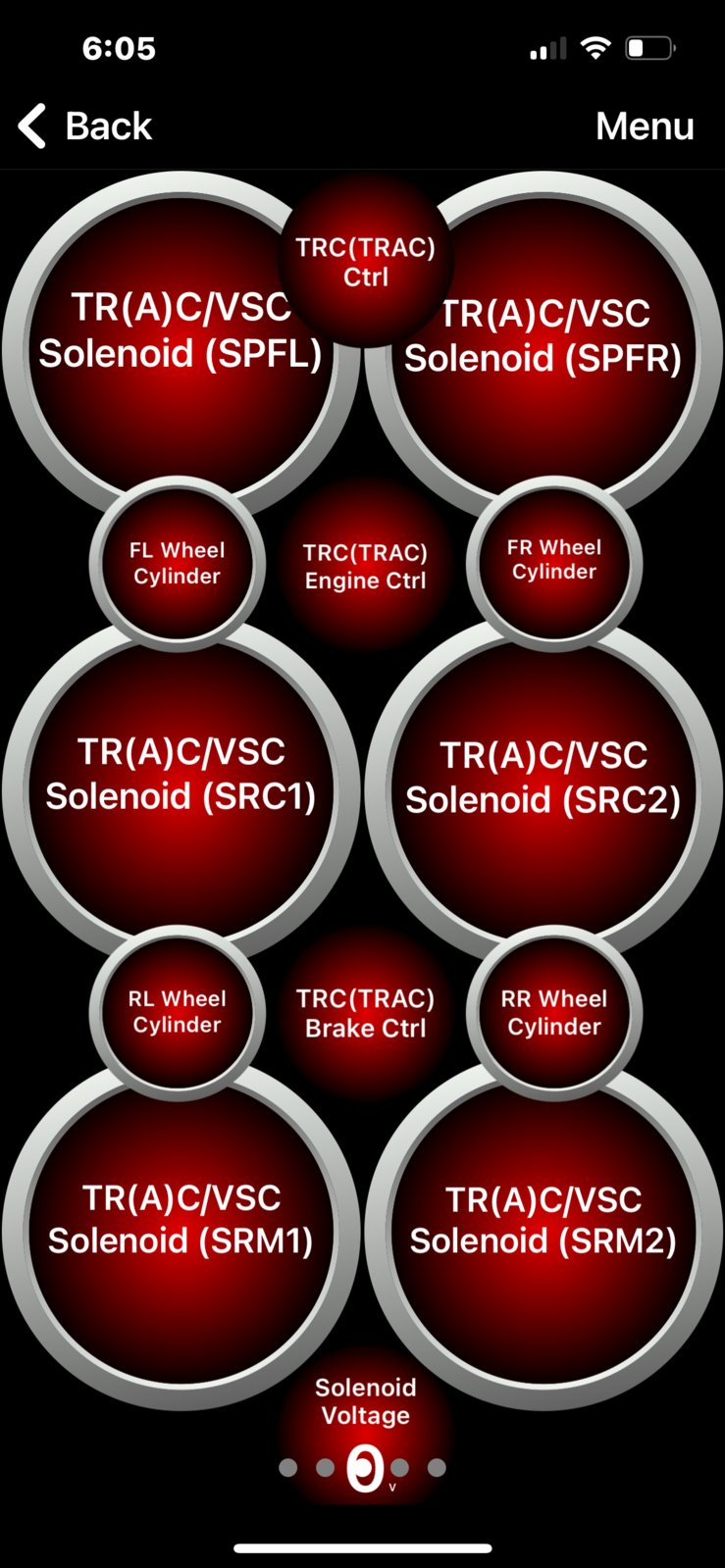

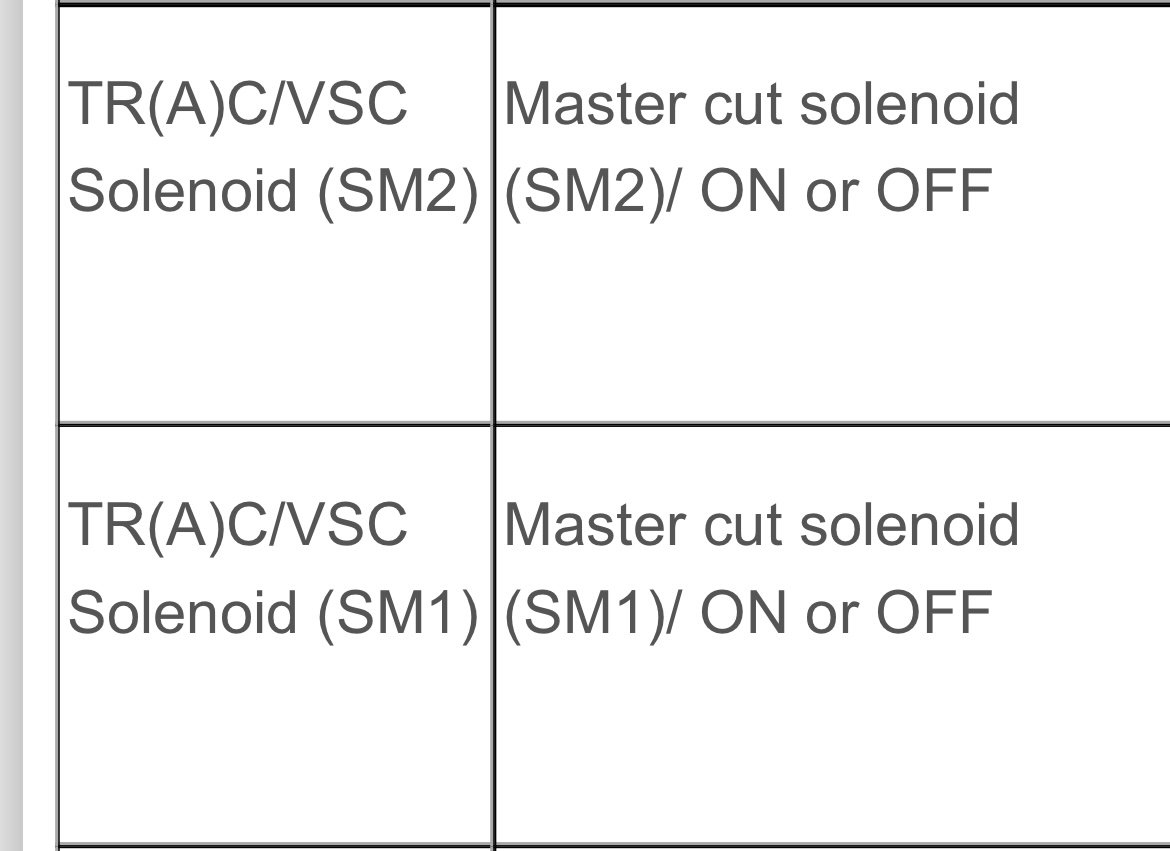

If anything at least one of the solenoids lit up. But I don’t know what it controls yet. I tried searching the net.

https://www.ttguide.net/brake_control_dynamic_control_systems-516.html

And I ain’t giving up yet. Looking like a Thursday test at Hungry Valley again. This time for reals.

Explanation on the front/rear sensors?? In the Toyota pid’s section, under the TRAC stuff, there are two slip indicator sensors listed. Either that is a typo, or…there are sensors for the front/rear or left/right sides. I’ll make corrections as I play on Thursday with final inputs because the Yota Trac was too damn good in the mud today I reckon.

These are meant to be vertical.



New and improved, lol

Taking off the wheel speed sensors to see if that helps any (refresh rate??) on the original dash.



I think the refresh rate is going to be the biggest challenge for 4x4 support.

There’s a history widget if you want it to track the history of something. It makes a little graph.

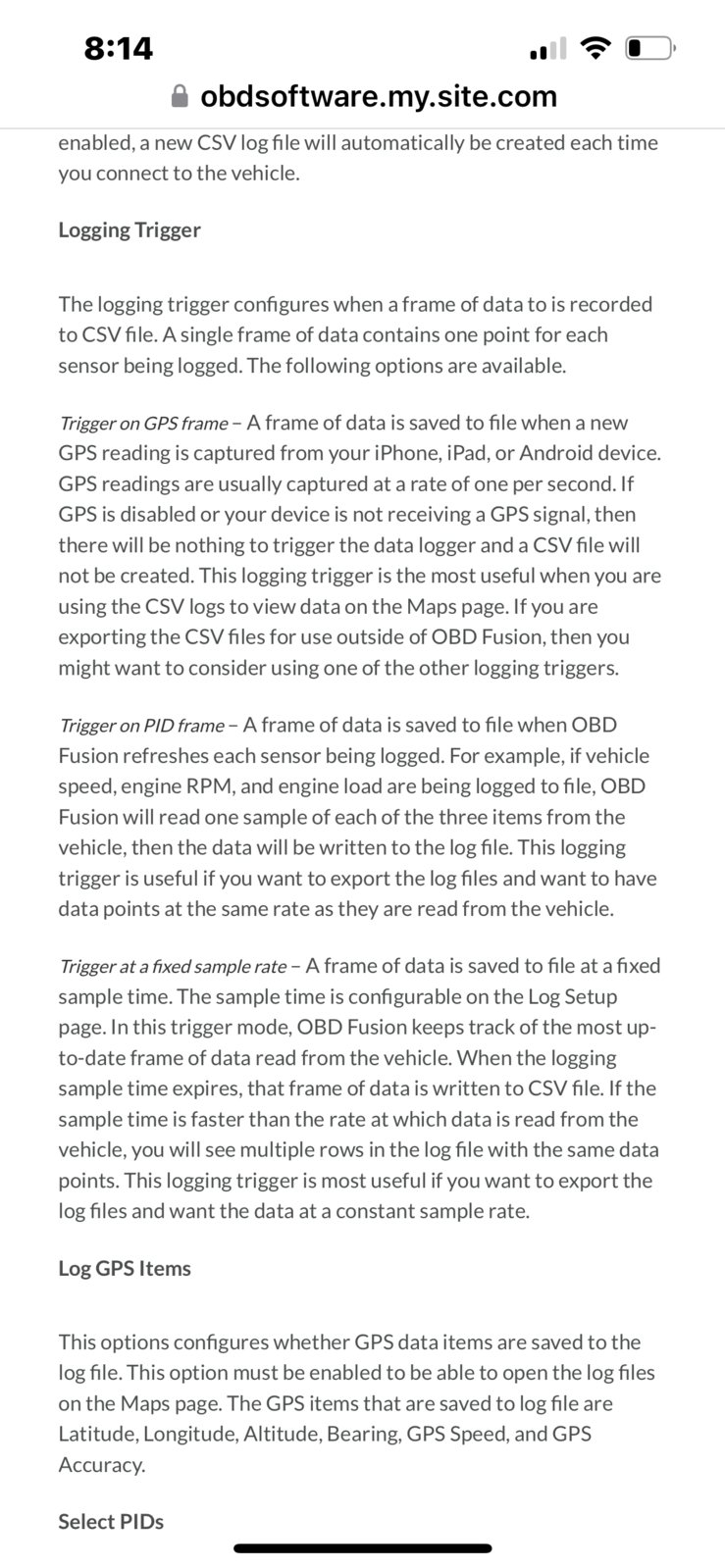

I had the logging trigger set to Trigger on set frame. I changed it to Trigger on PID frame. I don’t know if that was the problem.

Is the history widget you are referring to under Logs/files?



Just found this. No hurt in trying because I’m so hoping these 4WD sensors will register.



This has been a great learning experience. I’m almost done with the 4WD dashboard. Im getting rid of the dashboards that didn’t light up. I’m also thinking the extra slip is a typo. The speed of the front wheels differed, rears didn’t.

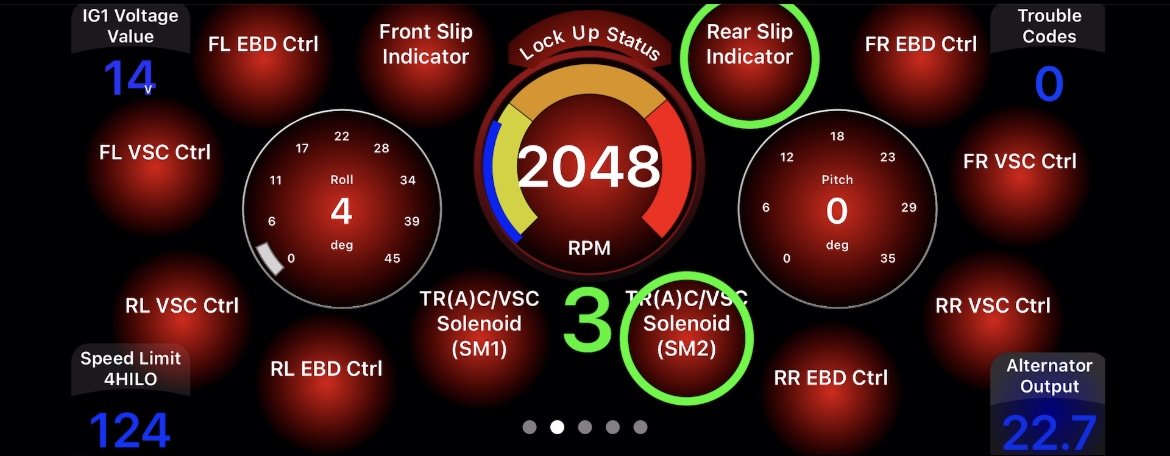

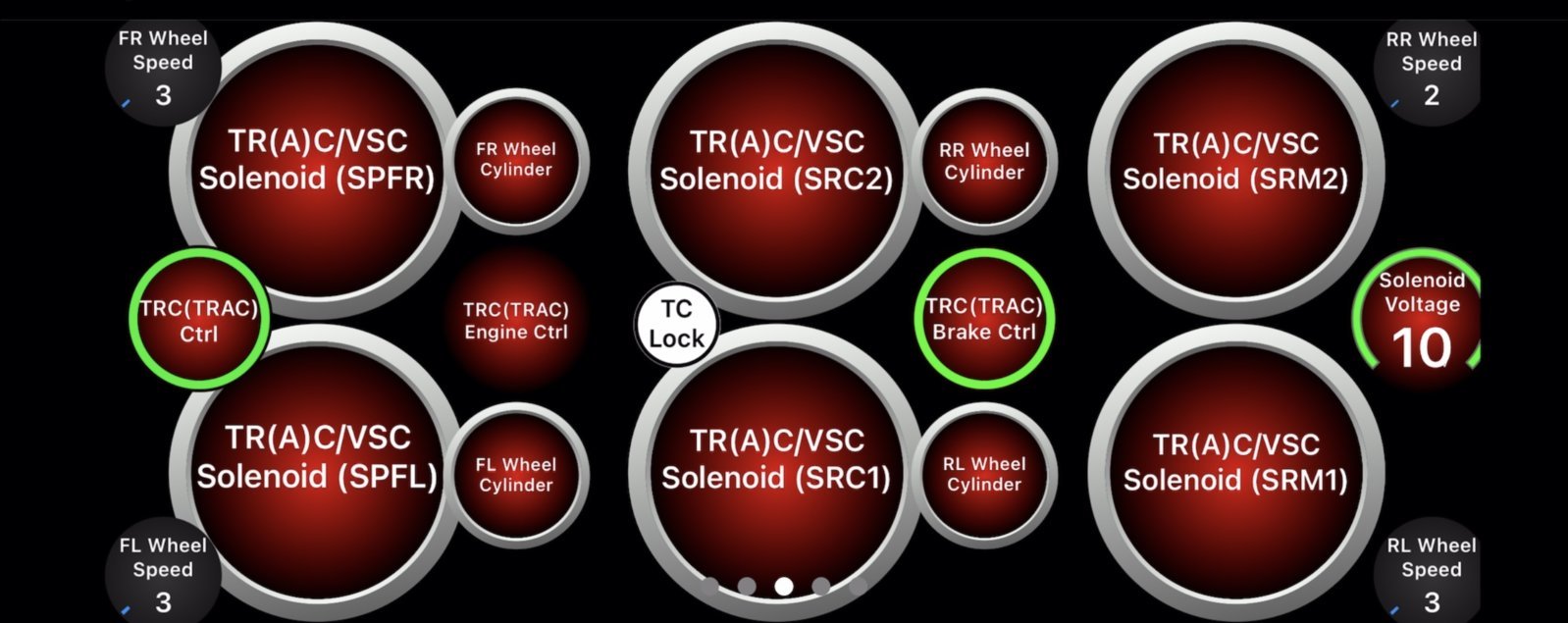

So once I got to the moguls at Hungry Valley’s test area, is when SM1 lit up. But that was it, nothing else that hasn’t lit up in the past tests. However, that was an important step as SM1/SM2 are the solenoids that work front/rear or left/right. I’m going to solely test that to figure it out later on down the road. But I’m thinking it’s front/rear because SM2 lit up while in 2WD, and SM1 lit up while in 4WD.

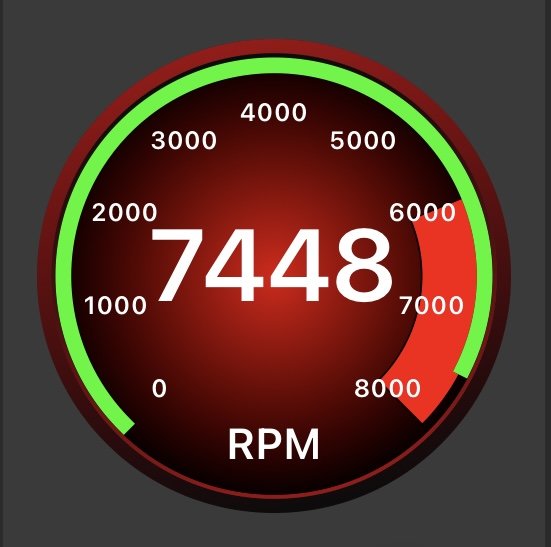

I attempted the 4LO fitty launch btw and just couldn’t get traction. And the motor reached 7,000rpm. I did make a decision to stop though fellas. I didn’t believe I’d ever reach anything above 6,000. I saw the peg hit 7 grand and let off the gas with the butt puckered. No mas.



Muchas Gracias once again and Later Days





http://autoshop101.com/forms/brake12.pdf



Does anyone know if it is possible to get Fuel Used until manual reset? The stock Fuel Used PID resets every time the device powers on/off. I'm looking to either reset it manually at the pump via the app, or even better when I reset Trip A or Trip B on the dash. I just installed an aftermarket upsized tank and the gauge is off so looking to see how may gallons I've used over Trip A for example. I figured it can be done since it is doing it per app trip now....



Check Combination meter PIDs, look for Fuel Input PID. See if it works for you

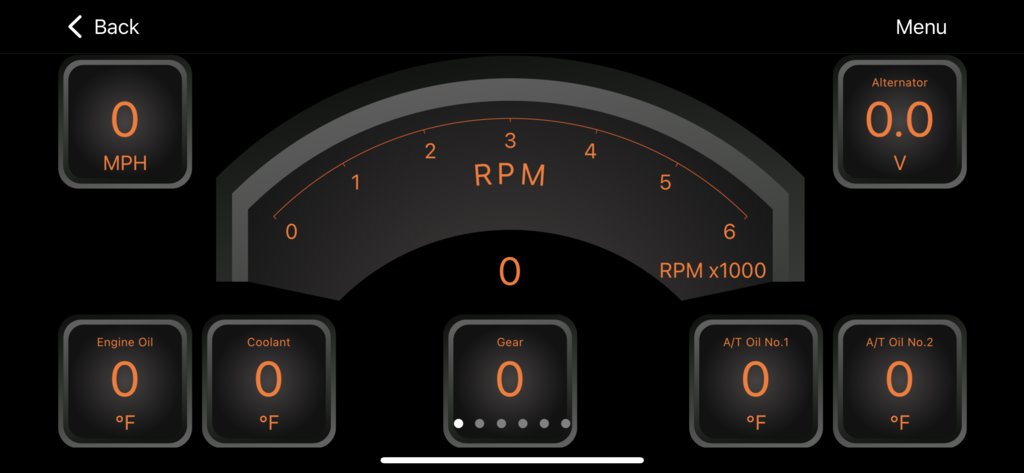

I’m not sure when this was added, but there are now some arc gauges available. I tinkered tonight and put together a trial dashboard.



Anyone know if you can get manual transmission fluid temperature? I have the Toyota 2021 PIDs and dont see it anywhere.



Looking to purchase the Toyota package for my 2022 and only have the option for 2021. Will it work on my ‘22?
