OEM Glass Breakage Sensor Installation

Discussion in '3rd Gen. Tacomas (2016+)' started by OnHartung'sRoad, Sep 18, 2021.

  1. Sep 19, 2021 at 9:38 AM
    #21
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    7,060
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Thanks- some if the other online Toyota pdf directions show the same graphic with it pointed at 6 so its good to post as 6 is not sensitive enough and 8 works.

    caribe makaira likes this.
  2. Sep 19, 2021 at 9:40 AM
    #22
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,995
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :thumbsup:

  3. Sep 23, 2021 at 1:48 PM
    #23
    willtill

    willtill Well-Known Member

    Joined:
    Nov 18, 2007
    Member:
    #3502
    Messages:
    327
    Gender:
    Male
    Maryland
    Vehicle:
    2018 Cement Off Road V6 Access cab
    I just got done installing the GBS PT398-35160. What a pain in the butt. For something that is actually quite simple to install.

    I tried to follow the instructions; they had me zip tying the V5 harness like crazy. Finally decided to just zip tie it in such a way that made sense and wasn't so involved.

    The 10P connectors and 26P connector's wiring was a bit excessive between the male and female portions. That was a bit of a challenge just trying to arrange it behind the drivers side kick panel.

    And the interior cabin hood latch release lever.... Jeezuz H. Keerist.... I must've fooled with that damned thing for an hour trying to get the hood release cable back onto the latch lever. Finally realized that it helps to half install the lower panel and to dettach the latch assembly and leave it loose in it's mounting spot. Finally got it connected.

    I did set the GBU module sensitivity to number 8. Seems to be working as designed with a slight tap on the glass with keys.

    OnHartung'sRoad [OP] likes this.
  4. Sep 23, 2021 at 4:26 PM
    #24
    MarkOne

    MarkOne I plead the FiF

    Joined:
    Dec 30, 2019
    Member:
    #314704
    Messages:
    28
    Gender:
    Male
    First Name:
    Mark
    Las Vegas, NV
    Vehicle:
    2020 Attitude Black Tacoma TRD Offroad 4x4 DCSB
    on a scale from 1-10 (10 being the hardest), what do you rate this install at?

  5. Sep 23, 2021 at 4:35 PM
    #25
    willtill

    willtill Well-Known Member

    Joined:
    Nov 18, 2007
    Member:
    #3502
    Messages:
    327
    Gender:
    Male
    Maryland
    Vehicle:
    2018 Cement Off Road V6 Access cab
    I would rate it at a three. Maybe a four. It's just a little tight under there in spots.

    But I do like the Tacoma's. They're built like Lego's. Everything just snaps apart and back together. If you're careful.

    MarkOne and rmreid20 like this.
  6. Sep 23, 2021 at 6:15 PM
    #26
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,044
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    What instructions did you guys use? I just got my kit in.

  7. Sep 23, 2021 at 6:45 PM
    #27
    willtill

    willtill Well-Known Member

    Joined:
    Nov 18, 2007
    Member:
    #3502
    Messages:
    327
    Gender:
    Male
    Maryland
    Vehicle:
    2018 Cement Off Road V6 Access cab
    OnHartung'sRoad [OP] likes this.
  8. Sep 23, 2021 at 6:47 PM
    #28
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,044
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
  9. Oct 4, 2021 at 4:04 PM
    #29
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    7,060
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    @Skydvrr @willtill -Oh man I should’ve mentioned this earlier, I just left the hood latch cable connected and let the panel lean out and worked around it. I tried getting the cable off and gave up on that one. It’s actually not that hard to work around the panel but you do have to finesse it.

    Also you’re right about all the extra cable, if you can’t use the tie wraps the way the instructions say, it doesn’t matter, just do it yourself so it is secure, it’s much easier. Just try not to get too thick of a loop bunch (coil the extra in larger loops) behind the side wall panel because you won’t be able to close it properly if it is too thick.

    Oh, and that Toyota parts deal place I referenced in the first post has it listed for $160, Amazon is overpriced.

    Last edited: Oct 4, 2021
  10. Oct 4, 2021 at 4:13 PM
    #30
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    7,060
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Did you install yours yet, how did it go?

  11. Oct 4, 2021 at 4:41 PM
    #31
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,044
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    I don't have an open switch blank :oops:

    Might just disassemble it and see if I can mount it somewhere

    OnHartung'sRoad [OP] likes this.
  12. Oct 4, 2021 at 5:37 PM
    #32
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    7,060
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    You may be abe to extend the mic cable also.

  13. Oct 4, 2021 at 6:07 PM
    #33
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,044
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    I thought about that, and using the overhead, but idk if anyone makes one for that style.

    Actually, thank you for bringing this up. I just realized I have an extra switch blank in my meso panel. I'll disassemble the factory switch / mic, drill a hole on the @MESO blank and mount it to the left of the steering wheel. Hell yeah.

    The older I get, the more I appreciate how lazy I am haha. :rofl:

    OnHartung'sRoad [OP] likes this.
  14. Dec 7, 2021 at 9:39 PM
    #34
    Alamo72

    Alamo72 Well-Known Member

    Joined:
    Jun 17, 2020
    Member:
    #331672
    Messages:
    205
    Vehicle:
    2020 Tacoma SW TRD OR DCSB Tech & Prem+LED
    Mostly Stock
    Do you recall if you bothered with disconnecting the battery, before you got started or were you able to skip that part of the instructions?

    Also, just to confirm I “do install” the V5 harness, even though I already have the factory alarm?

  15. Dec 8, 2021 at 12:30 PM
    #35
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    7,060
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    I didn’t disconnect the battery (dumb on that part!). Please do!

    yes, the harness that comes with that kit I linked worked with the factory alarm on my 2017. I also have the hood lock sensor installed and did not put their terminal connector on that.

    Give the glass break sensor about 30 seconds to activate after you lock the truck, then test it with a tap on the glass. I suggest cranking the sensitivity up to maybe 9 as well.

    Last edited: Dec 8, 2021
  16. Dec 16, 2021 at 6:34 AM
    #36
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    Does this work for manual trans trucks with factory alarm?


  17. Dec 16, 2021 at 7:24 AM
    #37
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,995
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    It does.
    Verify your vehicle indeed has a Toyota Alarm, though.:)

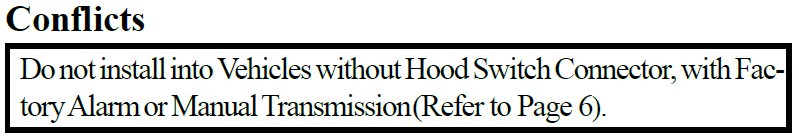

    And this:

    Last edited: Dec 16, 2021
    elaudtr and Grossomotto like this.
  18. Dec 16, 2021 at 9:08 AM
    #38
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT

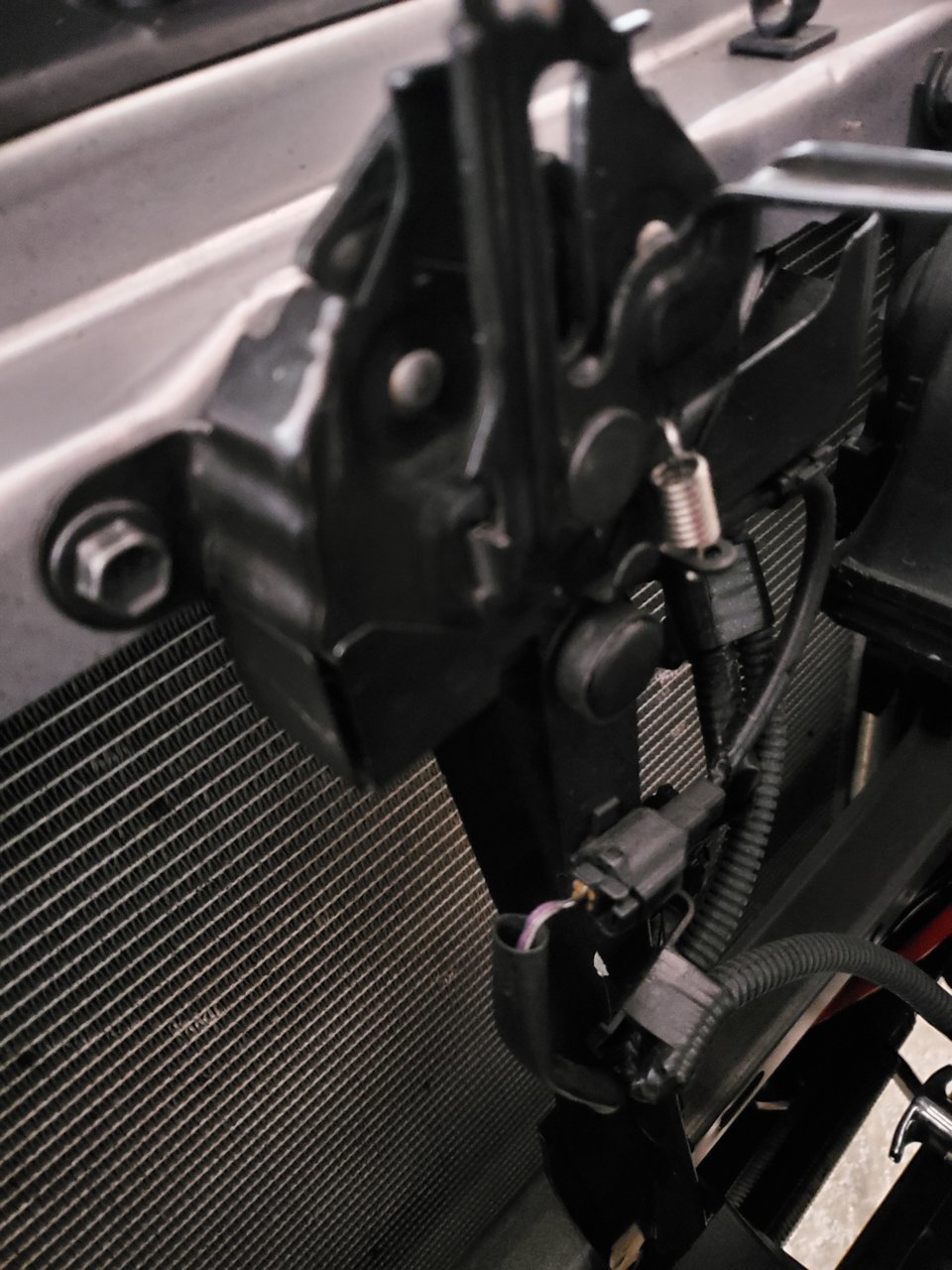

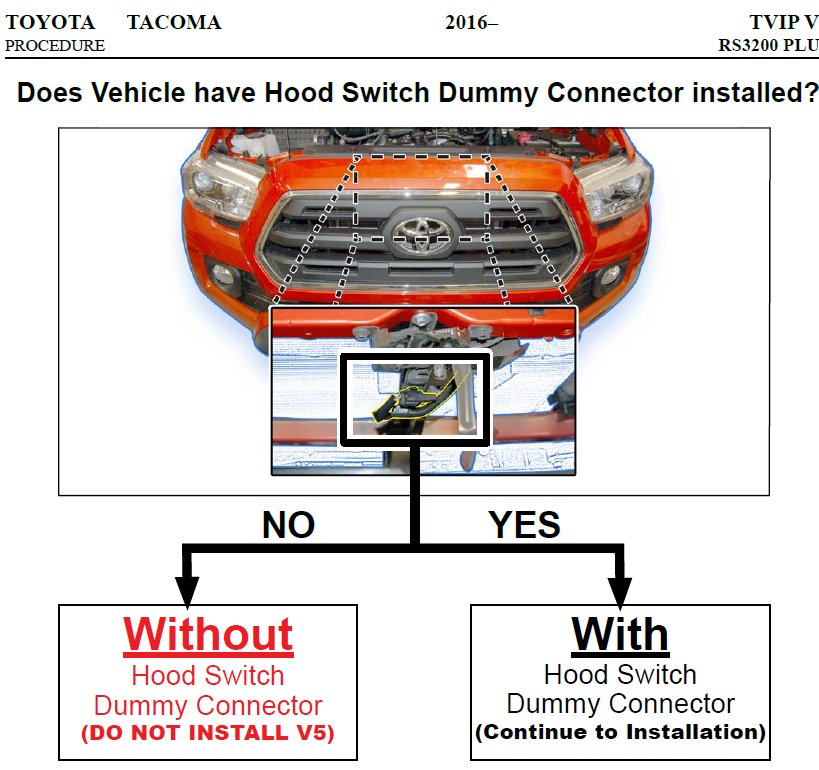

    Thx, this is what I have in the pic below. Doesn't look exactly like your pic though. I've had the alarm go off before while opening the hood so I must have the connector.


    Last edited: Dec 16, 2021
    shotgunbilly420 likes this.
  19. Dec 16, 2021 at 9:49 AM
    #39
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,995
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :(
    It doesn't mention the real reason...especially the manual transmission part...

  20. Dec 16, 2021 at 9:55 AM
    #40
    mabupa

    mabupa Well-Known Member

    Joined:
    Mar 22, 2021
    Member:
    #360239
    Messages:
    147
    Gender:
    Male
    First Name:
    Miguel
    Vehicle:
    2021 trd off-road 6 speed manual
    I have one of these on the way for my 2021 6MT. Only thing I’m having issues with is finding a good location for the mic, since manuals use the only “tall” switch space on the left of the wheel for the clutch start cancel switch, but I’m thinking about cutting a hole on the empty space on that switch panel.

    Last edited: Dec 16, 2021
    shotgunbilly420 likes this.
