OEM Glass Breakage Sensor Installation

Discussion in '3rd Gen. Tacomas (2016+)' started by OnHartung'sRoad, Sep 18, 2021.

  1. Dec 28, 2021 at 11:54 AM
    #61
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    Thx for the info, I'm going to test both, the smaller one should work. I'm just juggling spots to put them in. I'll probably keep it to the left of the steering wheel so I don't have to extend the harness to the middle console.


  2. Dec 28, 2021 at 8:20 PM
    #62
    2020SilverSky

    2020SilverSky Active Member

    Joined:
    Apr 13, 2020
    Member:
    #324683
    Messages:
    33
    Gender:
    Male
    Seattle. WA
    Vehicle:
    2020 TRD Off Road 4WD 6MT
    When you can, please share a pic of the sensor that you received using the part number above, I haven't been able to locate one online. I'm looking to use the smaller sensor since I have a MT also.

    Grossomotto likes this.
  3. Dec 28, 2021 at 8:31 PM
    #63
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT

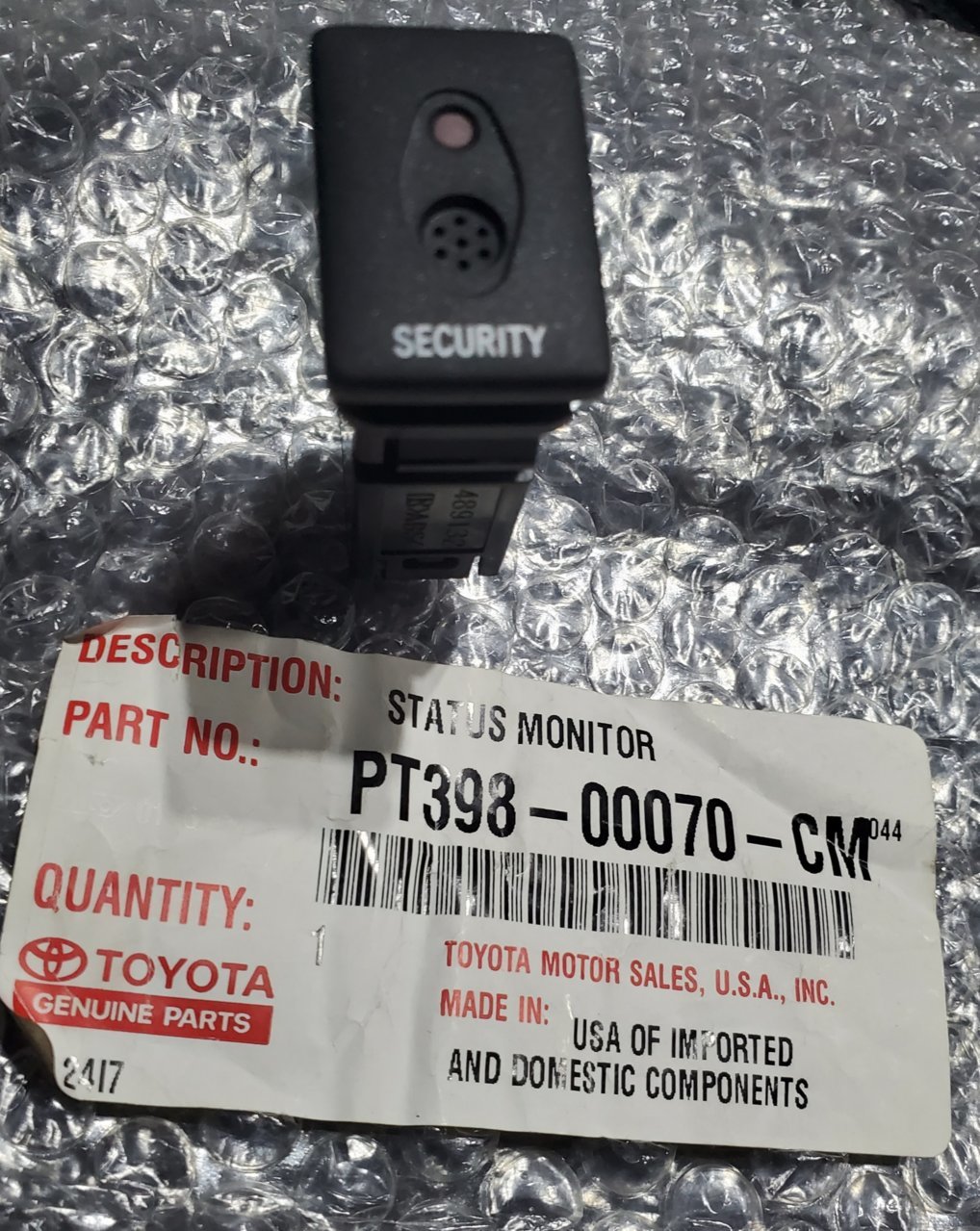

    This is the one I bought from this dealer, cheapest I've found. Everything is exact on the back for connections and the kit harness plugs in just like the taller one. I'll get a pic tomorrow, may be a bit before I get it installed and test everything.

    https://parts.jimellistoyota.com/p/...or-Security-System/69524319/PT39800070CM.html


  4. Dec 28, 2021 at 8:50 PM
    #64
    mabupa

    mabupa Well-Known Member

    Joined:
    Mar 22, 2021
    Member:
    #360239
    Messages:
    147
    Gender:
    Male
    First Name:
    Miguel
    Vehicle:
    2021 trd off-road 6 speed manual
    I spent hours trying to find the part number for the tundra mic, but no luck.

  5. Dec 29, 2021 at 7:33 AM
    #65
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    932
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.
    This is where I plan to place my mic. Are the wires long enough to reach over to the side kick panel, etc. or do the wires need lengthened?

  6. Dec 29, 2021 at 7:43 AM
    #66
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,995
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    @Grossomotto could verify that. But most likely they need to be lengthened.

    Grossomotto likes this.
  7. Dec 29, 2021 at 7:51 AM
    #67
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    I've yet to install this, but I thought it installs bottom left of drivers side, if so the wires are long enough for the panel to the left of steering wheel. If you want the mic in the center of dash (below the radio) the wires will have to be lengthened up to 2'.

    There's quite a few members that have already installed this, so they would know best.


  8. Dec 29, 2021 at 8:52 AM
    #68
    Mikestill

    Mikestill Well-Known Member

    Joined:
    Oct 3, 2021
    Member:
    #378720
    Messages:
    89
    Gender:
    Male
    First Name:
    Mike
    Ok.ill ask... I know what a glass break sensor is, but why does a hood switch matter?

  9. Dec 29, 2021 at 10:03 AM
    #69
    mabupa

    mabupa Well-Known Member

    Joined:
    Mar 22, 2021
    Member:
    #360239
    Messages:
    147
    Gender:
    Male
    First Name:
    Miguel
    Vehicle:
    2021 trd off-road 6 speed manual
    The wires on the connector that goes to the mic is only long enough to branch off of the main connector on the module and go to the mic mounted to the left of the steering wheel. Like mentioned above, you would have to modify/extend that part of the harness a couple of feet to reach the area below the hvac controls.

    Last edited: Dec 29, 2021
    Grossomotto likes this.
  10. Dec 29, 2021 at 11:10 AM
    #70
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT

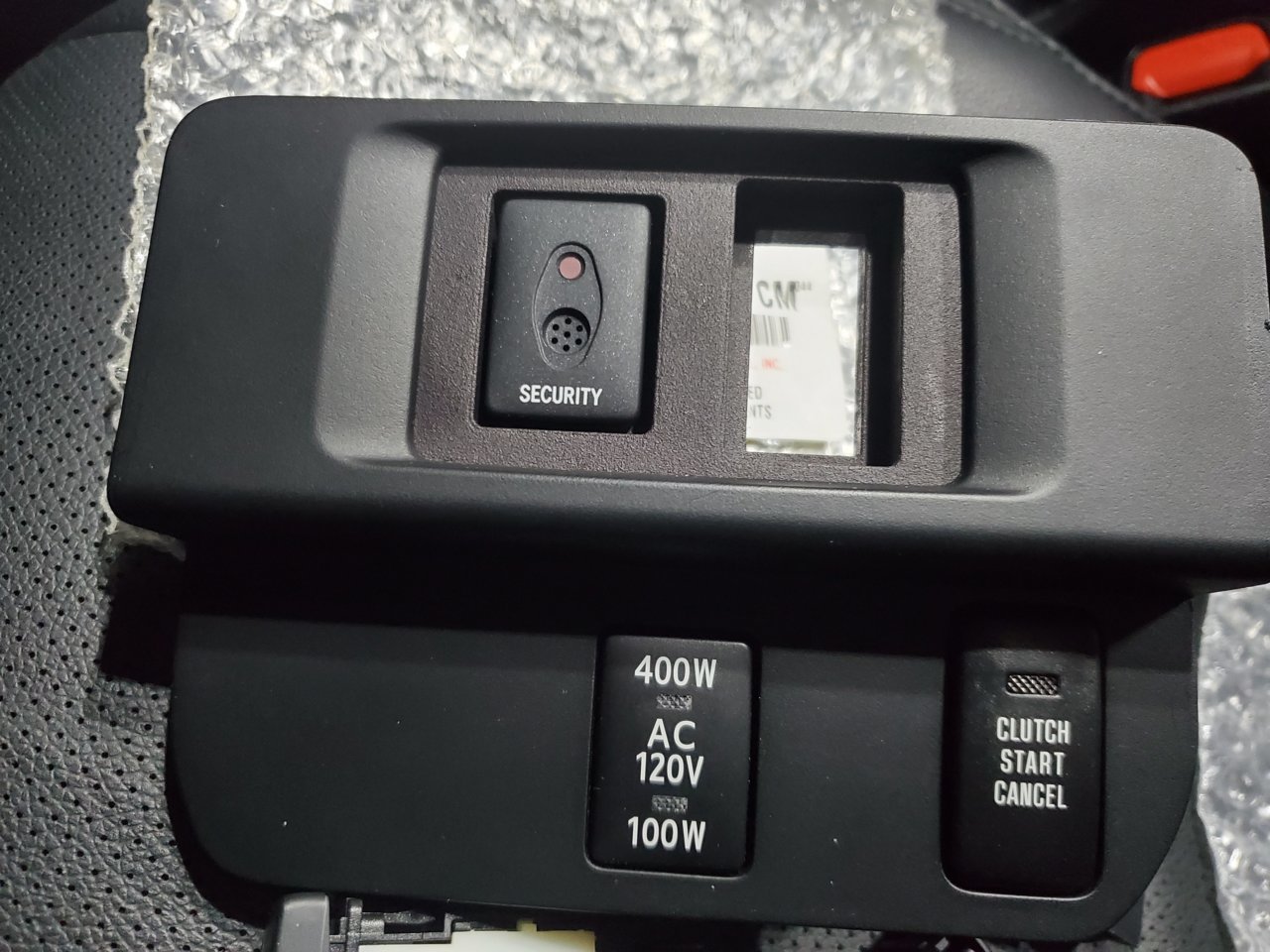

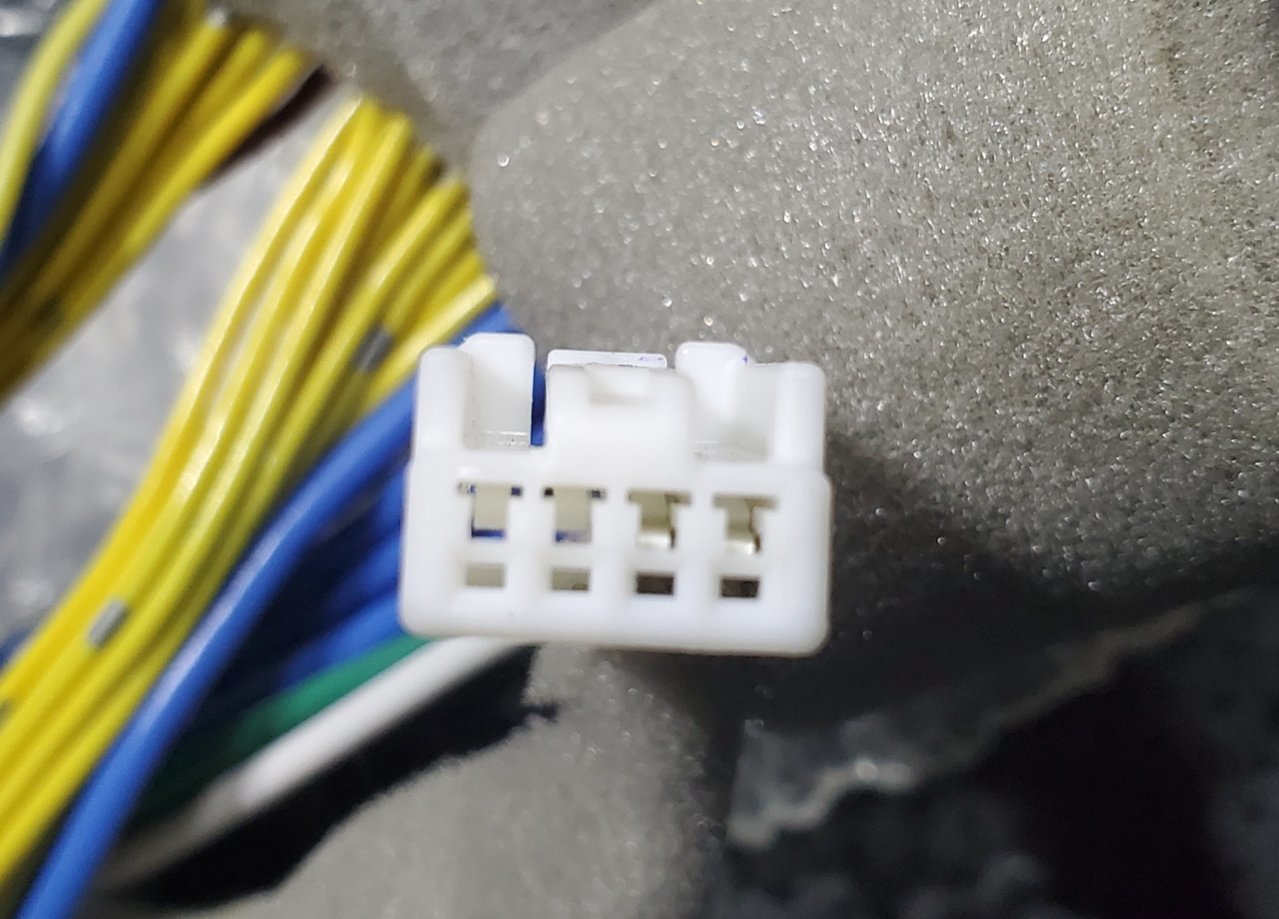

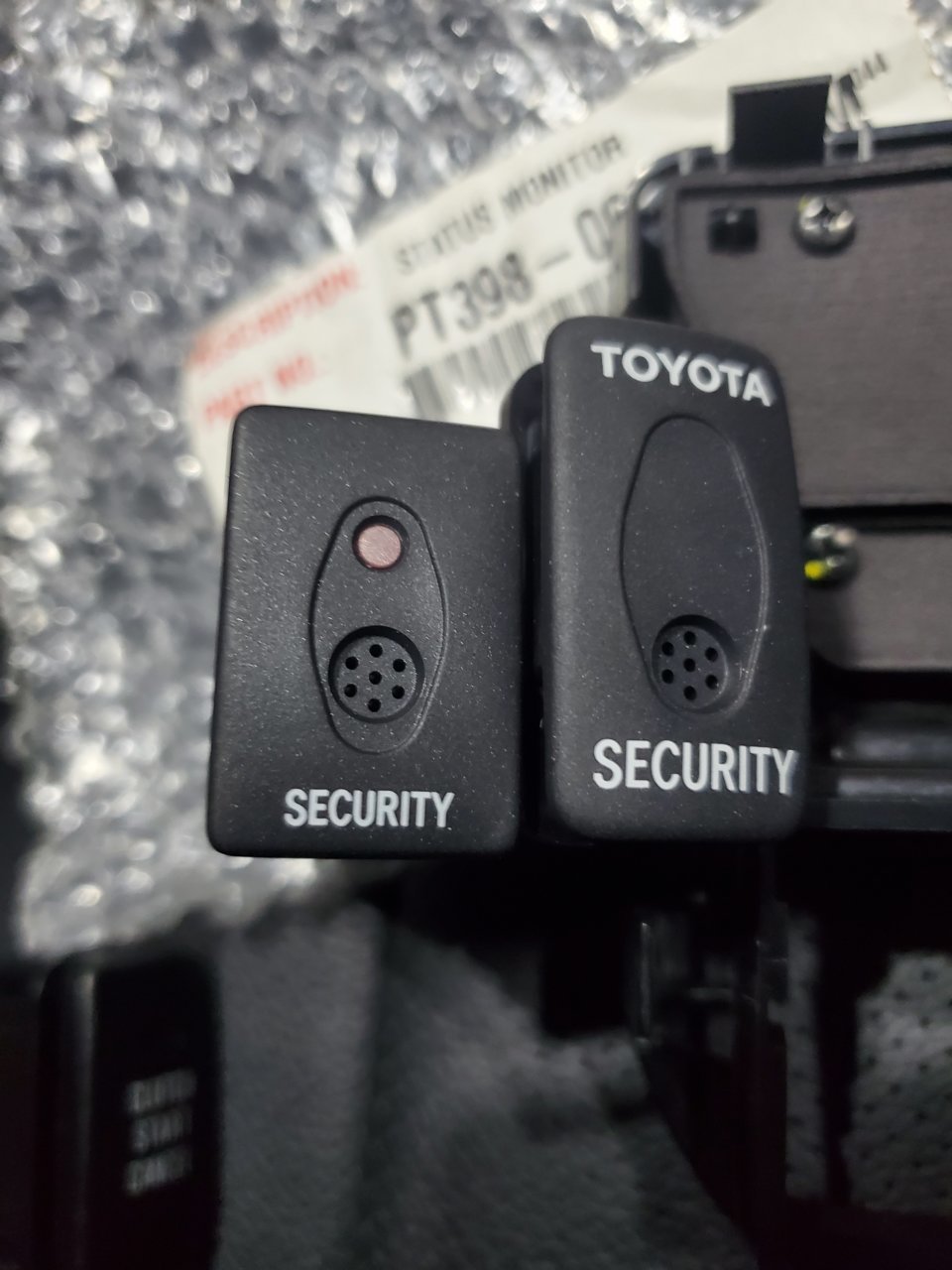

    Here's the pics. Previously I said the longer mic may have trouble fitting in a standard opening, it's just my aftermarket plate which is tight. It fits in a standard spot, see pic where it's bottom right.

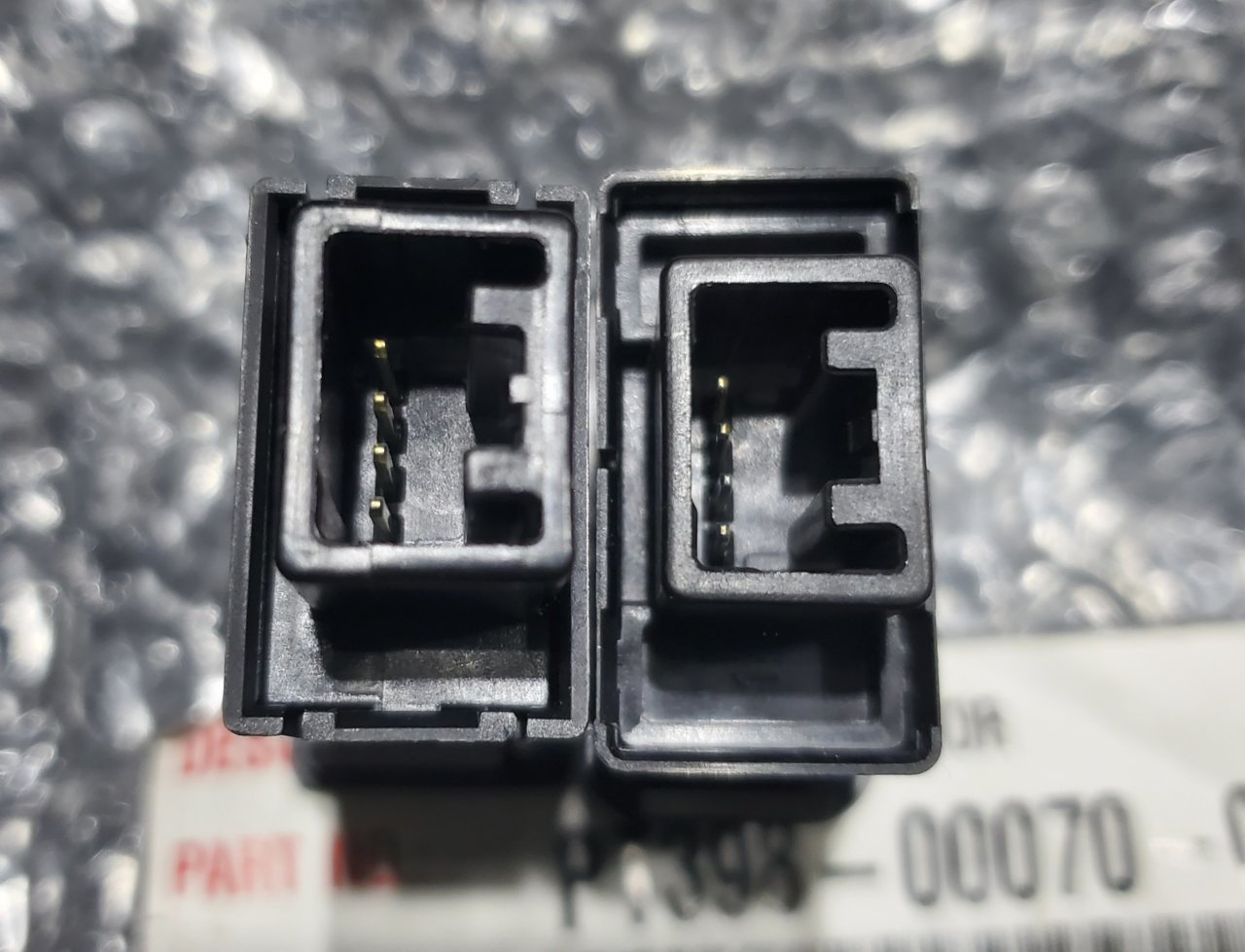

    The mics are the same on the back with the connector having two pins, the two farthest right in the pic with white connector.

    I'm still a ways out from installing this since I'm getting a 3d printed plate with three short spots and will use the shorter switch style mic.







    hwntaco20 likes this.
  11. Dec 29, 2021 at 12:21 PM
    #71
    Alamo72

    Alamo72 Well-Known Member

    Joined:
    Jun 17, 2020
    Member:
    #331672
    Messages:
    205
    Vehicle:
    2020 Tacoma SW TRD OR DCSB Tech & Prem+LED
    Mostly Stock

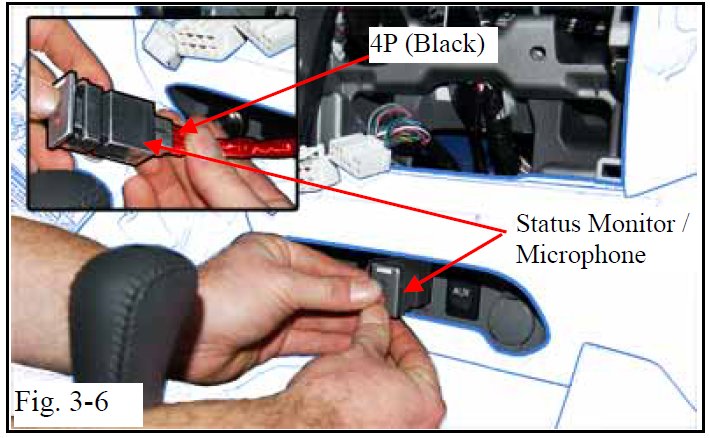

    Previously posted this in another thread. I also enhanced my factory alarm by installing the PT398-35160 GBS. Disconnect the negative terminal on the battery first. Need: small flat head screwdriver for sensitivity adjustments, 10mm deep socket, nylon pry tool, cutter for zip ties and 1 or 2 flashlights. Perfect opportunity to add dielectric grease to battery terminal to prevent corrosion.

    You only have to make 3 connection’s, after you plug the sound sensor and the GBS module in. I needed to set my sensitivity level to 10. (The range is 1-11.) Bang on the truck, not triggered. My son parked next to me and revved his V8 GT to the limiter (Roush exhaust) and alarm never triggered. Just barely tap on windshield or any side windows with any object and the alarm is instantly triggered. Very pleased;)

    FireMedk, Grossomotto and hwntaco20 like this.
  12. Dec 29, 2021 at 1:17 PM
    #72
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    932
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.
    Thanks for the info. Now I can plan ahead when I do the install.

    mabupa likes this.
  13. Dec 29, 2021 at 9:28 PM
    #73
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT

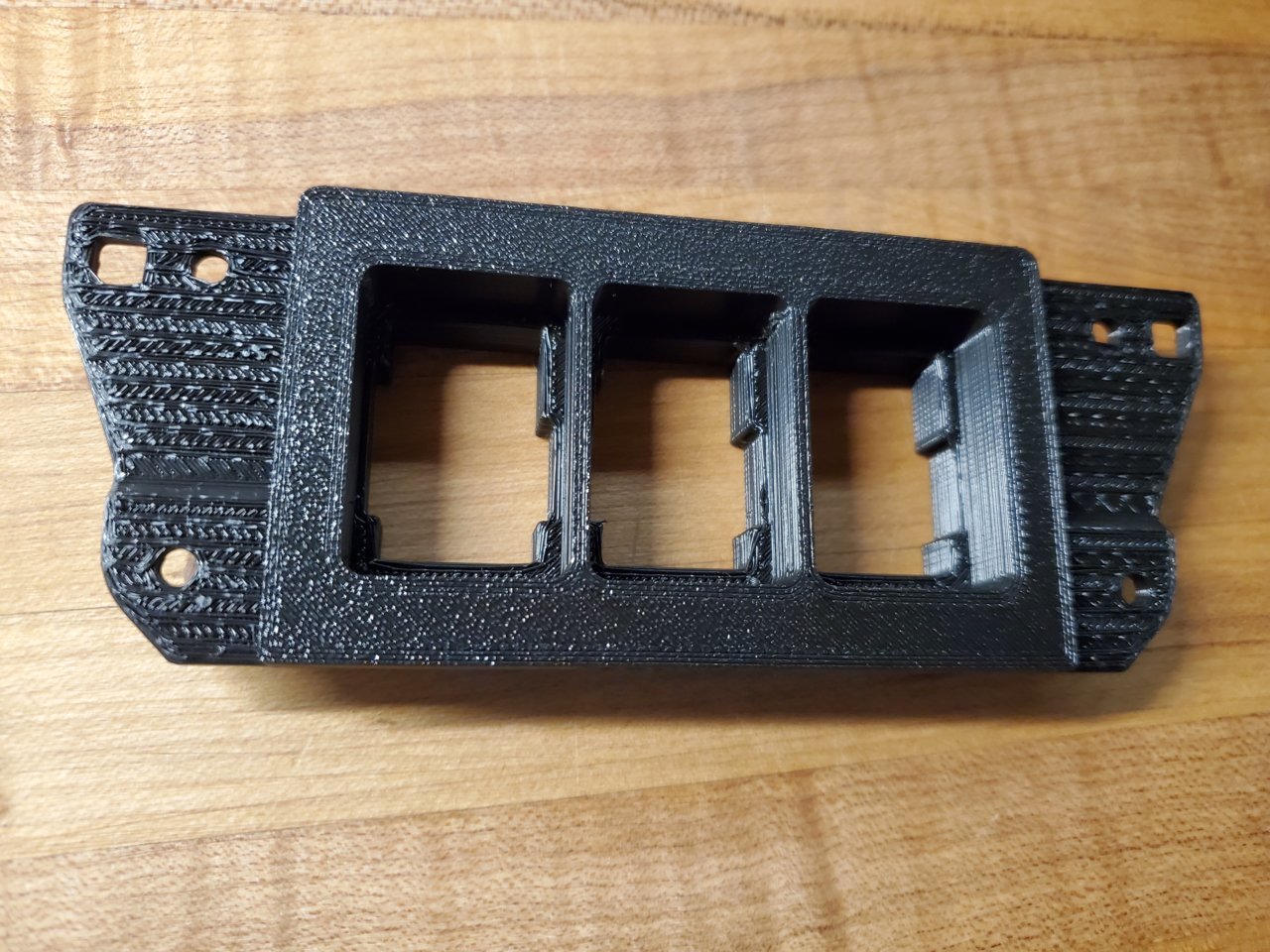

    This may be the most comprehensive install on TW, very easy, all good stuff. Just got this from Etsy for $25 (and will smooth out, primer, paint) and install the the whole kit in the next few days or weeks.


  14. Dec 30, 2021 at 1:41 AM
    #74
    2020SilverSky

    2020SilverSky Active Member

    Joined:
    Apr 13, 2020
    Member:
    #324683
    Messages:
    33
    Gender:
    Male
    Seattle. WA
    Vehicle:
    2020 TRD Off Road 4WD 6MT
    Thanks for the pics, the smaller sensor/mic looks pretty clean. I'll go ahead and order now that I've seen it. The unused pins have got to be for the LED, I'll see if I can tap into the existing security light in the center dash so both LEDs would illuminate together. Probably overkill, but if the LED is there might as well hook it up.

    Grossomotto likes this.
  15. Dec 30, 2021 at 1:01 PM
    #75
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    932
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.
    I would also be interested in hooking up the LED. That would just complete the install and make it more oem looking.

  16. Dec 30, 2021 at 2:39 PM
    #76
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,995
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

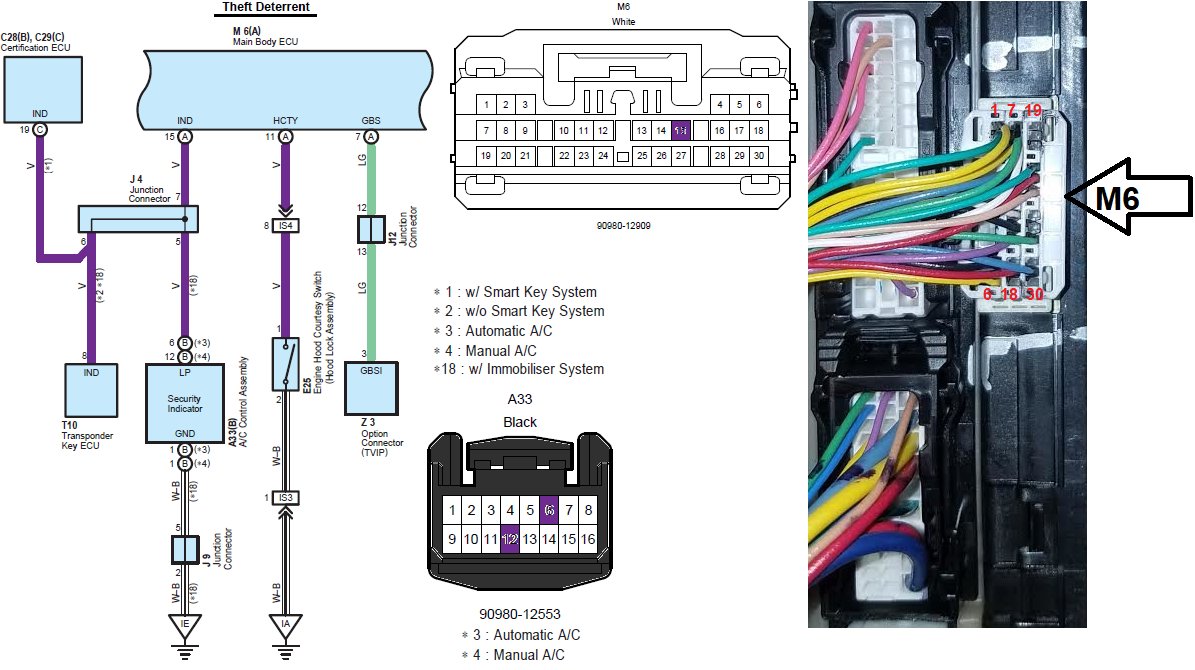

    2 easy/accessible locations:
    M6 or A33

    Last edited: Dec 30, 2021
    2020SilverSky and mabupa like this.
  17. Jan 14, 2022 at 5:58 PM
    #77
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,992
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
  18. Jan 19, 2022 at 5:57 PM
    #78
    TRD Larry

    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    932
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod.TRD Pro Rigid fog lights.
    Wonder if anyone on the forum can make a plug n play harness to extend the connection.

    Grossomotto likes this.
  19. Jan 19, 2022 at 6:09 PM
    #79
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,995
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I don't, but maybe @Grossomotto might be able to check the part number for the connector.

    baldbeardedtaco and Grossomotto like this.
  20. Jan 19, 2022 at 6:11 PM
    #80
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,113
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    You could pull back the foam and splice/crimp an extension of the two wires.
