OEM Glass Breakage Sensor Installation

Discussion in '3rd Gen. Tacomas (2016-2023)' started by OnHartung'sRoad, Sep 18, 2021.

Page 5 of 14
  1. Jan 19, 2022 at 6:14 PM
    #81
    Grossomotto

    #81
    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,430
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    In post #70 above the pics are 2nd and 5th showing the back of the mics and the connection that goes to it. I'm not sure the wired connection has an actual part number.


    Grossomotto, Jan 19, 2022
    #81
    baldbeardedtaco[QUOTED] likes this.
  2. Jan 19, 2022 at 9:11 PM
    #82
    baldbeardedtaco

    #82
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,304
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    No pt# in pic 5. That’s what I meant or was getting after when asking about a diagram (sometimes his diagrams have pt# next to the connectors). I’m not there where I can look at a connector and have an idea of brand etc to comb through and compare that pic with like some. No worries about the wires or harness just to see if I can find the matching pair for a pnp extension.

    edit: I keep saying part number but to clarify not of the switch itself the numbers that are on the actual connector

    baldbeardedtaco, Jan 19, 2022
    #82
  3. Jan 19, 2022 at 10:55 PM
    #83
    2020SilverSky

    #83
    2020SilverSky Well-Known Member

    Joined:
    Apr 13, 2020
    Member:
    #324683
    Messages:
    112
    Gender:
    Male
    Seattle. WA
    Vehicle:
    2020 TRD Off Road 4WD 6MT

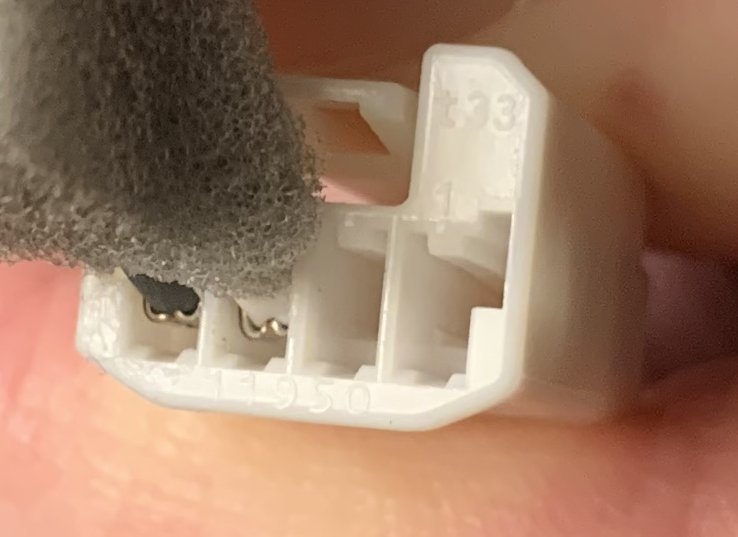

    The connector that plugs into the microphone sensor does have some numbers on it: 11950 and t33. That's all I can make out... the numbers are tiny.


    Last edited: Jan 19, 2022
    2020SilverSky, Jan 19, 2022
    #83
    Grossomotto likes this.
  4. Jan 19, 2022 at 11:24 PM
    #84
    mutely

    #84
    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,848
    Vehicle:
    TRD Pro in metallic primer
    It doesn’t really. First it’s a quick way to tell if the vehicle has a factory alarm or not, second (this is an assumption) since there are sometimes limited trigger circuits on alarms, this may tie into the hood trigger circuit. I seem to remember something in the instructions about checking for a loop back connector in that area of the hood, and they supply one in the kit if you don’t have one installed. So if this does infact tie into the hood trigger circuit and that loop back wasn’t connected it would always read an open circuit, therefor never triggering the alarm.

    mutely, Jan 19, 2022
    #84
    Barsoom likes this.
  5. Jan 20, 2022 at 6:19 AM
    #85
    Barsoom

    #85
    Barsoom Well-Known Member

    Joined:
    Jun 17, 2021
    Member:
    #368854
    Messages:
    1,766
    Gender:
    Male
    NW GA OTP
    I am looking at the install instructions, putting the hood Jumper Connector is easy. Why do most people bypass that step?

    Barsoom, Jan 20, 2022
    #85
  6. Jan 20, 2022 at 8:15 AM
    #86
    mabupa

    #86
    mabupa Well-Known Member

    Joined:
    Mar 22, 2021
    Member:
    #360239
    Messages:
    220
    Gender:
    Male
    First Name:
    Miguel
    Vehicle:
    2021 trd off-road 6 speed manual
    My 2021 Off-road has the actual hood latch switch, so installing the jumper would have been a downgrade. The way mine is now, if someone pops the hood, the alarm goes off.

    mabupa, Jan 20, 2022
    #86
    Barsoom[QUOTED] likes this.
  7. Jan 20, 2022 at 8:17 AM
    #87
    Barsoom

    #87
    Barsoom Well-Known Member

    Joined:
    Jun 17, 2021
    Member:
    #368854
    Messages:
    1,766
    Gender:
    Male
    NW GA OTP
    Ahhh. Makes sense, thank you.

    Barsoom, Jan 20, 2022
    #87
  8. Jan 20, 2022 at 8:44 AM
    #88
    6MTPro

    #88
    6MTPro Well-Known Member

    Joined:
    Apr 22, 2019
    Member:
    #290940
    Messages:
    1,467
    HI -> CA
    Vehicle:
    2018 TRD Pro 6MT | 2004 4Runner 4.7 V8
    Tune, 285/75/16, Diode Dynamics, PPF, Bakflip Mx4, Meso, Cali Raised, TJM

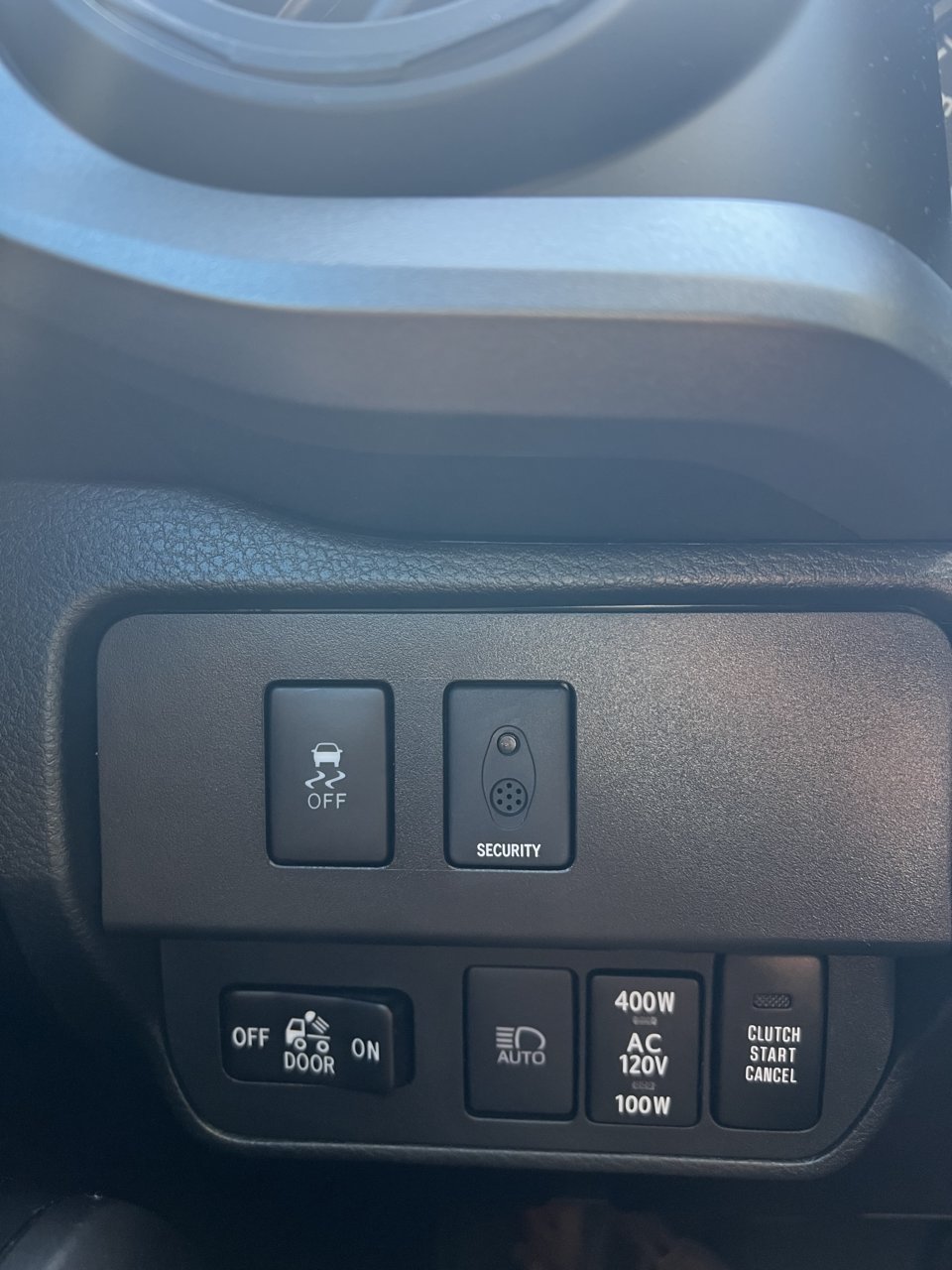

    wonder how it would work for manuals since thats where the clutch start cancel button is.

    6MTPro, Jan 20, 2022
    #88
  9. Jan 20, 2022 at 8:53 AM
    #89
    Grossomotto

    #89
    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,430
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    Grossomotto, Jan 20, 2022
    #89
    NorrinRadd and 6MTPro[QUOTED] like this.
  10. Jan 20, 2022 at 10:53 AM
    #90
    mabupa

    #90
    mabupa Well-Known Member

    Joined:
    Mar 22, 2021
    Member:
    #360239
    Messages:
    220
    Gender:
    Male
    First Name:
    Miguel
    Vehicle:
    2021 trd off-road 6 speed manual
    Has been discussed above, but some of us have ordered the short “mic” version for our manuals.


    mabupa, Jan 20, 2022
    #90
    Bad-Dawg, 2020SilverSky, 6MTPro[QUOTED] and 1 other person like this.
  11. Jan 20, 2022 at 3:19 PM
    #91
    6MTPro

    #91
    6MTPro Well-Known Member

    Joined:
    Apr 22, 2019
    Member:
    #290940
    Messages:
    1,467
    HI -> CA
    Vehicle:
    2018 TRD Pro 6MT | 2004 4Runner 4.7 V8
    Tune, 285/75/16, Diode Dynamics, PPF, Bakflip Mx4, Meso, Cali Raised, TJM
    Good to know. I already have that spot taken with a light bar switch and meso puddle light switch.

    6MTPro, Jan 20, 2022
    #91
  12. Jan 20, 2022 at 3:48 PM
    #92
    caribe makaira

    #92
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,724
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    https://www.hi-1000ec.com/

    @baldbeardedtaco

    Last edited: Jan 20, 2022
    caribe makaira, Jan 20, 2022
    #92
    Bad-Dawg, baldbeardedtaco, Grossomotto and 1 other person like this.
  13. Jan 20, 2022 at 4:44 PM
    #93
    TRD Larry

    #93
    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    1,054
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod. TRD Pro Rigid fog lights.Door edge guards. TRD Pro shift knob with Boomer's TRD LED light (Red for security, blue for interior), Glass Break Sensor, sensor with LED light tied into the security LED light, OEM LED Headlights, Sequential LED Turn Signals.
    That’s what I ordered. The short ‘mic’ version from McGeorge Toyota. Should have it this week.

    TRD Larry, Jan 20, 2022
    #93
  14. Jan 21, 2022 at 4:32 PM
    #94
    baldbeardedtaco

    #94
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,304
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM

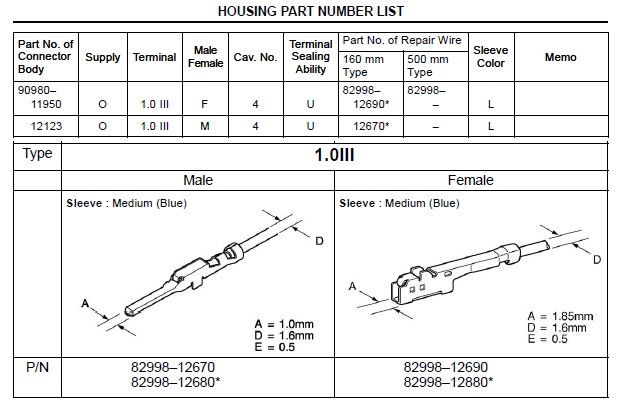

    baldbeardedtaco, Jan 21, 2022
    #94
  15. Jan 21, 2022 at 5:02 PM
    #95
    caribe makaira

    #95
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,724
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Last edited: Jan 21, 2022
    caribe makaira, Jan 21, 2022
    #95
    Bad-Dawg and baldbeardedtaco[QUOTED] like this.
  16. Jan 21, 2022 at 5:39 PM
    #96
    baldbeardedtaco

    #96
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,304
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM

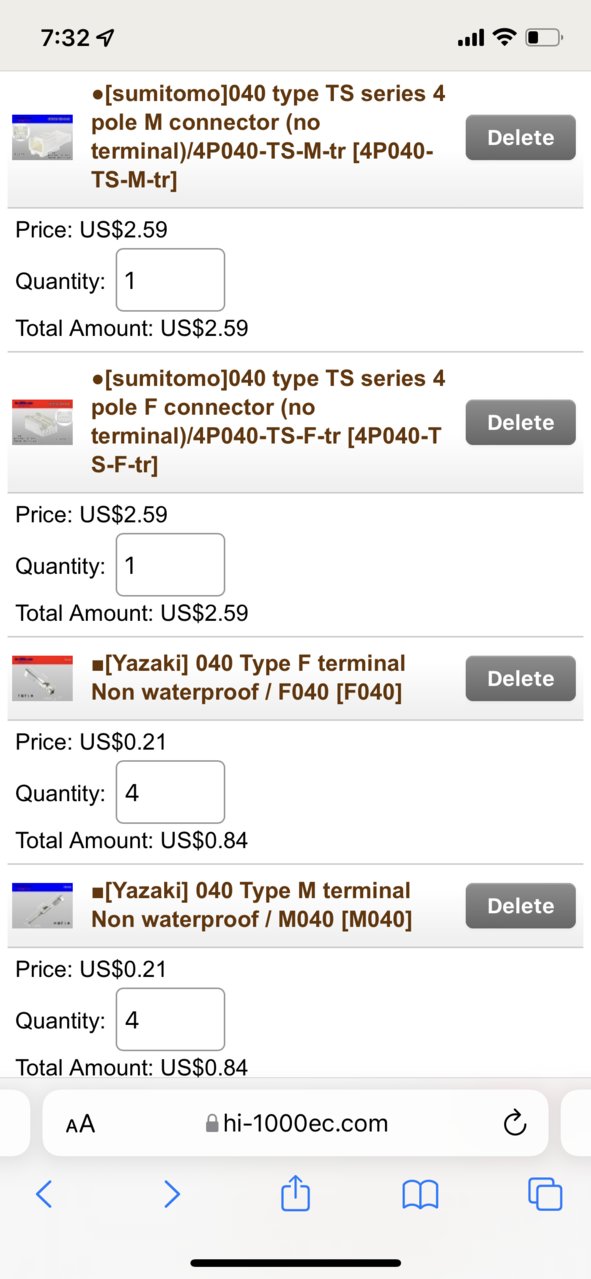

    I think I found them here- the different names are throwing me off though sumi and yaz. Yay or nay?

    Hi1000 has a flat rate min. 20

    corsa didn’t have anything and the only other place I found some were easternbeaver (moto site) which has a 10$ min. Ship small packet or 15$ for fedex. I’ll likely buy from hi1000 since I have before and had no issues.

    baldbeardedtaco, Jan 21, 2022
    #96
  17. Jan 21, 2022 at 5:40 PM
    #97
    baldbeardedtaco

    #97
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,304
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    baldbeardedtaco, Jan 21, 2022
    #97
  18. Jan 21, 2022 at 5:49 PM
    #98
    caribe makaira

    #98
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,724
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yay.
    Order enough to sell and recover:burp:

    caribe makaira, Jan 21, 2022
    #98
    baldbeardedtaco[QUOTED] likes this.
  19. Jan 21, 2022 at 5:57 PM
    #99
    baldbeardedtaco

    #99
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,304
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I think I might already have some of those m/f terminals from a past purchase but your right better to have more than screw up a crimp and not enough. I might get a few extra connectors if anyone speaks up now that I can put together but not sure I want to add to all the pnp makers out there now for such a small demand.

    baldbeardedtaco, Jan 21, 2022
    #99
  20. Jan 21, 2022 at 6:00 PM
    #100
    baldbeardedtaco

    #100
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,304
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Technically only 2 m/f terminals are needed for the original gbs harness right? unless we can find a pnp add on for the led switch light

    baldbeardedtaco, Jan 21, 2022
    #100
