Discussion in '3rd Gen. Tacomas (2016-2023)' started by Guccitaco, Dec 29, 2019.

Page 13 of 16
  1. Oct 5, 2020 at 11:19 AM
    #241
    Gfrancisco

    #241
    Gfrancisco Well-Known Member

    Joined:
    Mar 10, 2020
    Member:
    #321801
    Messages:
    119
    Gender:
    Male
    Vehicle:
    2020 TRD OR ACLB
    Lol I may need a little more :anonymous:
    What am I looking for? What does the relay look like?

    Gfrancisco, Oct 5, 2020
    #241
  2. Oct 5, 2020 at 11:21 AM
    #242
    mysubiewasalemon

    #242
    mysubiewasalemon Well-Known Member

    Joined:
    Oct 18, 2018
    Member:
    #269886
    Messages:
    2,466
    Gender:
    Male

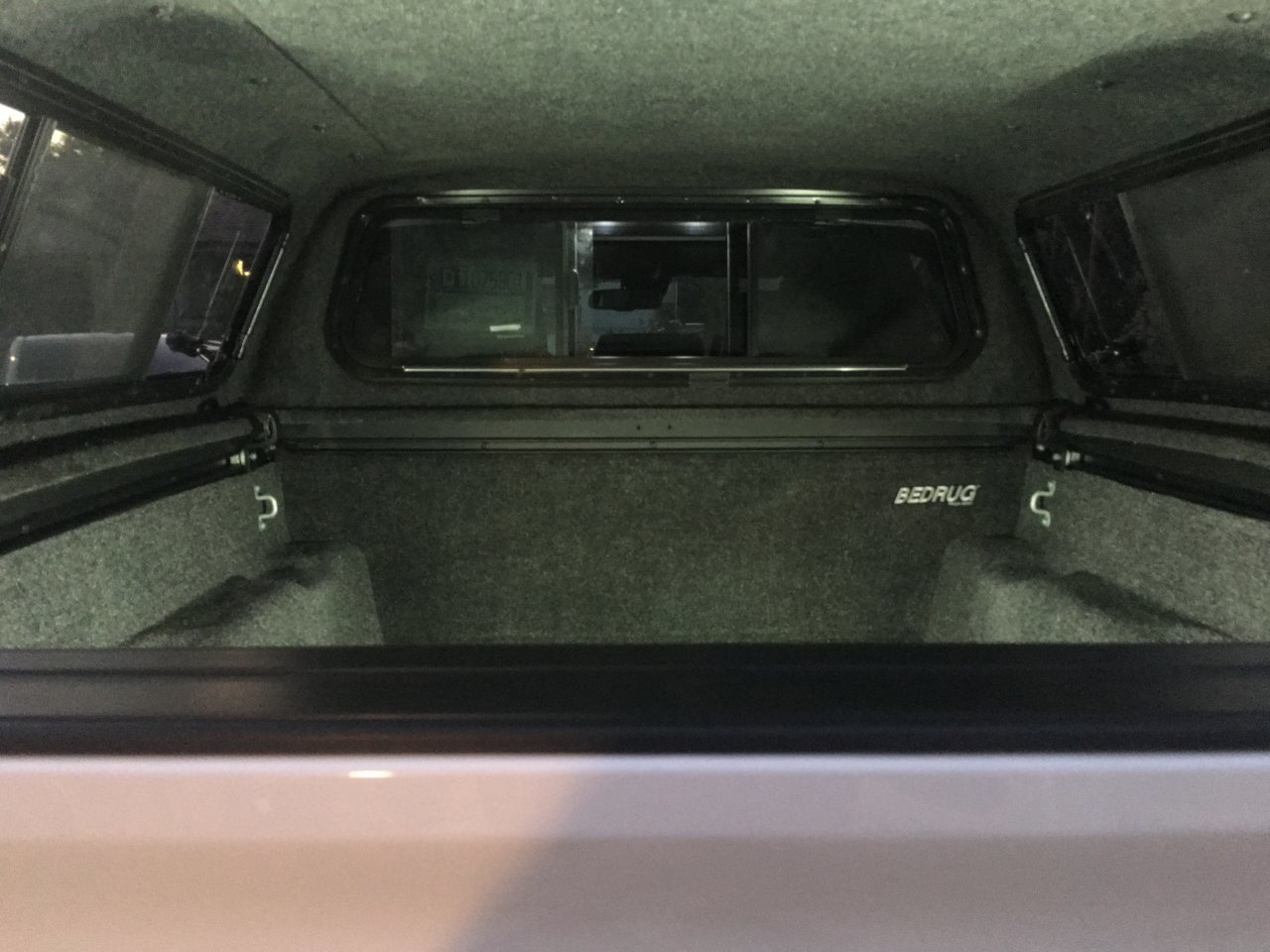

    3EF06699-6C09-42A8-AF98-B9D559177ECD.jpg Bedrug+shell+led bed light = perfect :thumbsup:

    mysubiewasalemon, Oct 5, 2020
    #242
  3. Oct 5, 2020 at 11:23 AM
    #243
    OldGregg

    #243
    OldGregg Well-Known Member

    Joined:
    May 30, 2020
    Member:
    #329882
    Messages:
    169
    Gender:
    Male
    New Mexico
    Vehicle:
    2021 TRD OR Access Cab Cement
    OldGregg, Oct 5, 2020
    #243
    Goatfrog likes this.
  4. Oct 5, 2020 at 11:23 AM
    #244
    Goatfrog

    #244
    Goatfrog Well-Known Member

    Joined:
    Jul 7, 2020
    Member:
    #333710
    Messages:
    879
    Gender:
    Male
    First Name:
    Bill
    Pittsburgh, PA
    Vehicle:
    2020 Red DCLB TRD Off Road
    Reference this post for more info on location.

    Goatfrog, Oct 5, 2020
    #244
    OldGregg likes this.
  5. Oct 5, 2020 at 11:24 AM
    #245
    OldGregg

    #245
    OldGregg Well-Known Member

    Joined:
    May 30, 2020
    Member:
    #329882
    Messages:
    169
    Gender:
    Male
    New Mexico
    Vehicle:
    2021 TRD OR Access Cab Cement
    great minds think alike!

    OldGregg, Oct 5, 2020
    #245
  6. Oct 5, 2020 at 11:25 AM
    #246
    Goatfrog

    #246
    Goatfrog Well-Known Member

    Joined:
    Jul 7, 2020
    Member:
    #333710
    Messages:
    879
    Gender:
    Male
    First Name:
    Bill
    Pittsburgh, PA
    Vehicle:
    2020 Red DCLB TRD Off Road
    Very true :thumbsup: they also read the entire thread :D

    Goatfrog, Oct 5, 2020
    #246
    OldGregg[QUOTED] likes this.
  7. Oct 5, 2020 at 11:28 AM
    #247
    DMZ

    #247
    DMZ Having no destination, I am never lost.

    Joined:
    Sep 24, 2010
    Member:
    #43752
    Messages:
    150
    Gender:
    Male
    First Name:
    David
    North Carolina
    Vehicle:
    '04 Xtra Cab 4x4, 2020 AC MT 4x4
    Yup. Interestingly enough, when I removed the panel, I discovered I had three of the relays already installed. I was tempted to plug the relay I purchased into the last socket just because, but decided to "let sleeping dogs lie" on this one and left it empty.

    Last edited: Oct 5, 2020
    DMZ, Oct 5, 2020
    #247
  8. Oct 5, 2020 at 11:47 AM
    #248
    Gfrancisco

    #248
    Gfrancisco Well-Known Member

    Joined:
    Mar 10, 2020
    Member:
    #321801
    Messages:
    119
    Gender:
    Male
    Vehicle:
    2020 TRD OR ACLB

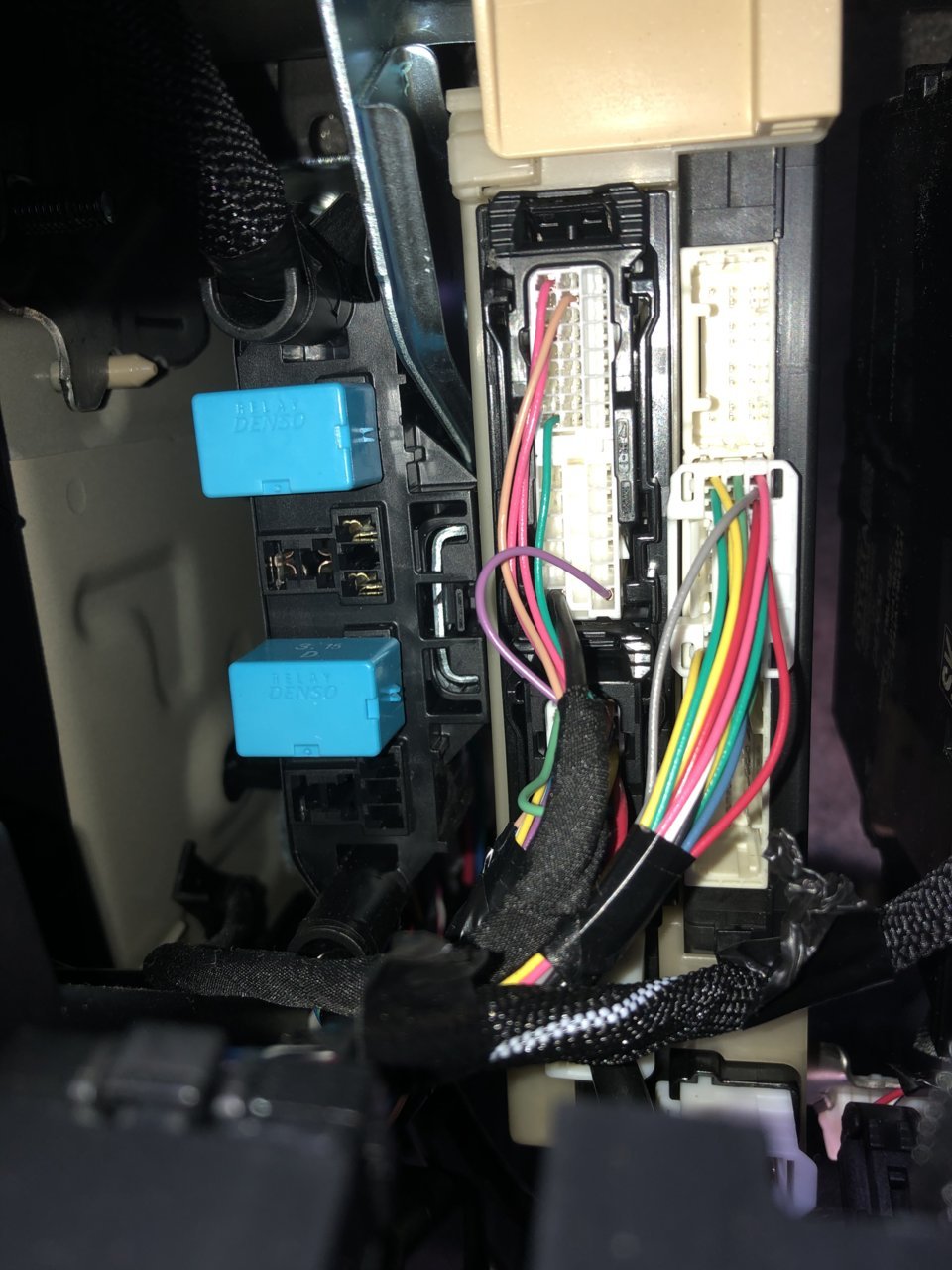

    So I just removed the panel to check if I need to buy a relay... it seems like there’s another relay installed already, anybody know what that is for?
    And just to clarify from the attached pic, do I need to purchase another relay?


    Gfrancisco, Oct 5, 2020
    #248
  9. Oct 5, 2020 at 12:13 PM
    #249
    Goatfrog

    #249
    Goatfrog Well-Known Member

    Joined:
    Jul 7, 2020
    Member:
    #333710
    Messages:
    879
    Gender:
    Male
    First Name:
    Bill
    Pittsburgh, PA
    Vehicle:
    2020 Red DCLB TRD Off Road

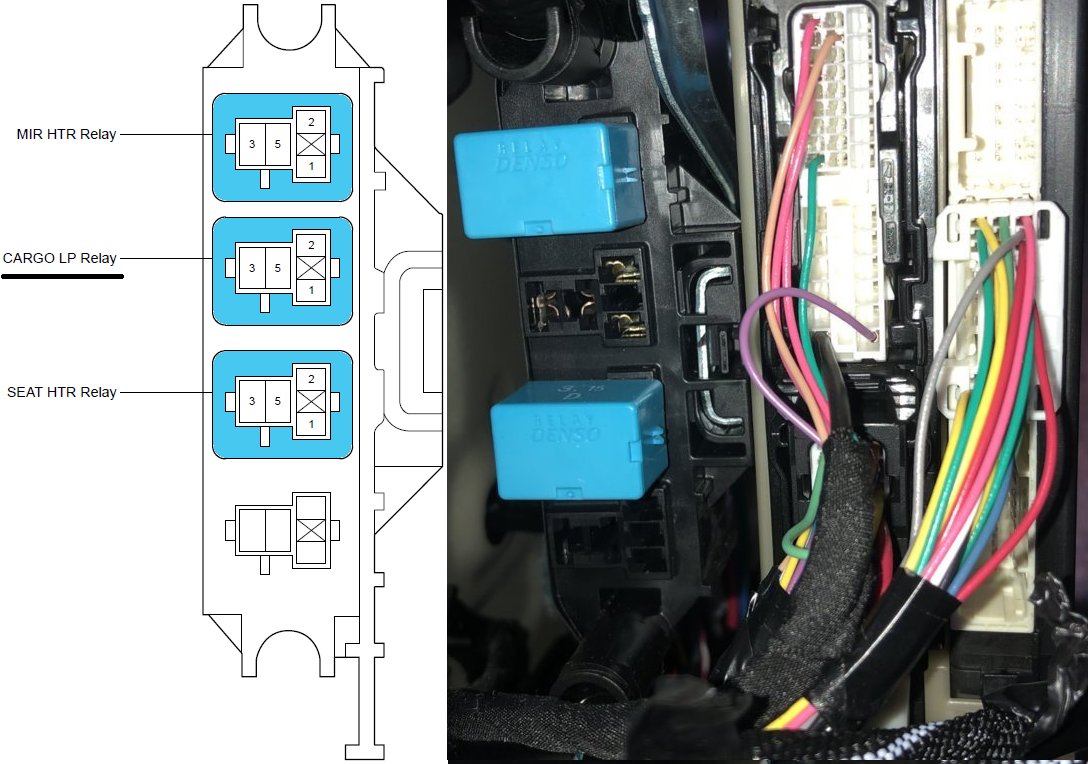

    Reference this post for relay info. Looks like third relay is for heated seats.
    Yes you need to purchase another relay.

    Goatfrog, Oct 5, 2020
    #249
    Gfrancisco likes this.
  10. Oct 5, 2020 at 2:45 PM
    #250
    caribe makaira

    #250
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,796
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, Oct 5, 2020
    #250
    Gus, OldGregg, STrooper and 1 other person like this.
  11. Oct 5, 2020 at 4:32 PM
    #251
    darryl z

    #251
    darryl z New Member

    Joined:
    Sep 29, 2020
    Member:
    #342306
    Messages:
    2
    Gender:
    Male
    First Name:
    darryl
    Vehicle:
    2020 Tacoma SR 4x4
    When you pull the panel on the dash to plug in the switch you can see the light blue relays plugged in on the firewall. I just did my SR and the relay was already there

    darryl z, Oct 5, 2020
    #251
  12. Oct 18, 2020 at 6:28 PM
    #252
    Homiec

    #252
    Homiec Well-Known Member

    Joined:
    Dec 13, 2019
    Member:
    #313204
    Messages:
    312
    Vehicle:
    2020 TRD Sport Access Cab 4X4 MT
    Maybe OBE now but here's the Toyota instructions for the bed light kit for 2020 Tacoma. Has part numbers too.


    Attached Files:

    Homiec, Oct 18, 2020
    #252
  13. Oct 23, 2020 at 4:26 PM
    #253
    Atom

    #253
    Atom Well-Known Member

    Joined:
    Aug 27, 2020
    Member:
    #338955
    Messages:
    67
    Gender:
    Male
    Vermont
    Vehicle:
    2020 ACLB Cement

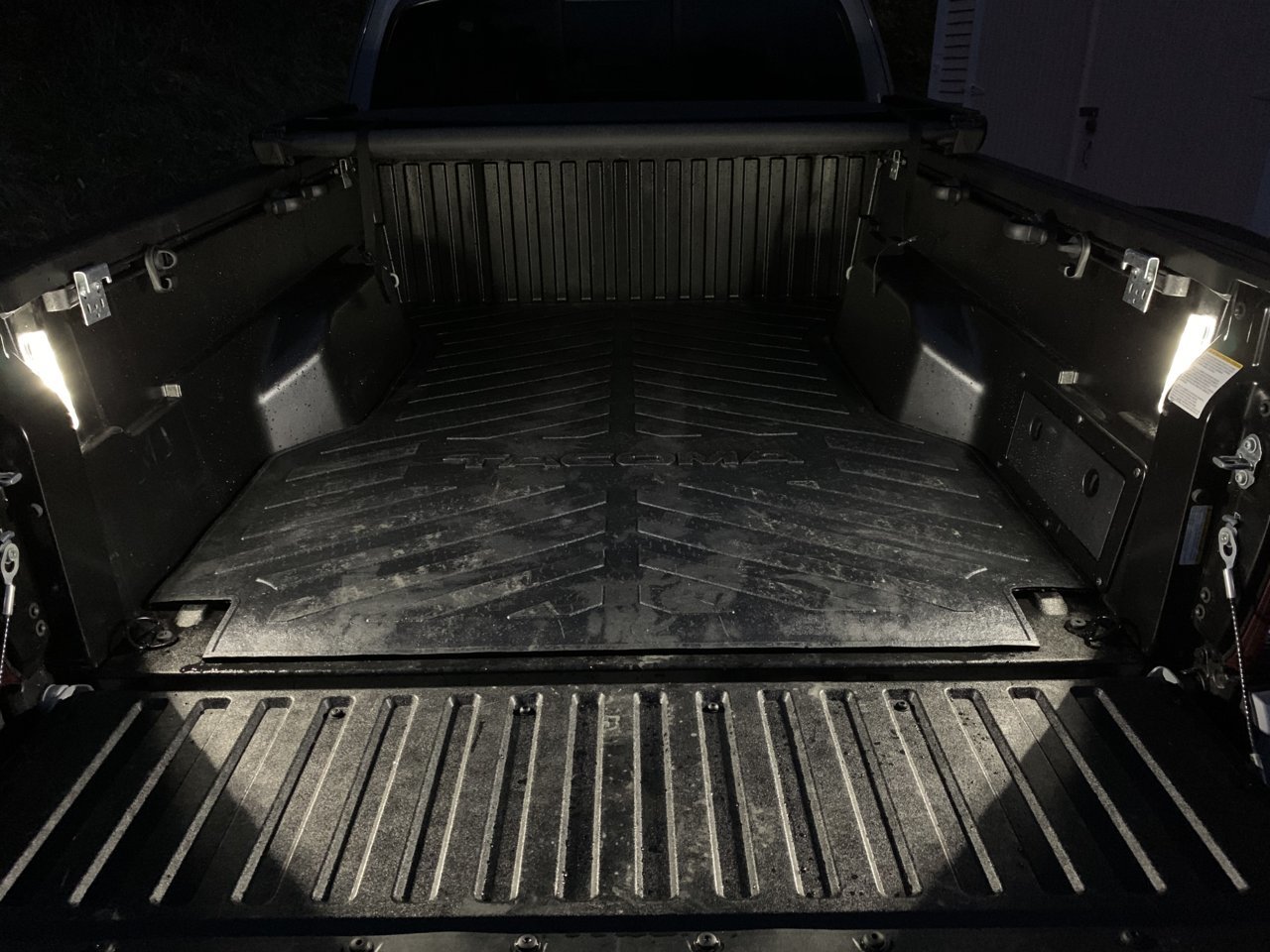

    Just installed on my 2020 AC SR5. Everything was already wired, relay was already there. Just added switch and lighting kit. Costco gave me a 50% coupon towards any parts from the dealership I bought the truck from. Saved me over $200! Bought a bed mat, RAV4 radio knobs to swap out of my taco, some bed rail hooks (you can see them in the photo) and the bed light kit

    Atom, Oct 23, 2020
    #253
  14. Dec 21, 2020 at 8:40 AM
    #254
    tgregory6852

    #254
    tgregory6852 Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    41
    Gender:
    Male
    Upstate New York
    Vehicle:
    2023 Tacoma Access Cab, SR

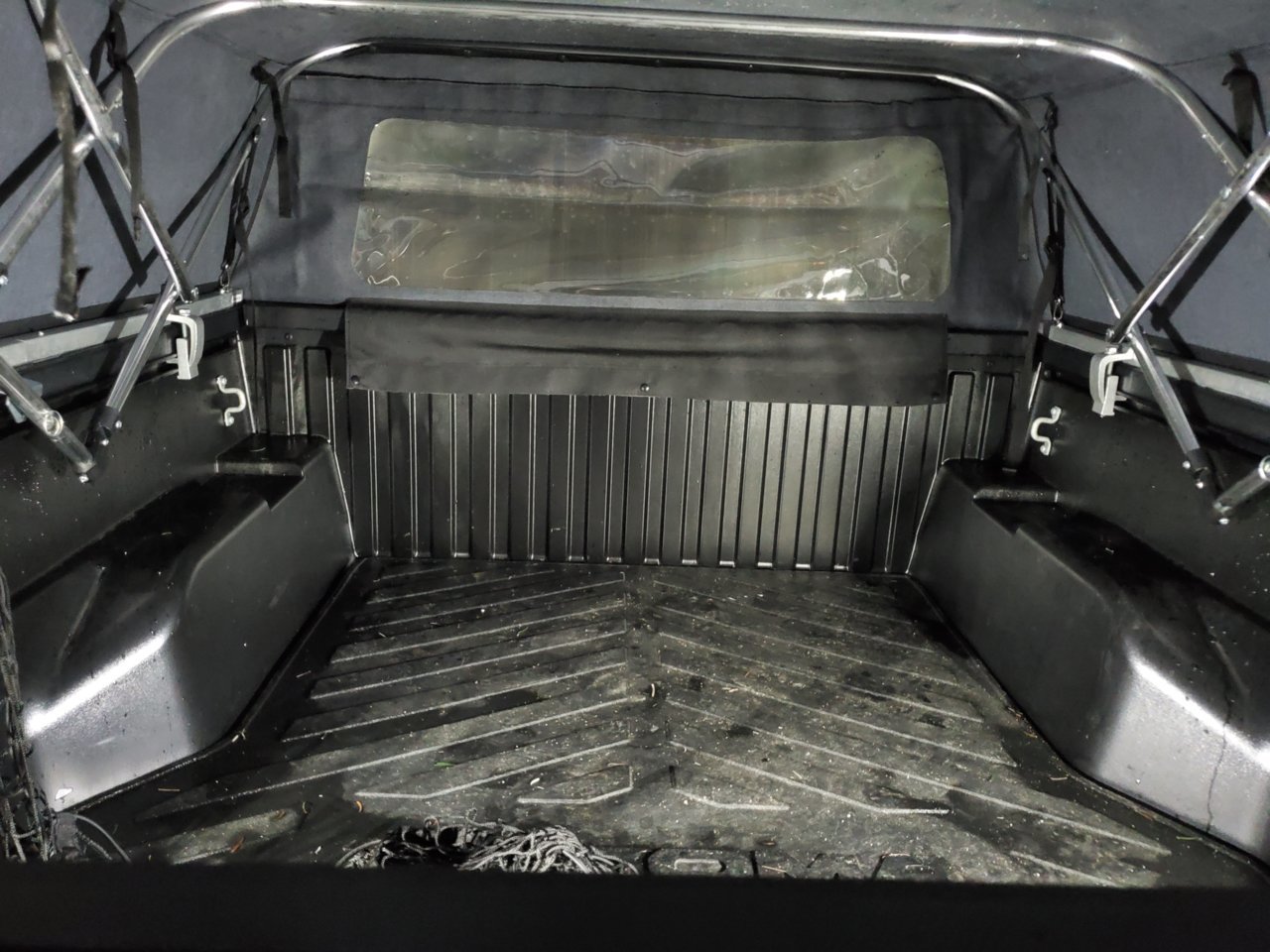

    Dealer under coating. OEM Tacoma bed mat, Weather tech mud flaps and Window Deflectors. Also added bed lights and switch.
    Gents, where did you find the harness for this? I can’t seem to put my hands on it??
    Thanks!

    tgregory6852, Dec 21, 2020
    #254
  15. Dec 21, 2020 at 9:04 AM
    #255
    EastVan

    #255
    EastVan Well-Known Member

    Joined:
    Sep 16, 2020
    Member:
    #340986
    Messages:
    70
    Gender:
    Male
    BC, Canada
    Vehicle:
    '21 TRD Sport DCSB 6MT Voodoo Blue
    I believe for 2020+, the harness comes with the OEM light kit It did with mine), and then there is a plug in behind each of the taillights. Installed in less than 10 min yesterday. super easy.

    Be careful to not tighten the two bolts on each taillight too much, the metal clip can break the plastic housing pretty easily.

    The lights are very bright.


    EastVan, Dec 21, 2020
    #255
  16. Dec 21, 2020 at 9:47 AM
    #256
    tgregory6852

    #256
    tgregory6852 Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    41
    Gender:
    Male
    Upstate New York
    Vehicle:
    2023 Tacoma Access Cab, SR
    Dealer under coating. OEM Tacoma bed mat, Weather tech mud flaps and Window Deflectors. Also added bed lights and switch.
    Sorry. Looking for the switch harness under the dash.

    tgregory6852, Dec 21, 2020
    #256
  17. Dec 21, 2020 at 9:54 AM
    #257
    EastVan

    #257
    EastVan Well-Known Member

    Joined:
    Sep 16, 2020
    Member:
    #340986
    Messages:
    70
    Gender:
    Male
    BC, Canada
    Vehicle:
    '21 TRD Sport DCSB 6MT Voodoo Blue
    This ties into the bedlight switch that is already there for the Led on the 3rd brake light. ie - when I disarm alarm, and that led on the 3rd brake light comes on, so do the new bed lights. Are you looking to separate those out?

    EastVan, Dec 21, 2020
    #257
  18. Dec 21, 2020 at 11:24 AM
    #258
    tgregory6852

    #258
    tgregory6852 Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    41
    Gender:
    Male
    Upstate New York
    Vehicle:
    2023 Tacoma Access Cab, SR
    Dealer under coating. OEM Tacoma bed mat, Weather tech mud flaps and Window Deflectors. Also added bed lights and switch.
    No as my 2020 SR/SX didn’t come with the 3rd brake light. I don’t need it with the tonneau cover I’m using.

    tgregory6852, Dec 21, 2020
    #258
  19. Dec 21, 2020 at 1:17 PM
    #259
    EastVan

    #259
    EastVan Well-Known Member

    Joined:
    Sep 16, 2020
    Member:
    #340986
    Messages:
    70
    Gender:
    Male
    BC, Canada
    Vehicle:
    '21 TRD Sport DCSB 6MT Voodoo Blue
    Ah got it.

    EastVan, Dec 21, 2020
    #259
  20. Dec 27, 2020 at 1:41 PM
    #260
    pismo61

    #260
    pismo61 Well-Known Member

    Joined:
    May 19, 2010
    Member:
    #37420
    Messages:
    175
    Gender:
    Male
    Temecula,Ca.
    Vehicle:
    SR 4x2 auto.
    I take it this doesnt with the SRs?

    pismo61, Dec 27, 2020
    #260
